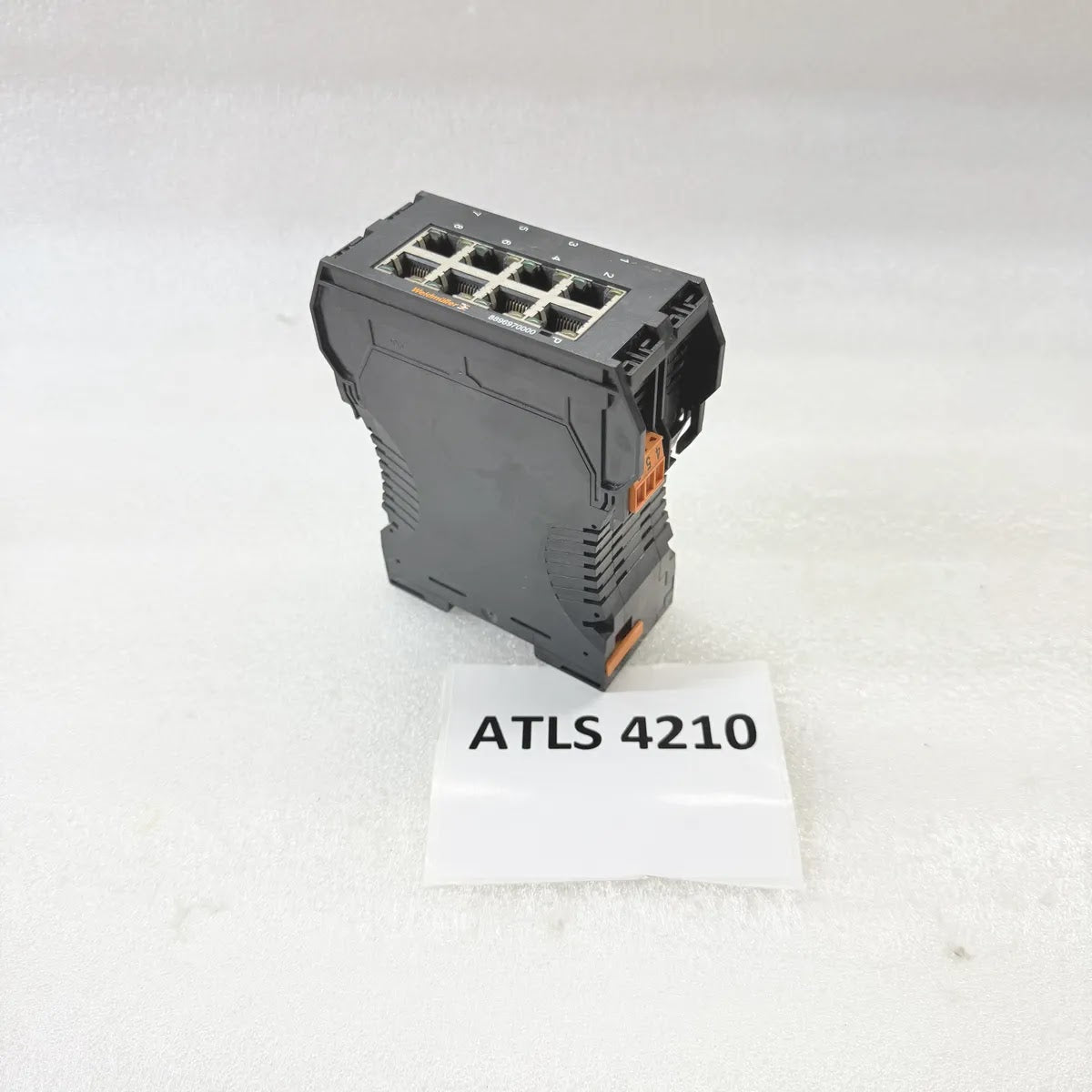

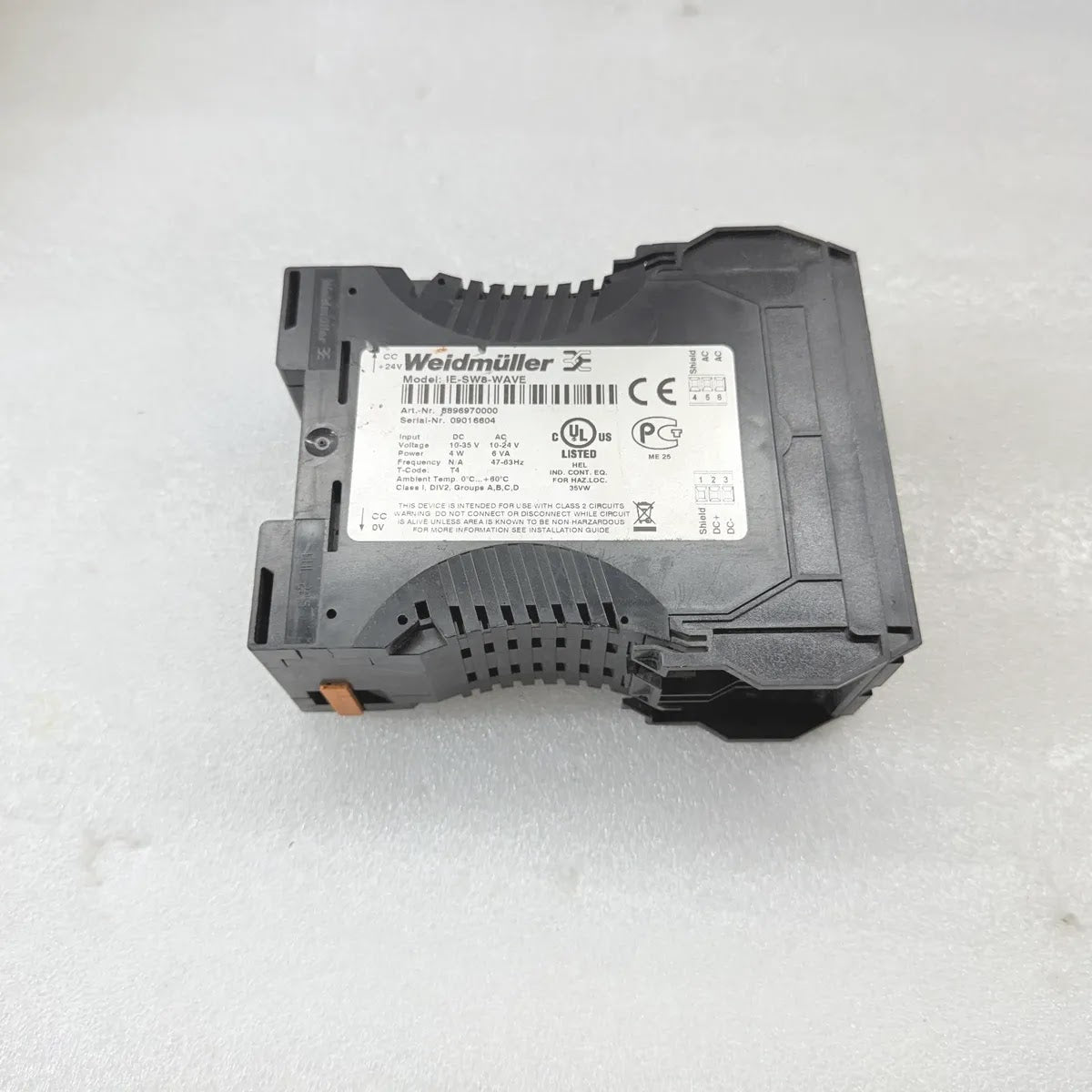

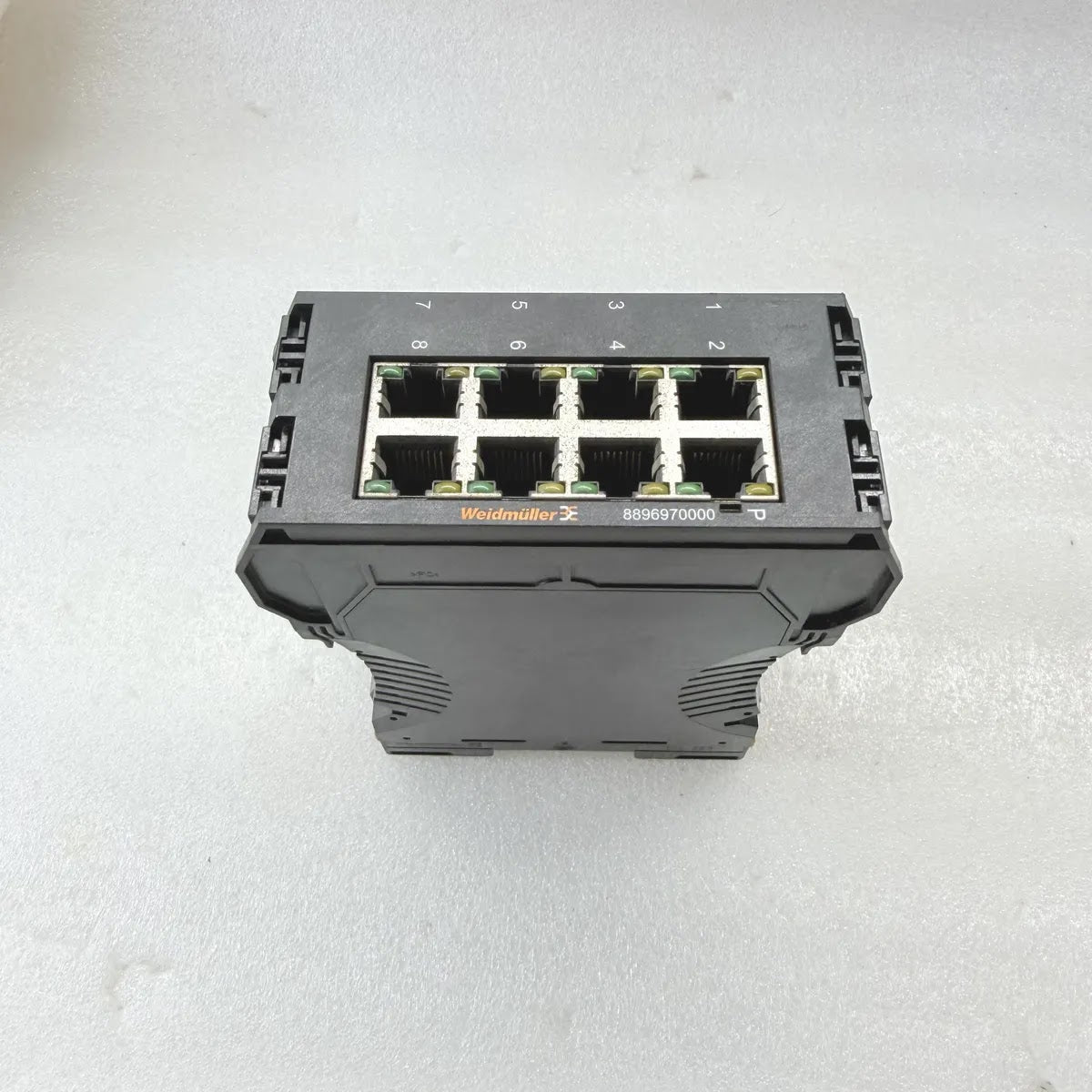

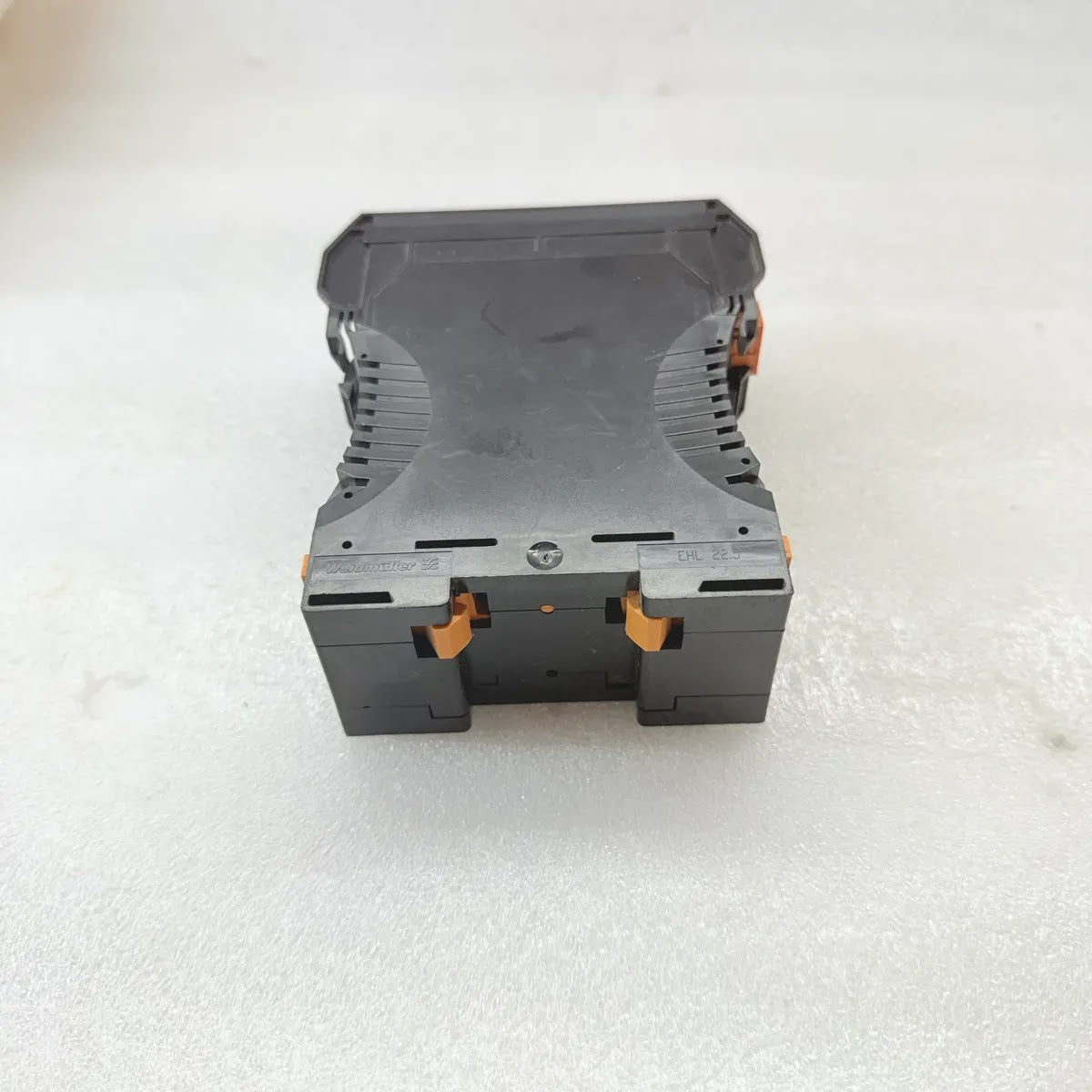

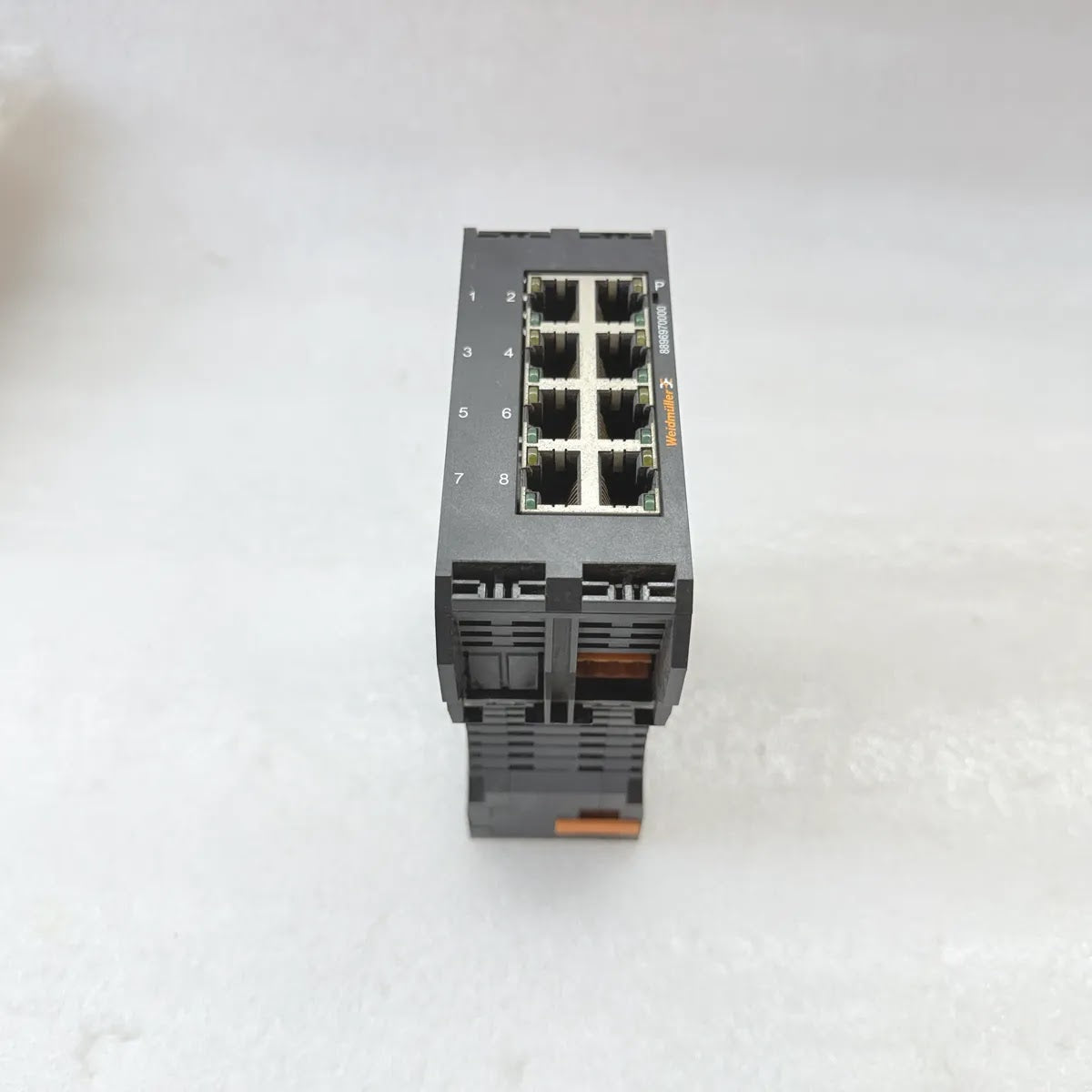

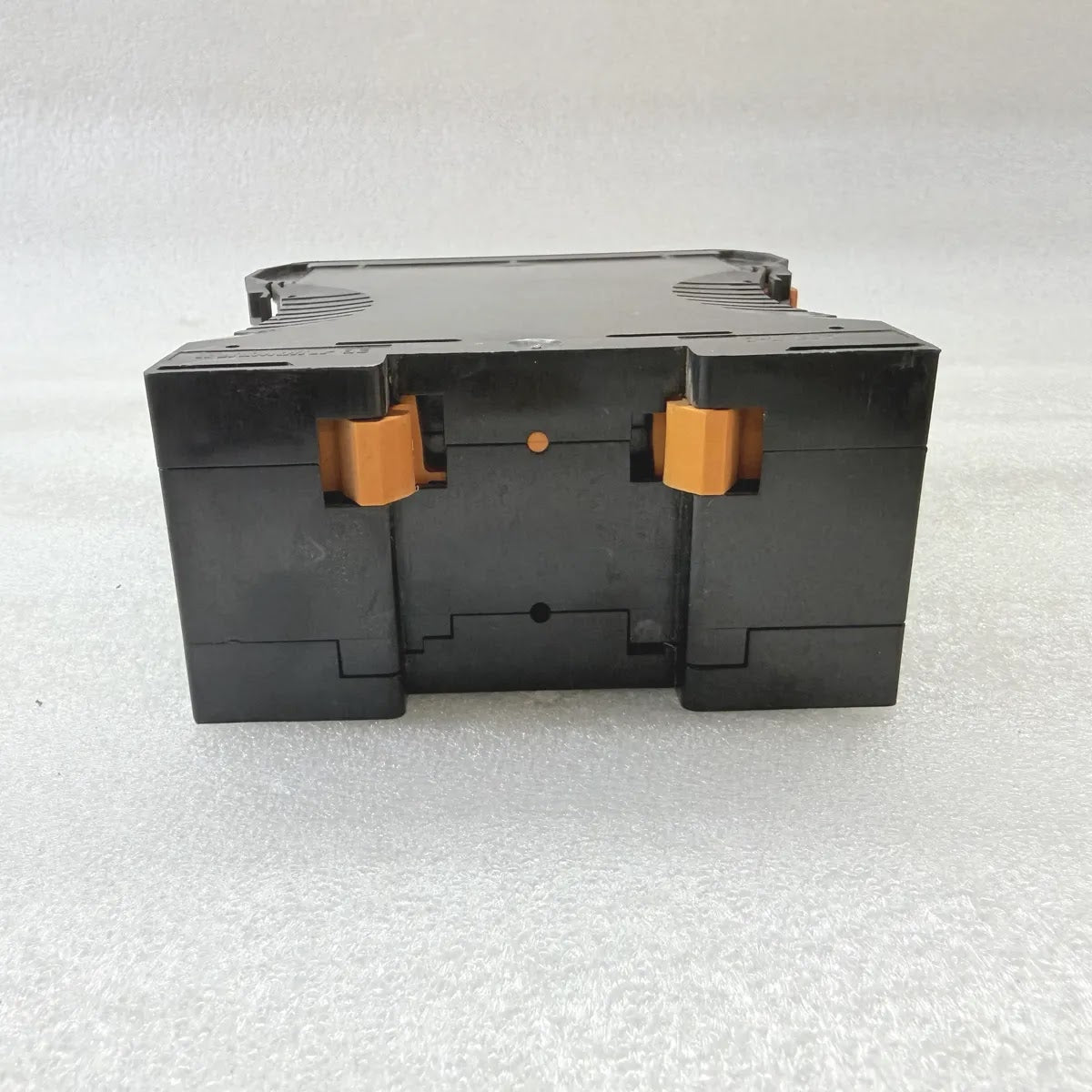

WEIDMULLER IE-SW8-WAVE 8896970000 Unmanaged Ethernet Switch 8-Port 10-35V DC
$60.00
Skip to product information
WEIDMULLER IE-SW8-WAVE 8896970000 Unmanaged Ethernet Switch 8-Port 10-35V DC
$60.00
WEIDMULLER IE-SW8-WAVE 8896970000 Unmanaged Ethernet Switch 8-Port 10-35V DC
Specifications
| Brand | Weidmüller |
| Model | IE-SW8-WAVE |
| Art.-Nr | 8896970000 |
| Type | Unmanaged industrial Fast Ethernet switch |
| Series | Wave Line |
| Number Of Ports | 8, numbered 1 to 8 |
| Transmission Rate | 10 Mbit/s / 100 Mbit/s |
| Supply Voltage | 10-35 V DC / 10-24 V AC |
| Power | 4 W (DC) / 6 VA (AC) |
| Frequency | 47-63 Hz (AC input); N/A for DC input |
| Ambient Temperature | 0 °C to +60 °C |
| Temperature Code | T4 |
| Hazardous Area Rating | Class I, DIV 2, Groups A, B, C, D |
| Application | Intended for use with Class 2 circuits; do not connect or disconnect while the circuit is live unless the area is known to be non-hazardous |
| Base | EHL 22.5 (moulded on the rear foot) |
| Dimensions | 108 mm x 45 mm x 127.8 mm (W x H x D) |
| Degree Of Protection | IP20 |
| Approvals | CE; cULus Listed; UL Listed Industrial Control Equipment for Hazardous Locations (HEL 35VW); GOST-R ME 25 |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4210 |
