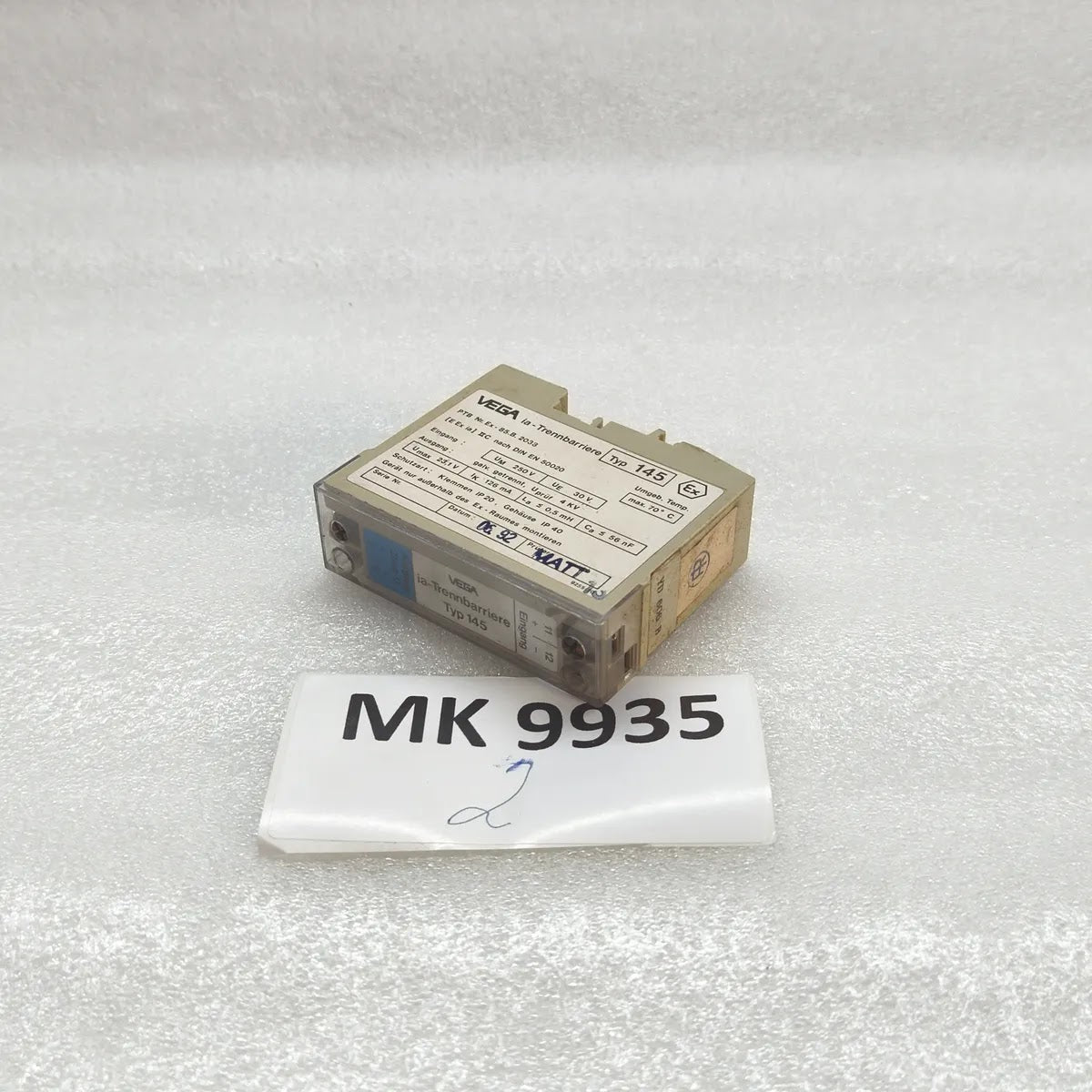

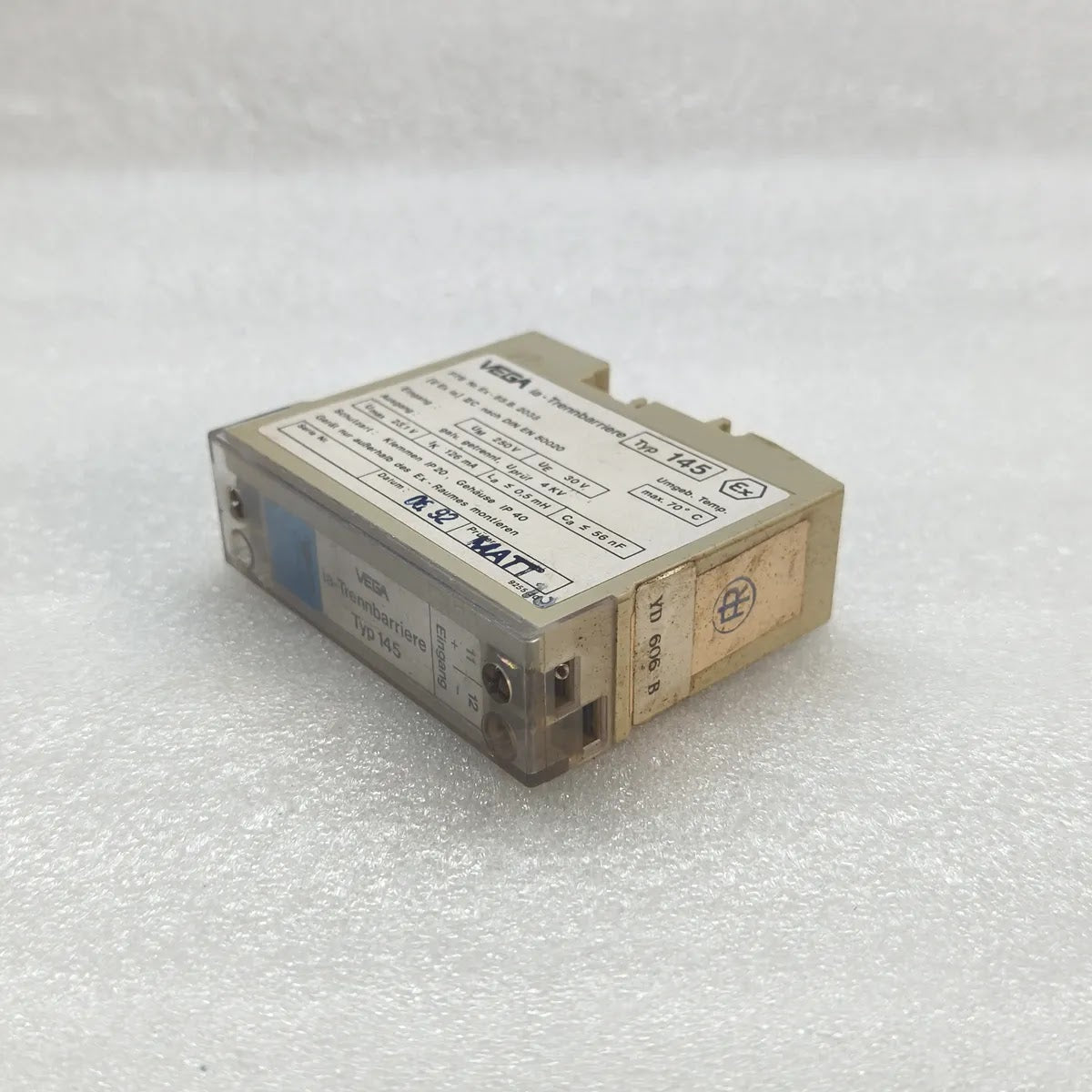

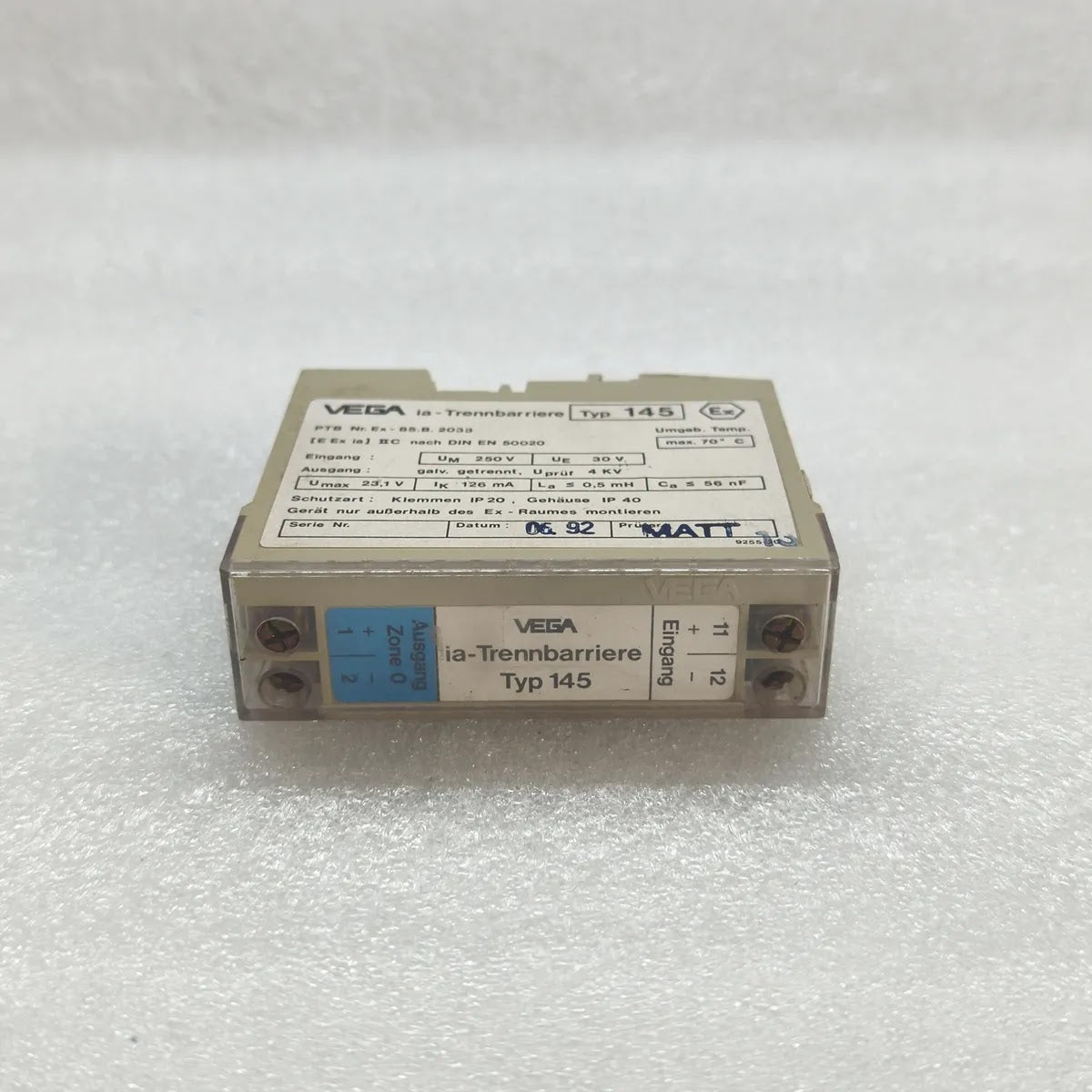

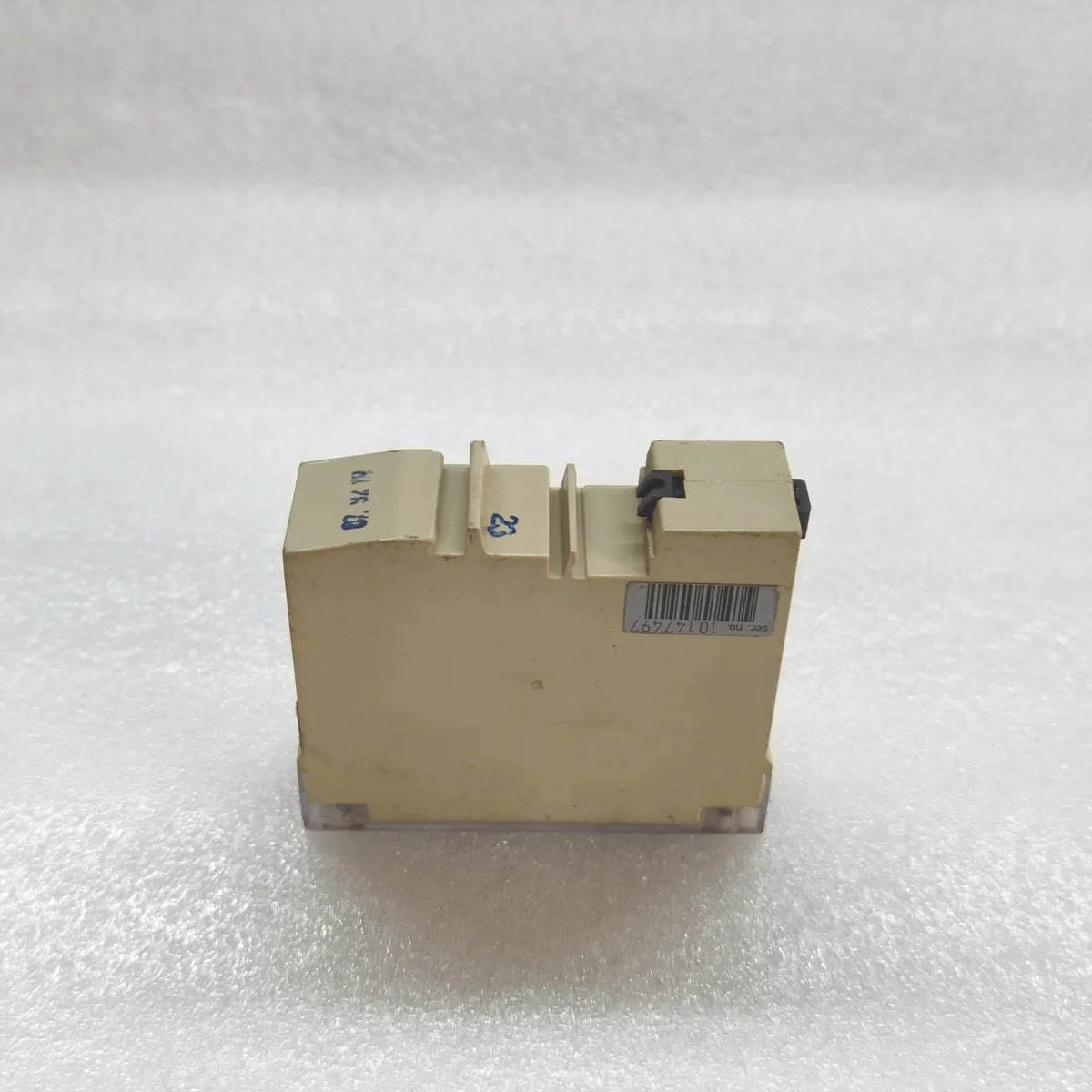

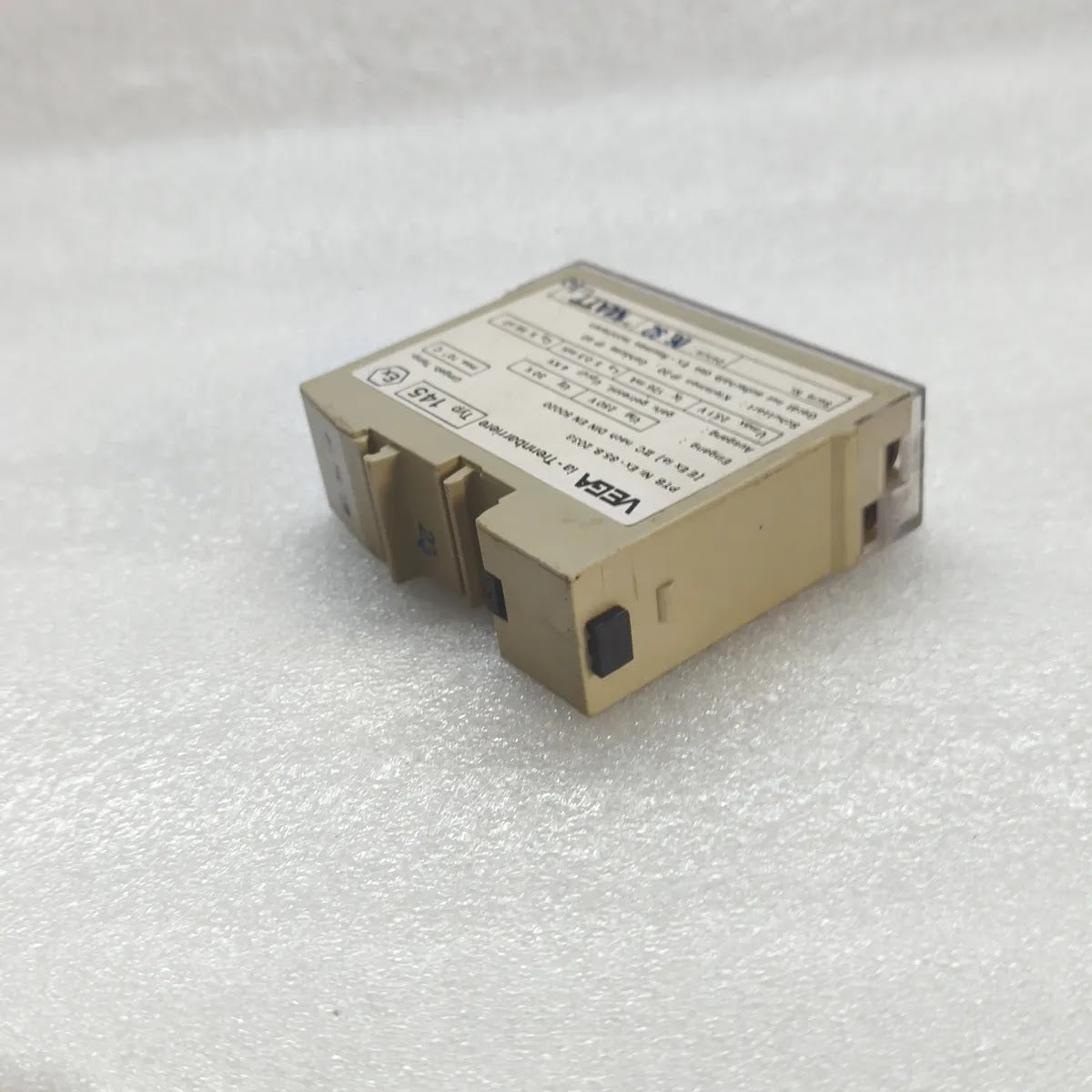

VEGA Typ 145 Intrinsically Safe Isolating Barrier 30V 126mA
$110.00
VEGA Typ 145 Intrinsically Safe Isolating Barrier 30V 126mA

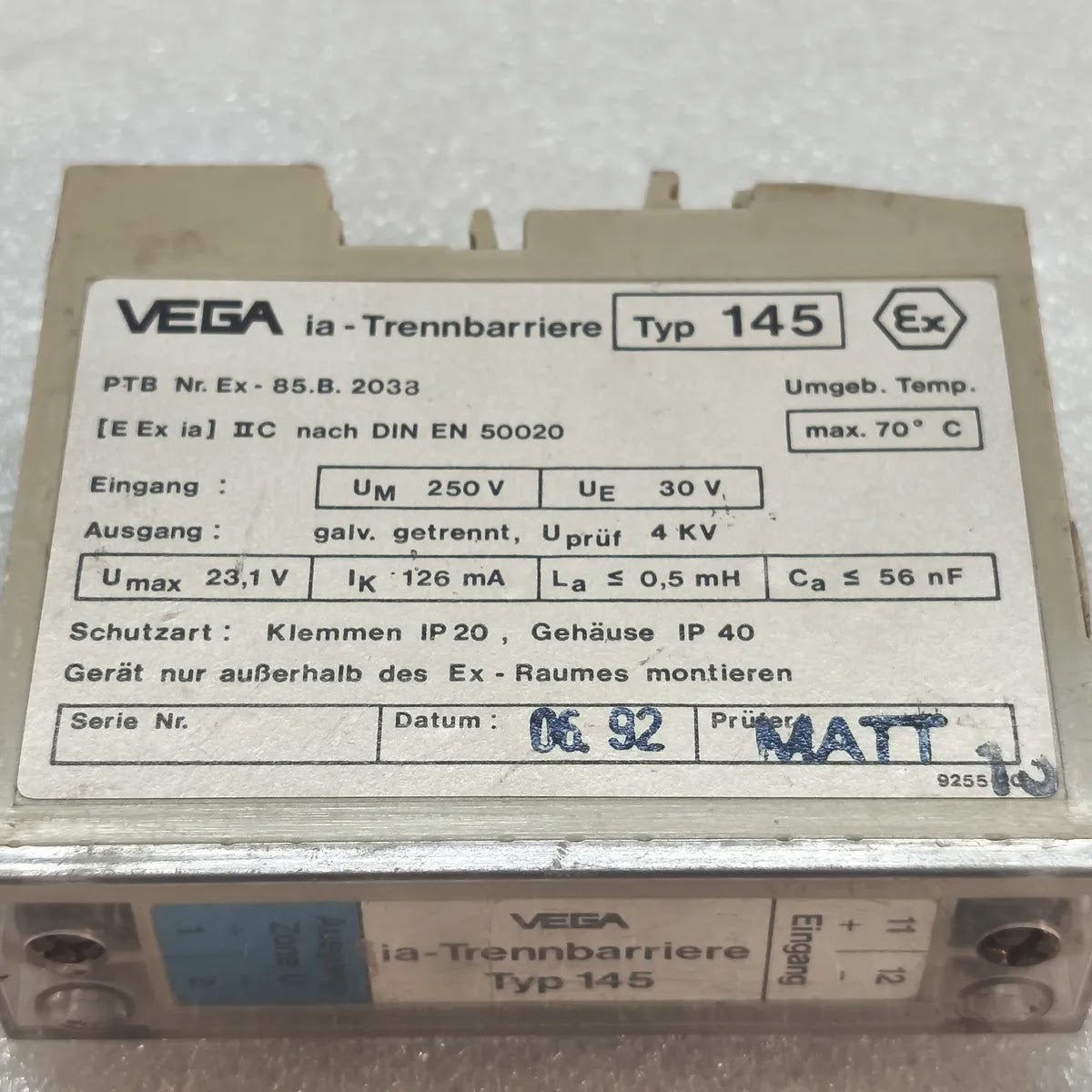

Specifications
| Brand | VEGA |
| Model | Typ 145 |
| Part Number | 145 |
| Type | Intrinsically safe isolating barrier (ia isolating barrier) |
| Explosion Protection | [E Ex ia] IIC to DIN EN 50020 |
| Certificate Number | PTB Nr. Ex-85.B.2033 |
| Input Maximum Voltage | UM 250 V |
| Input Voltage | UE 30 V |
| Output | Galvanically isolated, test voltage 4 kV |
| Maximum Output Voltage | Umax 23,1 V |
| Short-Circuit Current | IK 126 mA |
| Maximum External Inductance | La ≤ 0,5 mH |
| Maximum External Capacitance | Ca ≤ 56 nF |
| Ambient Temperature | max. 70 °C |
| Degree Of Protection | IP 20 clamps, IP 40 enclosure |
| Application | Zone 0 output circuit; unit to be installed outside the hazardous area |
| Standard | DIN EN 50020 |
| Condition | PRE-OWNED / SECOND HAND |
| REF | MK9935 |
| Category | Other Automation Equipment |
