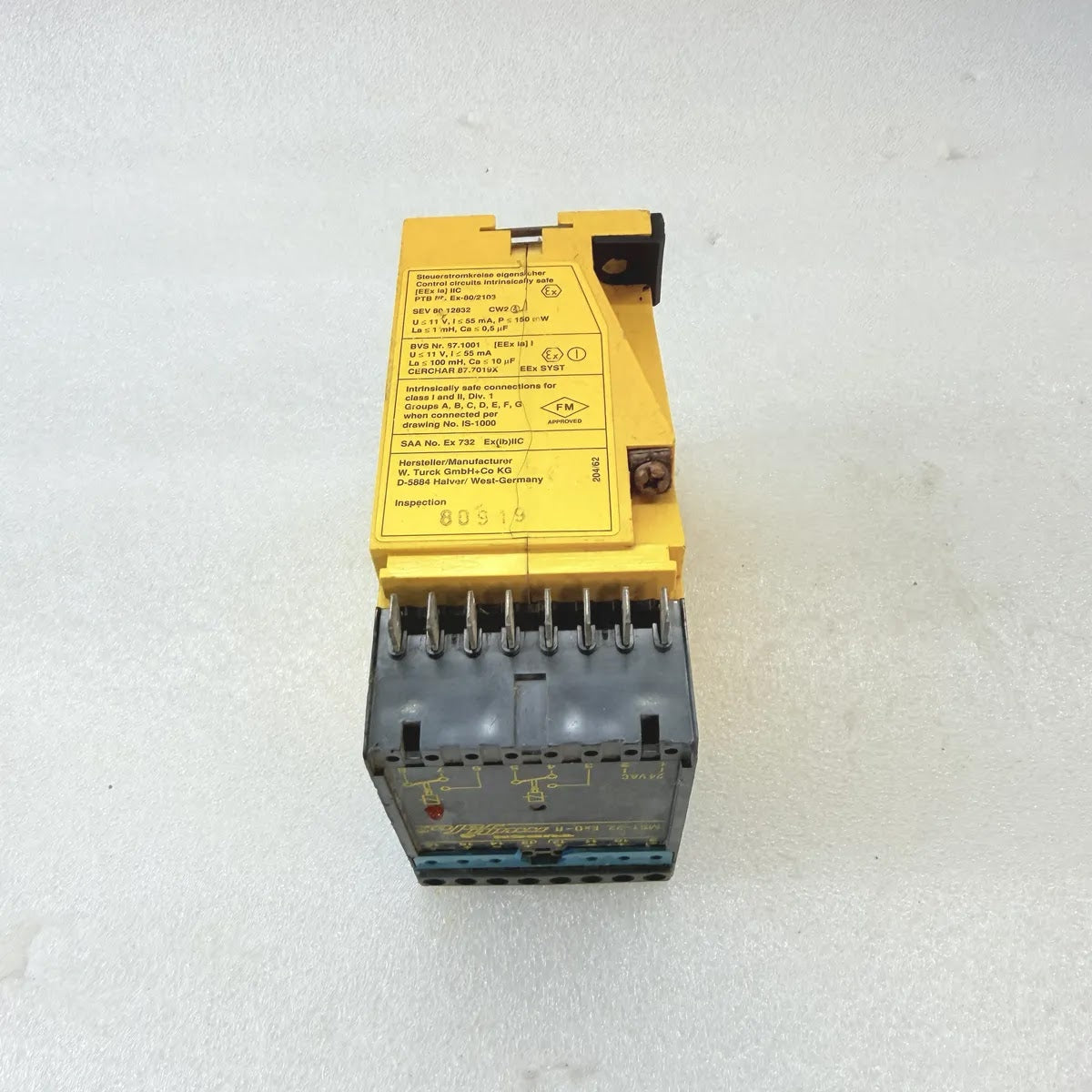

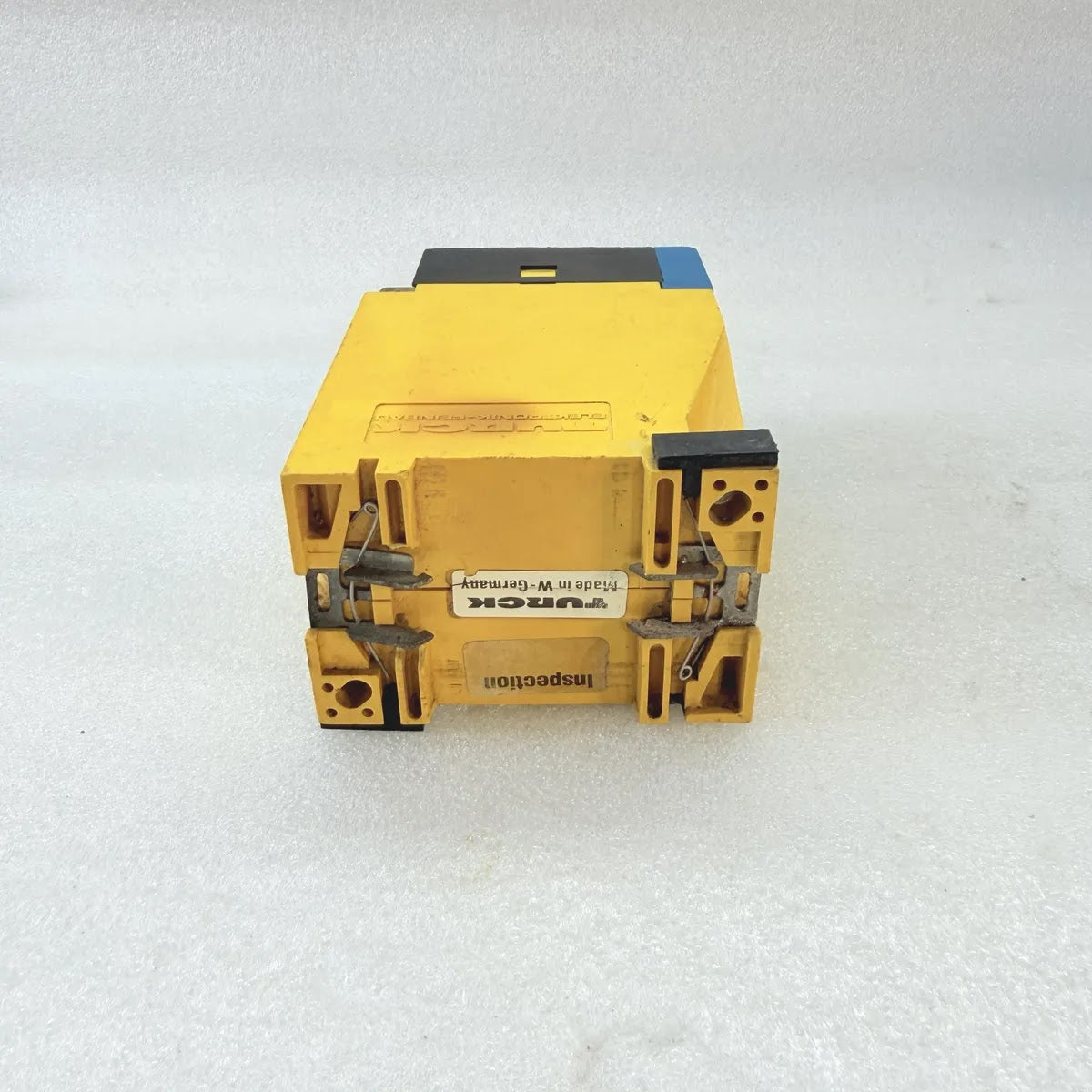

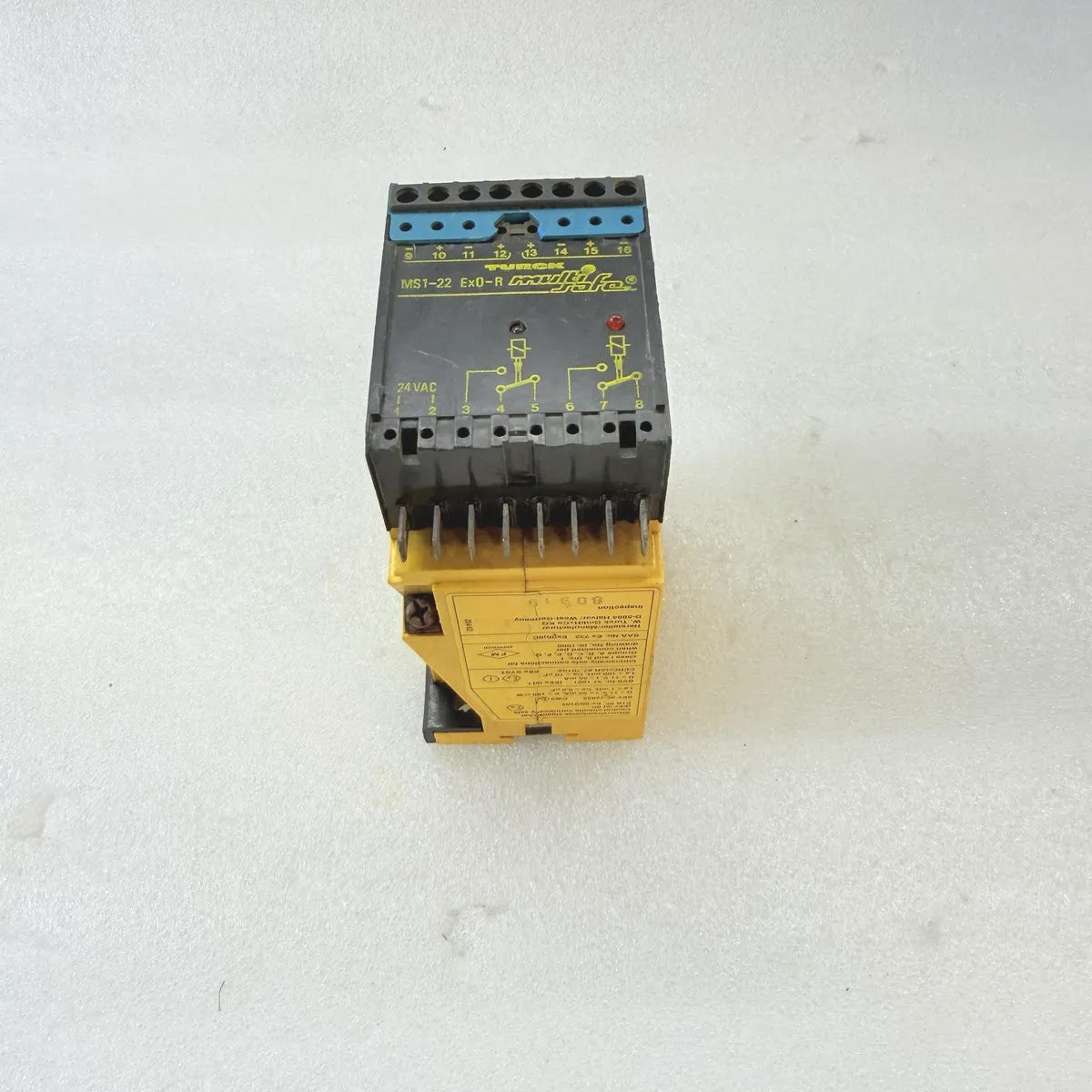

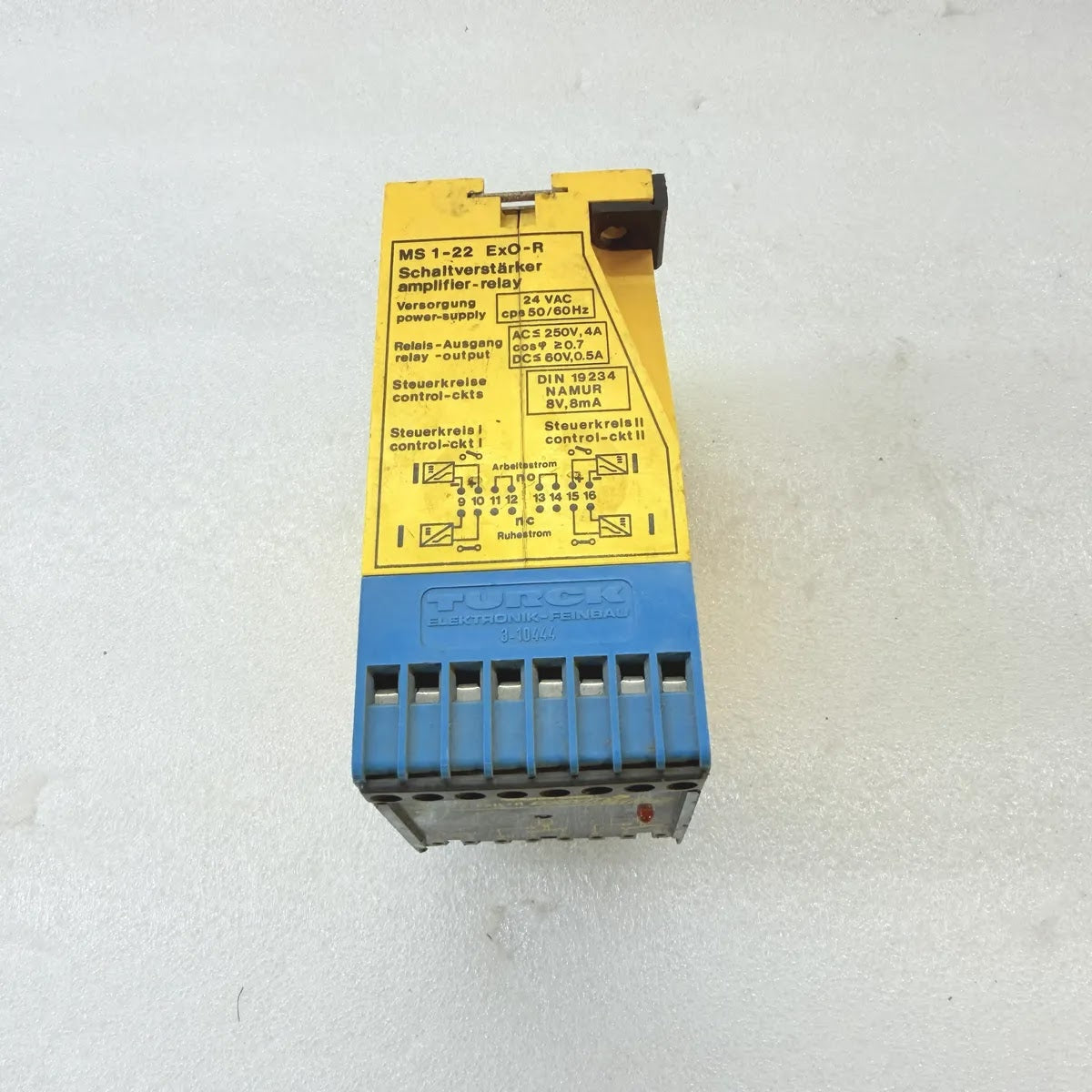

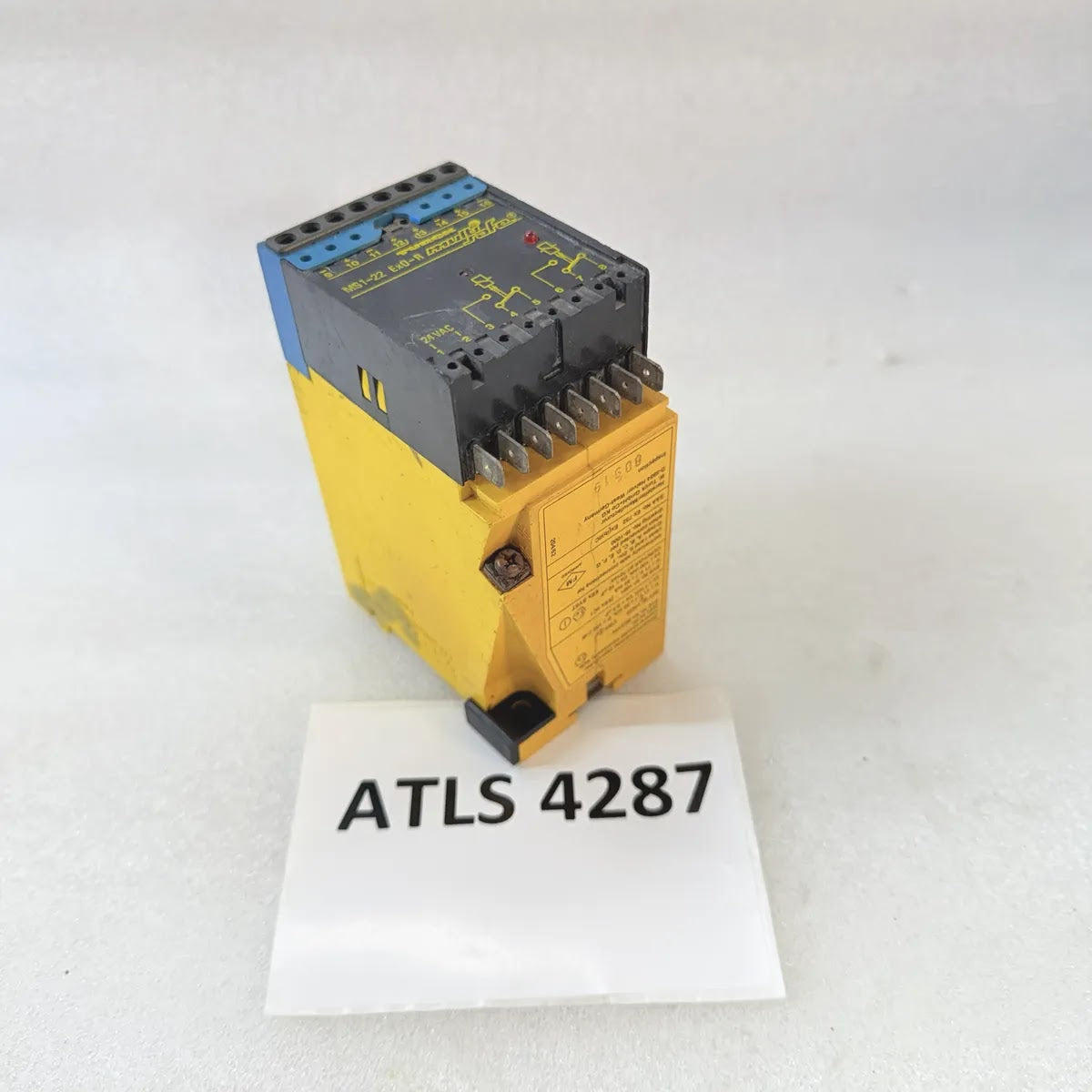

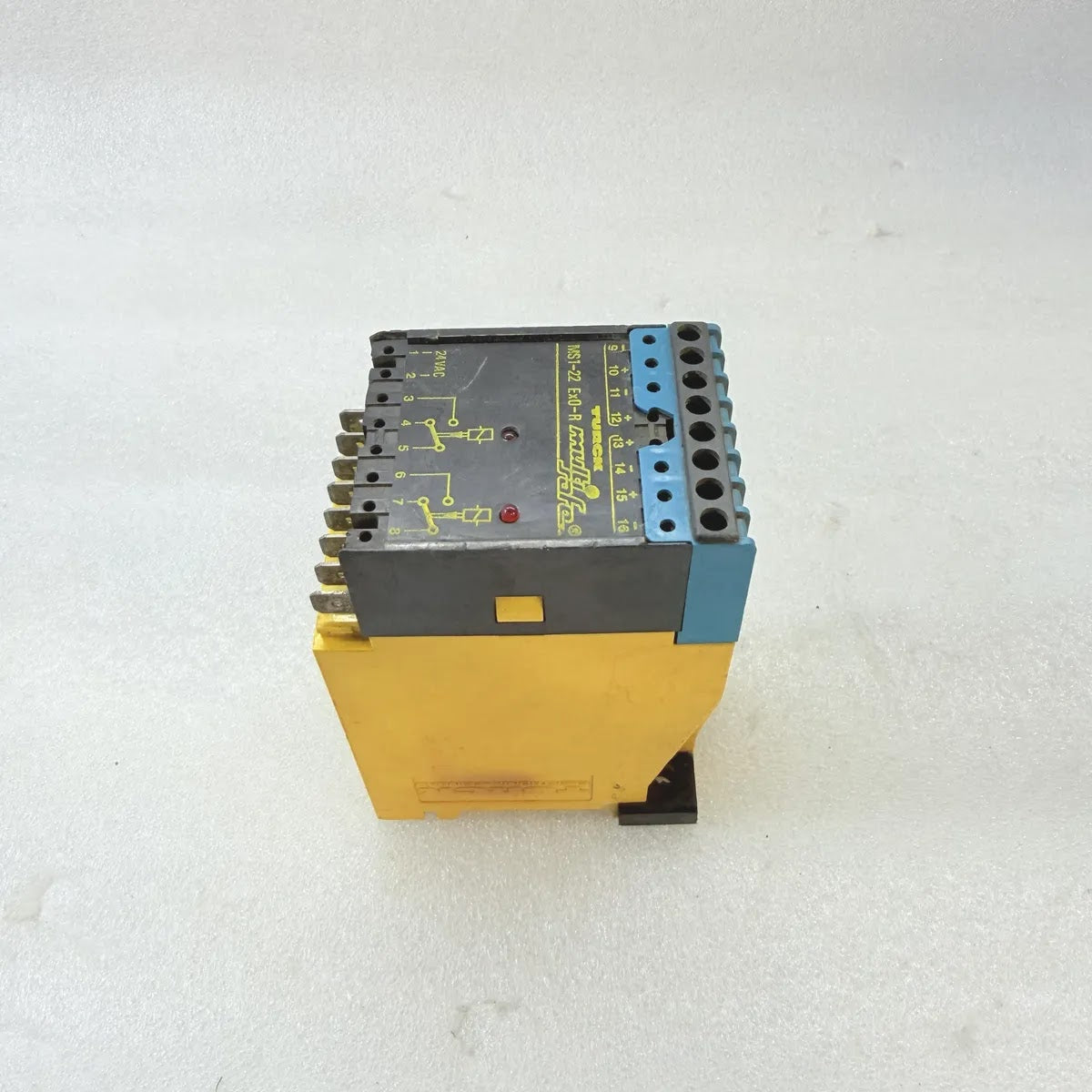

TURCK MS1-22EX0-R Multisafe Switching Amplifier Relay 24VAC 4A
$96.94
Skip to product information
TURCK MS1-22EX0-R Multisafe Switching Amplifier Relay 24VAC 4A
$96.94
TURCK MS1-22EX0-R Multisafe Switching Amplifier Relay 24VAC 4A
Specifications
| Brand | TURCK |
| Model | MS1-22EX0-R |
| Part Number | MS 1-22 ExO-R (as printed on the body) |
| Type | Isolating switching amplifier / amplifier-relay (Schaltverstaerker) |
| Series | multisafe |
| Manufacturer | W. Turck GmbH+Co KG, D-5884 Halver, Turck Elektronik-Feinbau |
| Channels | 2 (control circuit I and control circuit II) |
| Supply Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Control Circuits | DIN 19234 (NAMUR), 8 V, 8 mA |
| Relay Output AC | AC <= 250 V, 4 A, cos phi >= 0.7 |
| Relay Output DC | DC <= 60 V, 0.5 A |
| Output Function | Selectable normally open (Arbeitsstrom) or normally closed (Ruhestrom) per channel |
| Intrinsic Safety | Control circuits intrinsically safe [EEx ia] IIC; U <= 11 V, I <= 55 mA, P <= 150 mW, La <= 1 mH, Ca <= 0,5 uF |
| Intrinsic Safety Group I | BVS Nr. 87.1001 [EEx ia] I; U <= 11 V, I <= 55 mA, La <= 100 mH, Ca <= 10 uF |
| Hazardous Area Rating | Intrinsically safe connections for Class I and II, Div. 1, Groups A, B, C, D, E, F, G when connected per drawing No. IS-1000 |
| Approvals | PTB Nr. Ex-80/2103; SEV 80.12832 CW2; BVS Nr. 87.1001; CERCHAR 87.7019X EEx SYST; SAA No. Ex 732 Ex(ib)IIC; FM Approved |
| Dimensions | 5.1 x 7.6 x 11.4 cm (2.0 x 3.0 x 4.5 in) |
| Weight | 0.4 kg (12.8 oz) |
| Country Of Origin | Germany (Made in W-Germany) |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4287 |
