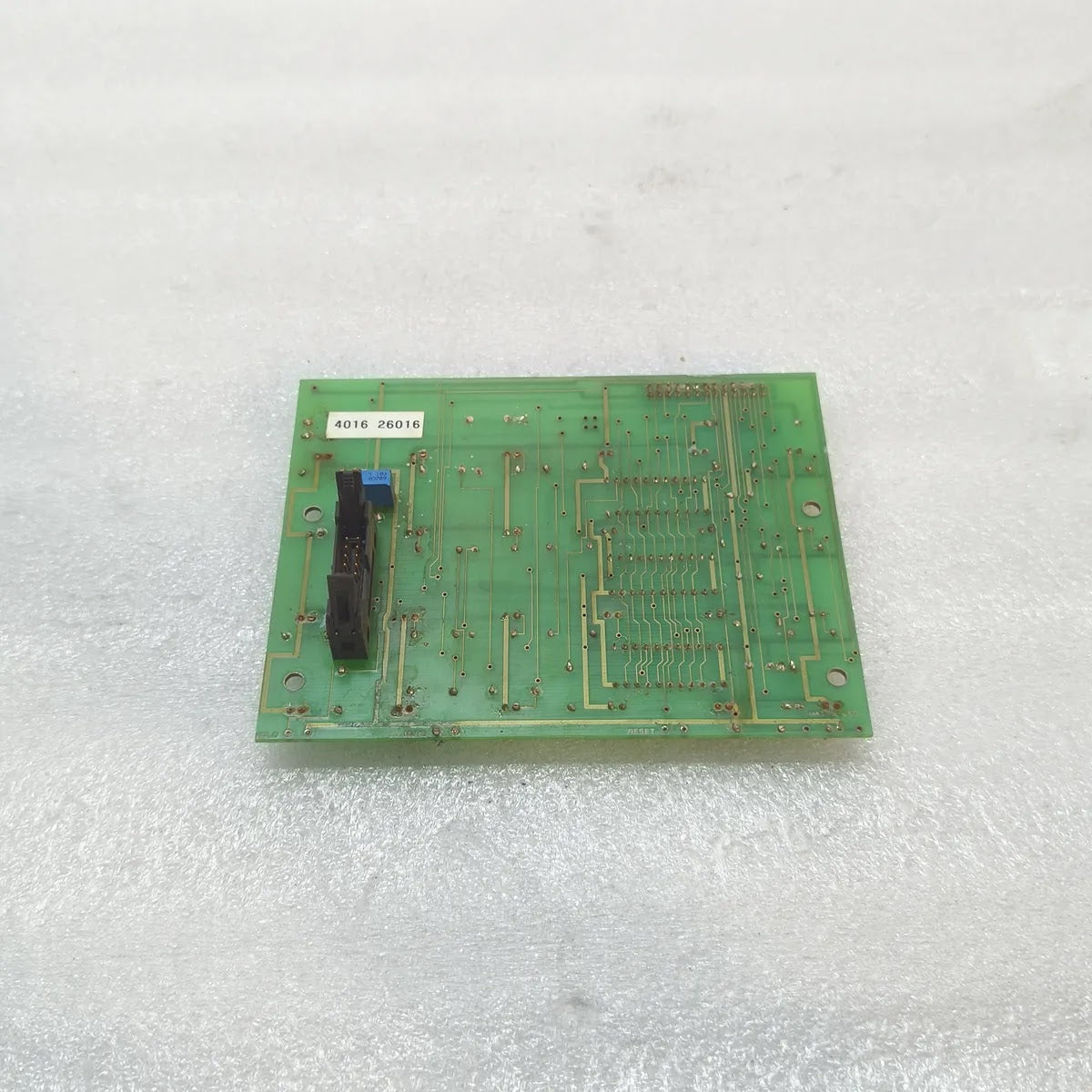

TQ RPB4000 LED Display Board
$299.99
Skip to product information
TQ RPB4000 LED Display Board
$299.99
TQ RPB4000 LED Display Board
Specifications
| Brand | TQ |

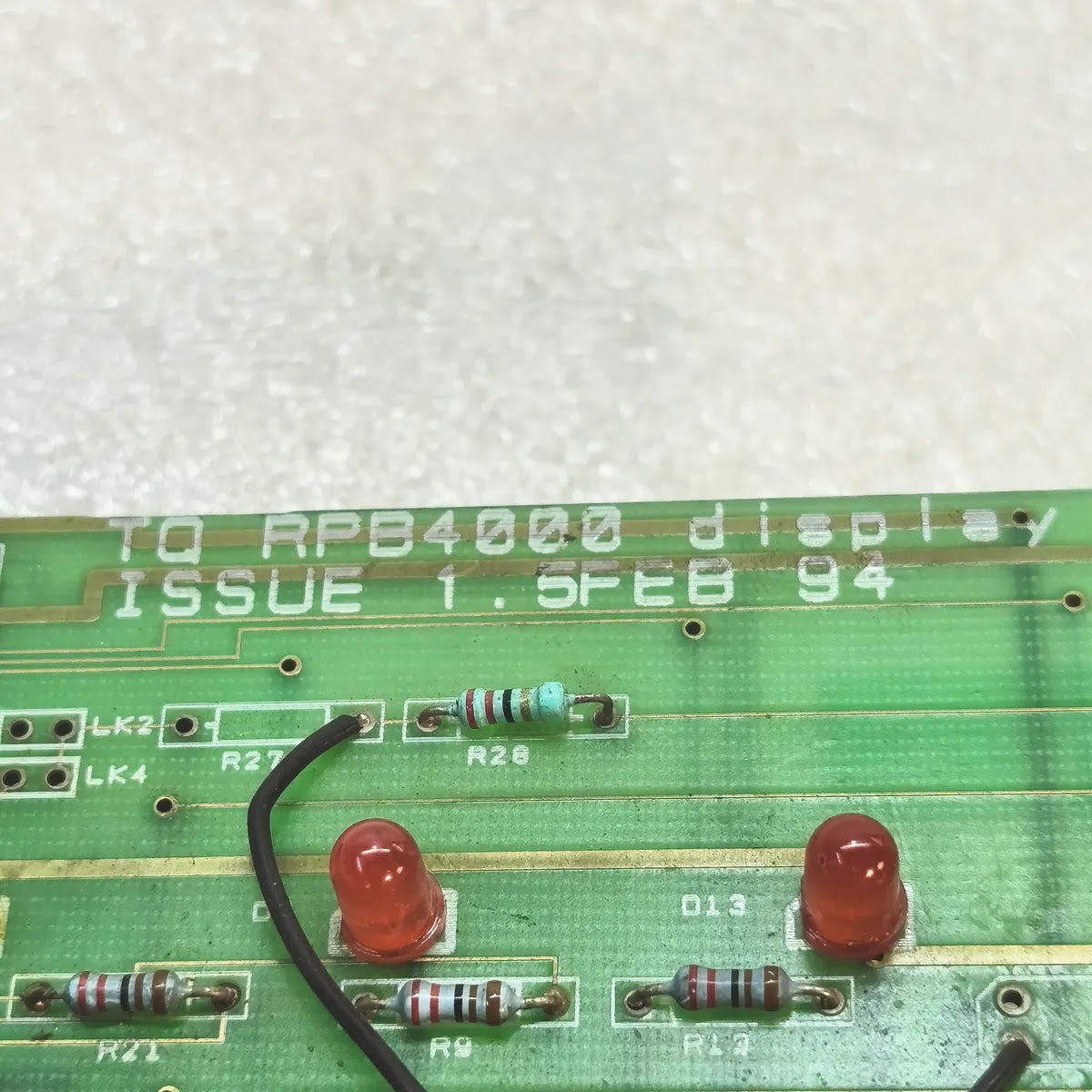

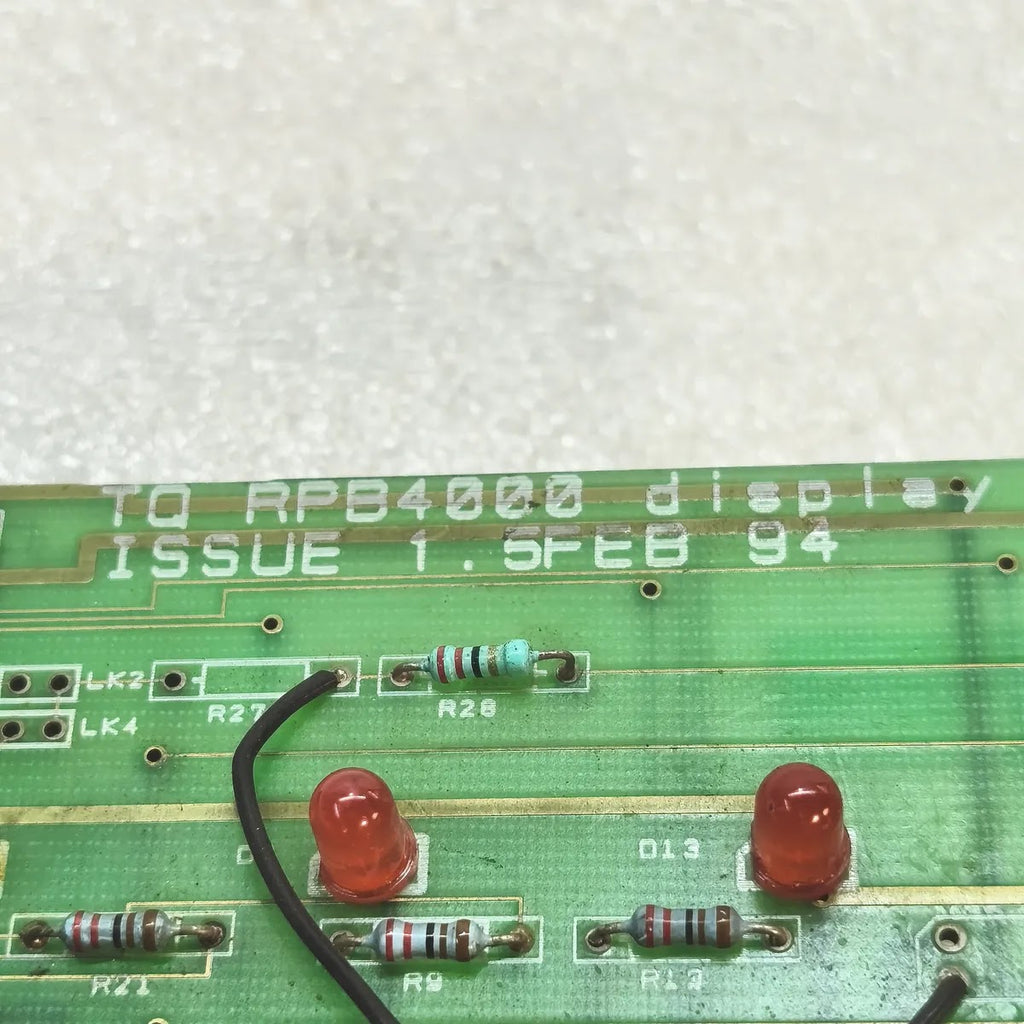

| Part Number | RPB4000 (silkscreened "TQ RPB4000 display") |
| Type | LED display / indicator printed circuit board |
| Series | 4000 |
| Revision | ISSUE 1.5FEB 94 |
| Board Code | CCY 0838 |

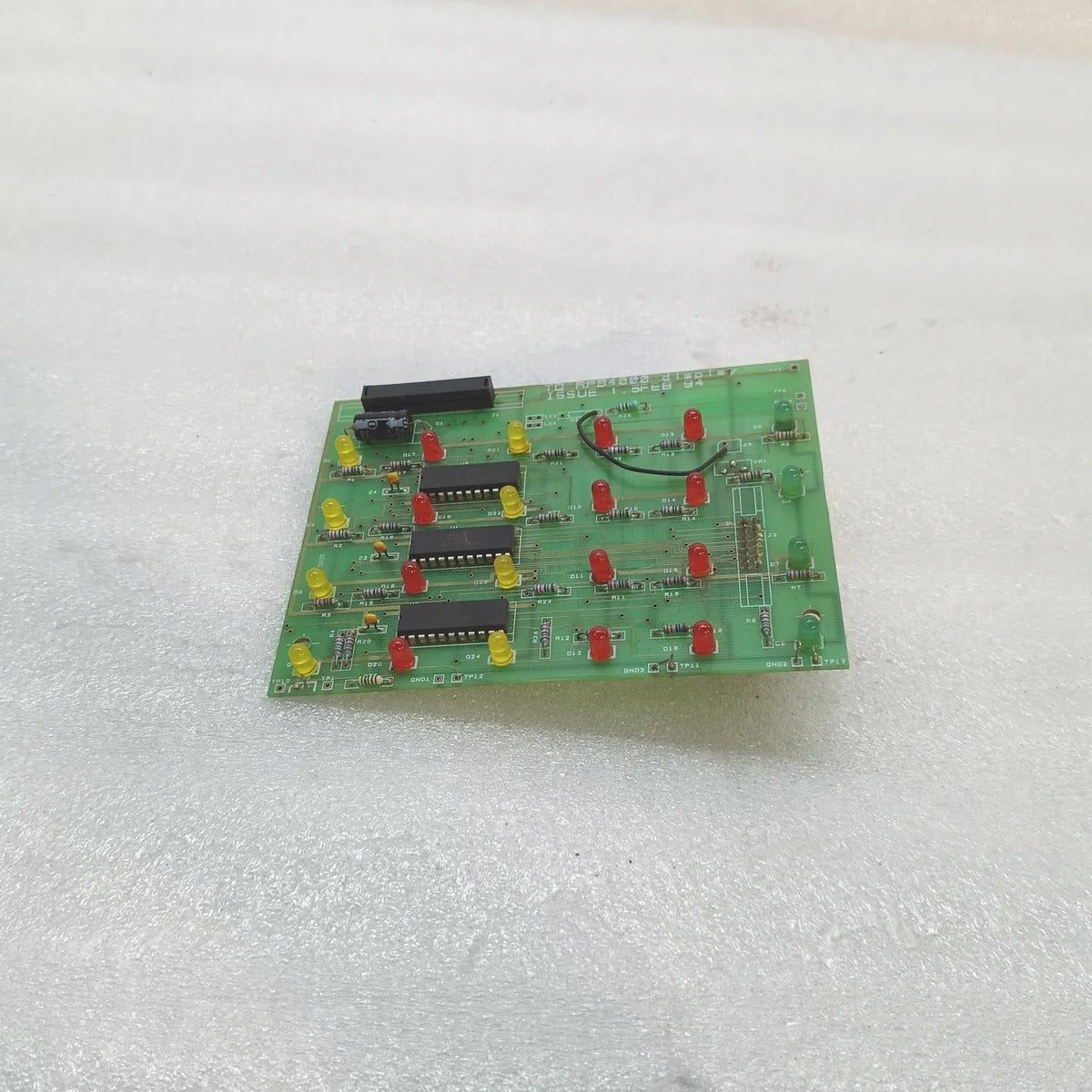

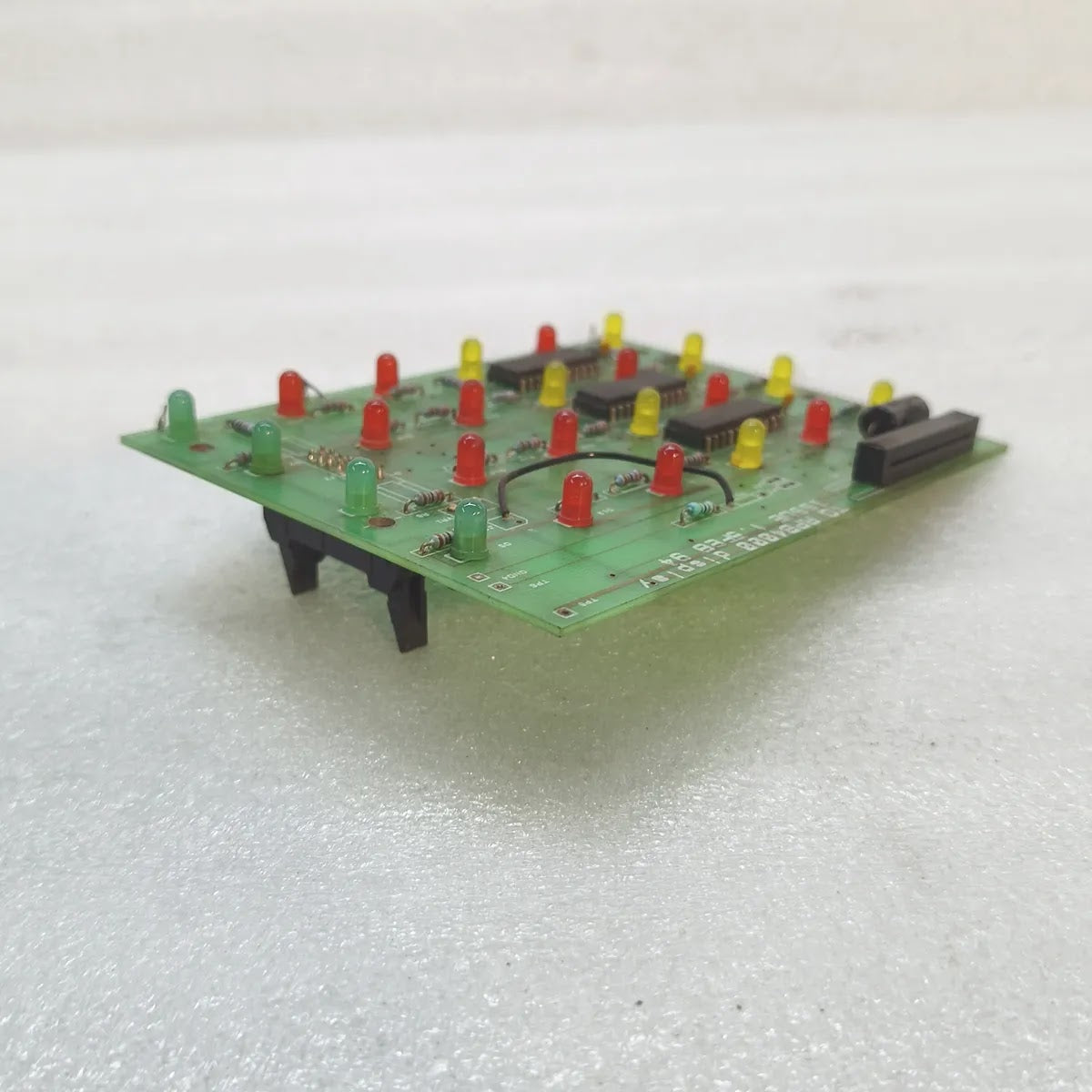

| Indicators | 24 LED positions D1-D24, red / yellow / green |

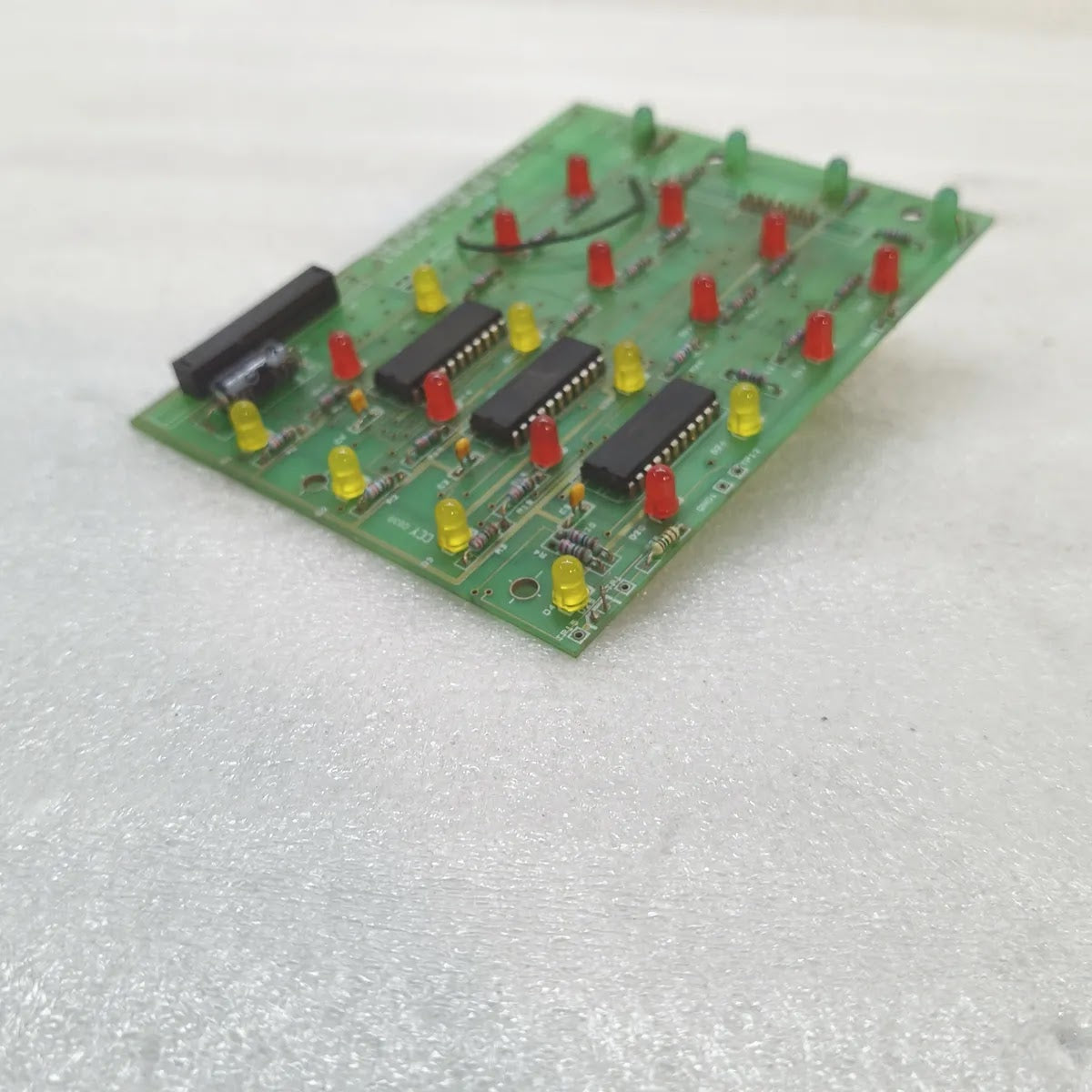

| Integrated Circuits | 4 x 20-pin DIL devices, U1 and three further positions |

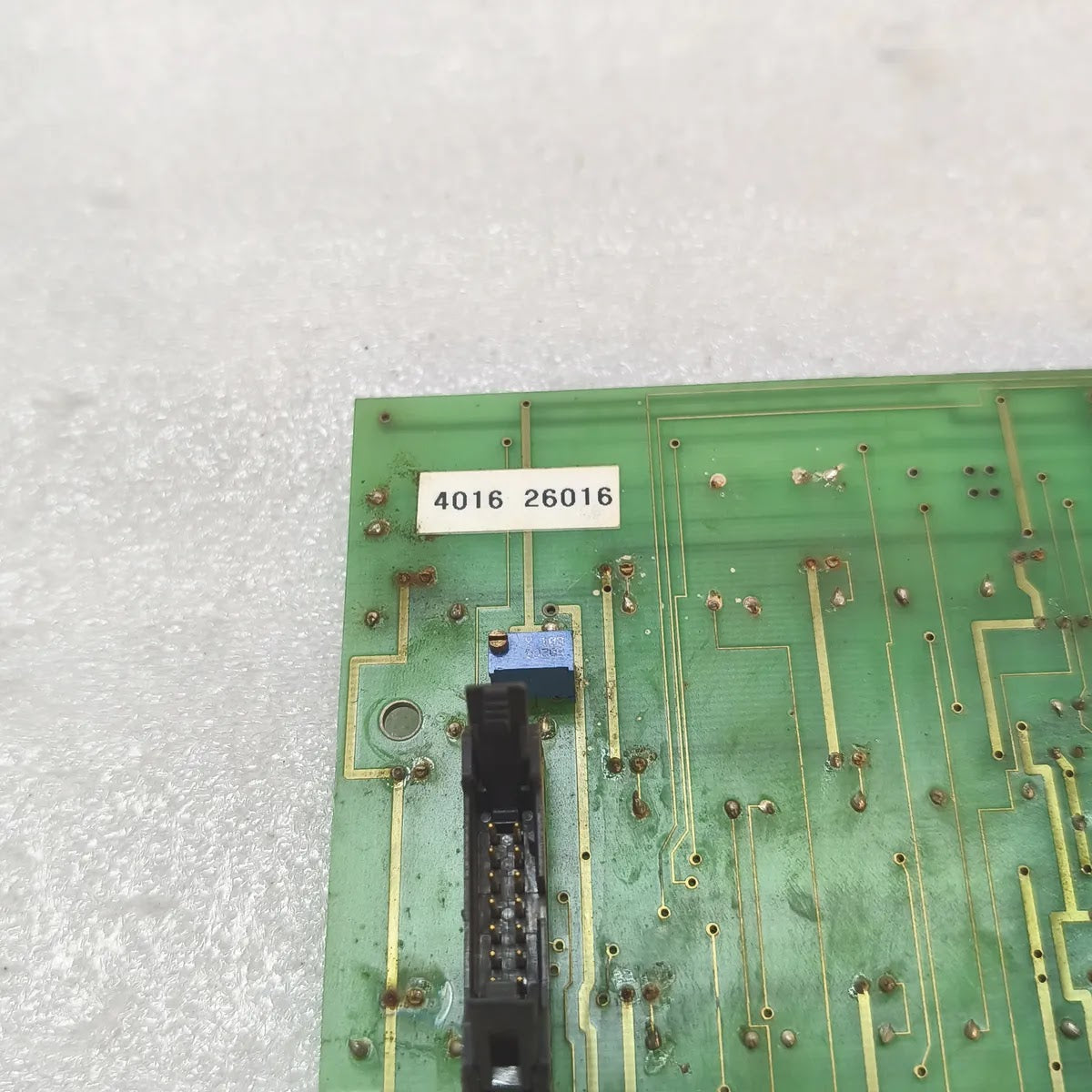

| Adjustment | VR1 multi-turn trimmer potentiometer, marked Y 10J |
| Links | LK2 and LK4 selectable link positions |
| Test Points | TP4, TP5, TP6, TP9, TP11, TP12, TP13, TP15 and GND1-GND4 |
| Signal Labels | RESET and further track-side legends |
| Application | Front-panel status / alarm indication board for TQ RPB4000 equipment |
| Condition | PRE-OWNED / SECOND HAND |

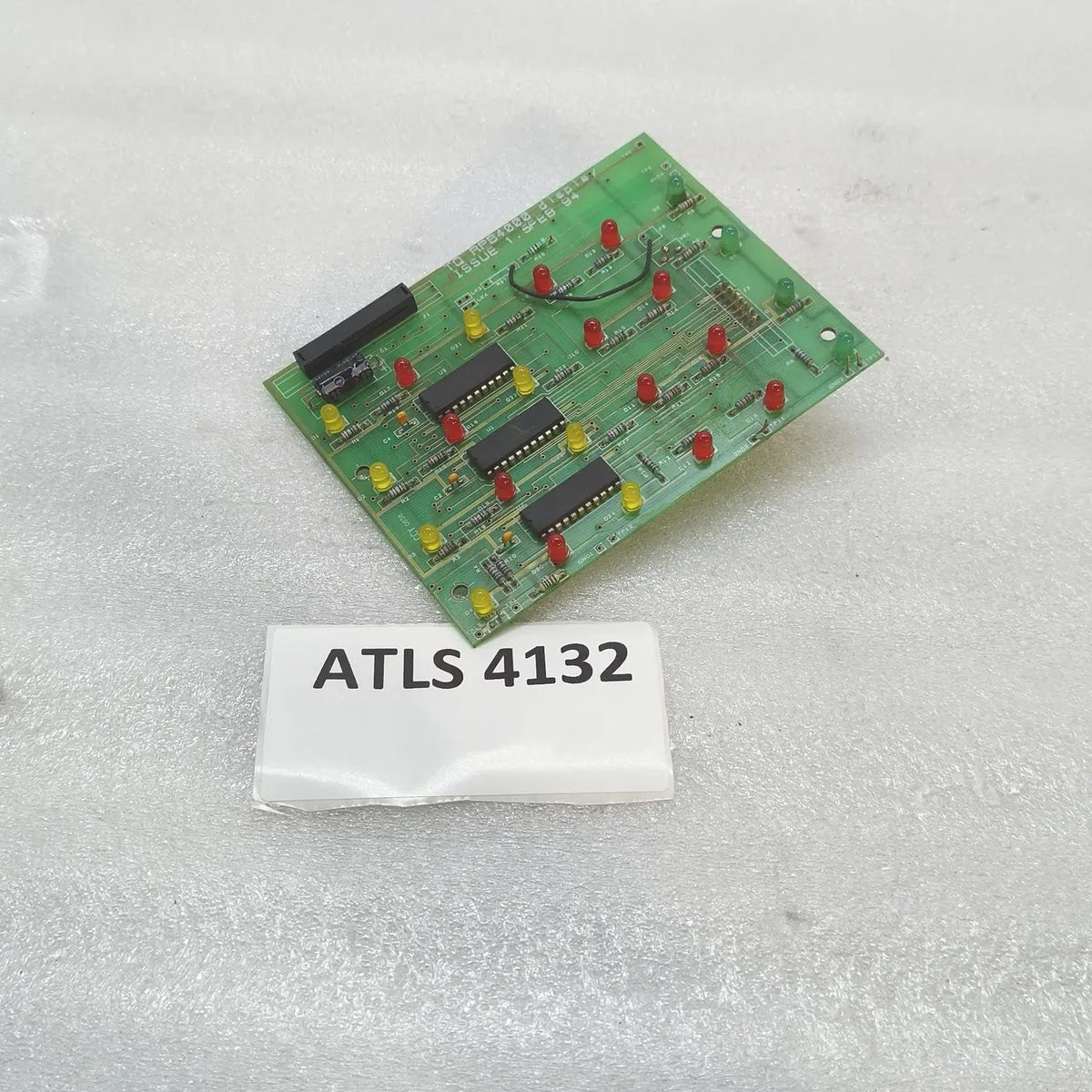

| REF | ATLS4132 |
