TOYO KEIKI ECF-12NB Kilowatt Panel Meter 0-100kW 460/230V
$119.99
TOYO KEIKI ECF-12NB Kilowatt Panel Meter 0-100kW 460/230V
Specifications
| Brand | TOYO KEIKI |
| Model | ECF-12NB |
| Type | Analogue Kilowatt Panel Meter (Wattmeter) |
| Series | CF Series, Electronic Device Type with built-in transducer |

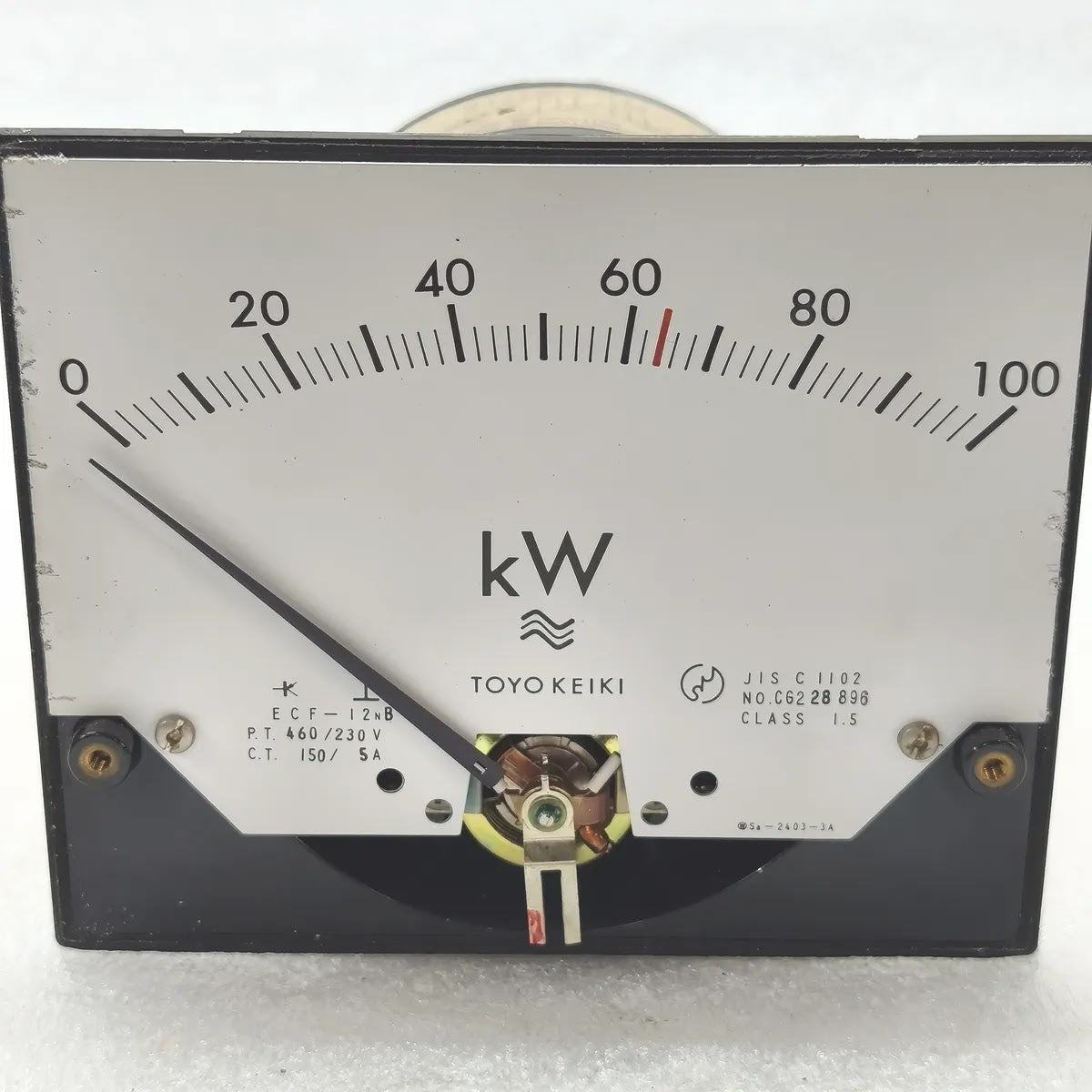

| Measuring Range | 0-100 kW |

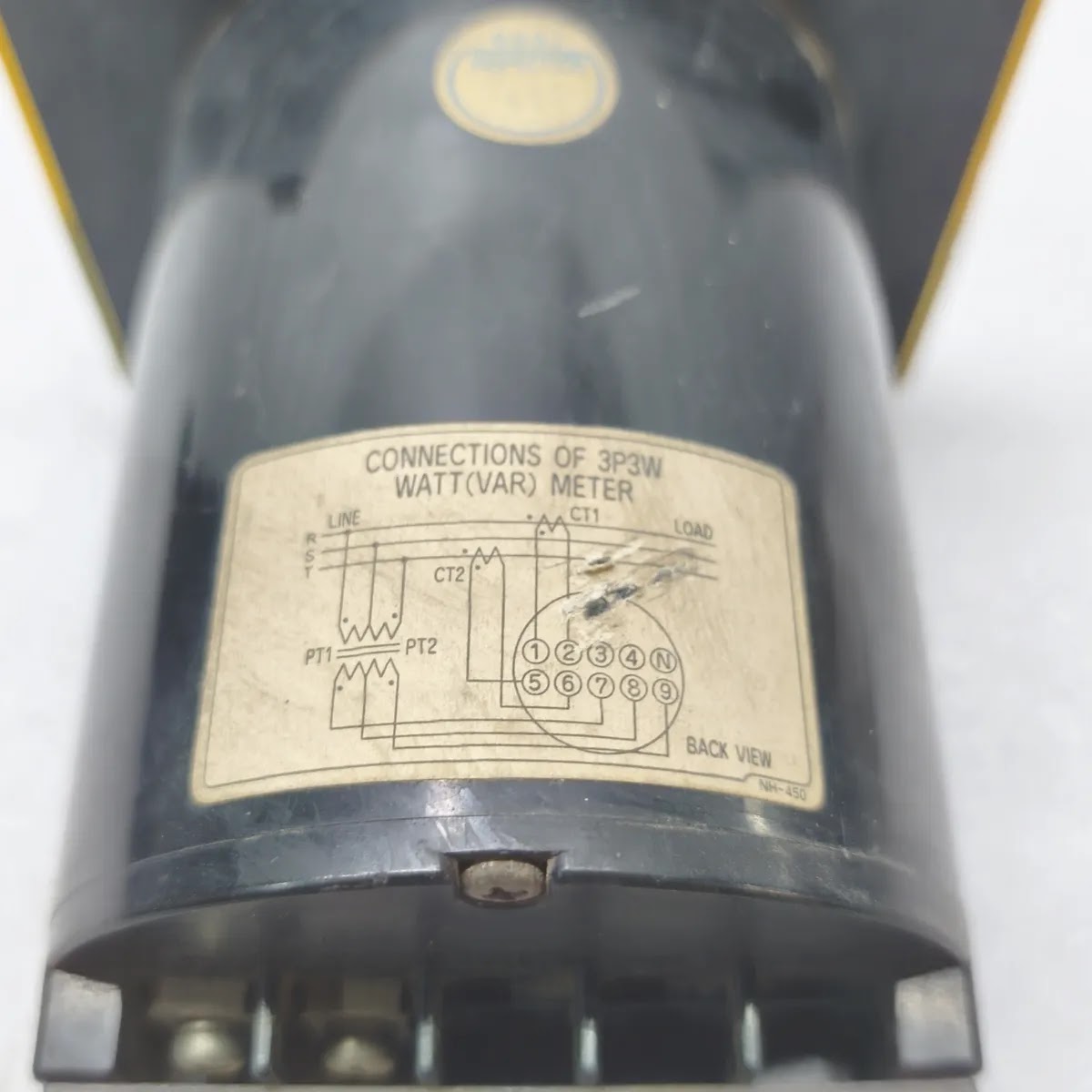

| System | 3P3W (three-phase three-wire) watt (var) meter |
| Pt Ratio | 460/230 V |
| Ct Ratio | 150/5 A |
| Accuracy Class | 1.5 |
| Front Dimensions | 120 x 100 mm (size 12) |
| Scale Length | 100 mm |
| Standard | JIS C 1102 |
| Application | Switchboard and marine generator panel power measurement |
| Condition | PRE-OWNED / SECOND HAND |

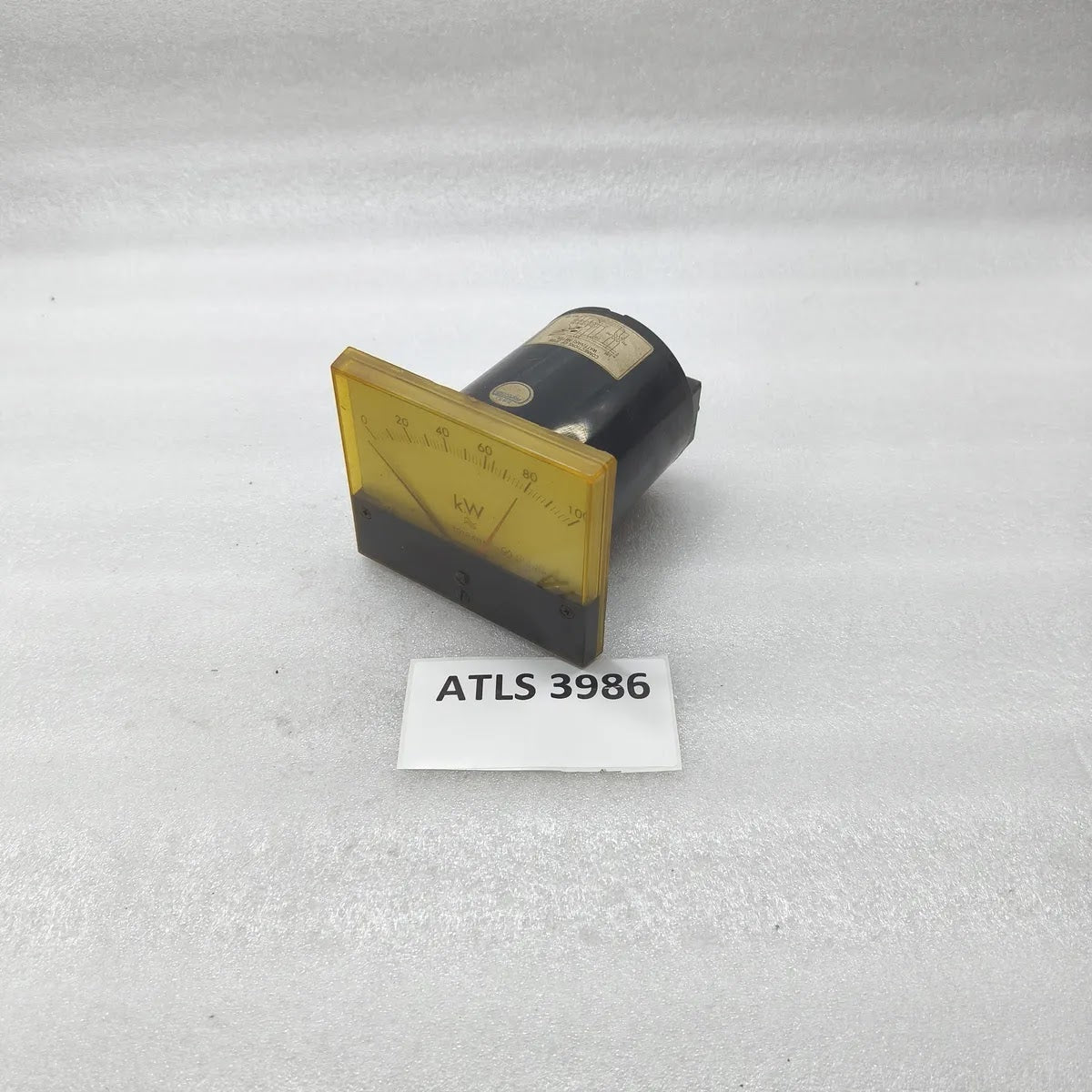

| REF | ATLS3986 |
