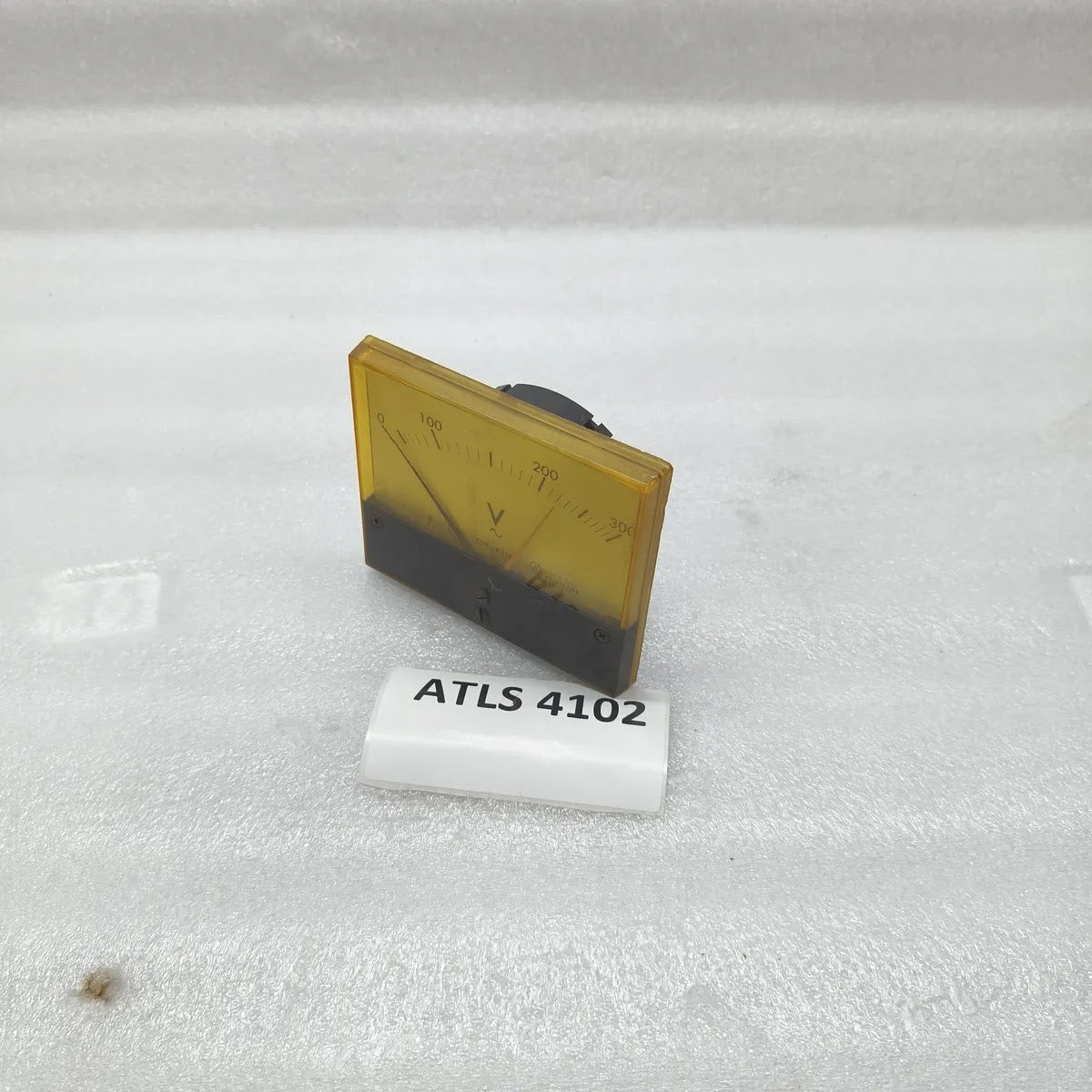

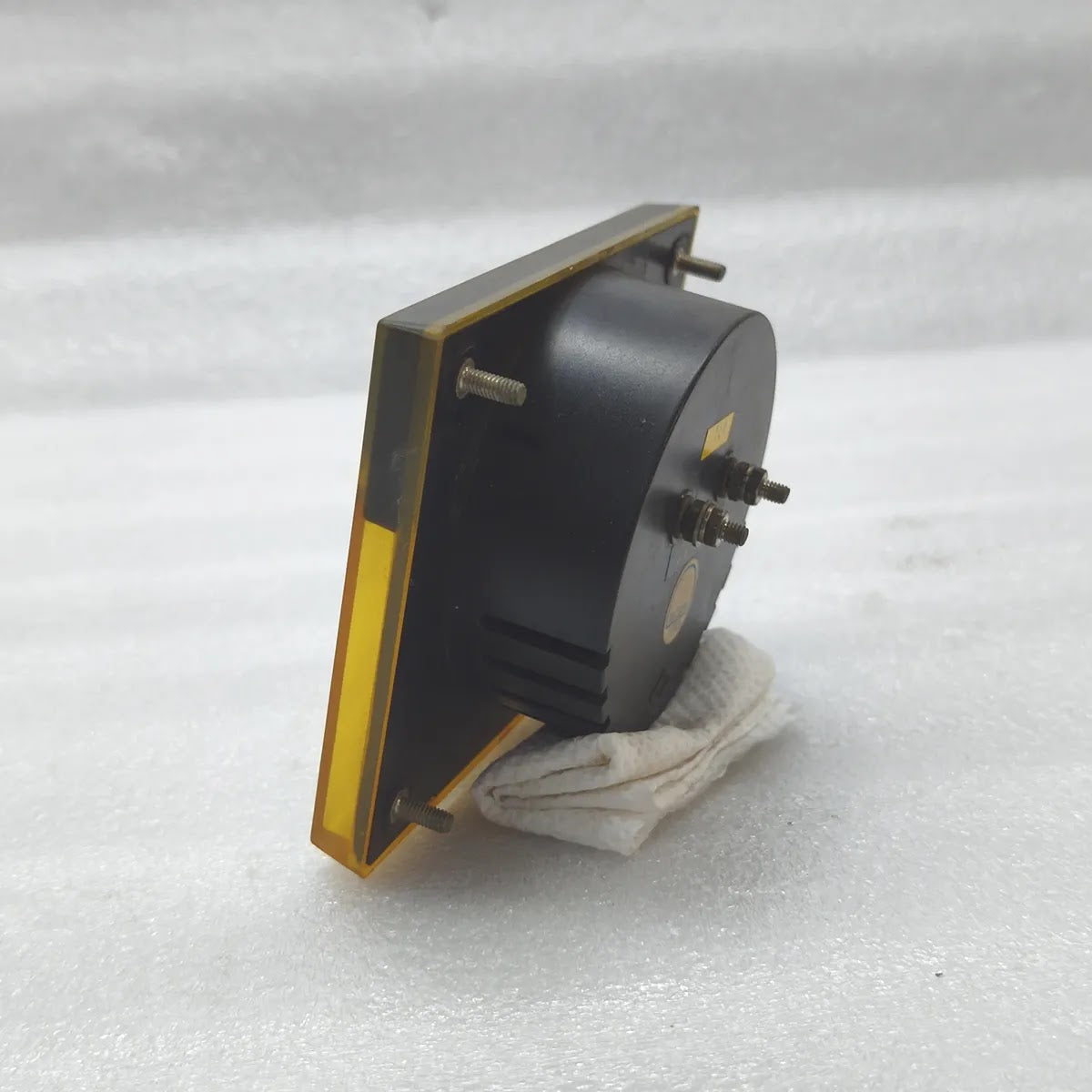

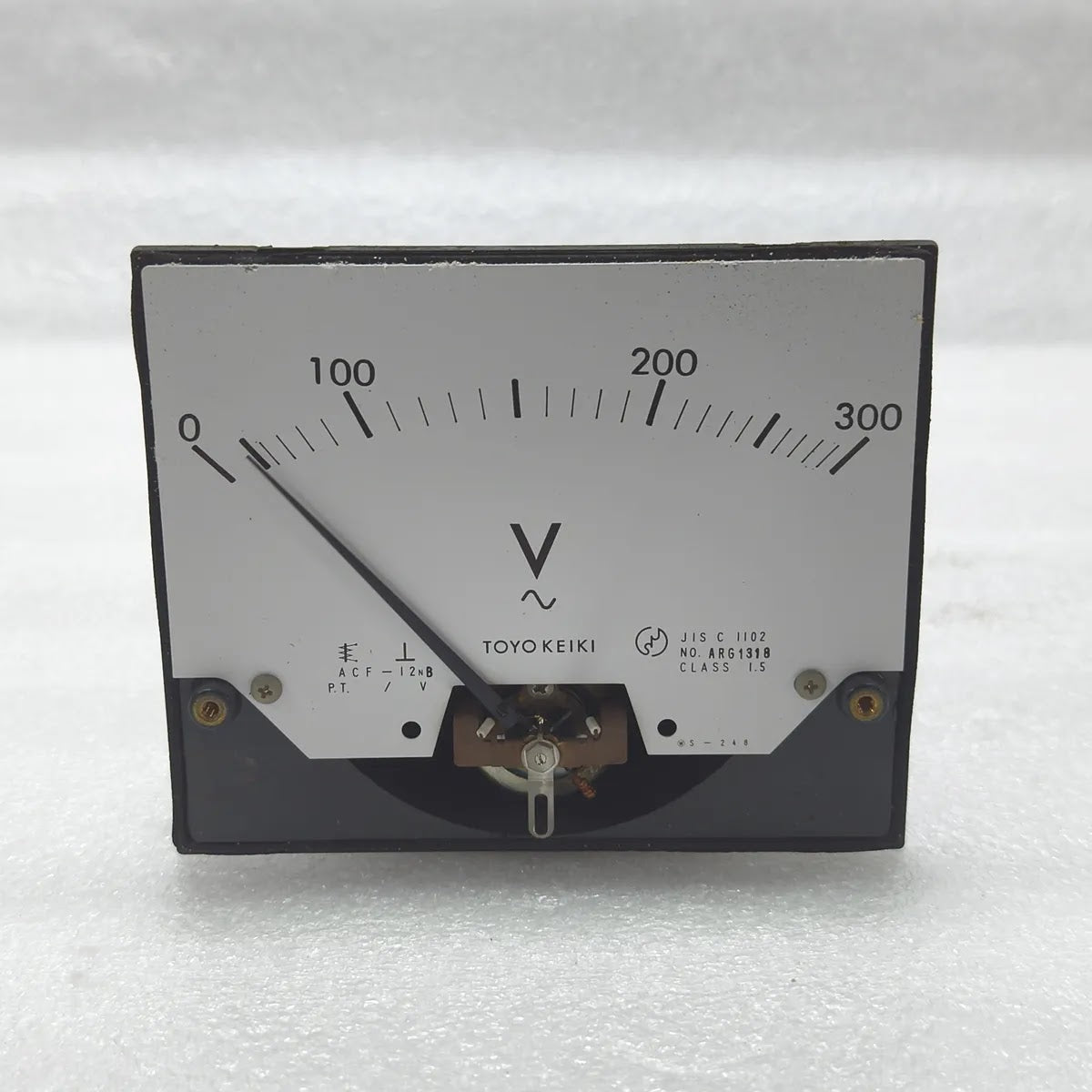

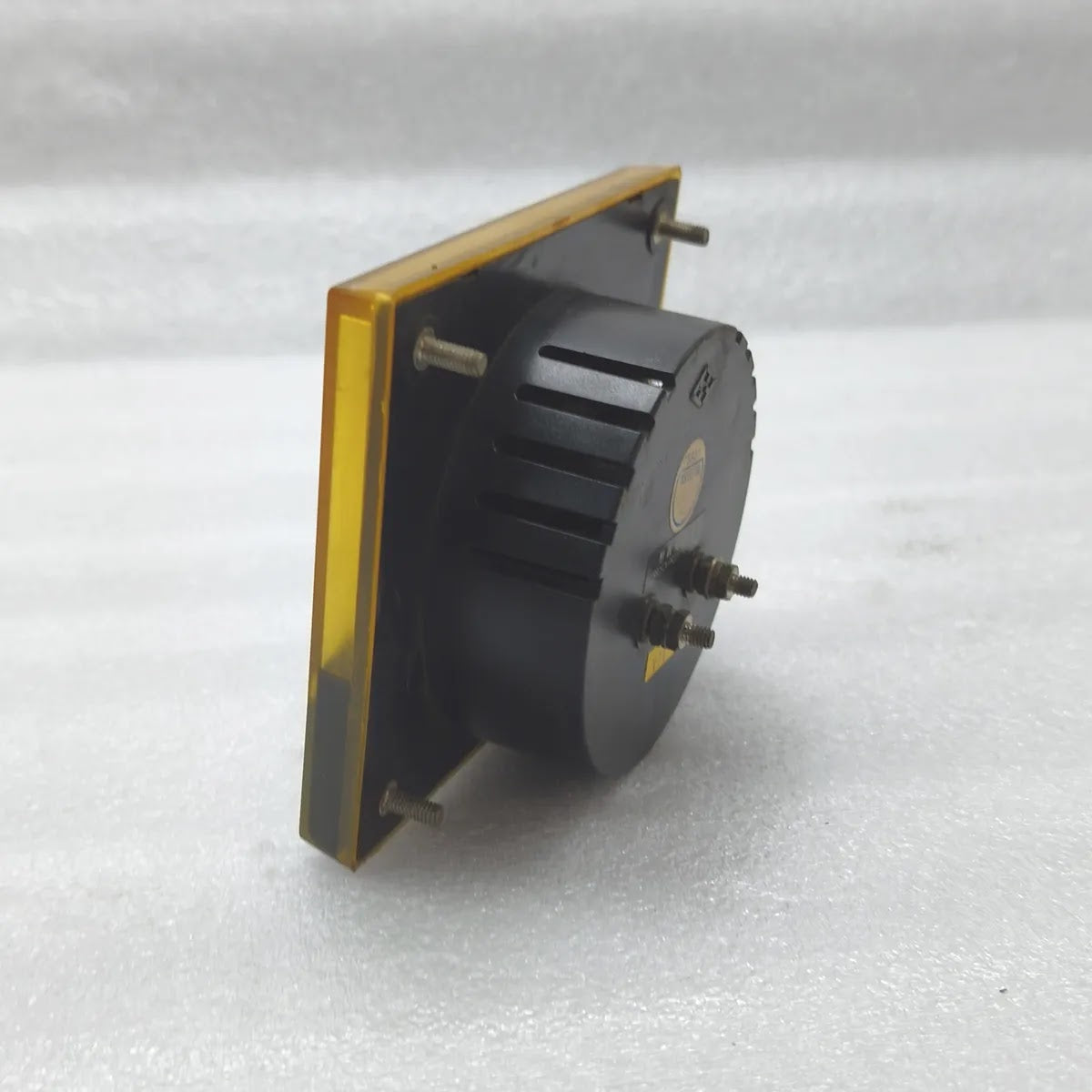

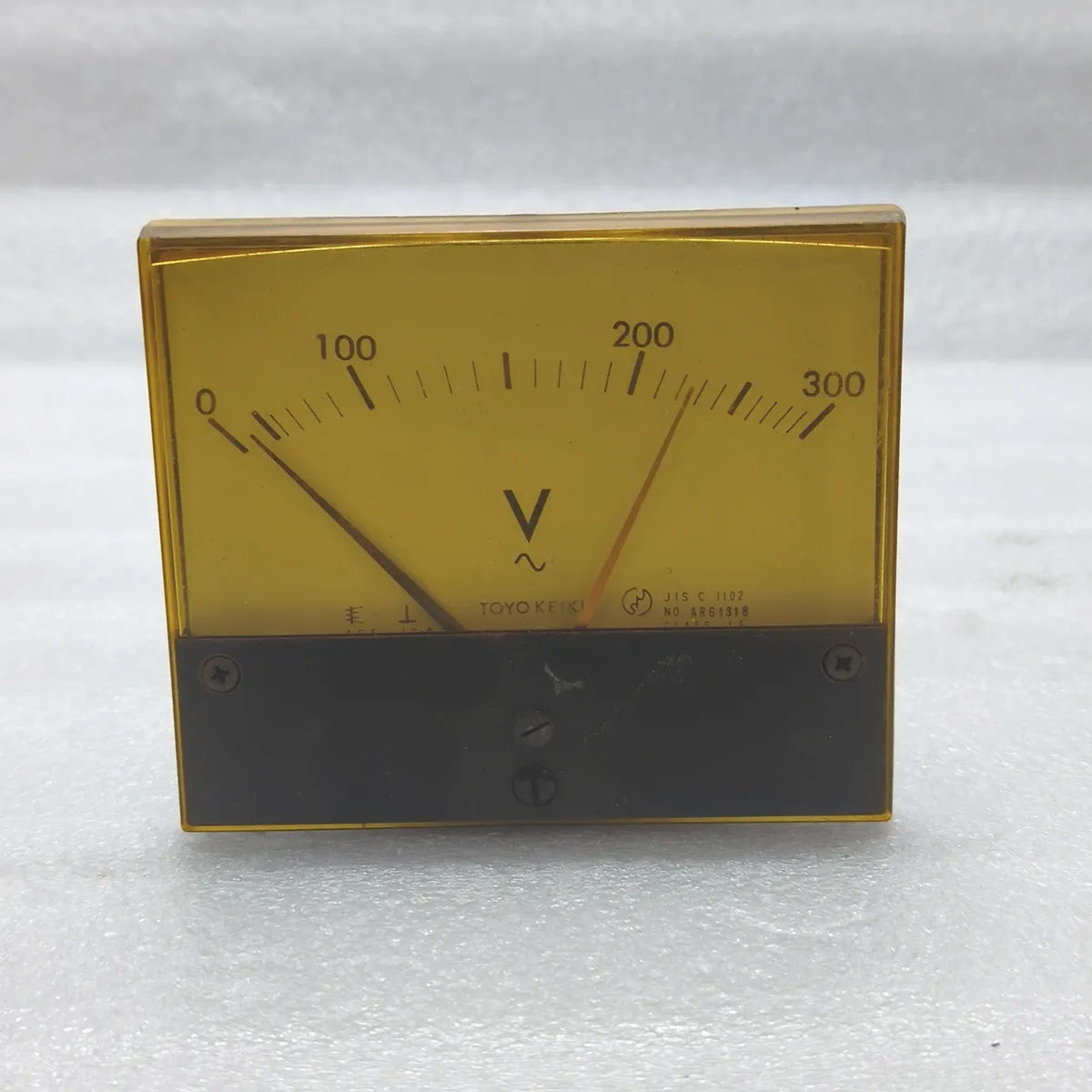

TOYO KEIKI ACF-12NB AC Voltmeter 0-300V
$149.99
Skip to product information
TOYO KEIKI ACF-12NB AC Voltmeter 0-300V
$149.99
TOYO KEIKI ACF-12NB AC Voltmeter 0-300V
Specifications
| Brand | TOYO KEIKI |
| Model | ACF-12NB |
| Part Number | ACF-12NB |
| Type | Analogue AC panel voltmeter, moving-iron type |
| Series | CF Series fixed meters |
| Measuring Range | 0-300 V AC |
| Scale | 0-300 V, direct scale, V with AC symbol |
| P.T. Ratio | P.T. / V field left blank on the dial (no transformer ratio stated) |
| Accuracy Class | CLASS 1.5 |
| Operating Position | Vertical (position symbol shown on dial) |
| Scale Plate Code | S-248 |
| Jis Approval No | ARG1318 |
| Scale Length | 100 mm (12N size) |
| Dimensions | 120 x 100 mm front (12N size) |
| Insulation Category | CAT III 600 V maximum circuit voltage (ACF type) |
| Standard | JIS C 1102 |
| Application | Switchboard and marine panel AC voltage indication |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4102 |
