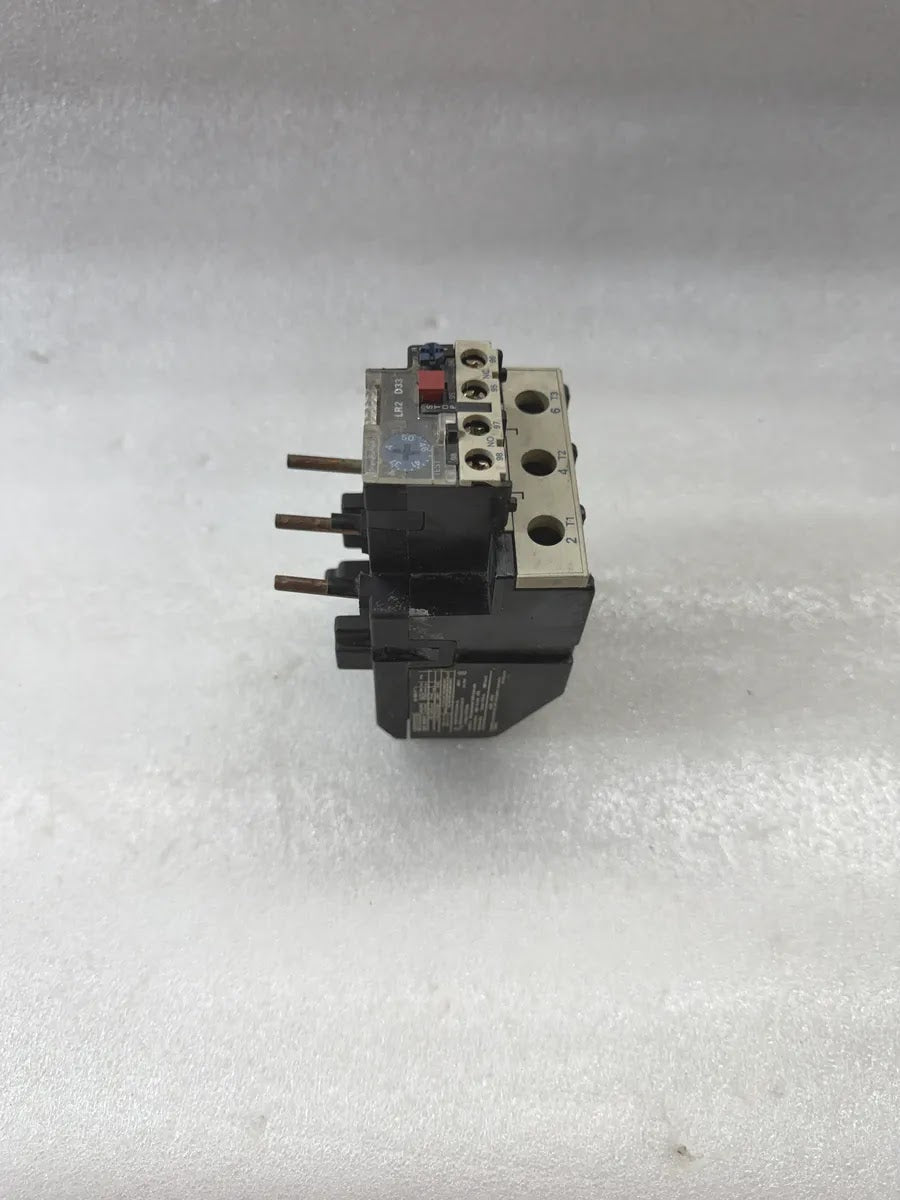

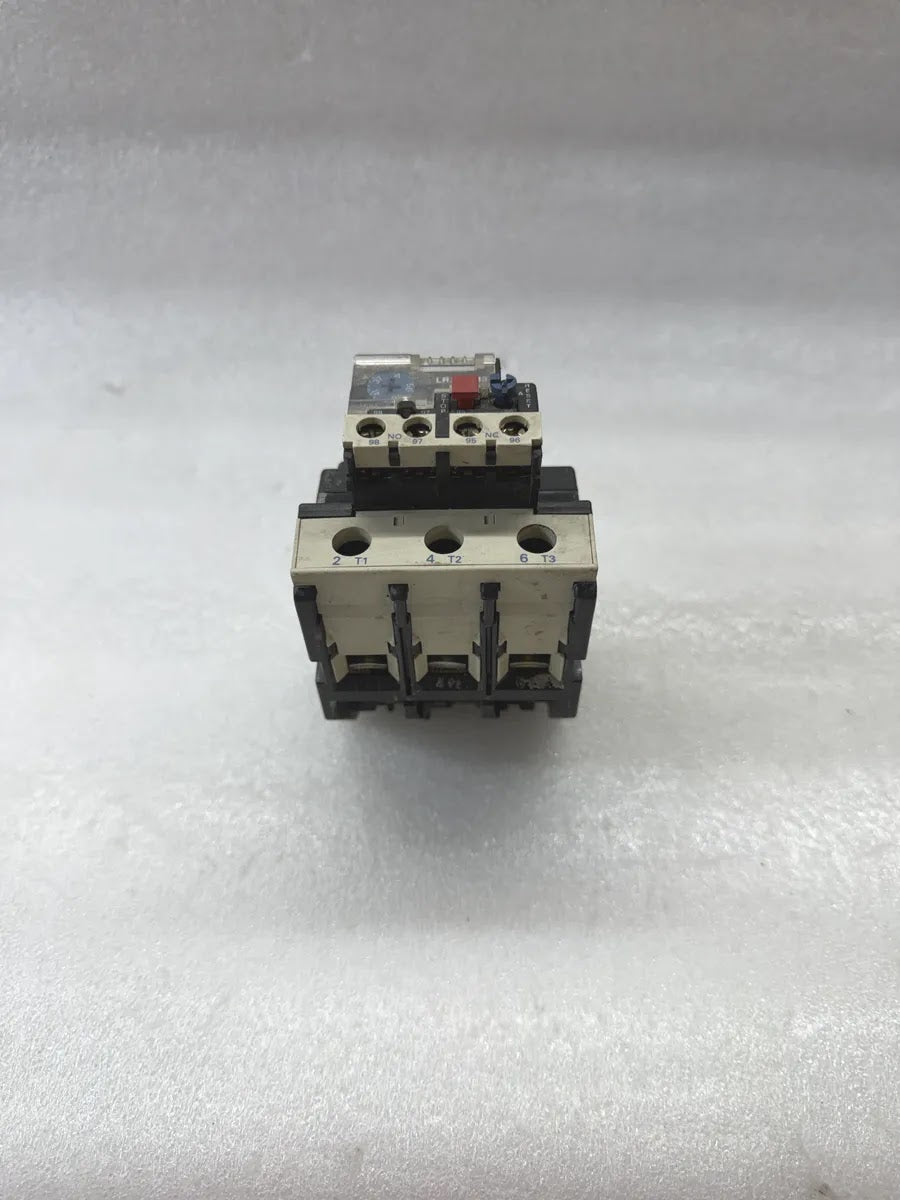

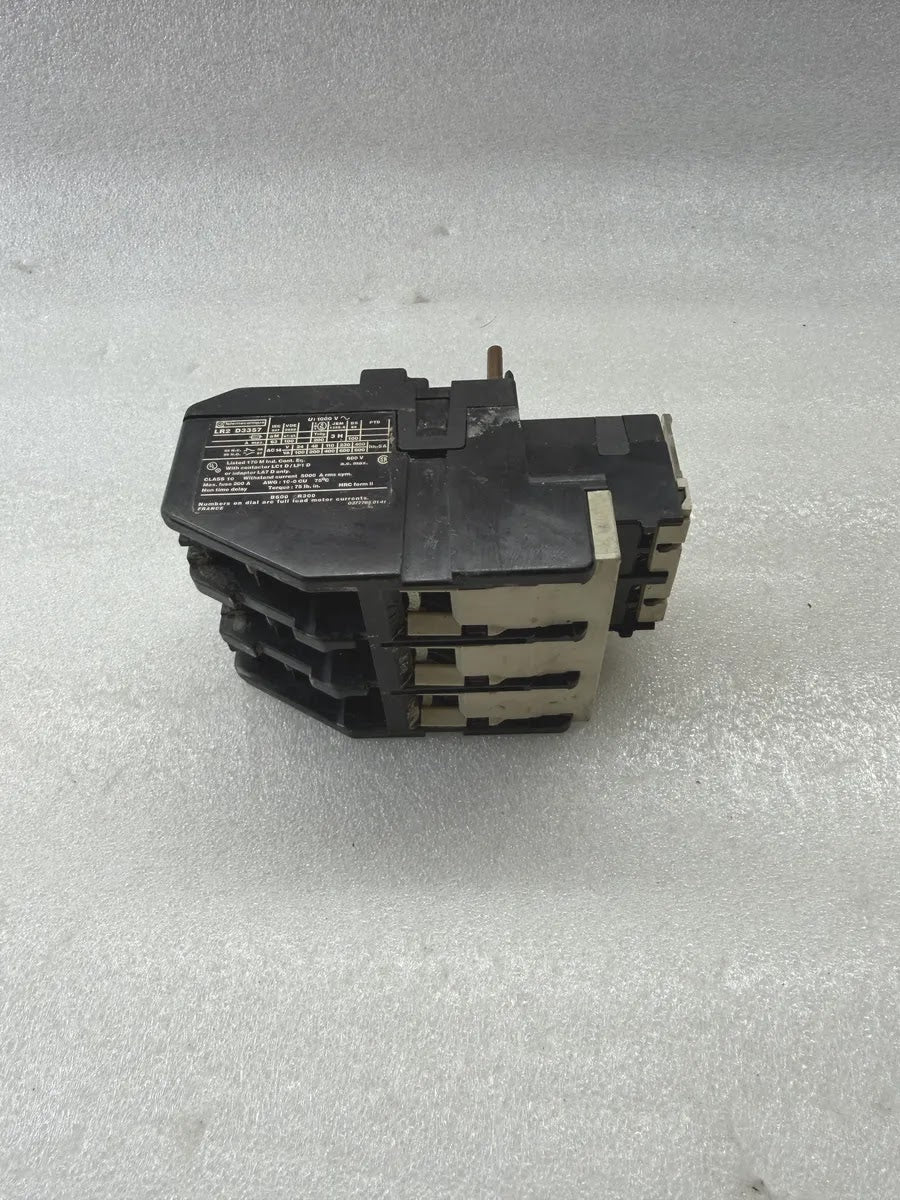

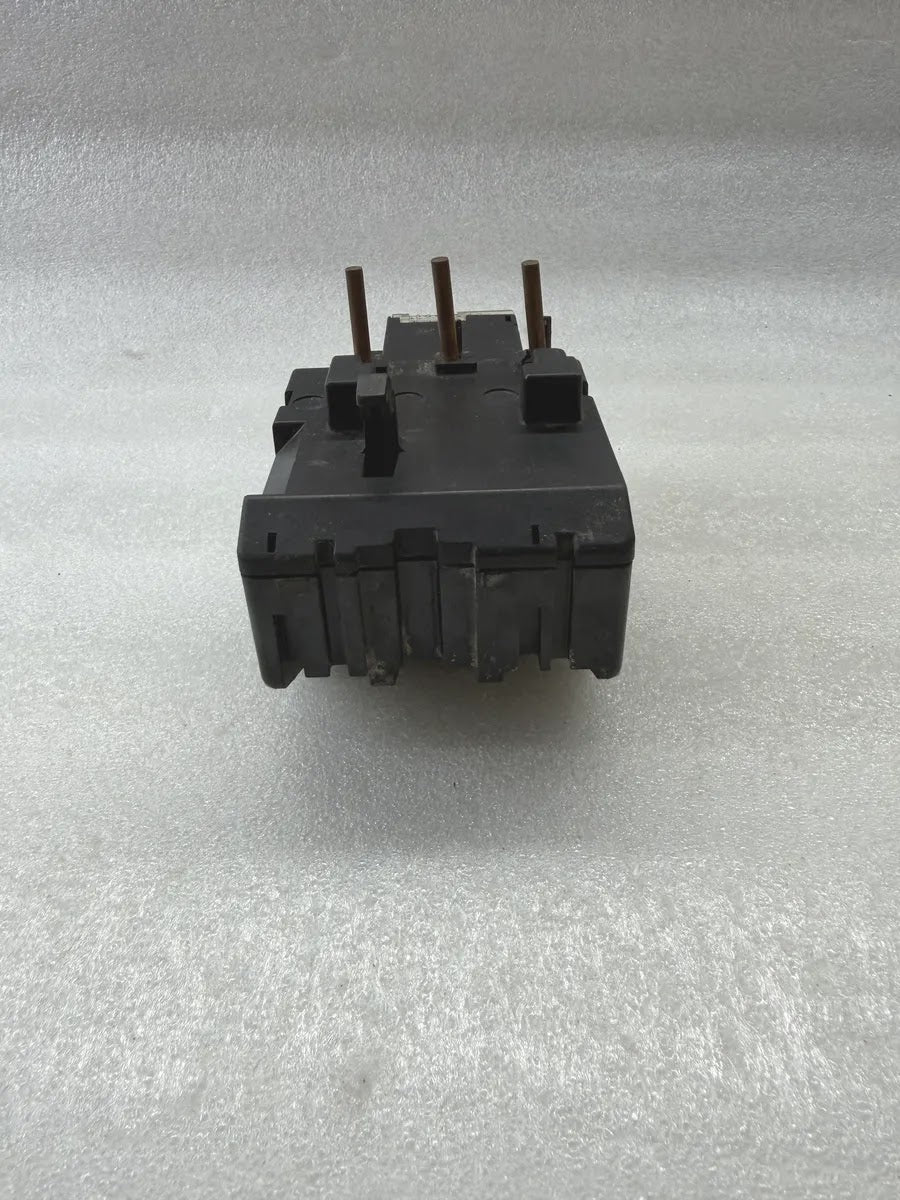

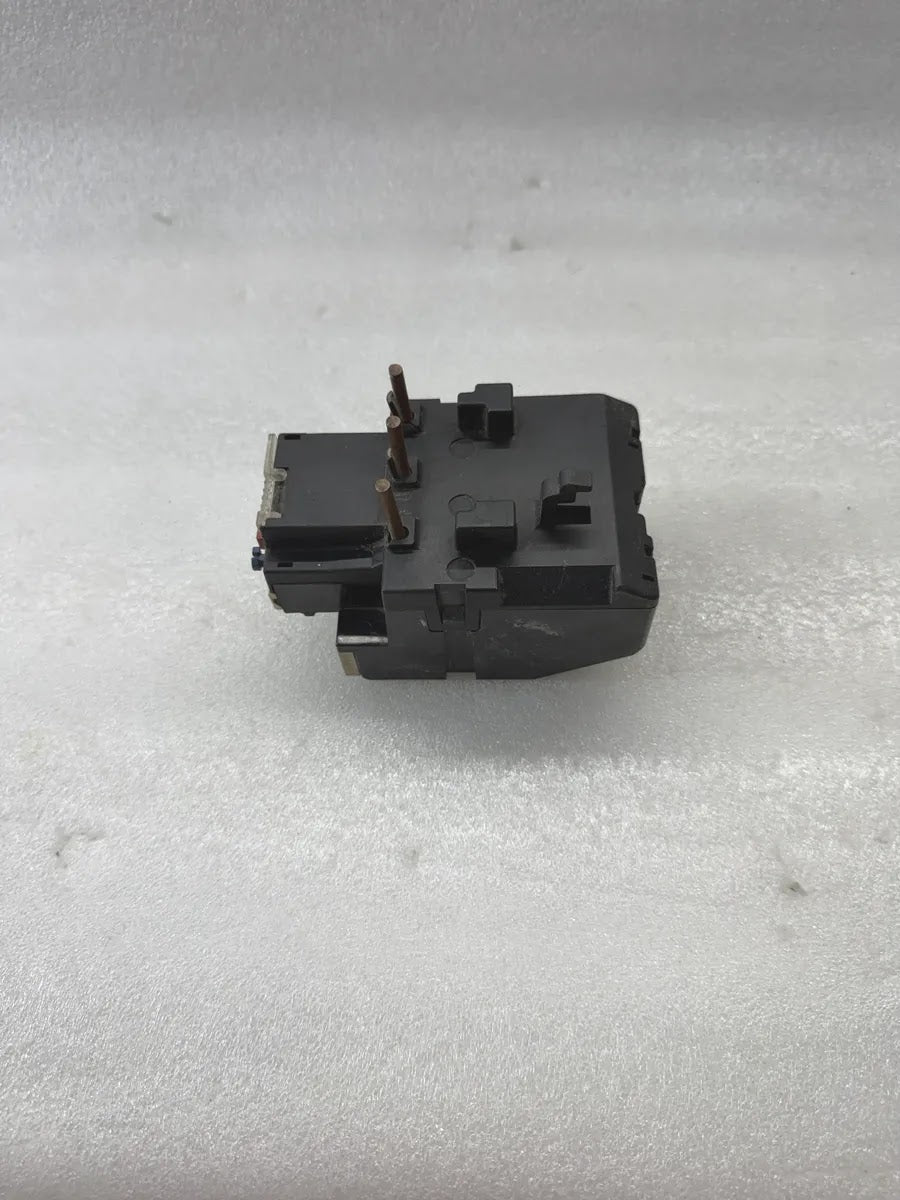

TELEMECANIQUE LR2D3357 Thermal Overload Relay 37-50A 600V
$20.00
Skip to product information
TELEMECANIQUE LR2D3357 Thermal Overload Relay 37-50A 600V
$20.00
TELEMECANIQUE LR2D3357 Thermal Overload Relay 37-50A 600V
Specifications
| Brand | Telemecanique |
| Part Number | LR2 D3357 |
| Type | Thermal overload relay, bimetallic, for direct mounting on a contactor |
| Series | LR2 D33 |
| Poles | 3 |
| Current Setting Range | 37-50 A (dial graduated in full load motor current, A) |
| Trip Class | CLASS 10 |
| Insulation Voltage | Ui 1000 V AC |
| Rated Voltage (Ul) | 600 V a.c. max. |
| Auxiliary Contacts | 1 NC (95-96) + 1 NO (97-98) |
| Short-Circuit Protection | A max: aM 63 A, gL-gG 100 A; Trip 200; 3 H 100 |
| Maximum Fuse | 200 A, non time delay, HRC form II |
| Withstand Current | 5000 A rms sym. |
| Wire Size | AWG 10-0 CU, 75°C |
| Tightening Torque | 75 lb. in. |
| Compatibility | With contactor LC1 D / LP1 D or adaptor LA7 D only |
| Standards | IEC 947, VDE 0660, JSEM 1350-5, DS SS, PTB |
| Approvals | UL Listed 170 M Ind. Cont. Eq., CSA |
| Country Of Origin | France |
| Condition | PRE-OWNED / SECOND HAND |

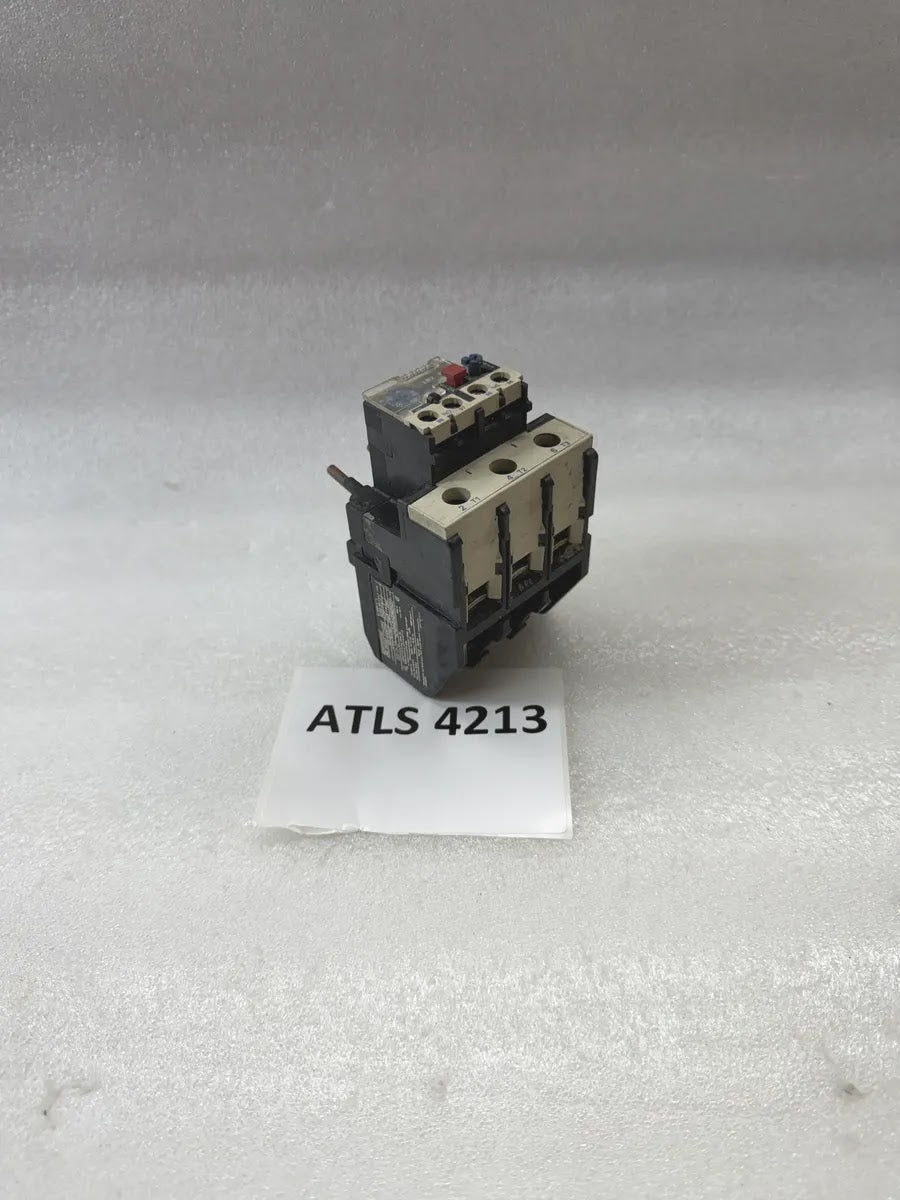

| REF | ATLS4213 |
