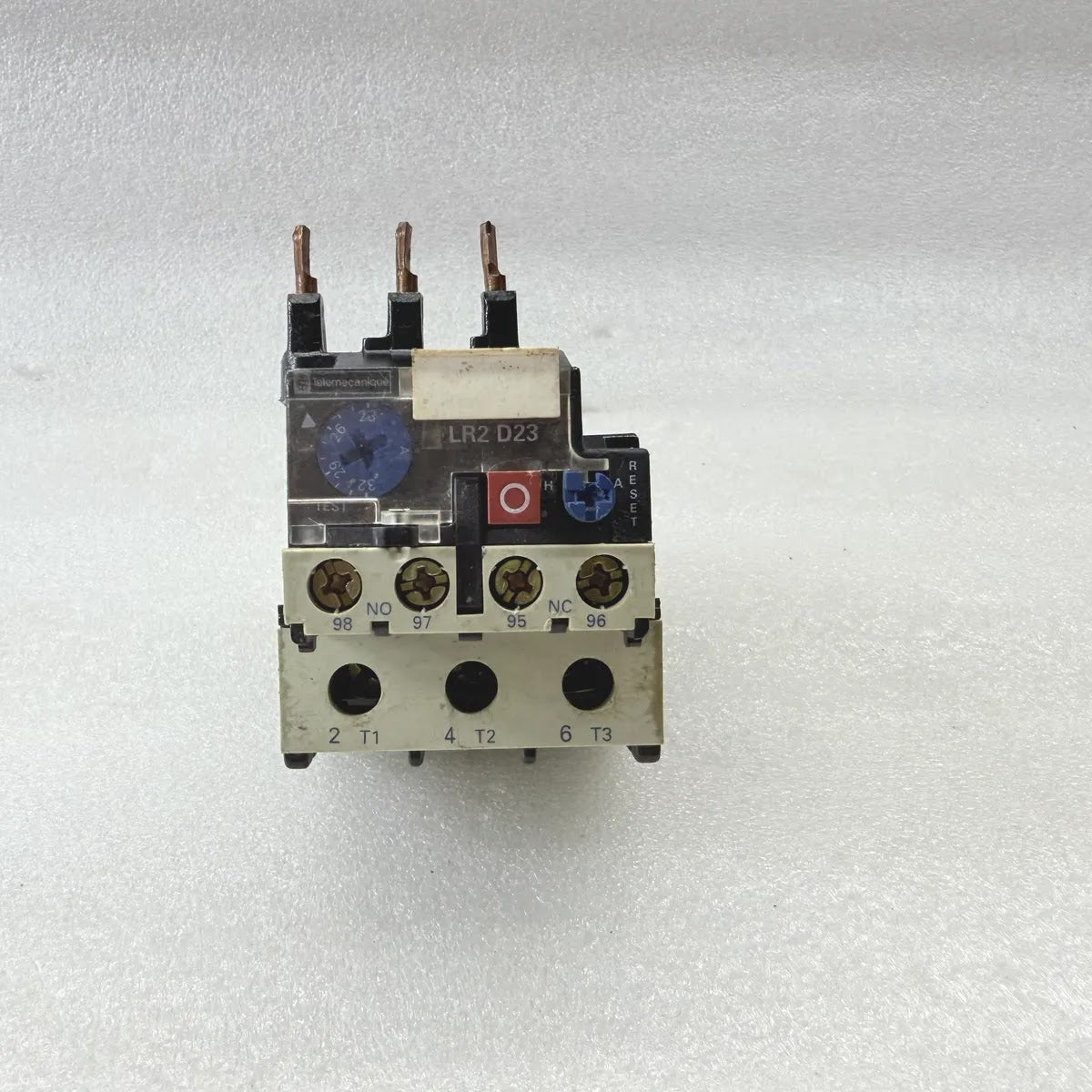

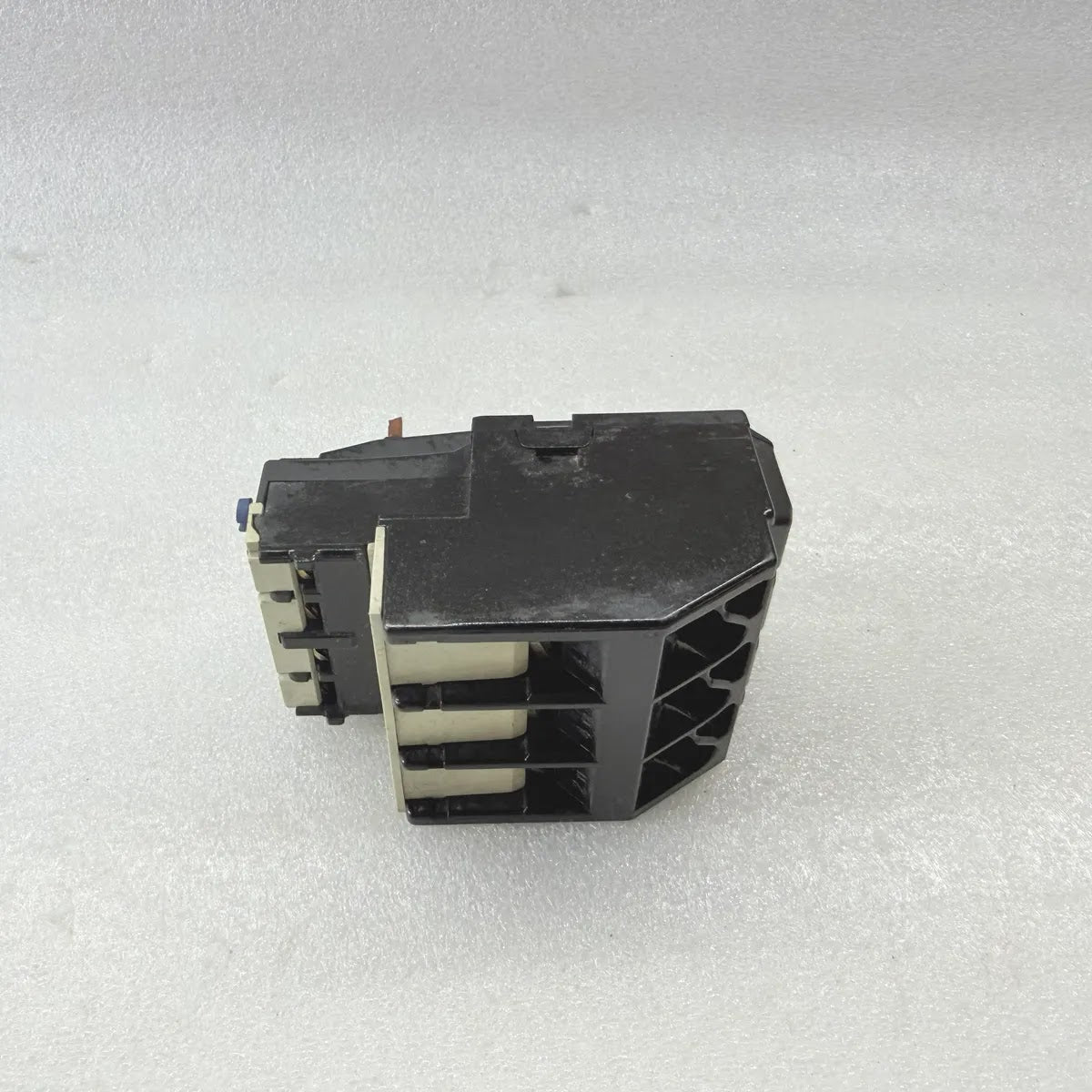

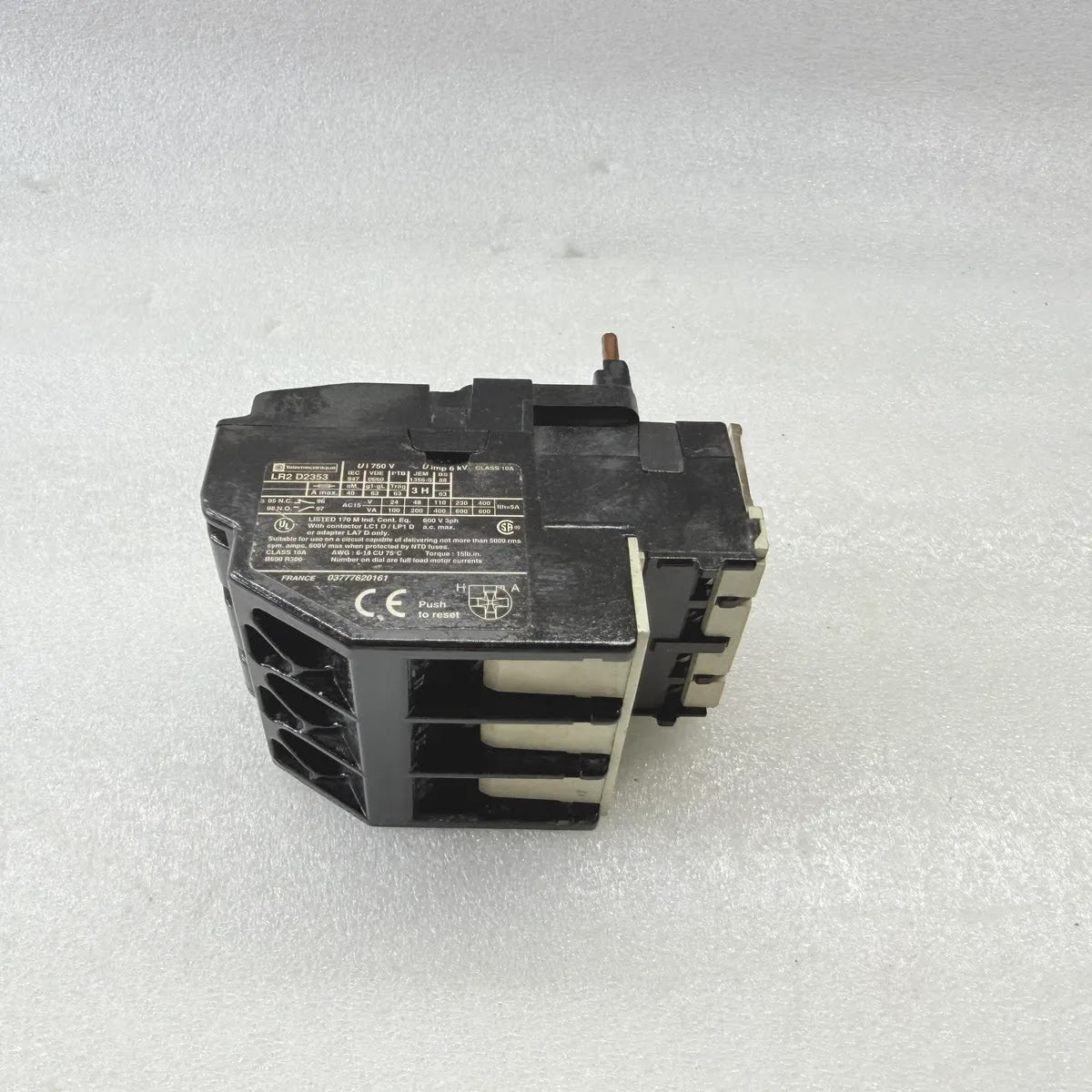

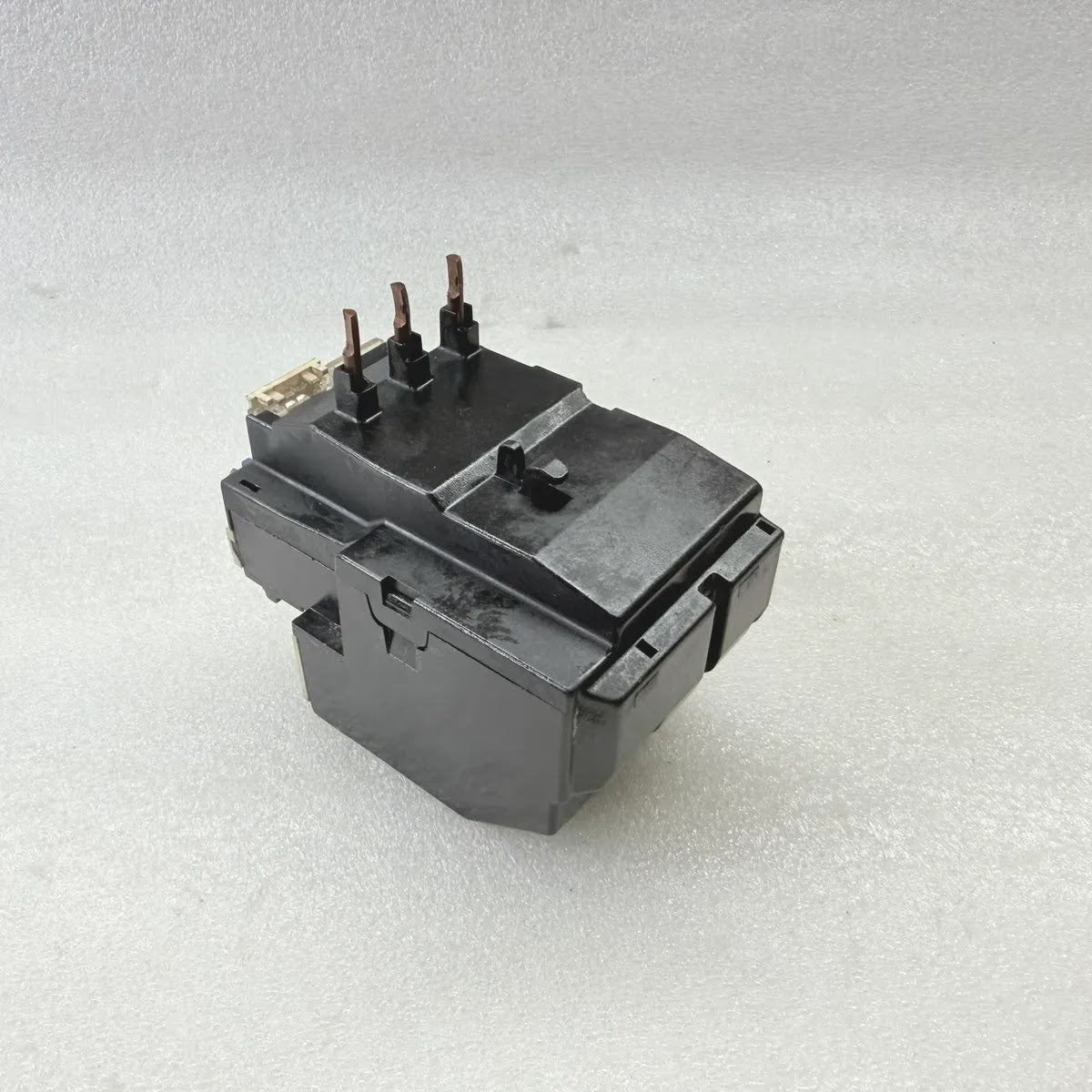

TELEMECANIQUE LR2D2353 Thermal Overload Relay 23-32A 750V
$15.00
Skip to product information
TELEMECANIQUE LR2D2353 Thermal Overload Relay 23-32A 750V
$15.00
TELEMECANIQUE LR2D2353 Thermal Overload Relay 23-32A 750V
Specifications
| Brand | Telemecanique |
| Model | LR2 D23 |
| Part Number | LR2 D2353 |
| Type | Thermal overload relay for motor protection, 3-pole bimetallic |
| Series | TeSys LR.D |
| Current Setting Range | 23 - 32 A (dial graduated 23, 26, 29, 32 A; numbers on dial are full load motor currents) |
| Trip Class | Class 10A |
| Poles | 3 |
| Rated Insulation Voltage | Ui 750 V |
| Impulse Withstand Voltage | Uimp 6 kV |
| Ul Rated Voltage | 600 V 3ph a.c. max. |
| Auxiliary Contacts | 1 N.C. 95-96 and 1 N.O. 98-97 |
| Auxiliary Thermal Current | Ith 5 A |
| Short-Circuit Protection | Max. fuse aM 40 A, g1-gL 63 A, Trag 63 A, 3 H 03 |
| Short-Circuit Withstand | Suitable for use on a circuit capable of delivering not more than 5000 rms sym. amps, 600 V max when protected by NTD fuses |
| Associated Contactor | For use with contactor LC1 D / LP1 D or adapter LA7 D only |
| Conductor Size | AWG 6-14 CU 75 C, tightening torque 15 lb.in. |
| Standard | IEC 947, VDE 0660, PTB, JEM 1356-S |
| Approvals | CE, UL Listed 170 M Ind. Cont. Eq., CSA |
| Country Of Origin | France |
| Condition | PRE-OWNED / SECOND HAND |

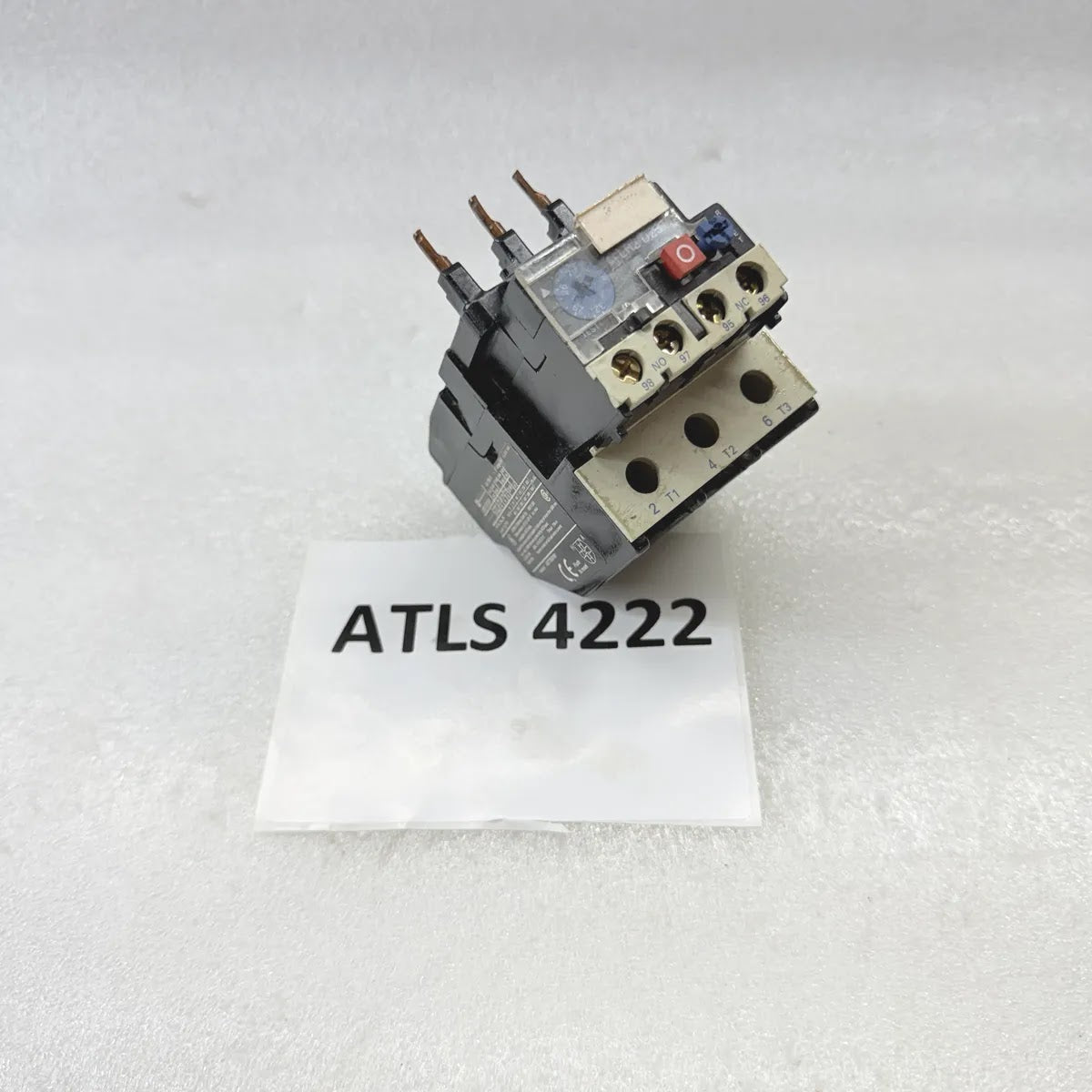

| REF | ATLS4222 |
