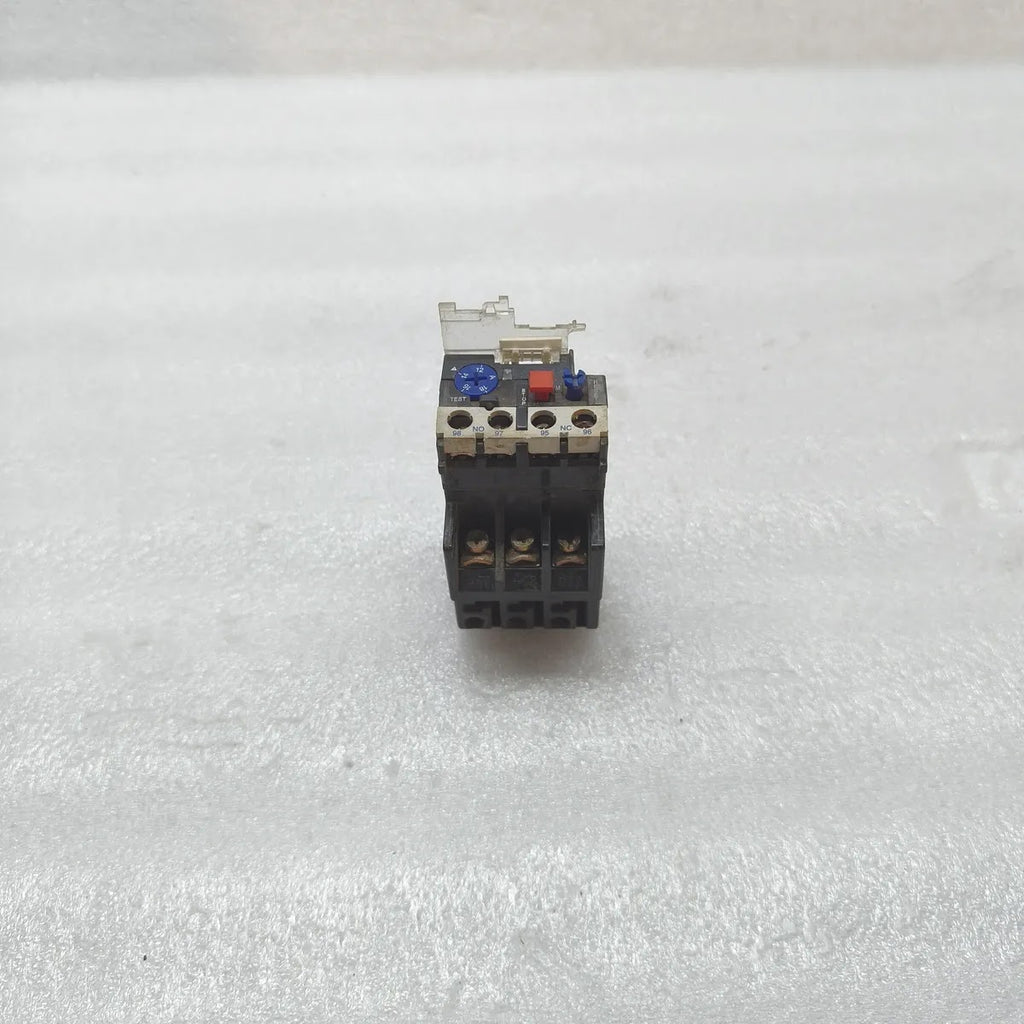

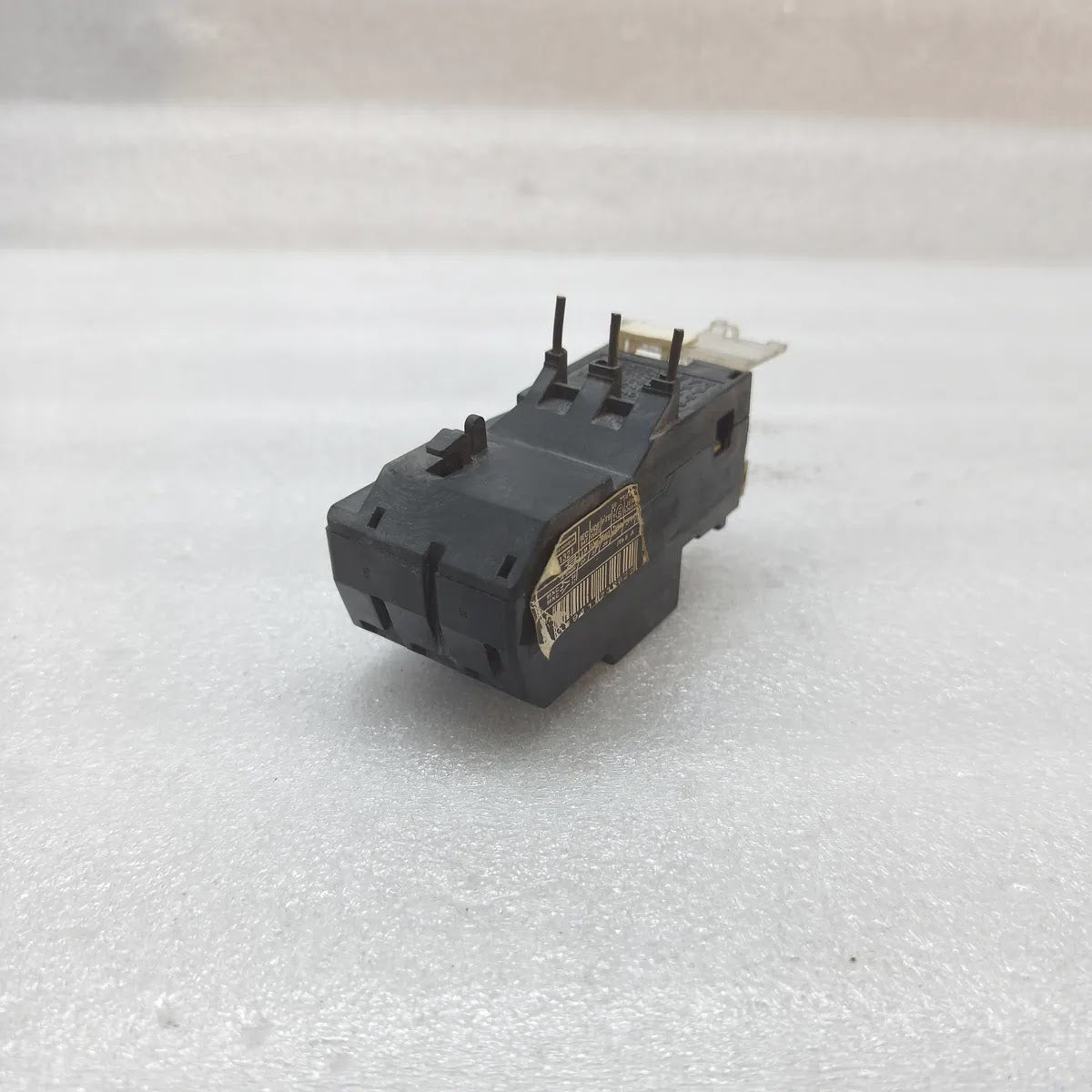

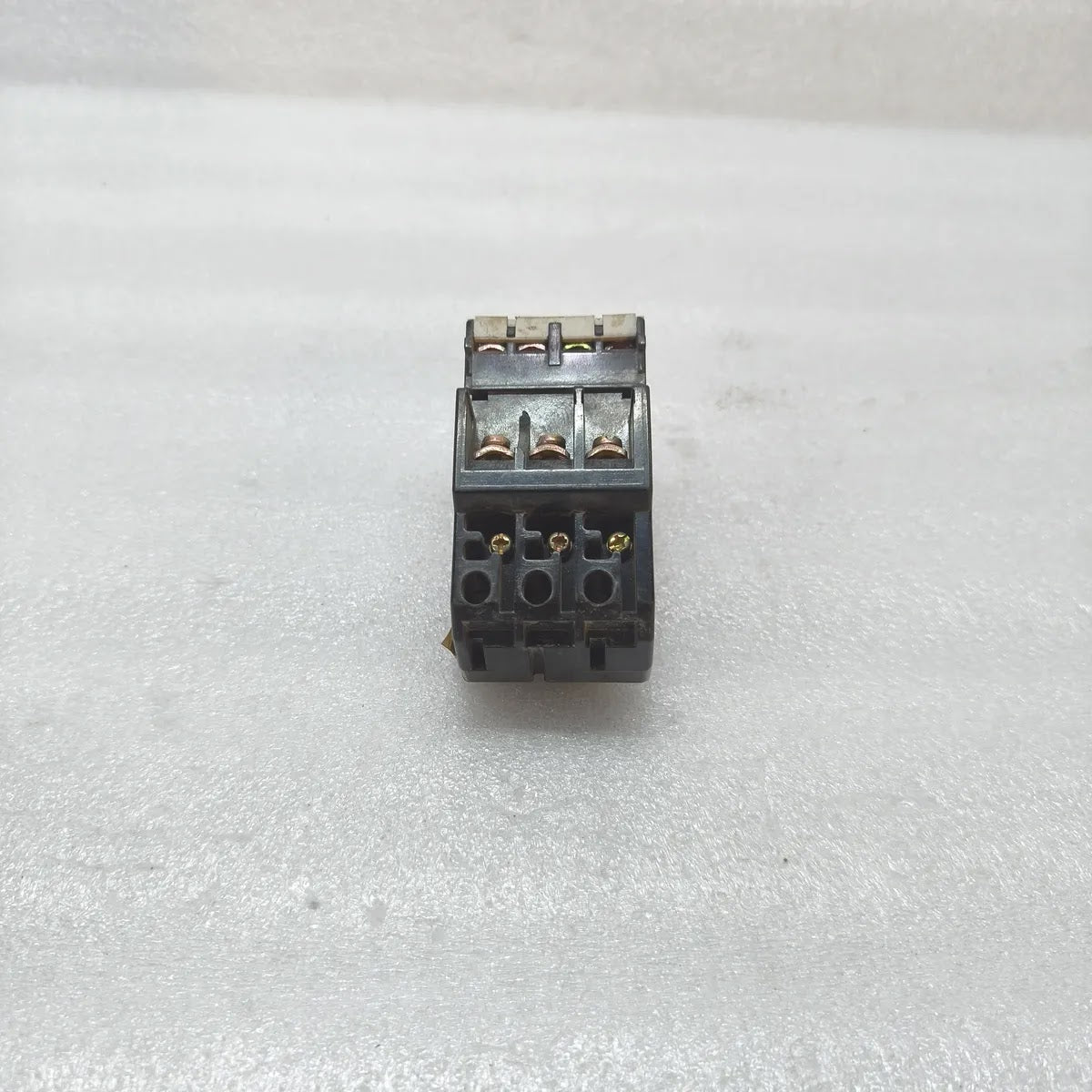

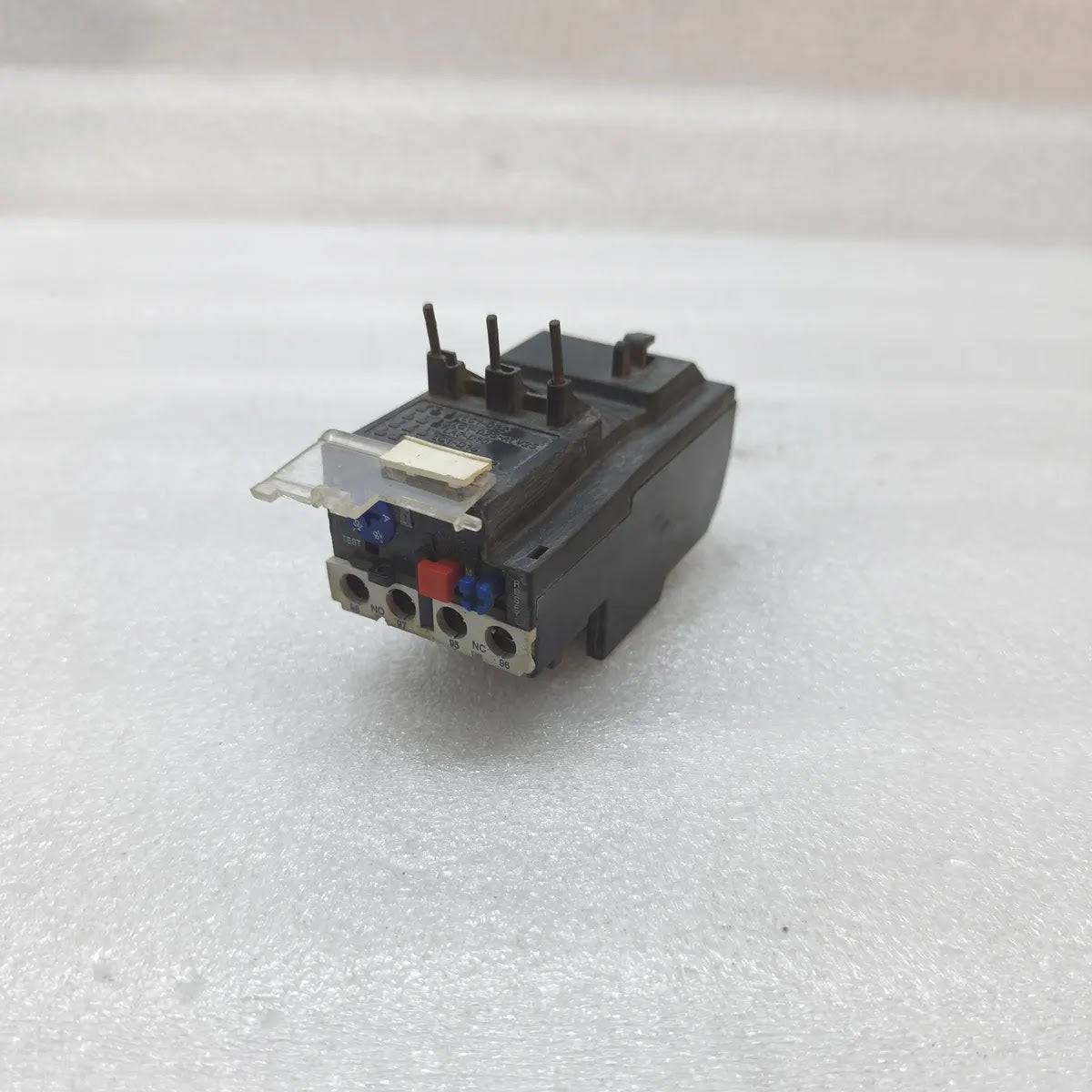

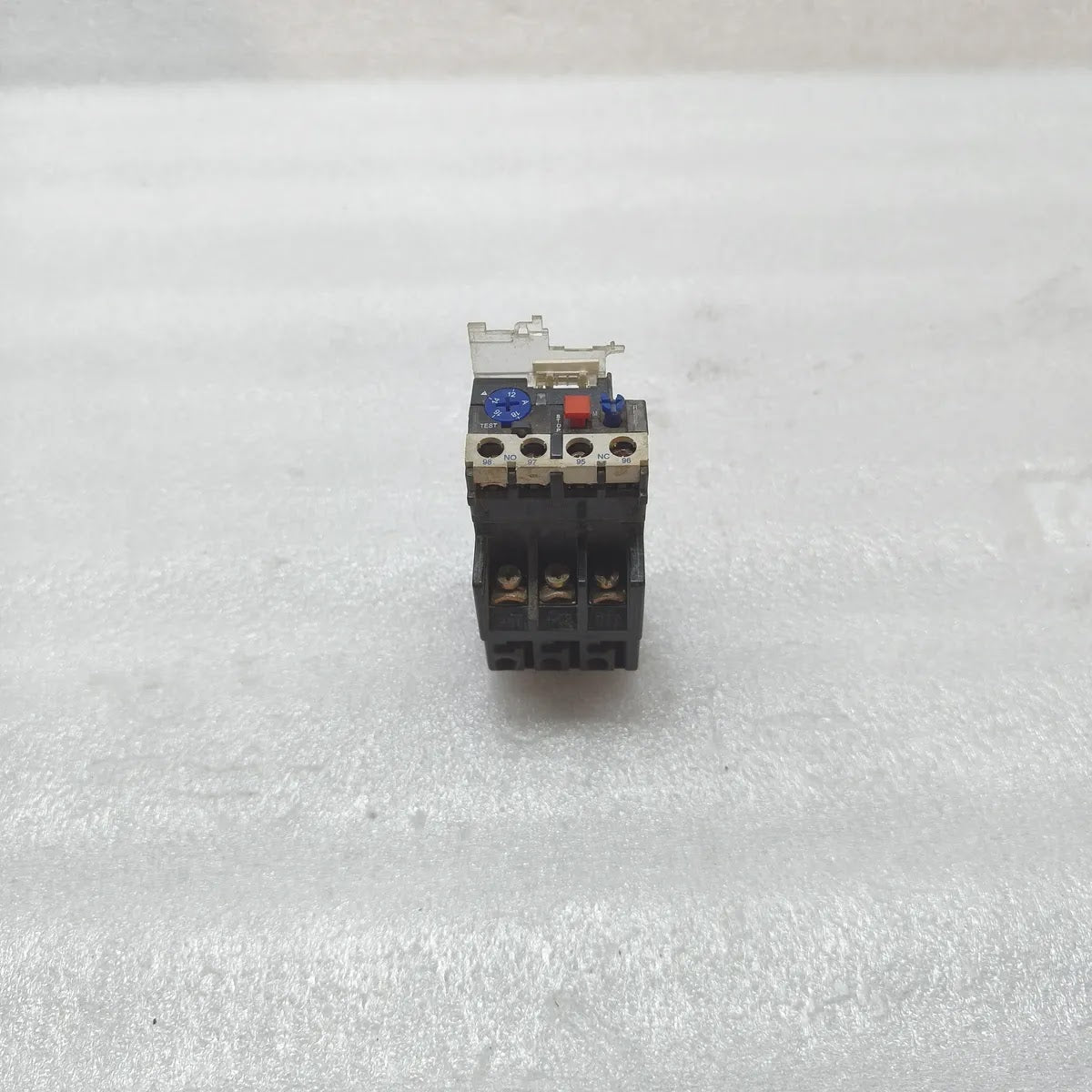

TELEMECANIQUE LR2D1321 Thermal Overload Relay 12-18A
$20.00
TELEMECANIQUE LR2D1321 Thermal Overload Relay 12-18A
Specifications
| Brand | Telemecanique |

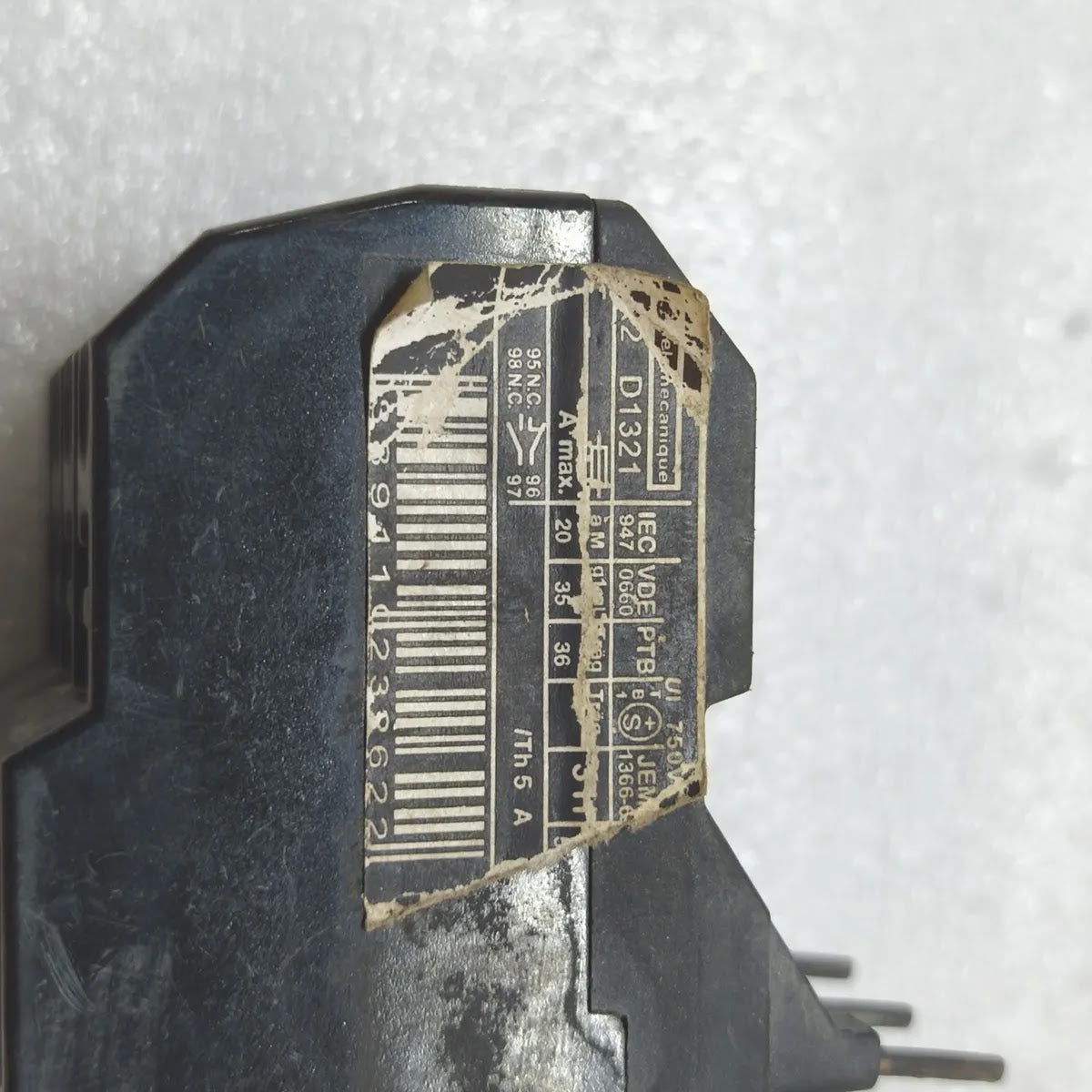

| Part Number | LR2D1321 (nameplate torn, reads "2 D1321") |
| Type | Thermal overload relay for motor protection |
| Series | LR2 D (TeSys D) |
| Poles | 3 |
| Current Setting Range | 12-18 A |
| Trip Class | Class 10A |
| Auxiliary Contacts | 1 NO (97-98) + 1 NC (95-96) |
| Auxiliary Thermal Current | Ith 5 A |
| Insulation Voltage | Ui 750 V |
| Rated Operational Voltage | 690 V AC |
| Short-Circuit Protection Fuse | A max. 20 (aM) / 35 / 36 (gL) |
| Motor Capacity | 15 kW |
| Operating Temperature | 20 to +60 °C |
| Application | Direct mounting on LC1-D contactors (LC1-D12, LC1-D25, LC1-D32) and LA2-D10 accessory |
| Standard / Approvals | IEC 947, VDE 0660, PTB, JEM 1366-6[?] |
| Condition | PRE-OWNED / SECOND HAND |

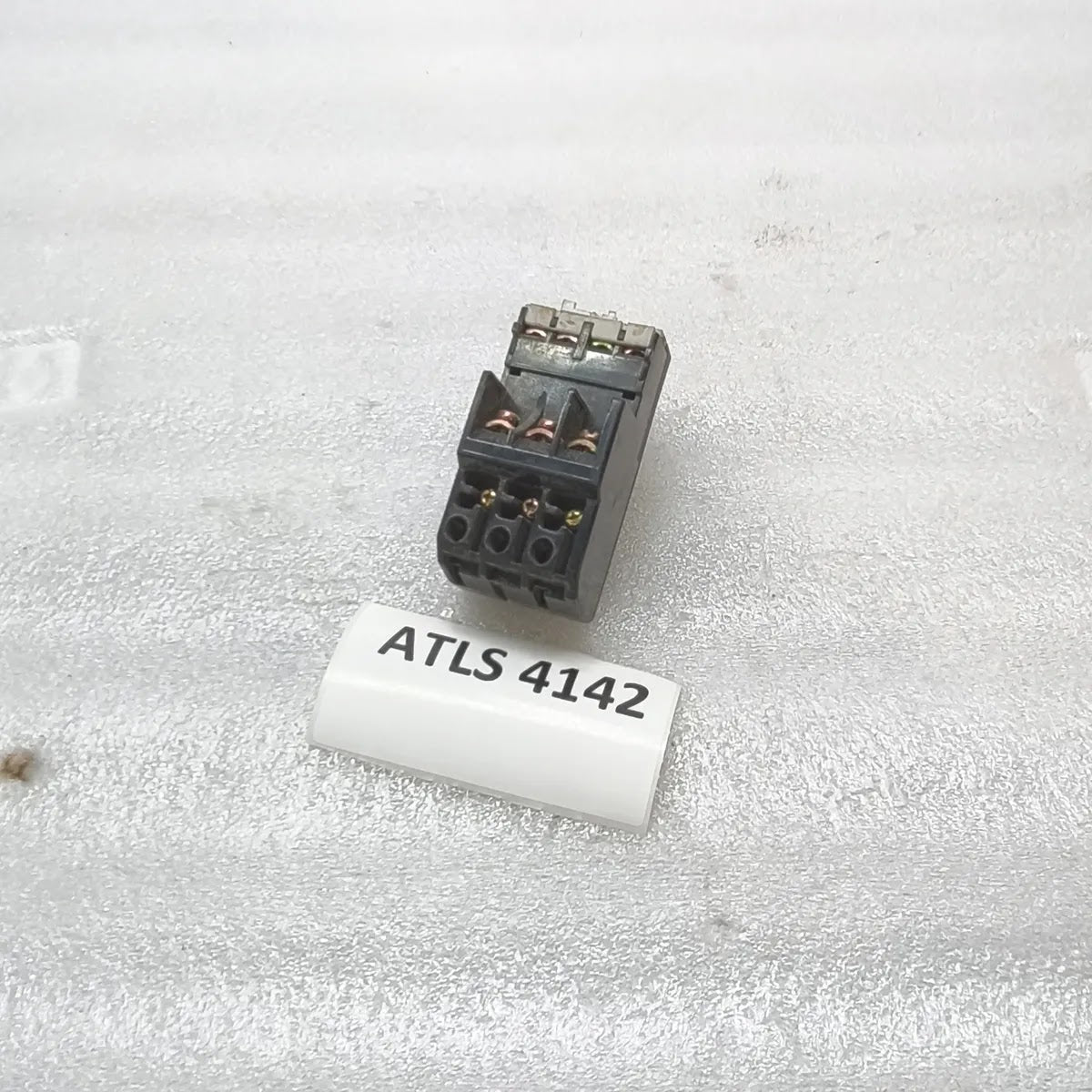

| REF | ATLS4142 |
