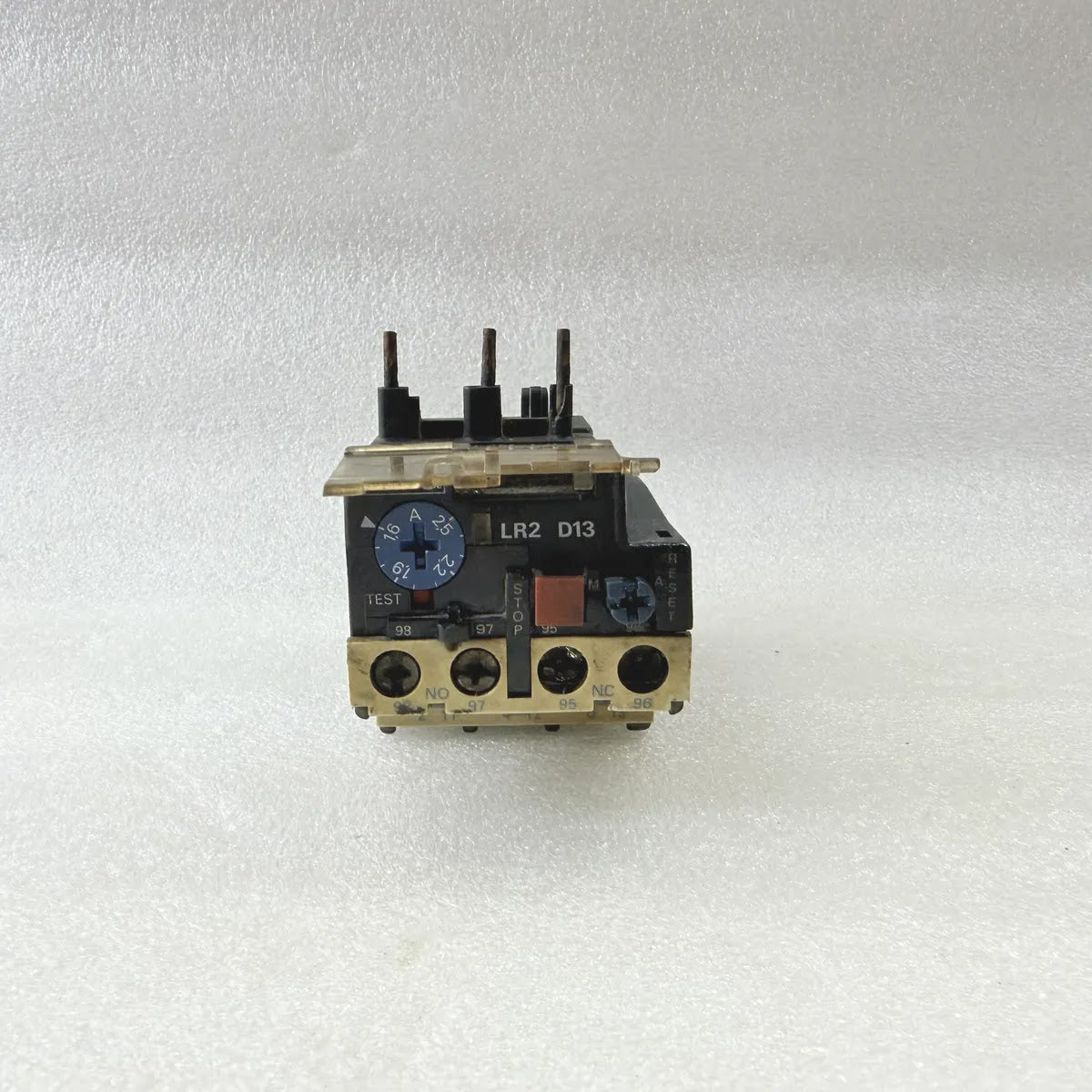

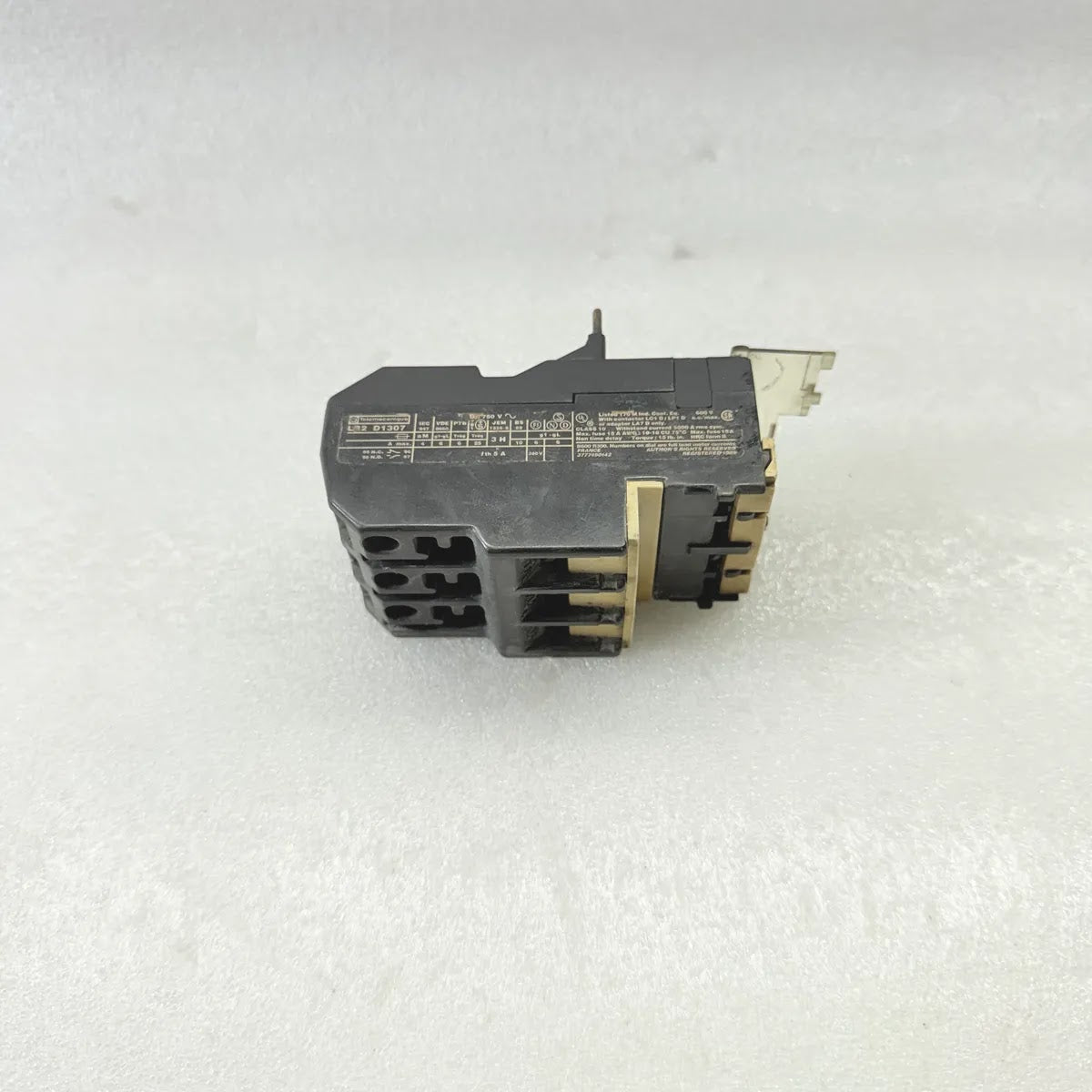

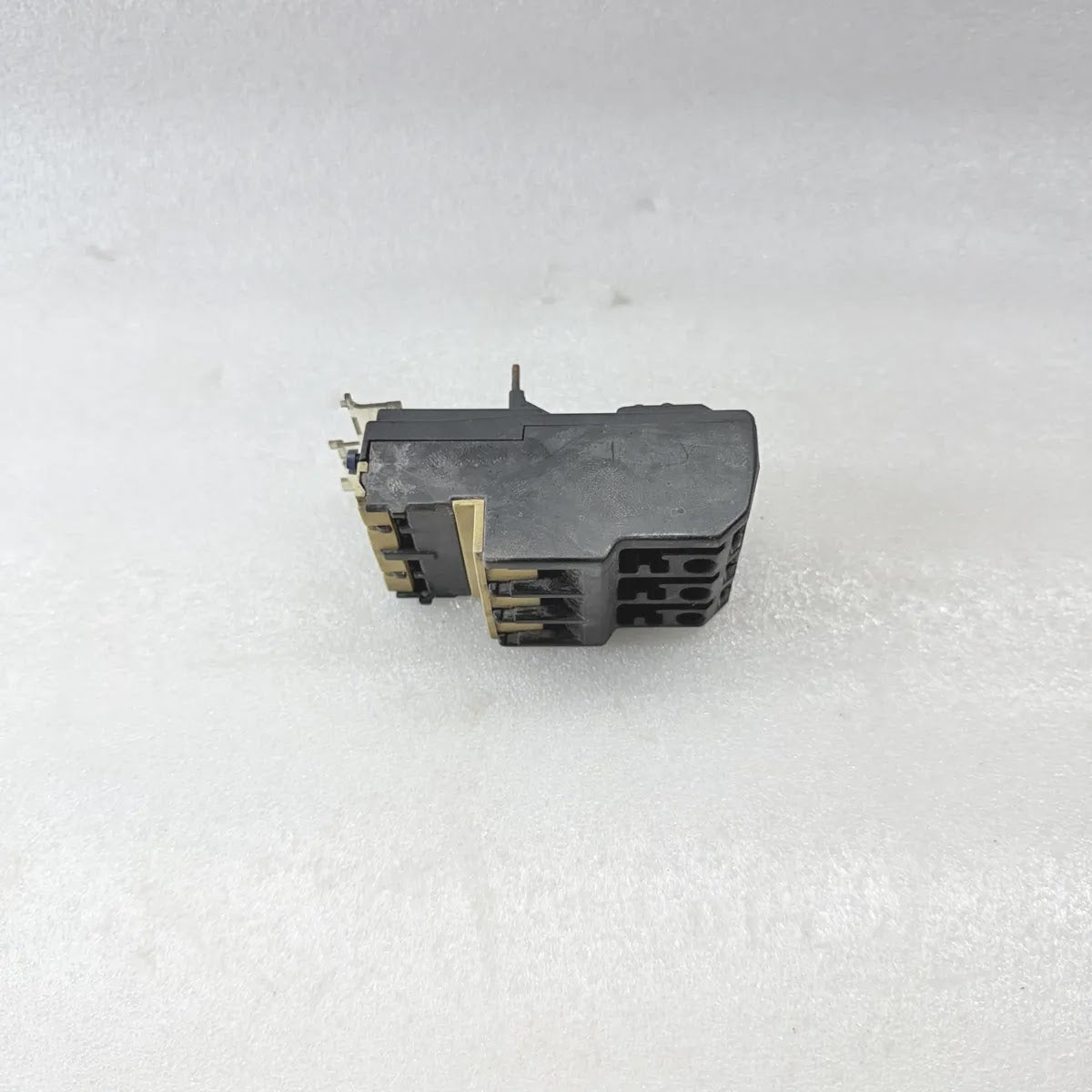

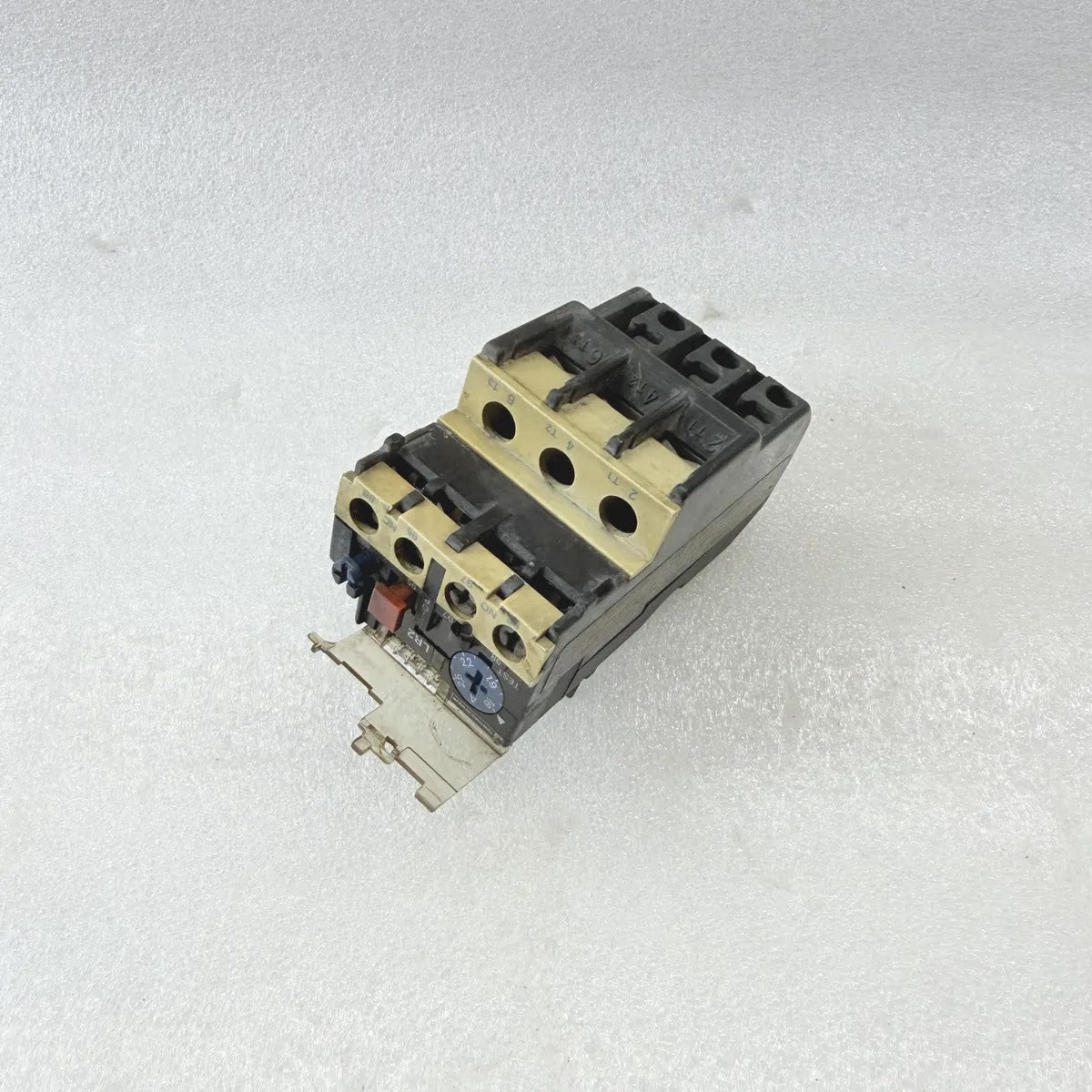

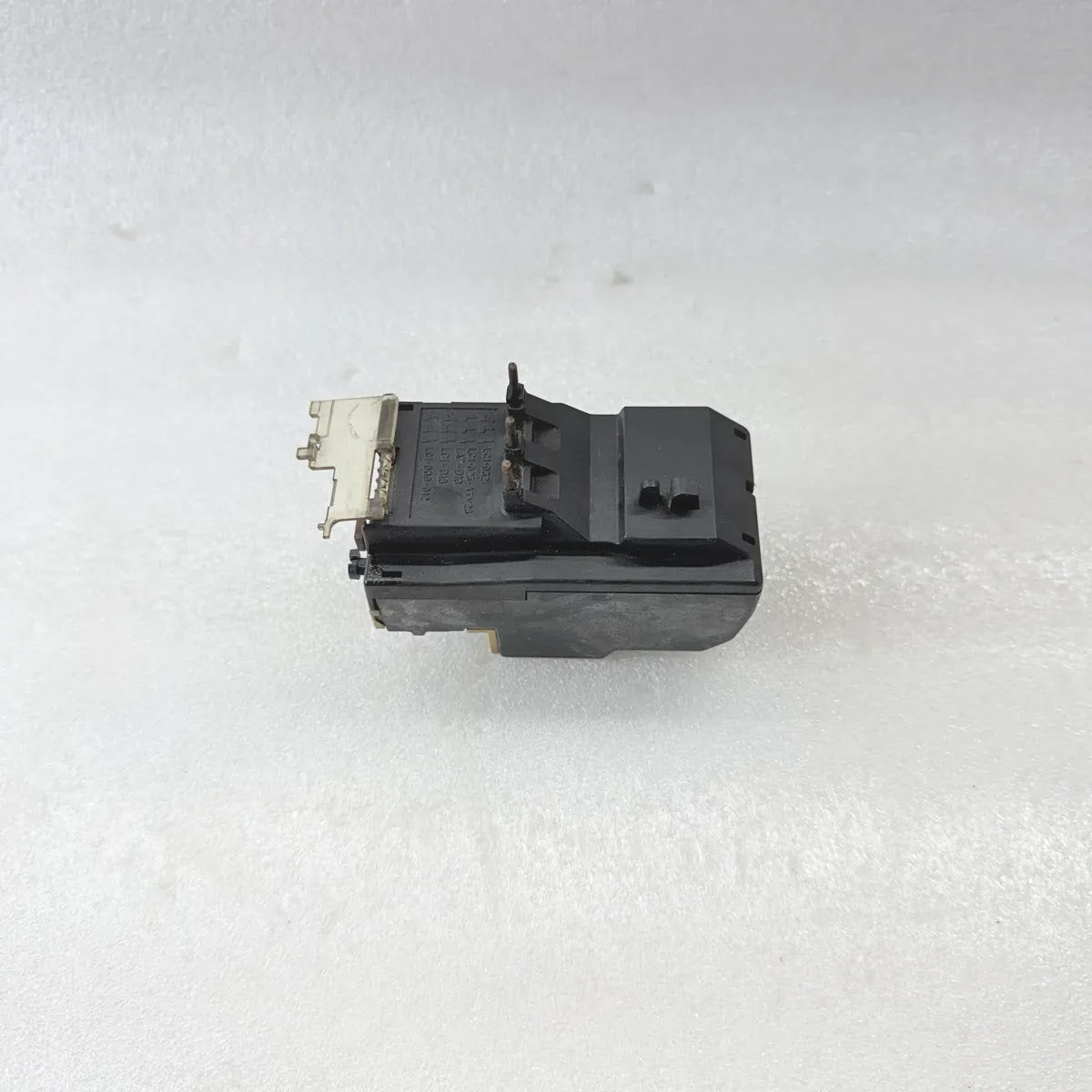

TELEMECANIQUE LR2D1307 Thermal Overload Relay 1.6-2.5A 750V
$15.00
TELEMECANIQUE LR2D1307 Thermal Overload Relay 1.6-2.5A 750V
Specifications
| Brand | Telemecanique |
| Model | LR2 D13 |
| Part Number | LR2 D1307 |
| Type | Thermal overload relay for motor protection |
| Series | TeSys LR.D |
| Current Range | 1.6 - 2.5 A adjustable (dial graduated 1.6 / 1.9 / 2.2 / 2.5 A; numbers on dial are full load motor currents) |
| Poles | 3 |
| Trip Class | CLASS 10 |
| Thermal Current | Ith 5 A |
| Rated Insulation Voltage | Ui 750 V AC |
| Rated Operational Voltage | 380 V AC |
| Ul Rating | Listed 170 M Ind. Cont. Eq., 600 V a.c. max. |
| Auxiliary Contacts | 1 NC (95-96) + 1 NO (98-97) |
| Withstand Current | 5000 A rms sym. |
| Short-Circuit Protection | Max. fuse 15 A non time delay, HRC form II; aM 4 A / gI-gL 25 A per rating table |
| Utilisation Category | 3 H (as printed in the standards table) |
| Application | For use with LC1 D / LP1 D contactors or LA7 D adapter only; moulded for LC1-D09-D12, LC1-D18, LC1-D25, LC1-D32 and LA7-D10 |
| Standards | IEC 947, VDE 0660, PTB, JEM 1356-8, BS [?]5 |
| Approvals | UL Listed, CSA and further European approval marks on the rating label |
| Country Of Origin | France |
| Condition | PRE-OWNED / SECOND HAND |

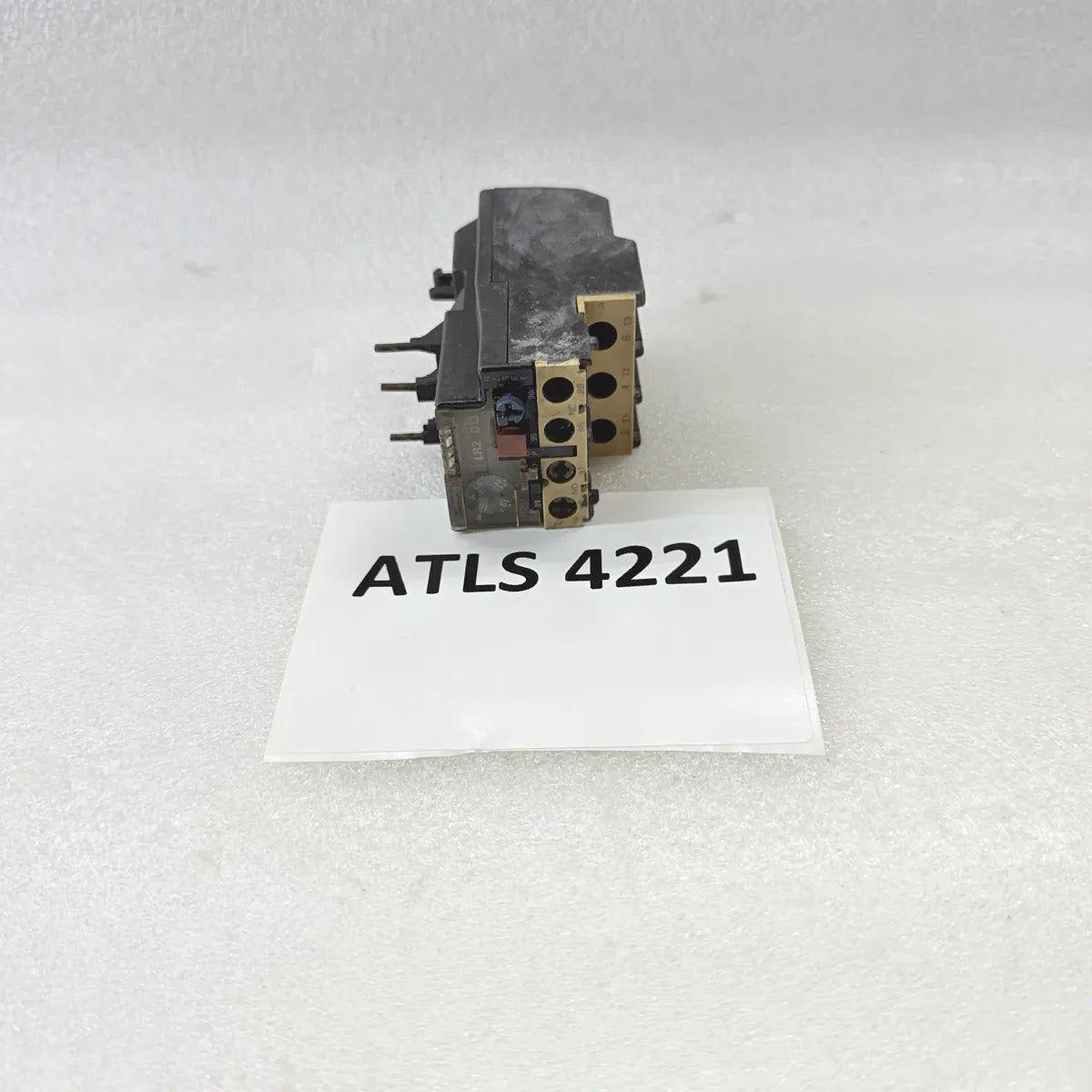

| REF | ATLS4221 |
