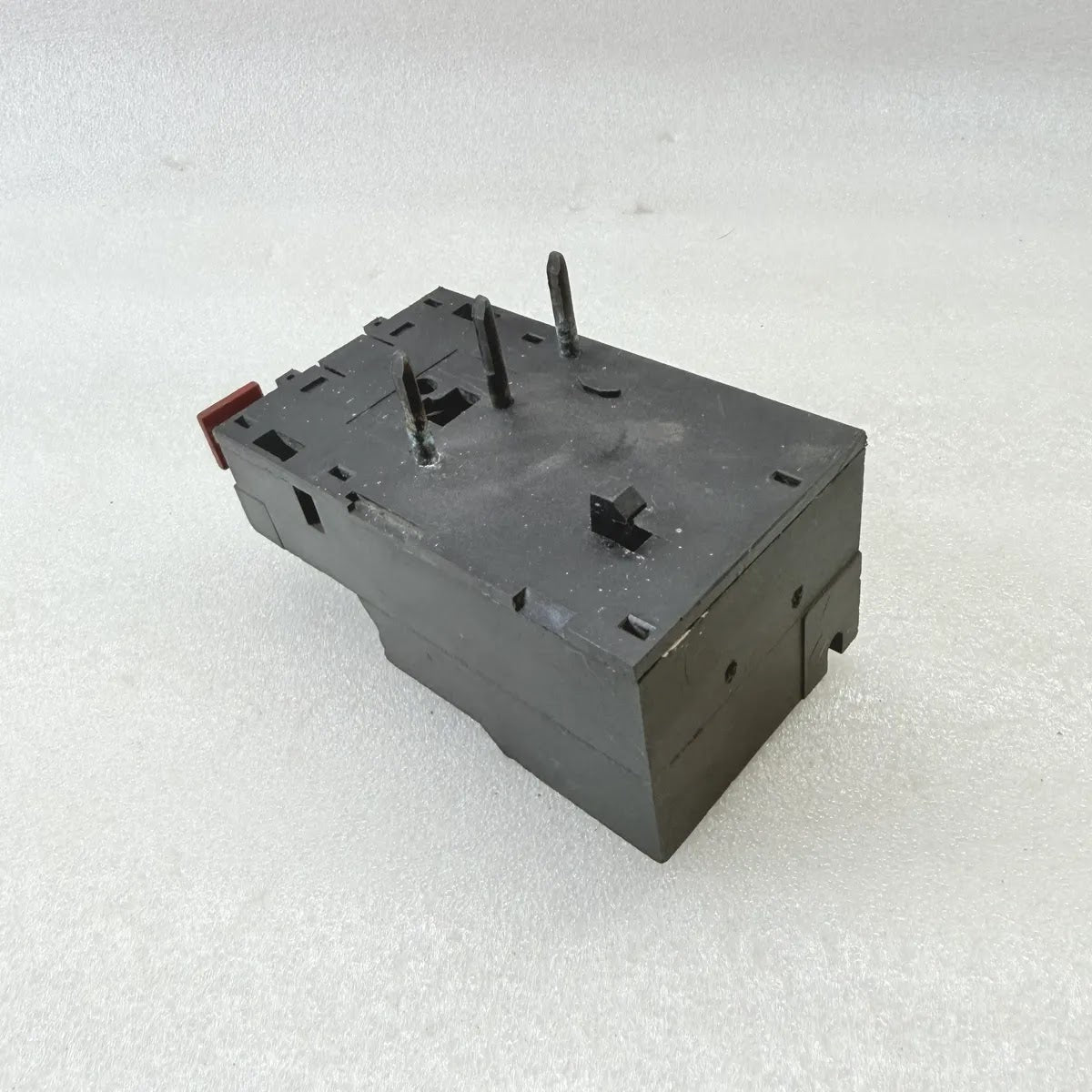

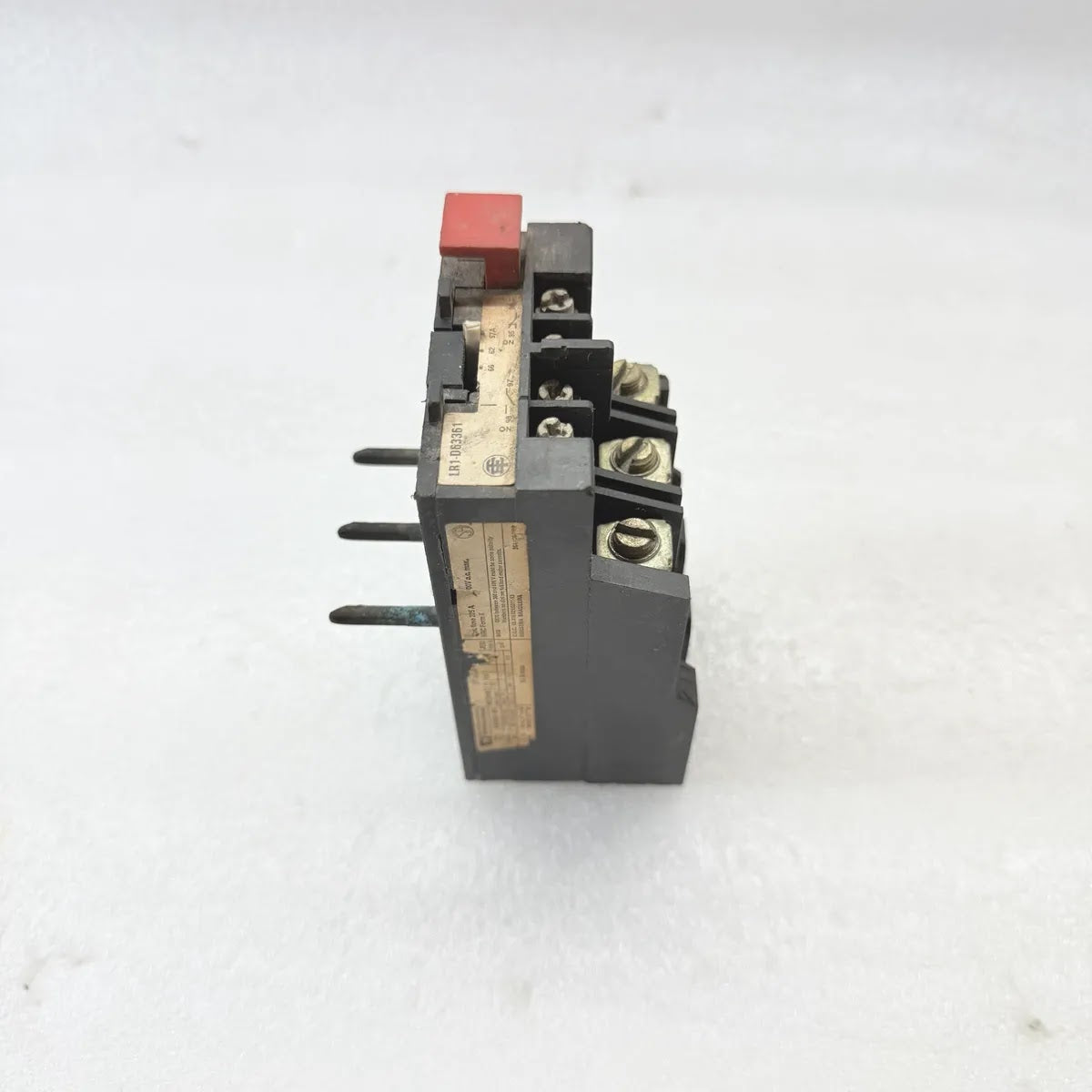

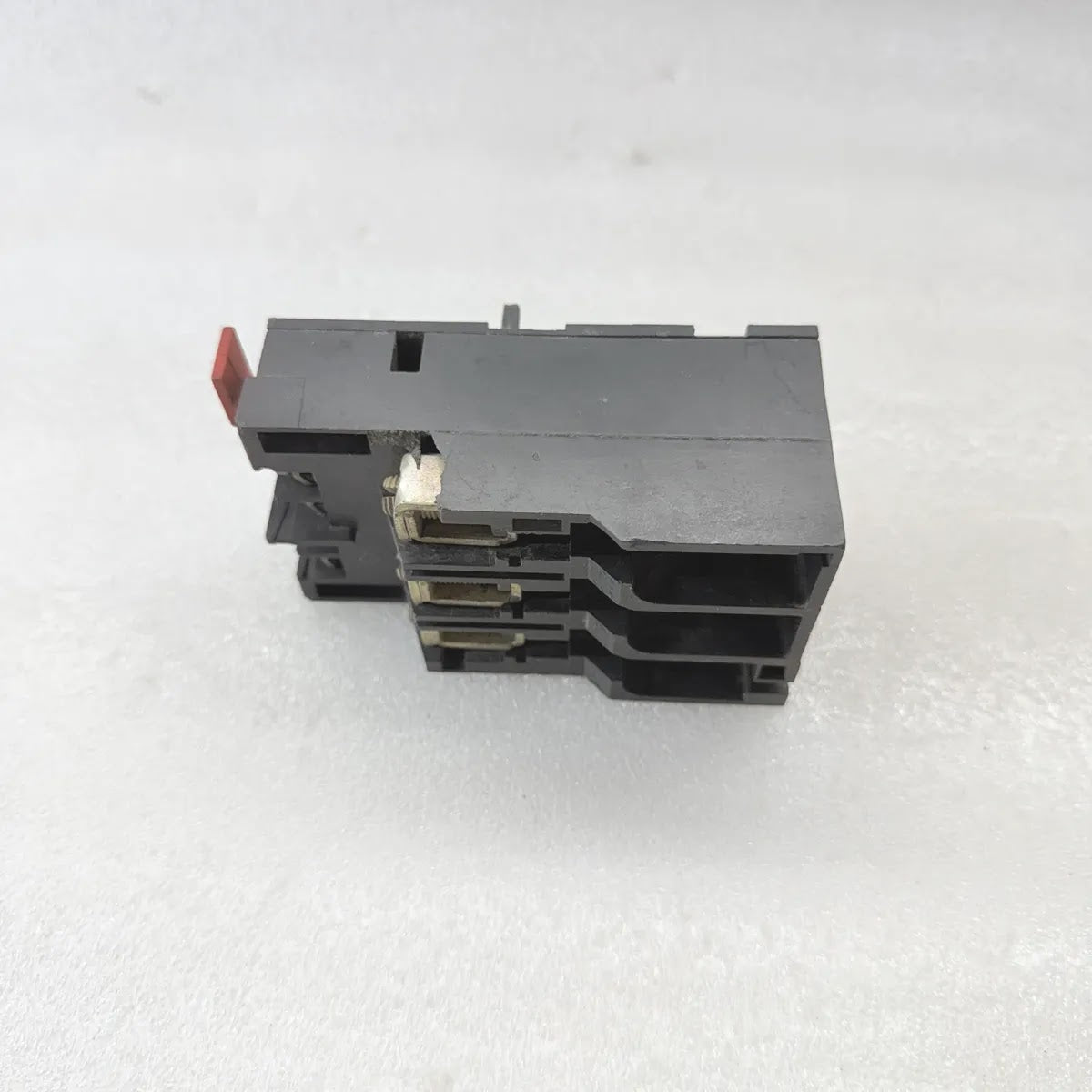

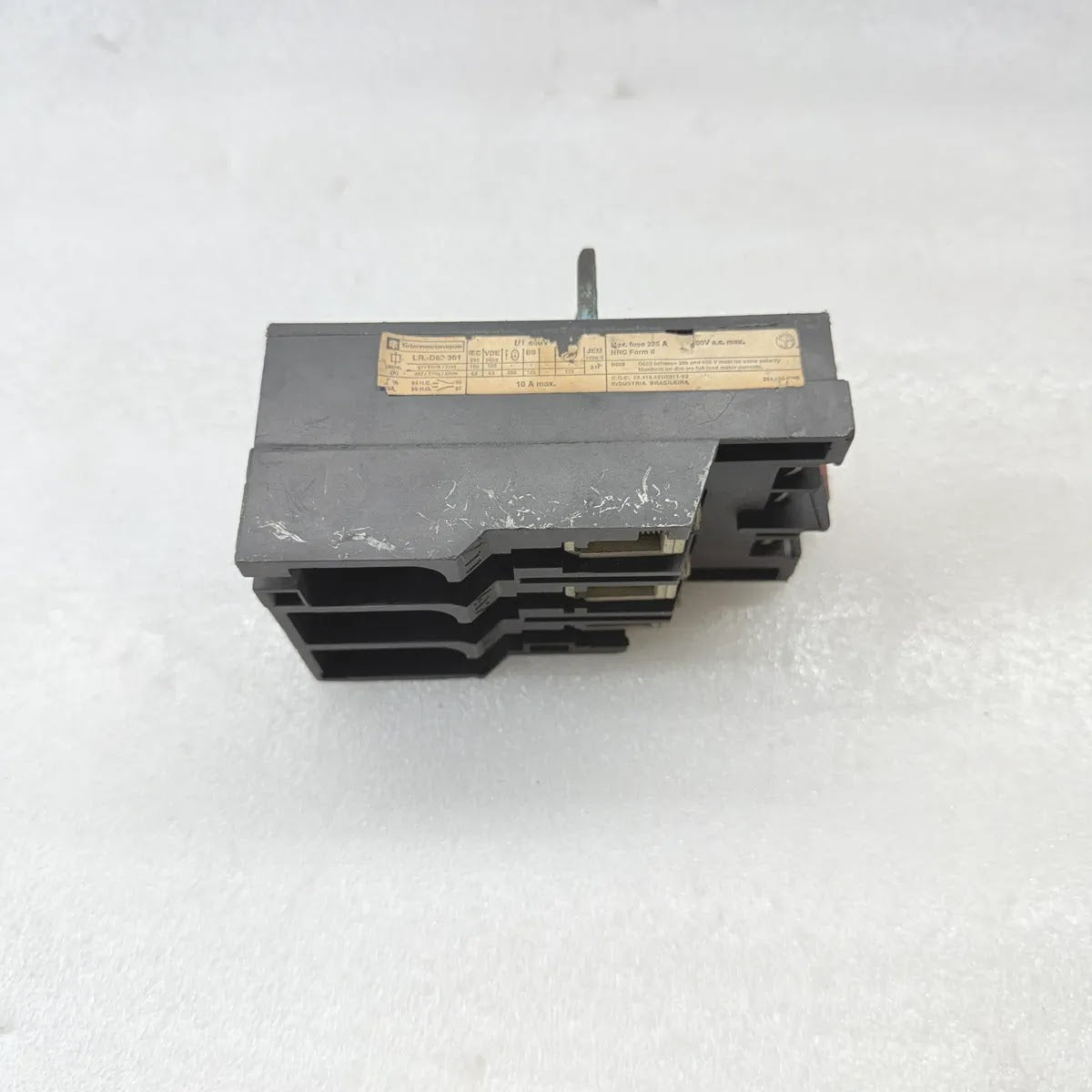

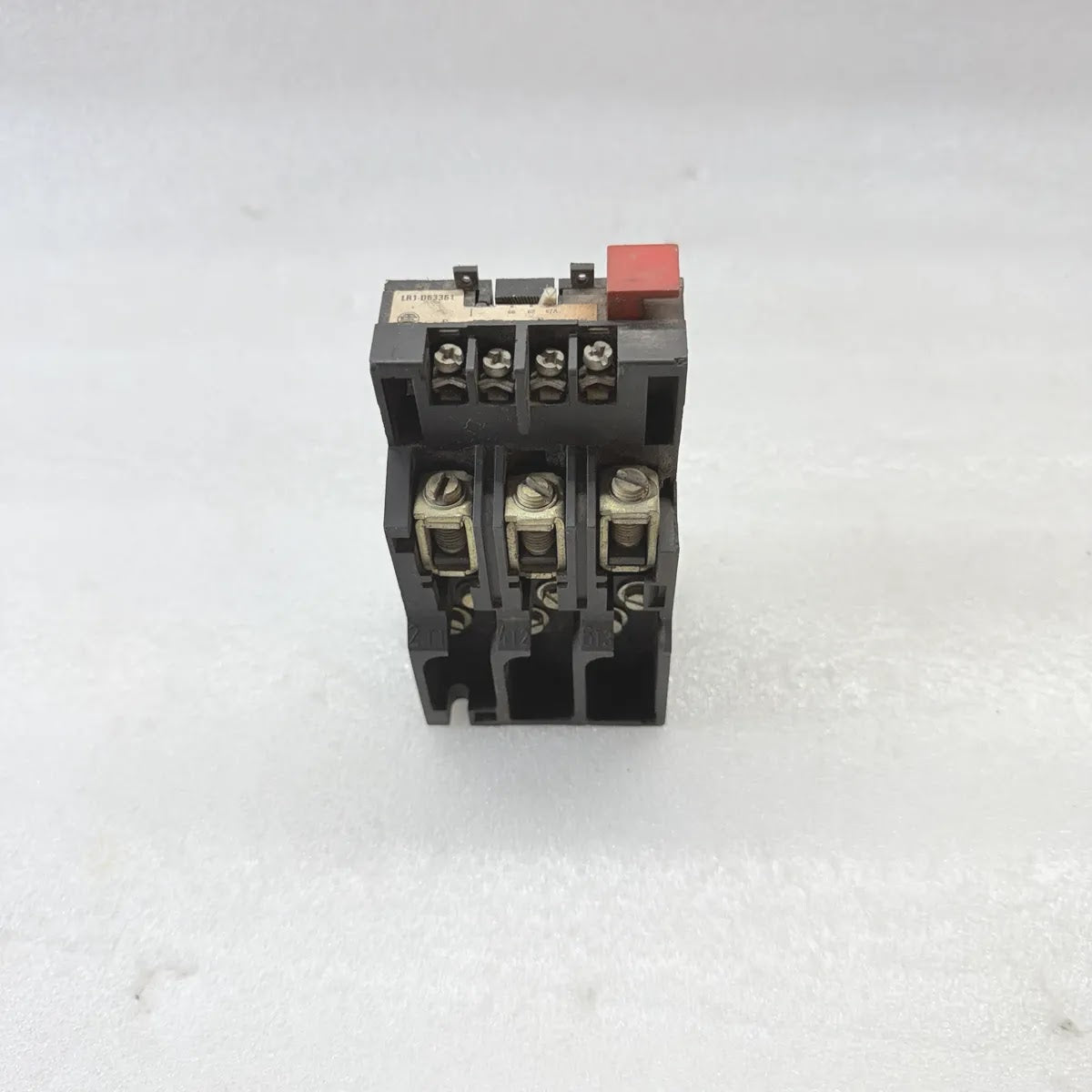

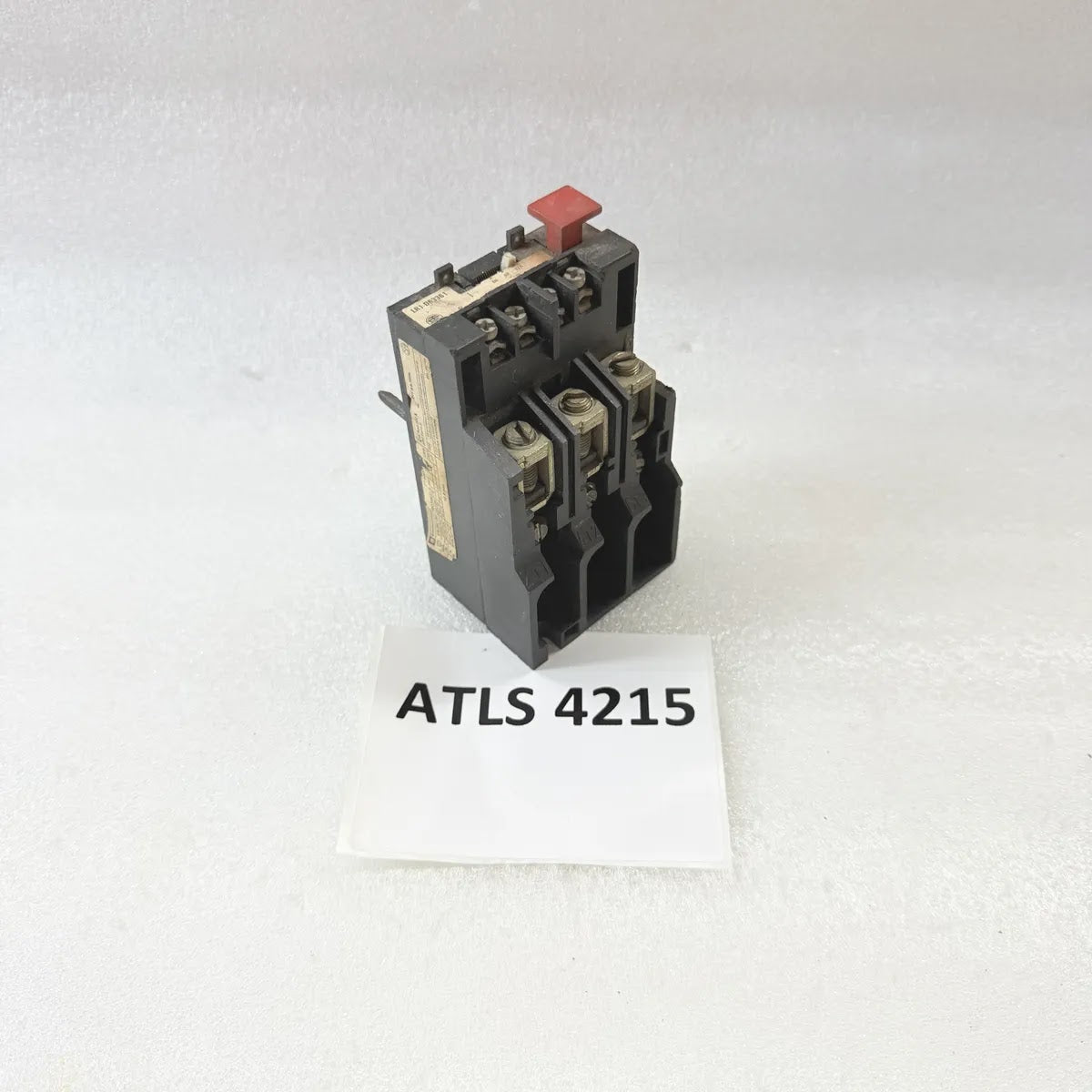

TELEMECANIQUE LR1-D63361 Thermal Overload Relay 57-66A 660V
$15.00
Skip to product information
TELEMECANIQUE LR1-D63361 Thermal Overload Relay 57-66A 660V
$15.00
TELEMECANIQUE LR1-D63361 Thermal Overload Relay 57-66A 660V
Specifications
| Brand | Telemecanique |
| Part Number | LR1-D63361 |
| Type | Thermal Overload Relay |
| Series | LR1-D63 |
| Poles | 3 (main circuit T1, T2, T3) |
| Current Setting Range | 57-66 A (dial marked 57A, 62, 66 — numbers on dial are full load motor currents) |
| Rated Insulation Voltage | Ui 660 V |
| Operating Voltage | 600 V a.c. max. |
| Auxiliary Contacts | 1 NC (95-96) + 1 NO (98-97) |
| Auxiliary Thermal Current | Ith 10 A max. |
| Maximum Back-Up Fuse | 225 A, HRC Form II |
| Short-Circuit Protection Fuses | gI/fast 100 A (IEC 292), 100 A (VDE 0660), 400 A (BS); aM/slow 63 A (IEC 292), 63 A (VDE 0660), 125 A (BS), 125 A (JEM 1356-S) |
| Standards | IEC 292, VDE 0660, BS, JEM 1356-S (3 H) |
| Application | Overload protection of three-phase AC motors, plug-on to LC1-D series contactor or separate mounting |
| Country Of Origin | Made in Brazil |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4215 |
