T42 Analog Panel Ammeter 1500/5A 0-1.5kA
$79.99
Skip to product information
T42 Analog Panel Ammeter 1500/5A 0-1.5kA
$79.99
T42 Analog Panel Ammeter 1500/5A 0-1.5kA
Specifications

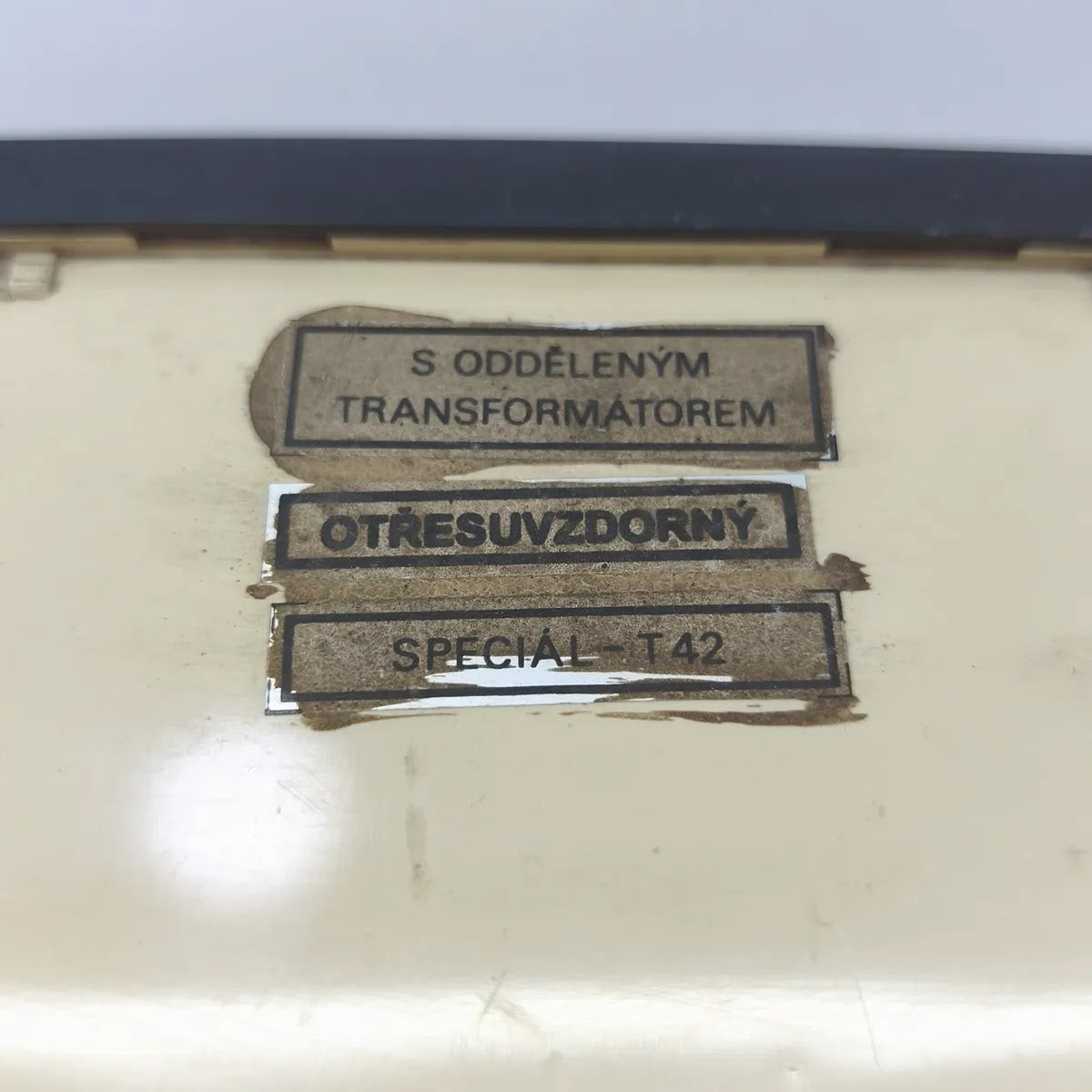

| Model | SPECIAL - T42 (label on case top) |
| Type | Analogue switchboard / panel ammeter, moving-iron measuring system |

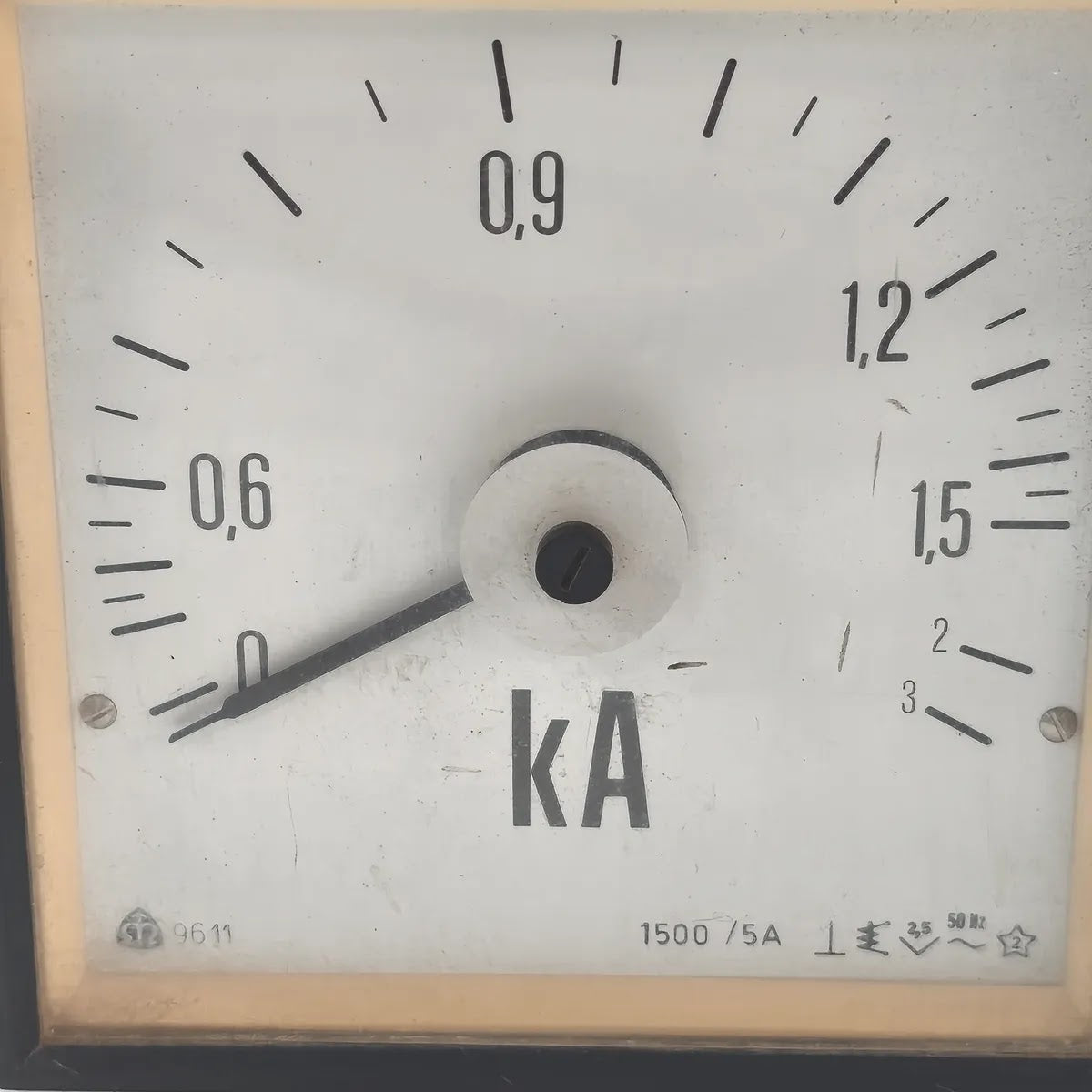

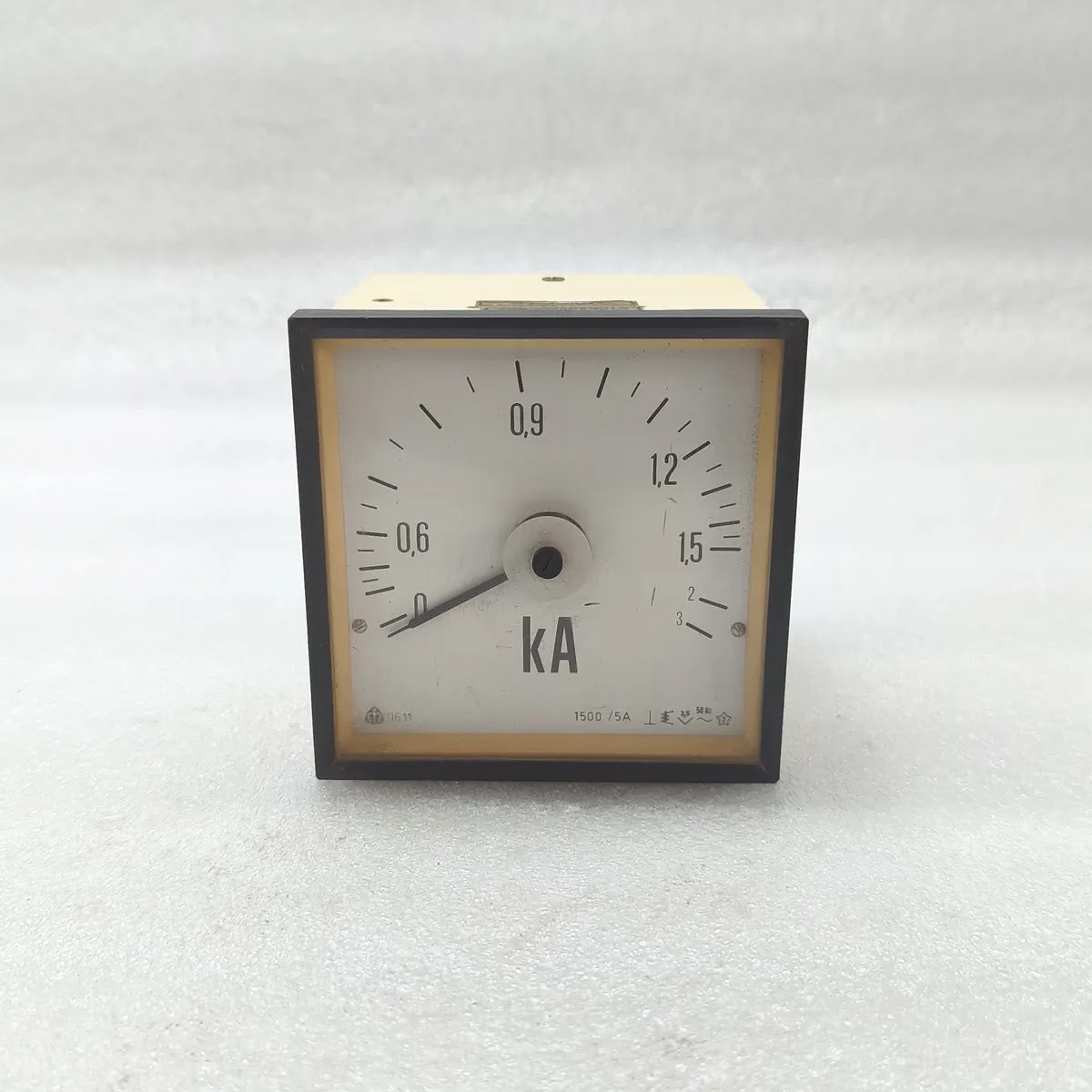

| Scale Range | 0 - 1,5 kA, graduated 0 / 0,6 / 0,9 / 1,2 / 1,5 with compressed overload section marked 2 and 3 kA |
| Current Transformer Ratio | 1500 /5A - for use with a separate current transformer (label: S ODDELENYM TRANSFORMATOREM) |
| Secondary Input Current | 5 A |
| Frequency | 50 Hz |
| Accuracy Class | 2,5 |
| Test Voltage | 2 kV (star symbol containing 2 on dial) |
| Operating Position | Vertical (vertical-position symbol on dial) |
| Mechanical Rating | Shock / vibration resistant construction (label: OTRESUVZDORNY) |
| Production Code | 9611 on dial, next to manufacturer logo |
| Application | Switchboard, generator and marine panel current indication via current transformer |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3972 |
