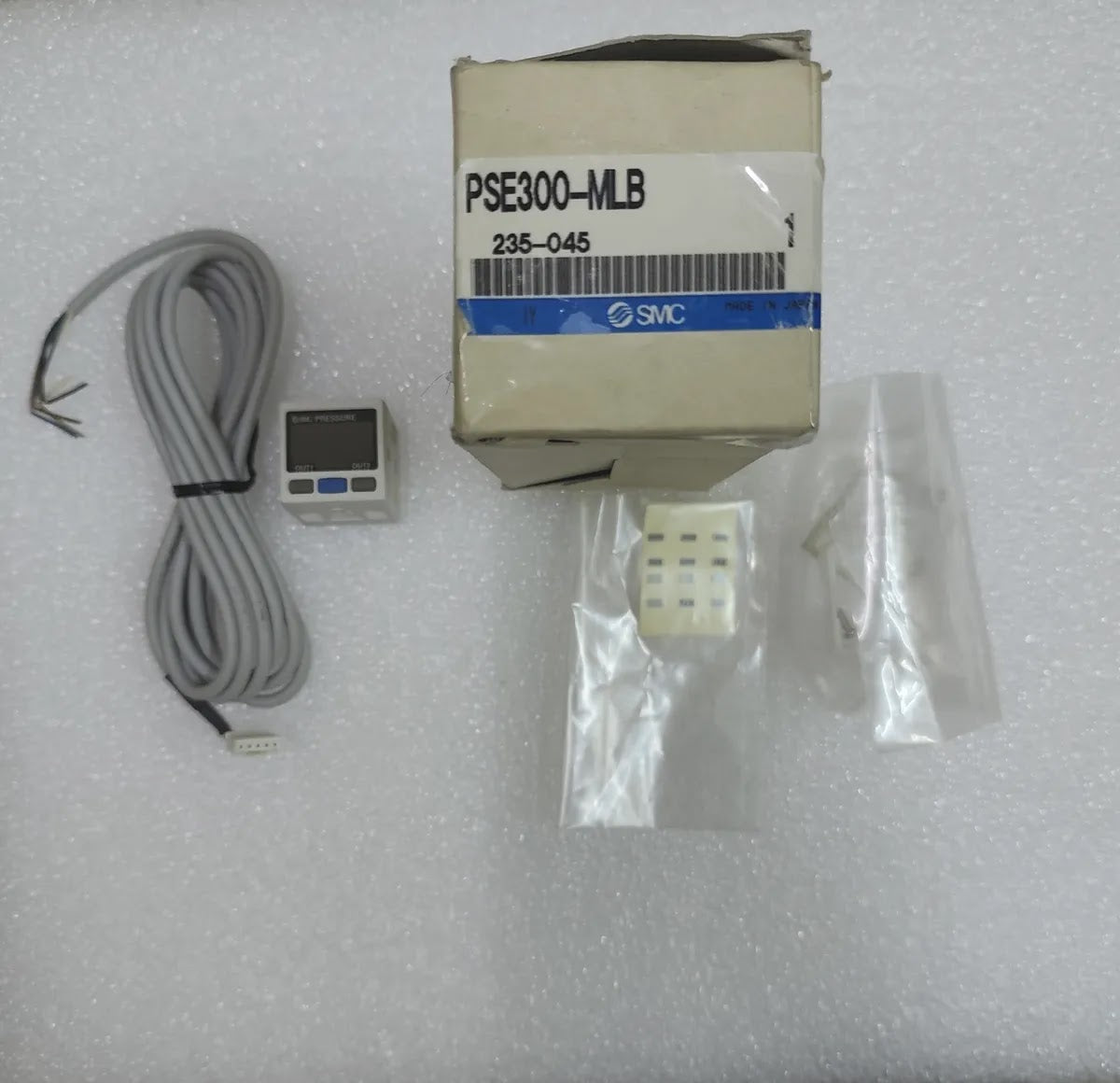

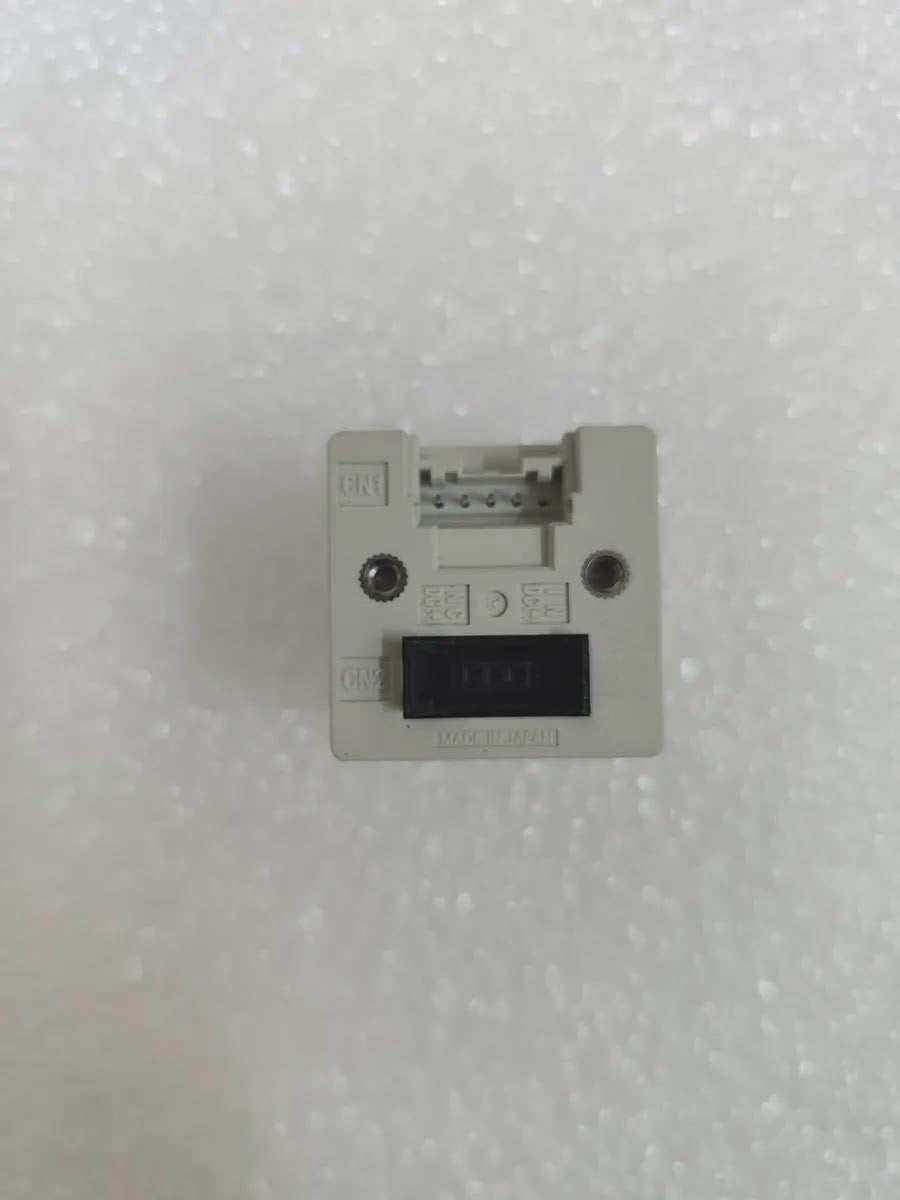

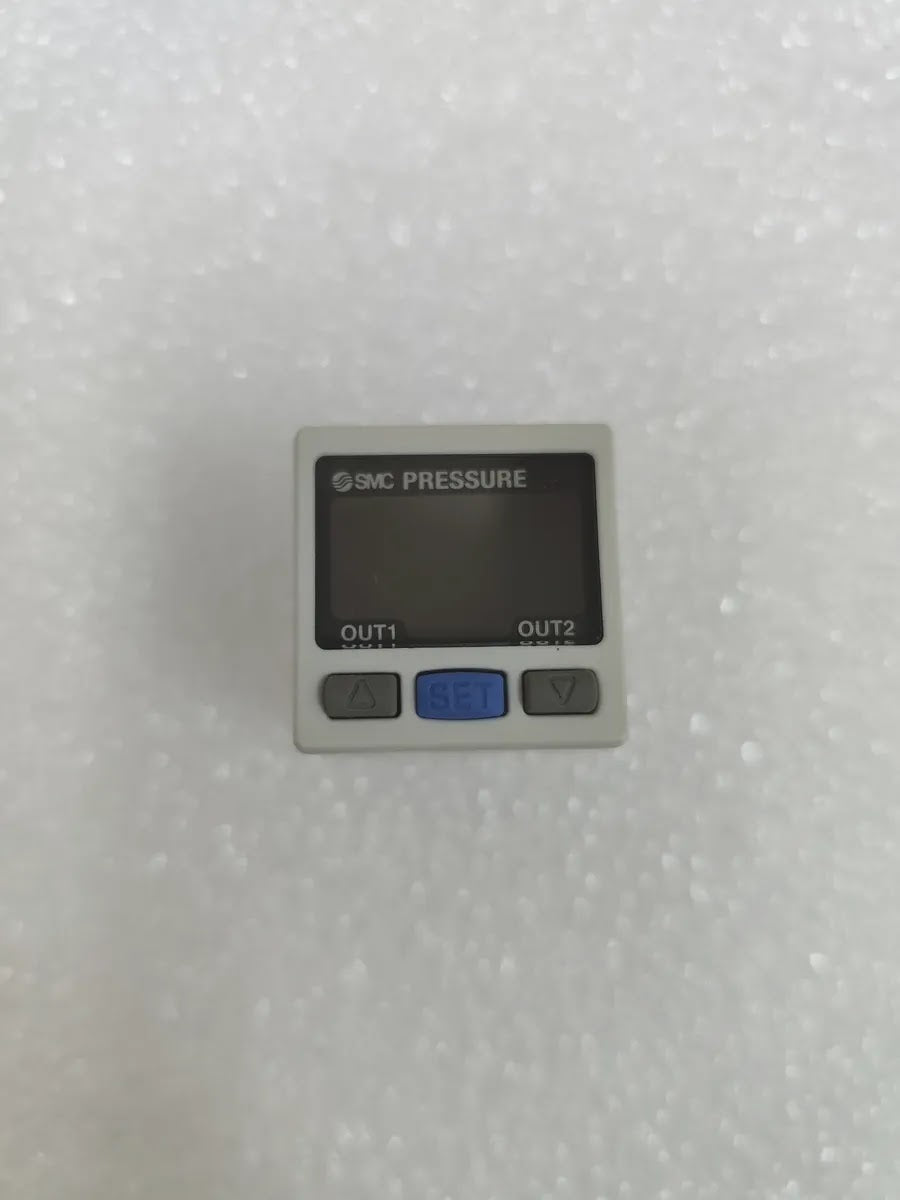

SMC PSE300-M Pressure Sensor Monitor 12-24VDC 1-5V
$86.99
Skip to product information
SMC PSE300-M Pressure Sensor Monitor 12-24VDC 1-5V
$86.99
Specifications
| BRAND | SMC |
| MODEL | PSE300-M |

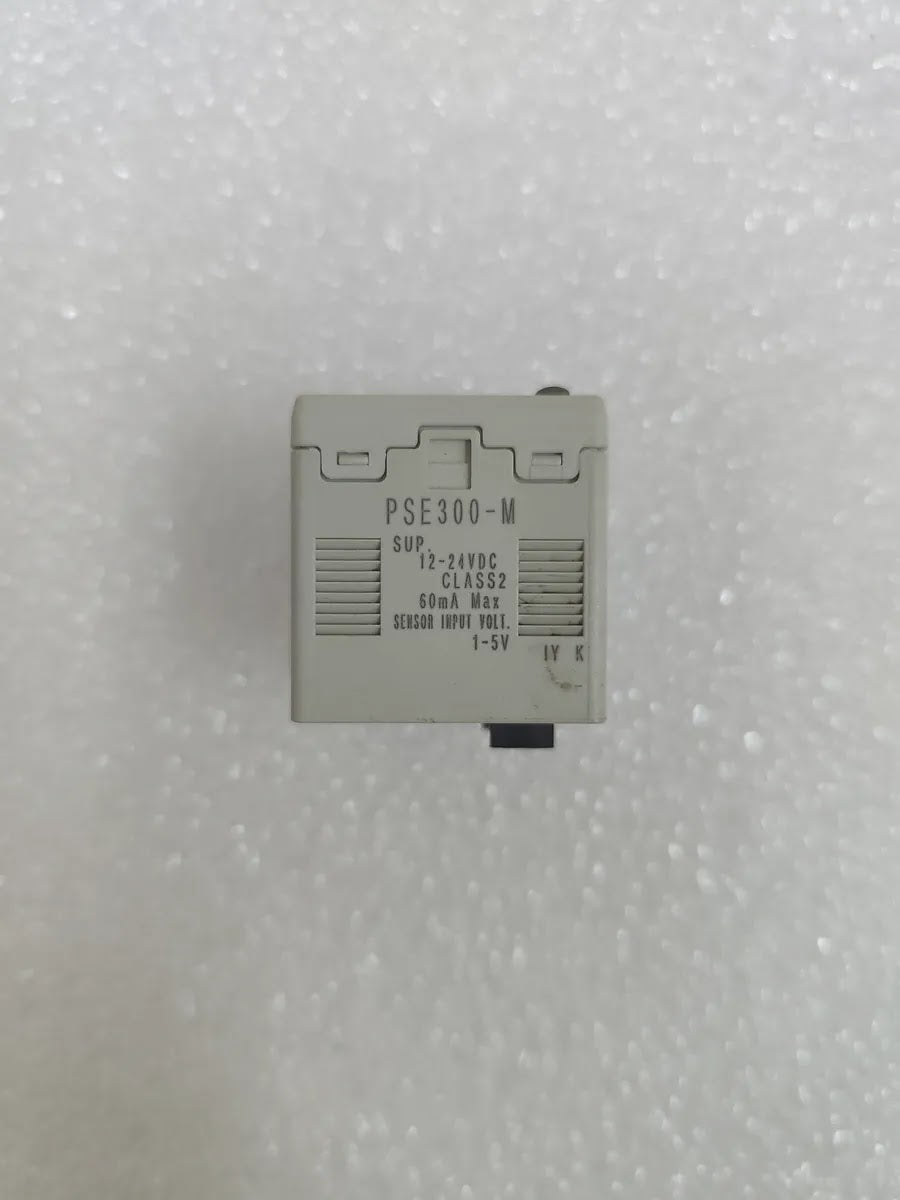

| PART NUMBER | PSE300-M (moulded on unit body) |

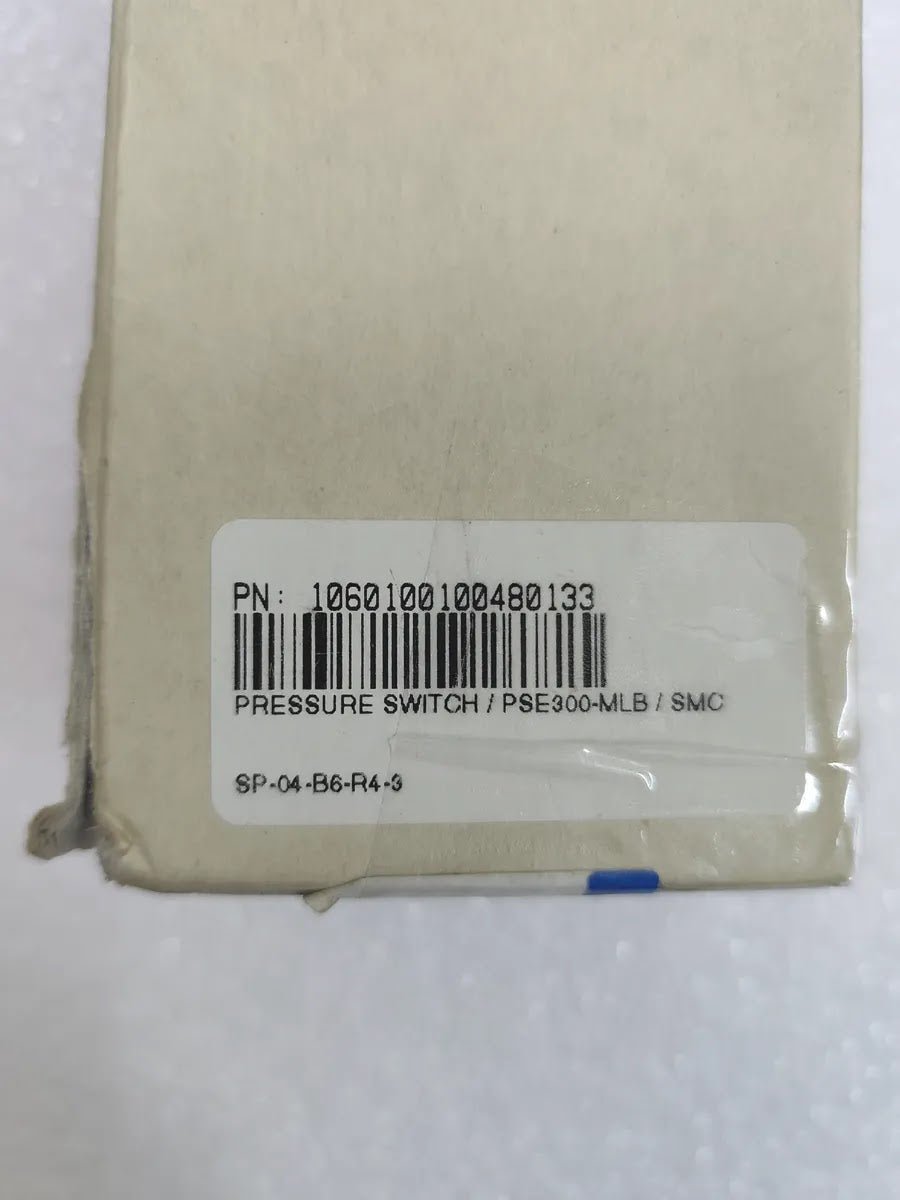

| ORDER NO | PSE300-MLB (printed on box label, packaged ordering code) |
| CATALOGUE NO | 235-045 (printed on box label) |
| TYPE | Digital Pressure Sensor Monitor / Controller with remote display |
| SERIES | PSE300 |
| SUPPLY VOLTAGE | 12-24VDC |
| CURRENT CONSUMPTION | 60mA Max |
| SENSOR INPUT VOLTAGE | 1-5V |
| POWER SUPPLY CLASS | CLASS2 |
| OUTPUTS | 2 switch outputs (NPN or PNP) plus 1 analog output (voltage or current) |
| COMPATIBLE SENSORS | SMC PSE200, PSE300, PSE530 to PSE560 series pressure sensors |
| PRESSURE UNITS | MPa, kPa, kgf/cm2, bar, psi, inHg, mmHg |
| ENCLOSURE RATING | IP40 |
| FUNCTIONS | Calibration, peak and bottom hold, error indication, key lock, anti-chatter |
| APPLICATION | Remote monitoring and switching of pneumatic pressure and vacuum sensors |
| APPROVALS | UL/CSA, CE, RoHS compliant |
| COUNTRY OF ORIGIN | Made in Japan |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD016 |
