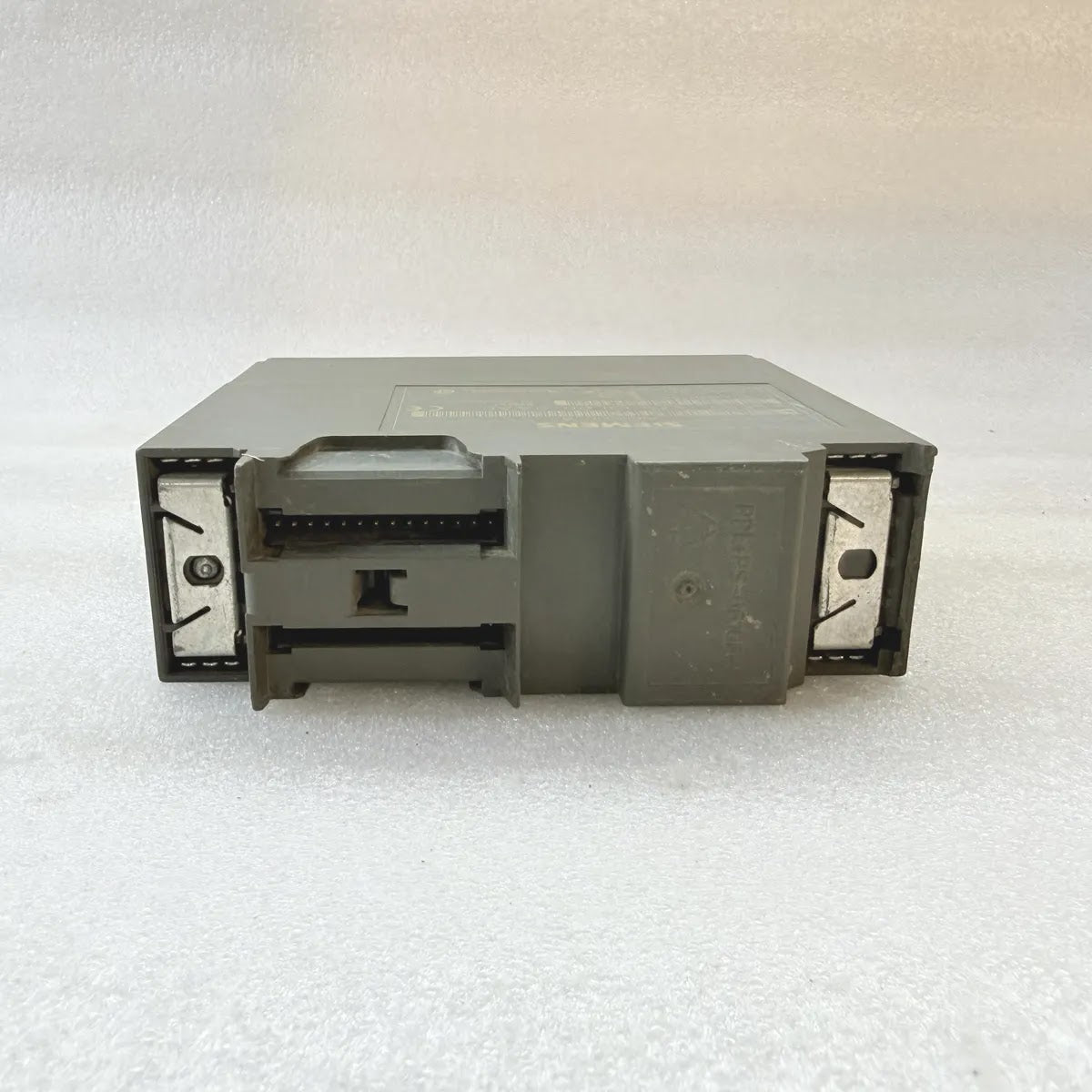

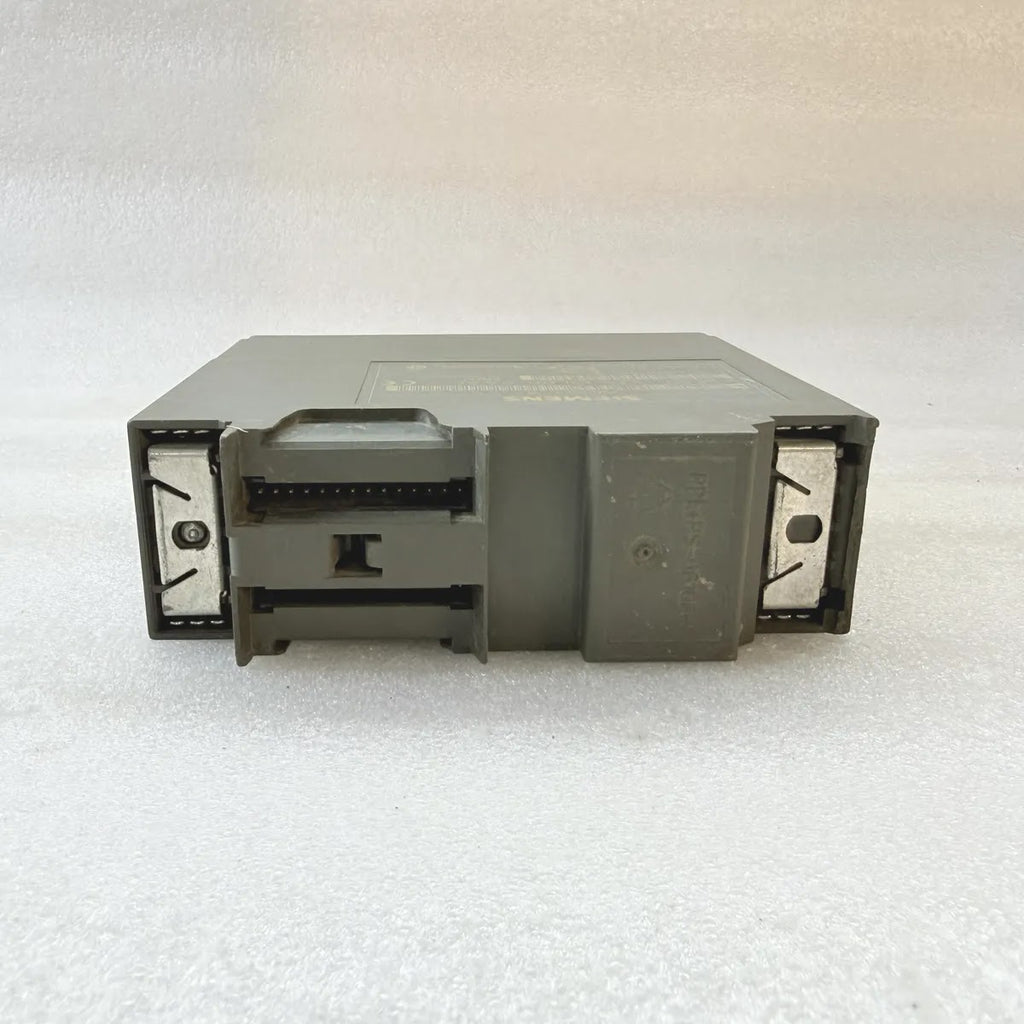

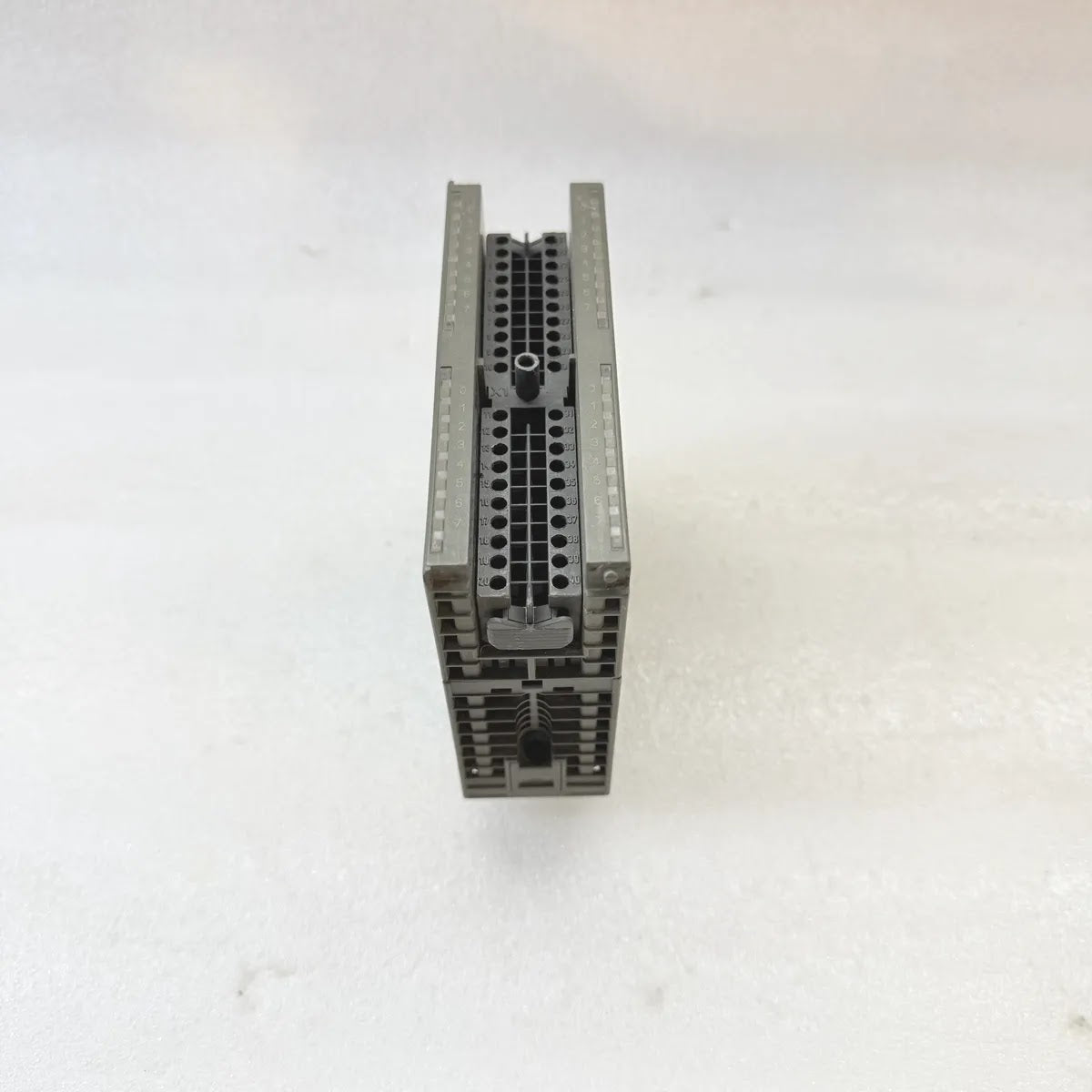

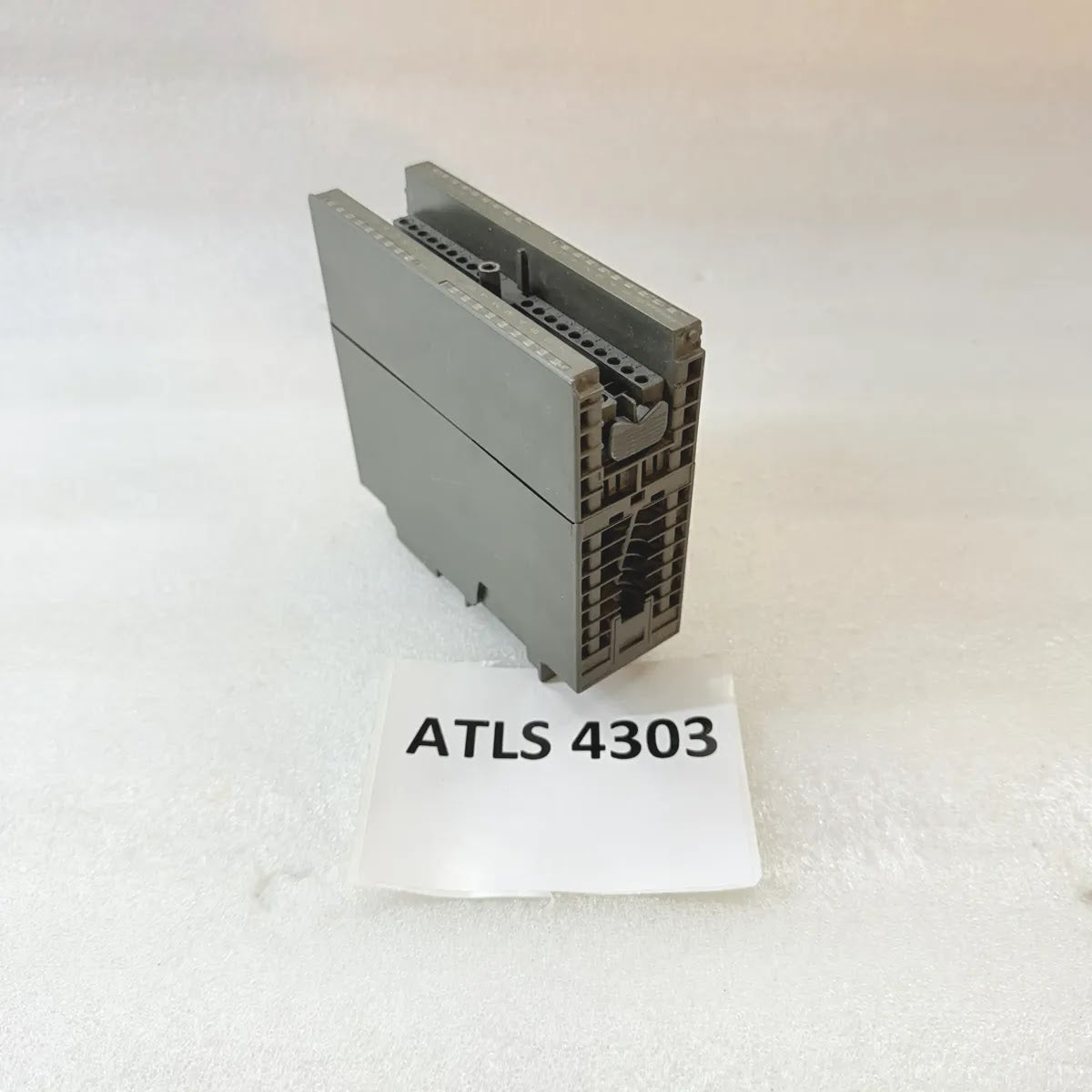

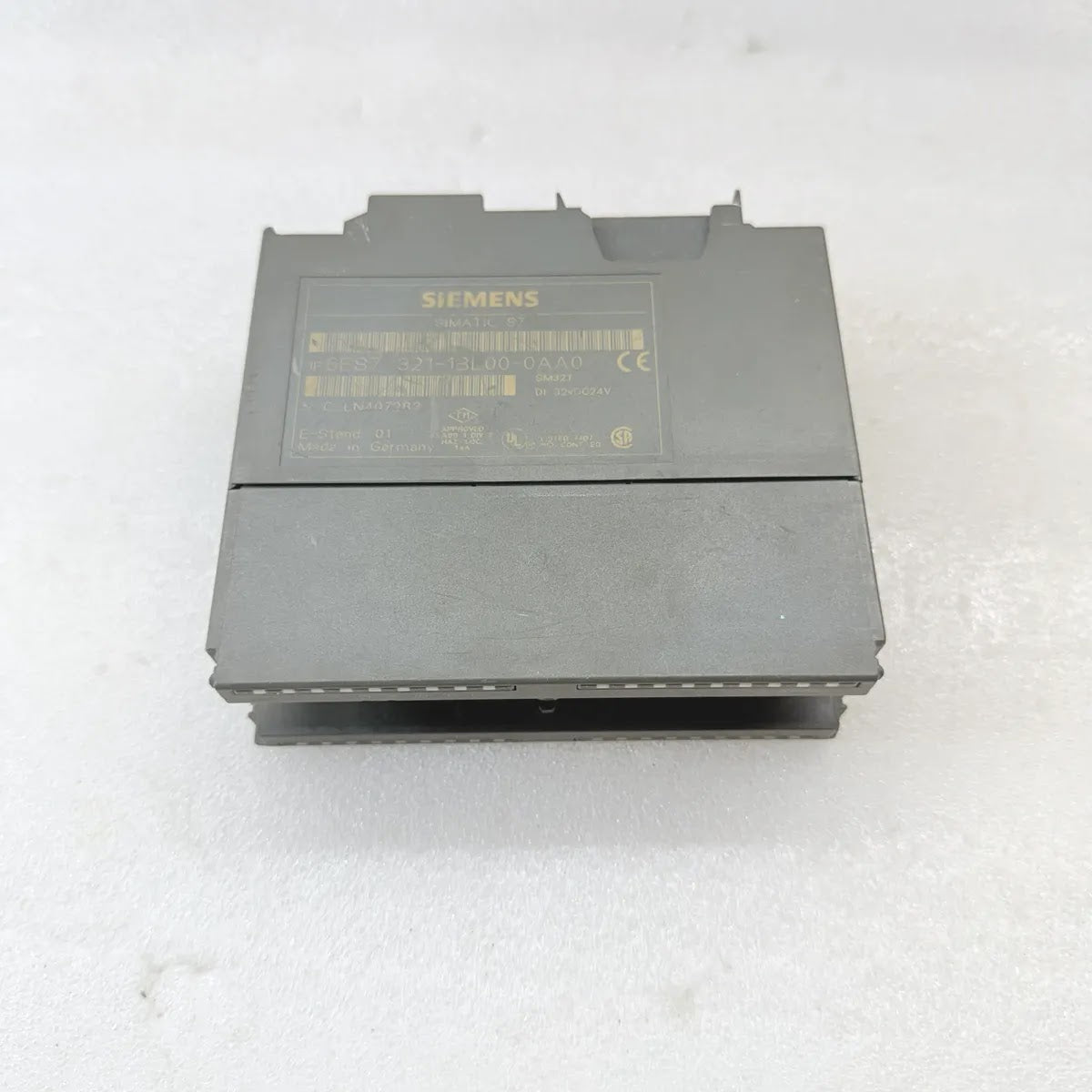

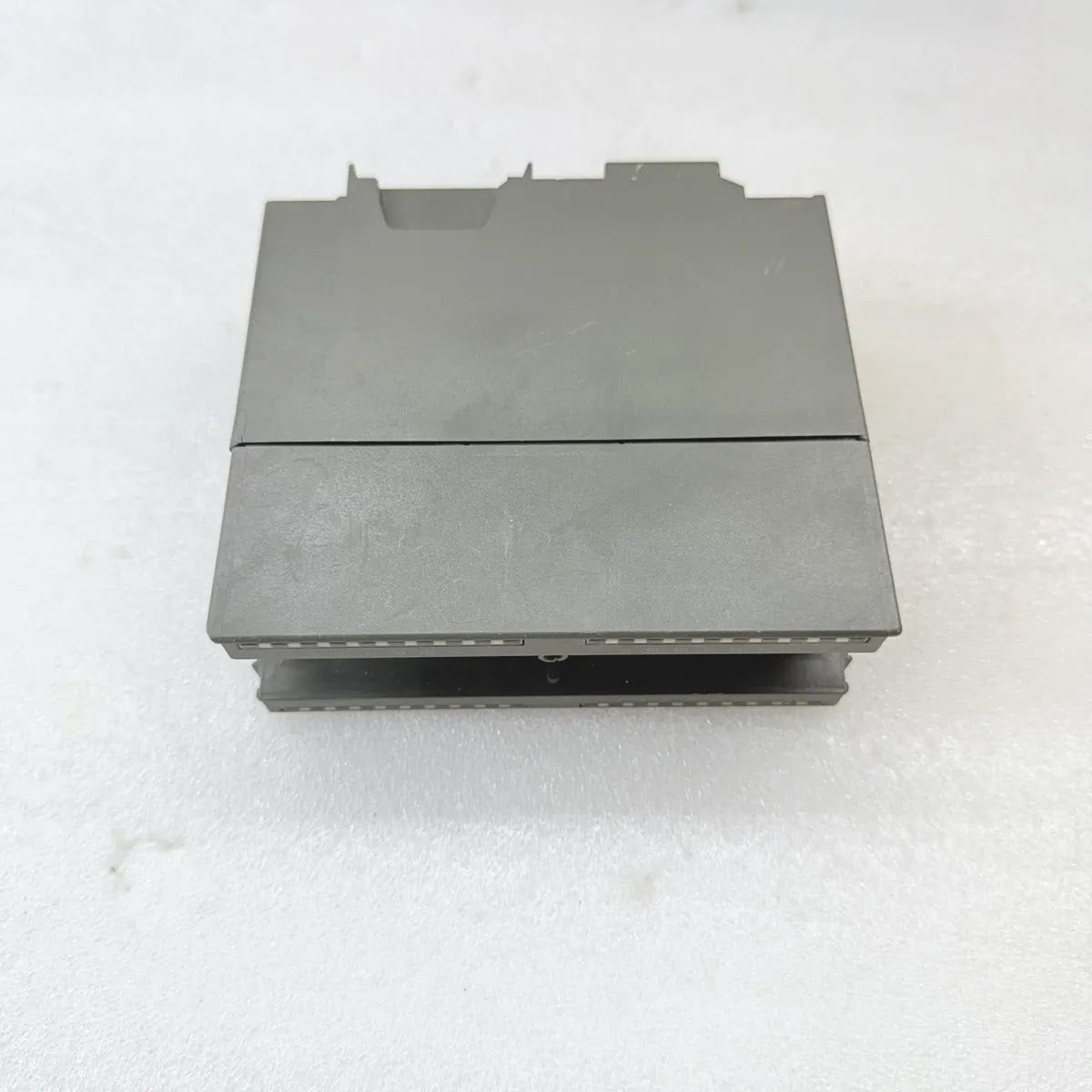

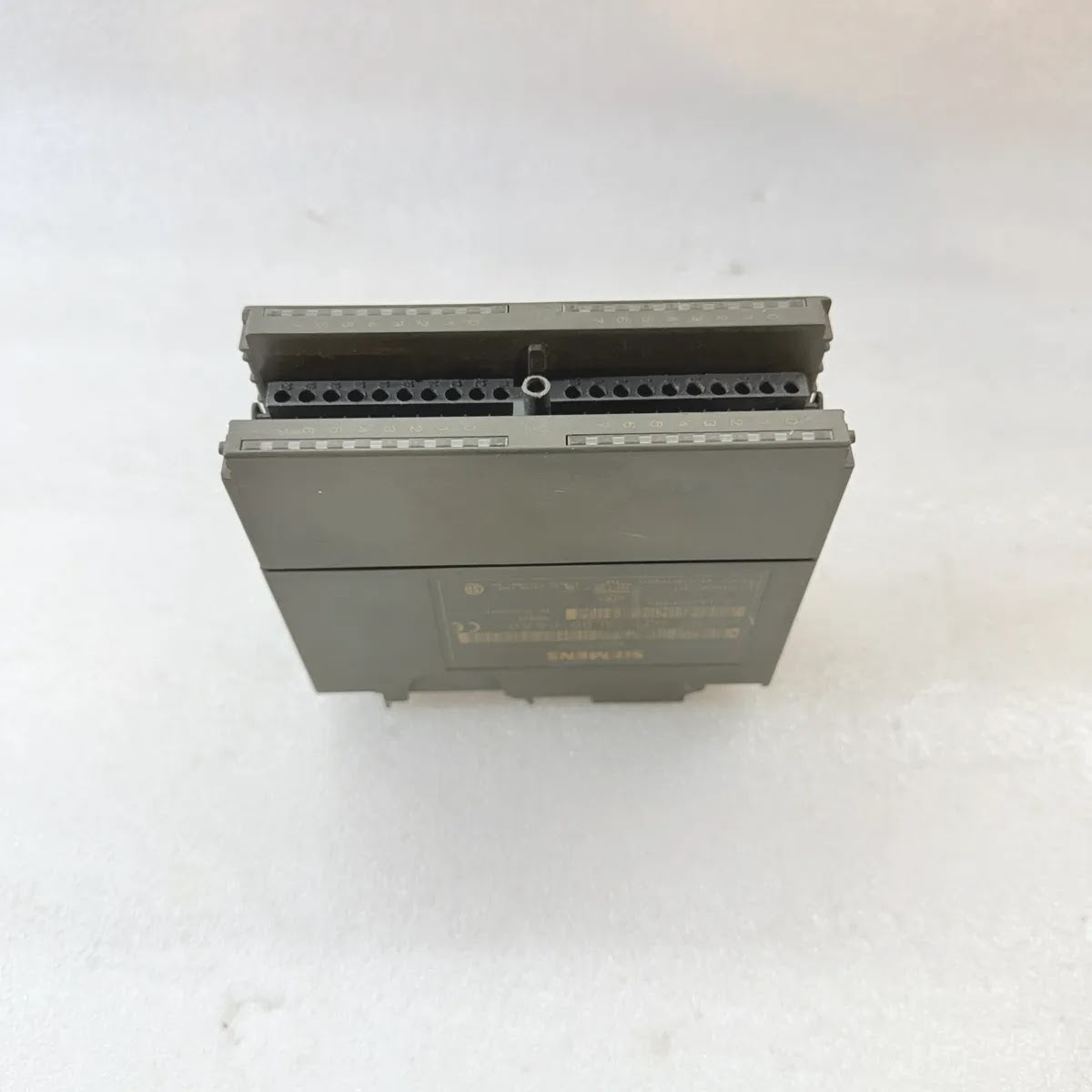

SIEMENS 6ES7321-1BL00-0AA0 SM321 Digital Input Module 32DI 24VDC
$25.00
Skip to product information
SIEMENS 6ES7321-1BL00-0AA0 SM321 Digital Input Module 32DI 24VDC
$25.00
SIEMENS 6ES7321-1BL00-0AA0 SM321 Digital Input Module 32DI 24VDC
Specifications
| Brand | SIEMENS |
| Model | SM321 |
| Part Number | 6ES7 321-1BL00-0AA0 |
| Type | Digital Input Module, DI 32xDC24V |
| Series | SIMATIC S7-300 |
| Inputs | 32 digital inputs |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 20.4 to 28.8 V DC |
| Electrical Isolation | Inputs isolated from the backplane bus by optocouplers, in groups of 16 |
| Input Delay | 1.2 ms min. to 4.8 ms max. (0 to 1 and 1 to 0) |
| Current Consumption | 15 mA max. from the 5 V DC backplane bus |
| Power Loss | 6.5 W typical |
| Cable Length | 600 m unshielded, 1000 m shielded |
| Application | Signal acquisition from switches and 2-wire, 3-wire or 4-wire proximity sensors |
| Revision | E-Stand: 01 |
| Dimensions | 40 x 125 x 120 mm (W x H x D) |
| Weight | Approx. 260 g |
| Approvals | CE; UL Listed 14D7 Ind. Cont. Eq.; CSA; FM Approved Class I Div 2 Haz. Loc. T4A |
| Country Of Origin | Made in Germany |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4303 |
