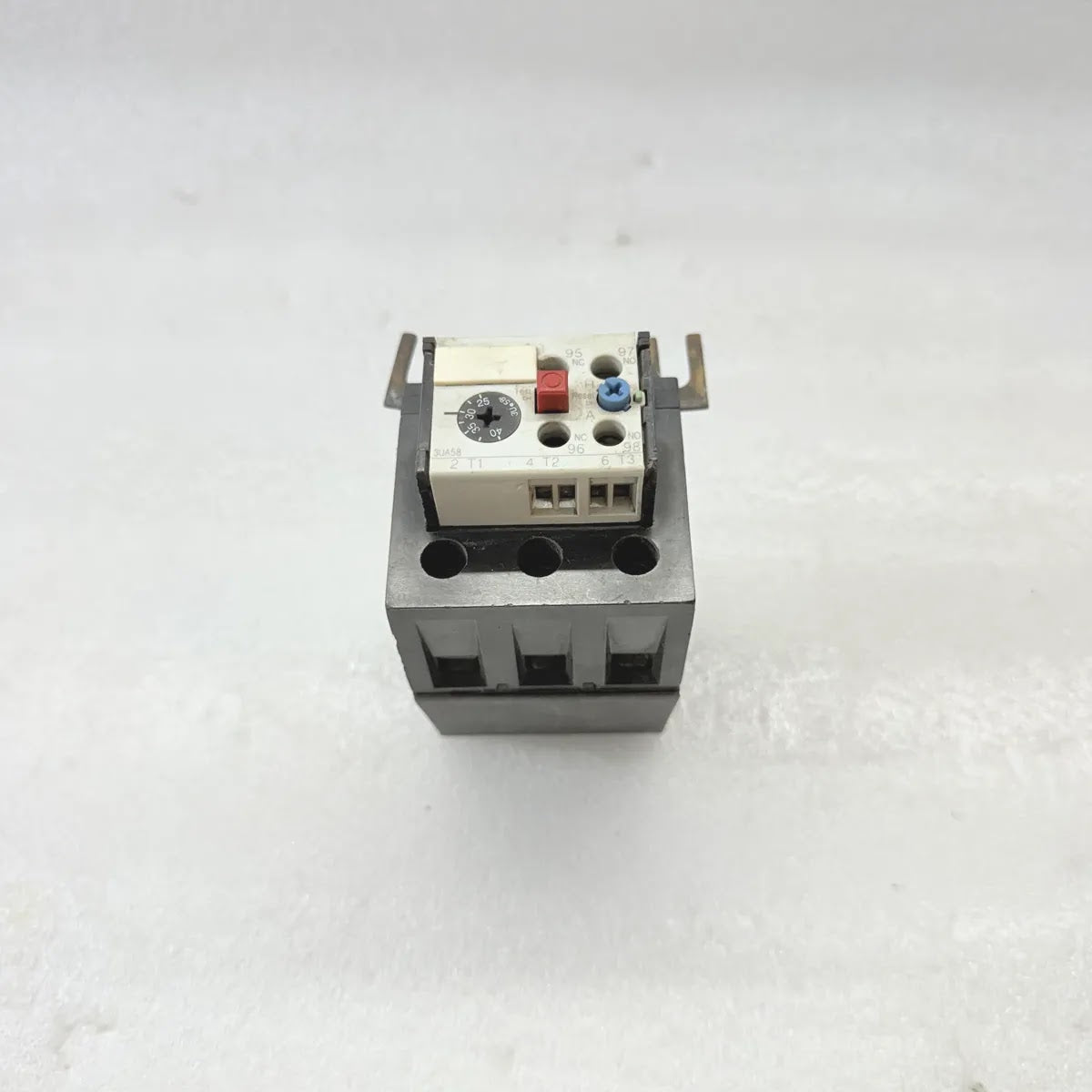

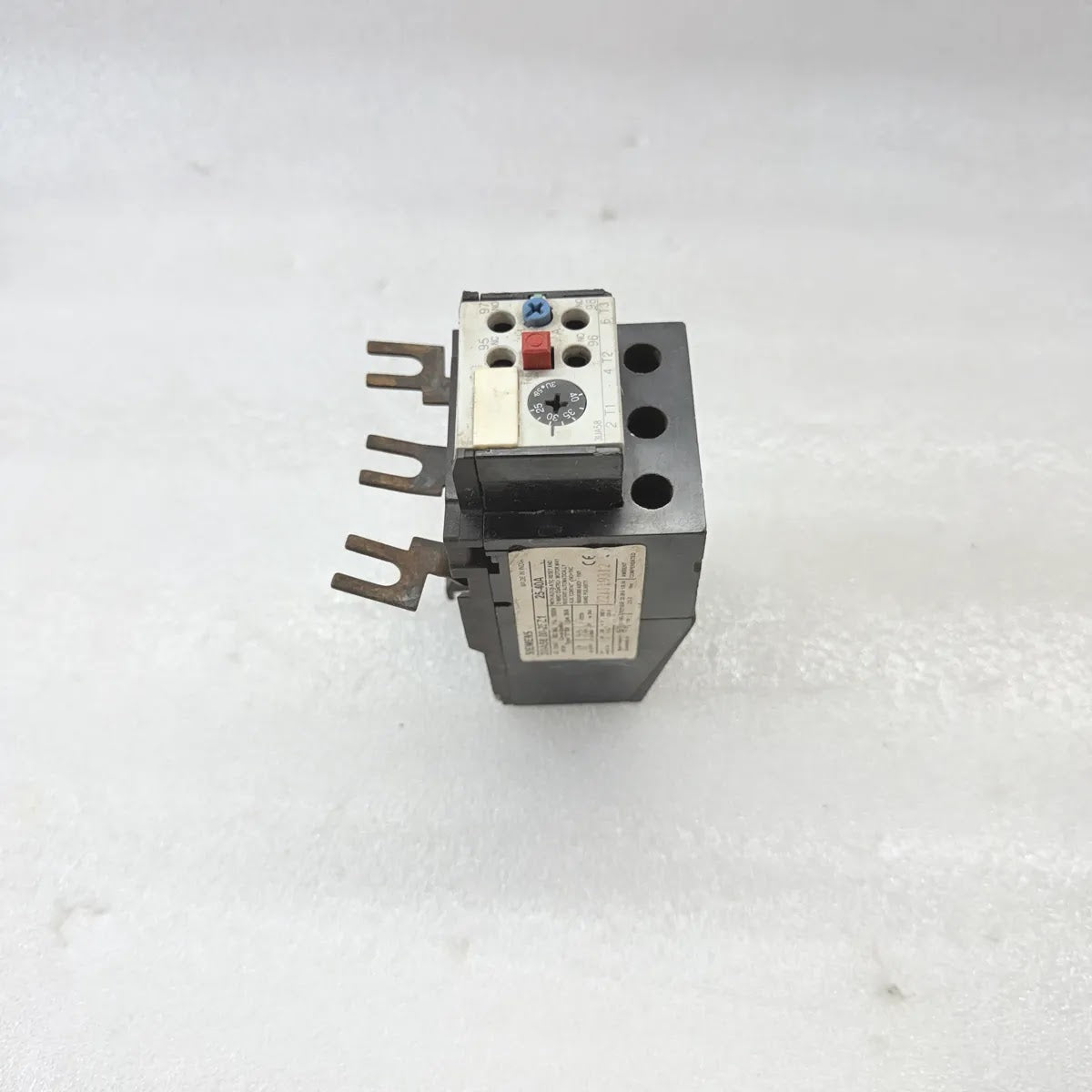

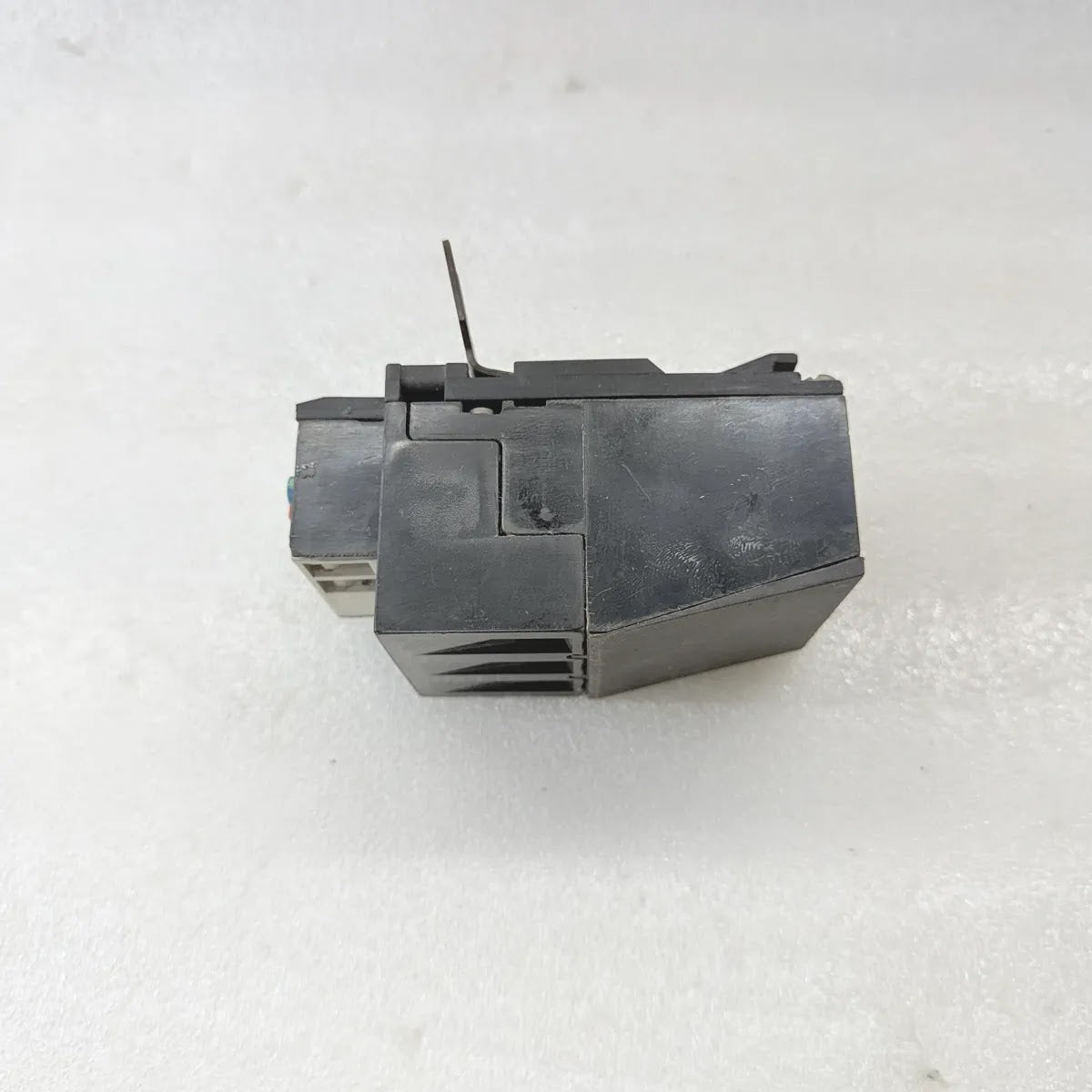

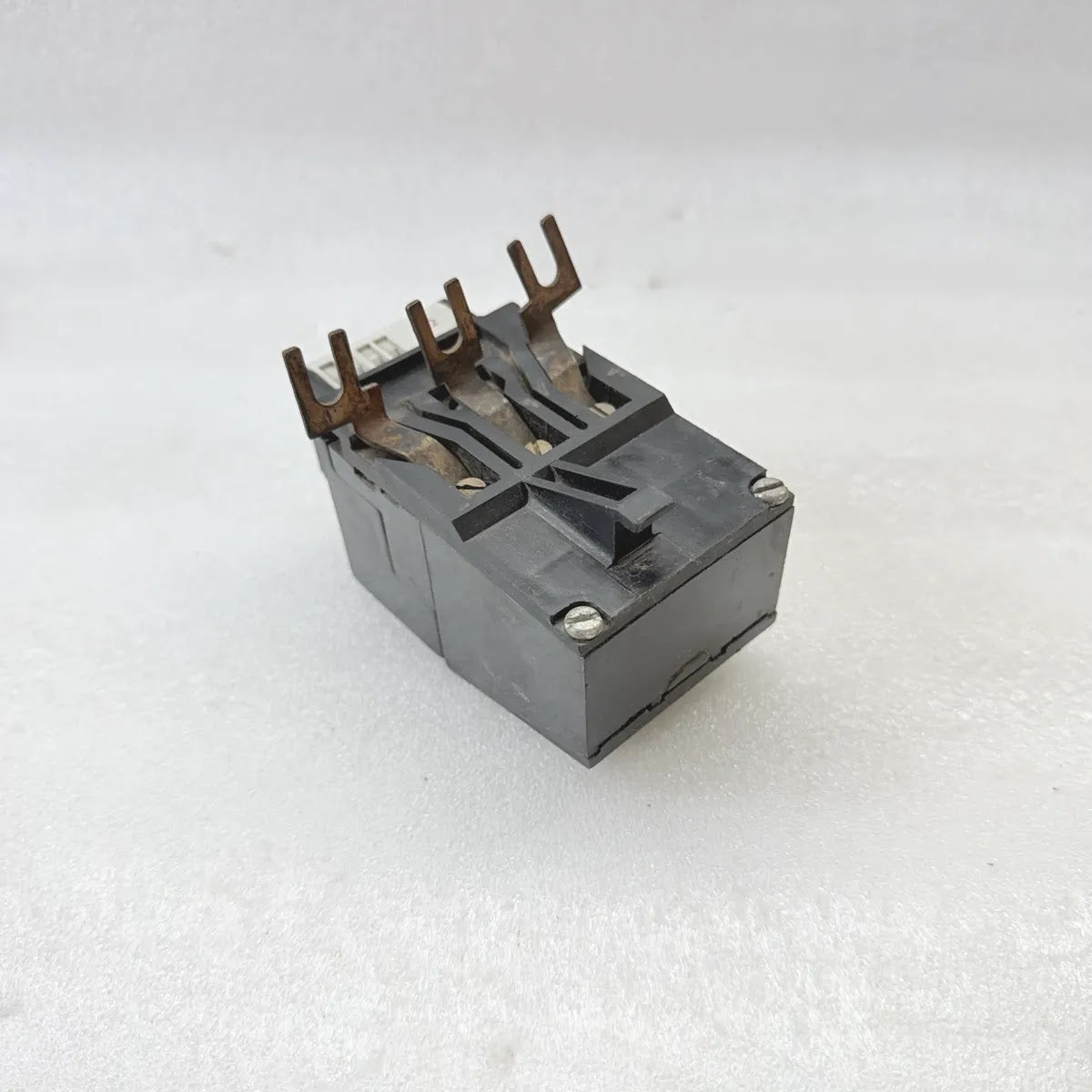

SIEMENS 3UA5800-2EZ1 Thermal Overload Relay 25-40A
$75.00
Skip to product information
SIEMENS 3UA5800-2EZ1 Thermal Overload Relay 25-40A
$75.00
SIEMENS 3UA5800-2EZ1 Thermal Overload Relay 25-40A

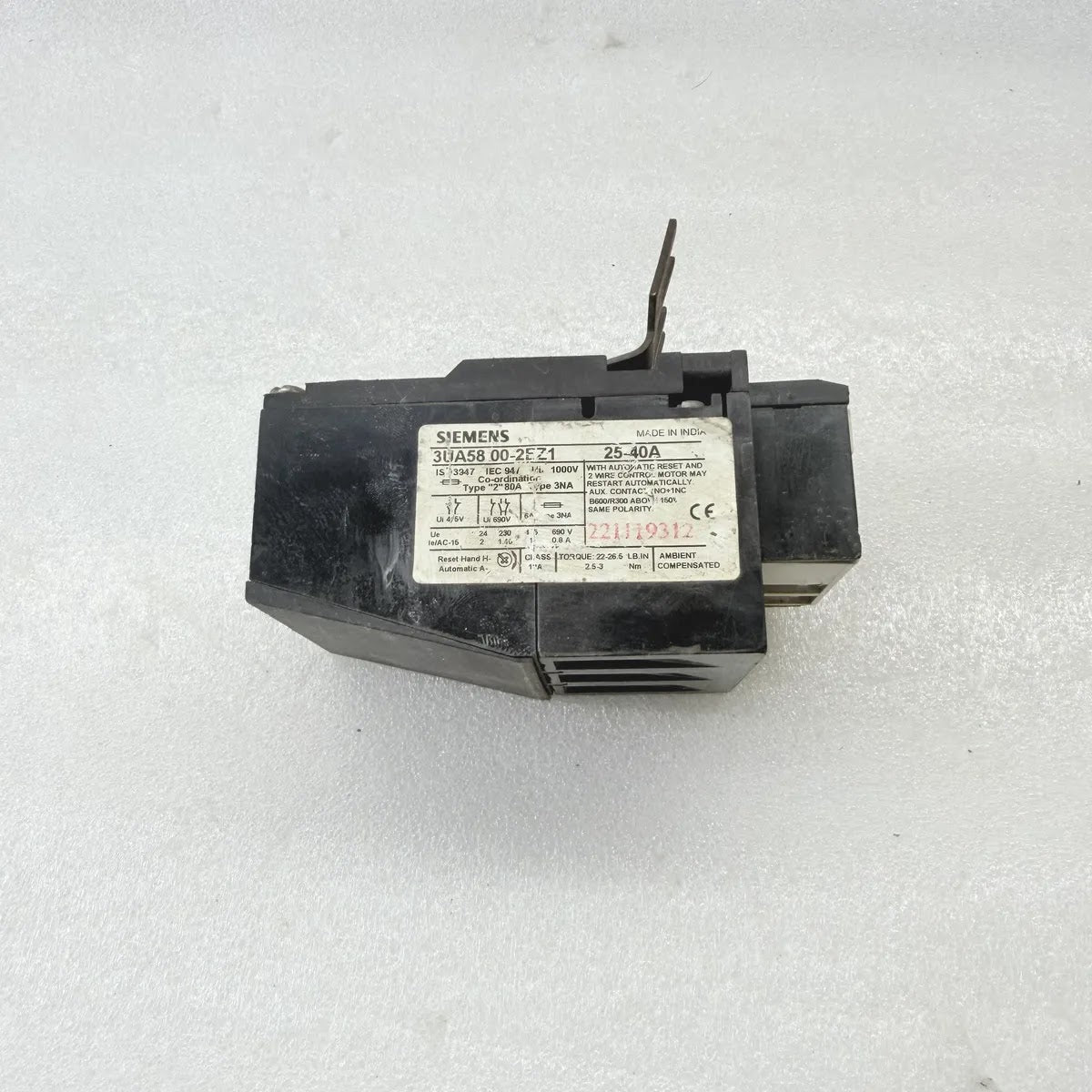

Specifications
| Brand | SIEMENS |
| Part Number | 3UA58 00-2EZ1 |
| Series | 3UA58 |
| Type | Bimetal thermal-delayed overload relay for motor protection, ambient temperature compensated, hand reset (H) or automatic reset (A) selectable |
| Application | Overload and phase-failure protection of AC motors; fits onto contactors and starters |
| Setting Range | 25-40 A |
| Rated Insulation Voltage | Ui 1000 V main circuit; Ui 690 V and Ui 4[1]5 V auxiliary circuits |
| Auxiliary Contacts | 1 NO + 1 NC (95/96 NC, 97/98 NO) |
| Utilisation Category | AC-15 |
| Trip Class | CLASS 10A |
| Short-Circuit Coordination | Type "2" 80 A with Type 3NA fuse; auxiliary circuit 6 A Type 3NA |
| Automatic Reset Warning | With automatic reset and 2-wire control the motor may restart automatically |
| Tightening Torque | 22-26.5 lb.in / 2.5-3 Nm |
| Standards | IS 13947, IEC 94[7] |
| Approvals | CE |
| Country Of Origin | Made in India |
| Condition | PRE-OWNED / SECOND HAND |

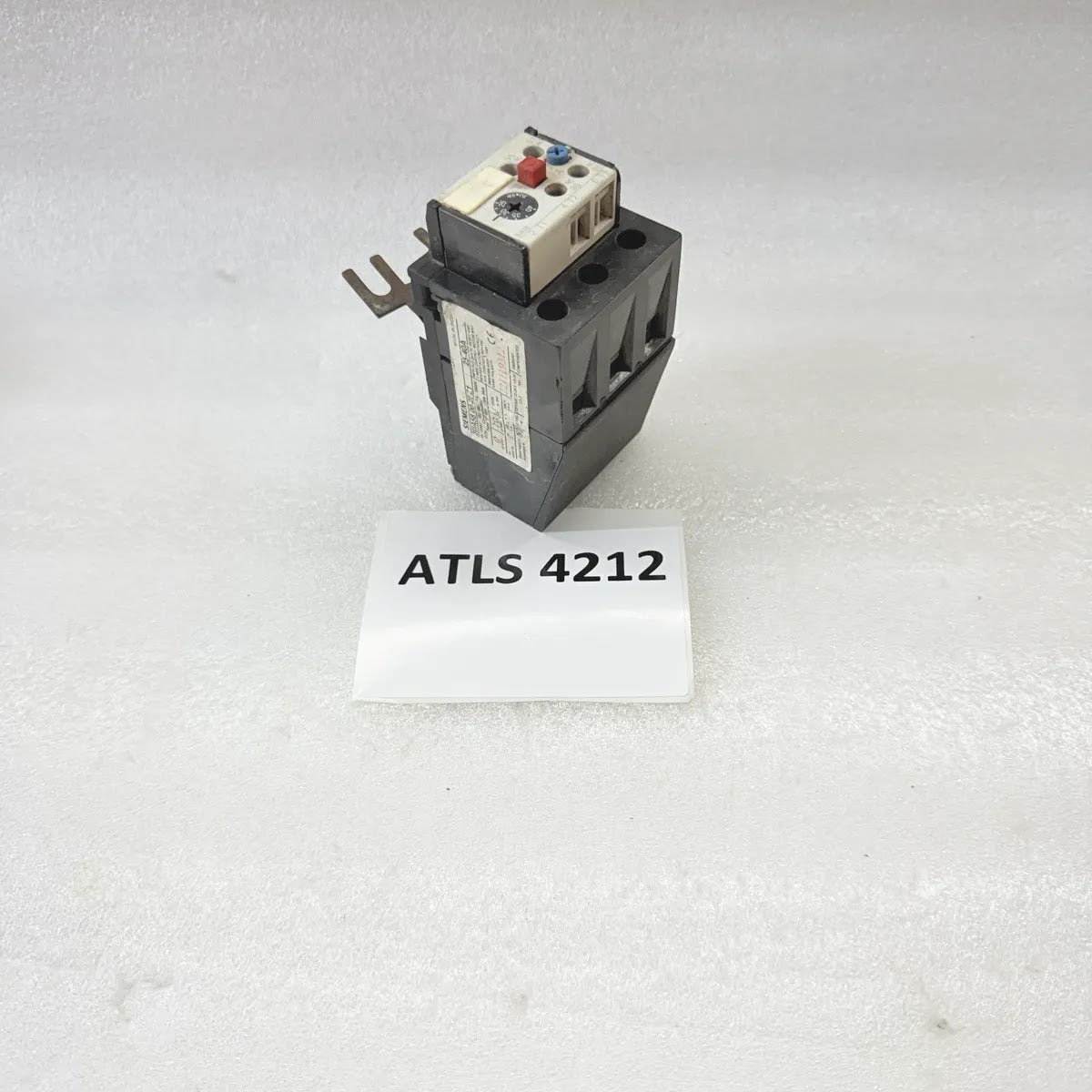

| REF | ATLS4212 |
