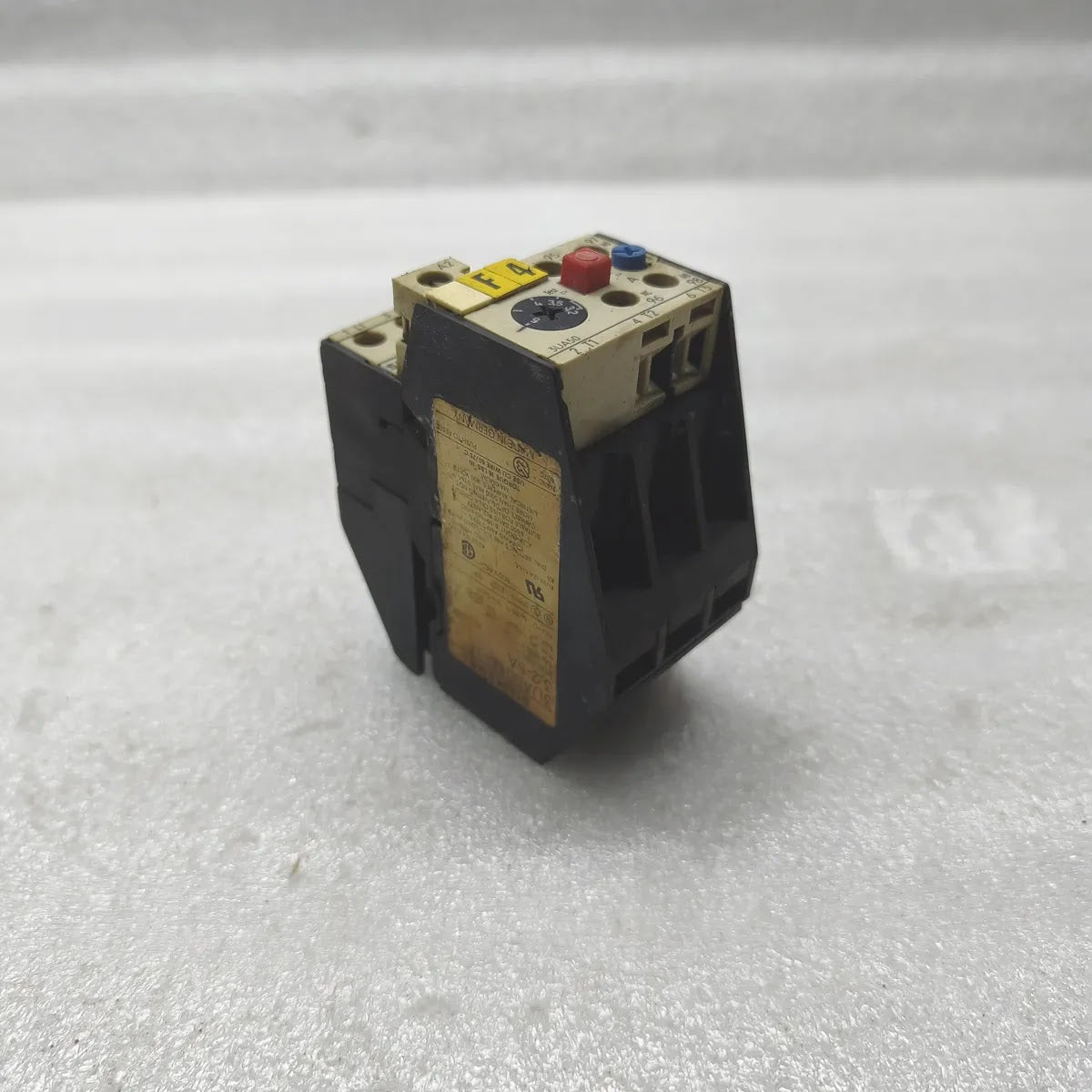

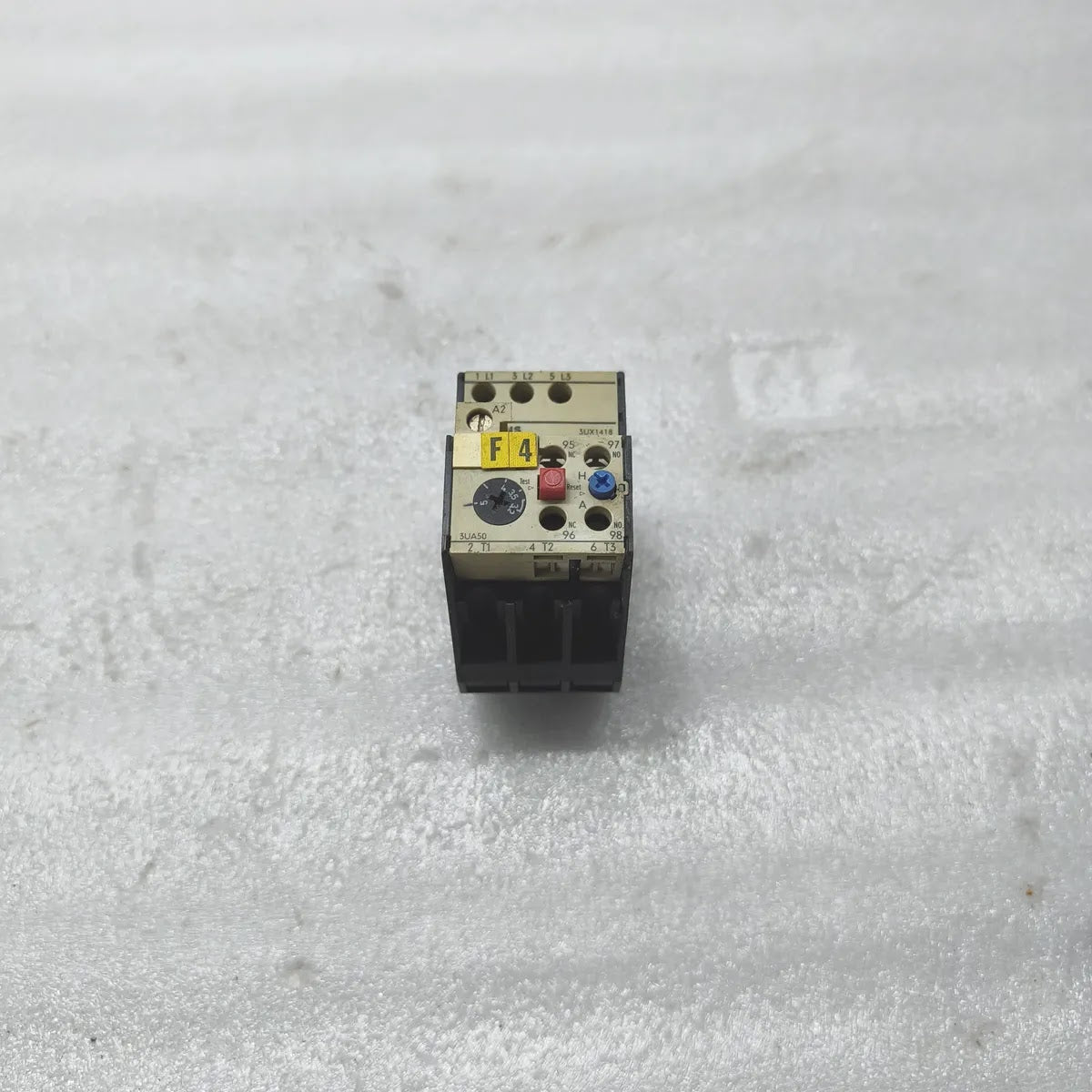

SIEMENS 3UA5000-1F Thermal Overload Relay 3.2-5A 660V
$55.00
Skip to product information
SIEMENS 3UA5000-1F Thermal Overload Relay 3.2-5A 660V
$55.00
SIEMENS 3UA5000-1F Thermal Overload Relay 3.2-5A 660V
Specifications

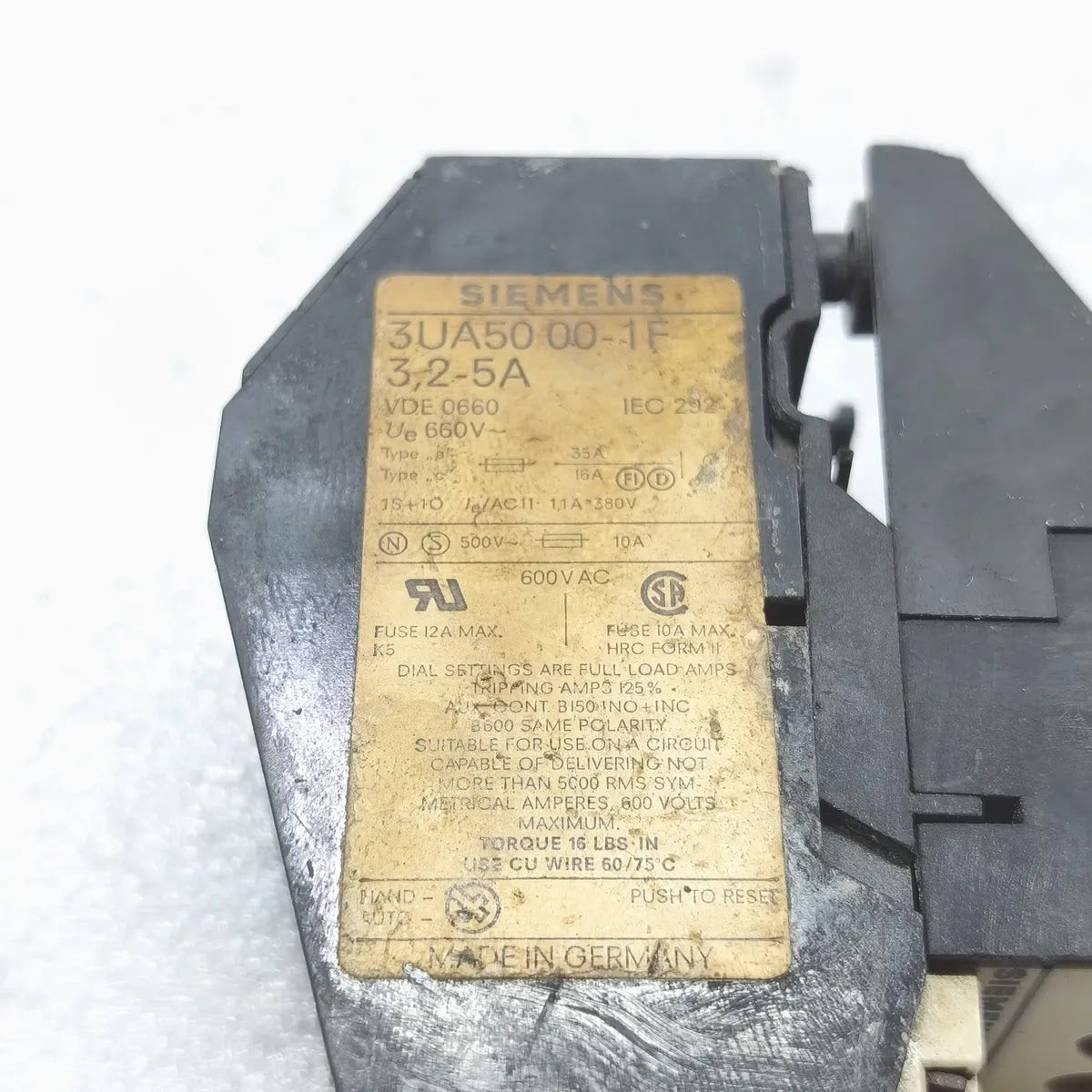

| Brand | SIEMENS |
| Model | 3UA50 |
| Part Number | 3UA50 00-1F (3UA5000-1F) |
| Type | Bimetal thermal overload relay, adjustable, for motor overload protection |
| Series | 3UA5000 |
| Current Setting Range | 3,2-5A |
| Rated Operational Voltage | Ue 660V AC |
| Ul / Csa Rated Voltage | 600V AC |

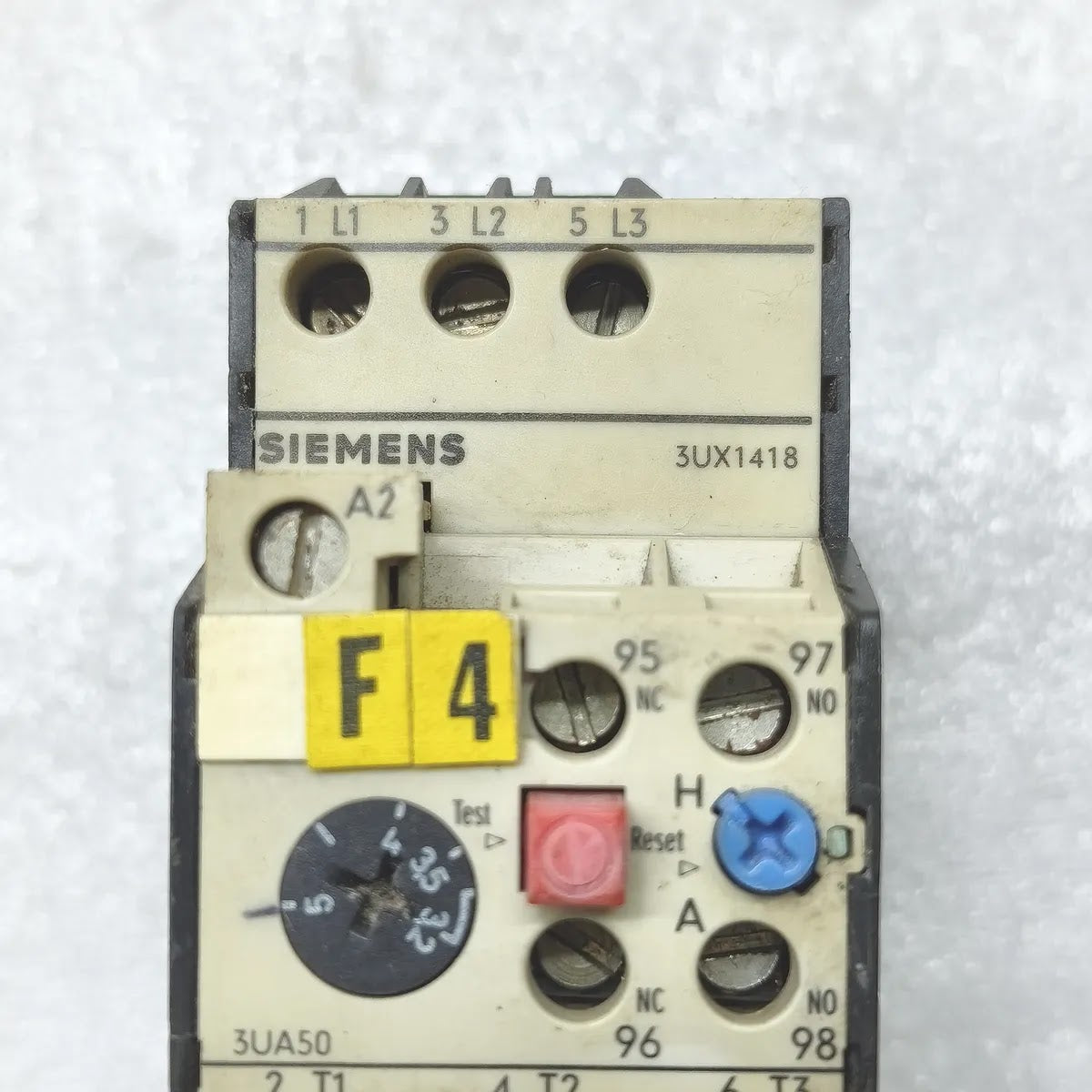

| Auxiliary Contacts | 1 NO + 1 NC (1S+1Ö), terminals 95-96 NC and 97-98 NO |
| Back-Up Fuse | Type "a" 35A, Type "c" 16A; FUSE 12A MAX. K5; FUSE 10A MAX. HRC FORM II |
| Tripping Current | Tripping amps 125% of dial setting; dial settings are full load amps |
| Short-Circuit Current | Suitable for use on a circuit capable of delivering not more than 5000 RMS symmetrical amperes, 600 volts maximum |
| Reset Mode | Selectable hand (H) or auto (A), push to reset, with test function |
| Poles | 3 (L1/L2/L3 to T1/T2/T3) |

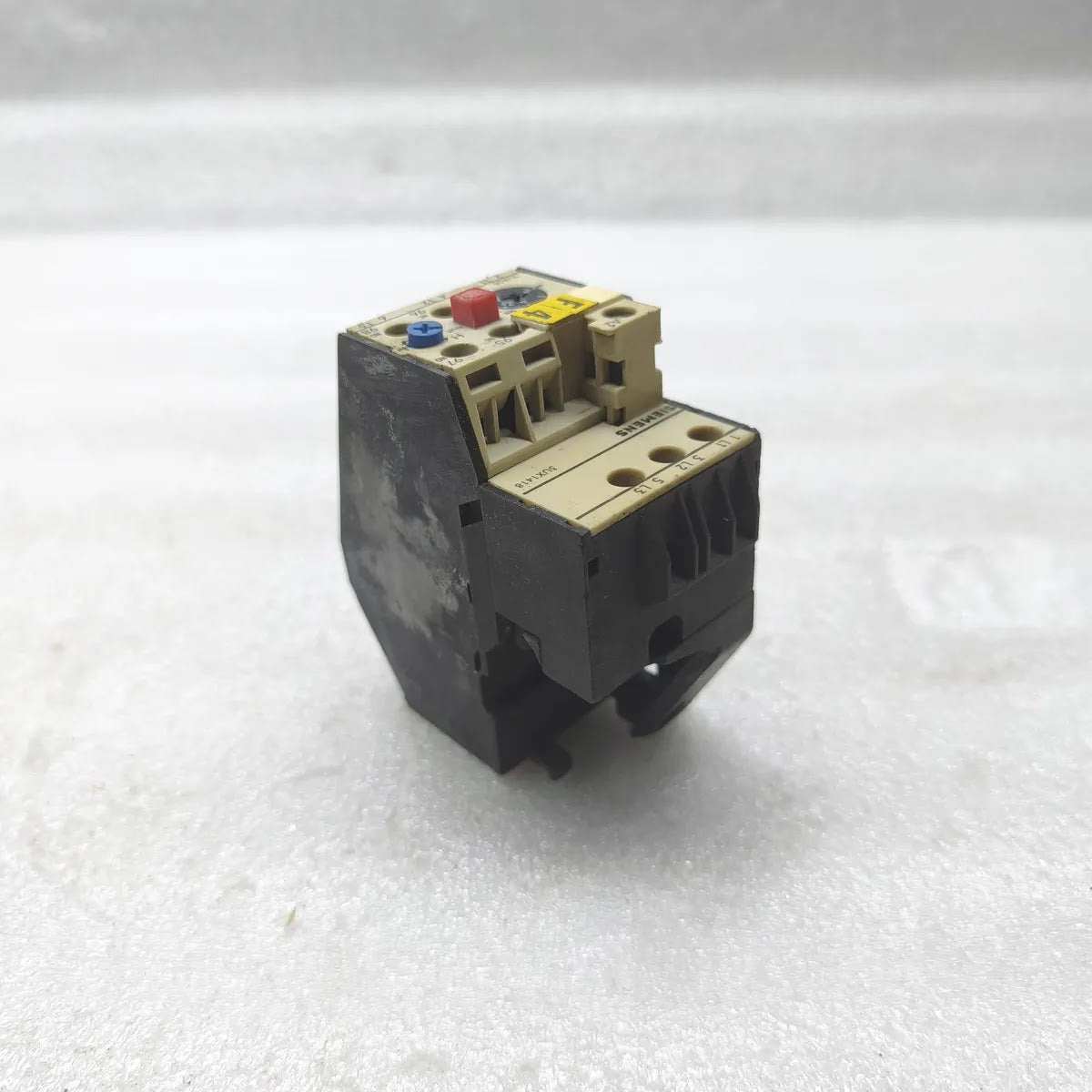

| Base | 3UX1418 stand-alone mounting bracket, read from the attached bracket, not part of the relay part number |
| Application | Contactor-mounting overload relay for Siemens 3TF30 / 3TF31 contactors |
| Tightening Torque | 16 lbs in |
| Conductor | Use Cu wire 60/75 C |
| Standard | VDE 0660, IEC 292-1 |
| Approvals | UL, CSA, plus European approval marks on the nameplate |
| Country Of Origin | Made in Germany |
| Condition | PRE-OWNED / SECOND HAND |

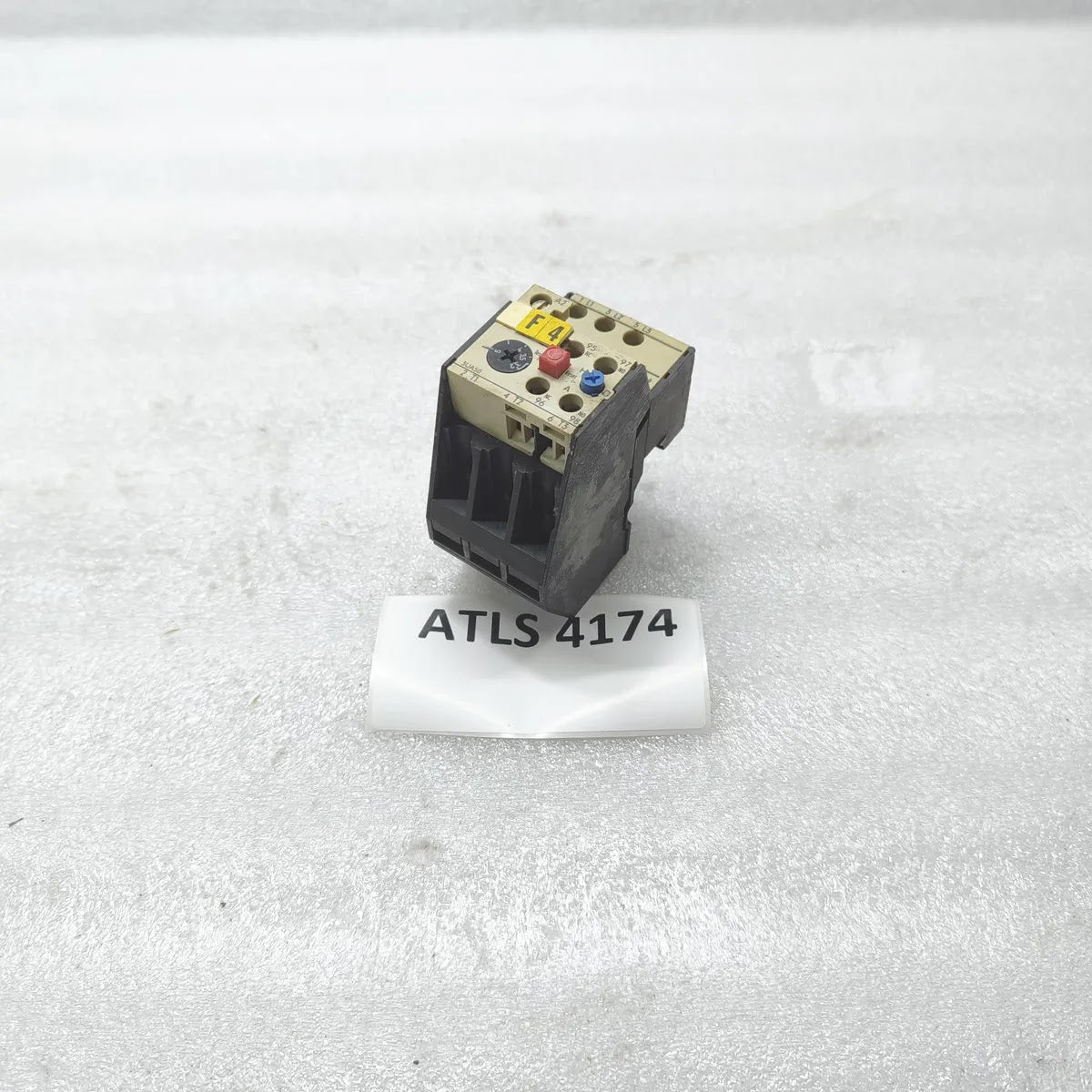

| REF | ATLS4174 |
