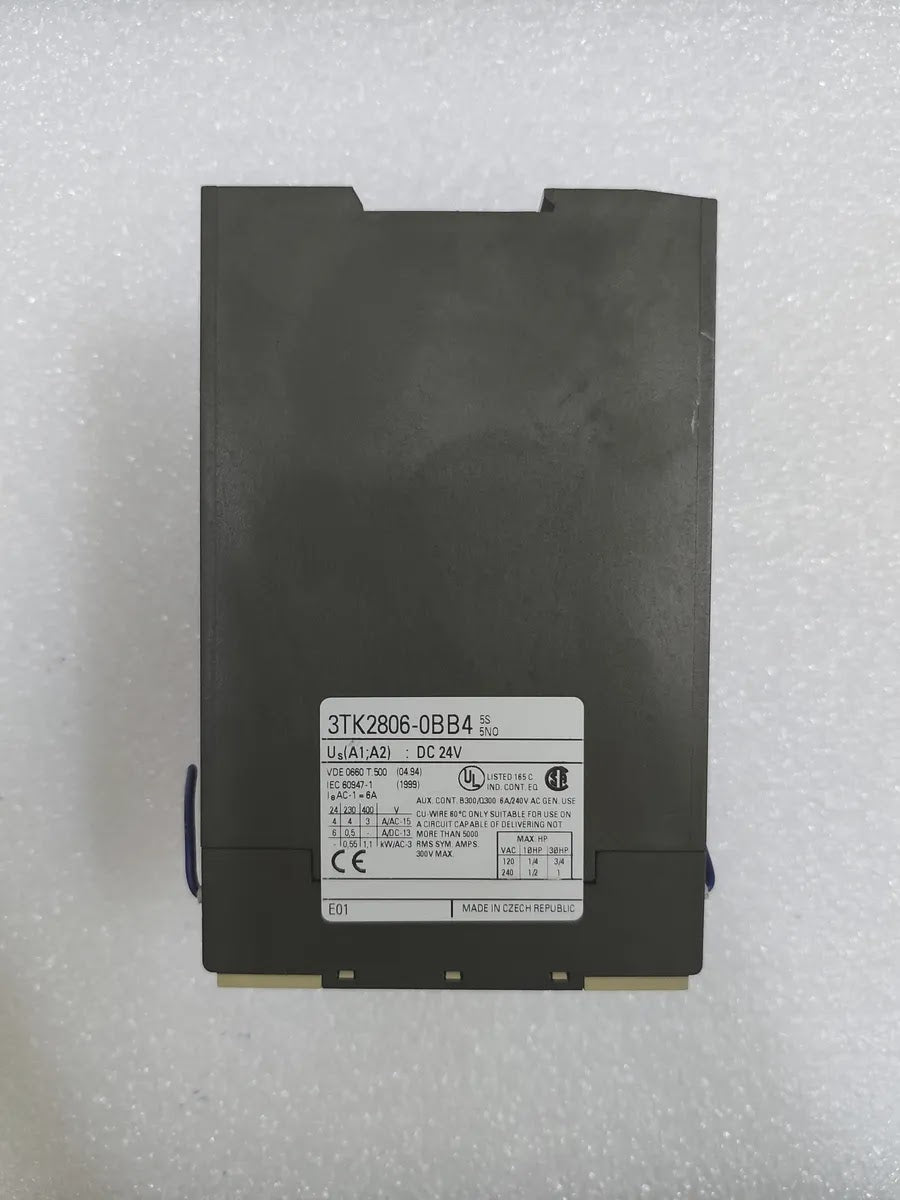

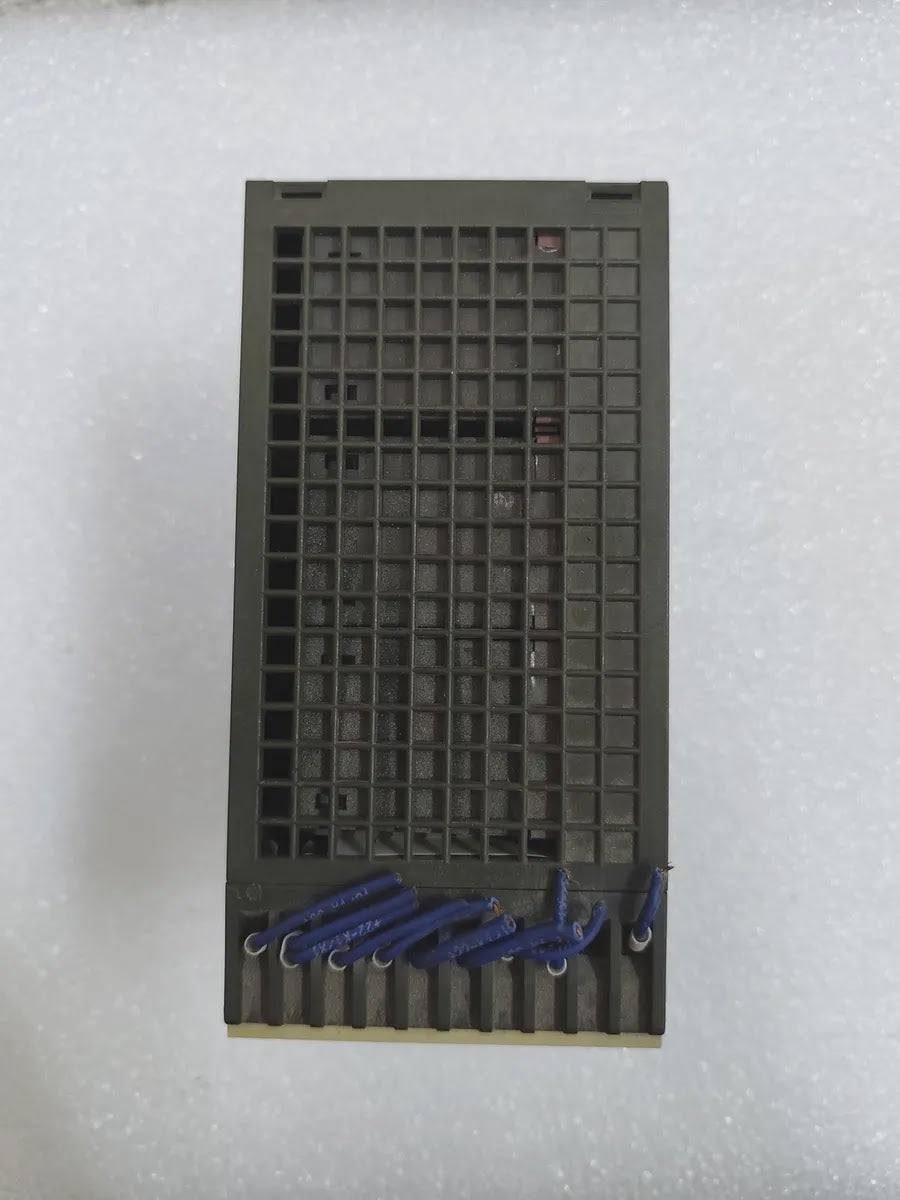

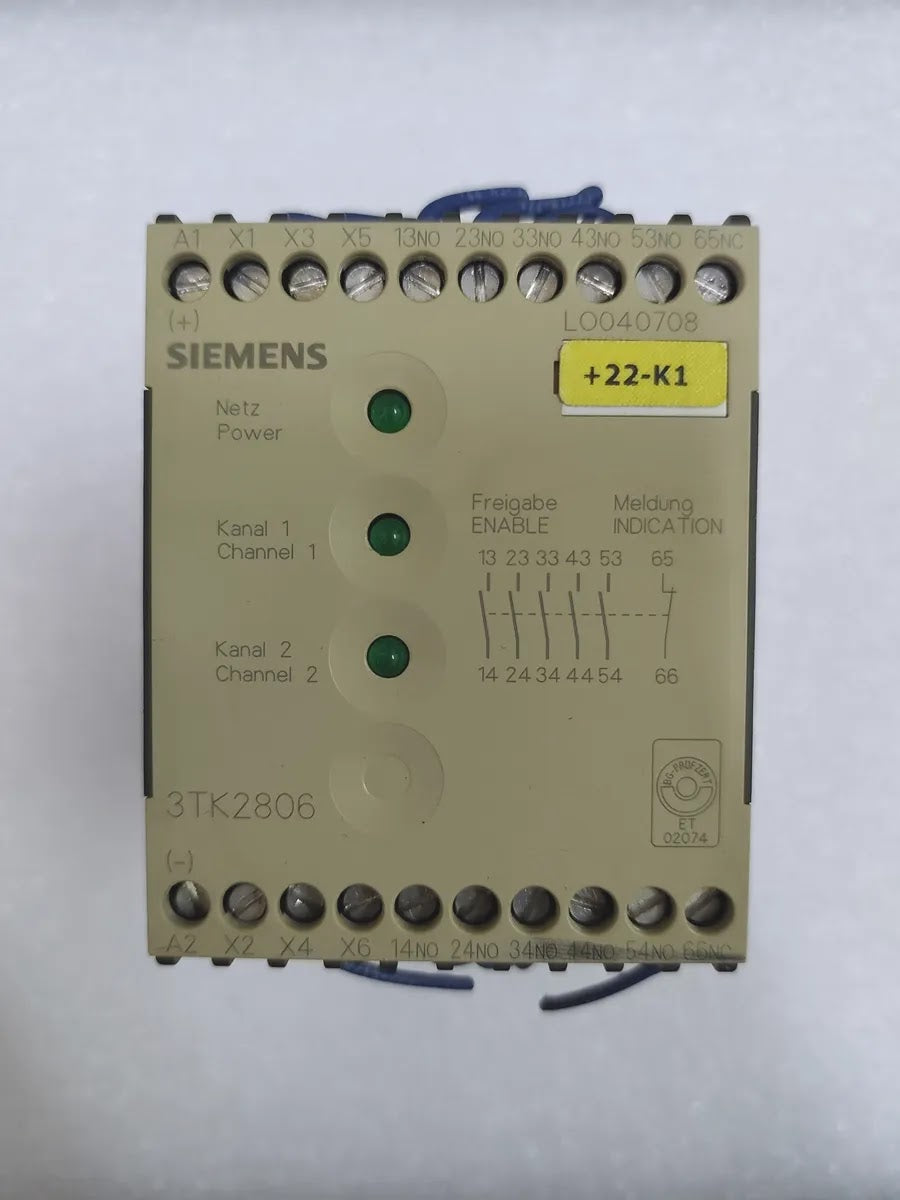

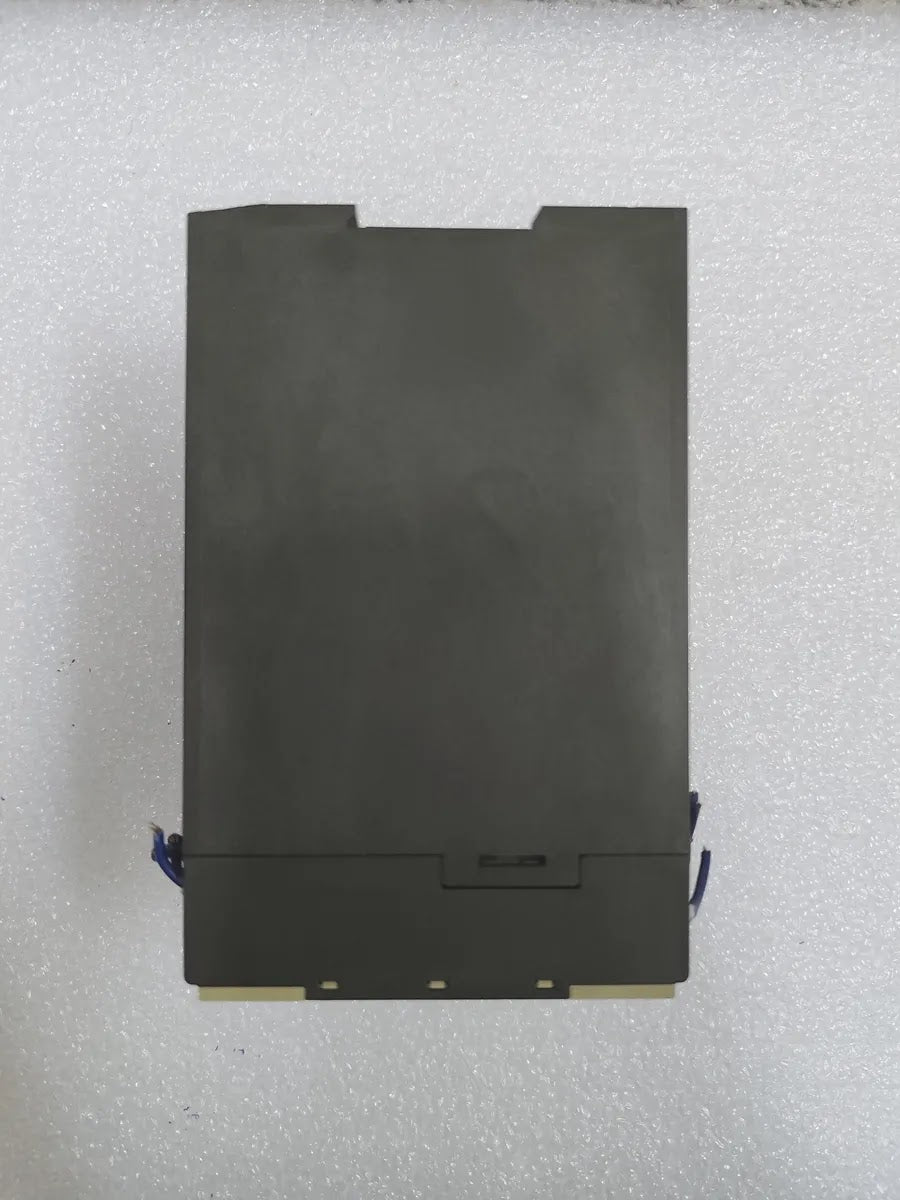

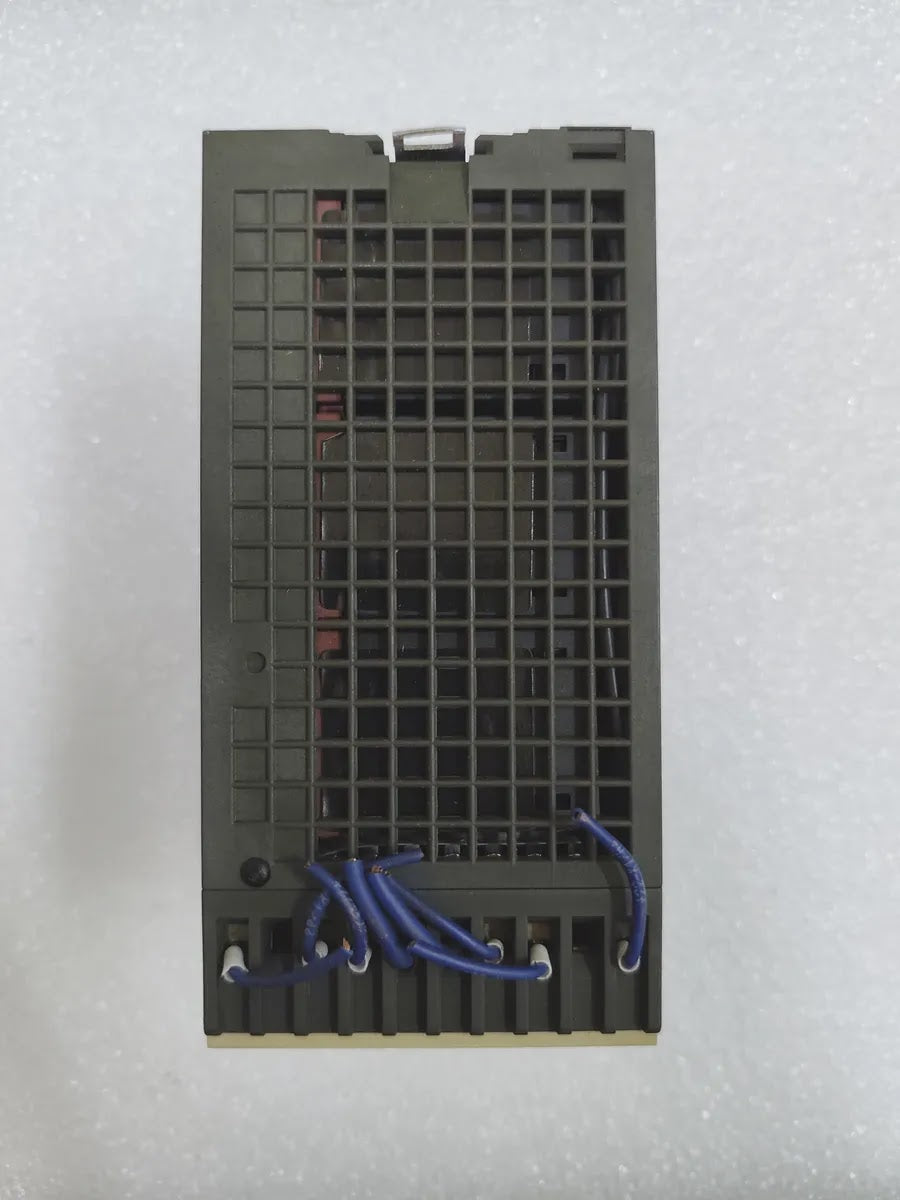

SIEMENS 3TK2806-0BB4 Safety Relay 24VDC 6A
$148.99
Skip to product information
SIEMENS 3TK2806-0BB4 Safety Relay 24VDC 6A
$148.99
Specifications
| BRAND | SIEMENS |
| MODEL | 3TK2806 |
| PART NUMBER | 3TK2806-0BB4 |
| TYPE | Contactor combination for safety circuits, enabling and signalling circuit, with self-latching mechanism K1 |
| SERIES | 3TK28 safety relays |

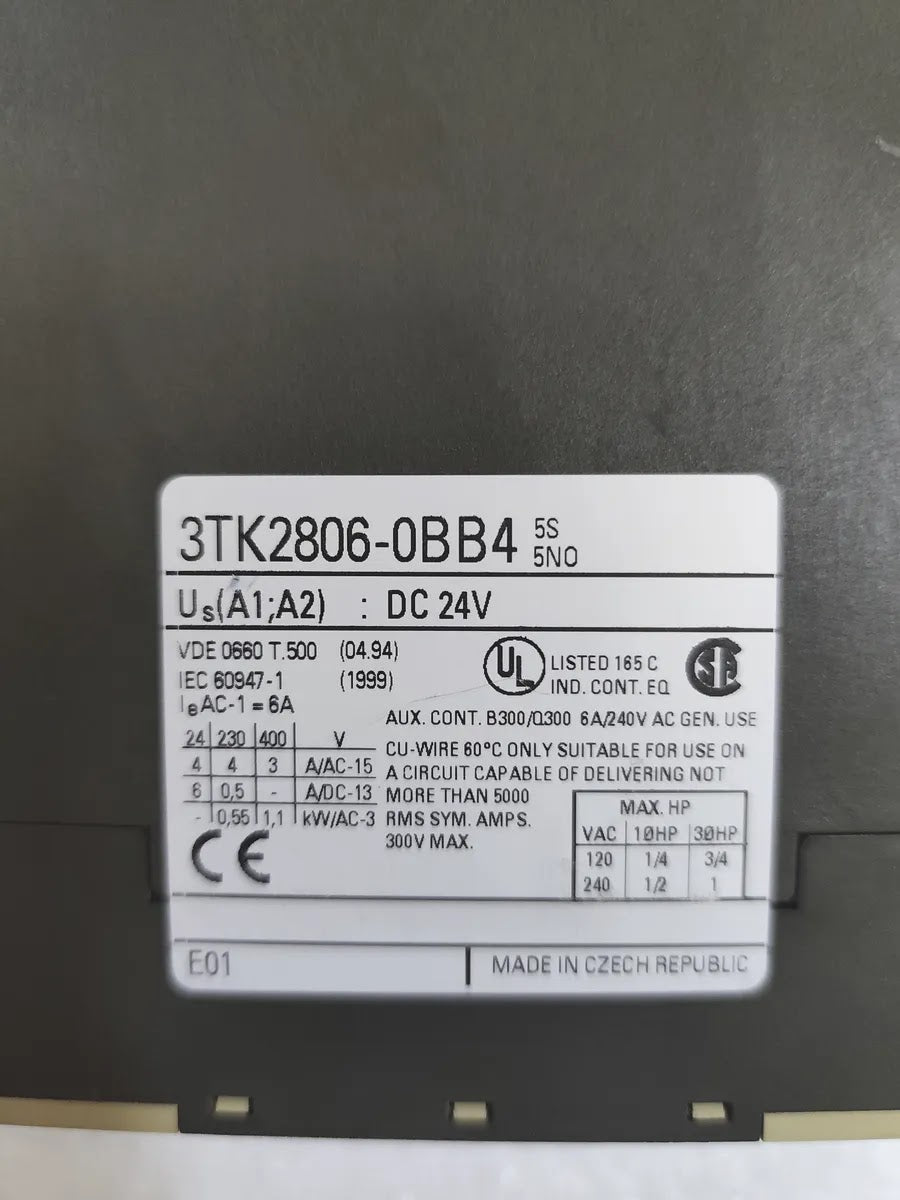

| SUPPLY VOLTAGE | Us (A1;A2) DC 24V |
| ENABLING CONTACTS | 5S / 5NO |
| SIGNALLING CONTACT | 1 NC |
| CURRENT RATING | Ie AC-1 = 6A |
| CONTACT RATING AC-15 | 4A at 24V, 4A at 230V, 3A at 400V |
| CONTACT RATING DC-13 | 6A at 24V, 0,5A at 230V |
| MOTOR CAPACITY AC-3 | 0,55kW at 230V, 1,1kW at 400V |
| AUXILIARY CONTACT RATING | B300/Q300, 6A/240V AC general use |
| MAX HP | 120VAC: 1/4 HP single-phase, 3/4 HP three-phase; 240VAC: 1/2 HP single-phase, 1 HP three-phase |
| SHORT CIRCUIT RATING | Suitable for use on a circuit capable of delivering not more than 5000 RMS symmetrical amperes, 300V max; copper wire 60°C only |
| APPLICATION | Evaluation of sensor and actuator circuits in safety circuits to DIN EN / IEC 60204-1, Autostart mode |
| STANDARDS | VDE 0660 T.500 (04.94), IEC 60947-1 (1999) |
| APPROVALS | CE, UL Listed 165 C Ind. Cont. Eq., CSA, BG-PRÜFZERT ET 02074 |
| REVISION | E01 |
| COUNTRY OF ORIGIN | Made in Czech Republic |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 3 |
| REF | NTD027 |
