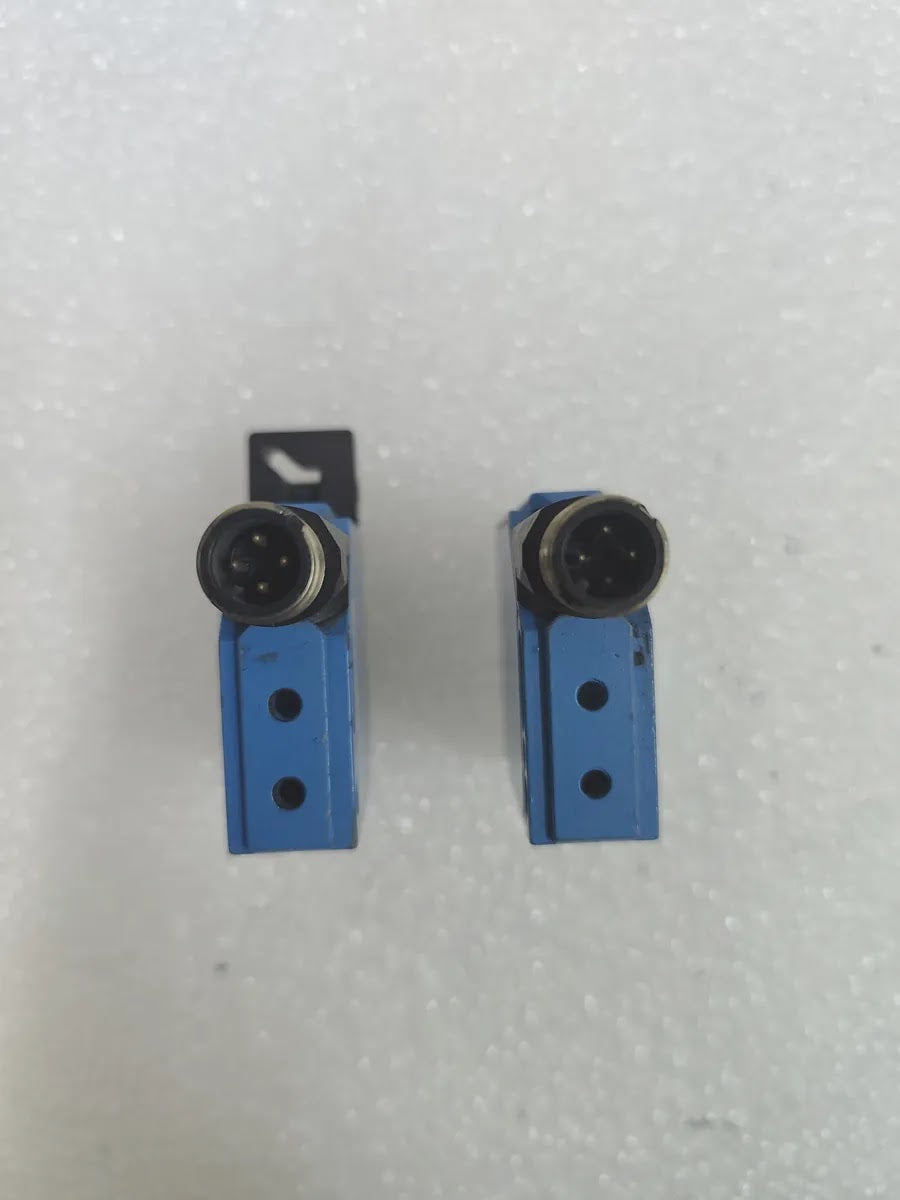

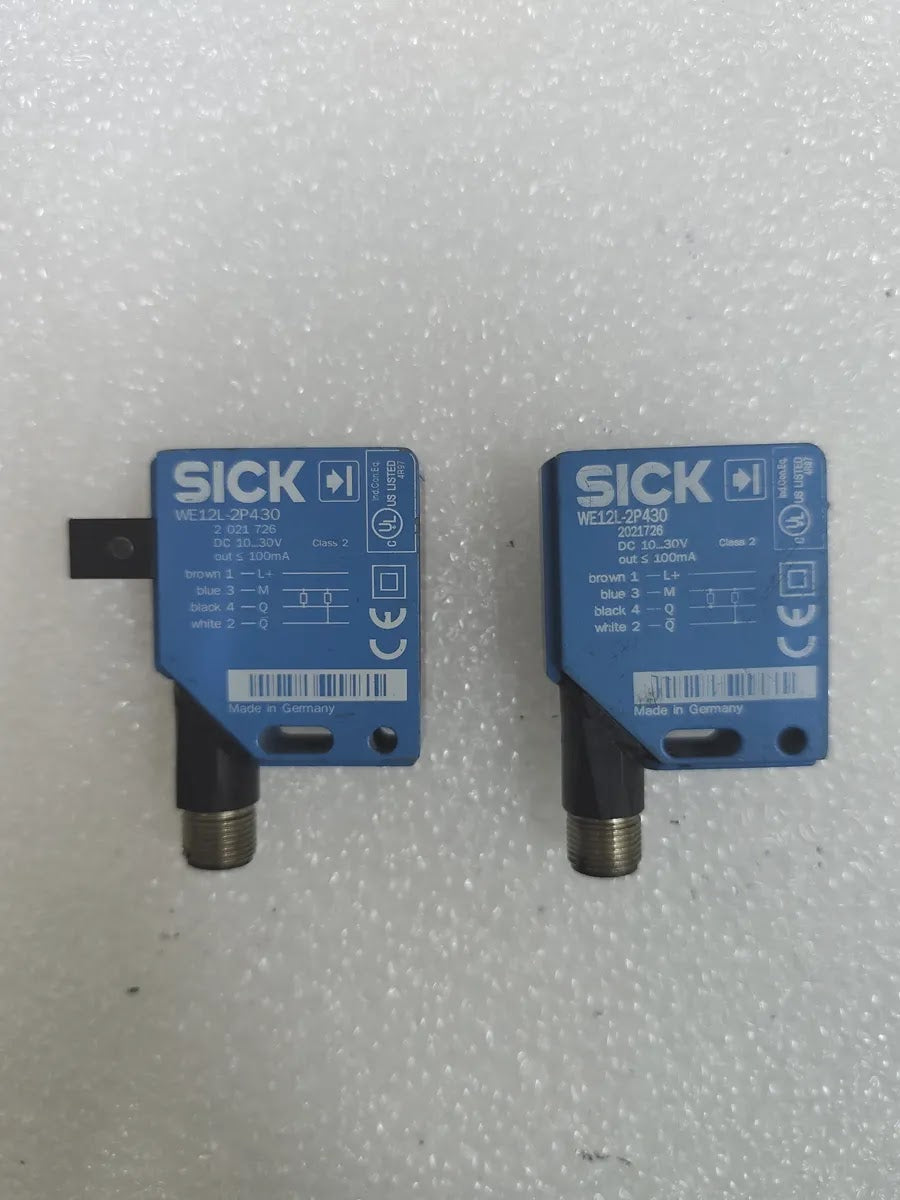

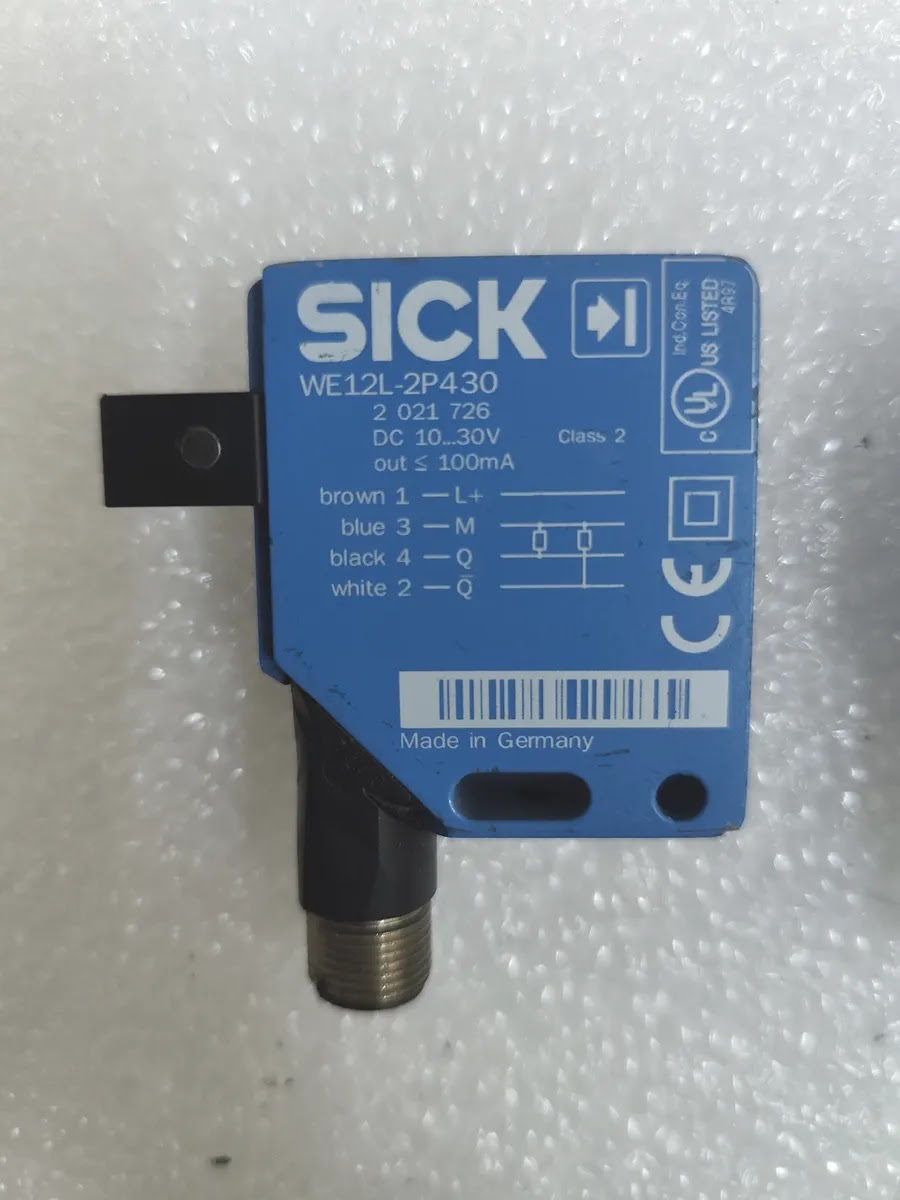

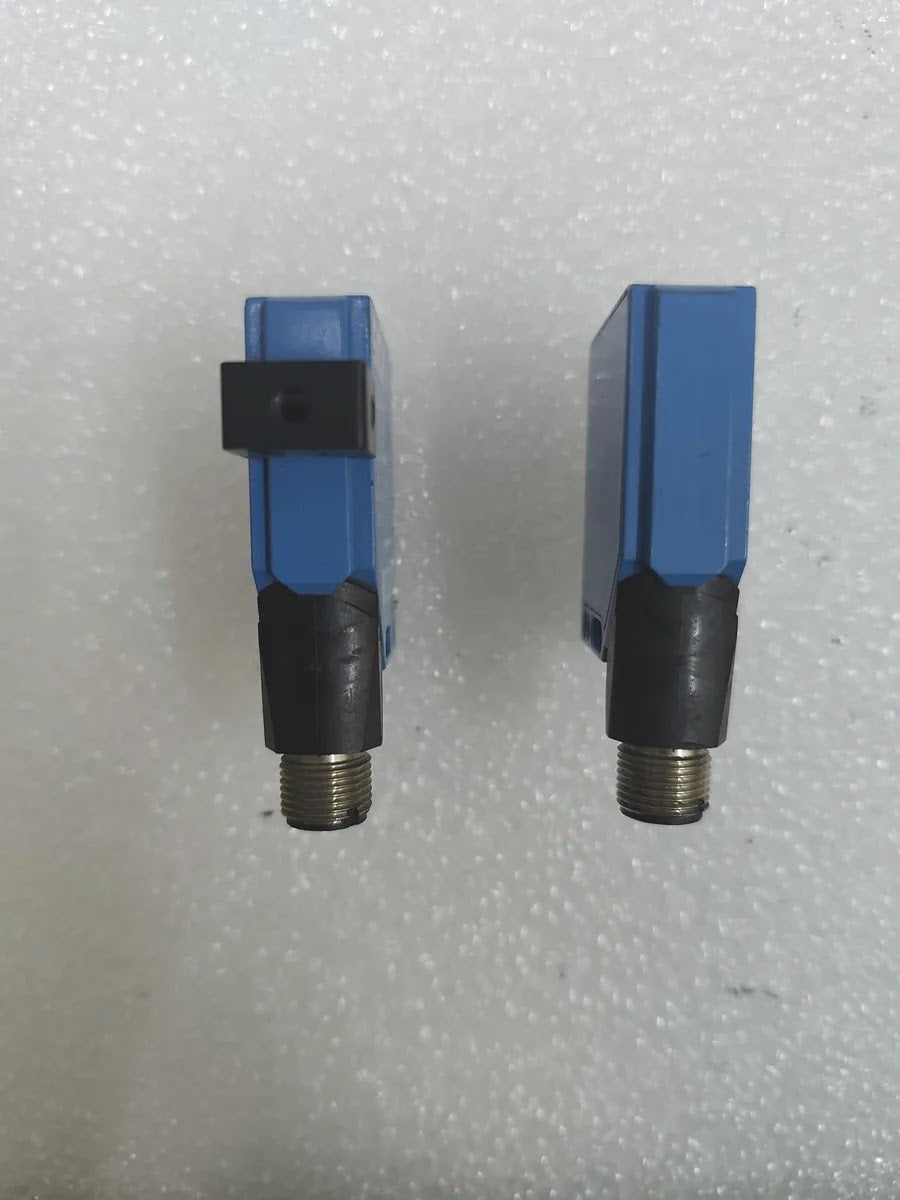

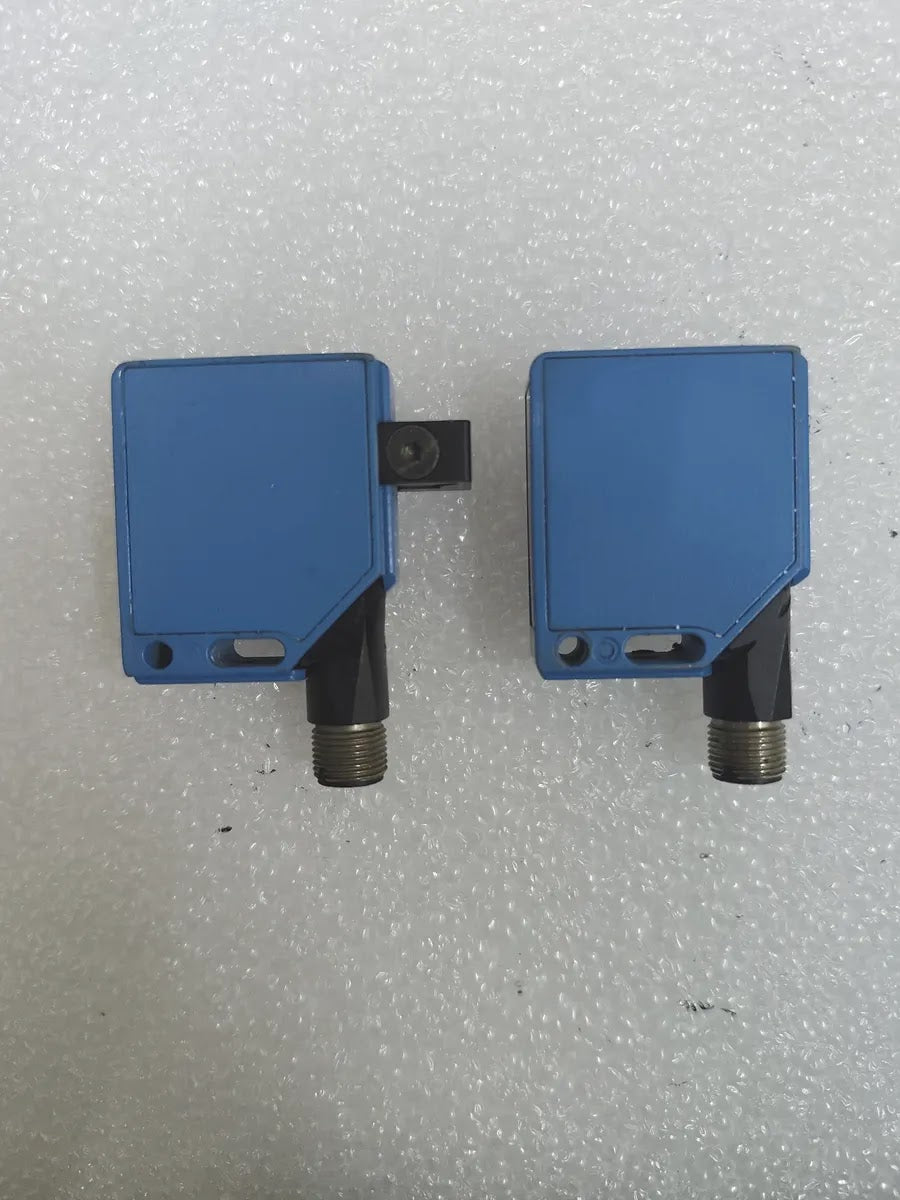

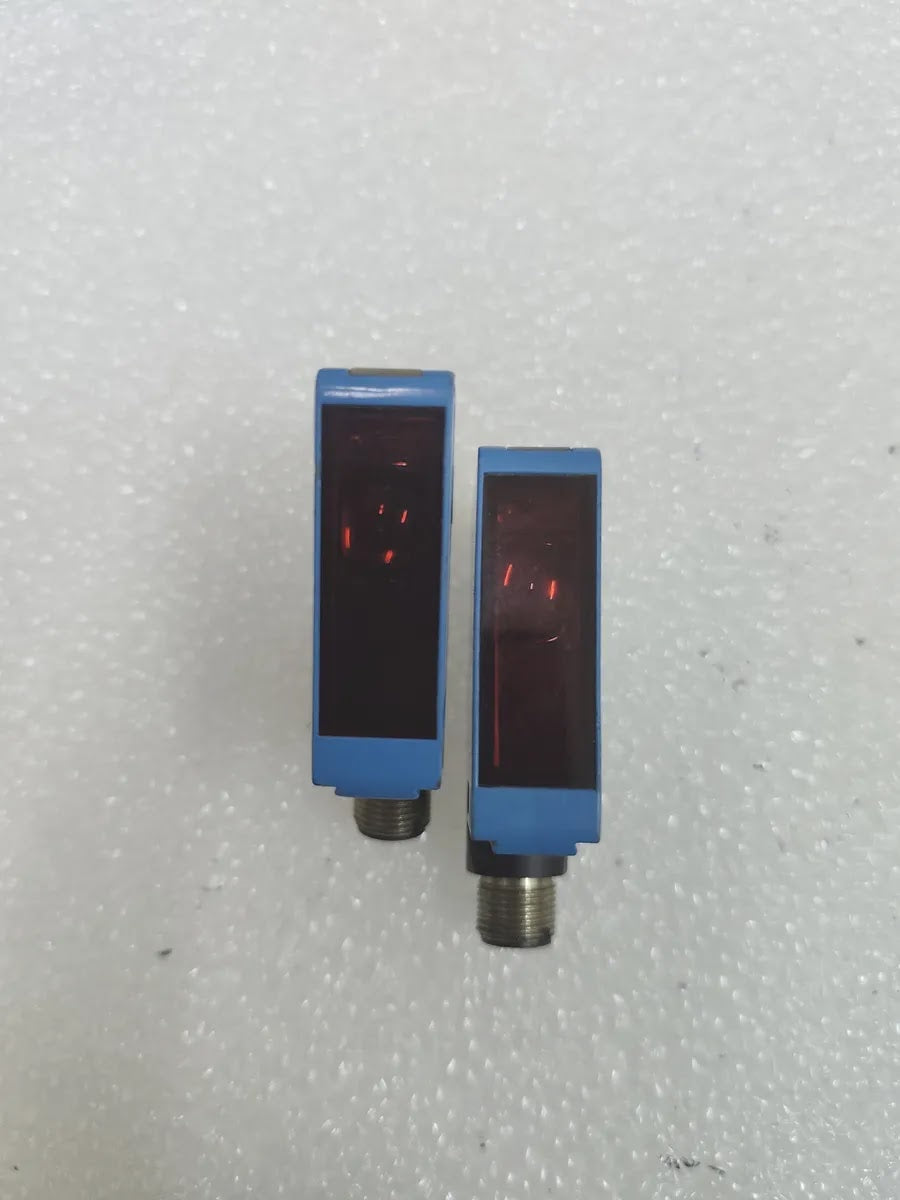

SICK WE12L-2P430 Photoelectric Sensor Receiver 10-30VDC
$86.99
Skip to product information
SICK WE12L-2P430 Photoelectric Sensor Receiver 10-30VDC
$86.99
Specifications
| BRAND | SICK |
| MODEL | WE12L-2P430 |
| PART NUMBER | 2 021 726 (also printed 2021726) |
| TYPE | Through-beam photoelectric sensor, receiver unit |
| SERIES | W12-2 Laser |
| MATCHING EMITTER | WS12L-2D430, part no. 2 021 722 (sold separately) |
| SUPPLY VOLTAGE | DC 10...30V |
| OUTPUT CURRENT | out ≤ 100mA |
| CURRENT CONSUMPTION | ≤ 15 mA (receiver) |
| SWITCHING OUTPUT | PNP |
| OUTPUT FUNCTION | Complementary, Q and Q inverted |
| SENSING RANGE | 0 m... 80 m |
| LIGHT SOURCE | Laser, visible red light, 650 nm |
| LASER CLASS | Class 2 (printed "Class 2") |
| LIGHT SPOT SIZE | Diameter 150 mm at 60 m distance |
| RESPONSE TIME | ≤ 200 µs |
| SWITCHING FREQUENCY | 2,500 Hz |
| ENCLOSURE RATING | IP67 / IP69K |
| PROTECTION CLASS | II (double-insulation symbol on label) |
| AMBIENT OPERATING TEMPERATURE | 10 °C... +50 °C |
| APPLICATION | Detecting small objects and objects moving at high speeds |
| DIMENSIONS | 15 mm x 49 mm x 41.5 mm |
| STANDARD | EN 60825-1:2014, IEC 60825-1:2007 |
| APPROVALS | UL Listed Industrial Control Equipment 4R97 (Class 2), CE |
| COUNTRY OF ORIGIN | Made in Germany |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 2 |
| REF | NTD049 |
