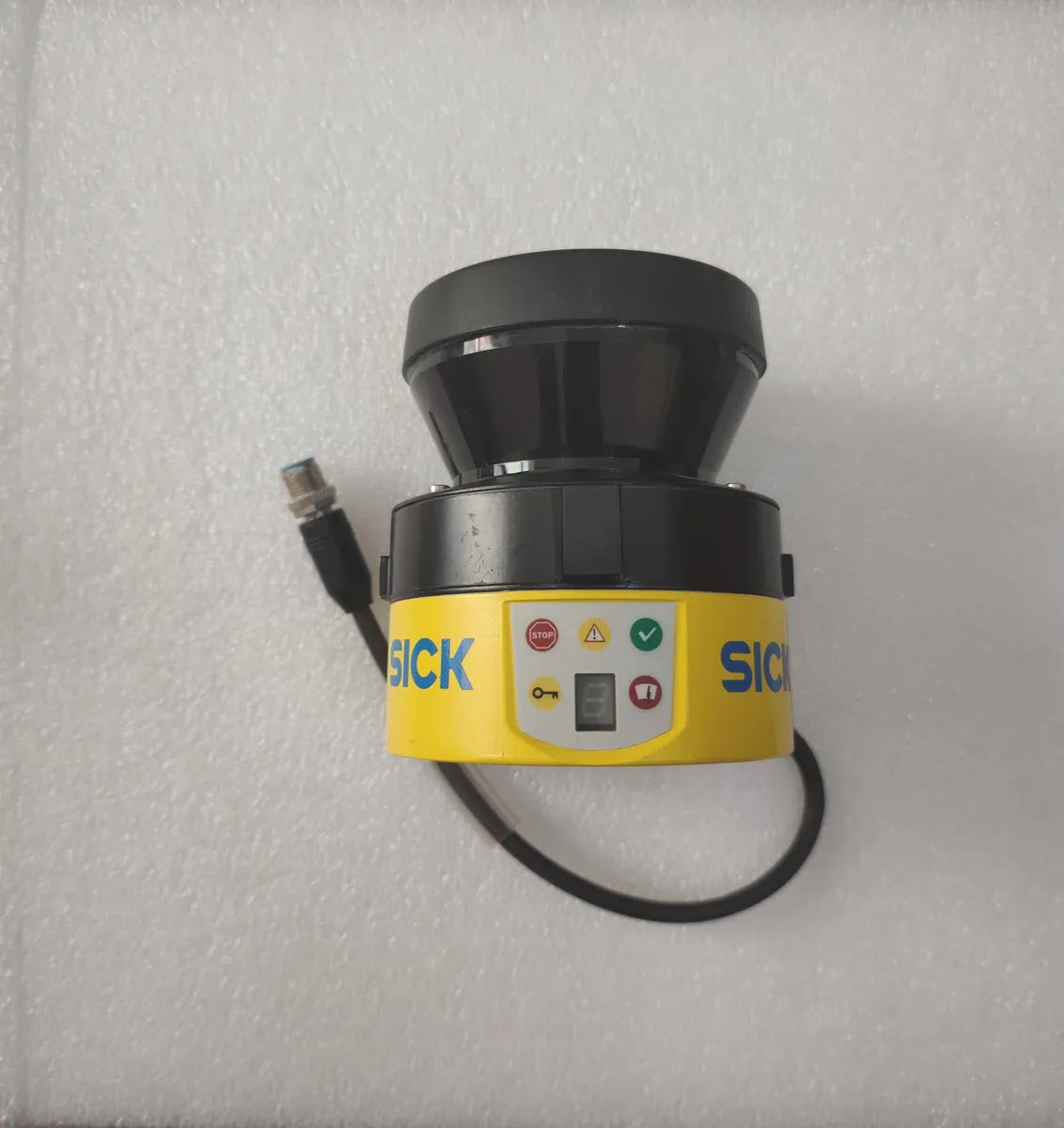

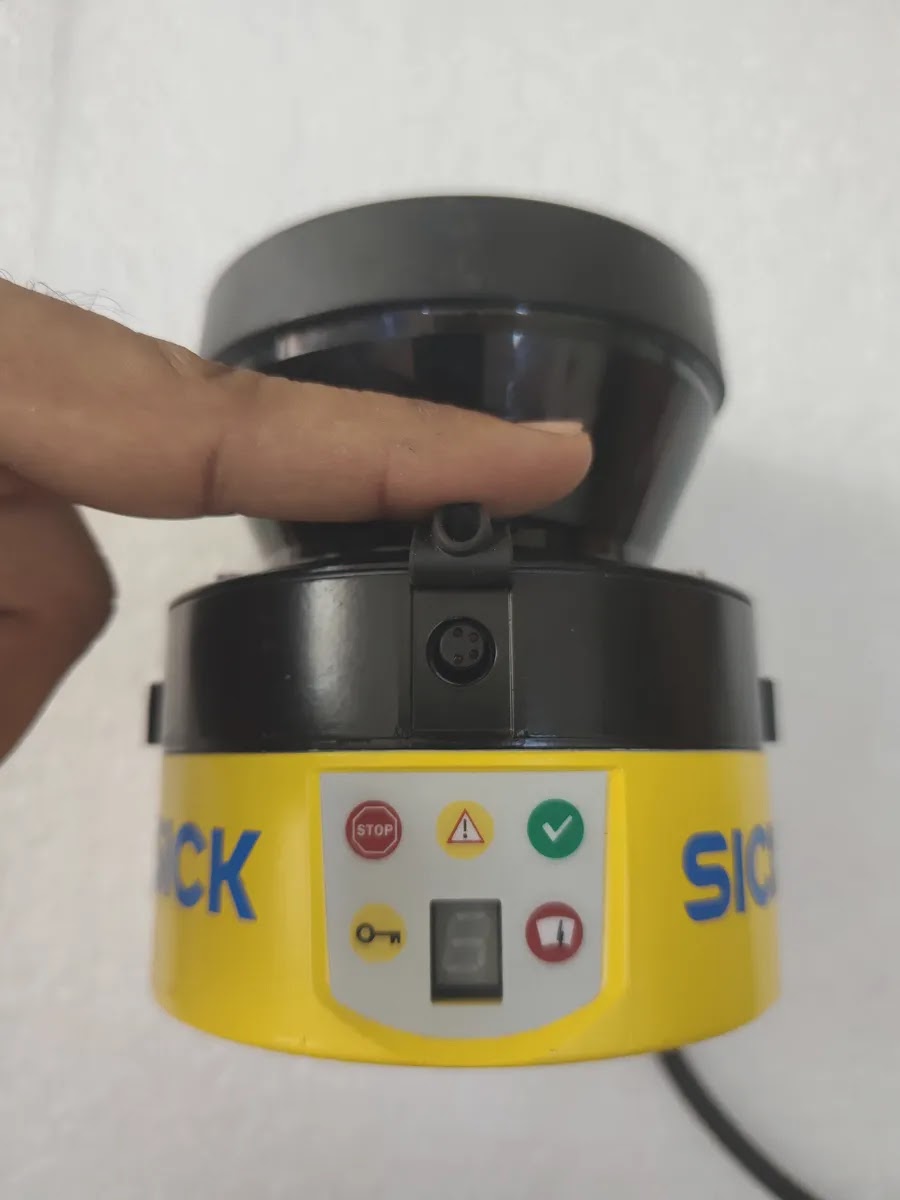

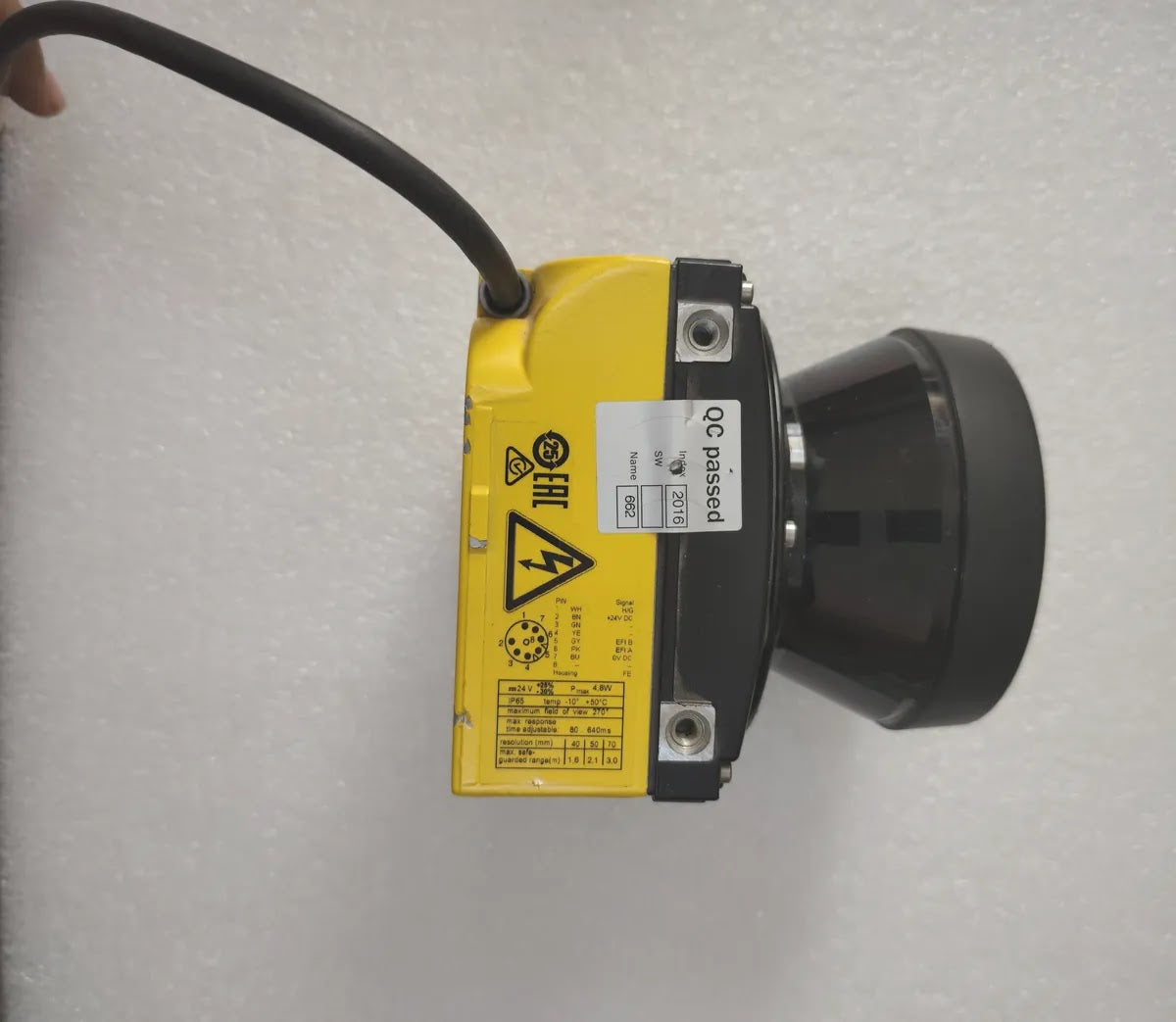

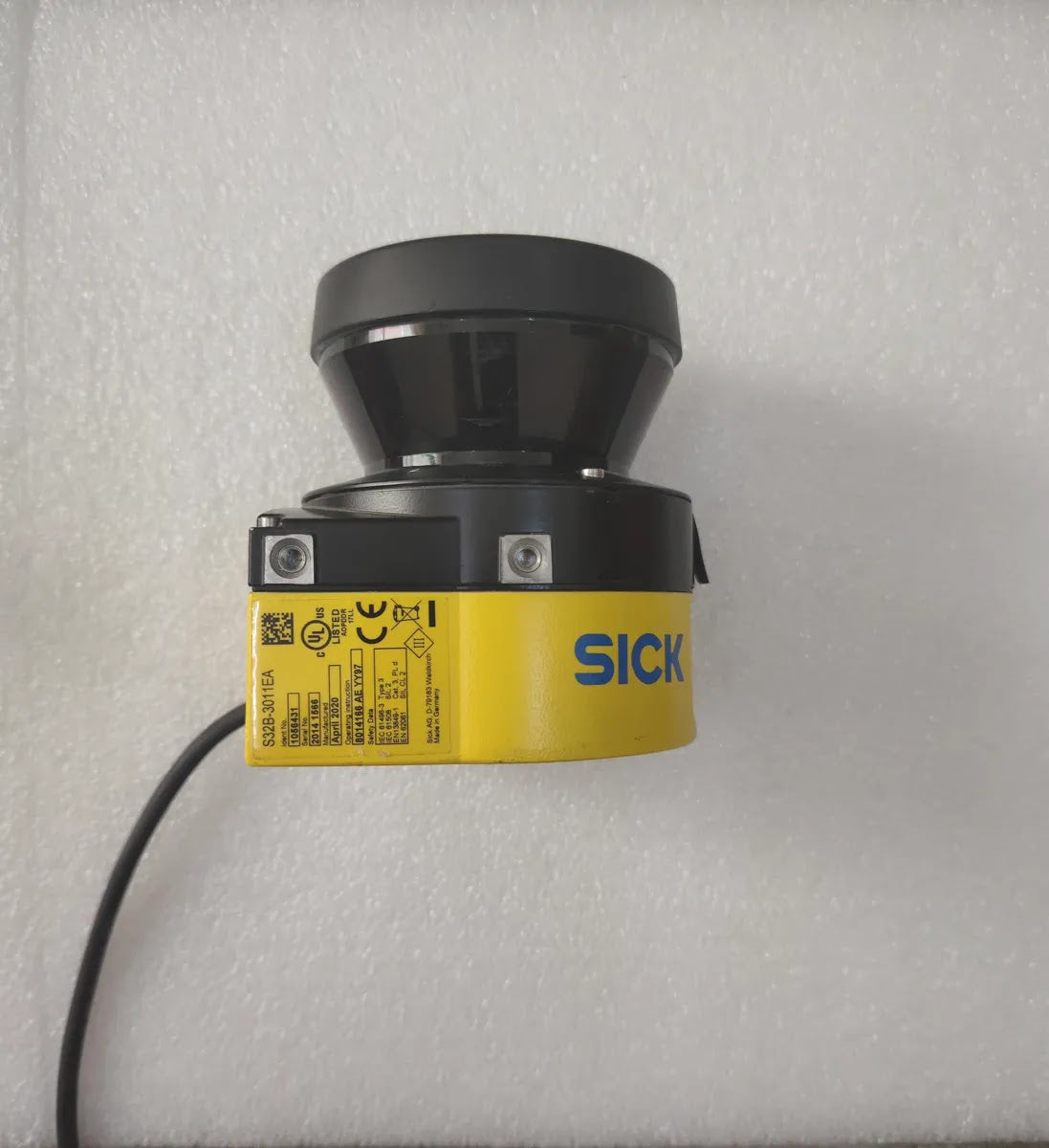

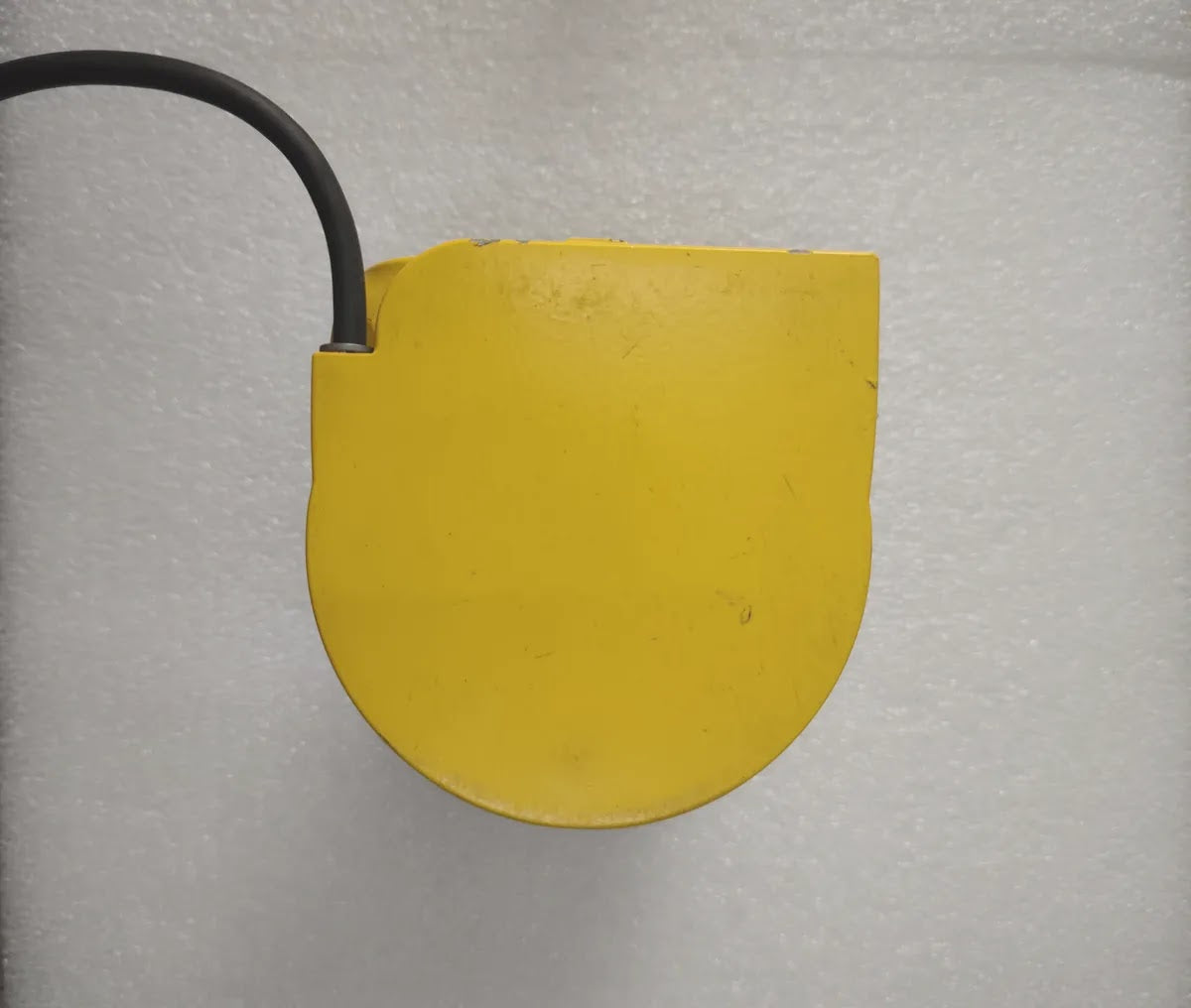

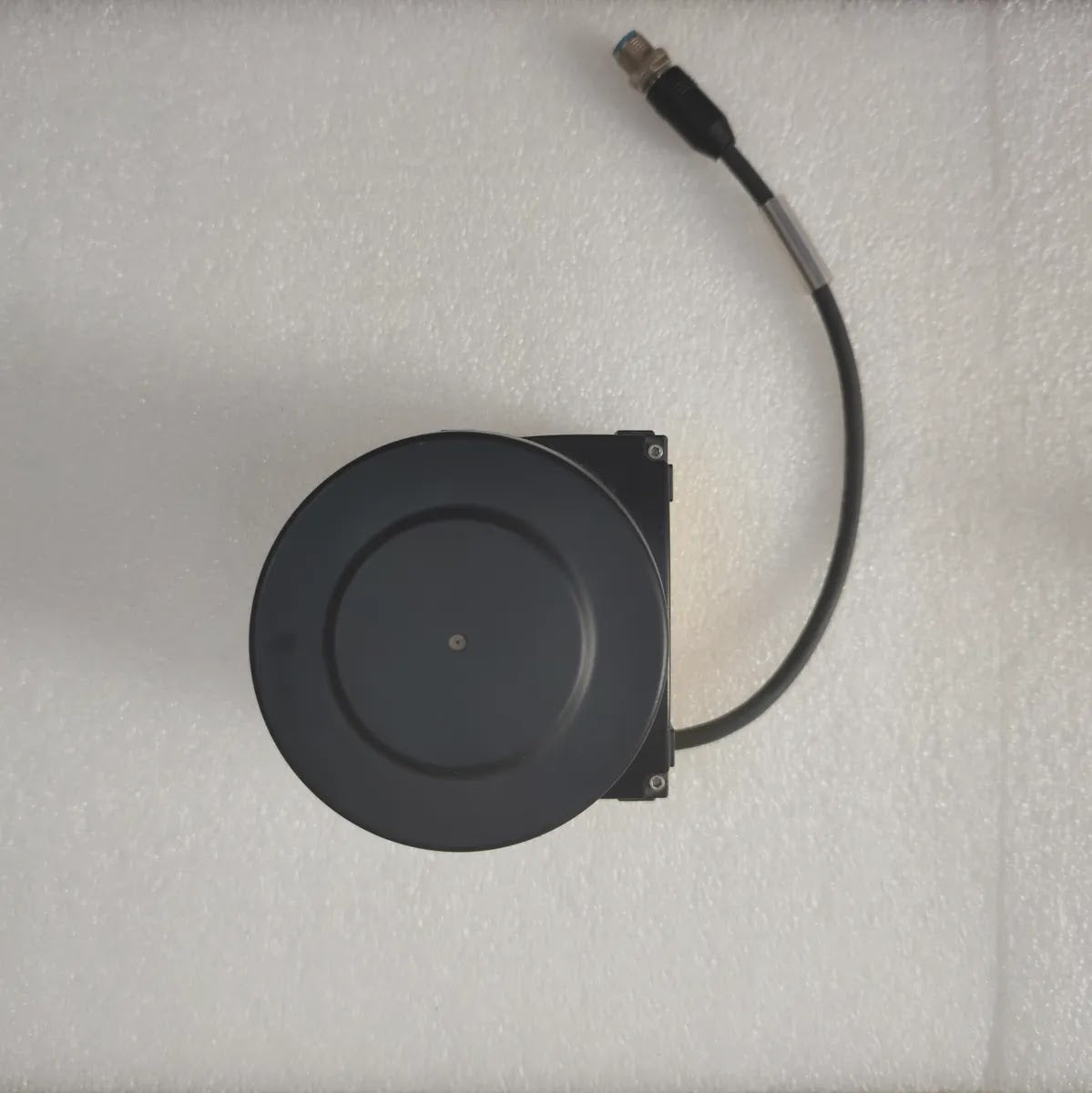

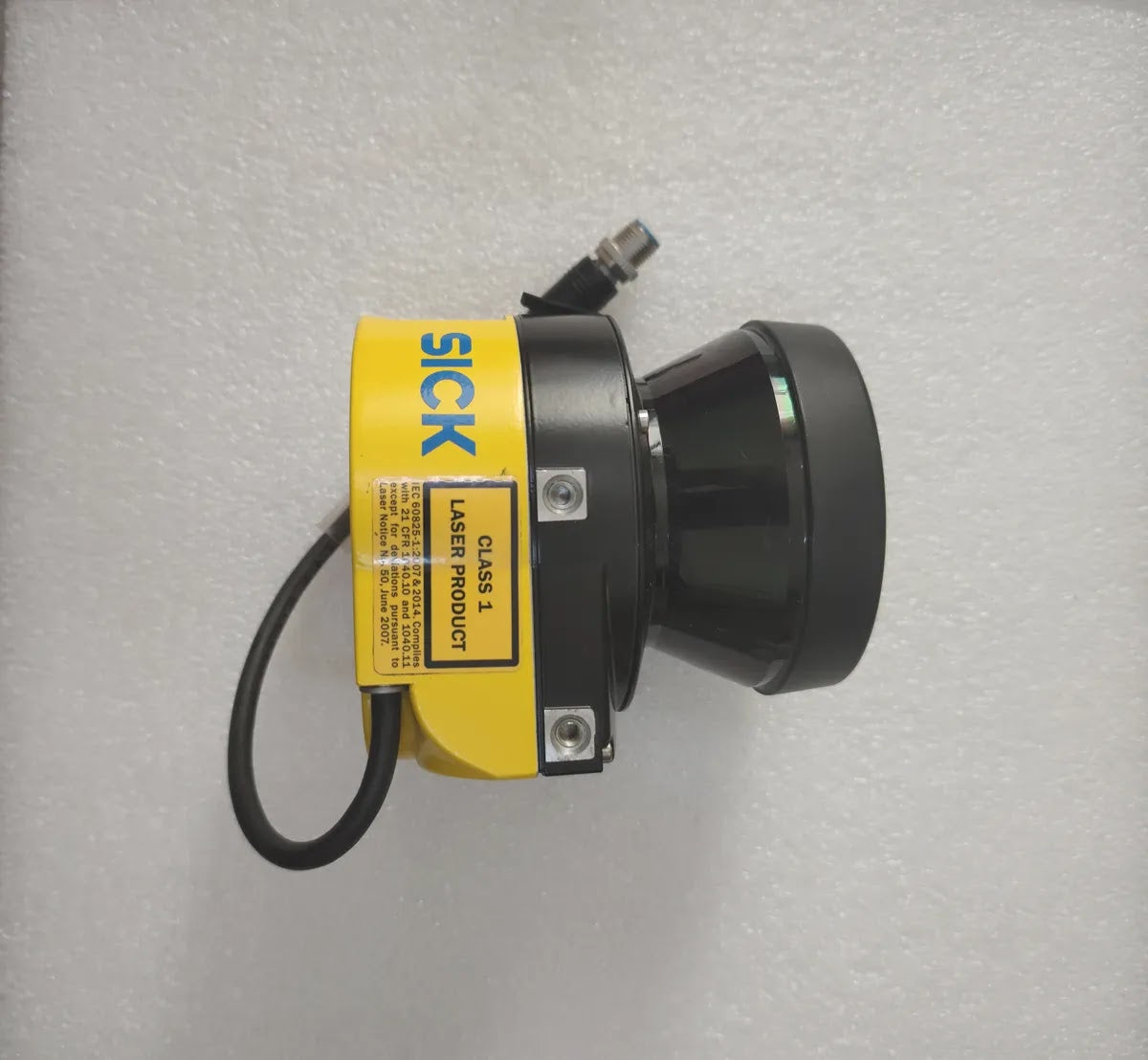

SICK S32B-3011EA Safety Laser Scanner 24V DC 3m
$498.88
Specifications
| BRAND | SICK |
| MODEL | S32B-3011EA |
| PART NUMBER | Ident No 1056431 |
| TYPE | Safety Laser Scanner |
| SERIES | S300 Mini Remote |
| SUPPLY VOLTAGE | 24 V DC +25% / -30% |
| POWER CONSUMPTION | P max 4,8 W |
| SCANNING ANGLE | Maximum field of view 270° |
| PROTECTIVE FIELD RANGE | Max. safeguarded range 1,6 m / 2,1 m / 3,0 m at 40 / 50 / 70 mm resolution |
| WARNING FIELD RANGE | 8 m |
| RESOLUTION | 40 mm / 50 mm / 70 mm selectable |
| RESPONSE TIME | Max. response time adjustable 80…640 ms |
| FIELD SETS | 16 field sets, 48 fields |
| SIGNAL INTERFACE | EFI A / EFI B safety interface, 8-pin assignment (1 WH H/G, 2 BN +24V DC, 5 GY EFI B, 6 PK EFI A, 7 BU 0V DC, housing FE) |
| LASER CLASS | Class 1 Laser Product |
| PROTECTION CLASS | III |
| ENCLOSURE RATING | IP65 |
| OPERATING TEMPERATURE | 10 °C … +50 °C |
| STANDARD | IEC 61496-3 Type 3; IEC 61508 SIL 2; EN 13849-1 Cat. 3, PL d; EN 62061 SIL CL 2; IEC 60825-1:2007 & 2014; complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, June 2007 |
| APPROVALS | CE, cULus Listed AOPDDR 17LL, EAC, RCM, WEEE |
| OPERATING INSTRUCTIONS | 8014166 AE YY97 |
| MANUFACTURER | Sick AG, D-79183 Waldkirch |
| COUNTRY OF ORIGIN | Made in Germany |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD003 |
