SICK CLV691-0000 Fixed Mount Barcode Scanner 18-30V DC
$390.99
Skip to product information
SICK CLV691-0000 Fixed Mount Barcode Scanner 18-30V DC
$390.99
Specifications
| BRAND | SICK |

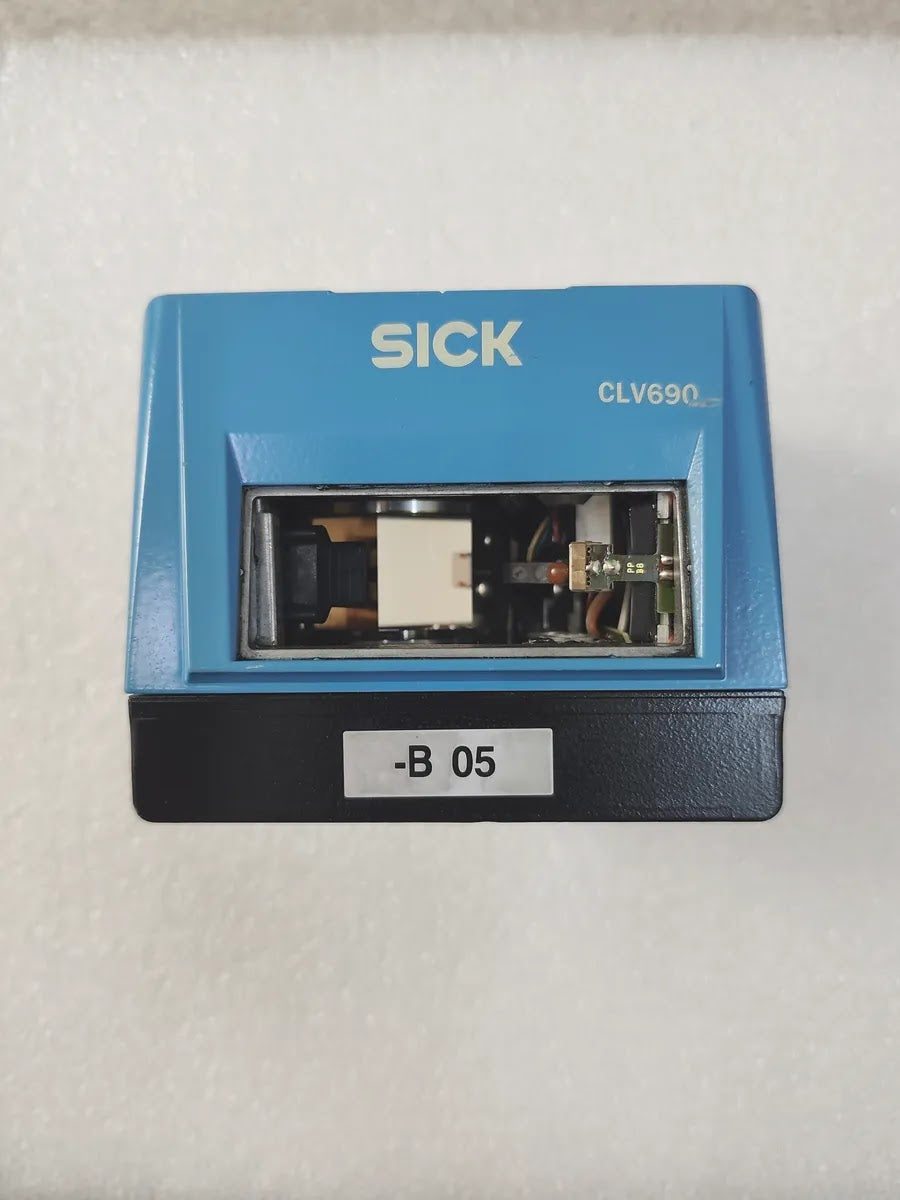

| MODEL | CLV691-0000 (front marked CLV690) |
| PART NUMBER | P/N: 1056604 |
| TYPE | Fixed mount bar code scanner, line scanner with auto focus |
| SERIES | CLV69x |
| SUPPLY VOLTAGE | DC 18...30V |
| POWER CONSUMPTION | typ. 15W |
| MAXIMUM CURRENT | Imax = 1A |
| LASER CLASS | Class 2 laser product - Caution, laser radiation, do not stare into beam |
| LASER POWER | Pmax = 3,2 mW, P < 1,0 mW average |
| WAVELENGTH | 660 nm, visible red light |
| PULSE DURATION | < 360 us |
| READING DISTANCE | 500 mm... 2200 mm |
| CODE RESOLUTION | 0.35 mm... 1.2 mm |
| INTERFACES | Ethernet, PROFINET, EtherNet/IP, Serial, CAN, PROFIBUS DP (via connection module) |

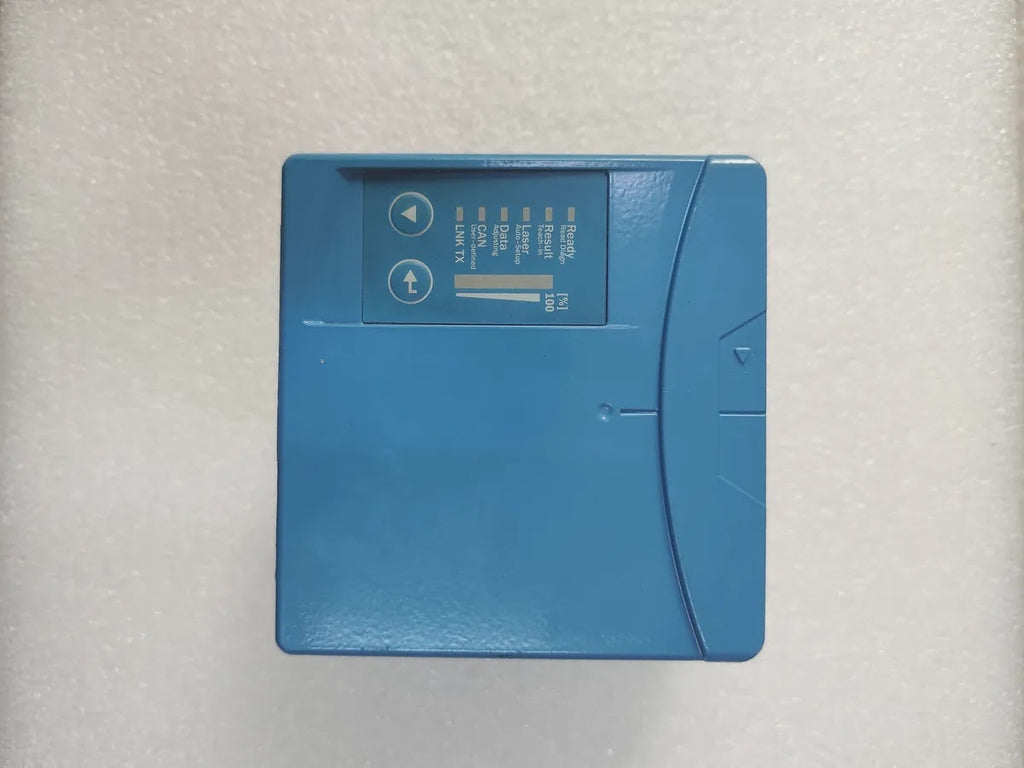

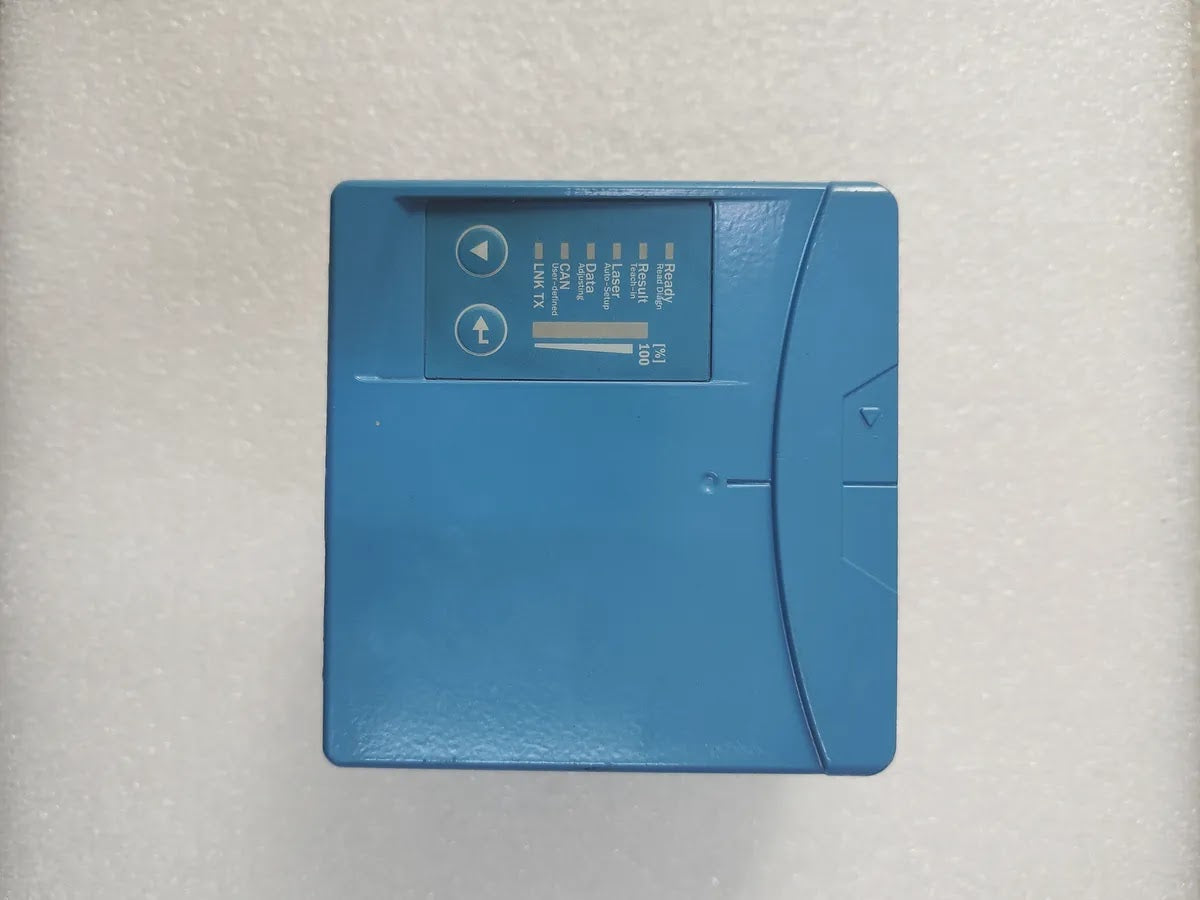

| STATUS INDICATION | Ready / Read Diagn, Result / Teach-in, Laser / Auto-Setup, Data / Adjusting, CAN / User-defined, LNK TX, plus 0-100 % read quality bar graph |
| OPERATING TEMPERATURE | 0 C... +40 C |
| ENCLOSURE RATING | IP65 |

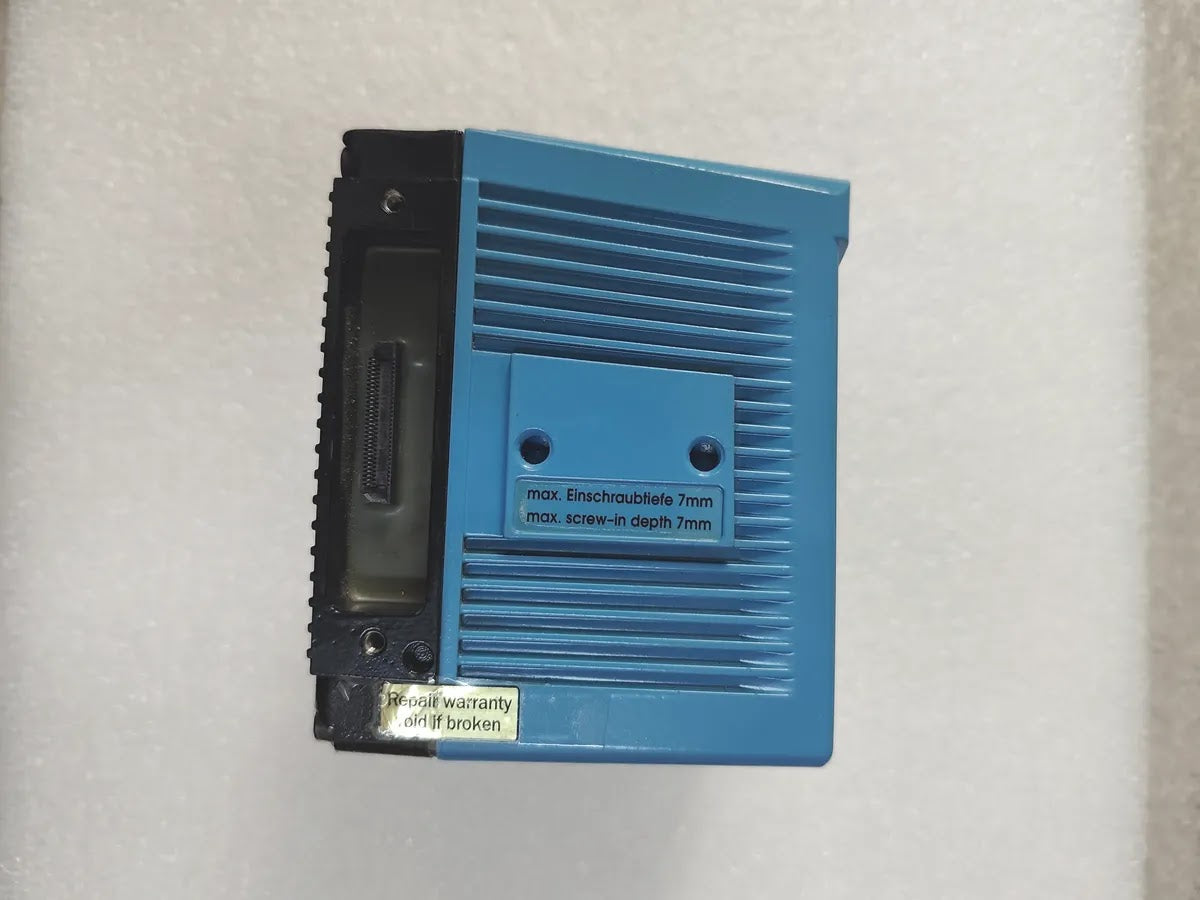

| MAXIMUM SCREW-IN DEPTH | 7 mm |
| APPLICATION | Reading printed label bar codes in industrial identification and material handling systems |
| STANDARD | IEC 60825-1 Ed.2:2007-03; EN 60825-1 Ed.2:2008-05; complies with 21 CFR 1040.10 except for deviations pursuant to Laser Notice No. 50 dated June 24, 2007 |
| APPROVALS | CE, C-Tick |
| MANUFACTURER ADDRESS | D-79276 Reute |
| COUNTRY OF ORIGIN | Made in Germany |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD007 |
