SHANGHAI YITAI F96-WB Panel Wattmeter 1500kW 460/220V
$79.99
SHANGHAI YITAI F96-WB Panel Wattmeter 1500kW 460/220V
Specifications
| Brand | Shanghai Yitai Instrument Co., Ltd. (YT) |
| Model | F96-WB |
| Part Number | F96-W (B) |
| Type | Analogue Panel Wattmeter (active power meter), electrodynamic movement |
| Series | F96 |

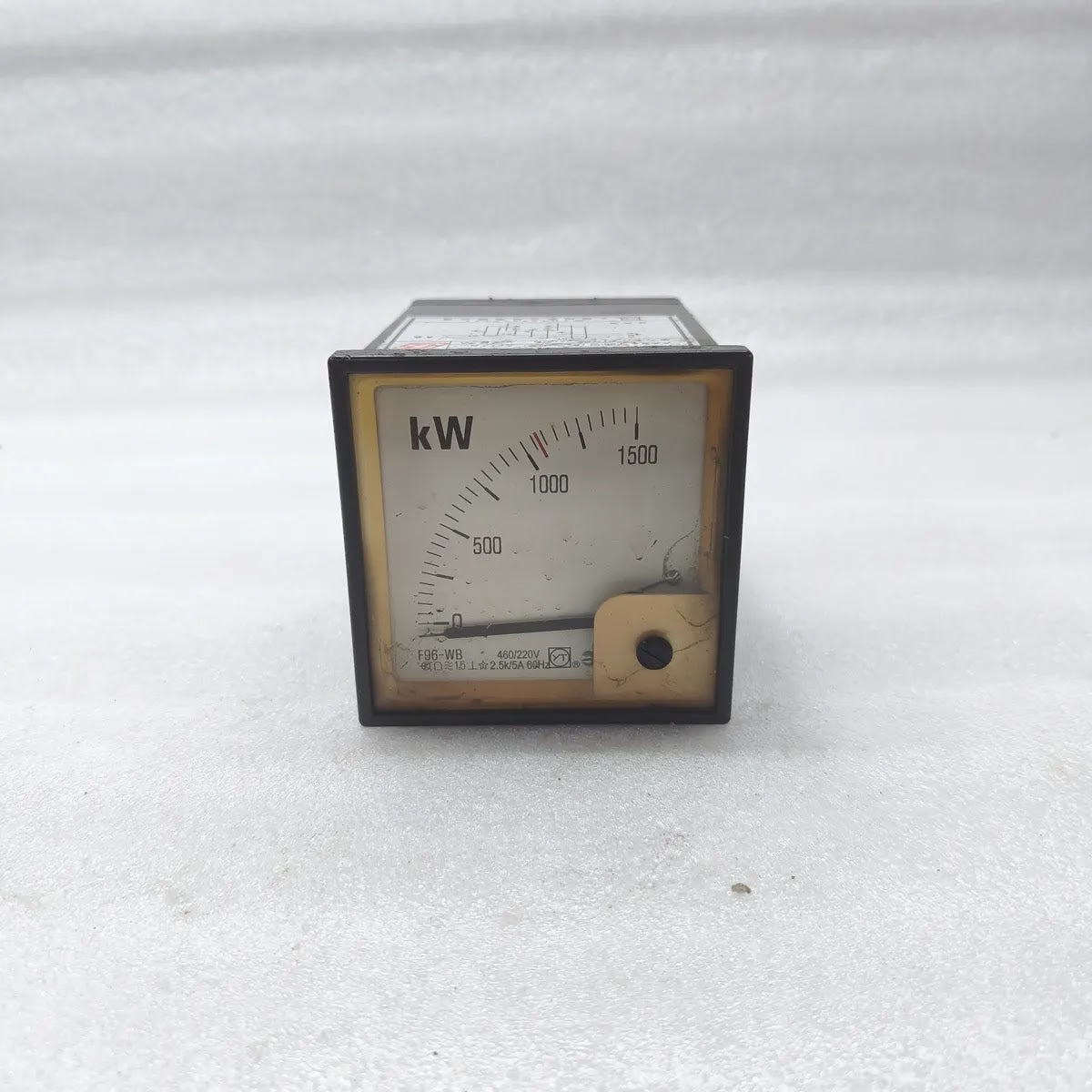

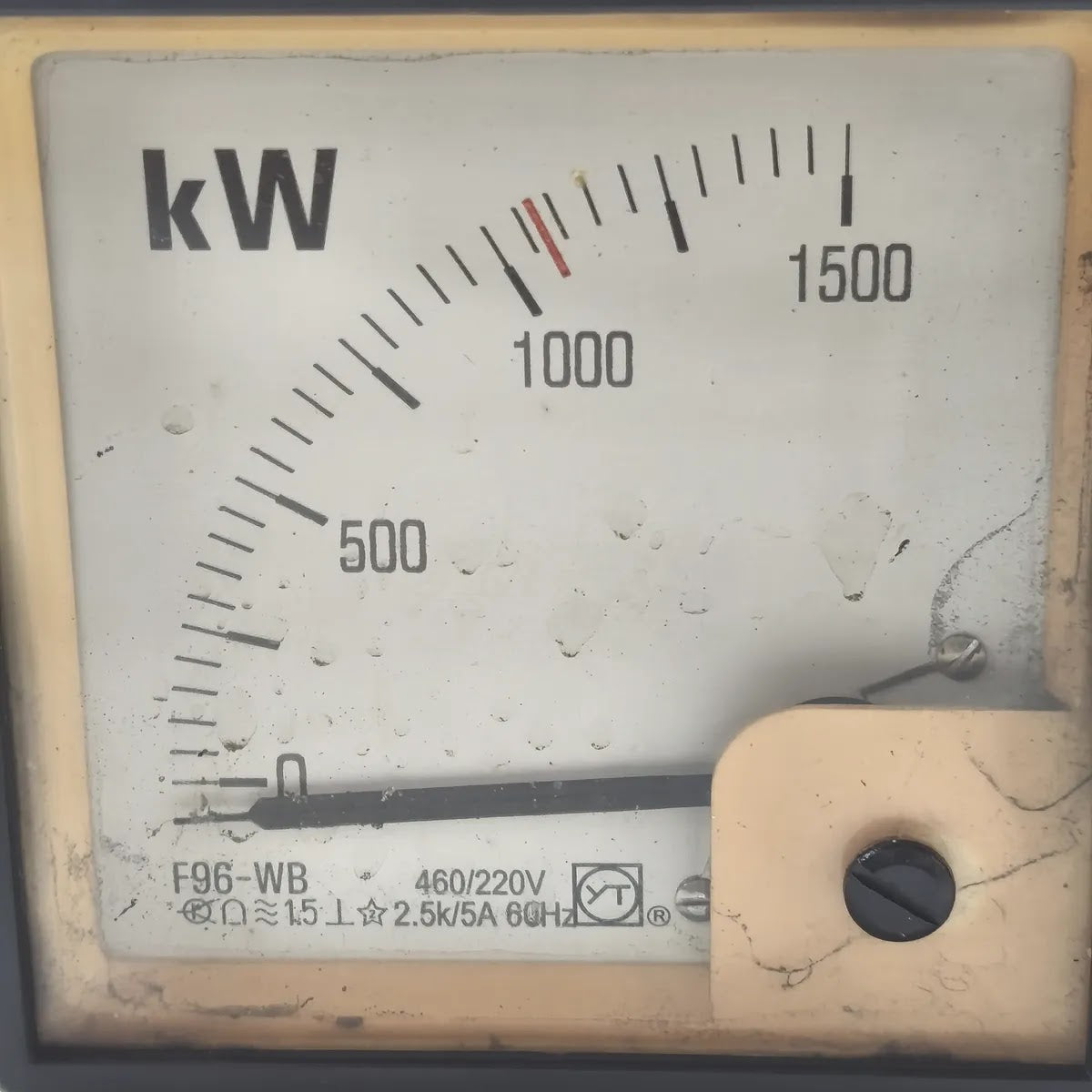

| Measuring Range | 0-1500 kW, scale numbered every 500 kW with over-range graduations above 1500 kW and a red index mark at approx. 1100 kW |
| Rated Voltage / Pt | 460/220V |
| Current Transformer Ratio | 2.5k/5A (2500/5A, 5A secondary) |
| Frequency | 60Hz |
| Accuracy Class | 1.5 |
| Application | Three-phase active power measurement on switchboards and generator panels |

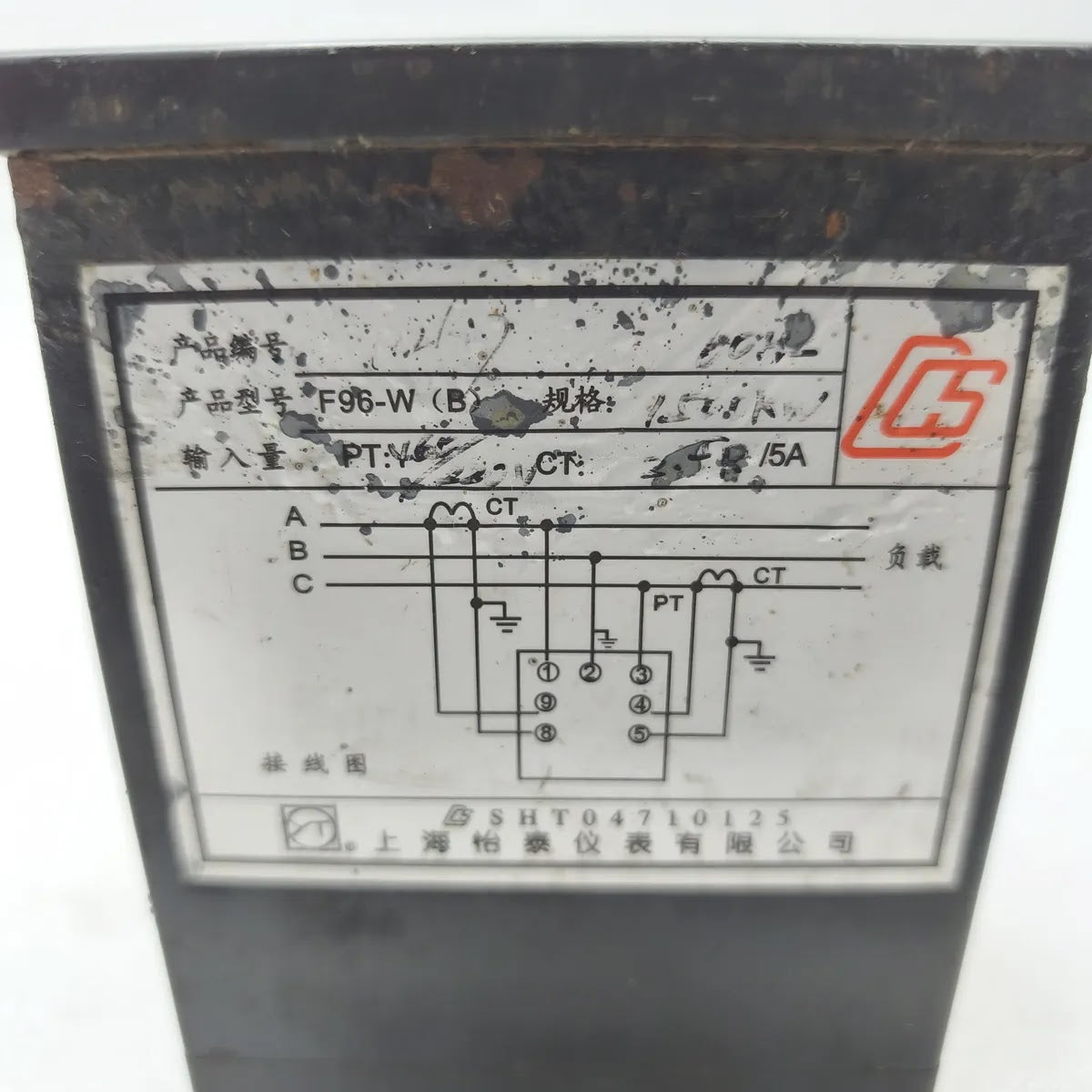

| Approval / Certificate Code | SHT04710125, with CS ship-classification mark on the rating and certificate labels |
| Country Of Origin | China (Shanghai) |
| Condition | PRE-OWNED / SECOND HAND |

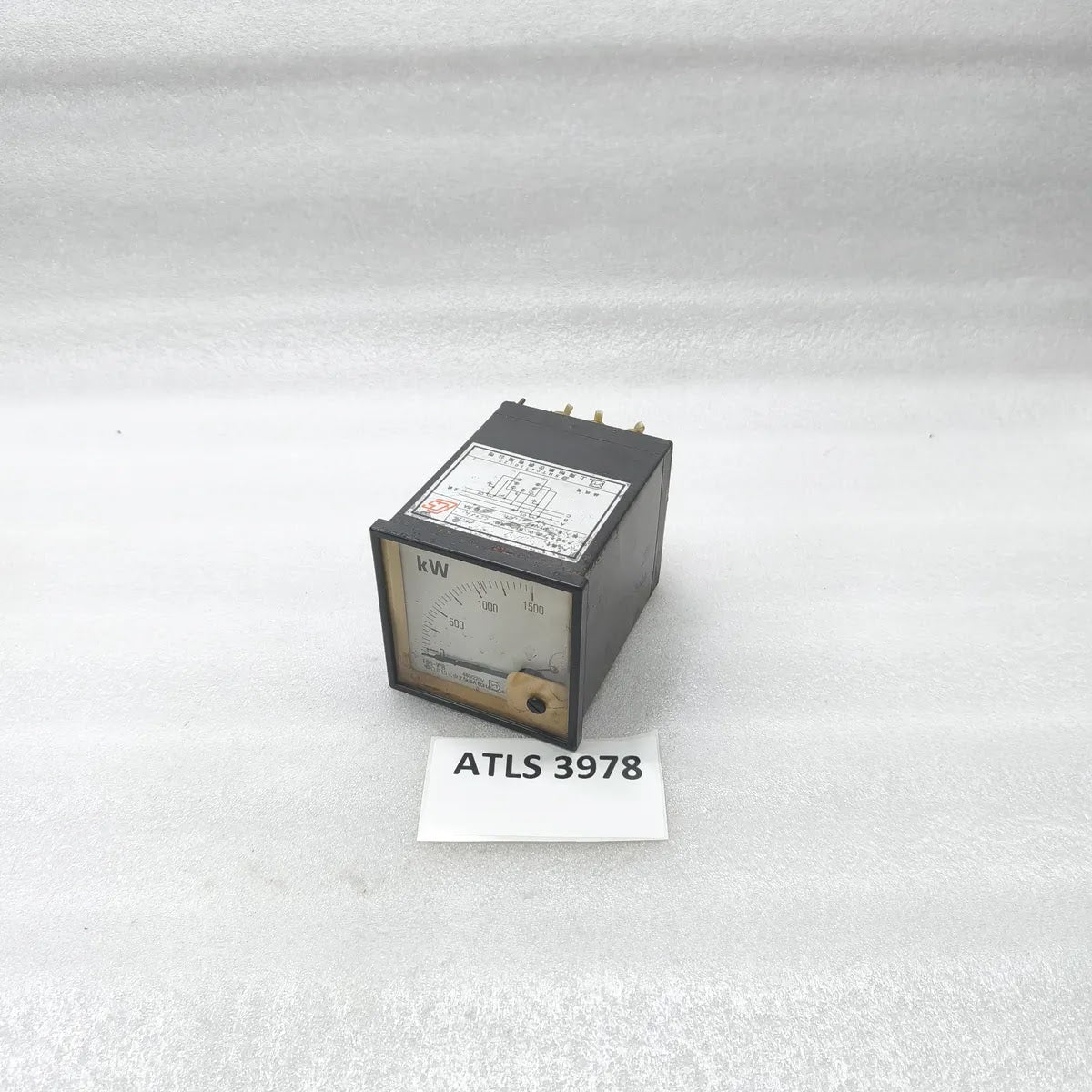

| REF | ATLS3978 |
