SHANGHAI YITAI F96-ACB Analog Panel Ammeter 1.5kA/5A 60Hz
$79.99
Skip to product information
SHANGHAI YITAI F96-ACB Analog Panel Ammeter 1.5kA/5A 60Hz
$79.99
SHANGHAI YITAI F96-ACB Analog Panel Ammeter 1.5kA/5A 60Hz
Specifications
| Brand | Shanghai Yitai Instrument Co., Ltd. (YT) |
| Model | F96-ACB |
| Type | Analog panel ammeter, AC, current transformer operated |
| Series | F96 |
| Measuring System | Moving iron, AC |
| Measuring Range | 0 - 1.5 kA |
| Scale Unit | kA |
| Current Transformer Ratio | 1.5k/5A (1500/5 A) |
| Input Current | 5 A from external CT secondary |
| Frequency | 60 Hz |
| Accuracy Class | 1.5 |
| Insulation Test Voltage | 2 kV |
| Operating Position | Vertical |
| Scale Angle | 90 degrees |
| Dimensions | 96 x 96 x 130 mm |
| Weight | 0.5 kg |

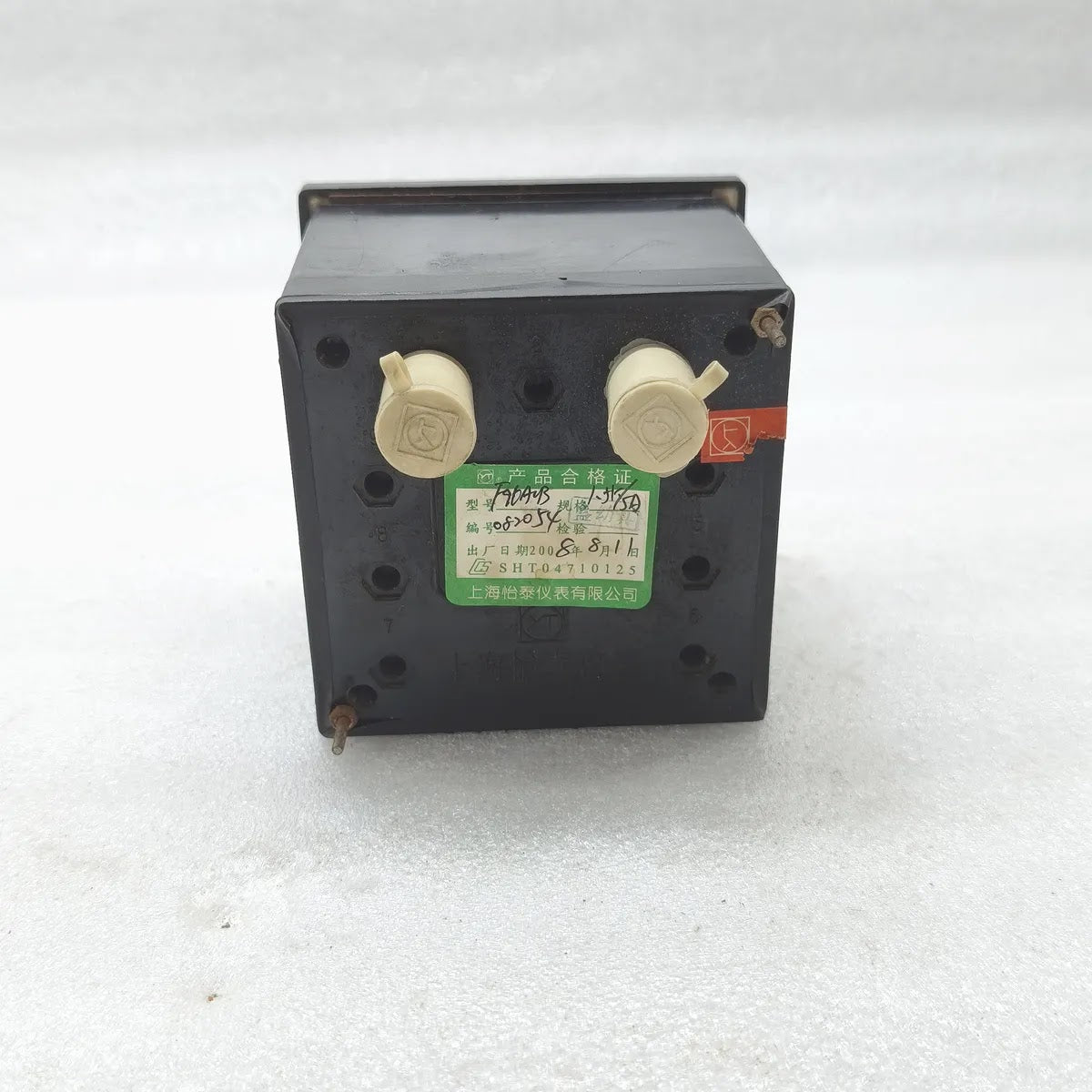

| Approvals | CE, CCS (F96-ACB series); CCS certificate reference on unit label |
| Application | AC current measurement in marine switchboards and ship electrical networks |
| Country Of Origin | China |
| Condition | PRE-OWNED / SECOND HAND |

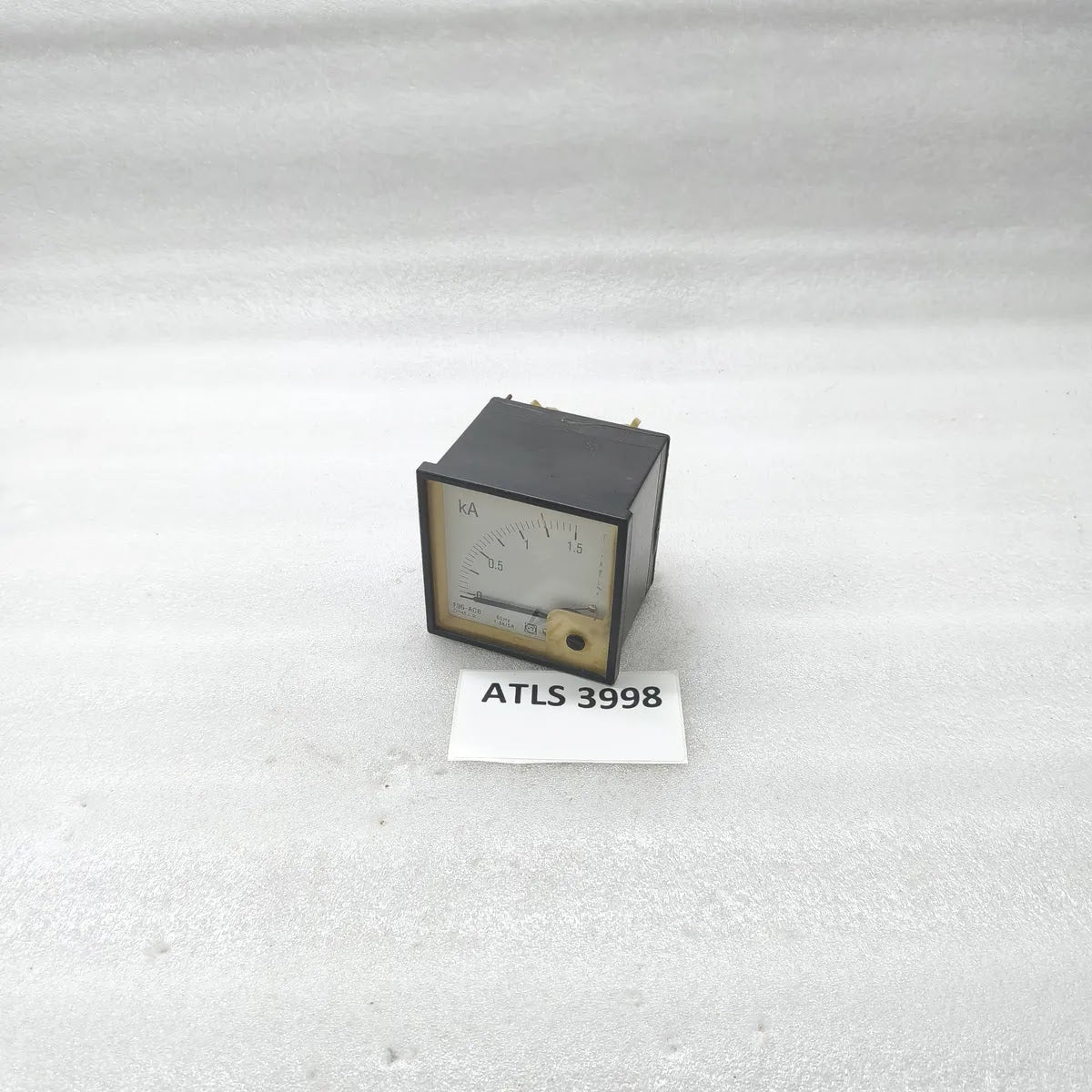

| REF | ATLS3998 |
