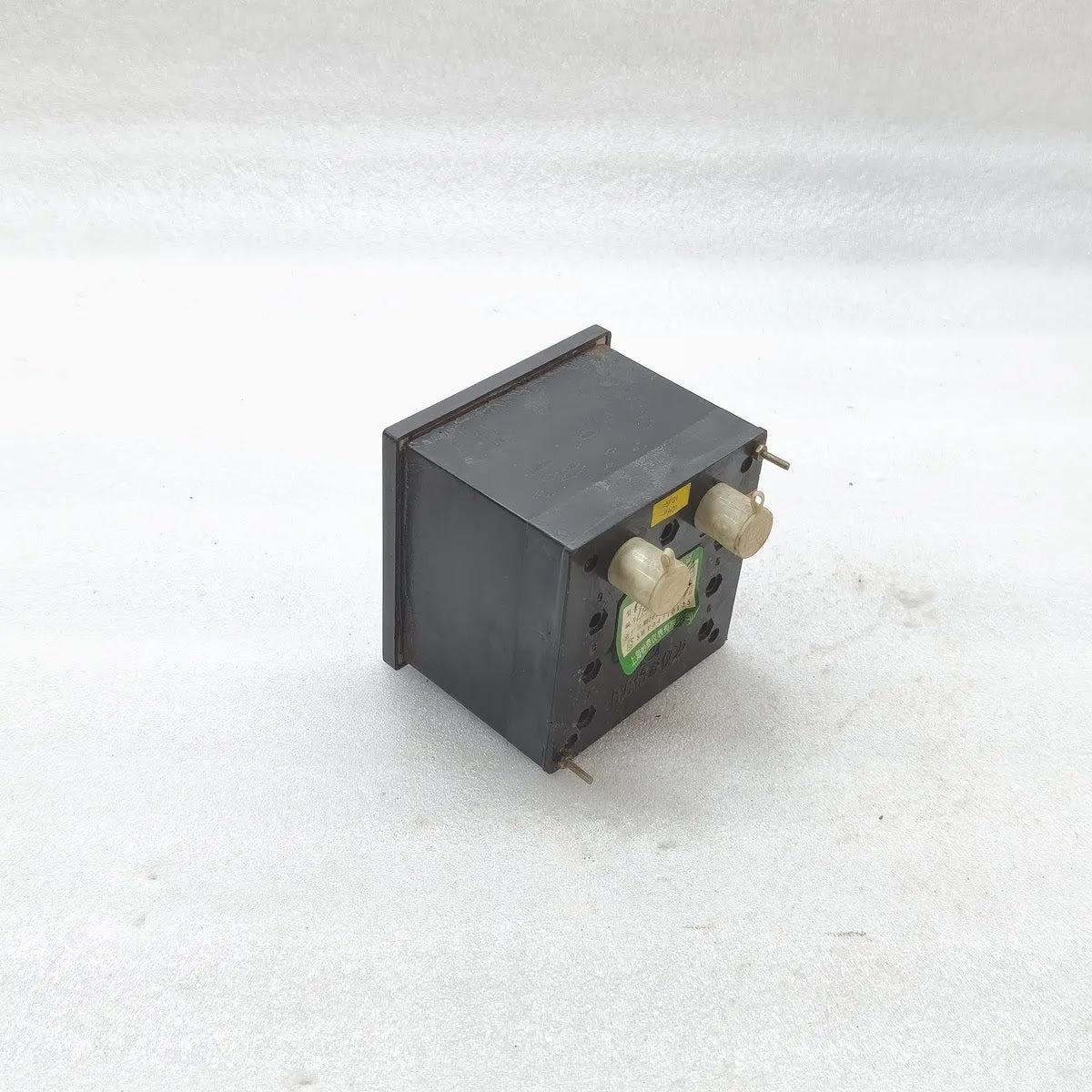

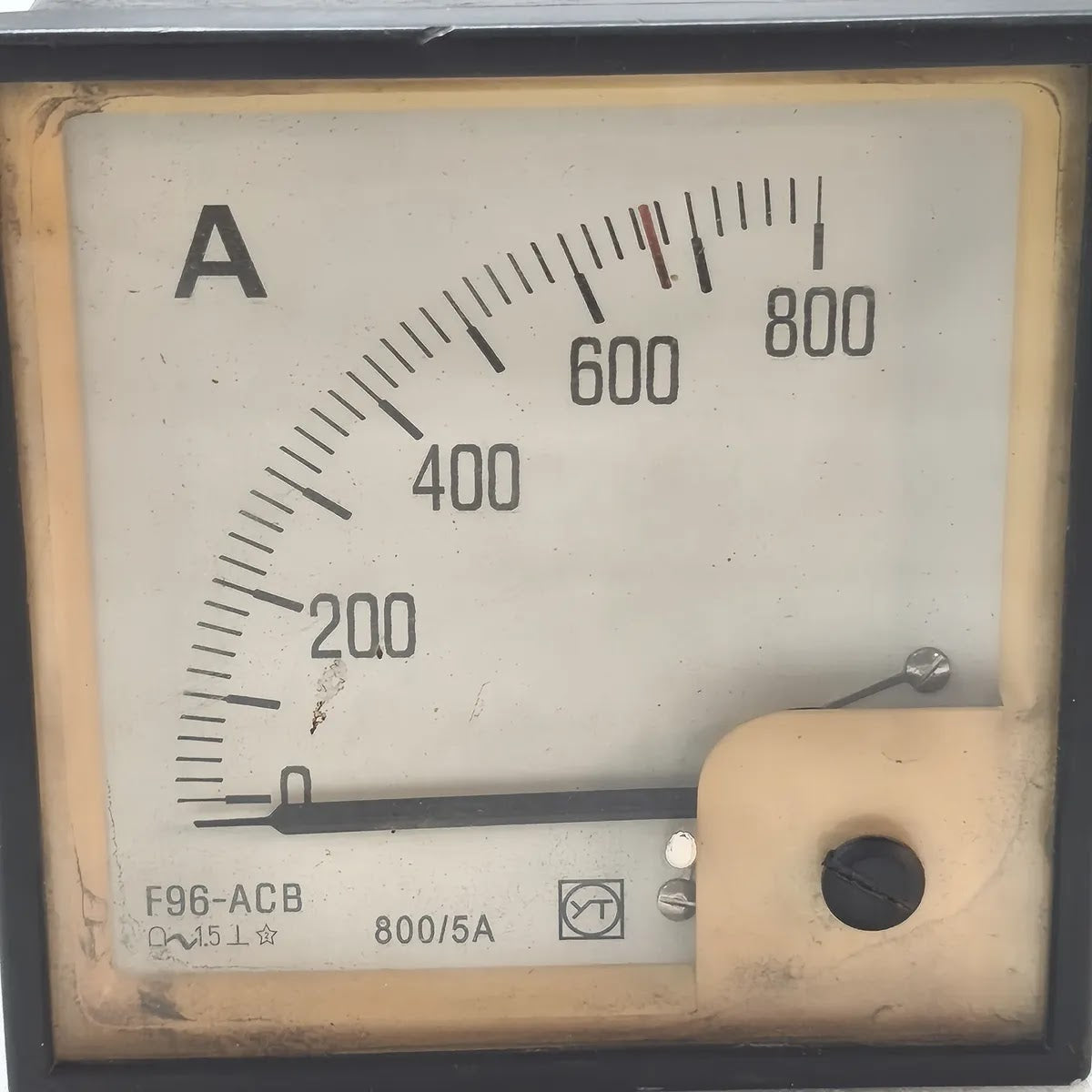

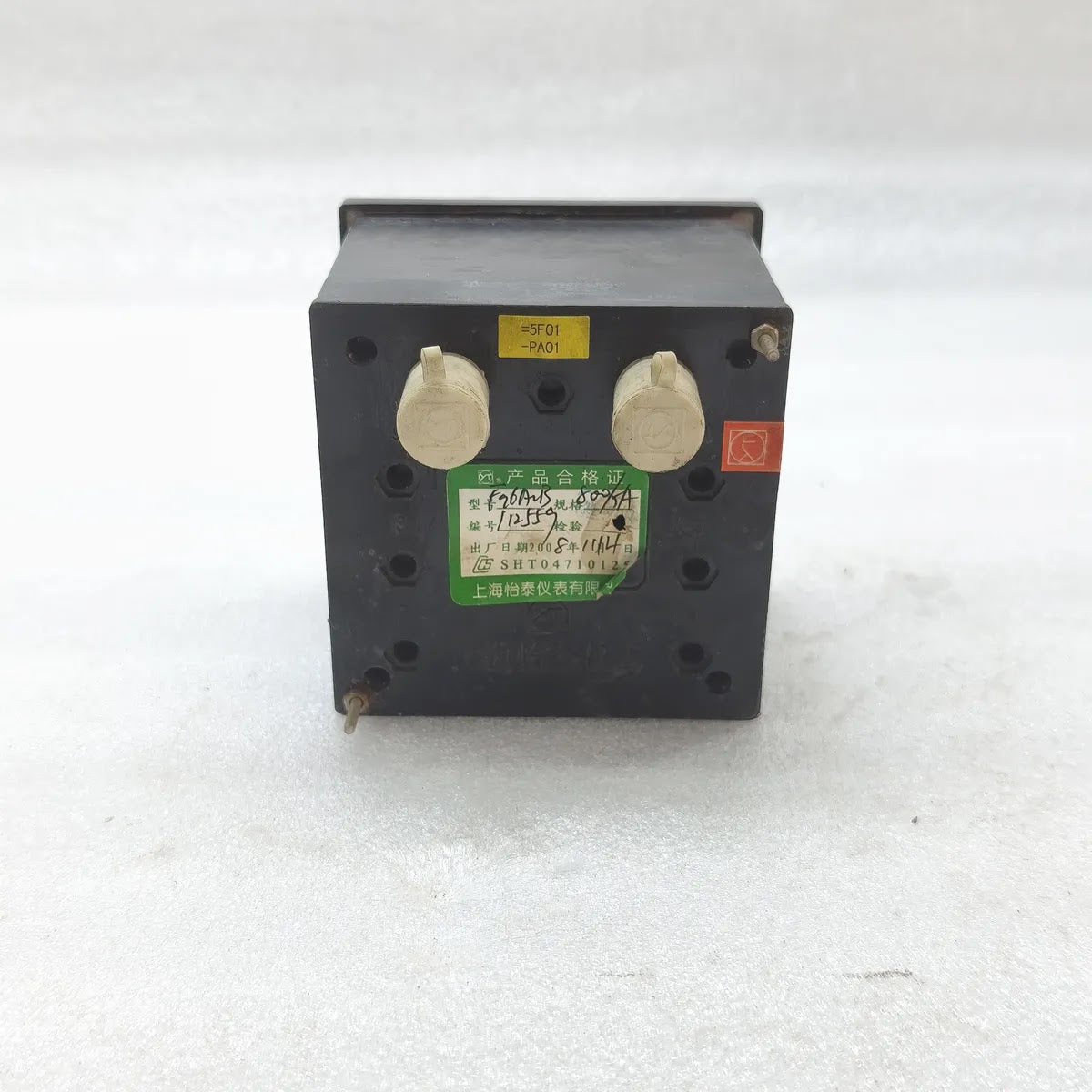

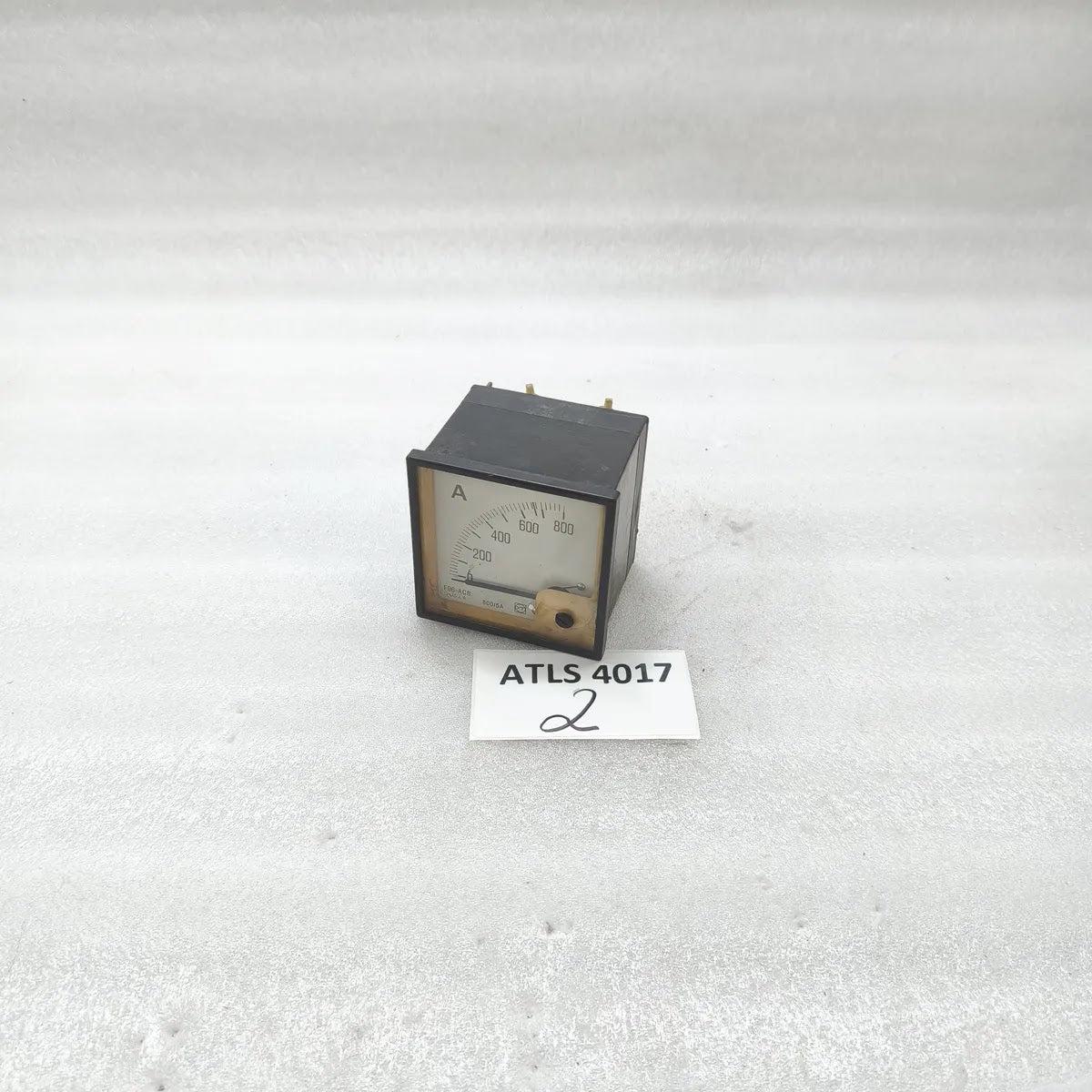

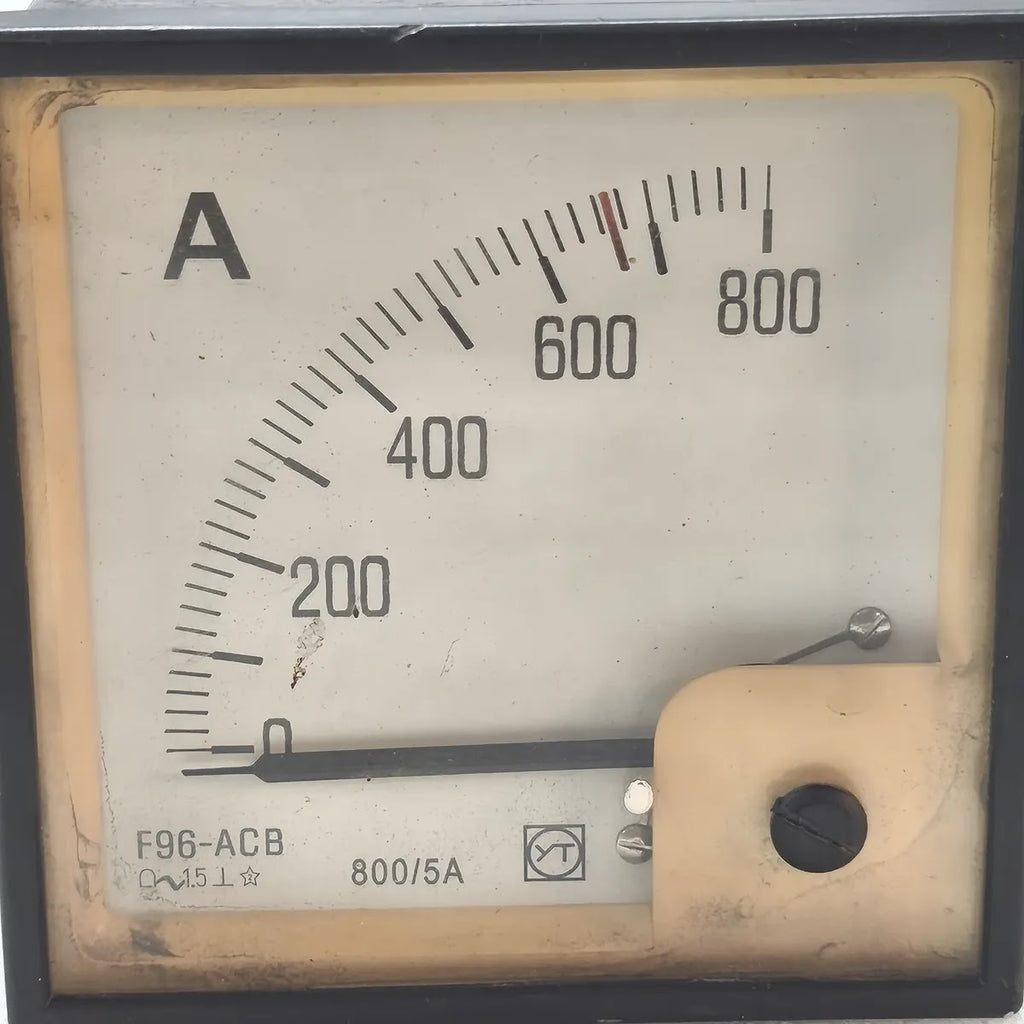

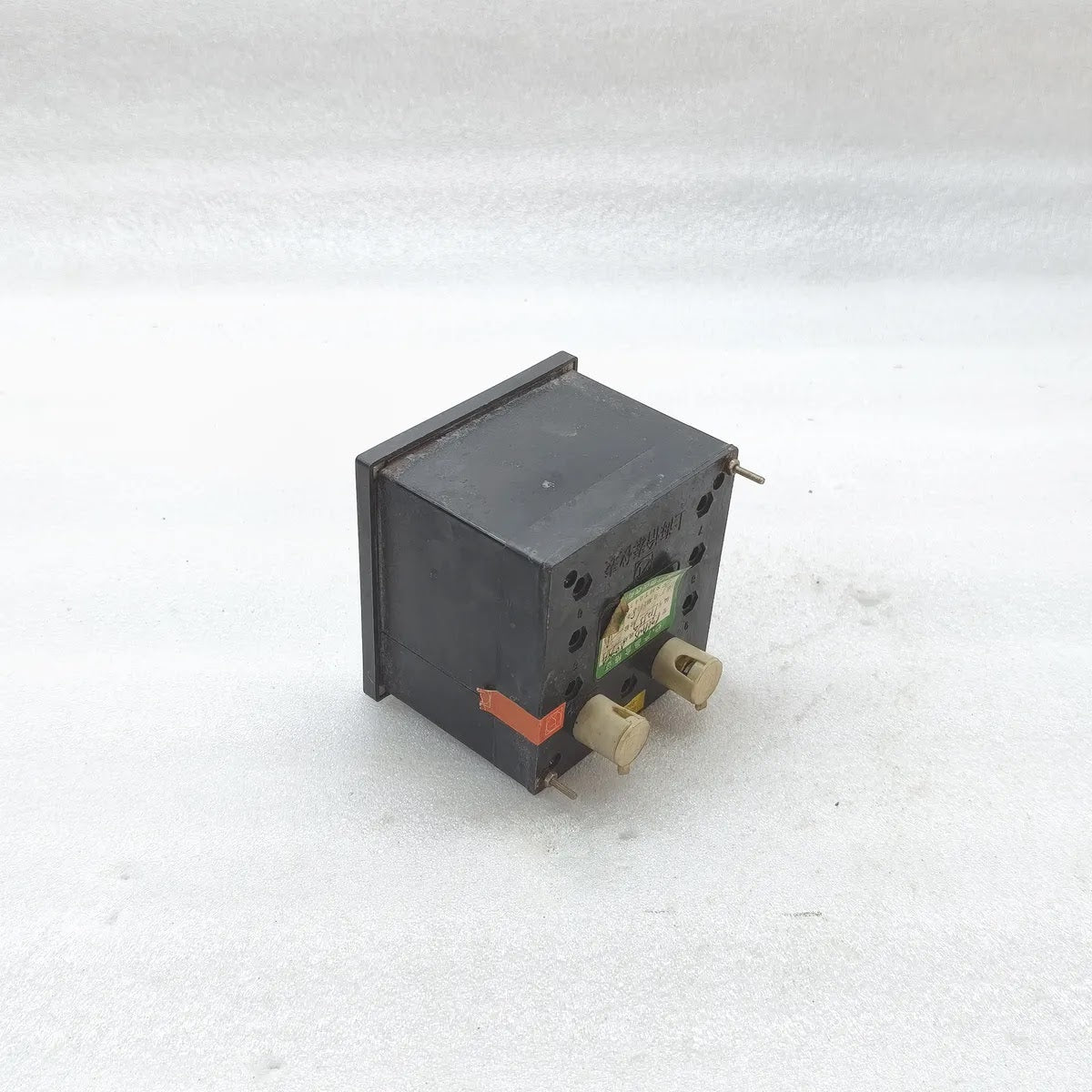

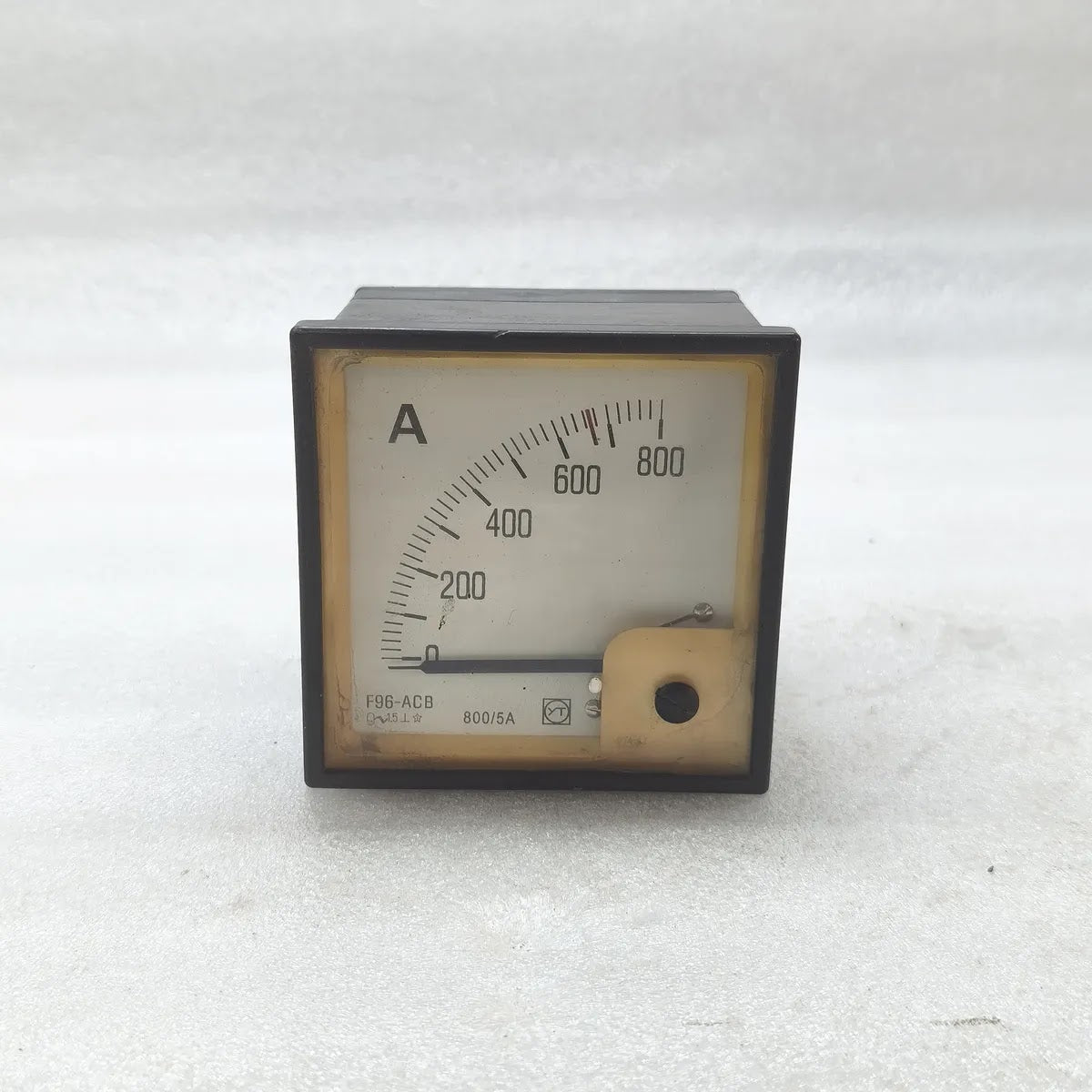

SHANGHAI YITAI F96-ACB Analog AC Ammeter 800/5A
$79.99
Skip to product information
SHANGHAI YITAI F96-ACB Analog AC Ammeter 800/5A
$79.99
SHANGHAI YITAI F96-ACB Analog AC Ammeter 800/5A
Specifications
| Brand | Shanghai Yi Tai Instruments Co., Ltd. |
| Model | F96-ACB |
| Type | Analog AC Ammeter, panel mounting instrument |
| Series | F96 |
| Measuring System | Moving iron, AC (symbol on dial) |
| Current Range | 0-800 A |
| Current Transformer Ratio | 800/5A |
| Input Current | 5 A via external current transformer |
| Accuracy Class | 1.5 |
| Indicating Angle | 90 degrees pointer deflection |
| Operating Temperature | 45 C to +65 C |
| Insulation Test | Circuit to shell AC 2600 V for 1 minute |
| Application | Marine and industrial switchboard current indication |
| Standard | IEC 60092-50 |
| Approvals | CCS / CE / ISO 9001 |
| Country Of Origin | China |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4017 |
