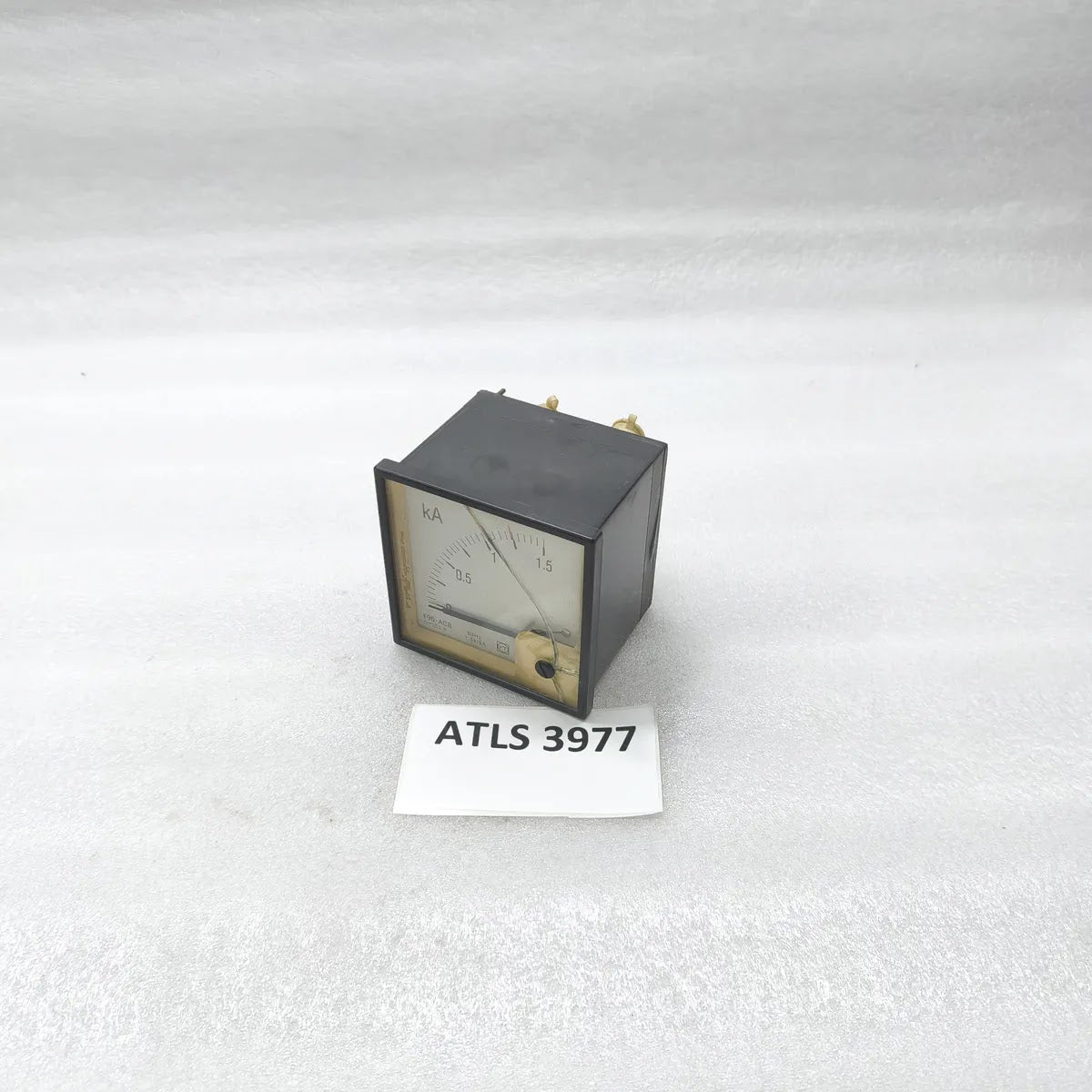

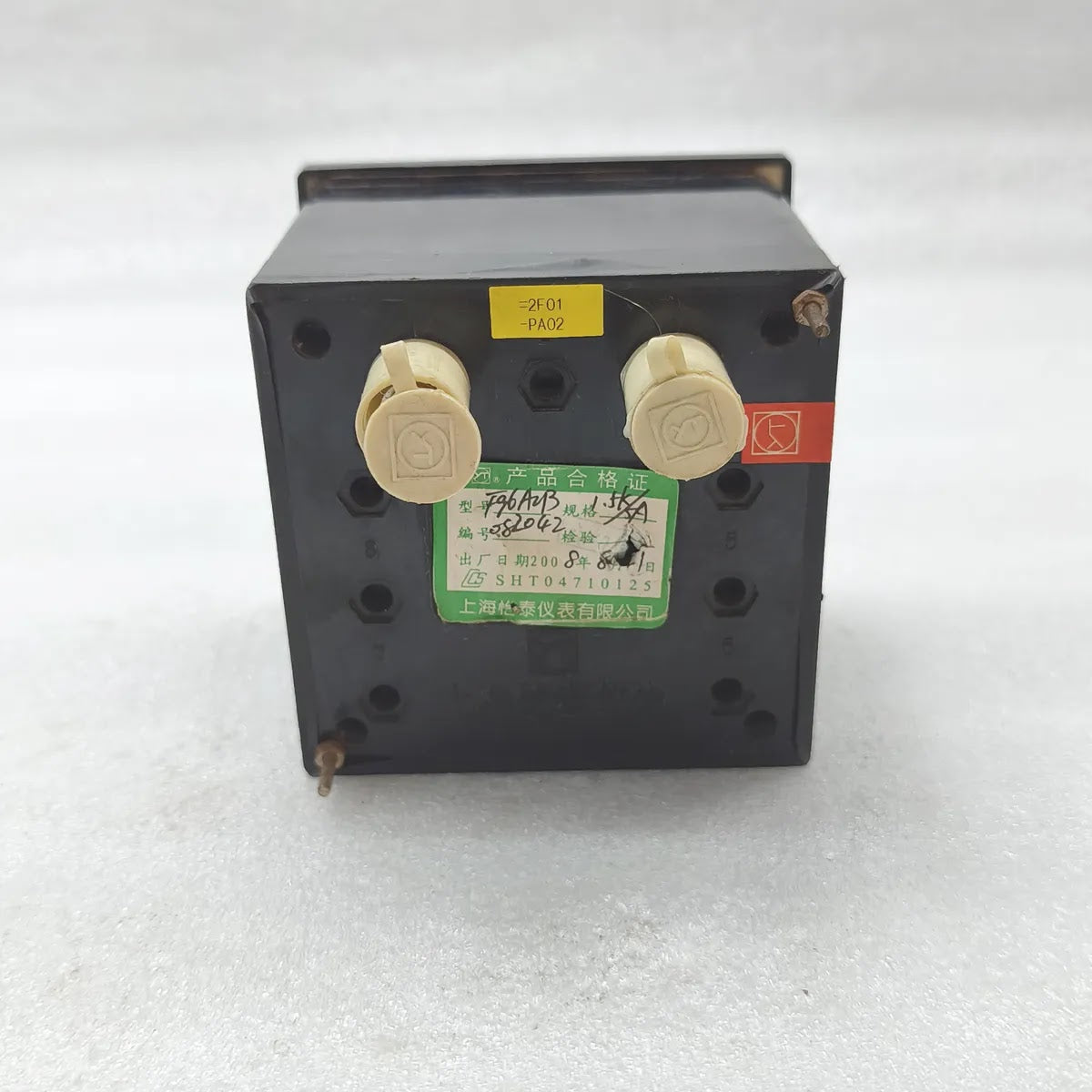

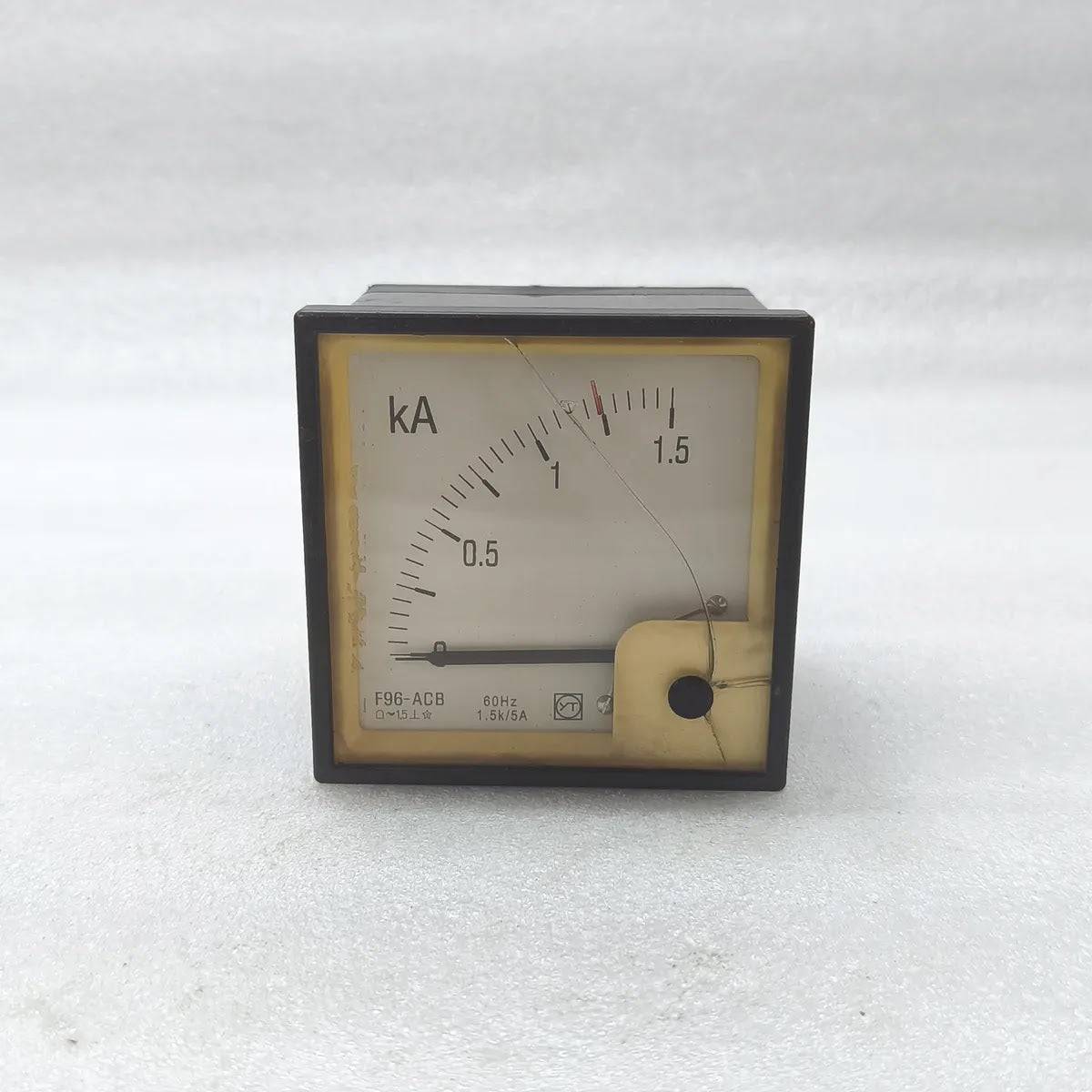

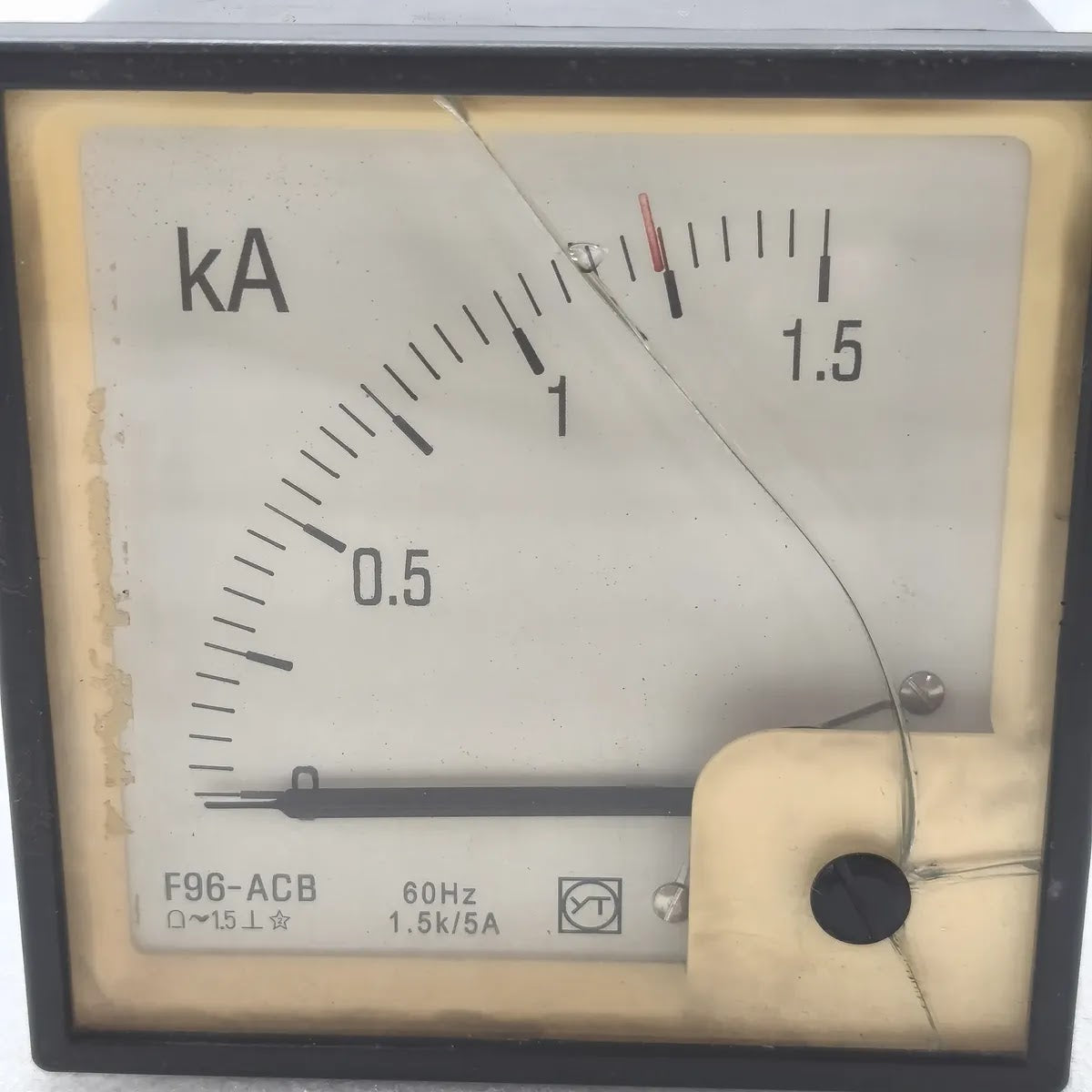

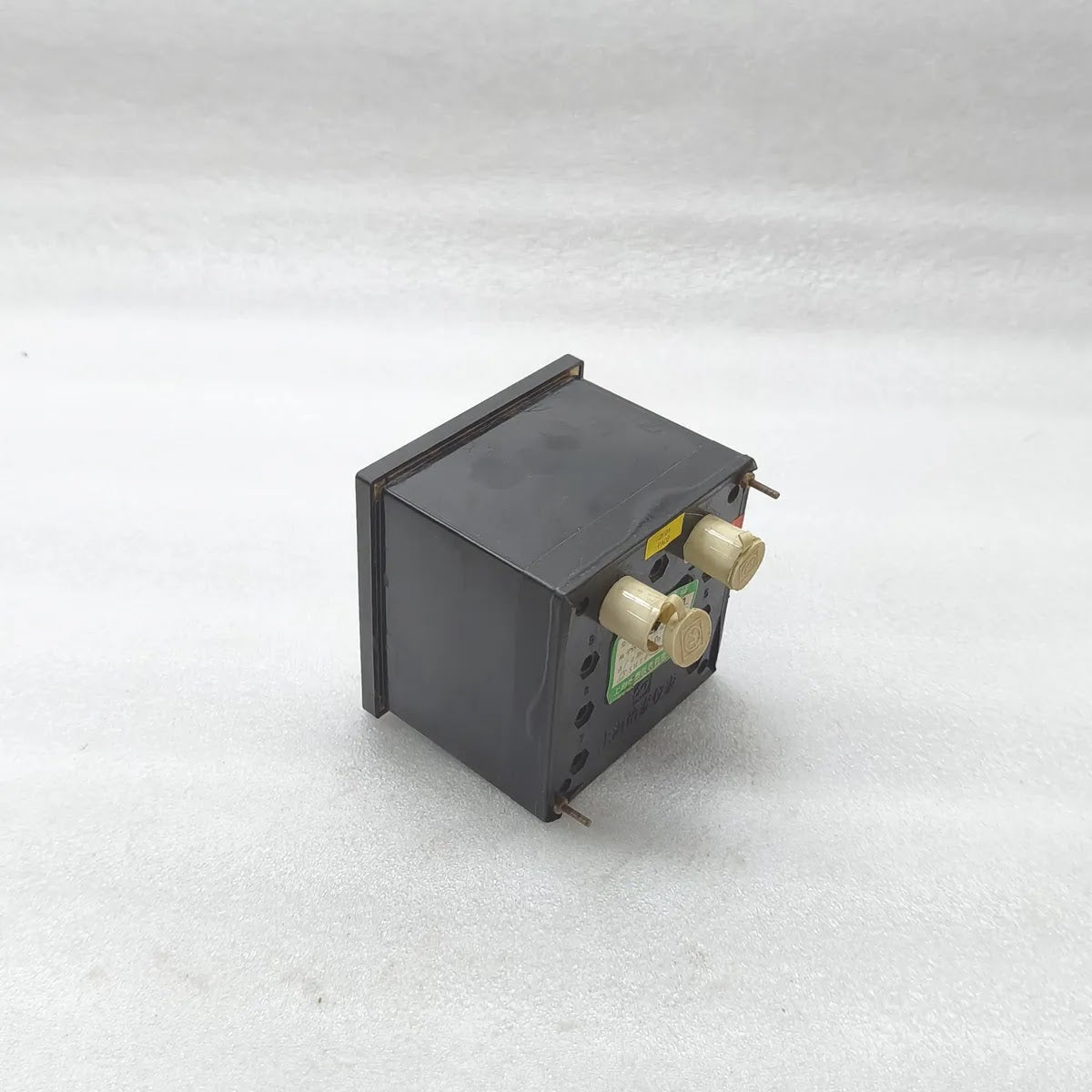

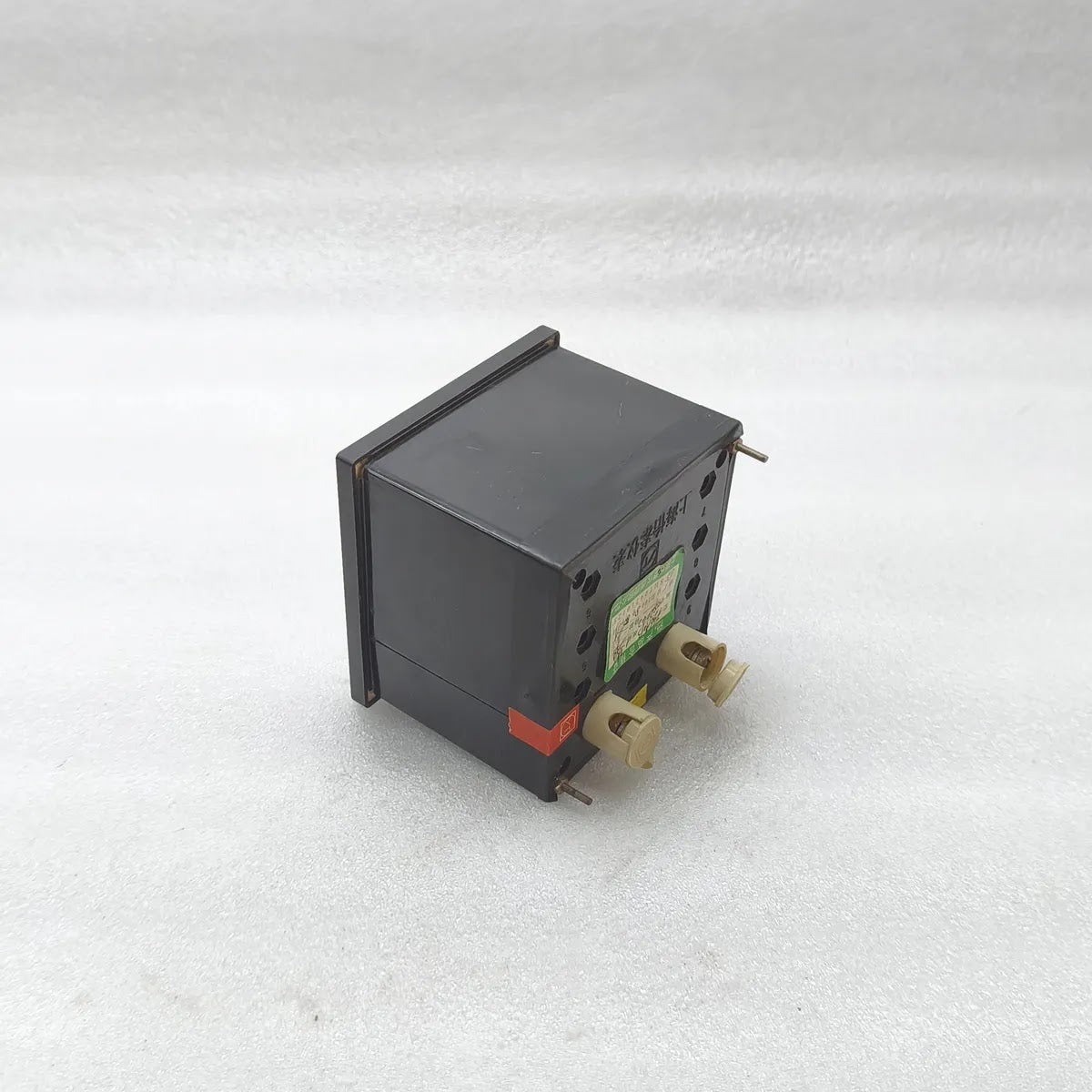

SHANGHAI YITAI F96-ACB Analog AC Ammeter 1.5kA/5A 60Hz
$79.99
Skip to product information
SHANGHAI YITAI F96-ACB Analog AC Ammeter 1.5kA/5A 60Hz
$79.99
SHANGHAI YITAI F96-ACB Analog AC Ammeter 1.5kA/5A 60Hz
Specifications
| Brand | Shanghai Yi Tai Instruments (Shanghai Yitai Instrument Co., Ltd.) |
| Model | F96-ACB |
| Type | Analogue moving-iron AC panel ammeter |
| Series | F96 (96 x 96 mm marine panel instrument series) |
| Measuring Range | 0 - 1.5 kA |
| Current Transformer Ratio | 1.5k/5A |
| Input Current | 5 A (CT secondary) |
| Frequency | 60Hz |
| Accuracy Class | 1.5 |
| Scale Angle | 90 degrees |
| Dimensions | 96 x 96 x 130 mm |
| Weight | 0.5 kg |
| Approvals | CCS (China Classification Society) certificate mark; CE |
| Application | Measurement of AC current on ship and marine switchboard networks |
| Country Of Origin | China |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3977 |
