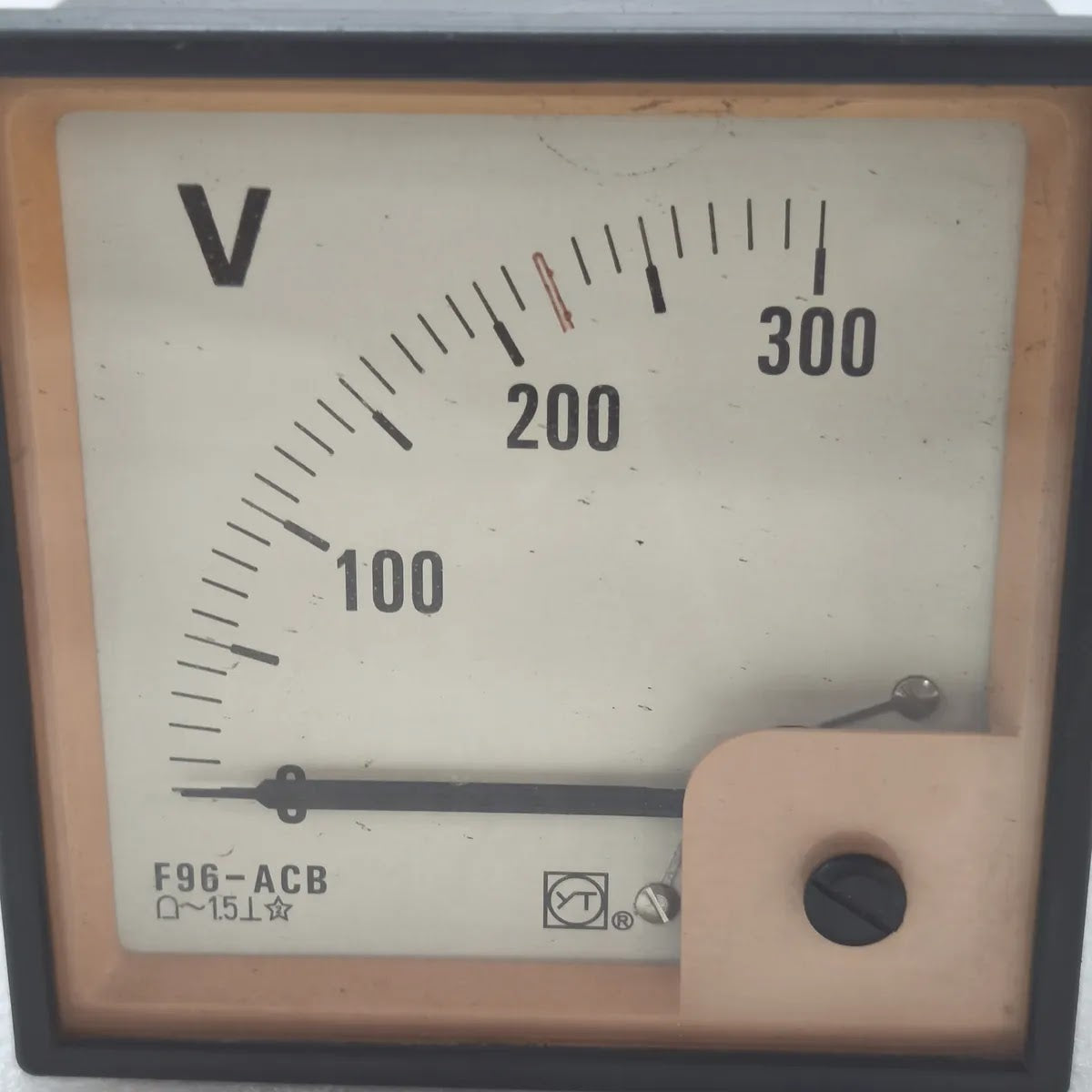

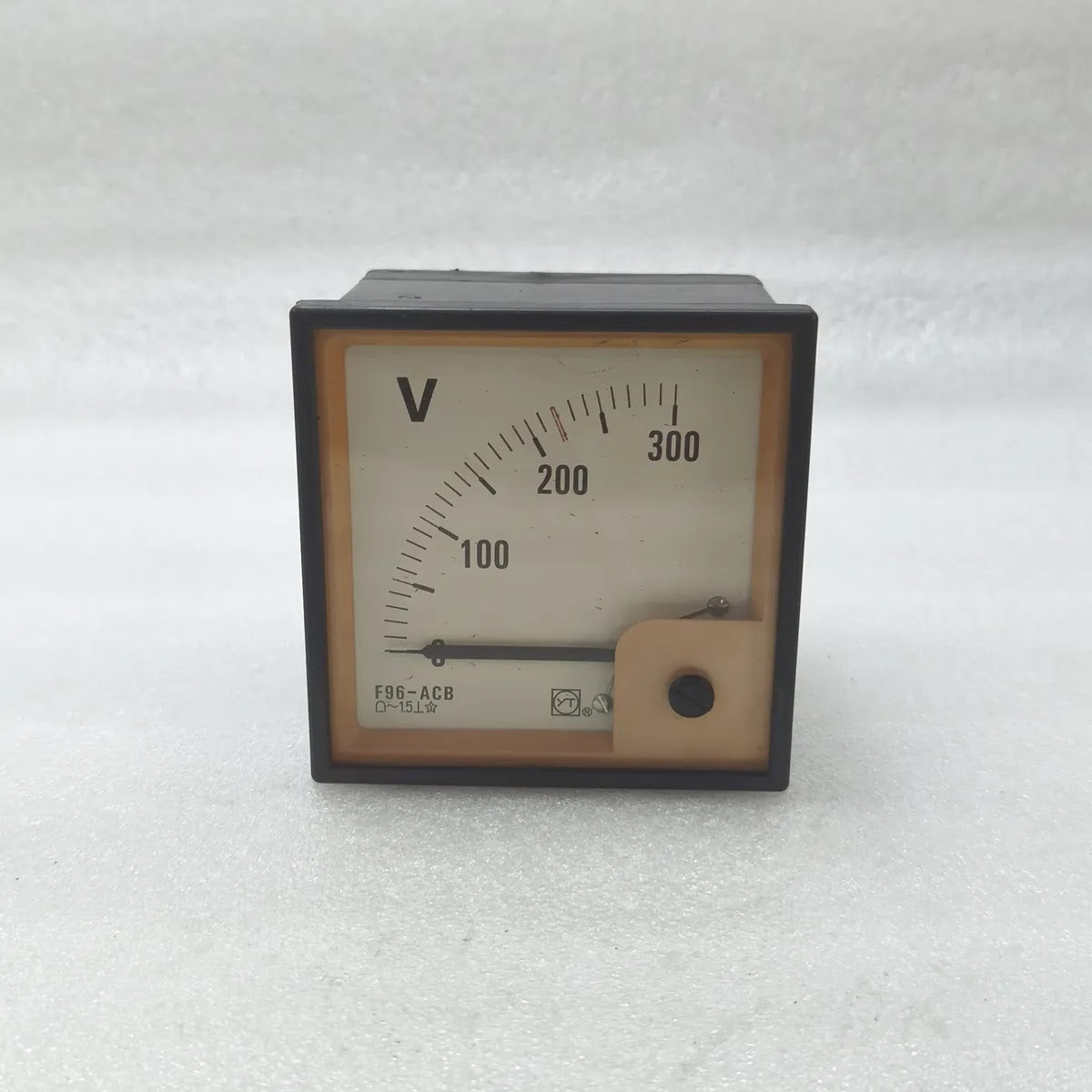

SHANGHAI YITAI F96-ACB AC Panel Voltmeter 0-300V
$79.99
Skip to product information
SHANGHAI YITAI F96-ACB AC Panel Voltmeter 0-300V
$79.99
SHANGHAI YITAI F96-ACB AC Panel Voltmeter 0-300V
Specifications
| Brand | Shanghai Yitai Instrument Co., Ltd. (YT) |
| Model | F96-ACB |
| Part Number | F96-ACB |
| Type | Analogue AC panel voltmeter, pointer type |
| Series | F96 wide-angle marine panel instrument series |
| Measuring Range | 0-300 V AC |

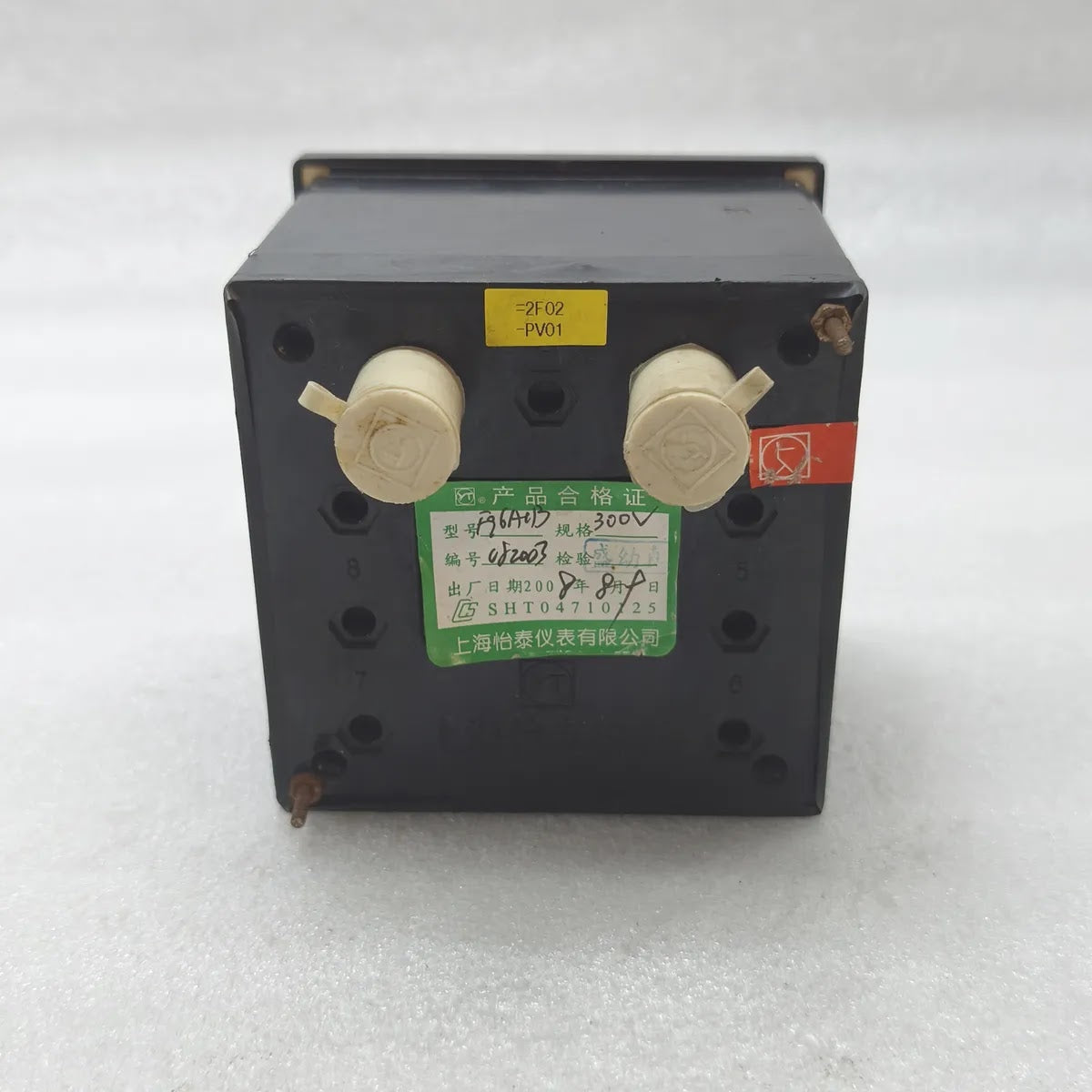

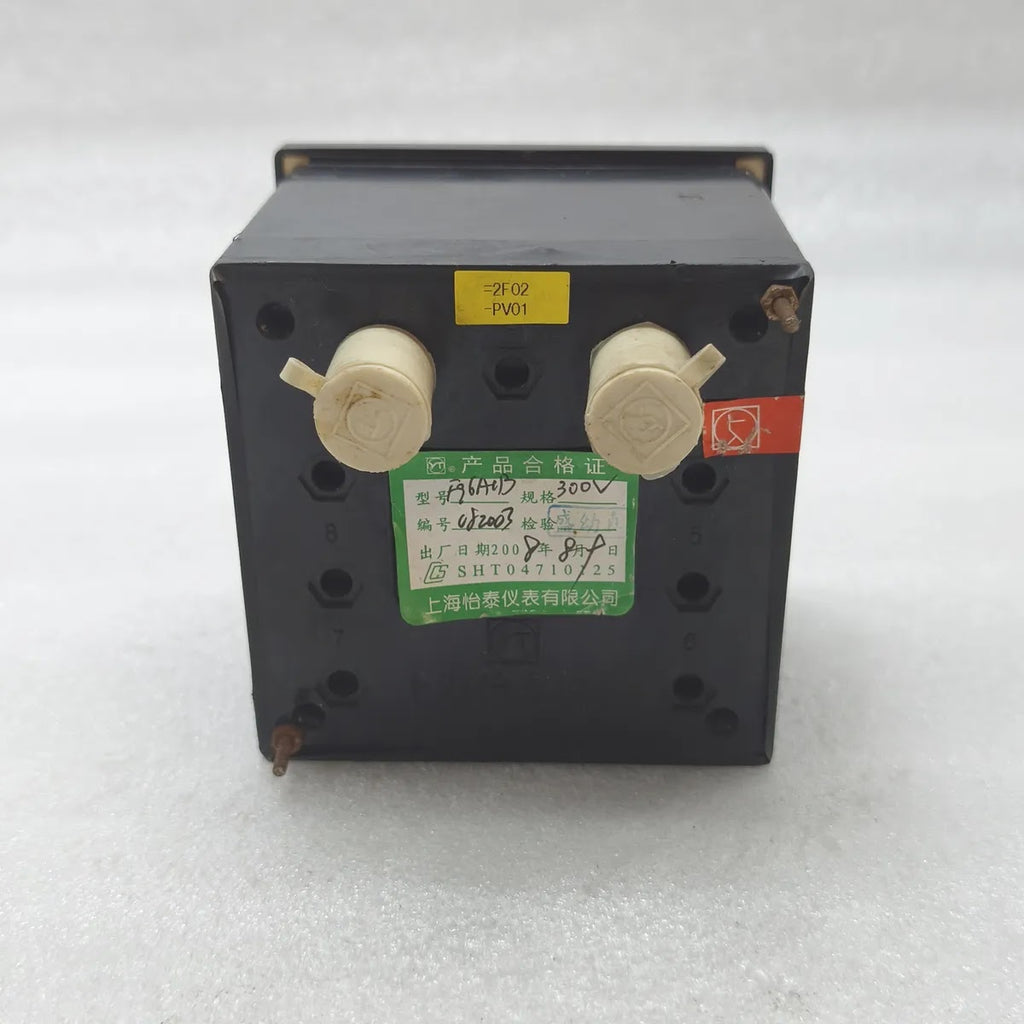

| Rated Voltage | 300V (certificate label) |
| Current Type | AC (alternating current symbol on dial) |
| Accuracy Class | 1.5 |
| Scale | 90 degree arc, graduated 100 / 200 / 300 with red set-point index |
| Operating Position | Vertical |
| Dimensions | 96 x 96 mm front, 108 mm depth |
| Panel Cutout | 92 x 92 mm |
| Operating Temperature | 45 C to +65 C |
| Insulation Test | AC 2600 V for 1 minute |
| Standard | GB/T 7676-1998, IEC 60092-504 |
| Approvals | CCS / CE / ISO 9001 |
| Application | Marine and industrial switchboard AC voltage indication |
| Country Of Origin | China |
| Condition | PRE-OWNED / SECOND HAND |

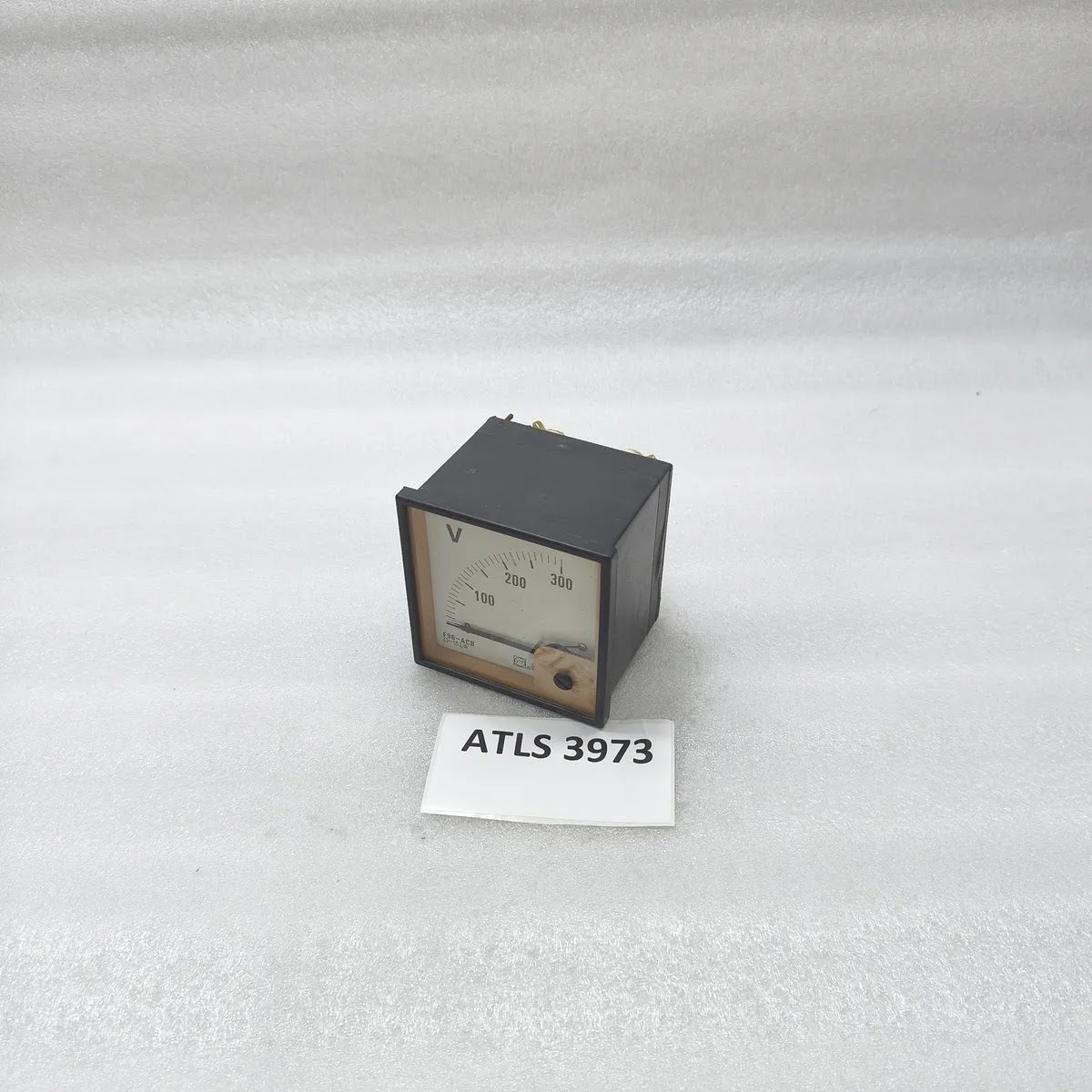

| REF | ATLS3973 |
