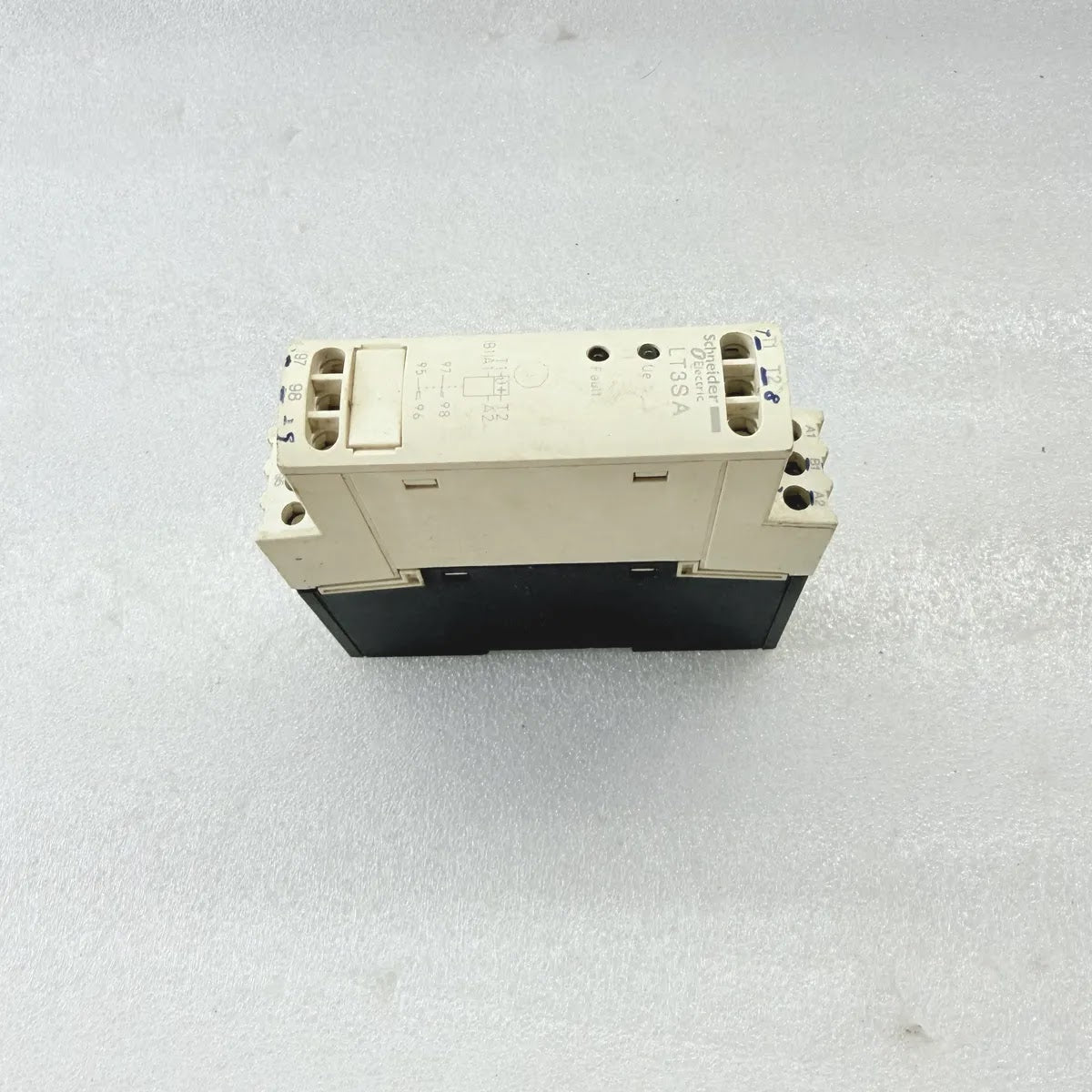

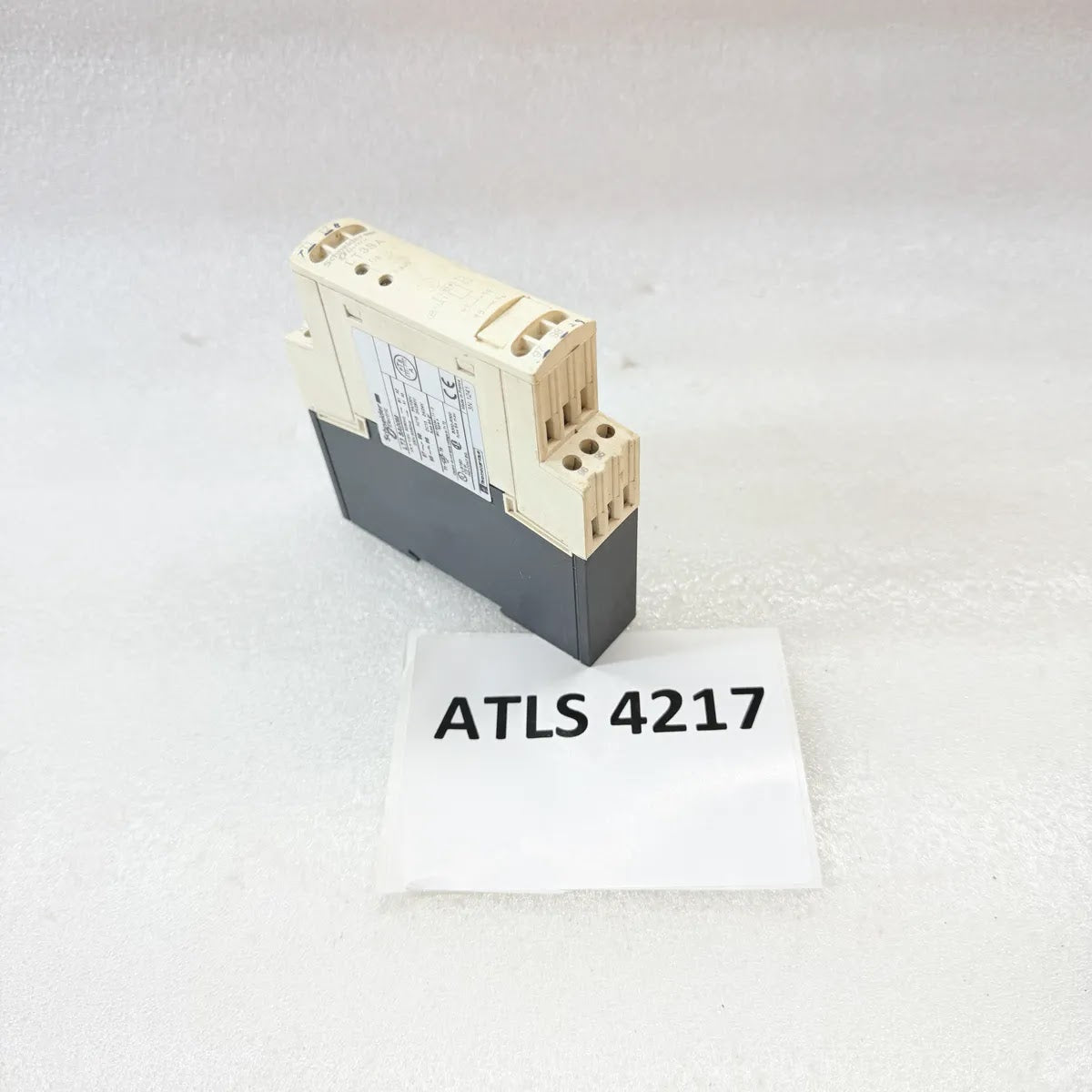

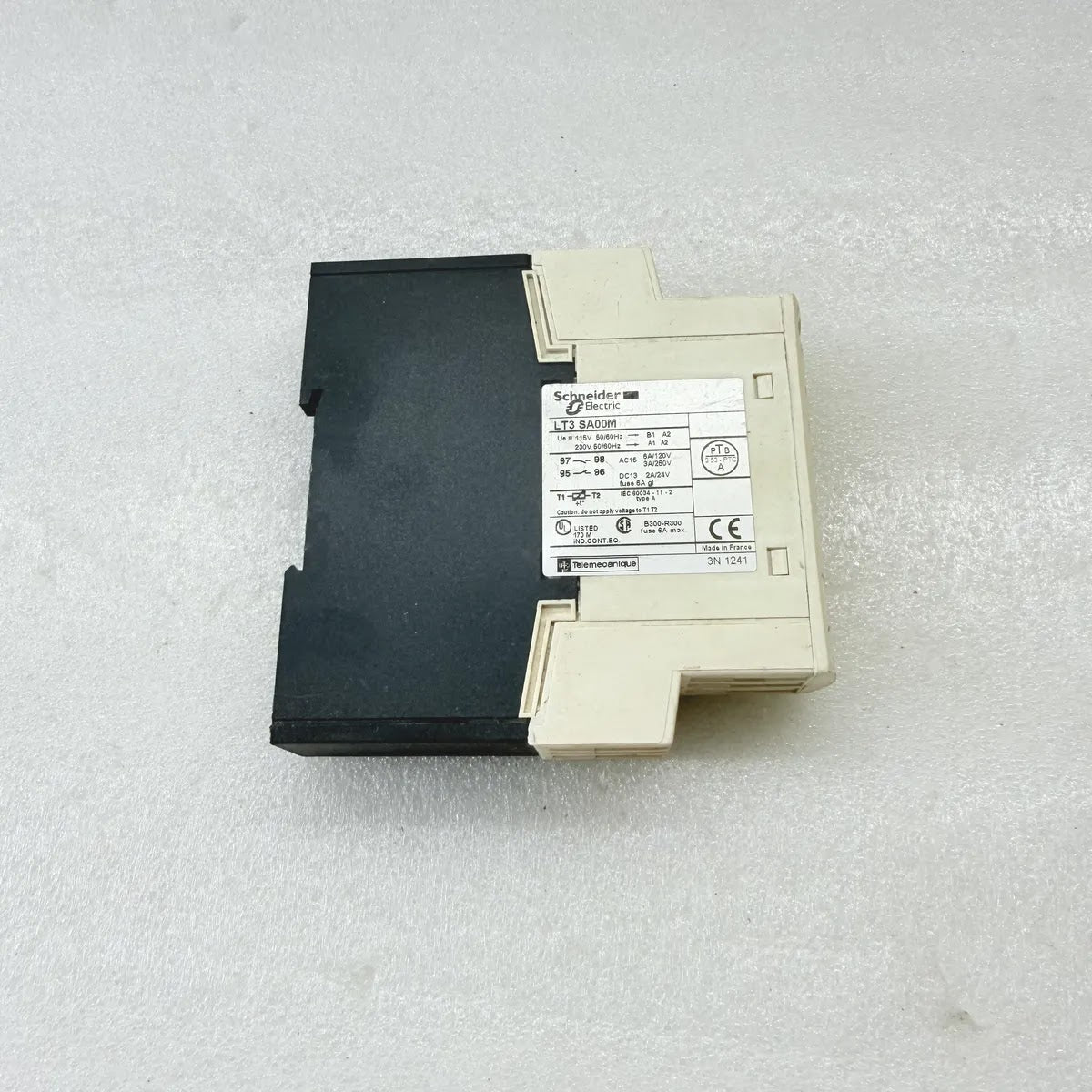

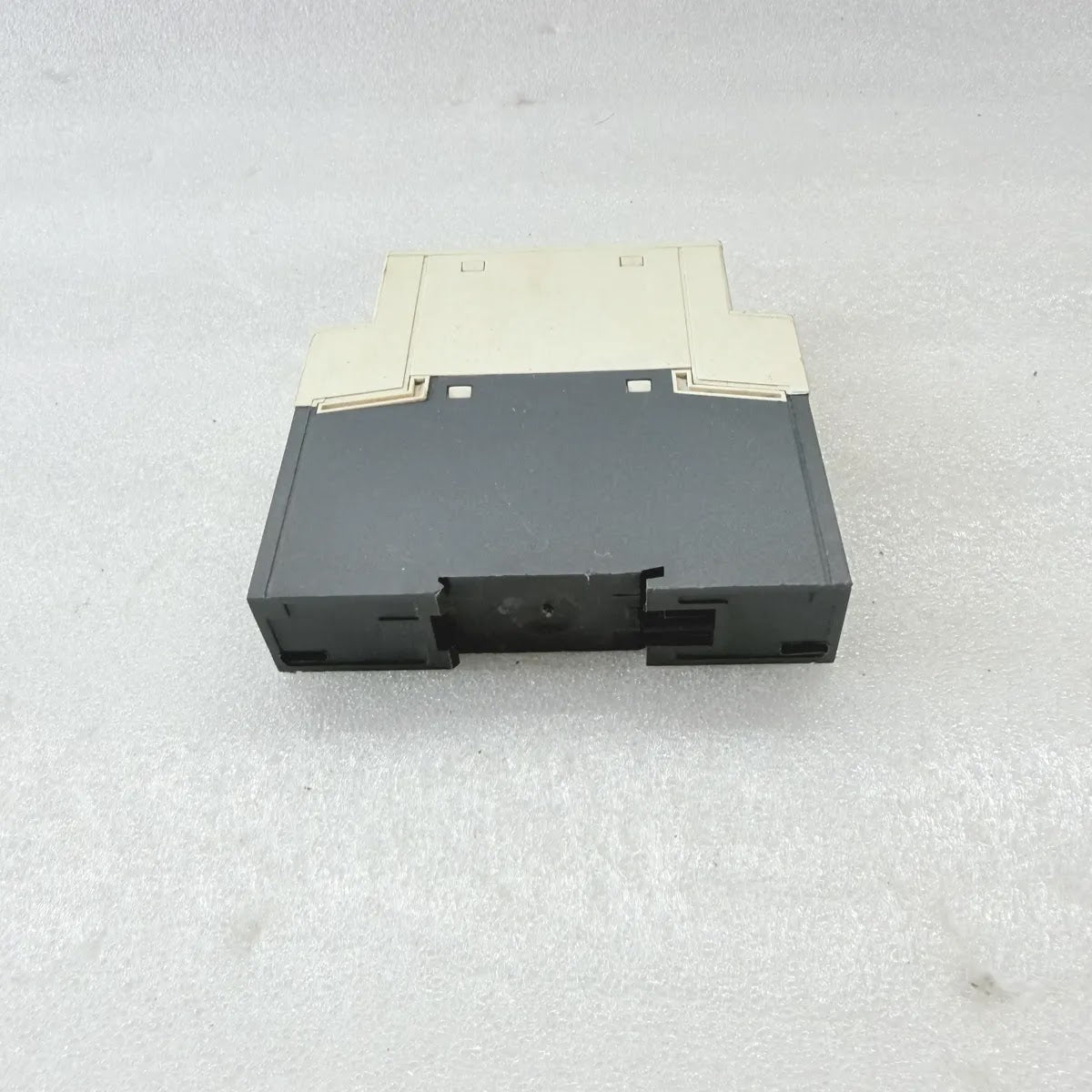

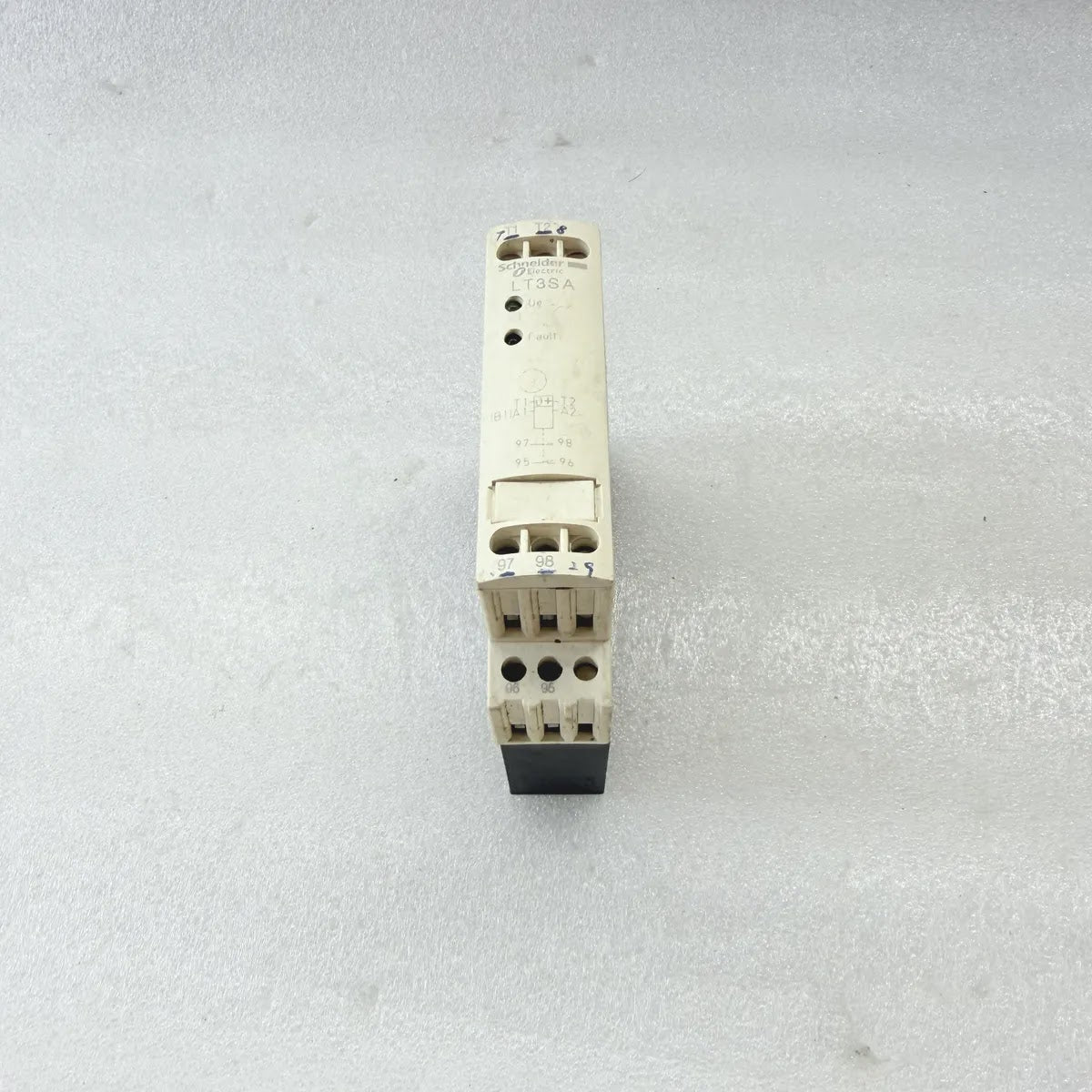

S Electric LT3SA00M PTC Thermistor Protection Relay 115-230V
$91.10
Skip to product information
S Electric LT3SA00M PTC Thermistor Protection Relay 115-230V
$91.10
S Electric LT3SA00M PTC Thermistor Protection Relay 115-230V
Specifications
| Brand | Schneider Electric / Telemecanique |
| Model | LT3SA |
| Part Number | LT3 SA00M |
| Type | PTC thermistor motor protection relay with automatic reset and fault indicator |
| Series | TeSys LT3 |
| Supply Voltage | Ue = 115V 50/60Hz (B1-A2) or 230V 50/60Hz (A1-A2) |
| Frequency | 50/60 Hz |
| Output Contacts | 1 NO (97-98) + 1 NC (95-96) |
| Thermal Current | 5 A conventional free air thermal current |
| Short-Circuit Protection | fuse 6A gl; B300-R300 fuse 6A max |
| Probe Input | PTC thermistor probe, positive temperature coefficient, to IEC 60034-11-2 type A; no voltage to be applied to T1 T2 |
| Application | Thermal protection of motor windings by PTC probes |
| Standard | IEC 60034-11-2 type A |
| Approvals | UL Listed 170 M Ind.Cont.Eq., CSA, CE, PTB 3.53-PTC A |
| Country Of Origin | Made in France |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4217 |
