S Electric A9M17071 iME4zr Energy Meter 63A 400V
$99.99
Skip to product information
S Electric A9M17071 iME4zr Energy Meter 63A 400V
$99.99
S Electric A9M17071 iME4zr Energy Meter 63A 400V
Specifications
| Brand | Schneider Electric (rear label also marked Merlin Gerin) |
| Model | iME4zr |
| Part Number | A9M17071 |
| Type | Modular three-phase + neutral digital energy meter (kWh) |
| Series | Acti 9 |
| Measurement | Active energy, direct connected measurement |
| Supply Voltage | 3x230V/400V~ |
| Maximum Current | Imax: 63A |
| Base Current | Ib: 10A |
| Accuracy Class | Cl. 1 |
| Frequency | 50/60Hz |
| Power Consumption | 3VA |
| Meter Constant | 100 pulses/kWh (0.01 kWh per pulse) |
| Network | Three-phase star with neutral, 4-wire |
| Degree Of Protection | IP50 |

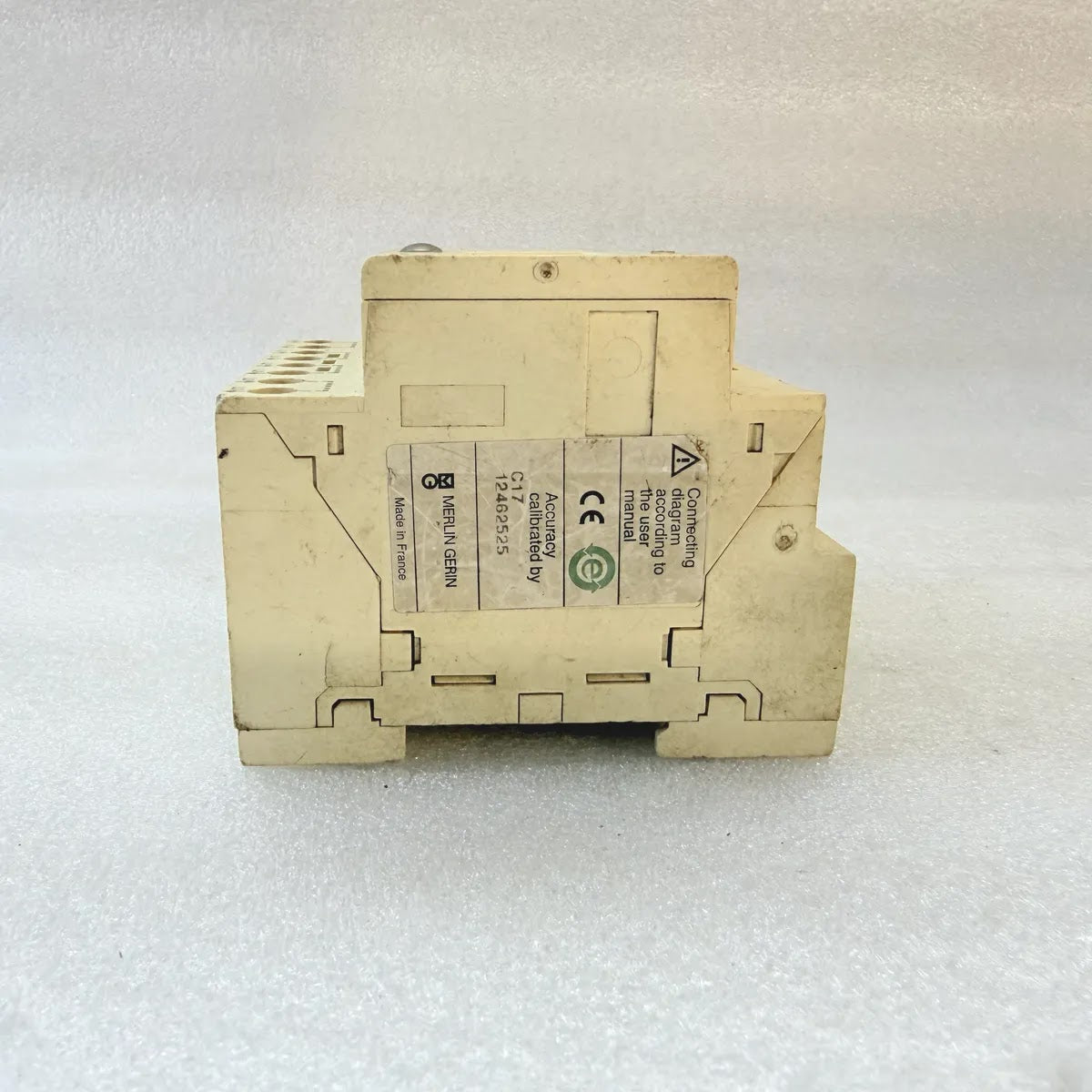

| Approvals | CE marked; accuracy calibrated by C17 12462525 |
| Country Of Origin | Made in France |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4296 |
