RISHABH PQ72 Moving Coil DC Ammeter 0-30A
$79.99
Skip to product information
RISHABH PQ72 Moving Coil DC Ammeter 0-30A
$79.99
RISHABH PQ72 Moving Coil DC Ammeter 0-30A
Specifications
| Brand | RISHABH |
| Model | PQ 72 |
| Order No | P1320690RIS |
| Type | Analogue moving coil DC panel ammeter |
| Series | PQ - moving coil meter, DC ammeters and voltmeters, 90 deg scale |
| Measuring Range | 0 - 30 A |
| Current Type | DC |
| Accuracy Class | 1.5 |
| Scale Angle | 90 degrees |
| Max Terminal Voltage To Ground | 850 V peak |
| Insulation Test Voltage | 3 kV |
| Operating Position | Vertical |
| Protection | IP-52 (IP-54 and IP-65 available as options on the series) |
| Approvals | cULus Recognized, File E236986 |

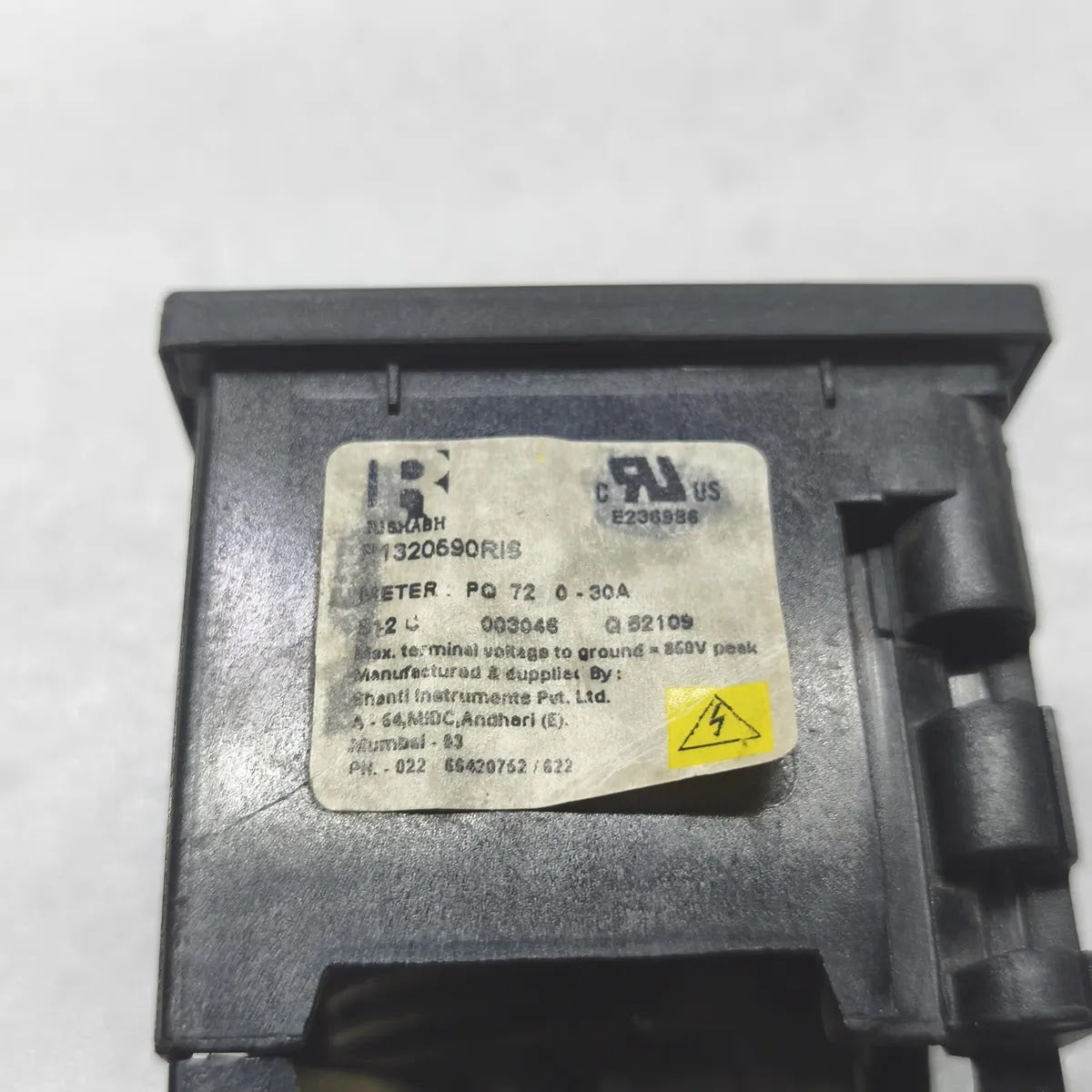

| Manufactured And Supplied By | Shanti Instruments Pvt. Ltd., A-64, MIDC, Andheri (E), Mumbai - 93, Ph. 022 66420762 / 622 |
| Country Of Origin | India |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3888 |
