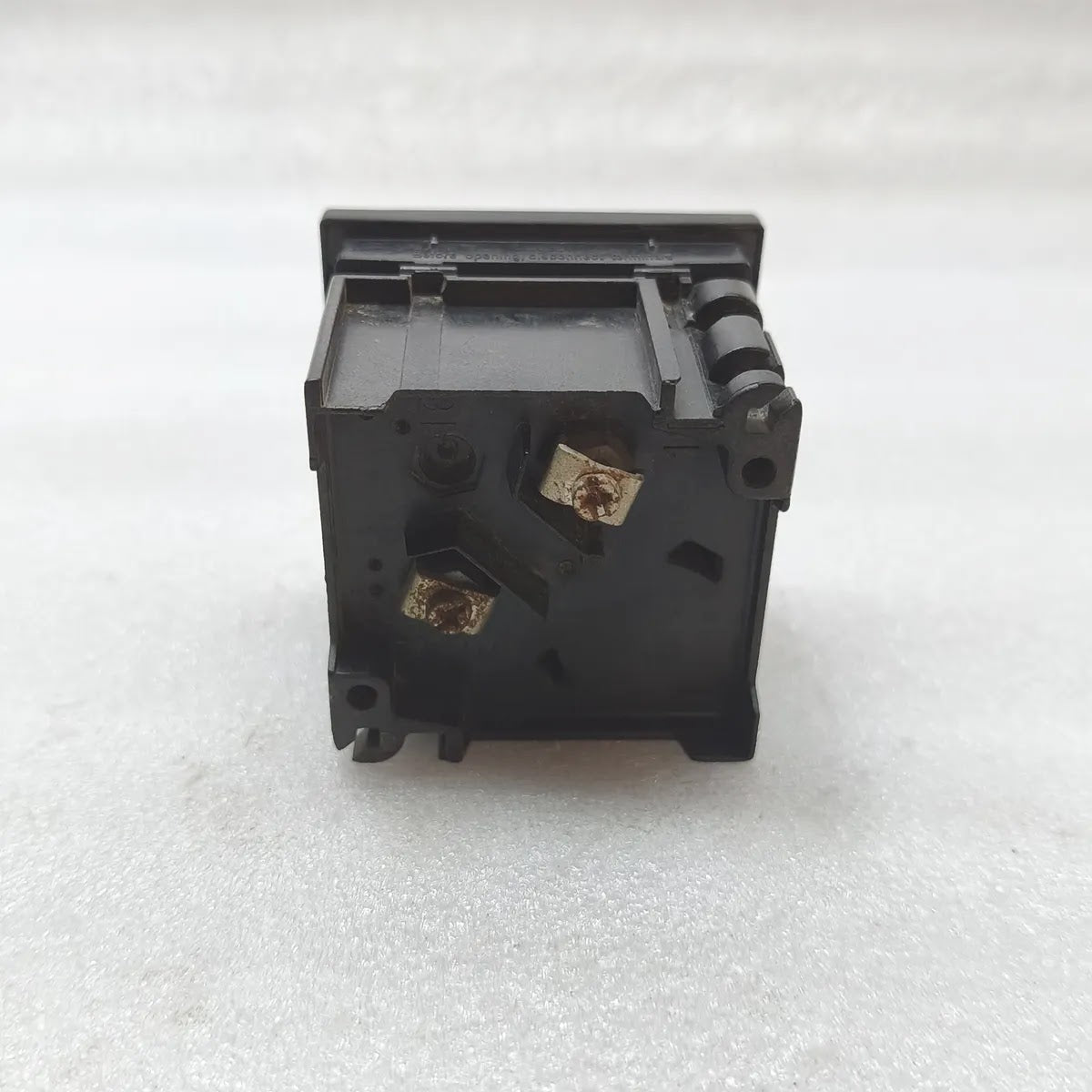

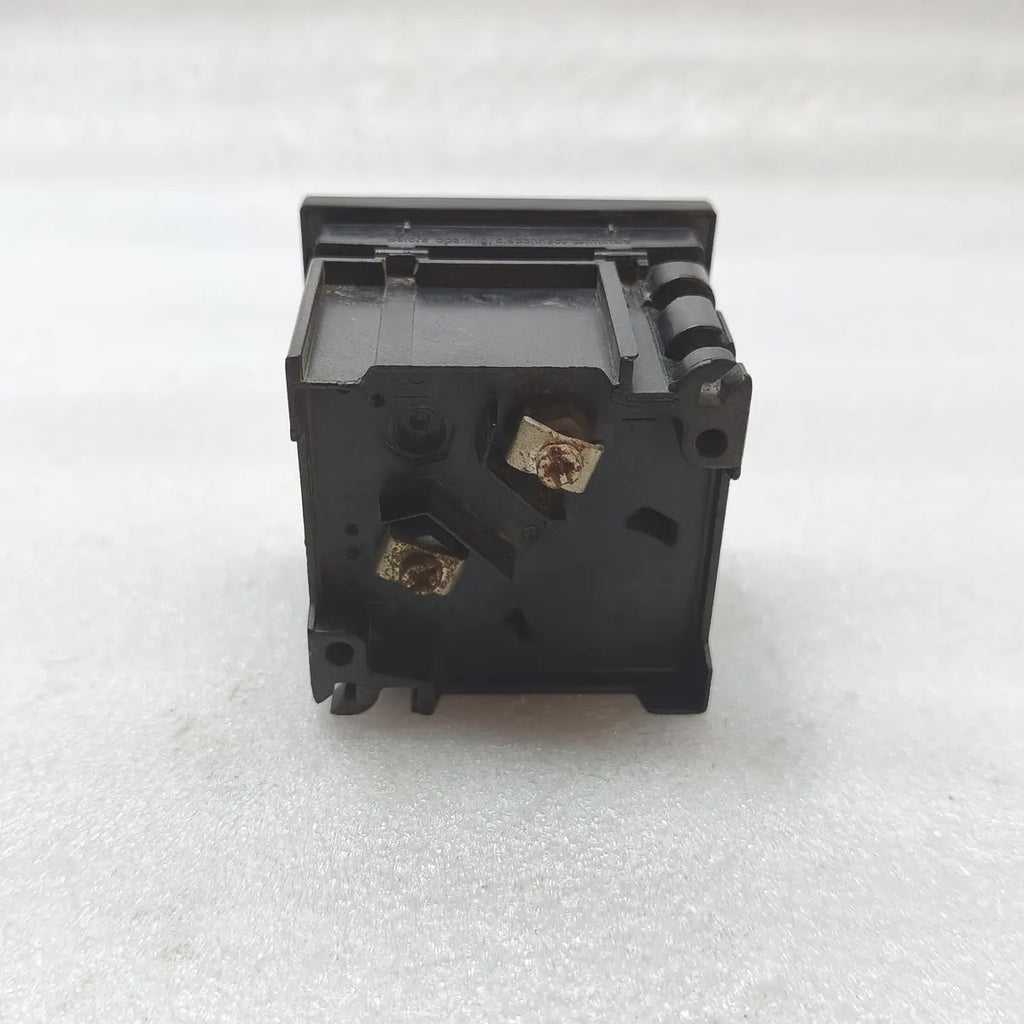

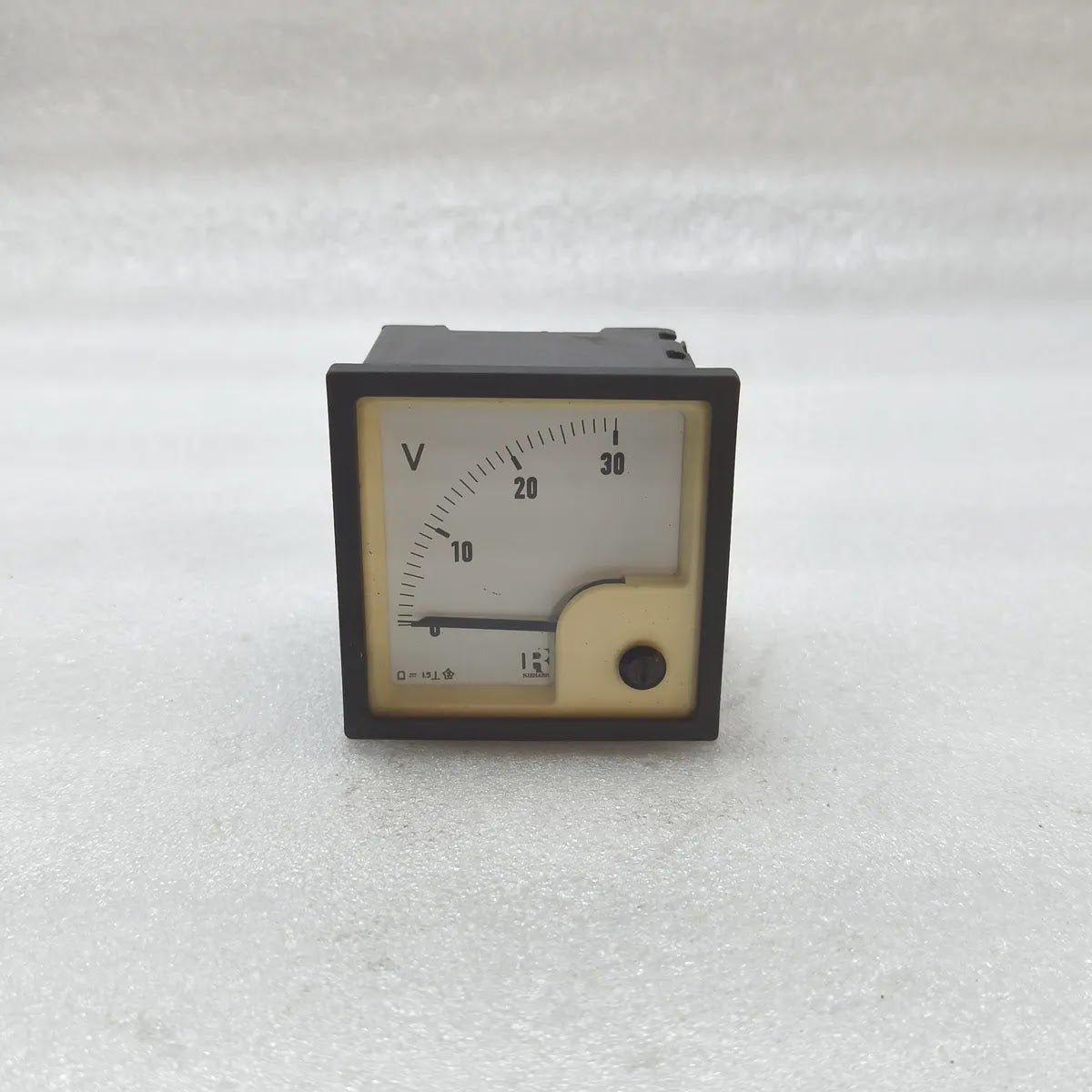

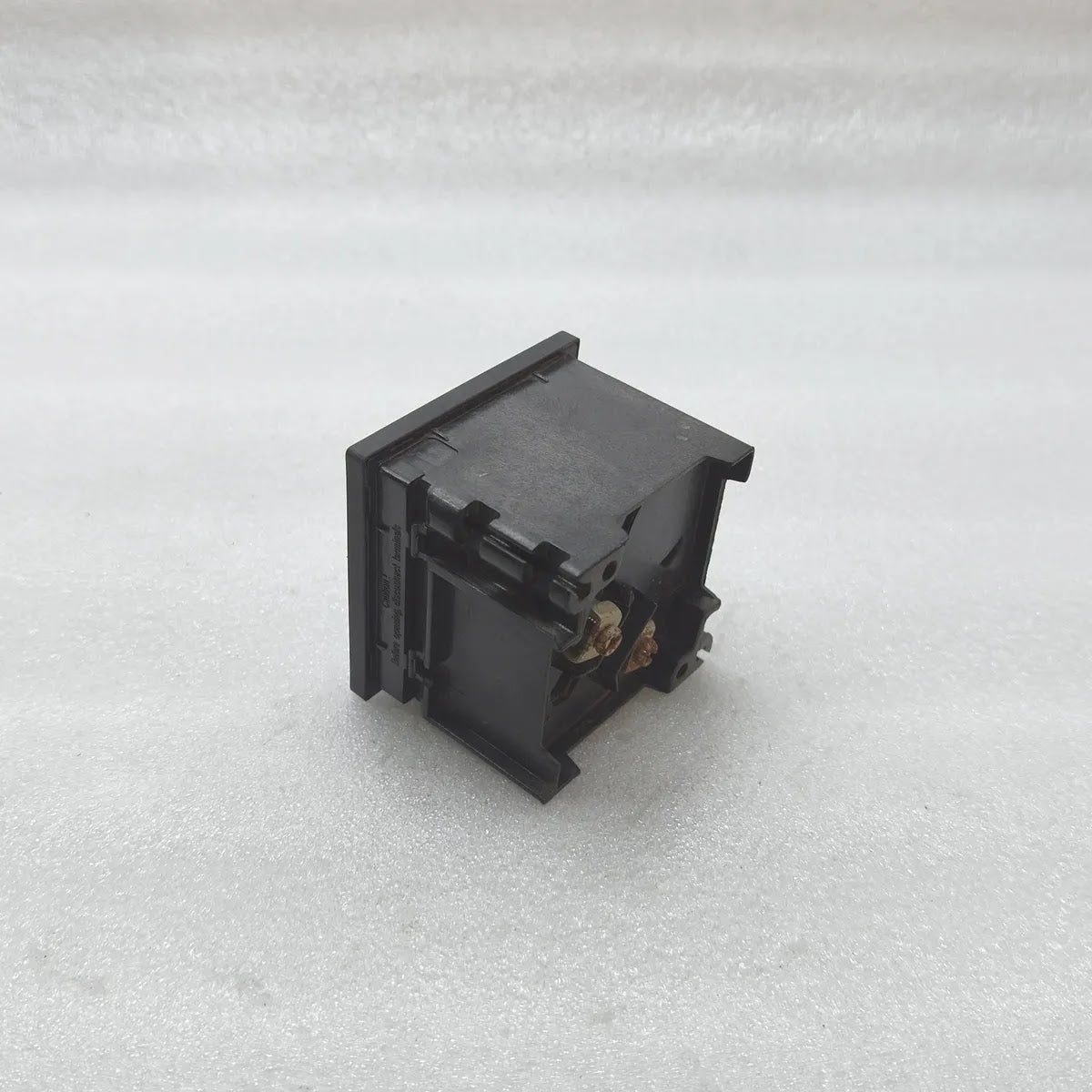

RISHABH PQ72 Analogue Panel Voltmeter DC 0-30V
$79.99
Skip to product information
RISHABH PQ72 Analogue Panel Voltmeter DC 0-30V
$79.99
RISHABH PQ72 Analogue Panel Voltmeter DC 0-30V
Specifications
| Brand | RISHABH (Rishabh Electric Instruments) |
| Model | PQ72 |
| Type | Analogue moving-coil panel voltmeter, DC |
| Series | PQ - moving coil DC ammeters and voltmeters, 90 degree scale |
| Measuring Range | 0-30 V DC (label: METER: 0-30V) |

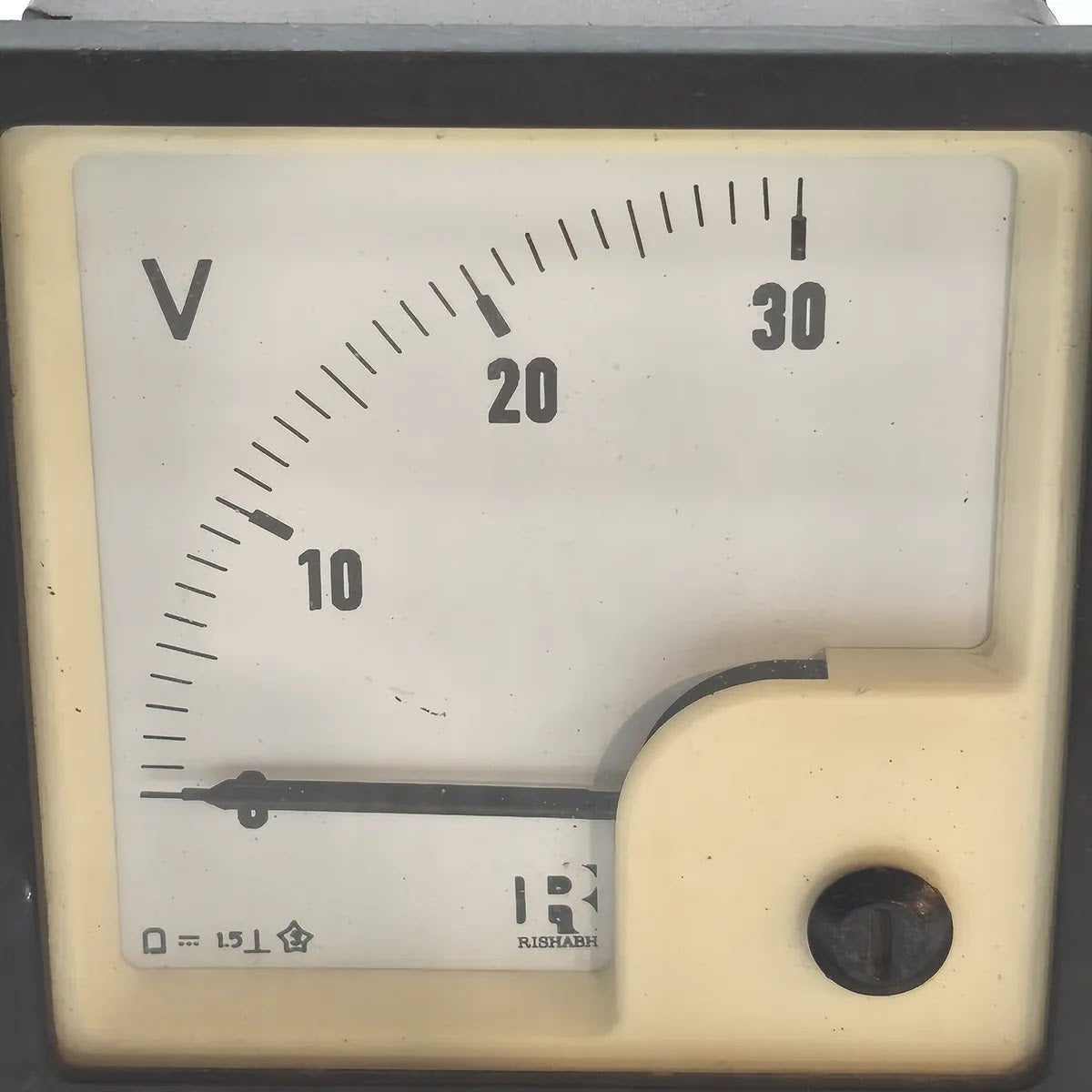

| Scale | 0-30 V, direct reading, 90 degree arc |
| Accuracy Class | 1.5 (marked on dial); 1% basic movement, up to 1.5% total per manufacturer |
| Measuring System | Moving coil, average-responding DC |
| Test Voltage | 2 kV (star symbol with 2 on dial) |
| Position Of Use | Vertical (perpendicular symbol on dial) |
| Protection Degree | IP52 to IEC-529 (IP54 and IP65 optional variants) |
| Dimensions | 72 x 72 mm bezel (PQ72 size of the PQ range) |

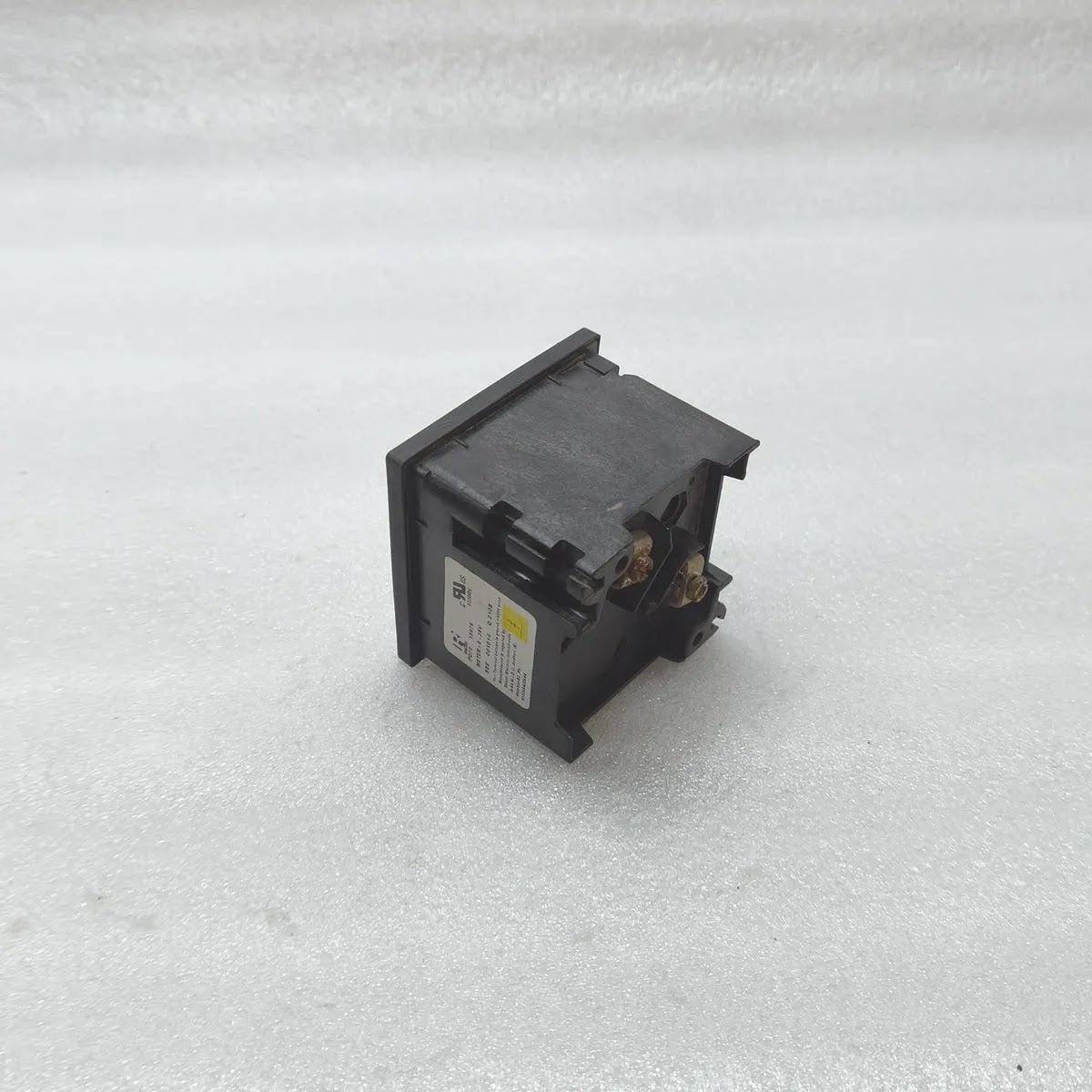

| Approvals | cULus listed, file E238866 [?] as printed on the rating label |
| Country Of Origin | India (Rishabh Electric Instruments, Mumbai) |
| Application | DC voltage indication on switchboards, control panels and marine / industrial distribution boards |
| Condition | PRE-OWNED / SECOND HAND |

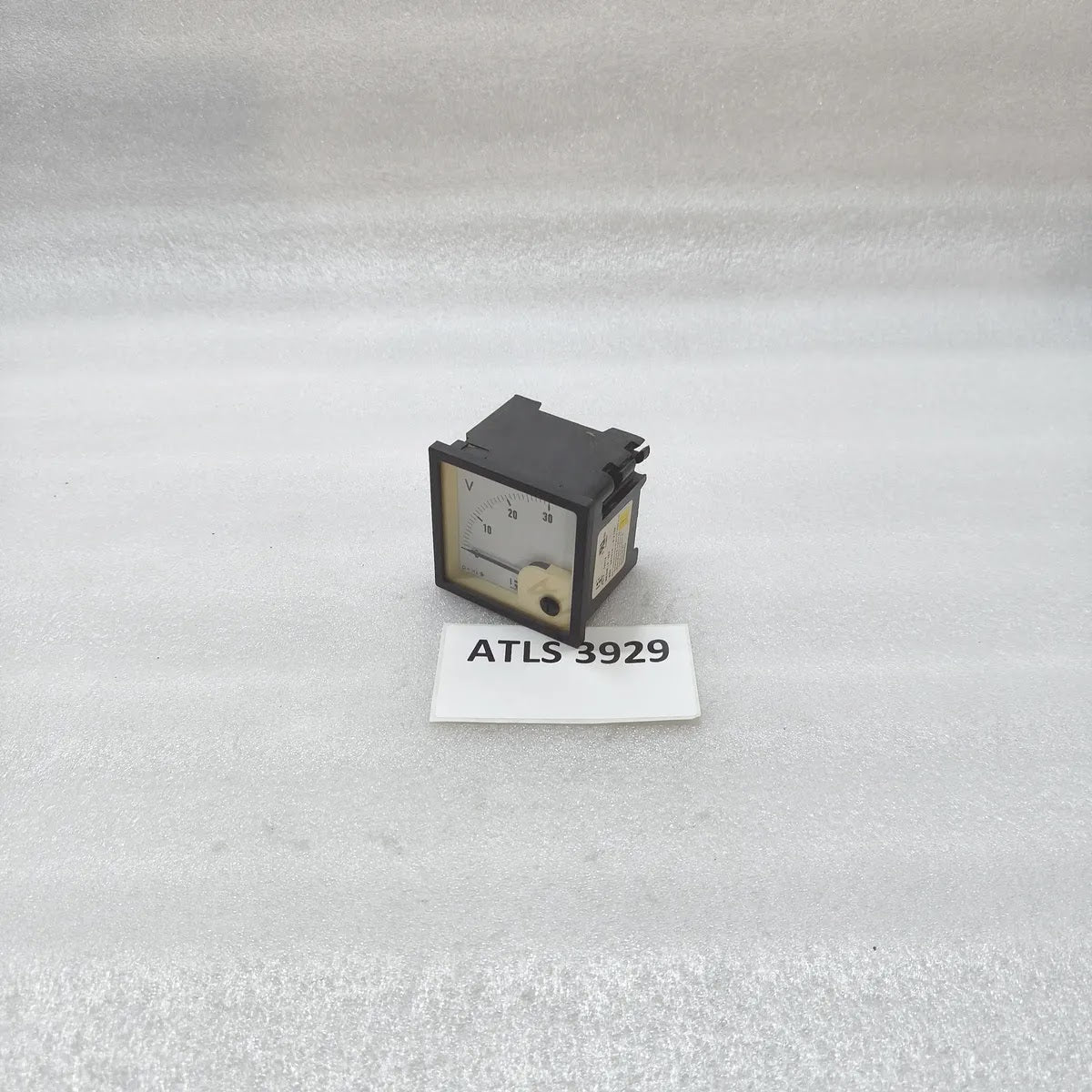

| REF | ATLS3929 |
