RISHABH EQ96 Moving Iron Panel Ammeter 0-1250A 1250/5A
$79.99
Skip to product information
RISHABH EQ96 Moving Iron Panel Ammeter 0-1250A 1250/5A
$79.99
RISHABH EQ96 Moving Iron Panel Ammeter 0-1250A 1250/5A
Specifications
| Brand | RISHABH |
| Model | EQ 96A |
| Series | EQ 90 degree moving iron panel meters |
| Type | Analogue moving iron AC panel ammeter, 90 degree scale |

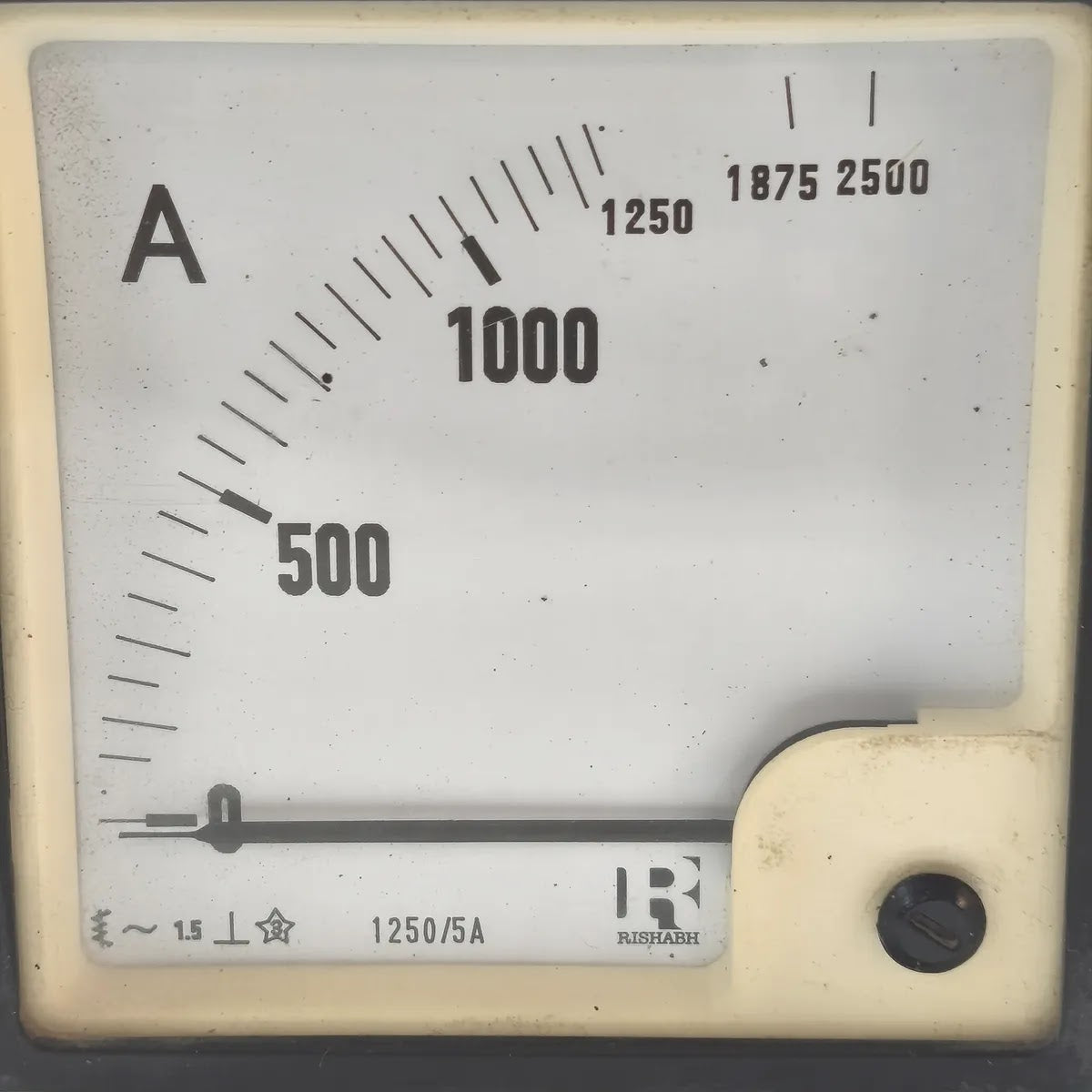

| Scale Range | 0-1250 A, with overload marks at 1875 A and 2500 A |
| Current Transformer Ratio | 1250/5A |
| Input Current | 5 A (CT secondary) |
| Accuracy Class | 1.5 |
| Frequency Range | 15-100 Hz |
| Safety Rating | 600V CAT III |
| Insulation Test Voltage | 2 kV (star-2 symbol on dial) |
| Operating Position | Vertical (perpendicular symbol on dial) |
| Dimensions | Bezel 96 x 96 mm, case 90 mm, depth 53 mm, panel cut-out 91.5 mm |
| Weight | Approx. 0.4 kg |
| Standard | IS 1248 / IEC 51 |
| Approvals | CE |

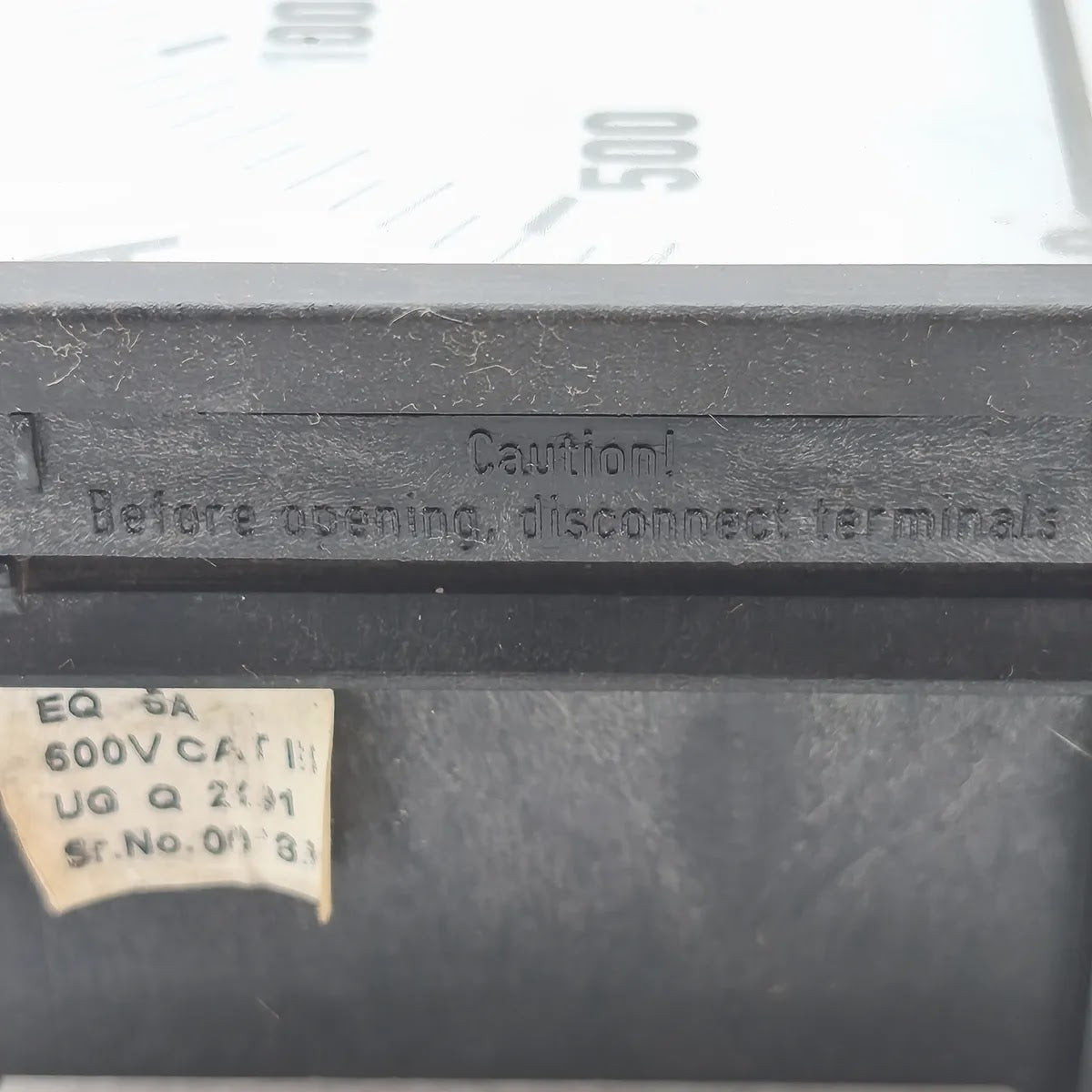

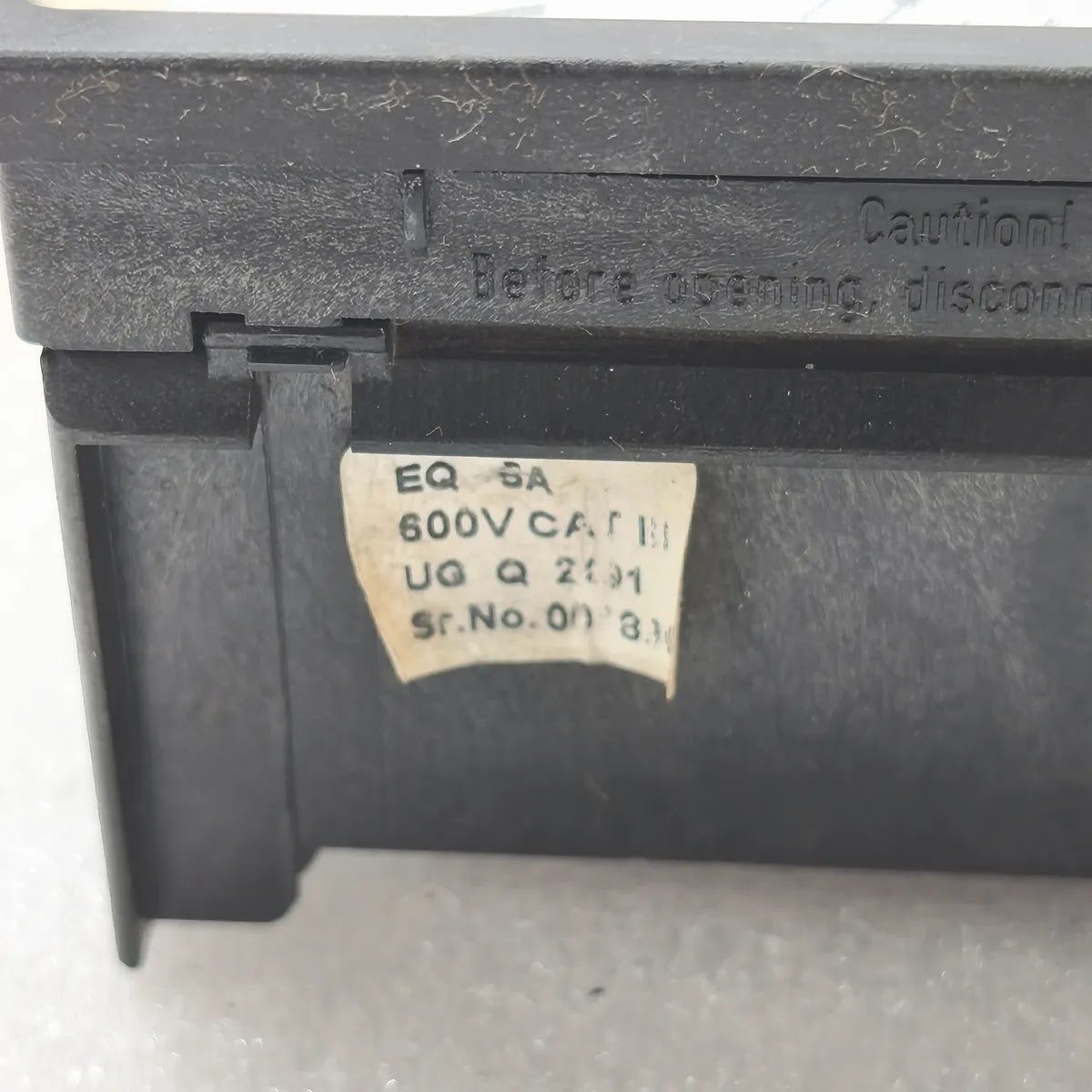

| Safety Instruction | Caution! Before opening, disconnect terminals |
| Condition | PRE-OWNED / SECOND HAND |

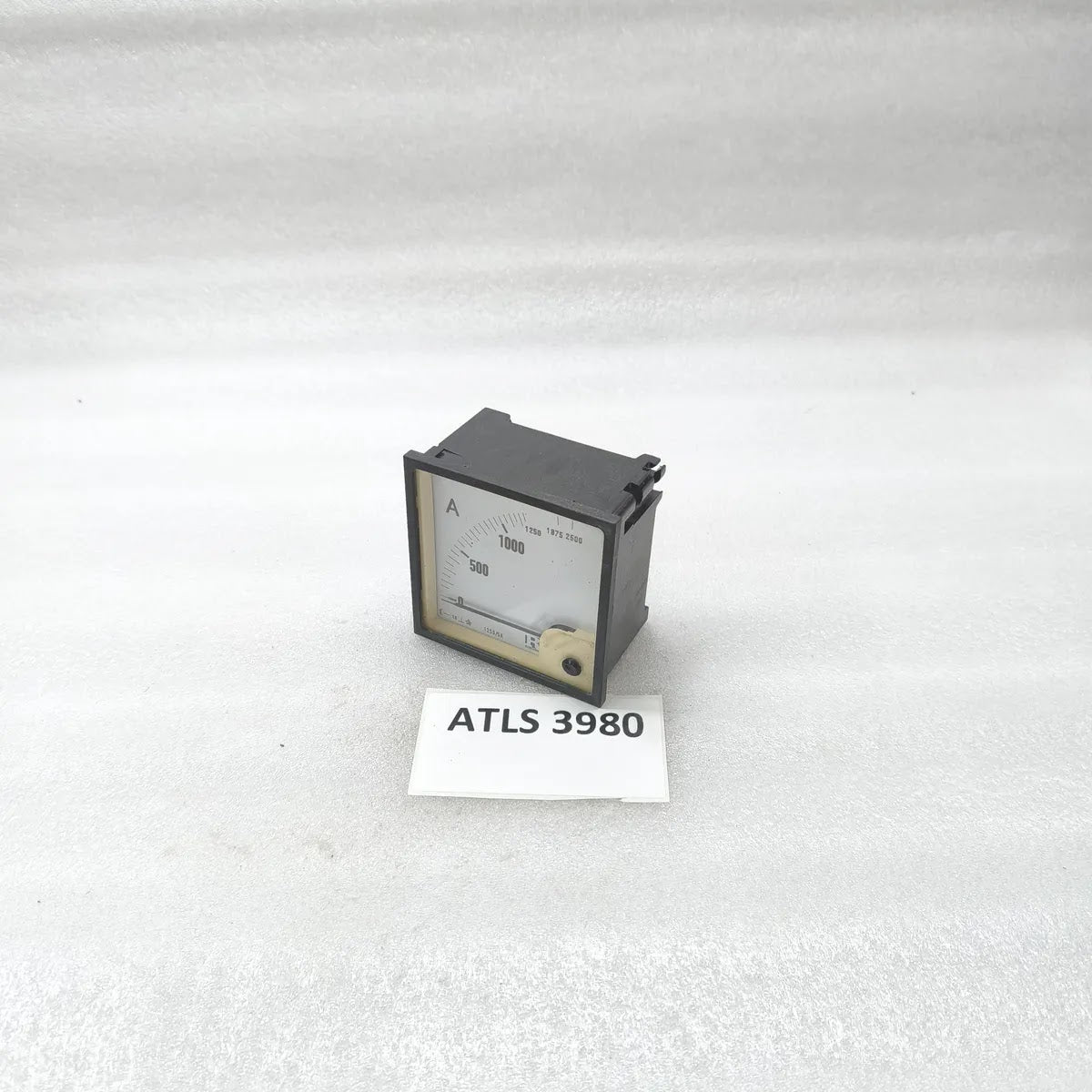

| REF | ATLS3980 |
