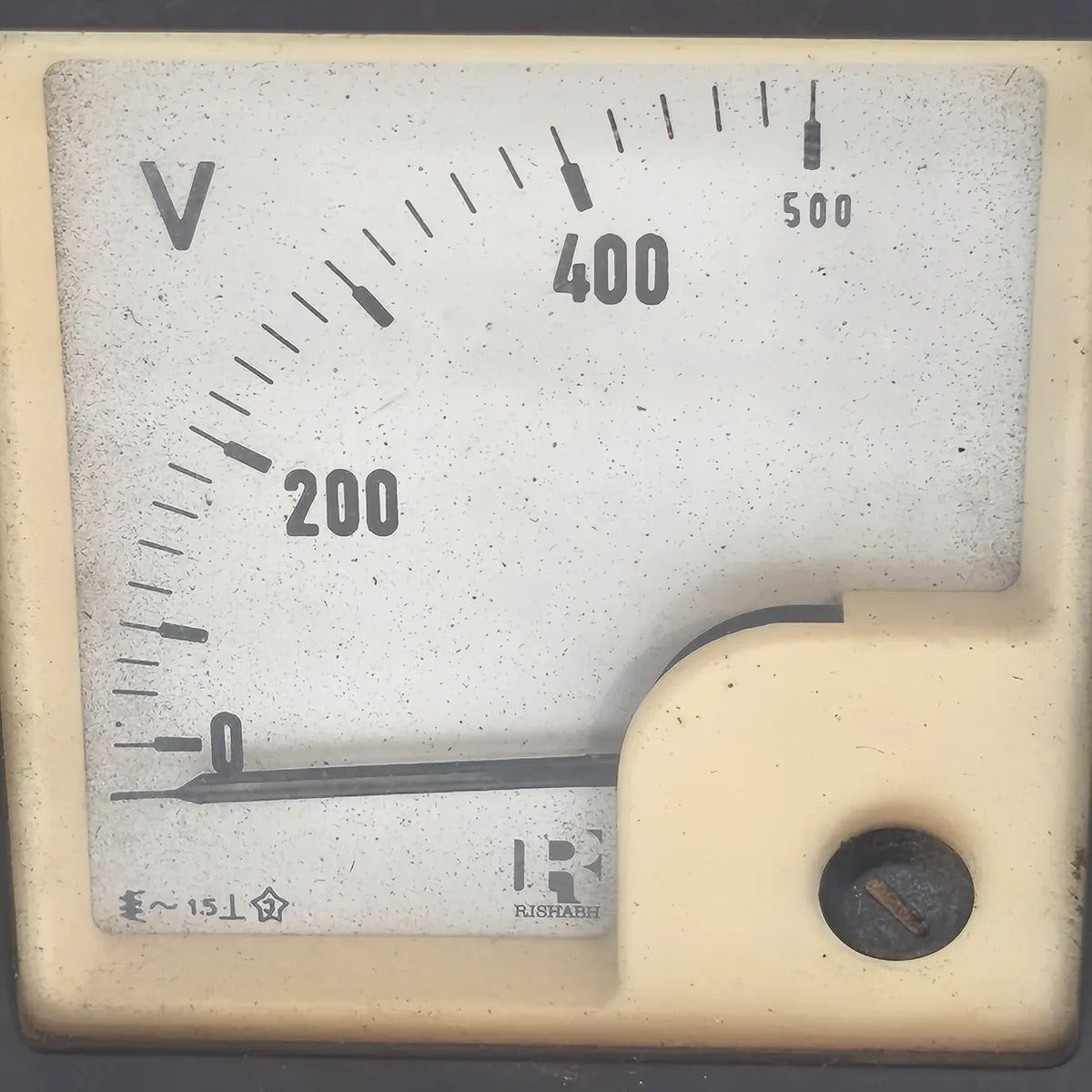

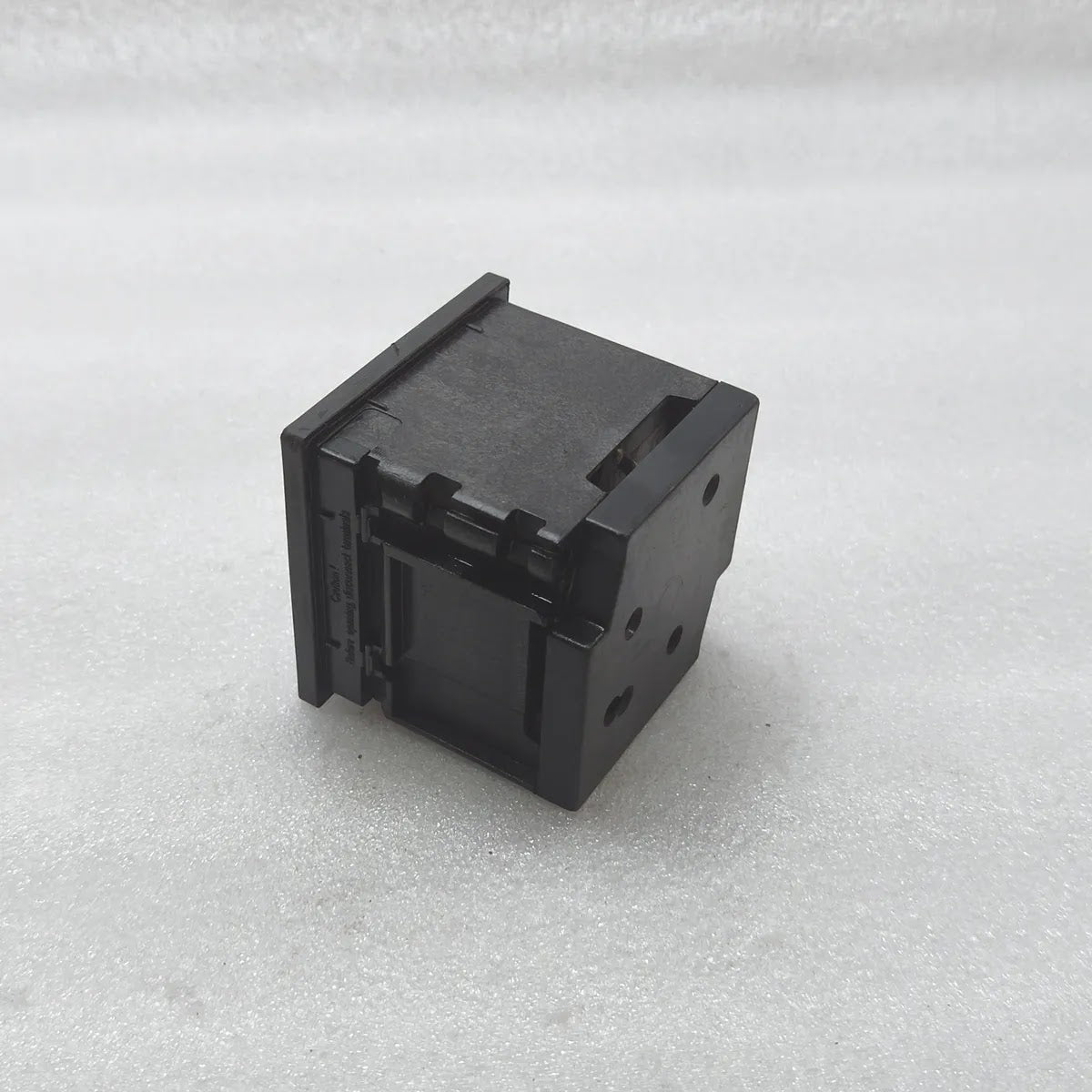

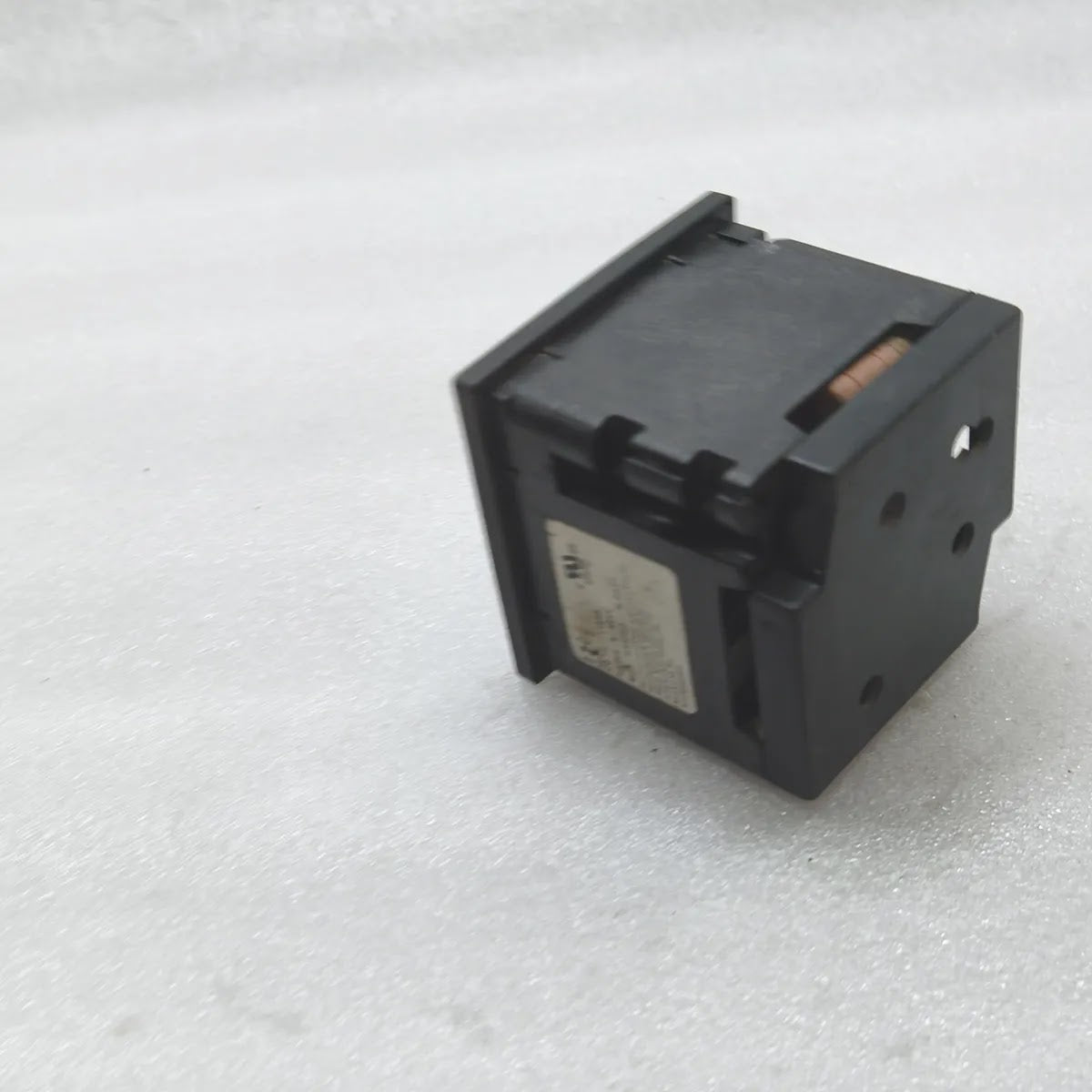

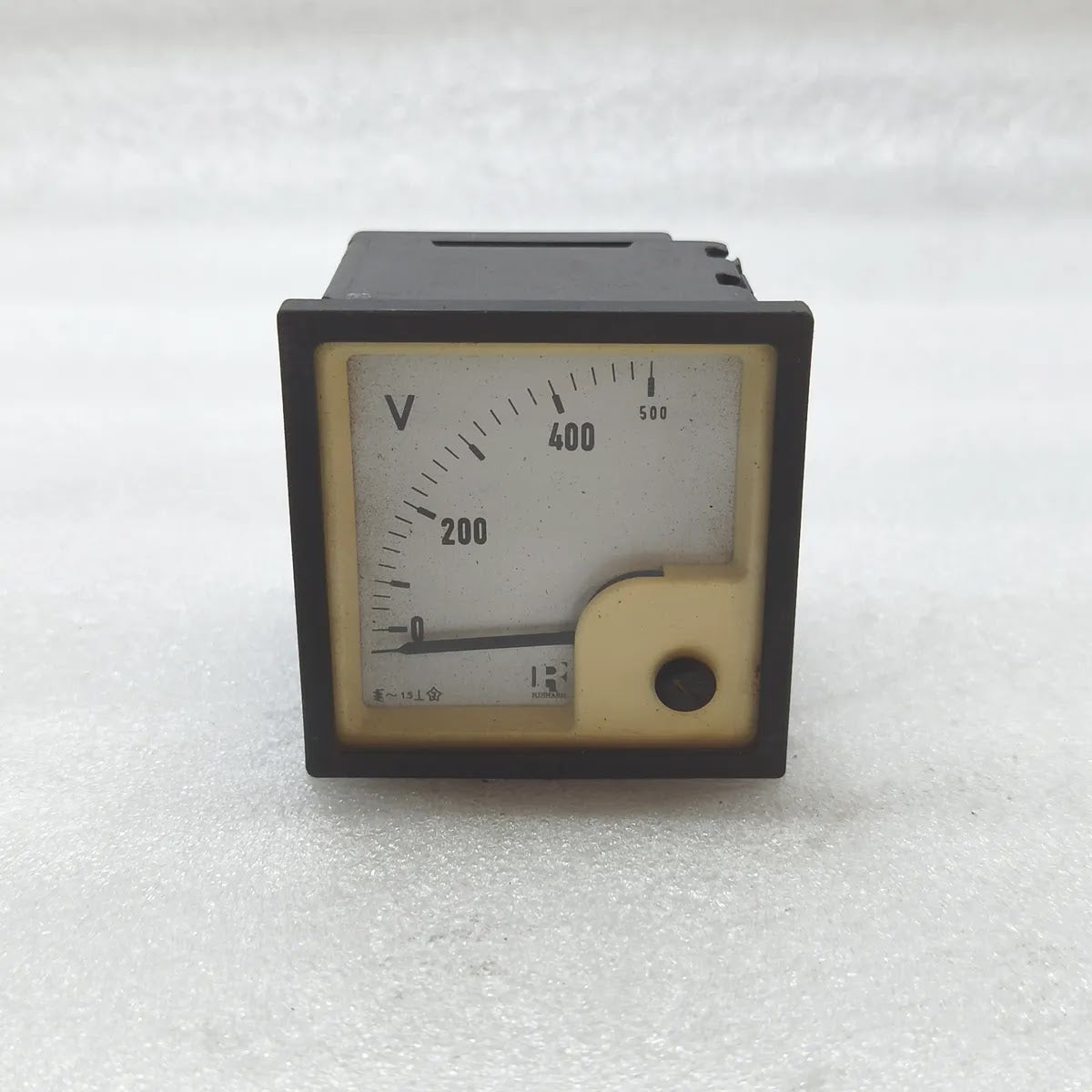

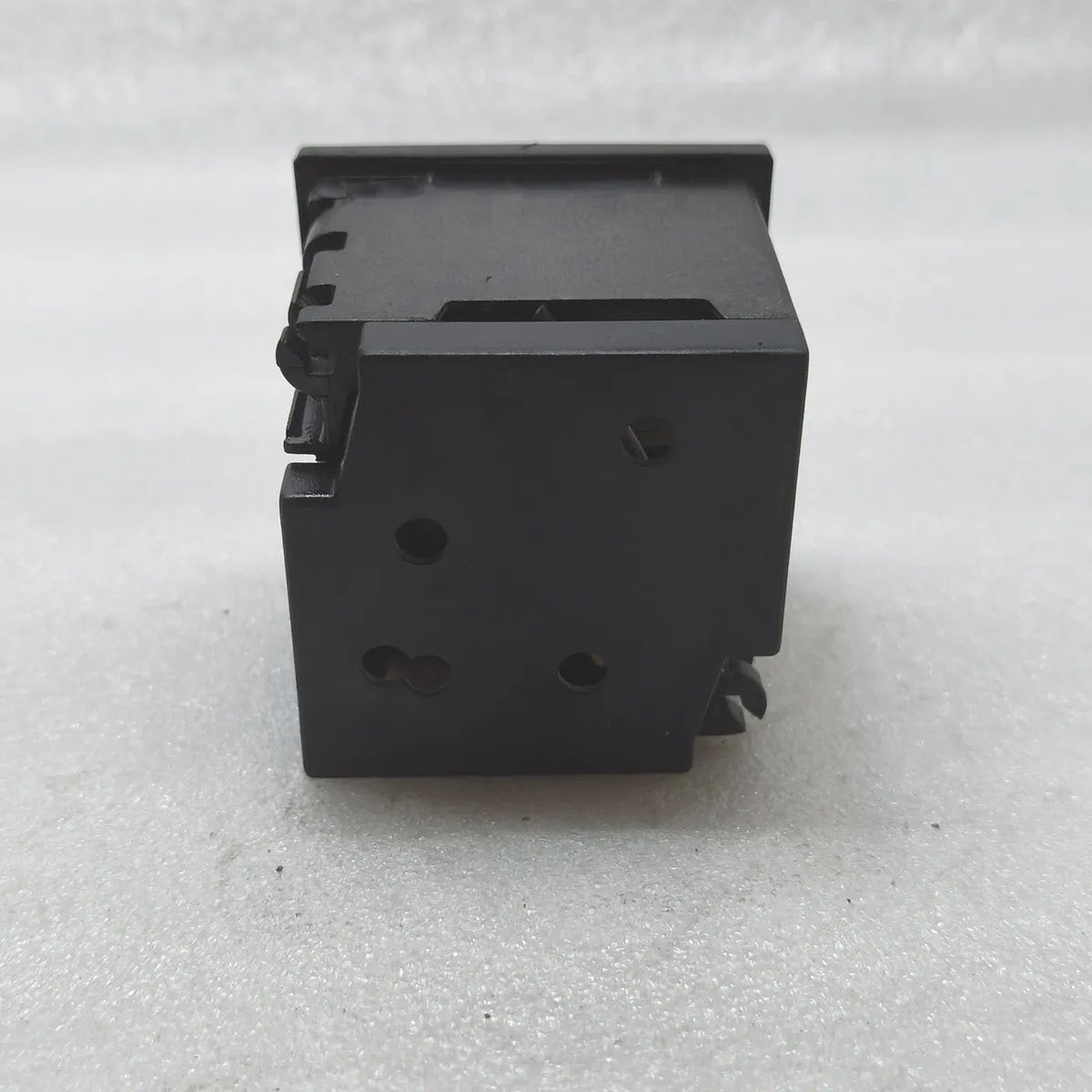

RISHABH EQ72 Moving Iron Panel Voltmeter 0-500V
$79.99
Skip to product information
RISHABH EQ72 Moving Iron Panel Voltmeter 0-500V
$79.99
RISHABH EQ72 Moving Iron Panel Voltmeter 0-500V
Specifications
| Brand | RISHABH |
| Model | EQ 72 |
| Part Number | EQ 72 |

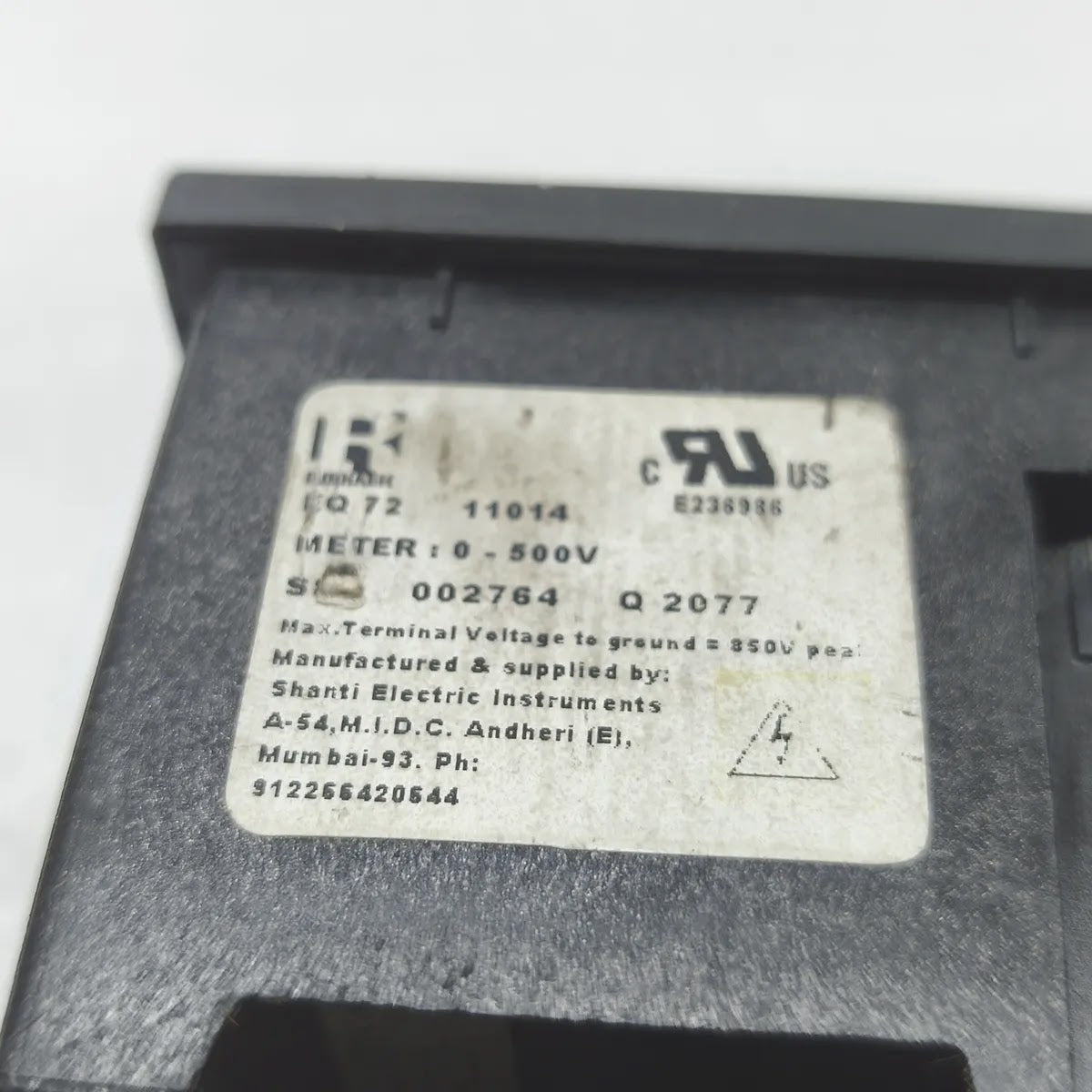

| Product Code | 11014 (printed on rating label) |
| Type | Analogue moving iron AC panel voltmeter |
| Series | EQ 90 degree moving iron meters (EQ48 / EQ72 / EQ96 / EQ144) |
| Measuring Range | METER: 0 - 500V |
| Accuracy Class | 1.5 |
| Max Terminal Voltage To Ground | 850V peak |
| Deflection Angle | 90 degrees |
| Bezel Size | 72 x 72 mm (EQ72 size) |
| Protection Class | IP-52 as per IEC-529 (standard for EQ series) |
| Approvals | cULus listed, file E236986 |
| Manufactured And Supplied By | Shanti Electric Instruments, A-54, M.I.D.C. Andheri (E), Mumbai-93 |
| Country Of Origin | India |
| Application | Switchboard and control panel AC voltage indication |
| Condition | PRE-OWNED / SECOND HAND |

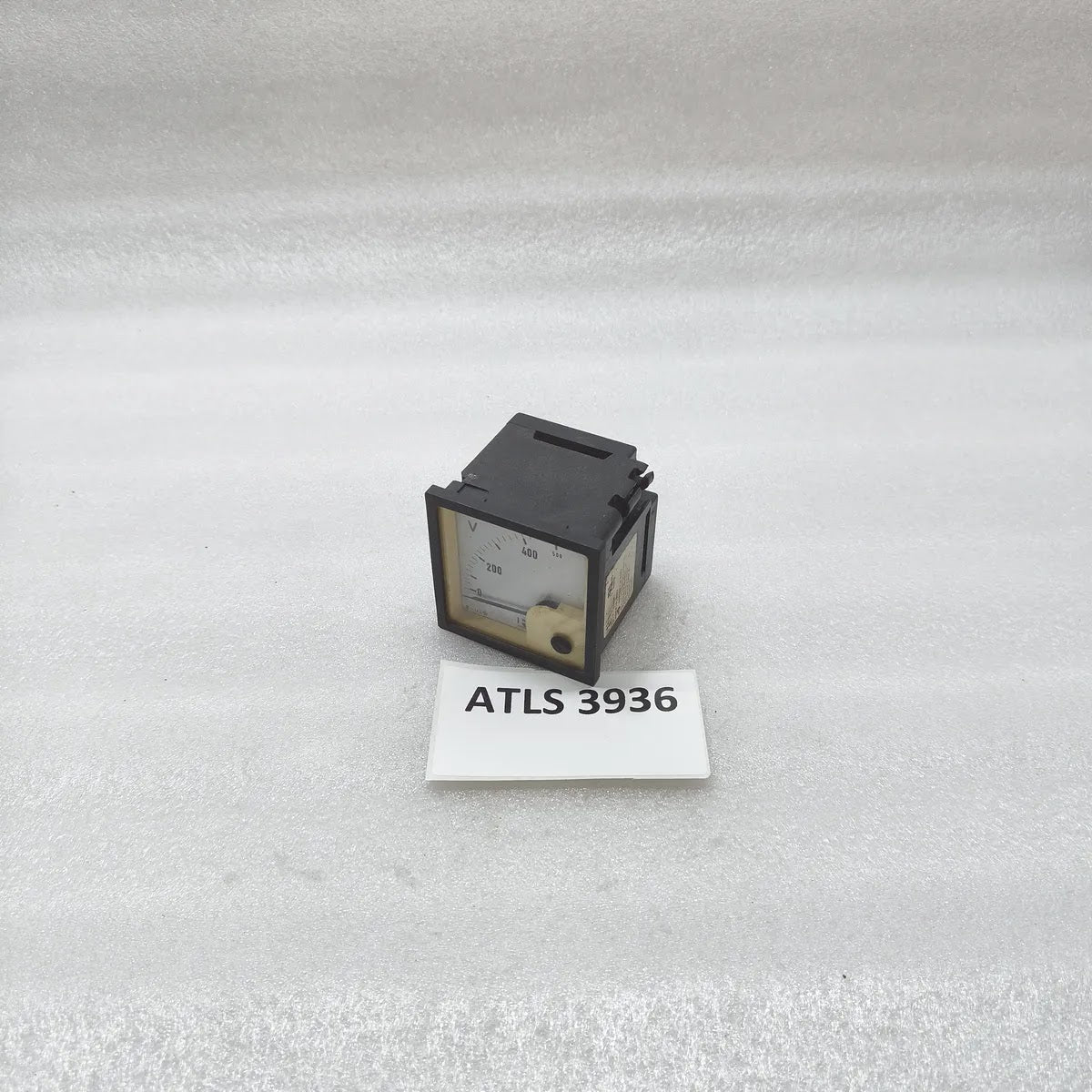

| REF | ATLS3936 |
Shipping & Assurance: Ships worldwide via DHL · UPS · Aramex. WhatsApp +91-814-038-5618 · sales@inmateto.com
