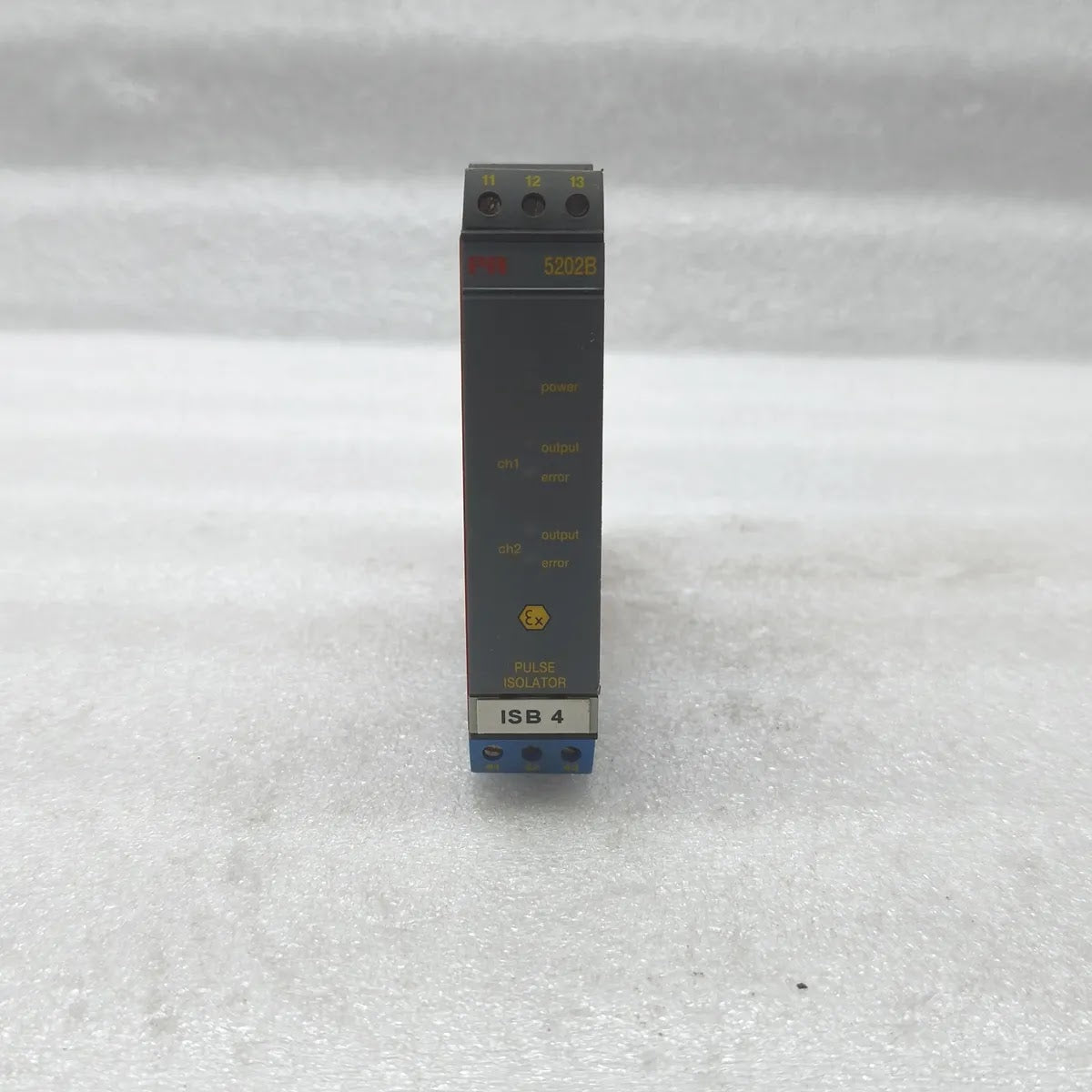

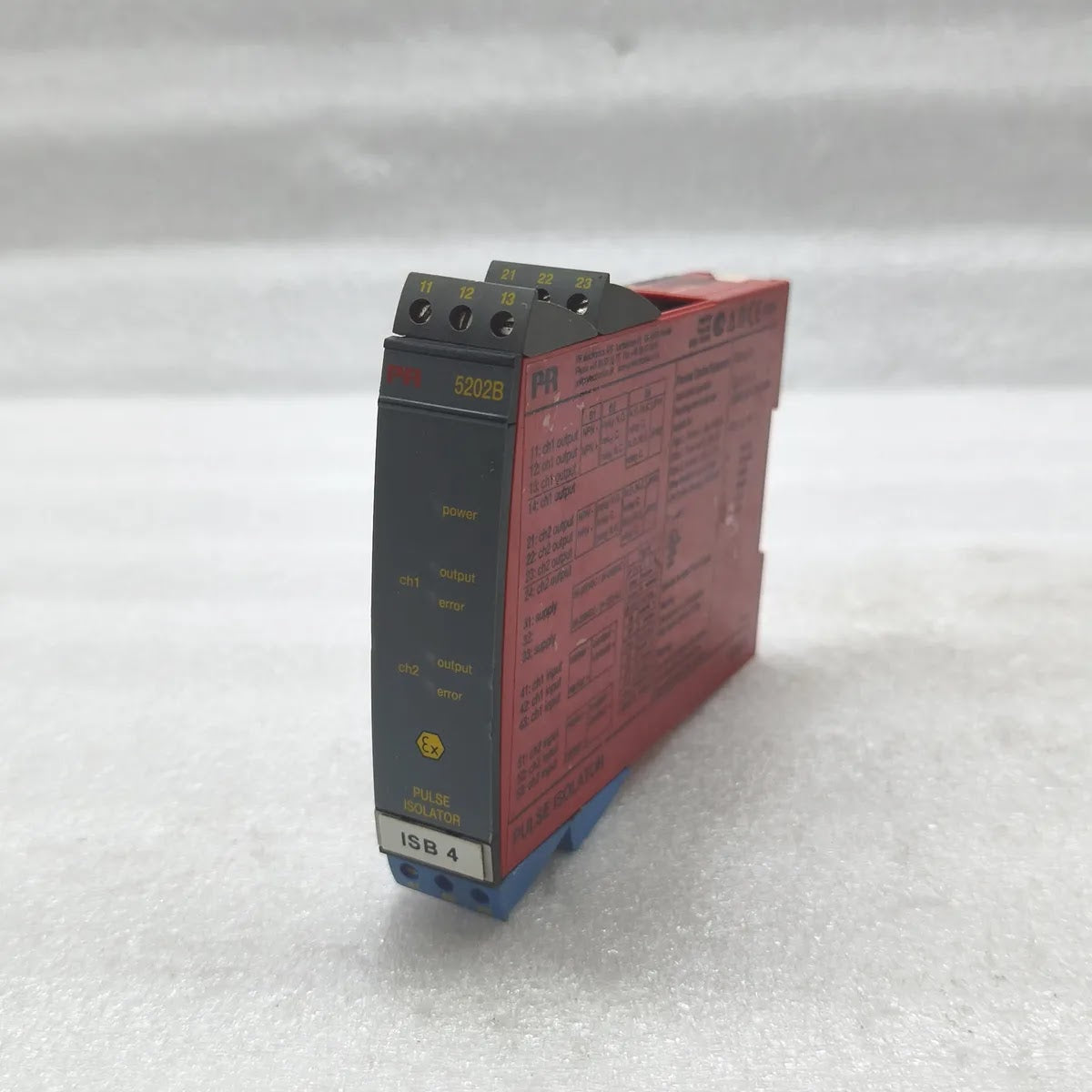

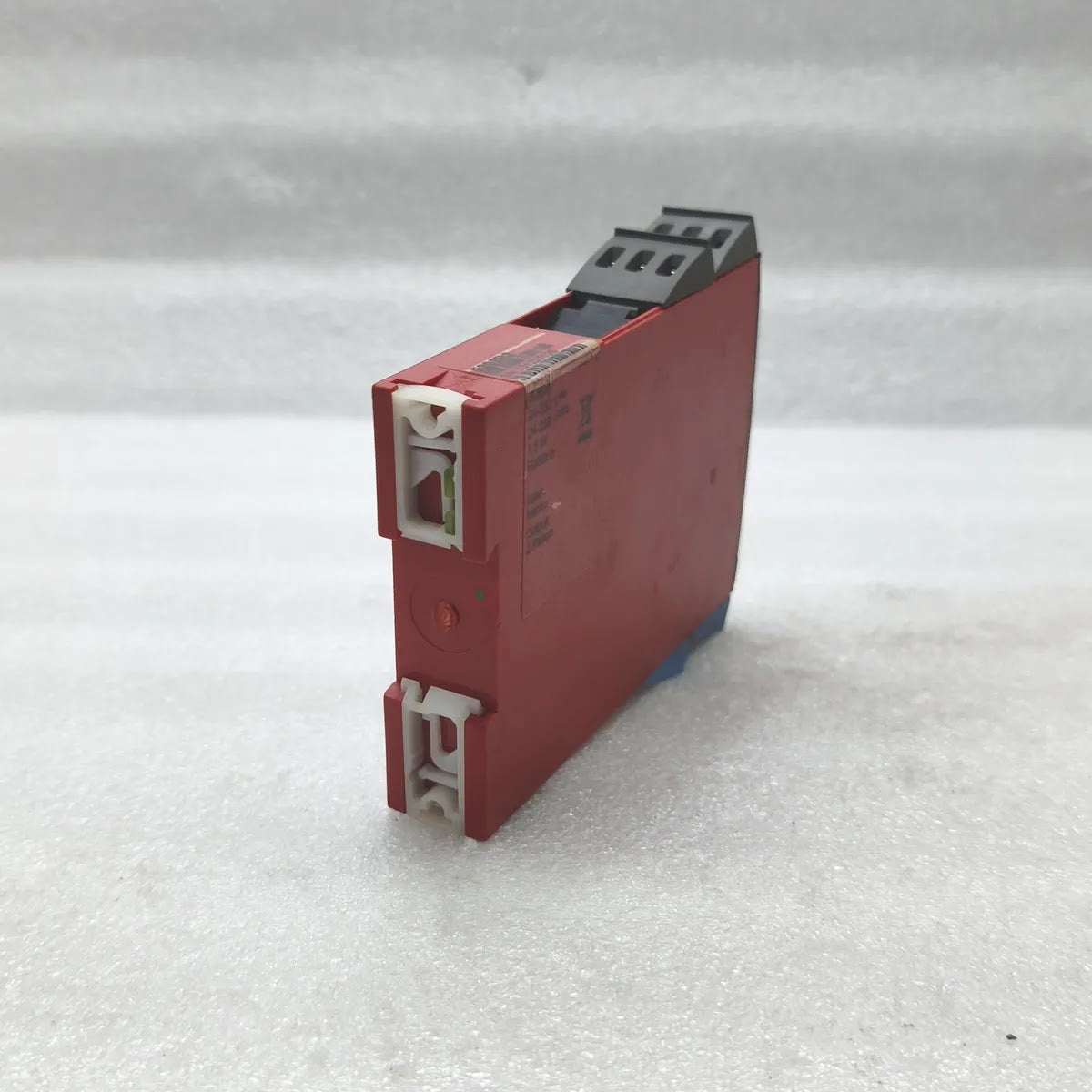

PR ELECTRONICS 5202B2 NAMUR Pulse Isolator 2-Channel 24-230VAC
$99.99
Skip to product information
PR ELECTRONICS 5202B2 NAMUR Pulse Isolator 2-Channel 24-230VAC
$99.99
PR ELECTRONICS 5202B2 NAMUR Pulse Isolator 2-Channel 24-230VAC
Specifications
| Brand | PR electronics |
| Model | 5202B |
| Part Number | 5202B2 |
| Type | Pulse Isolator / galvanic isolation barrier for NAMUR sensors and mechanical contacts |
| Series | 5200 |
| Application | Process Control Equipment - associated apparatus providing intrinsically safe outputs |
| Channels | 2 (ch1 and ch2) |

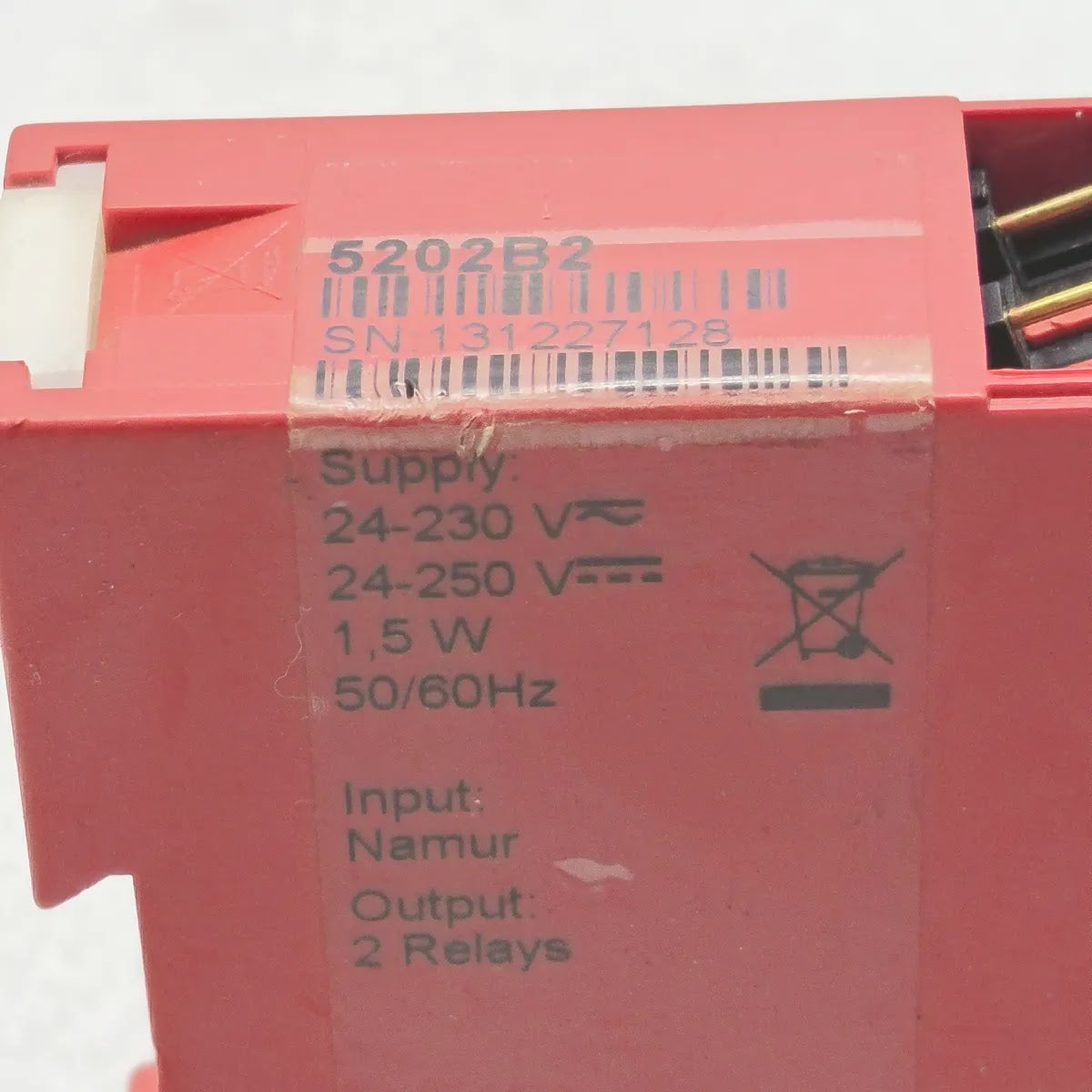

| Supply Voltage | 24-230 VAC / 24-250 VDC |
| Frequency | 50/60 Hz |
| Power Consumption | 1,5 W |
| Input | NAMUR sensor or mechanical contact |
| Output | 2 relays, change-over contacts (B2 output configuration) |
| Input Frequency Range | 0...5 kHz, pulse length > 0.1 ms |
| Galvanic Isolation | 3.75 kVac between input, output and supply |

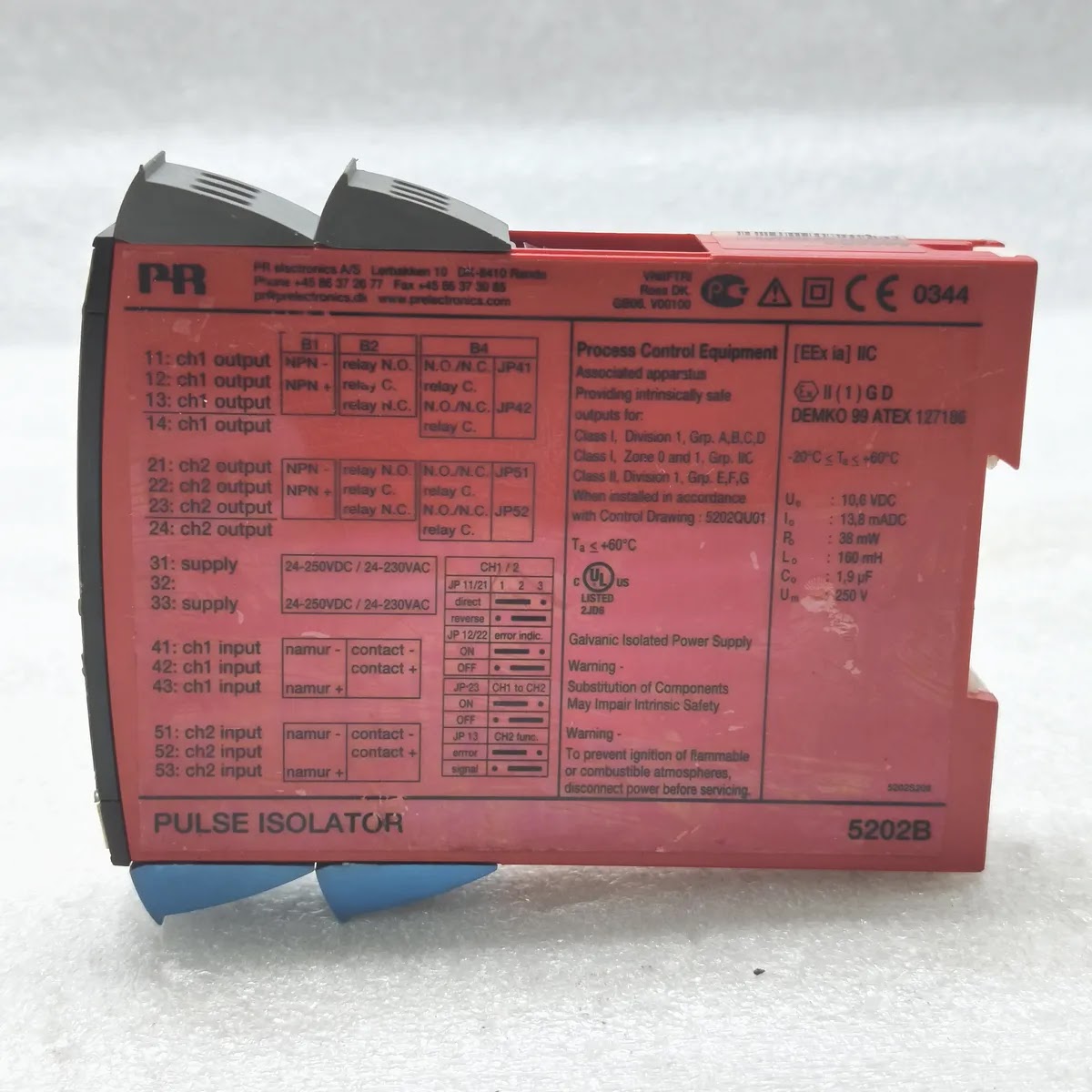

| Output Safety Parameters | Uo 10,6 VDC; Io 13,8 mADC; Po 38 mW; Lo 160 mH; Co 1,9 µF; Um 250 V |
| Hazardous Area Rating | [EEx ia] IIC, Ex II (1) G D |
| Hazardous Area Classification | Class I Division 1 Grp. A,B,C,D; Class I Zone 0 and 1 Grp. IIC; Class II Division 1 Grp. E,F,G (installed per Control Drawing 5202QU01) |
| Functional Safety | Suitable for SIL 2 installations to IEC 61508 |
| Ambient Temperature | 20°C to +60°C |
| Protection Rating | IP20 |
| Approvals | DEMKO 99 ATEX 127186, cULus LISTED 2JD6, CE 0344, GOST R, VNIIFTRI Ross DK. GB06. V00100 |
| Document Reference | 5202S206 |
| Country Of Origin | Denmark |
| Condition | PRE-OWNED / SECOND HAND |

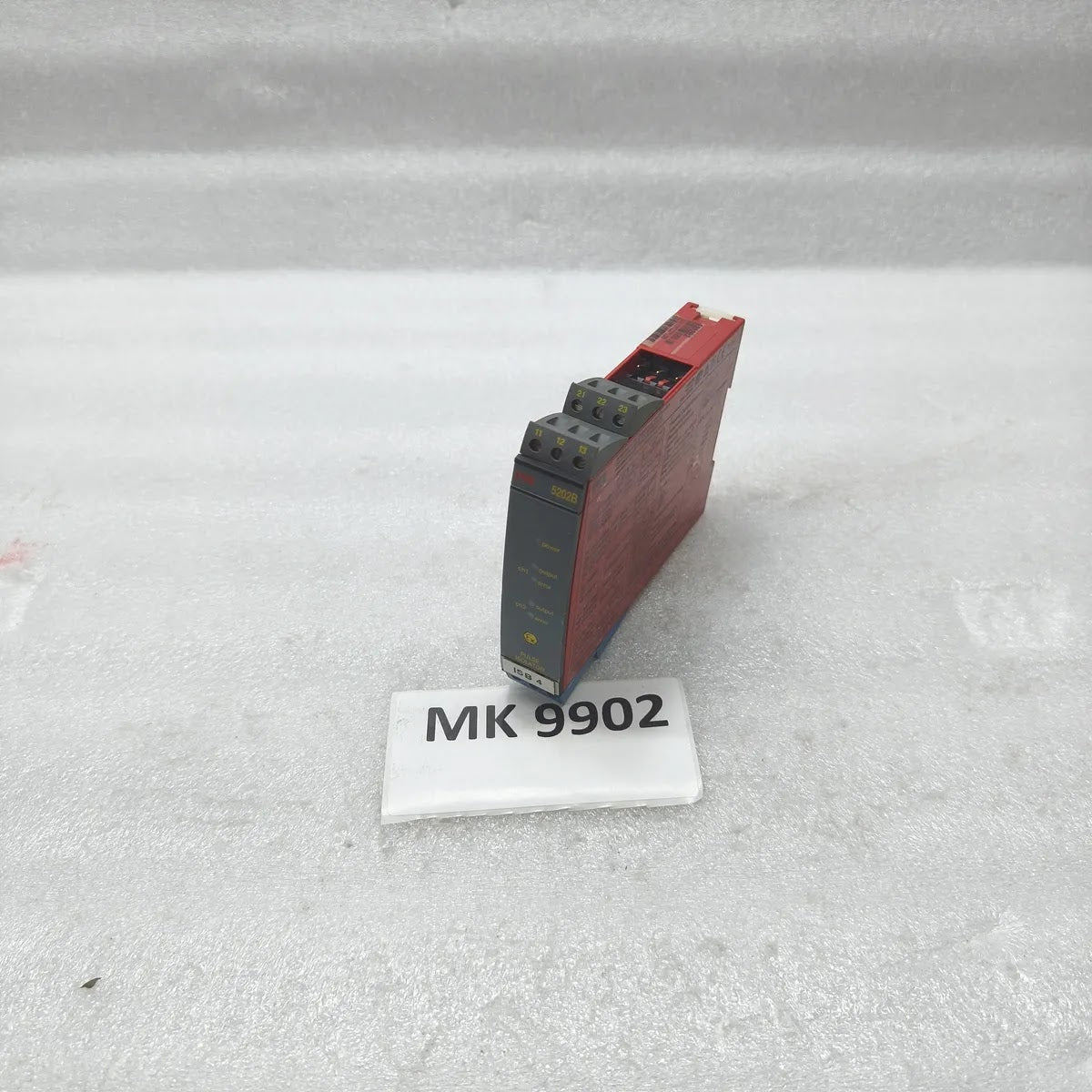

| REF | MK9902 |
