PEPPERL+FUCHS KFD2-SR2-Ex2.W Switch Amplifier 2-Channel 20-30VDC
$25.00
Skip to product information
PEPPERL+FUCHS KFD2-SR2-Ex2.W Switch Amplifier 2-Channel 20-30VDC
$25.00
PEPPERL+FUCHS KFD2-SR2-Ex2.W Switch Amplifier 2-Channel 20-30VDC

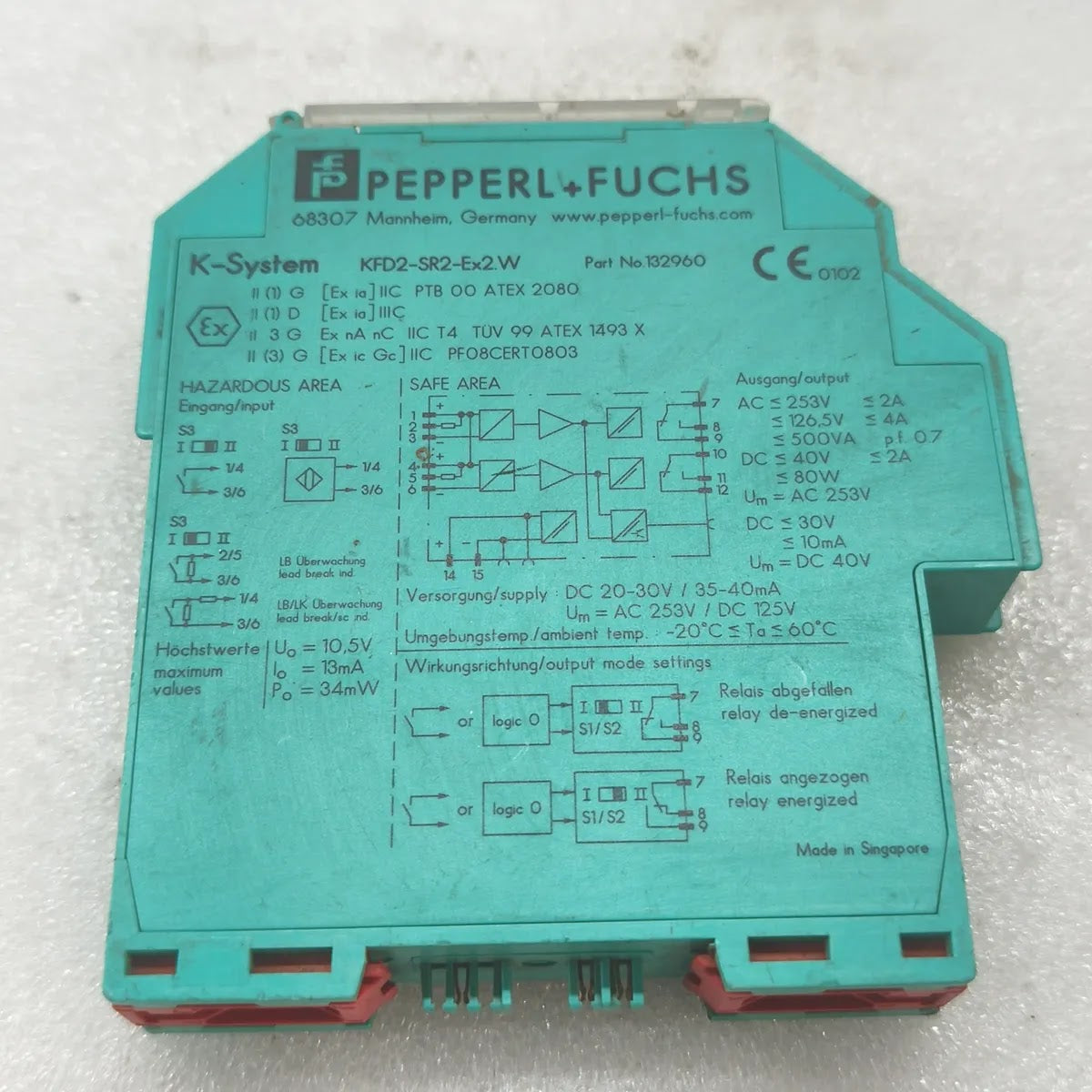

Specifications
| Brand | PEPPERL+FUCHS |
| Model | KFD2-SR2-Ex2.W |
| Part No | 132960 |
| Type | Switch amplifier / isolated barrier for intrinsically safe circuits |
| Series | K-System |
| Channels | 2-channel |
| Input | Hazardous area input, dry contact or NAMUR sensor |
| Supply Voltage | DC 20-30 V, 35-40 mA |
| Maximum Input Values | Uo = 10.5 V, Io = 13 mA, Po = 34 mW |
| Output | Relay contact output, safe area |
| Signal Output Rating | DC ≤ 30 V, ≤ 10 mA, Um = DC 40 V |
| Maximum Safe Voltage Um | AC 253 V / DC 125 V (output Um = AC 253 V) |

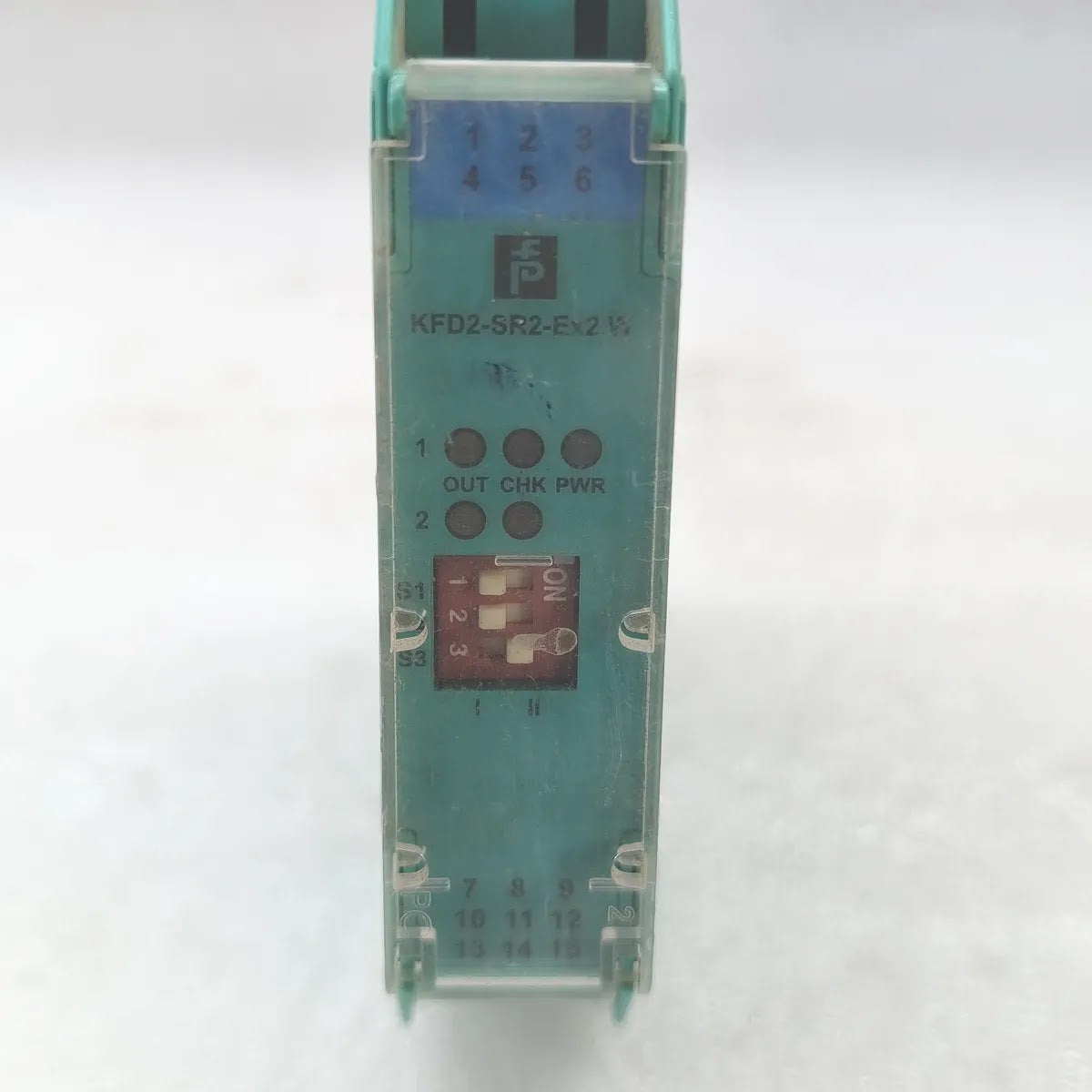

| Line Fault Detection | Lead break indication and lead break / short-circuit indication, selectable by S3 |
| Output Mode | Reversible by S1/S2 — relay de-energized or relay energized on logic 0 |
| Functional Safety | Up to SIL 2 according to IEC/EN 61508 |
| Ambient Temperature | 20 °C ≤ Ta ≤ 60 °C |
| Dimensions | 20 x 119 x 115 mm |

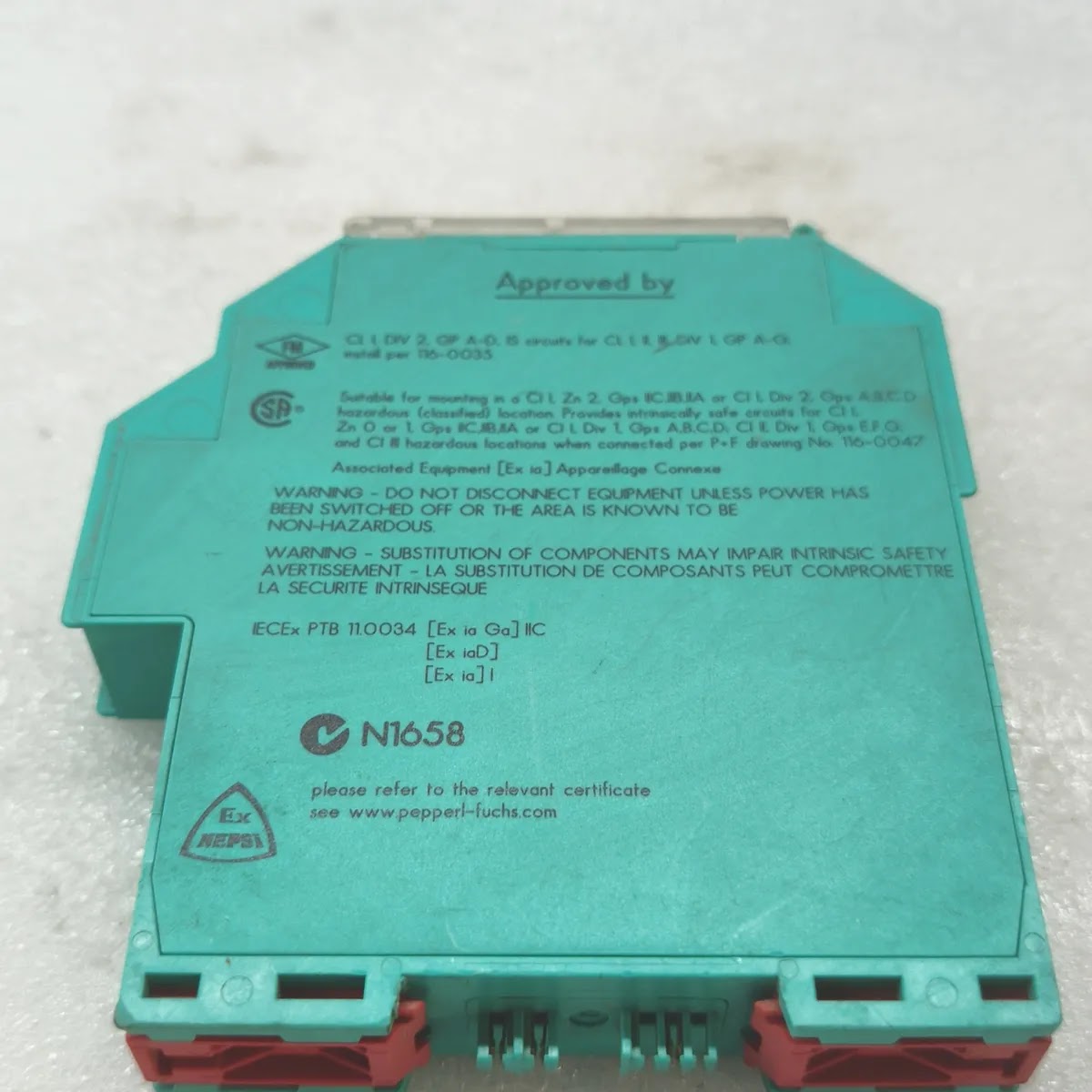

| Additional Approvals | CE 0102, FM Approved Cl I Div 2 Gp A-D (install per 116-0035), CSA per P+F drawing 116-0047, NEPSI, C-tick N1658 |
| Application | Associated apparatus [Ex ia] for intrinsically safe circuits in hazardous areas |
| Manufacturer Address | 68307 Mannheim, Germany |
| Country Of Origin | Made in Singapore |
| Condition | PRE-OWNED / SECOND HAND |

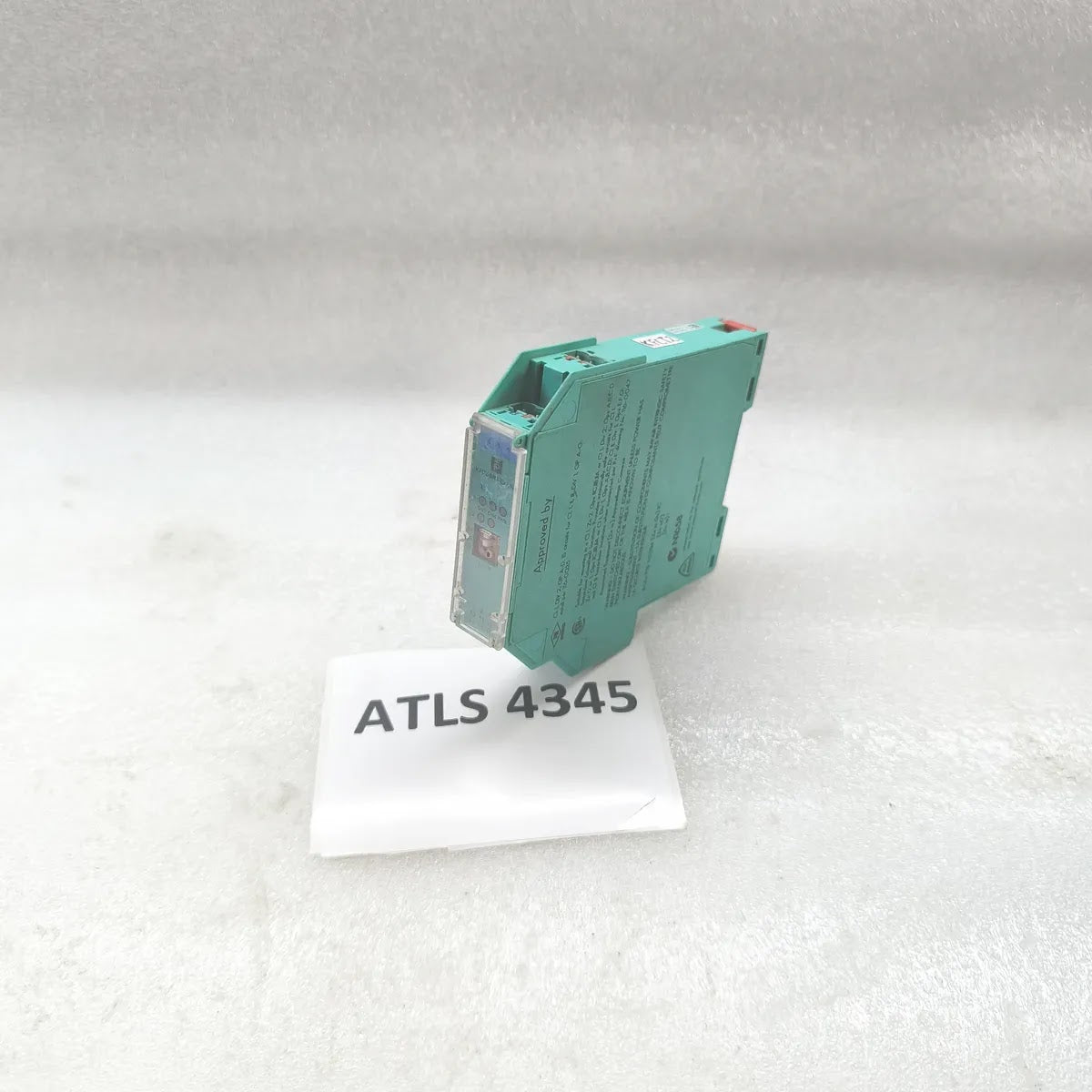

| REF | ATLS4345 |
