OMRON CP1L-M40DR-A PLC CPU Board Set 24 Input 16 Relay 100-240VAC
$149.99
OMRON CP1L-M40DR-A PLC CPU Board Set 24 Input 16 Relay 100-240VAC
Specifications
| Brand | OMRON |
| Model | CP1L-M40DR-A |
| Part Number | CP1L-M40DR-A |
| Type | Programmable logic controller CPU board set (internal CPU board and front USB / DIP switch board) |
| Series | CP Series CP1L, CP1L-M CPU Unit |
| Pcb Number | 0998674-4C |

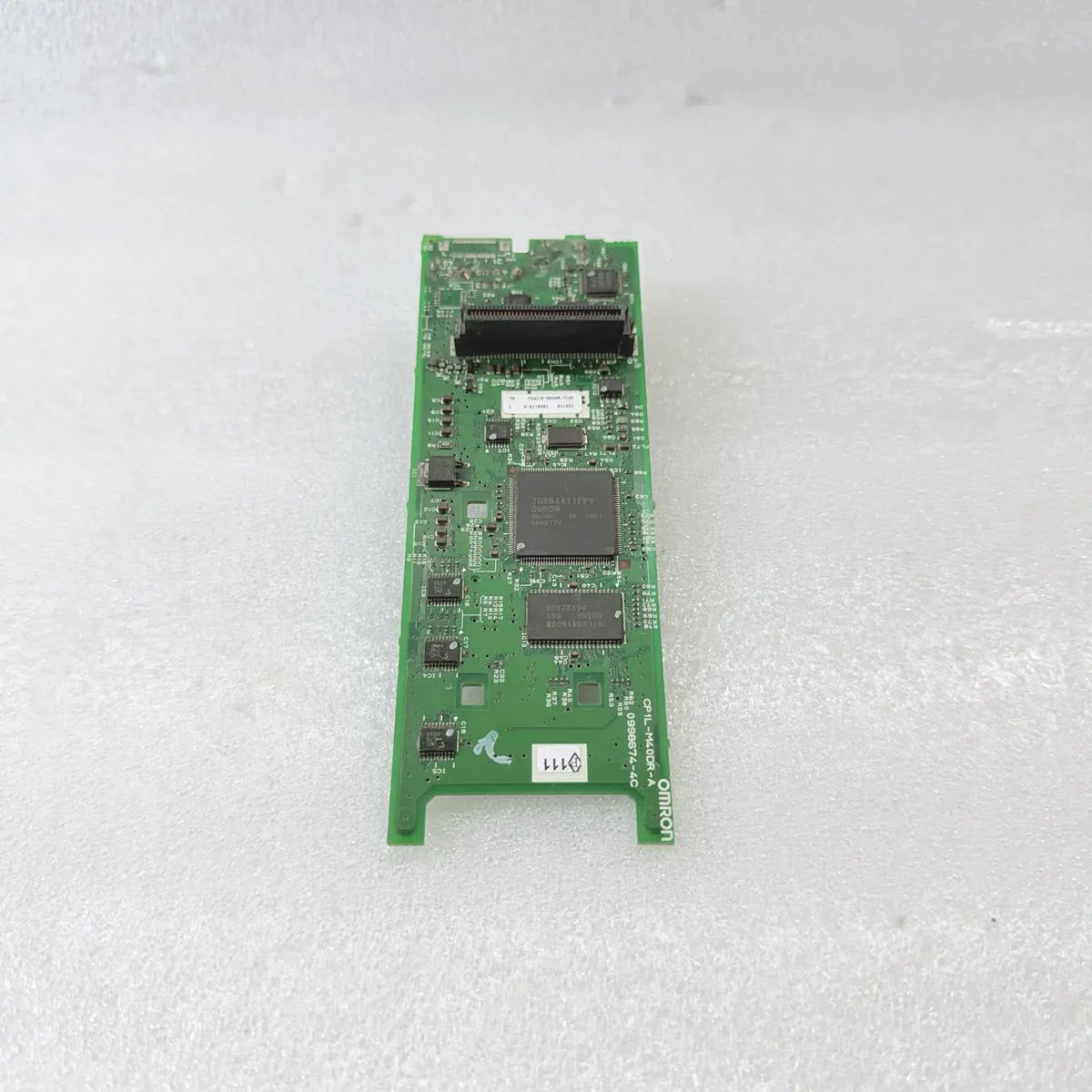

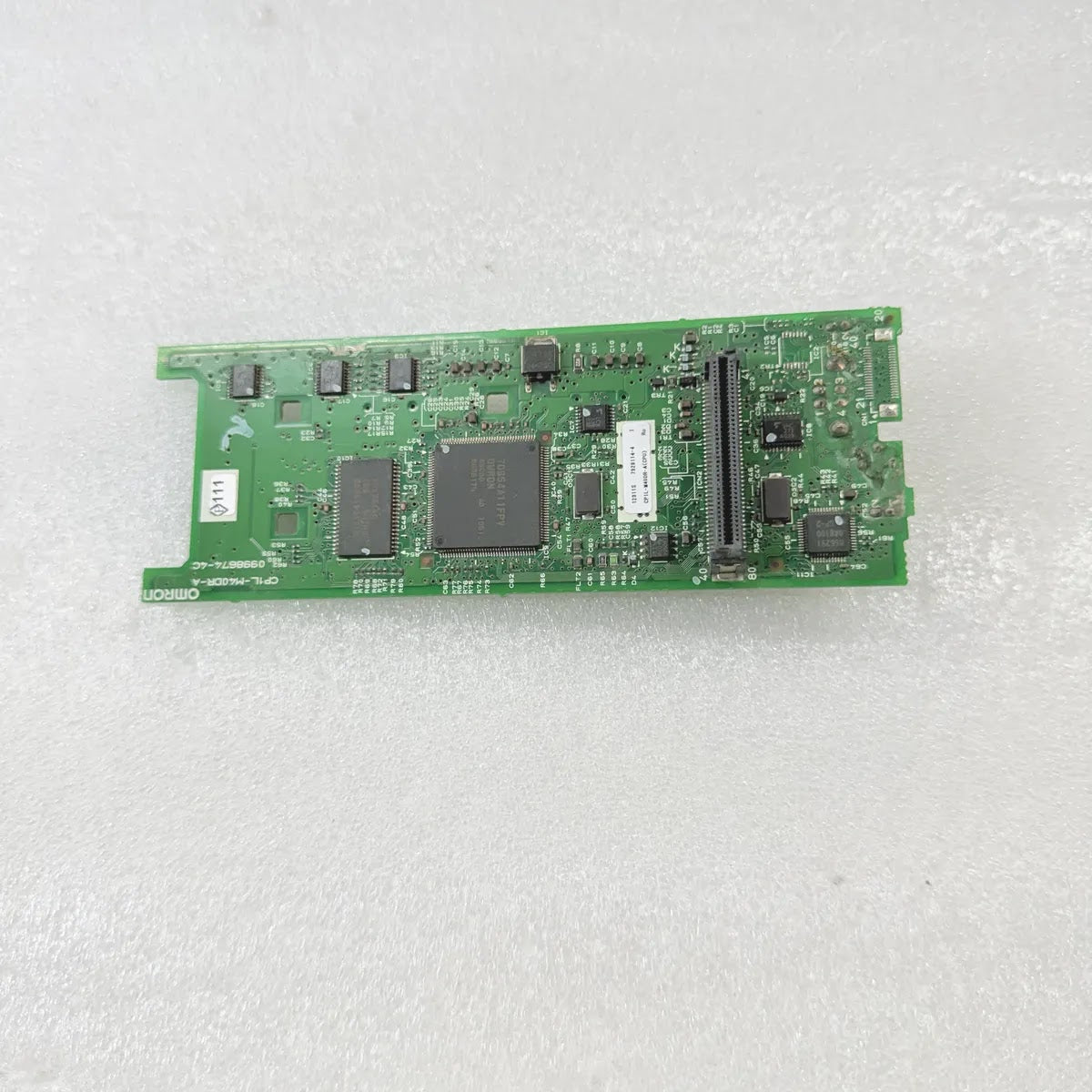

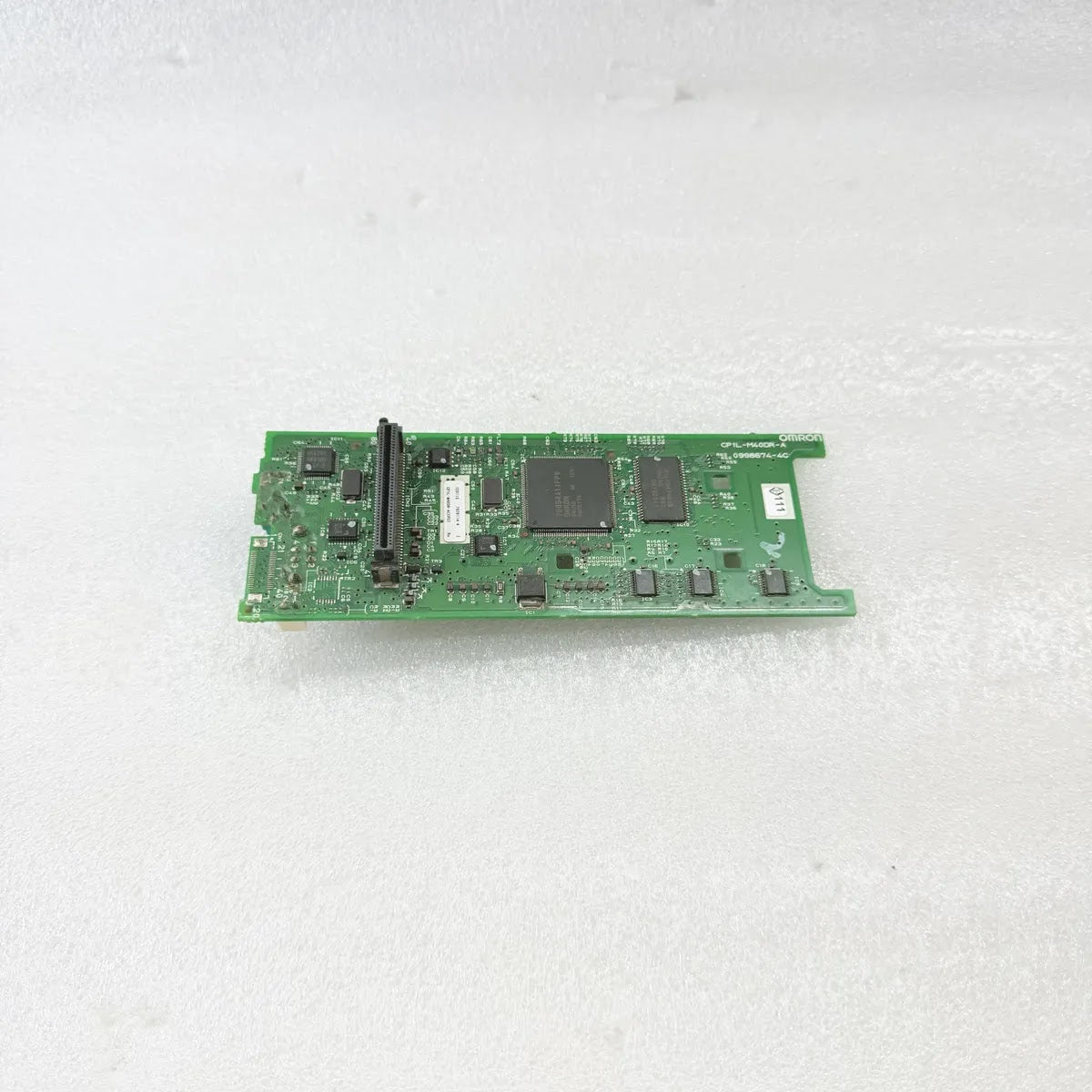

| CPU Board Assembly | CP1L-M40DR-A(CPU) |
| Supply Voltage | 100-240 VAC, 50/60 Hz |
| Digital Inputs | 24 x 24 VDC, PNP/NPN selectable |
| Digital Outputs | 16 relay outputs |
| Total I/O Points | 40 built-in |
| Program Capacity | 10K steps |
| Data Memory | 32K words |
| Instruction Execution Time | 0.55 us basic instruction |

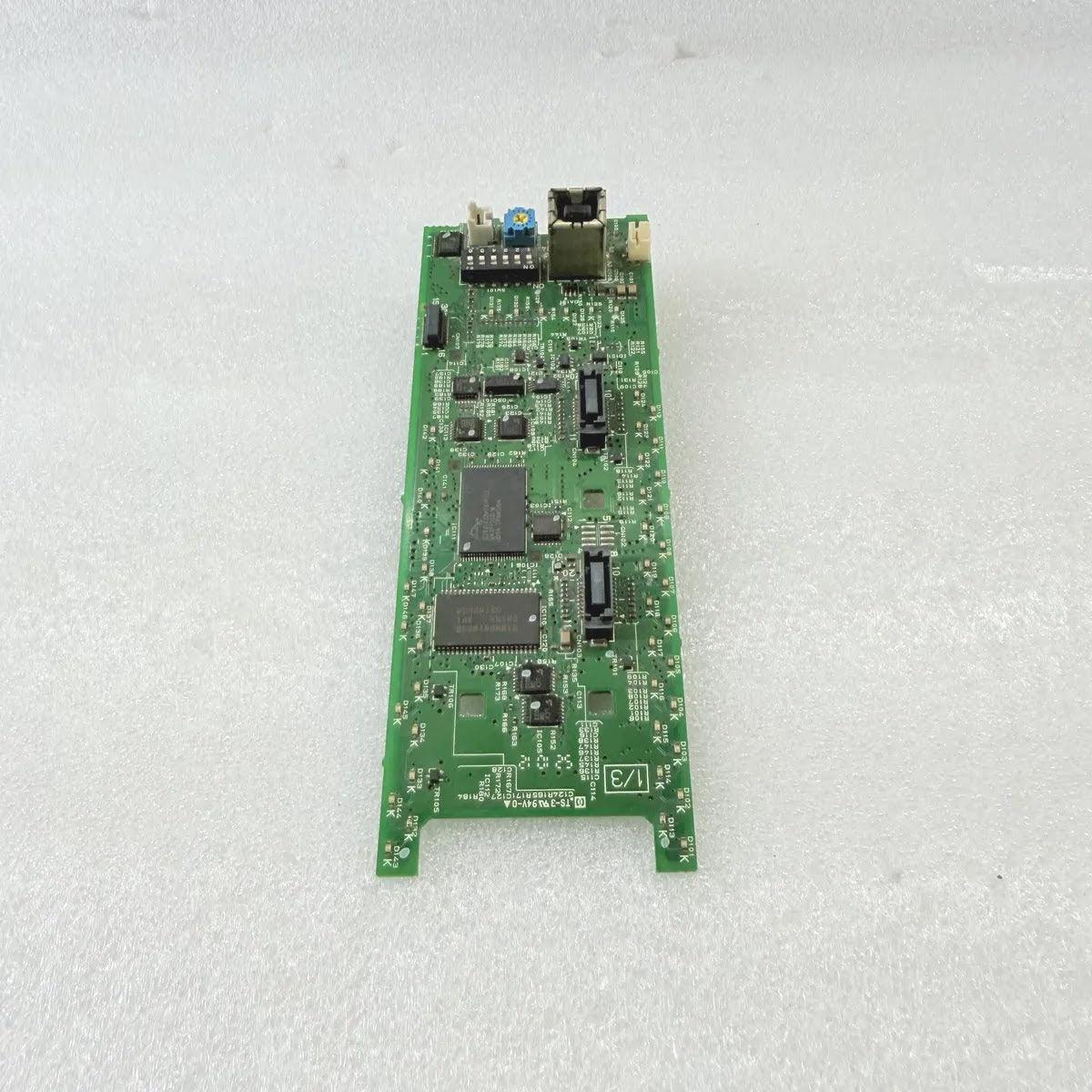

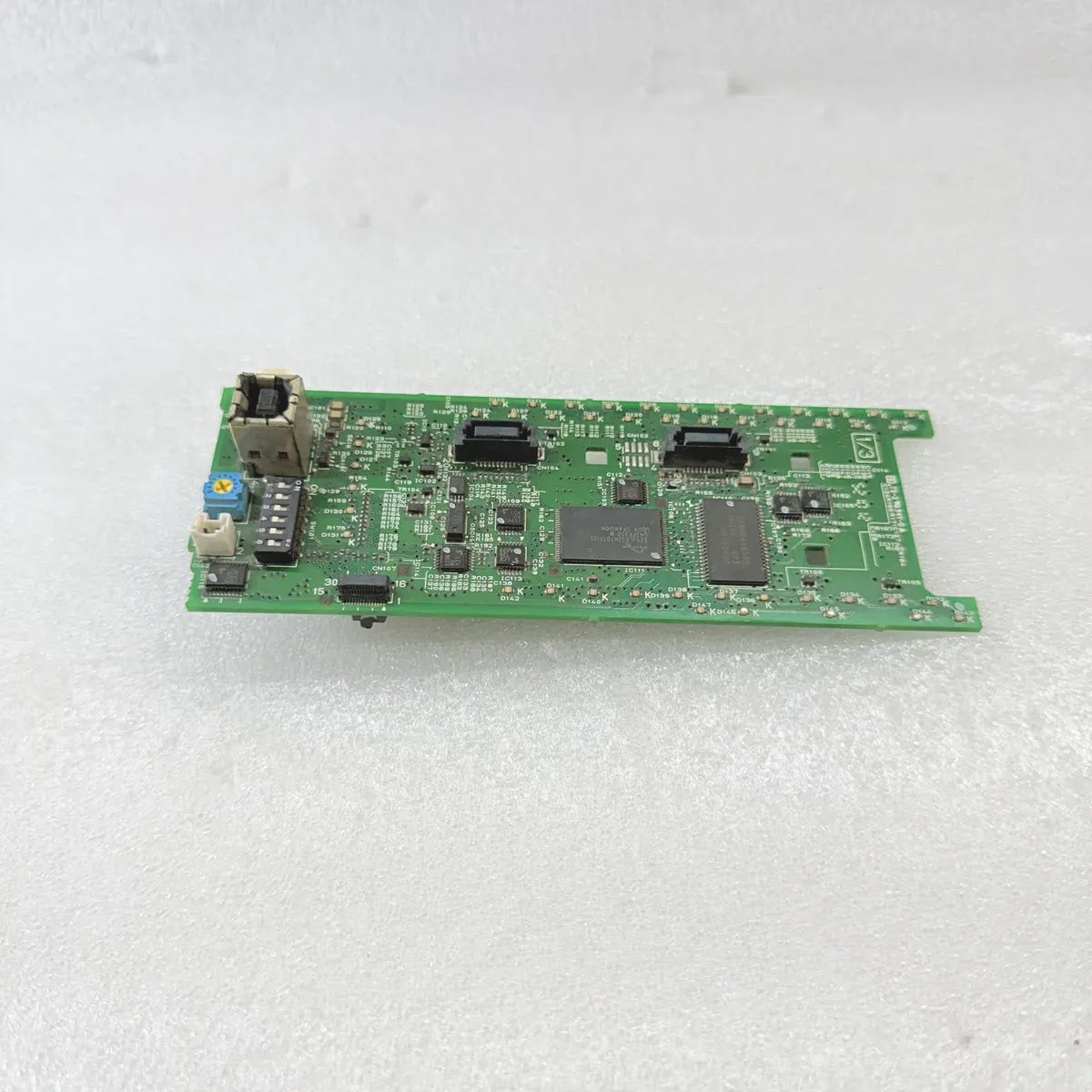

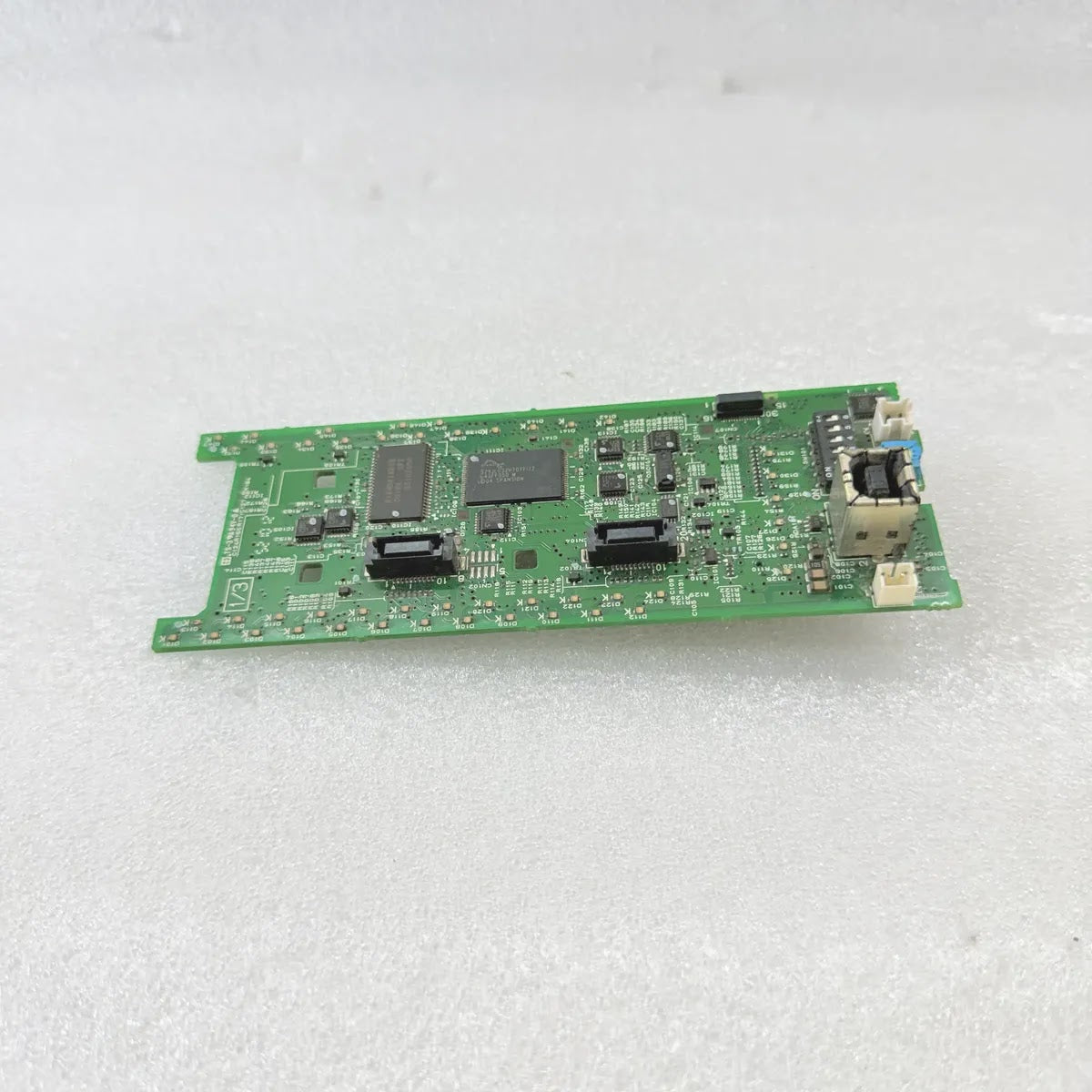

| Communication Port | 1 x USB peripheral port on the front board |
| High-Speed Counter Inputs | 4 channels, 100 kHz maximum |
| Auxiliary 24 Vdc Output | 300 mA |
| Expansion | Up to 3 expansion units |
| Real-Time Clock | Yes |
| Operating Temperature | 0 to 55 C |
| Configuration Switch | 6-position DIP switch, positions 1 to 6 marked ON |
| Processor | Omron 70854A11FPV gate array with R1LV0416DSB SRAM and Spansion S29JL032H70TFI32 flash |
| Usb Controller | M66291 |
| Flammability Rating | 94V-0 (TS-3 board material) |
| Condition | PRE-OWNED / SECOND HAND |
| REF | MK9876 |
