NDC LLC-10 Alarm Display Unit 10-Channel 24V AC/DC
$598.88
NDC LLC-10 Alarm Display Unit 10-Channel 24V AC/DC
Specifications
| Brand | NDC |
| Model | LLC-10 |
| Part Number | LLC-10 |

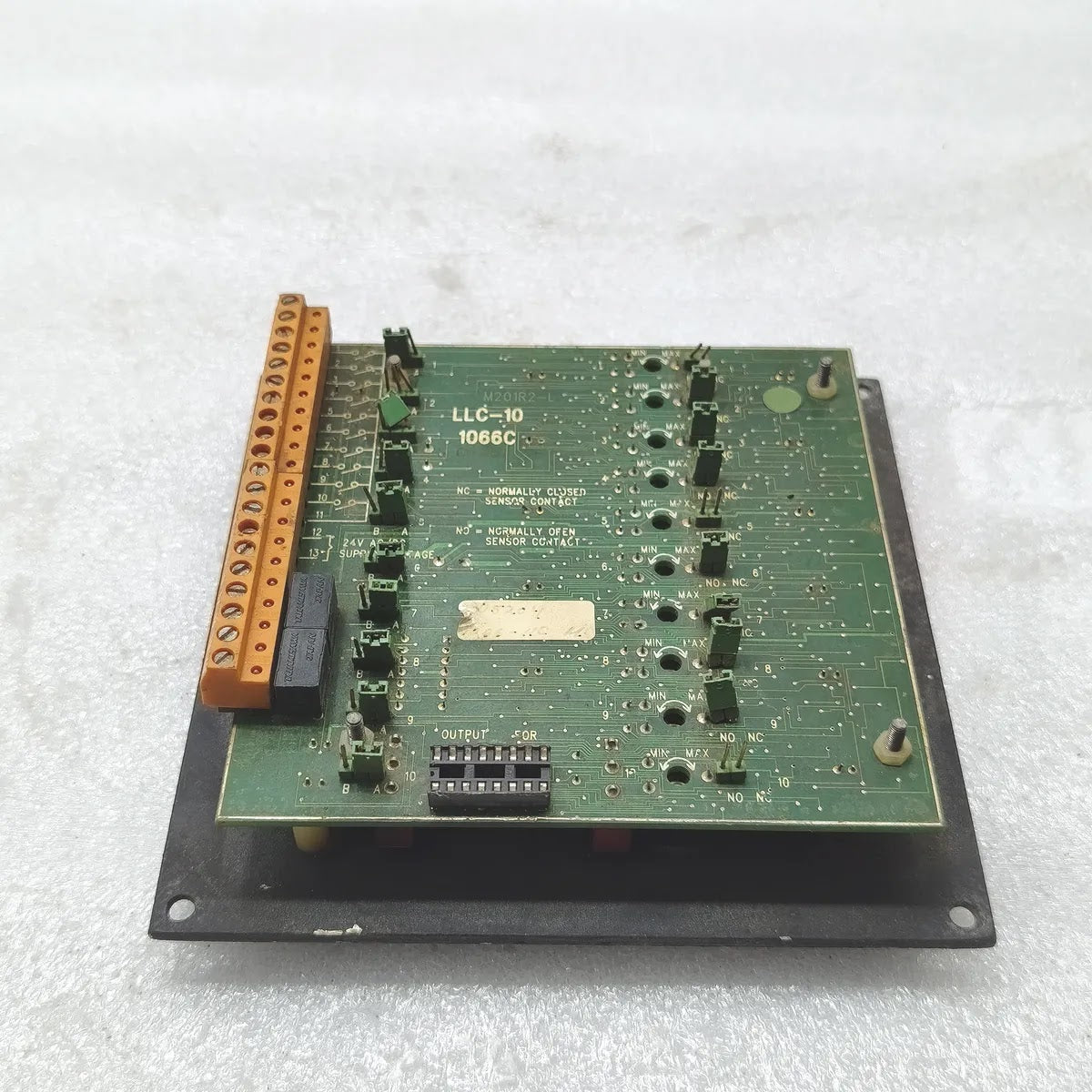

| Pcb Code | 1066C |
| Board Type | M201R2-L |
| Type | Alarm display unit / alarm annunciator panel |
| Series | DIN series compact universal panel |
| Supply Voltage | 24V AC/DC (terminals 12-13), +/-20% |
| Current Consumption | 0.1A normal condition, 0.2A alarm condition |
| Alarm Channels | 10, numbered 1 to 10 |
| Sensor Contacts | Each channel programmable for NO (normally open) or NC (normally closed) sensor contact, with MIN/MAX selection |
| Alarm Groups | A-ALARM and B-ALARM; each channel can be connected to either output group |
| Output Relays | Takamisawa, Japan |
| Time Delay | Individually adjustable 0.5-20 seconds per channel |
| Dimensions | DIN 144 x 144 x 35 mm, panel recess 125 x 125 mm |
| Protection Degree | IP44 front, IP65 with gasket |
| Operating Temperature | 10 C to max 55 C |
| Humidity | Max 80%, non-condensing |
| Standard | EN 50 082-2; IEC 801-2:1991; ENV 50 140; ENV 50 141; IEC 801-4 |

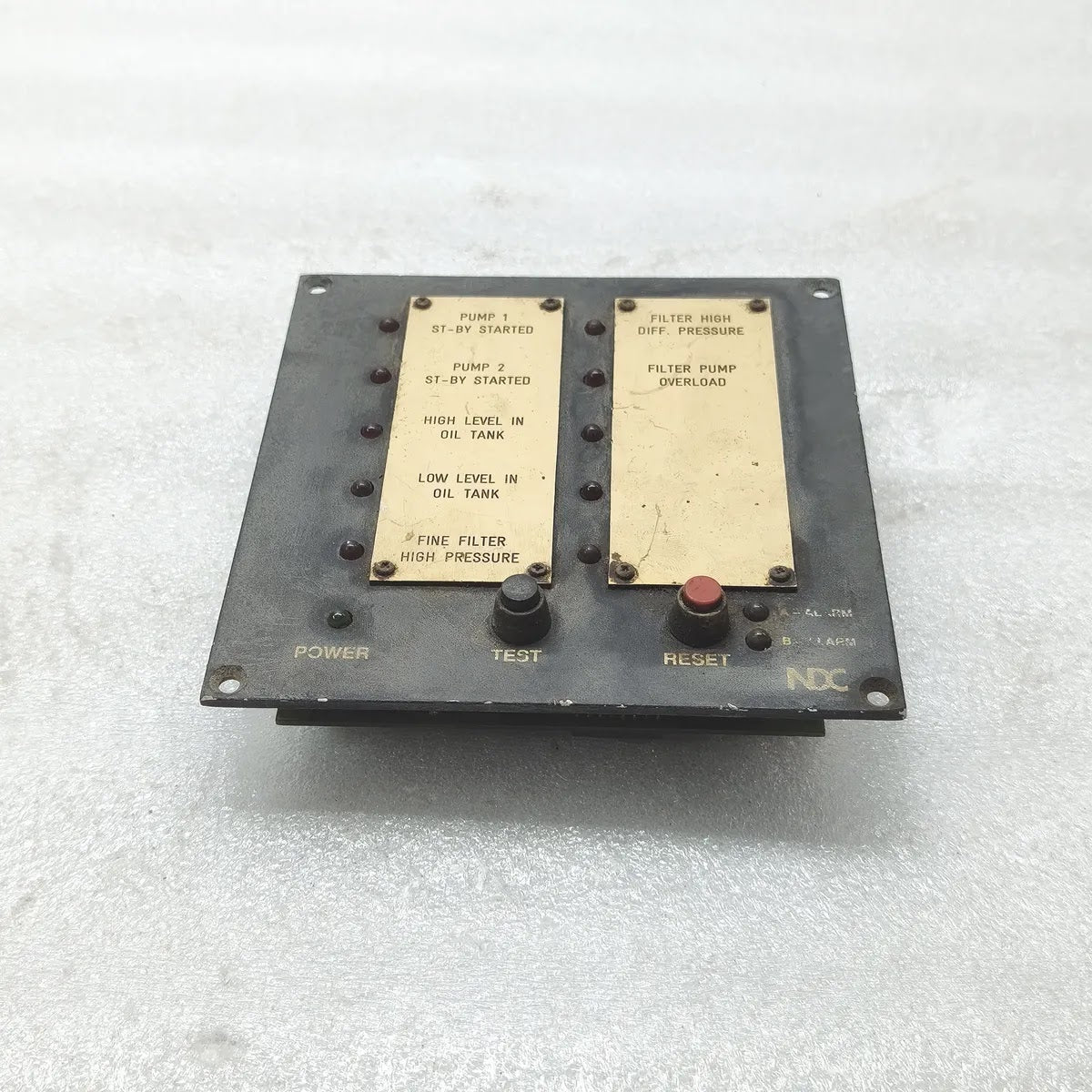

| Application | Process industry and machine builder alarm monitoring; this unit engraved for engine room pump, oil tank level and filter pressure alarms |
| Condition | PRE-OWNED / SECOND HAND |

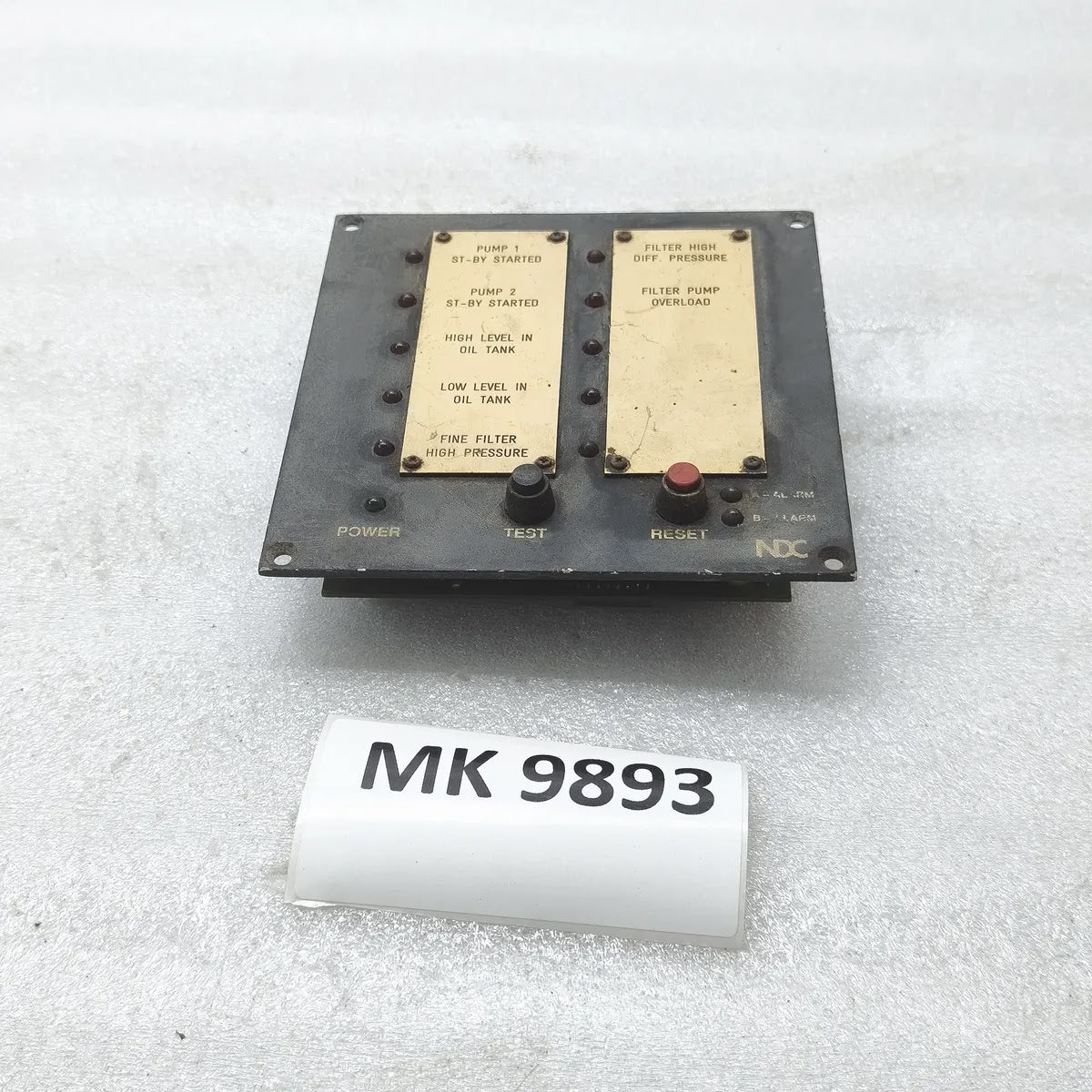

| REF | MK9893 |
