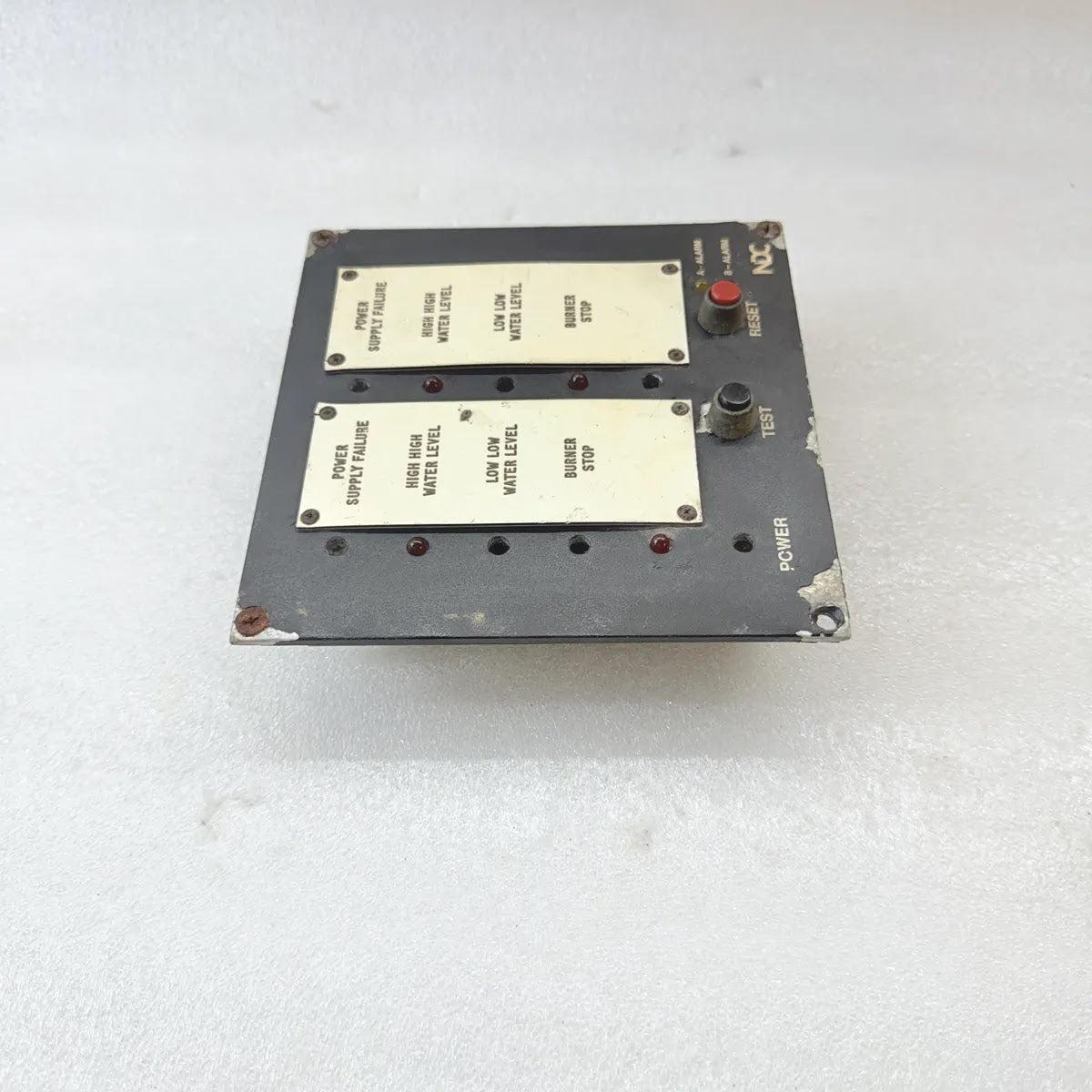

NDC LLC-10 Alarm Display Panel 10-Channel 24V AC/DC Marine Monitor Unit
$599.99
NDC LLC-10 Alarm Display Panel 10-Channel 24V AC/DC Marine Monitor Unit
Specifications
| Brand | NDC |
| Model | LLC-10 |
| Part Number | LLC-10 |
| Order No | 12040 |

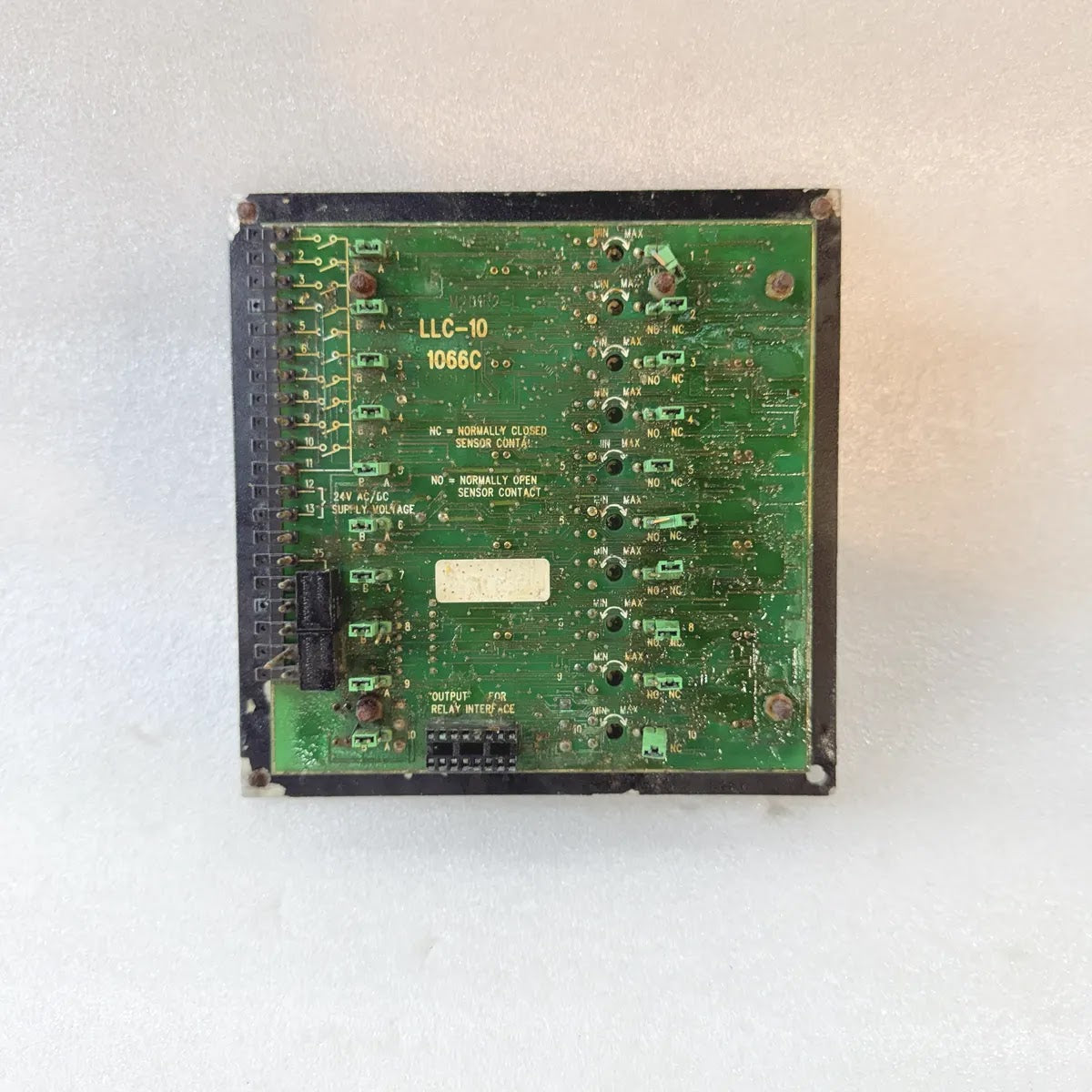

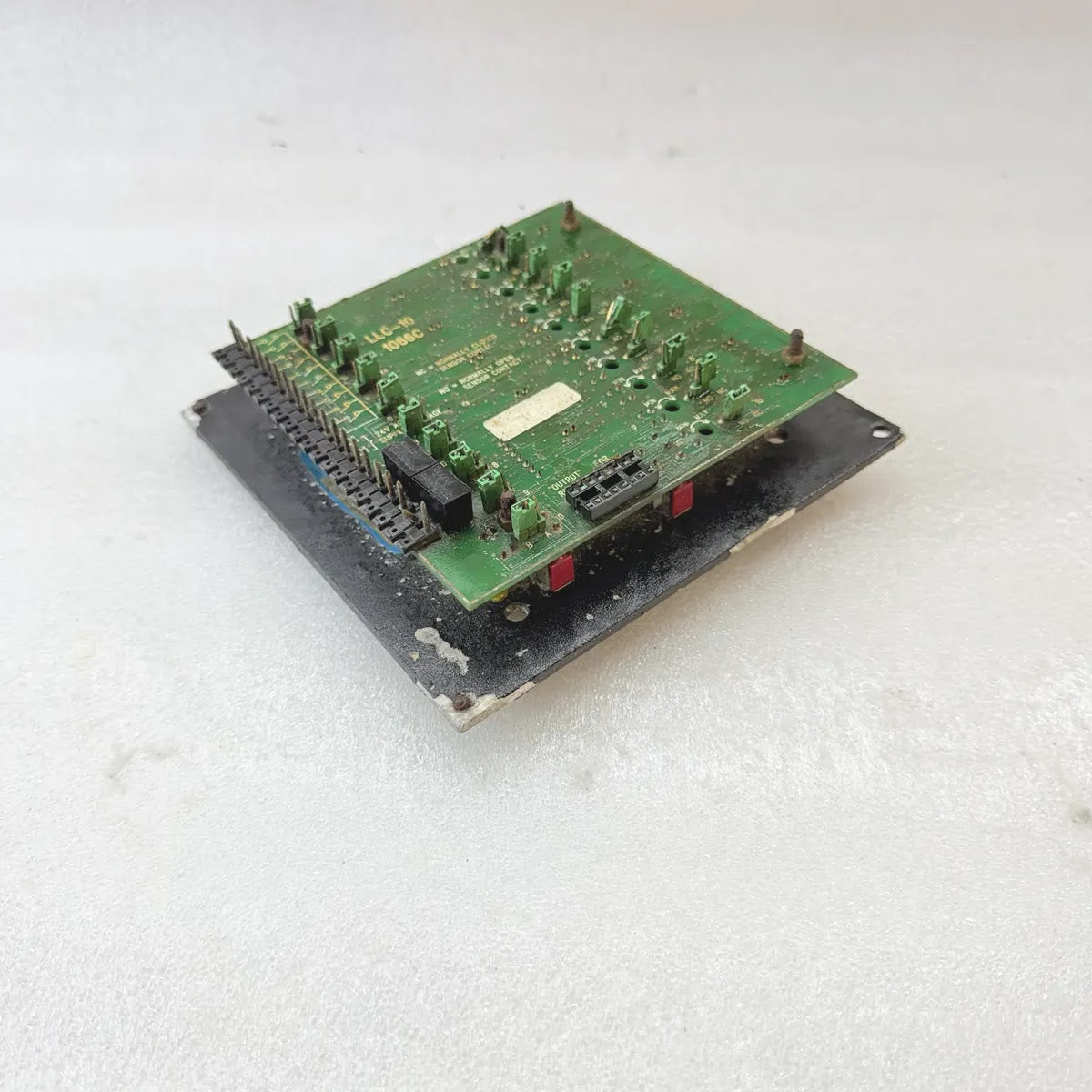

| Revision | 1066C (board code) |
| Type | Alarm display unit |
| Series | DIN series alarm units for process industry and machine builders |
| Supply Voltage | 24V AC/DC ±20% |
| Current Consumption | 0.1A normal, 0.2A in alarm |
| Alarm Channels | 10, numbered 1-10 |
| Time Range | 0.5-20 s adjustable time delay per channel, MIN to MAX |
| Alarm Groups | A-alarm and B-alarm, each channel assignable to either group |
| Relay Output | Output for relay interface, one change-over contact per alarm group (A and B) |
| Output Relays | Takamisawa, Japan |

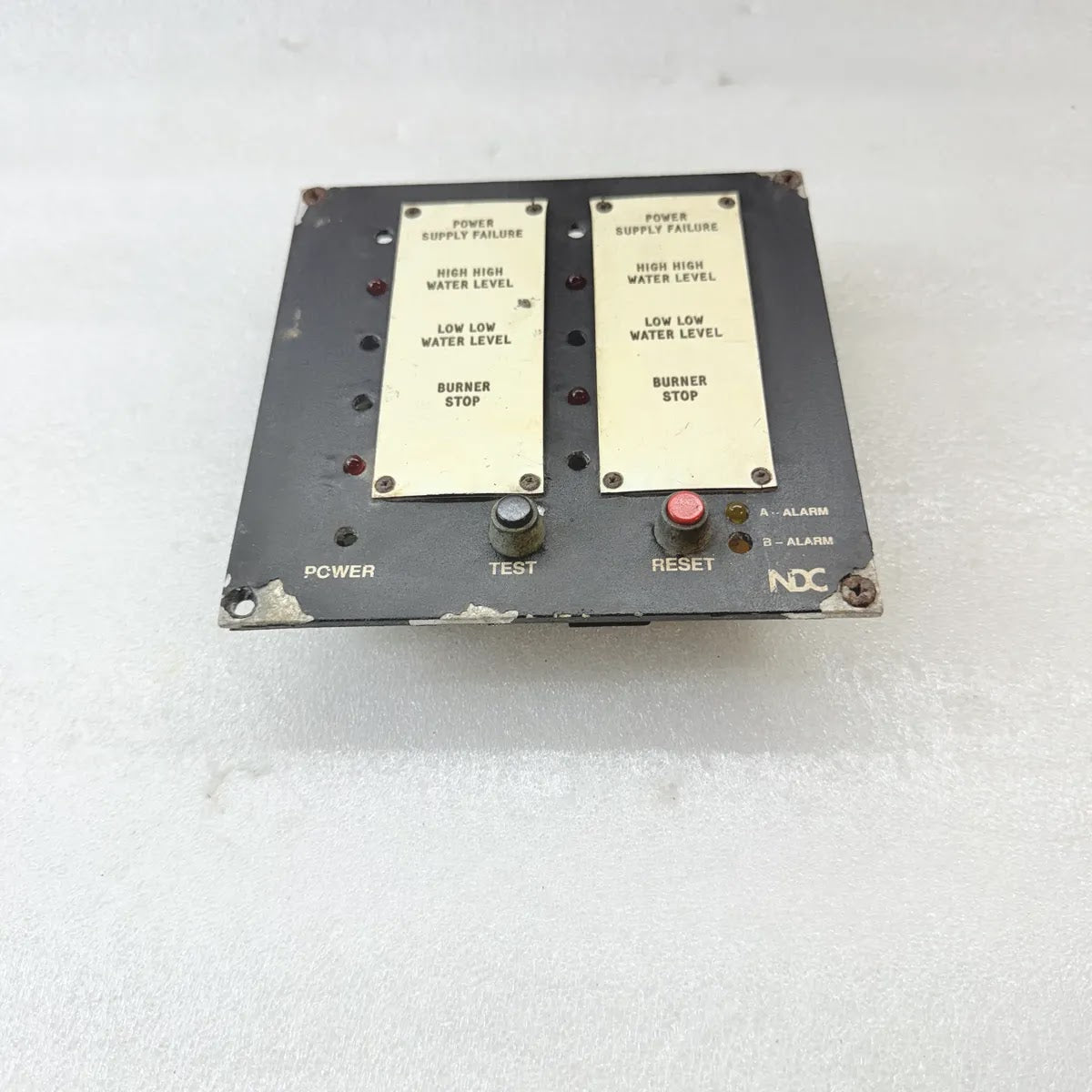

| Functions | Power indication, lamp test, alarm reset, channel memory |
| Dimensions | DIN 144 x 144 x 35 mm, panel recess 125 x 125 mm |
| Protection | IP44, IP65 with gasket |
| Operating Temperature | 10 to 55 °C |
| Humidity | Max 80%, non-condensing |
| Standards | EN 50 082-2, IEC 801-2:1991, ENV 50 140, ENV 50 141, IEC 801-4 |
| Application | Alarm monitoring for process industry, machinery and marine plant |
| Condition | PRE-OWNED / SECOND HAND |

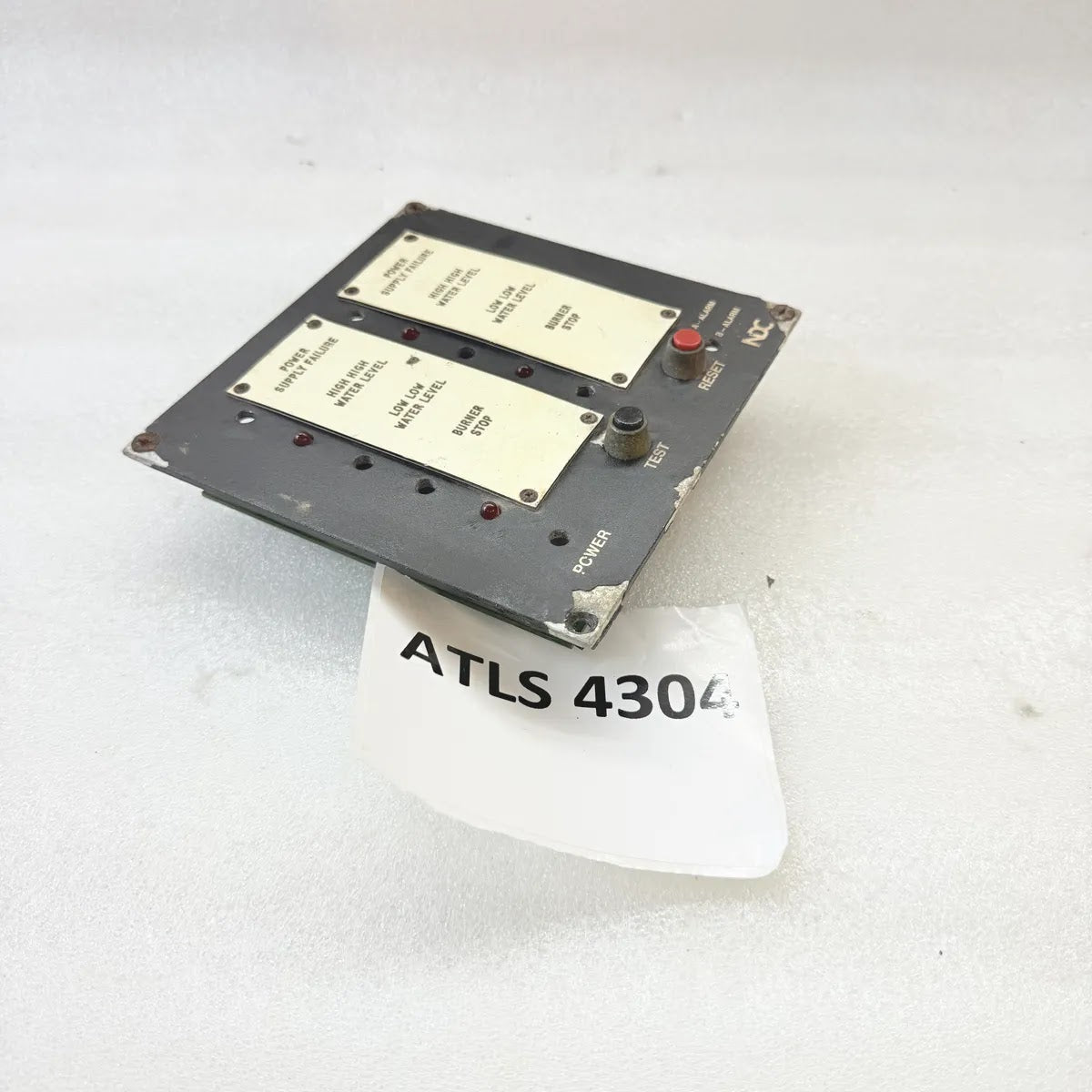

| REF | ATLS4304 |
