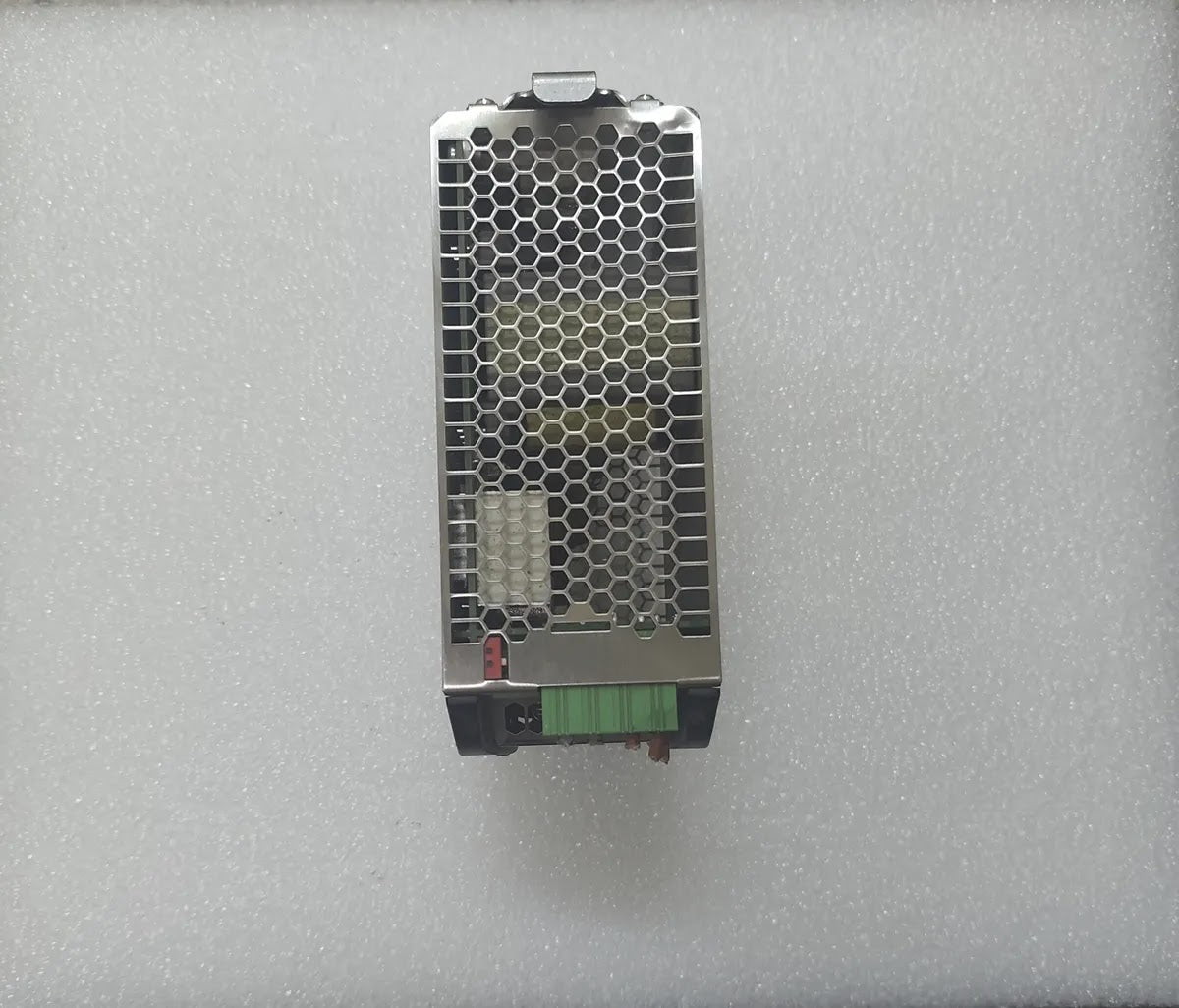

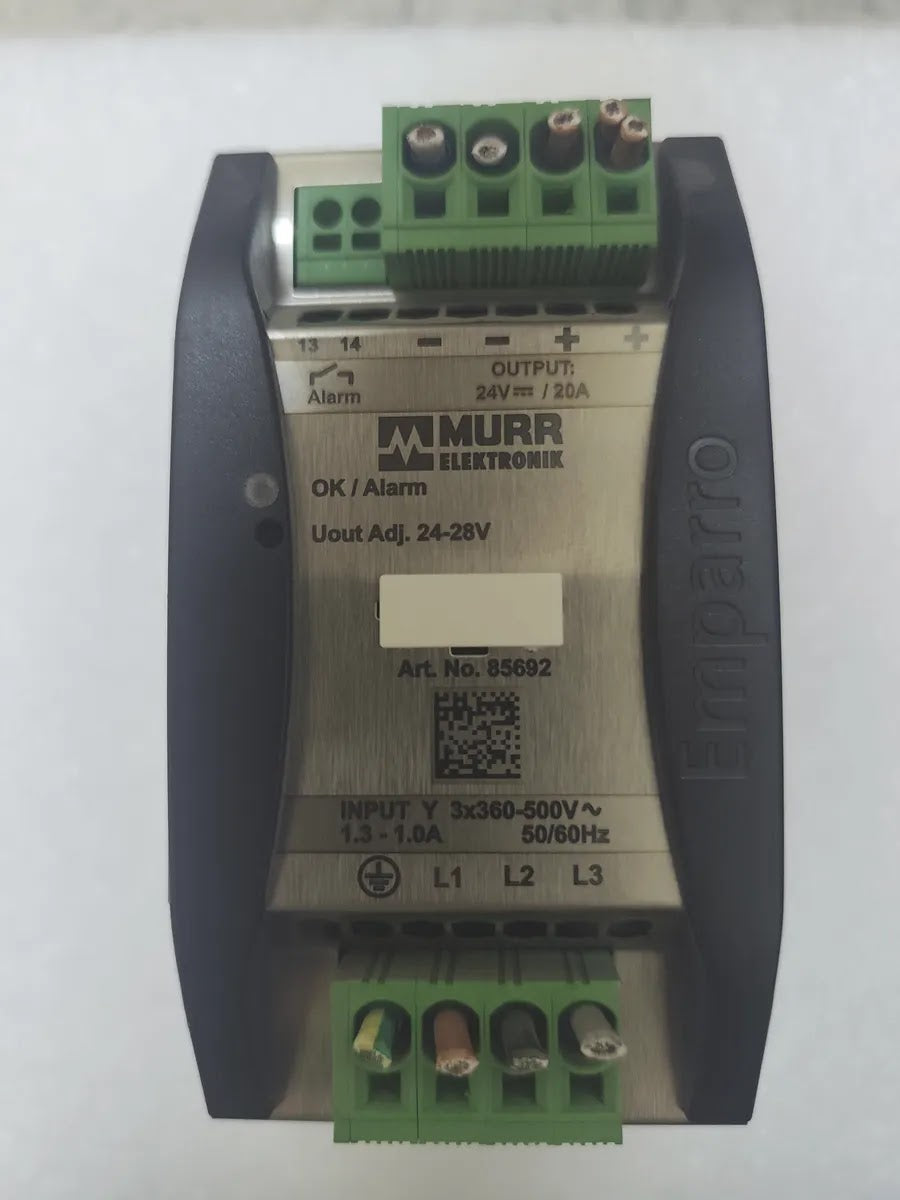

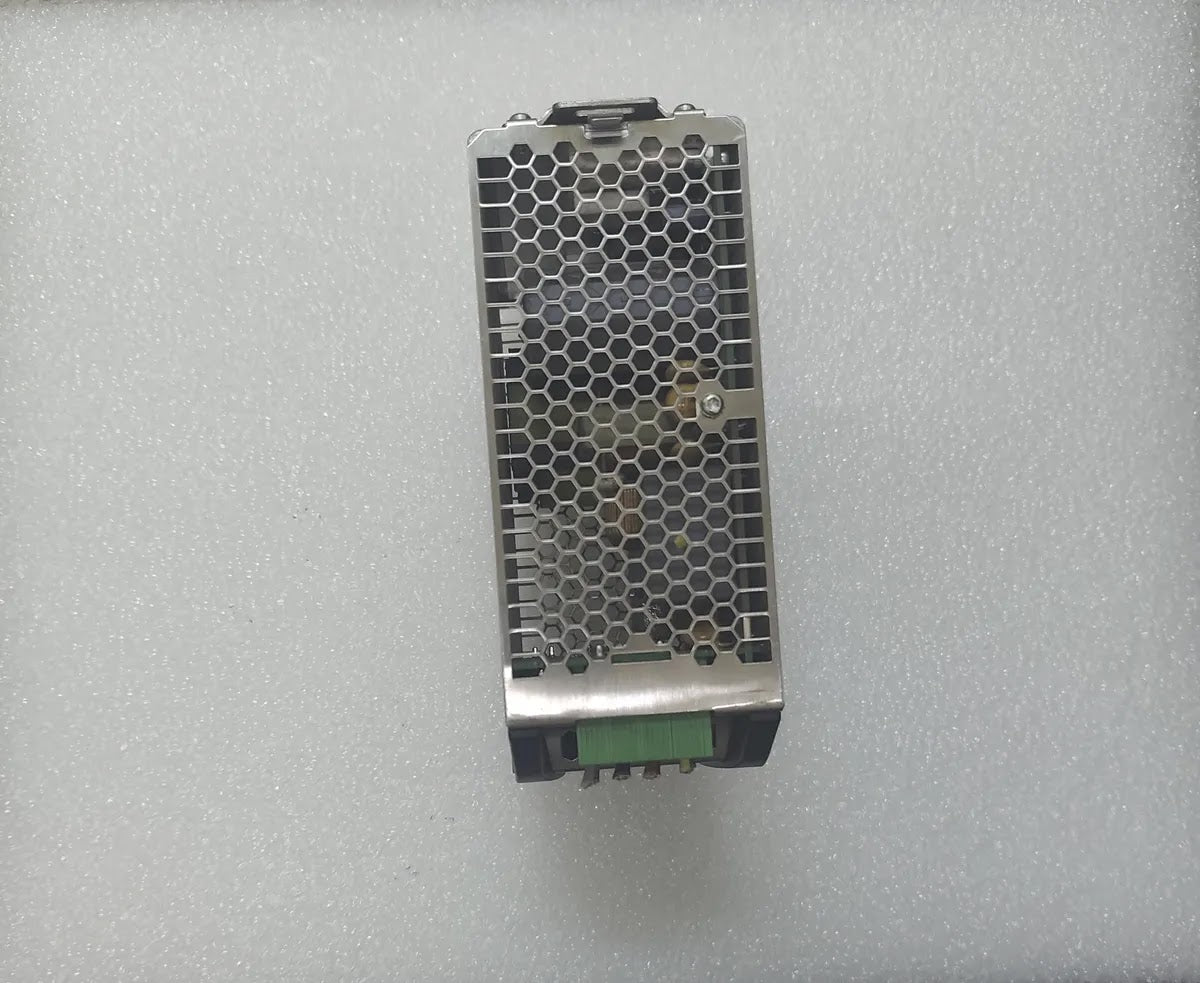

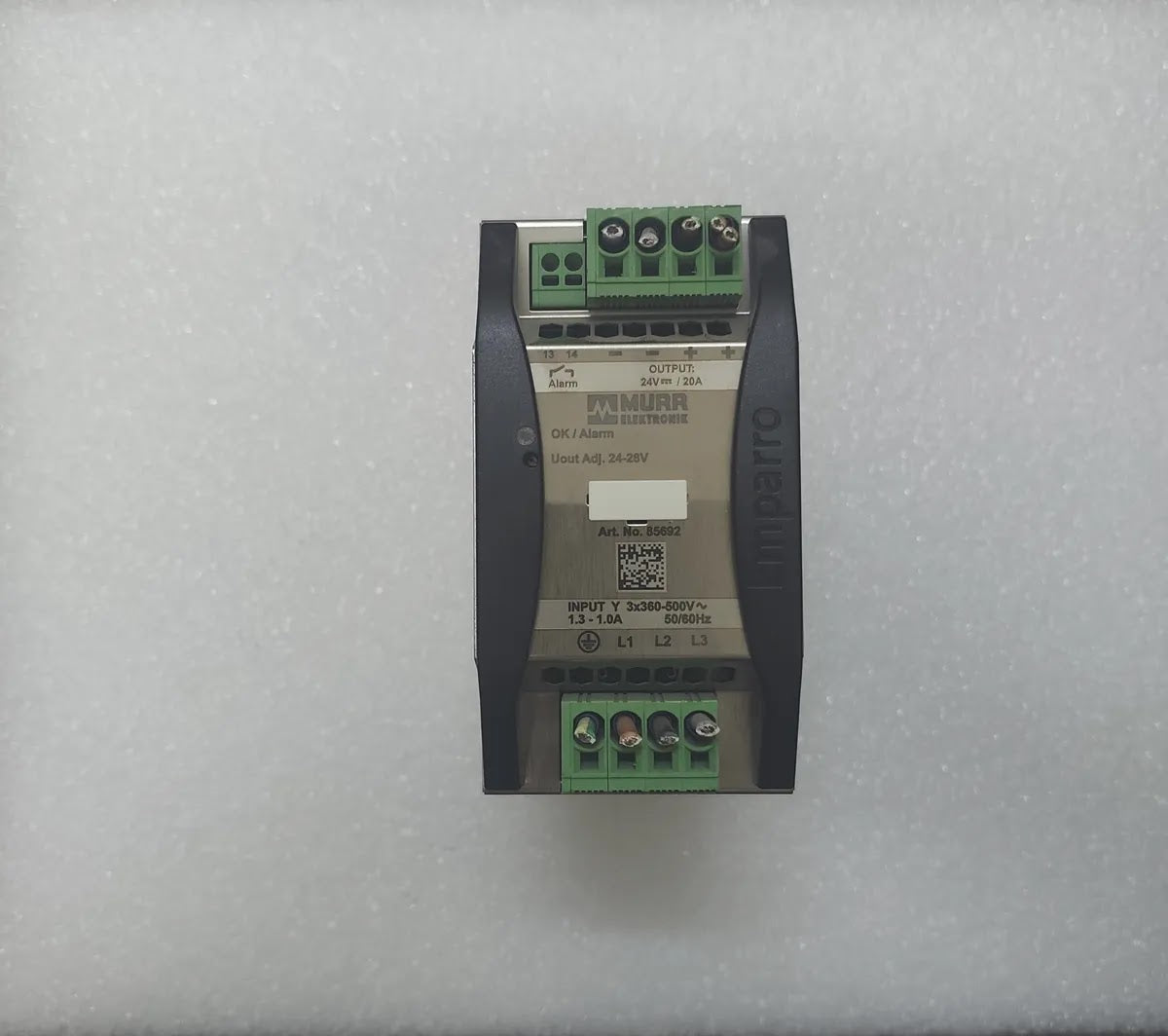

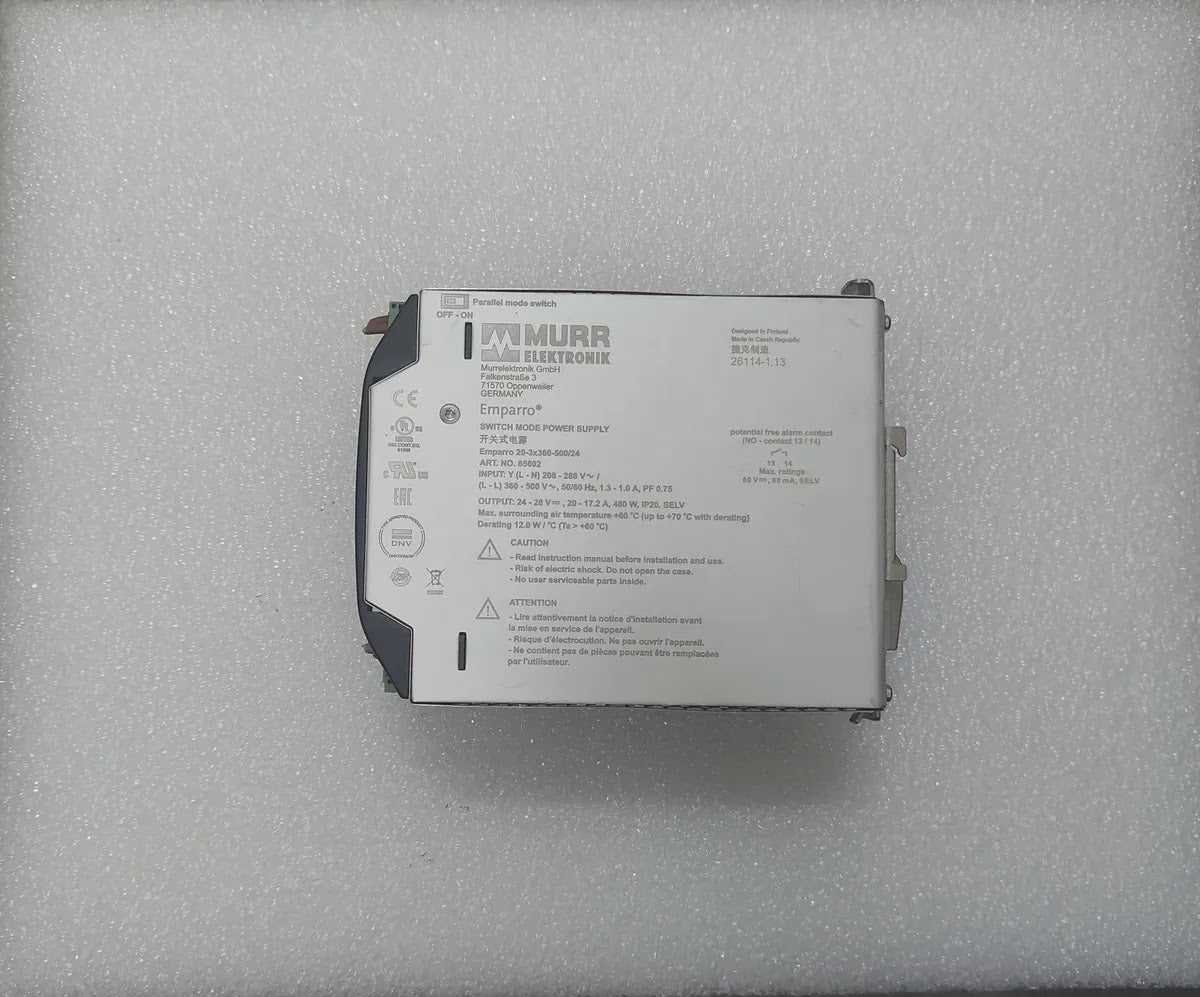

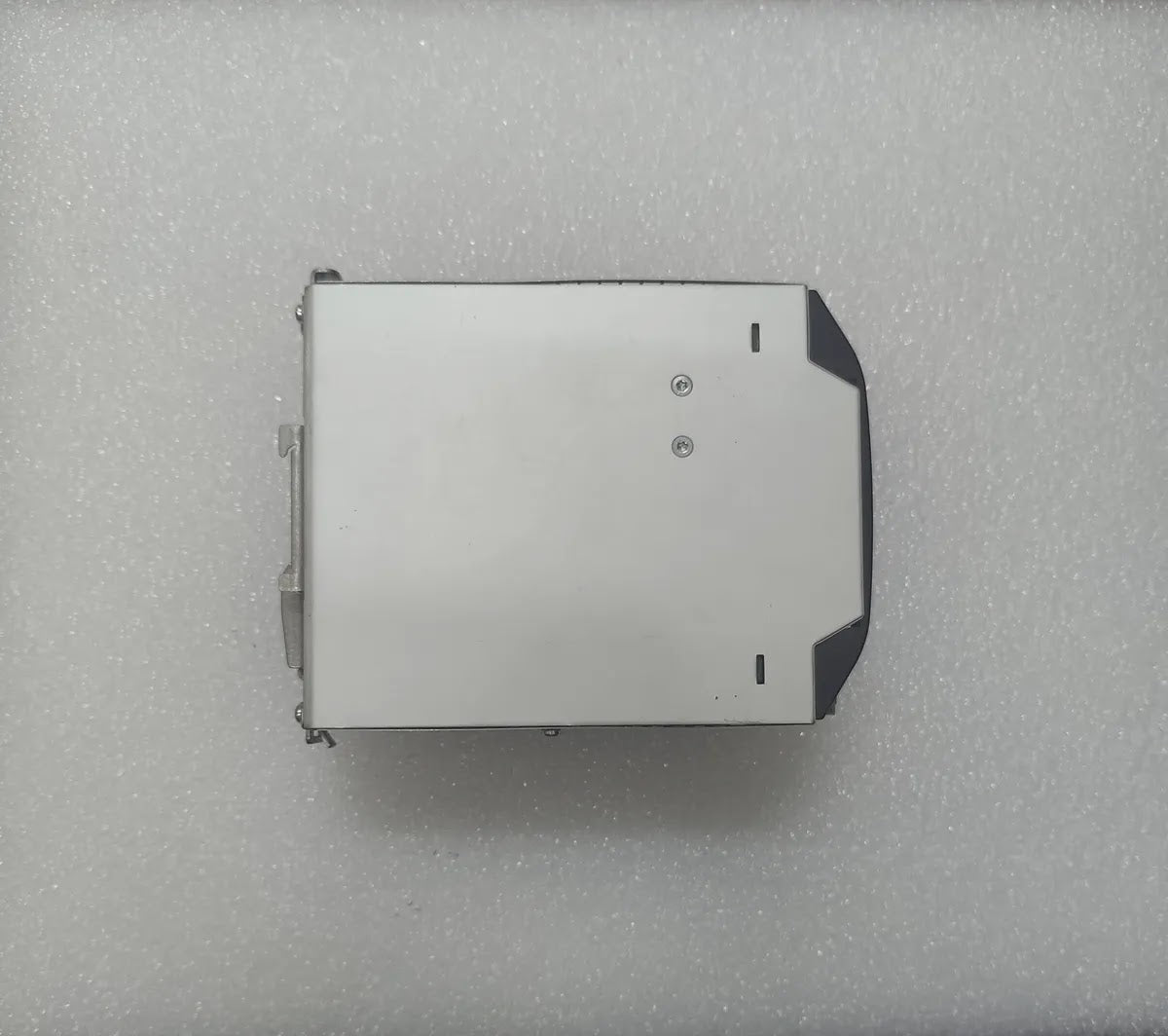

MURR ELEKTRONIK 85692 Emparro 20-3x360-500/24 Power Supply 24V 20A
$198.99
Skip to product information
MURR ELEKTRONIK 85692 Emparro 20-3x360-500/24 Power Supply 24V 20A
$198.99
Specifications
| BRAND | MURR ELEKTRONIK (Murrelektronik GmbH) |
| MANUFACTURER | Murrelektronik GmbH, Falkenstrasse 3, 71570 Oppenweiler, Germany |
| MODEL | Emparro 20-3x360-500/24 |
| ART NO | 85692 |
| TYPE | Switch Mode Power Supply, 3-phase |
| SERIES | Emparro |
| REVISION | 26114-1.13 |
| INPUT VOLTAGE | Y (L-N) 208 - 288 V AC / (L-L) 360 - 500 V AC, 3 x 360-500 V AC |
| INPUT CURRENT | 1.3 - 1.0 A |
| FREQUENCY | 50/60 Hz |
| POWER FACTOR | PF 0.75 |
| OUTPUT VOLTAGE | 24 - 28 V DC, adjustable (Uout Adj. 24-28V) |
| OUTPUT CURRENT | 20 - 17.2 A (24V / 20A) |
| OUTPUT POWER | 480 W |
| EFFICIENCY | 94.8 % at 3 x 400 V AC |
| ALARM CONTACT | Potential-free alarm contact (NO - contact 13 / 14), max. ratings 60 V DC, 80 mA, SELV |
| OUTPUT ISOLATION | SELV |
| PROTECTION RATING | IP20 |
| OPERATING TEMPERATURE | Max. surrounding air temperature +60 °C (up to +70 °C with derating) |
| DERATING | 12.0 W / °C (Ta > +60 °C) |
| APPLICATION | Power Boost - up to 50 % additional power for 5 s to start high loads and capacitive loads |
| DIMENSIONS | 143 x 65 x 167 mm (H x W x D) |
| WEIGHT | 1.256 kg |
| APPROVALS | CE, cULus Listed IND.CONT.EQ. 61RM, EAC, DNV Type Approved Product, RoHS / China RoHS (20) |
| COUNTRY OF ORIGIN | Made in Czech Republic (designed in Finland) |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD031 |
