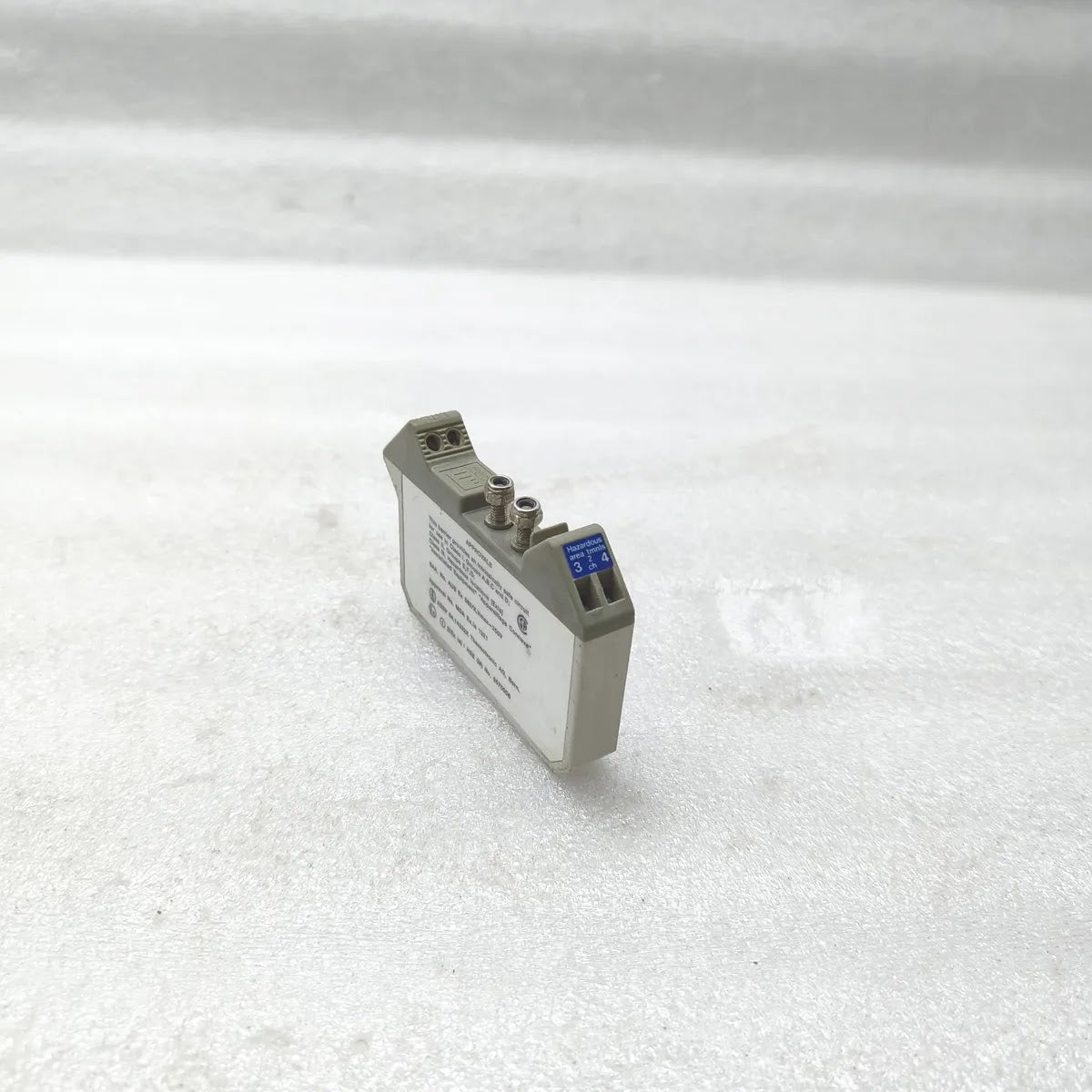

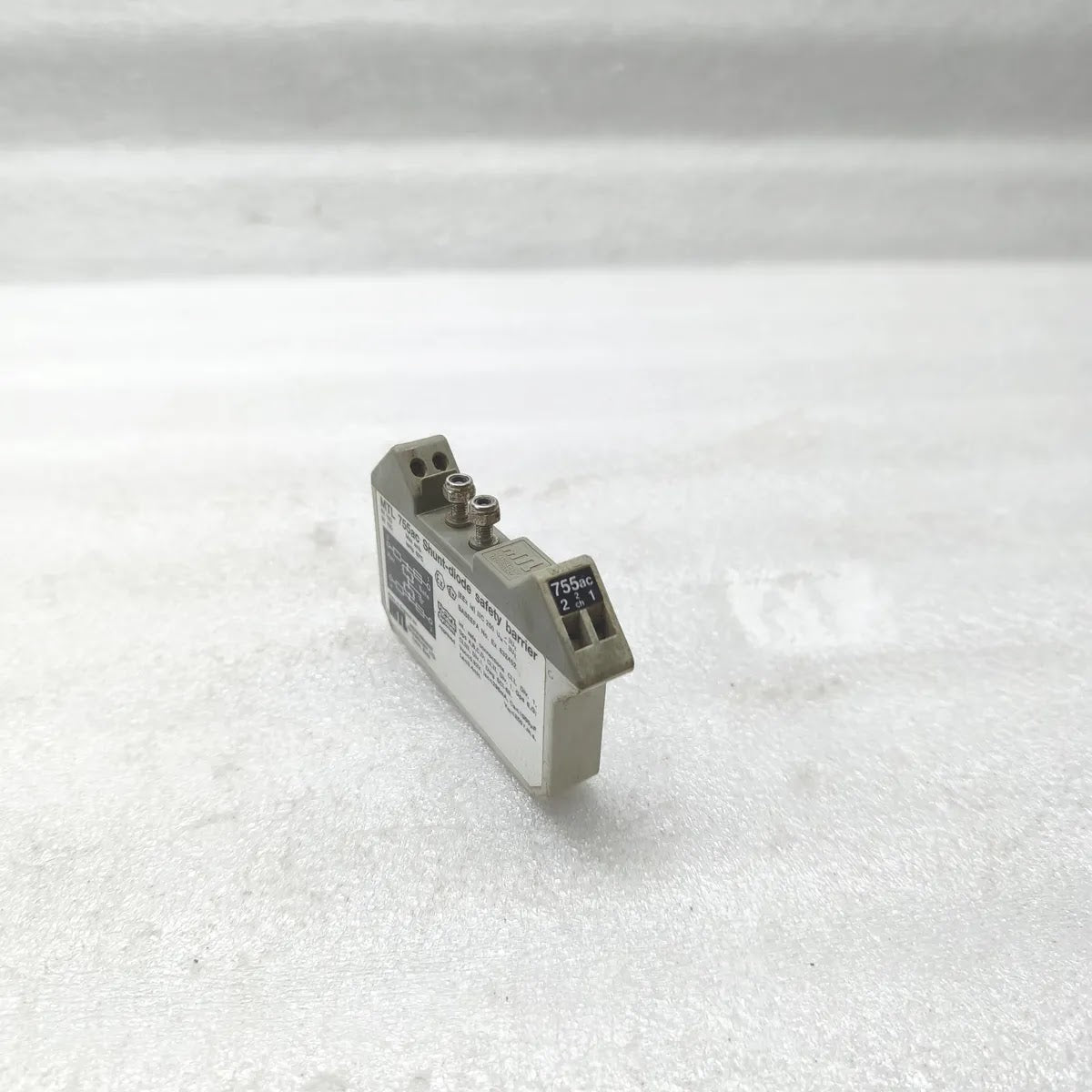

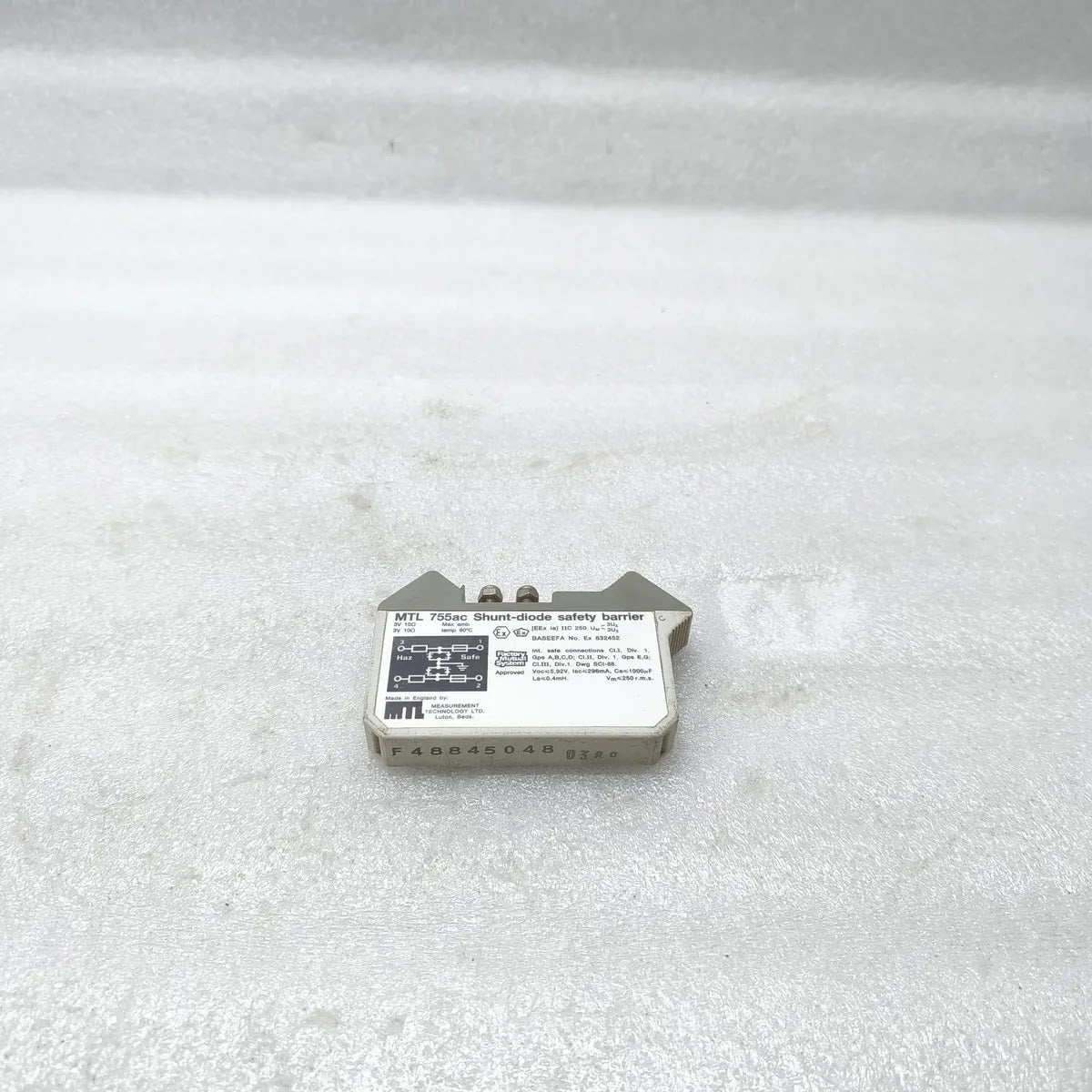

MTL 755ac Shunt-Diode Safety Barrier 3V 10 Ohm
$52.99
Skip to product information
MTL 755ac Shunt-Diode Safety Barrier 3V 10 Ohm
$52.99
MTL 755ac Shunt-Diode Safety Barrier 3V 10 Ohm

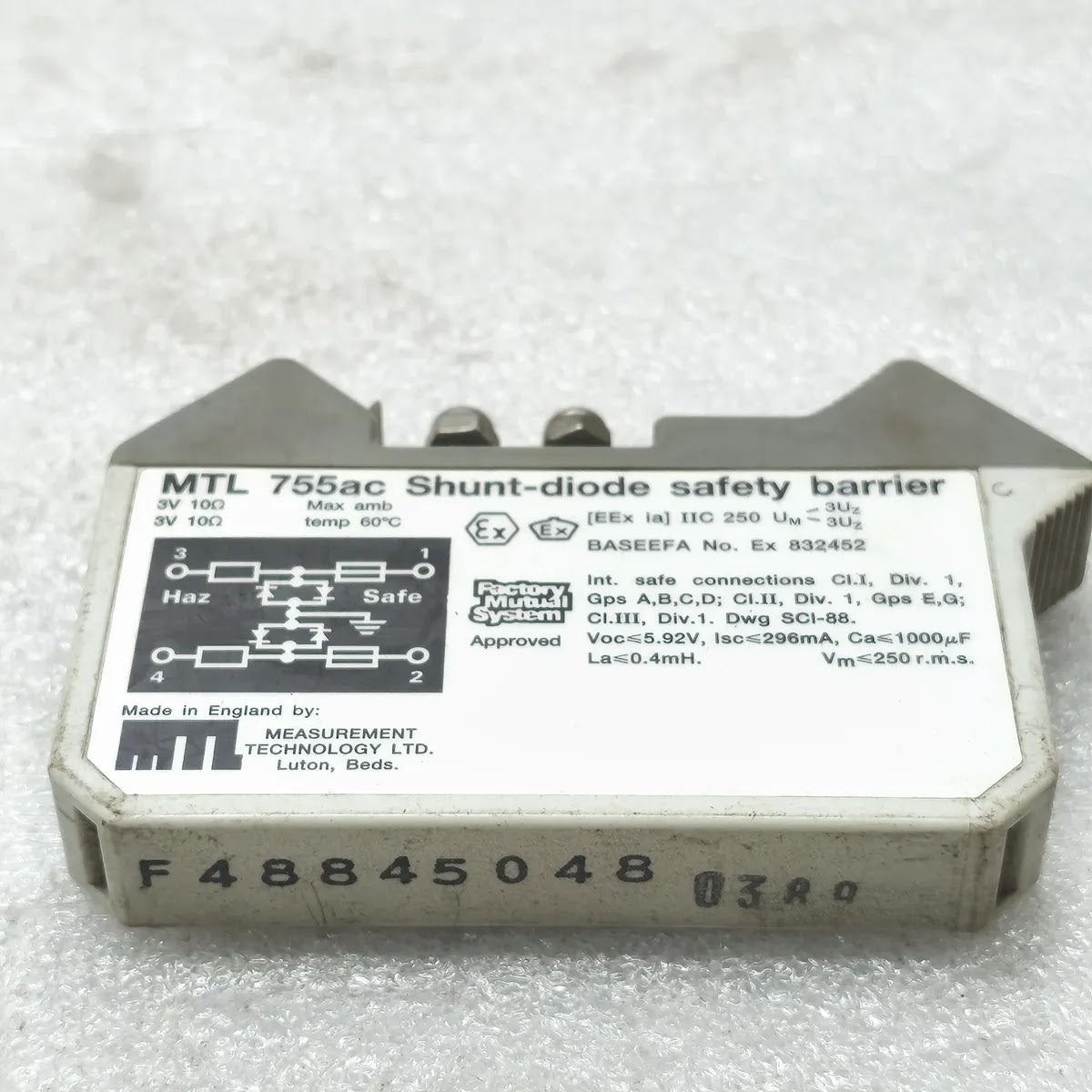

Specifications
| Brand | MTL (Measurement Technology Ltd.) |
| Model | 755ac |
| Part Number | MTL755ac |
| Type | Shunt-diode safety barrier, intrinsically safe interface |
| Series | MTL700 range shunt-diode safety barriers |
| Channels | 2 channels, non-polarised (ac) |
| Working Voltage | 3V per channel |
| End To End Resistance | 10Ω per channel |
| Maximum Safe Area Voltage | Vm ≤ 250 r.m.s.; Vmax = 250V |
| Open Circuit Voltage | Voc ≤ 5.92V |
| Short Circuit Current | Isc ≤ 296mA |
| Maximum External Capacitance | Ca ≤ 1000µF |
| Maximum External Inductance | La ≤ 0.4mH |
| Gas Group | [EEx ia] IIC 250 UM ≤ 3UZ |
| Maximum Ambient Temperature | 60°C |

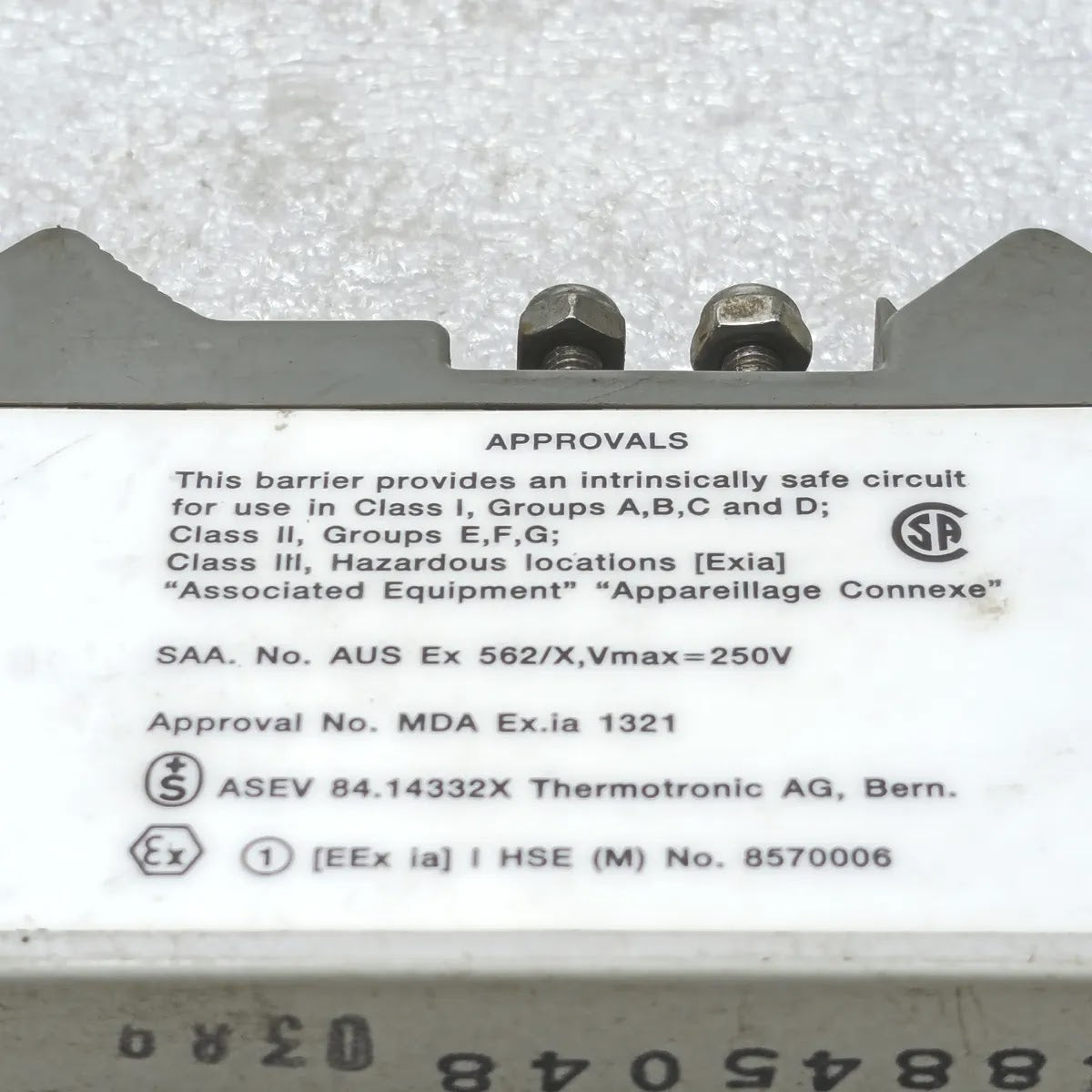

| Hazardous Area Classification | Class I, Groups A, B, C and D; Class II, Groups E, F, G; Class III hazardous locations [Exia], Associated Equipment |
| Application | Limits voltage and current passed into a hazardous-area intrinsically safe circuit |
| Country Of Origin | Made in England |
| Condition | PRE-OWNED / SECOND HAND |

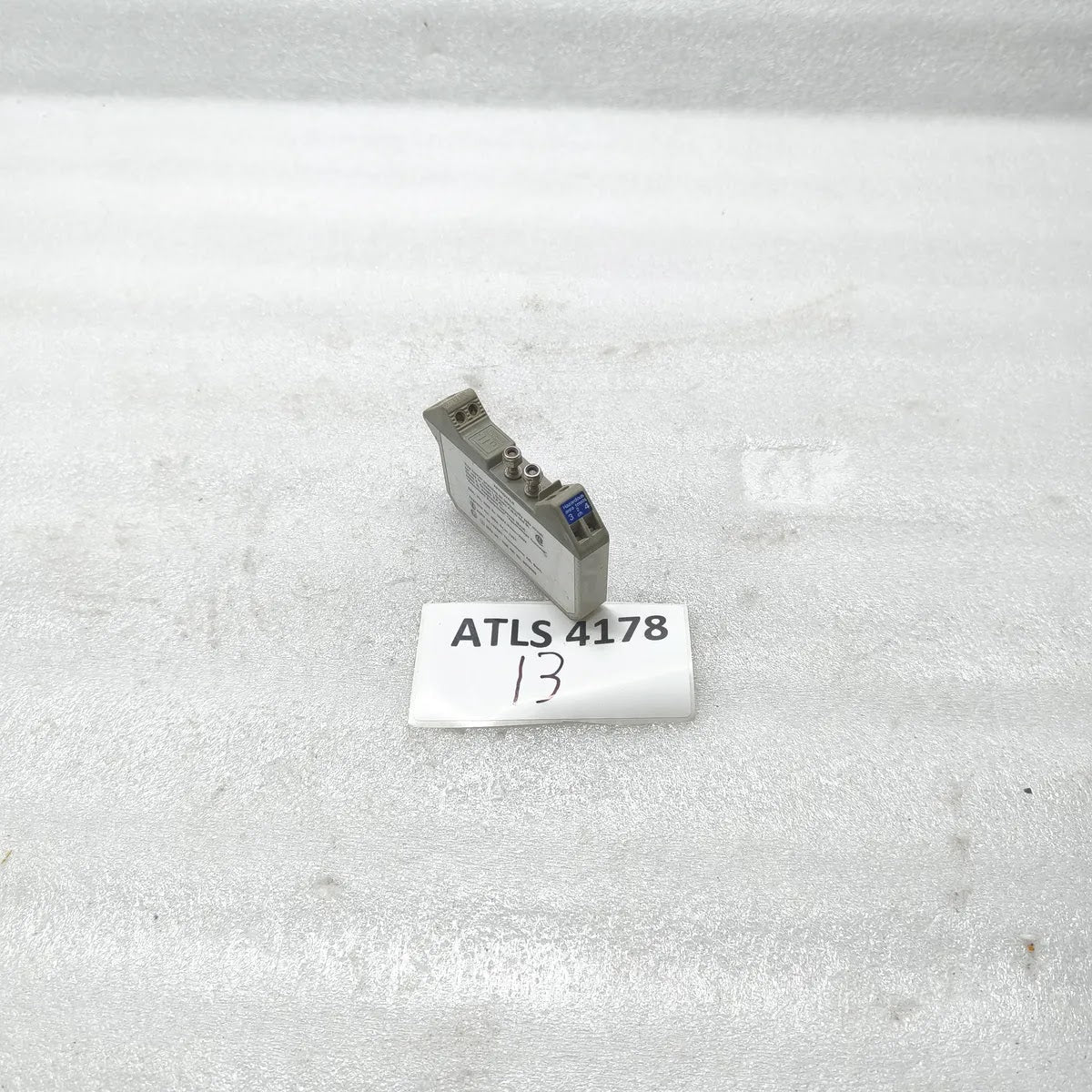

| REF | ATLS4178 |
