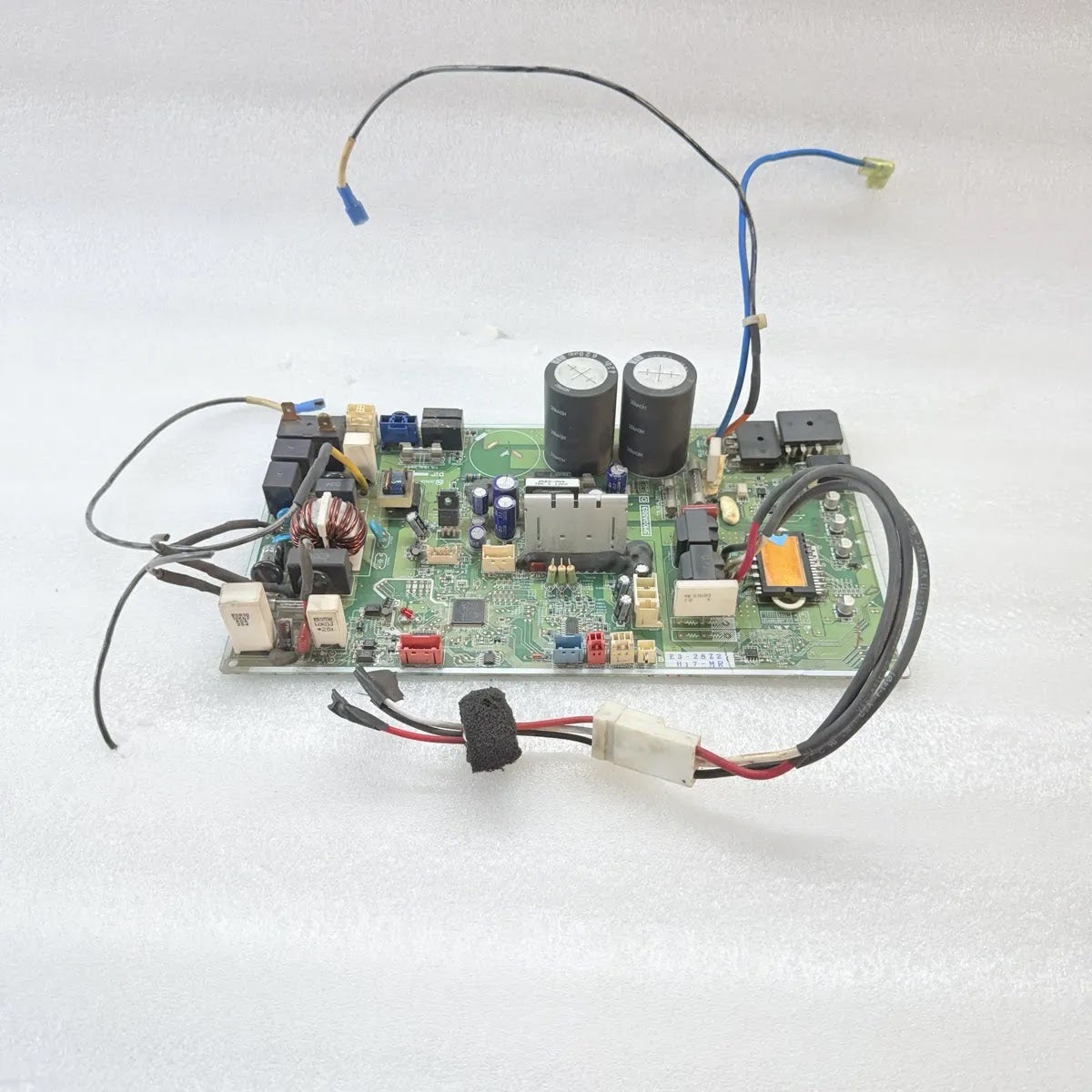

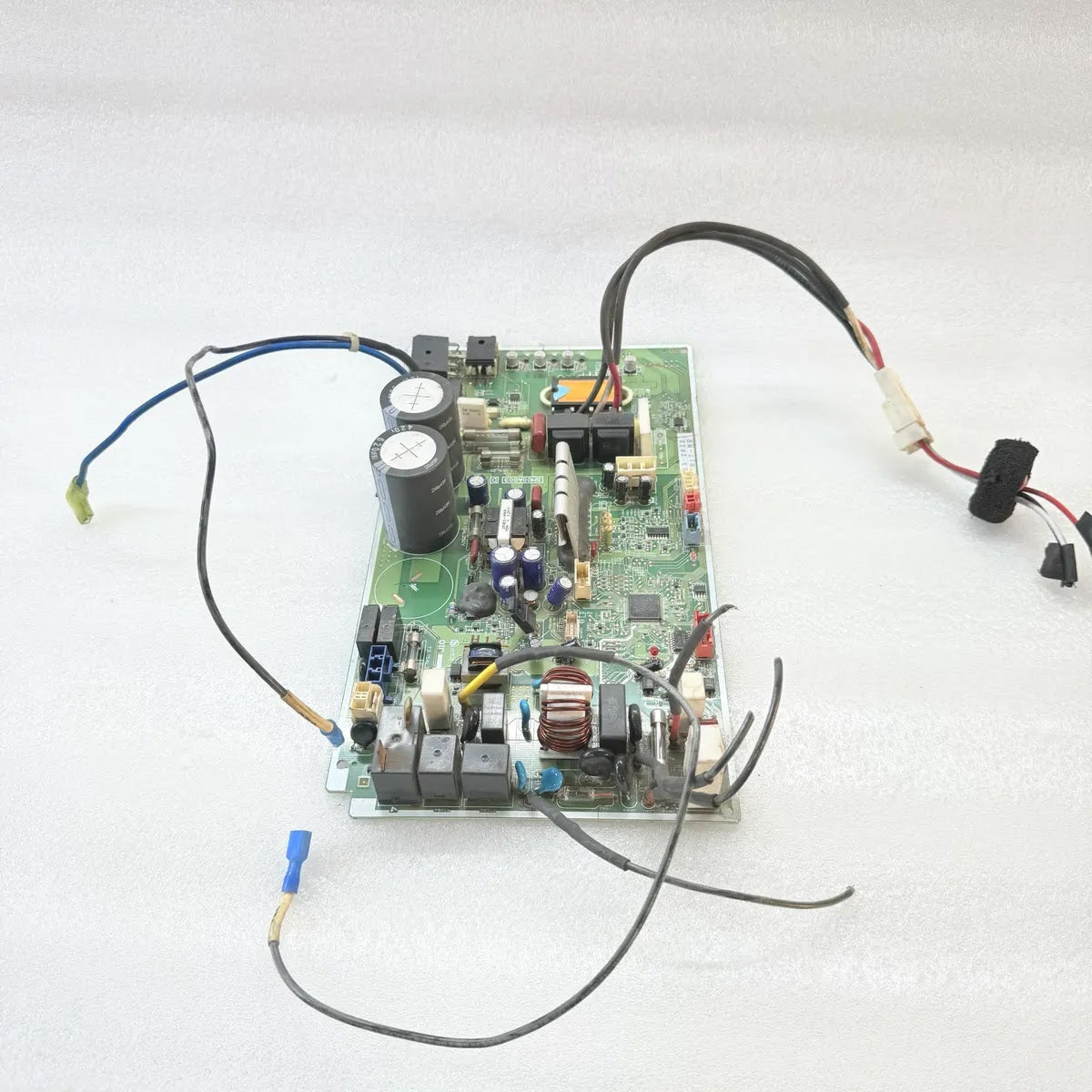

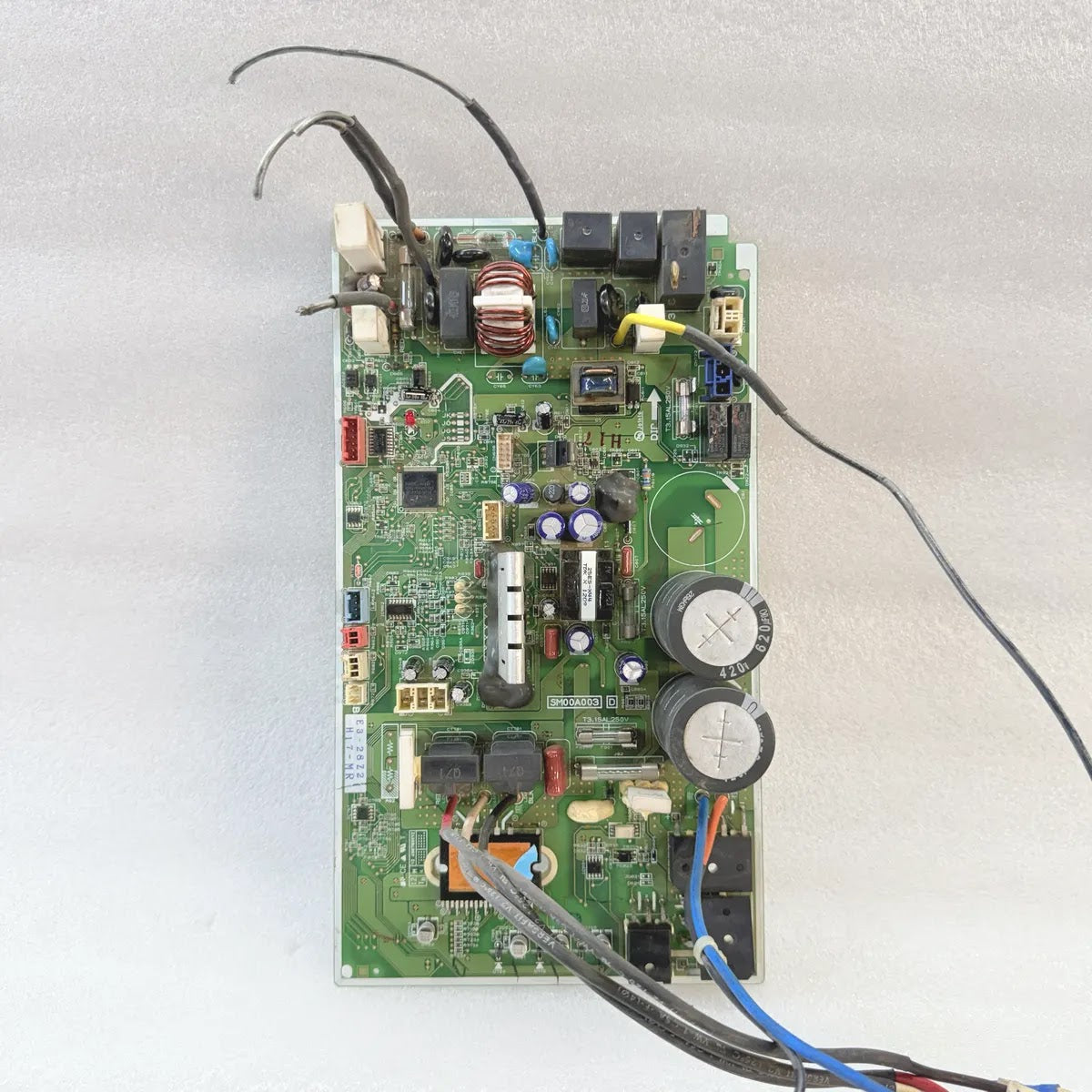

MITSUBISHI SM00A003 Air Conditioner Inverter PCB DC260-300V
Specifications
| Brand | Mitsubishi |
| Part Number | SM00A003 |

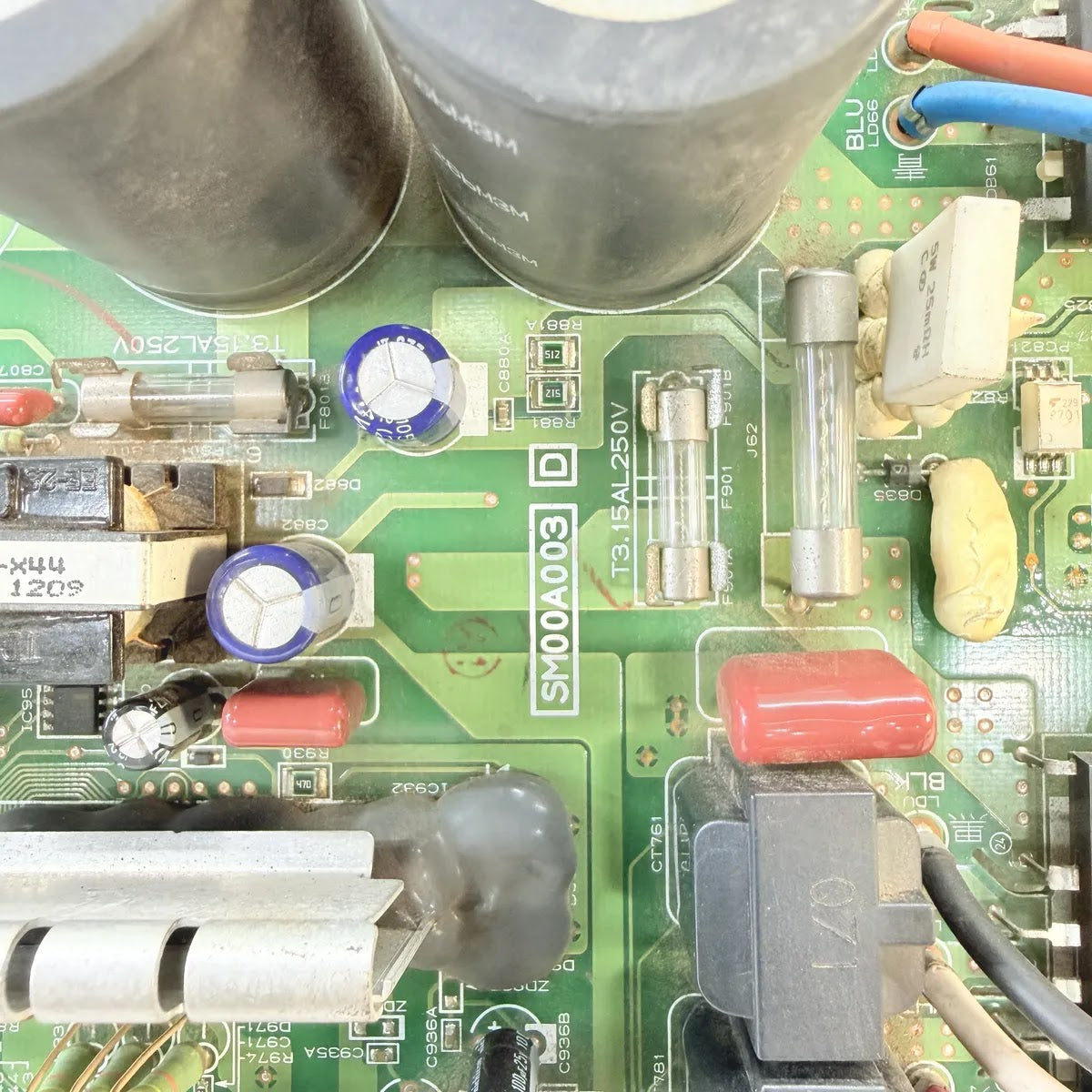

| Revision | D (boxed, beside the board code) |

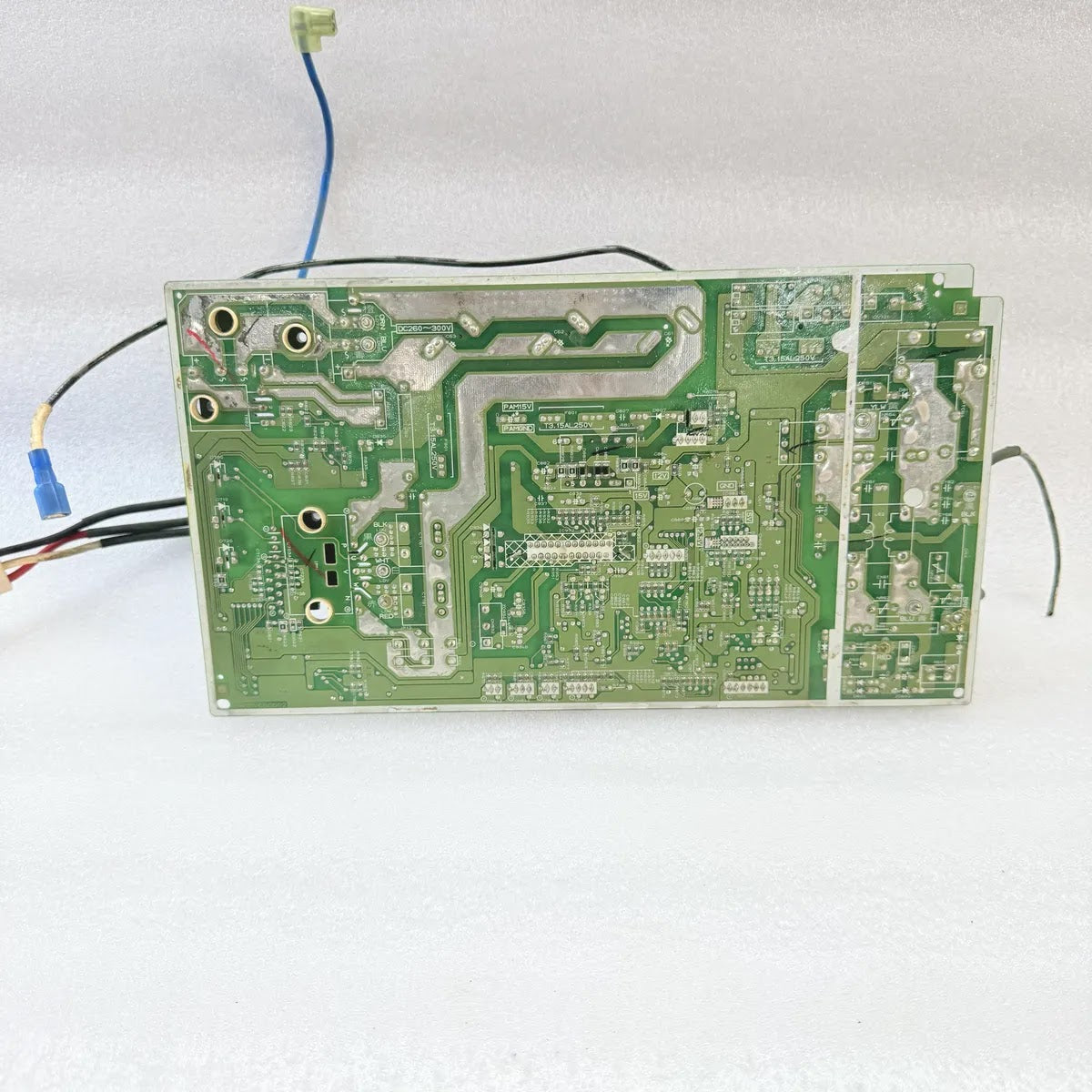

| Board Code | 17GYS86G02 (solder side) |
| Type | Main AC module — inverter / control printed circuit board |
| Application | Air conditioning unit inverter control |

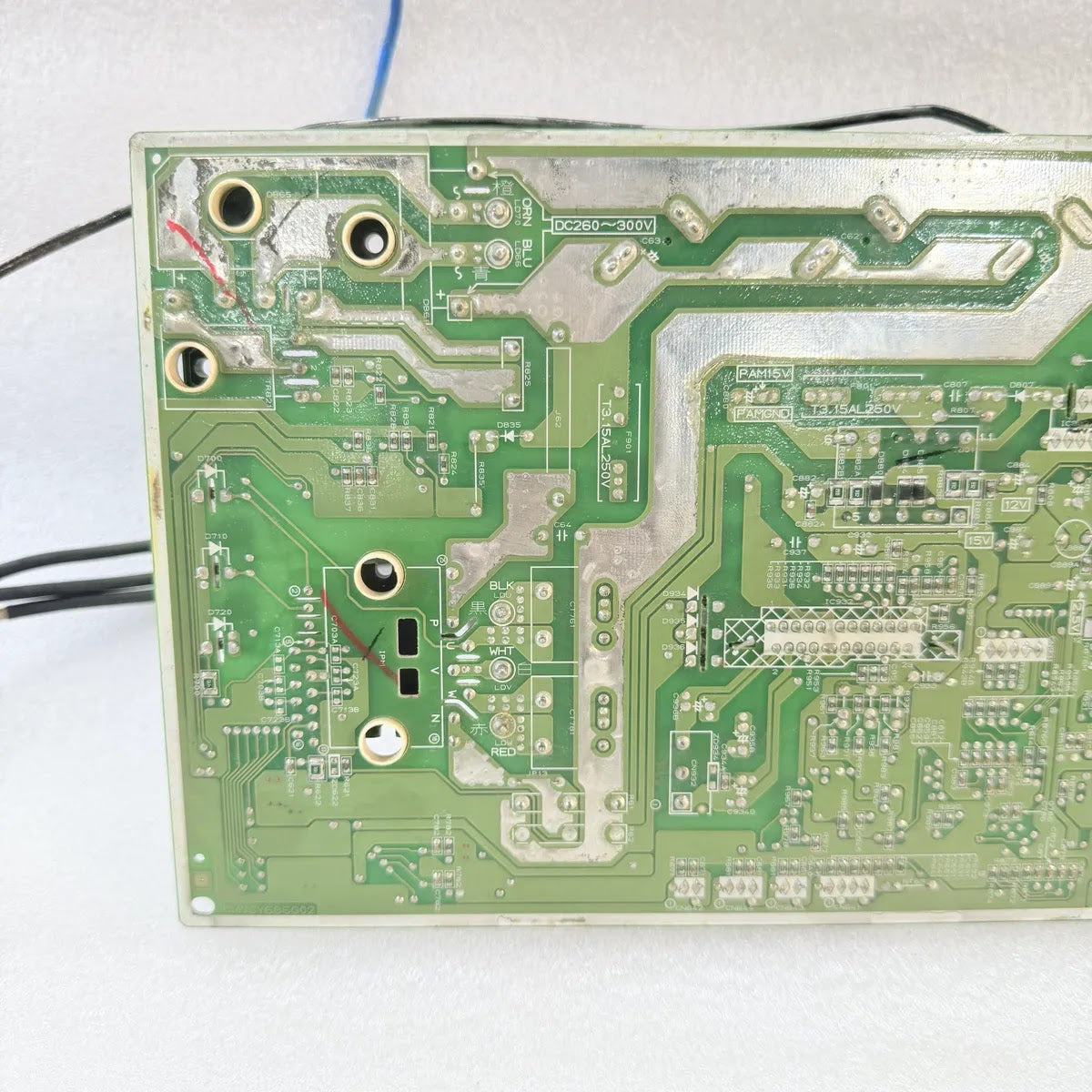

| DC Bus Voltage | DC260-300V (printed DC260~300V) |

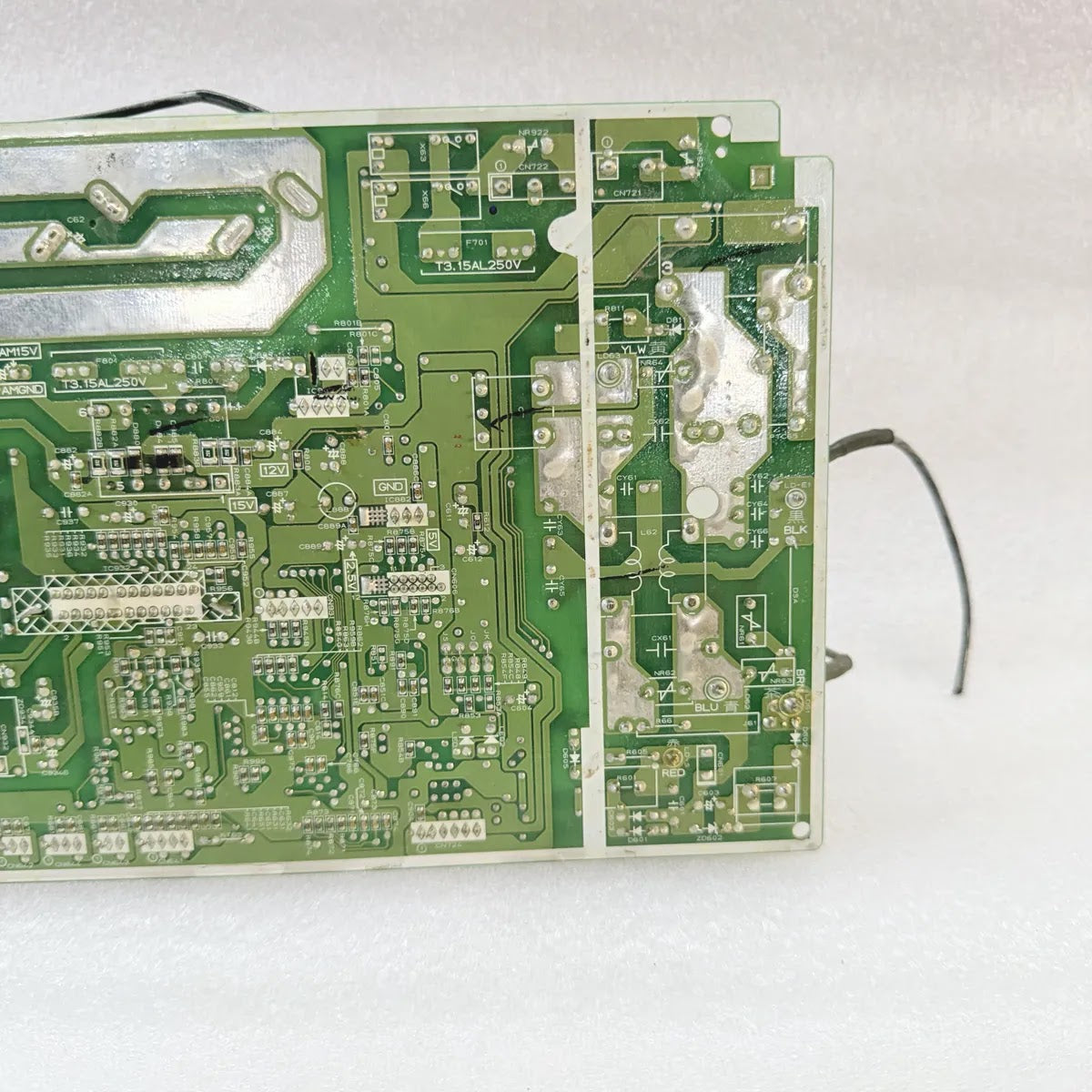

| Control Voltage Rails | PAM15V, 15V, 12V, 5V, 2.5V, GND, PAMGND |
| Inverter Output | 3-phase, P / U / V / W / N power module section with U, V, W lead legends (BLK LDU, WHT LDV, RED LDW) |
| Fuse Rating | T3.15AL 250V (printed T3.15AL250V) |

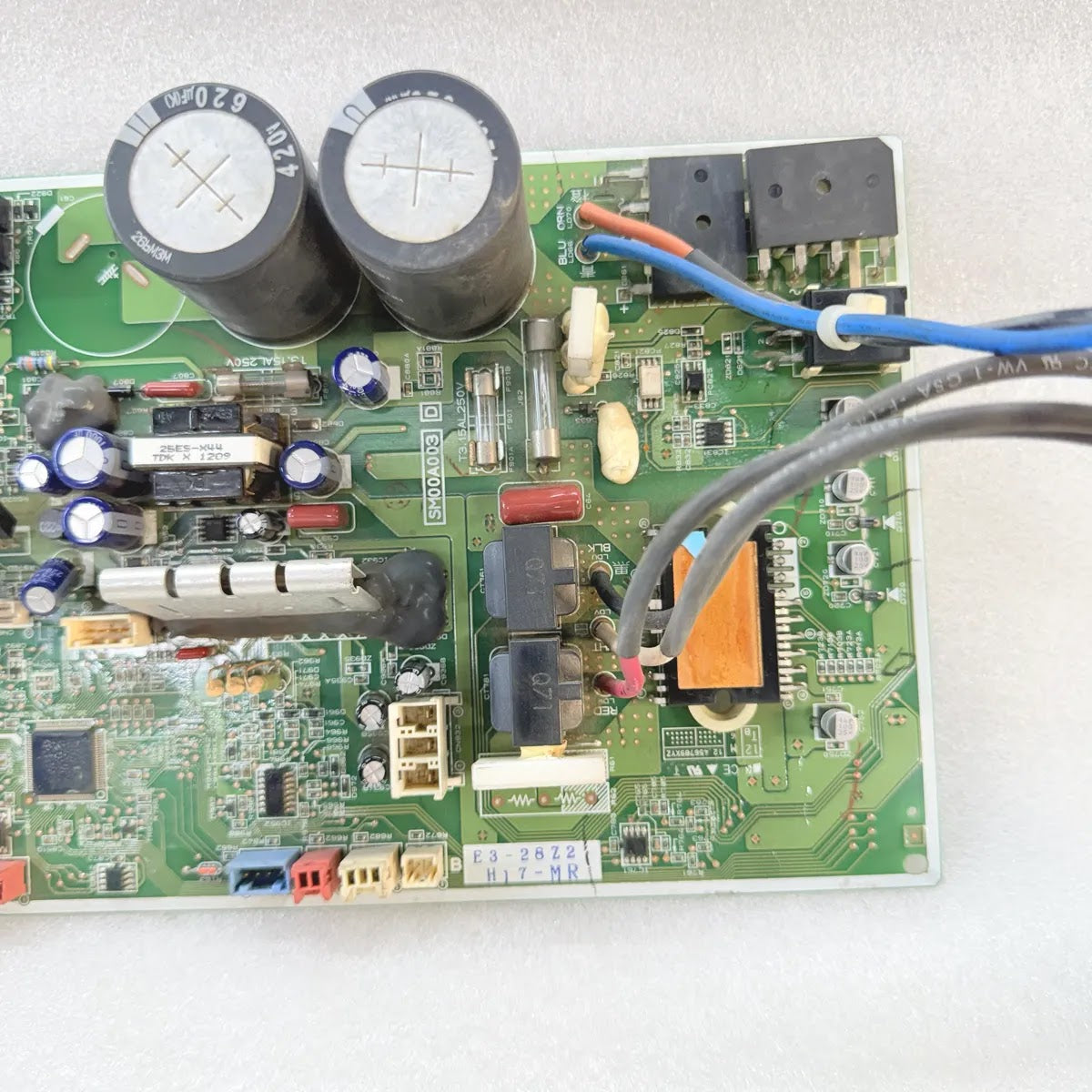

| DC Link Capacitors | 620µF(K) 420V, two off |
| Filter Capacitors | 0.47µF 300V~ and 0.22µF |

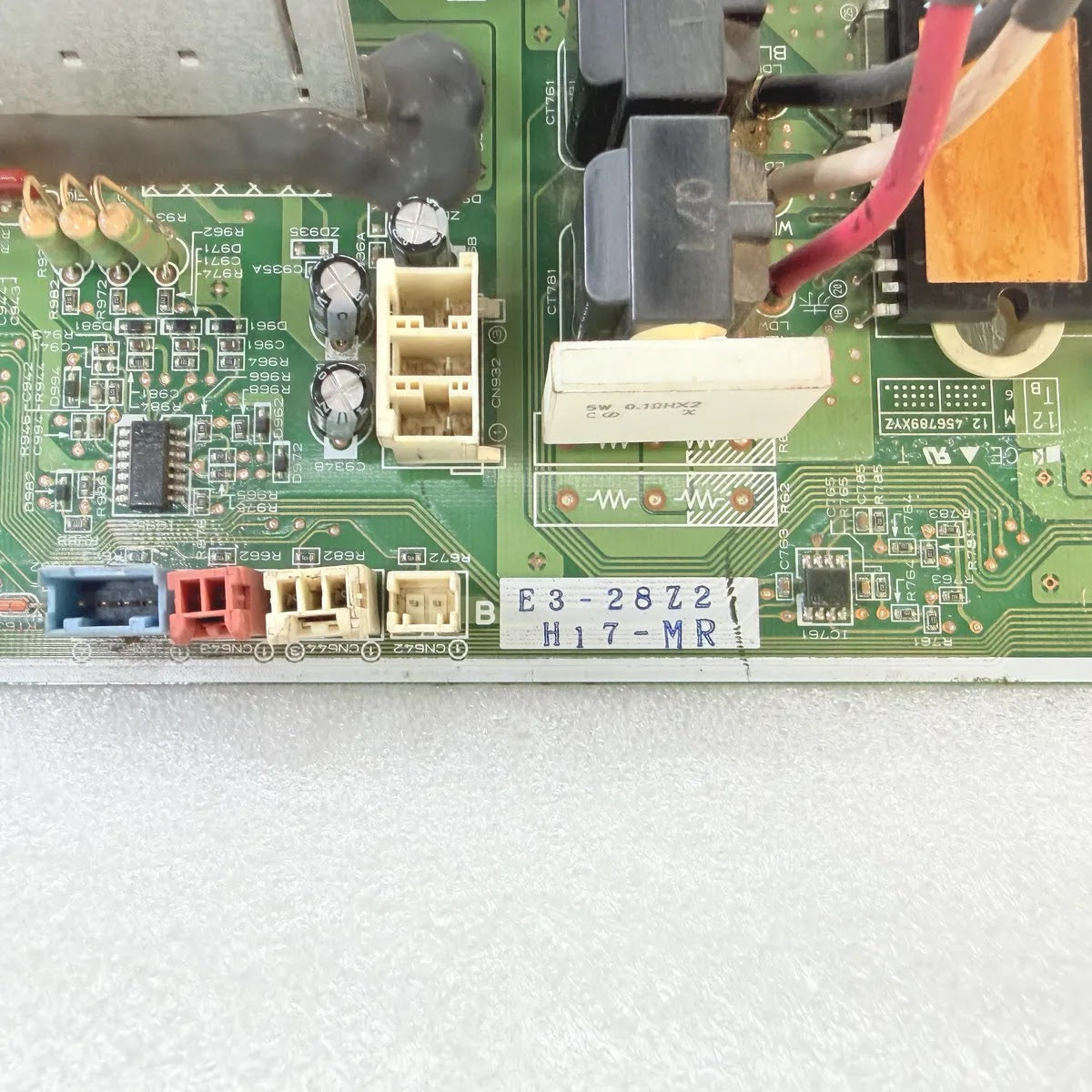

| Current Sense Resistors | 5W 0.1Ω x2 and 5W 25mΩ |
| Onboard Relay Type | Omron G5NB-1A, 12VDC coil |

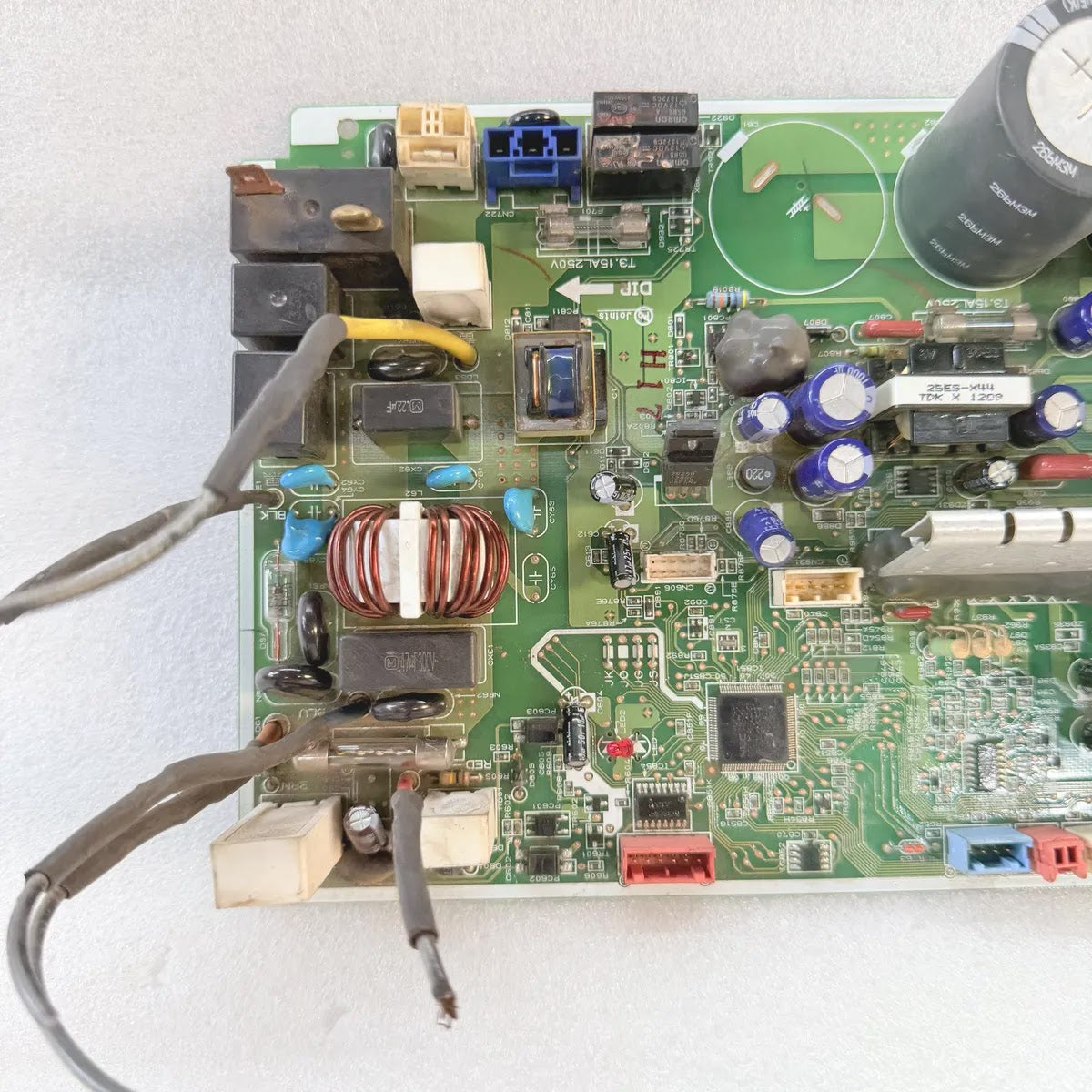

| Noise Filter Component | TDK 25ES-X44 |
| Lead Wire Rating | 105°C, VW-1 / CSA FT1 |
| Approvals | CE, UL, CSA marks moulded on the board |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4098 |
