MINILEC S2 VMR3 Phase Failure UV/OV Relay 380-440VAC
$74.00
Skip to product information

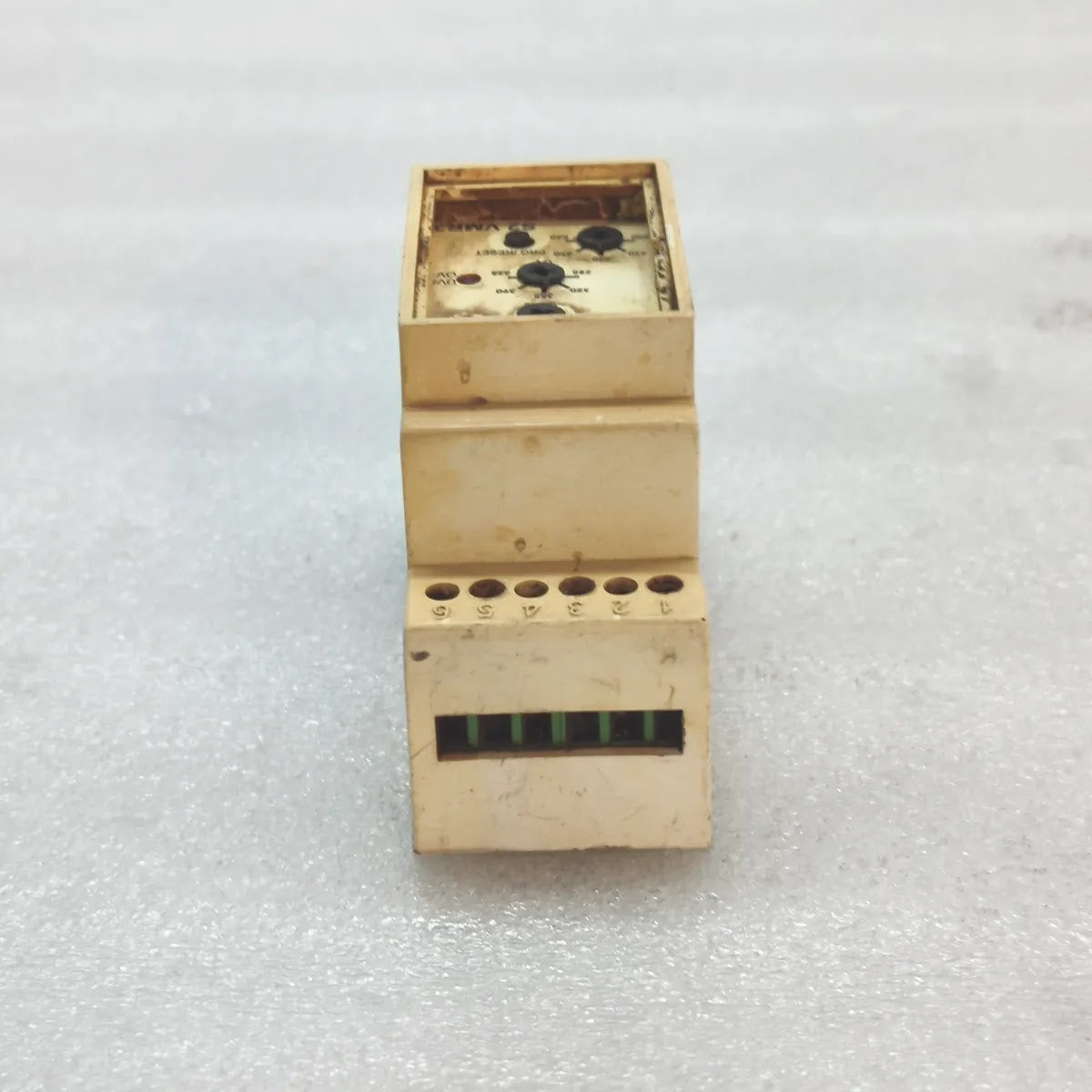

MINILEC S2 VMR3 Phase Failure UV/OV Relay 380-440VAC
$74.00
MINILEC S2 VMR3 Phase Failure UV/OV Relay 380-440VAC
Specifications
| Brand | Minilec |
| Model | S2 VMR3 |
| Part Number | S2 VMR3 |
| Type | Phase Failure & UV / OV Relay |
| Series | S2 Phase Failure Relays |
| Supply Voltage | 380 - 440VAC |
| Voltage Tolerance | 25% +20% |
| Frequency | 48-63 Hz |

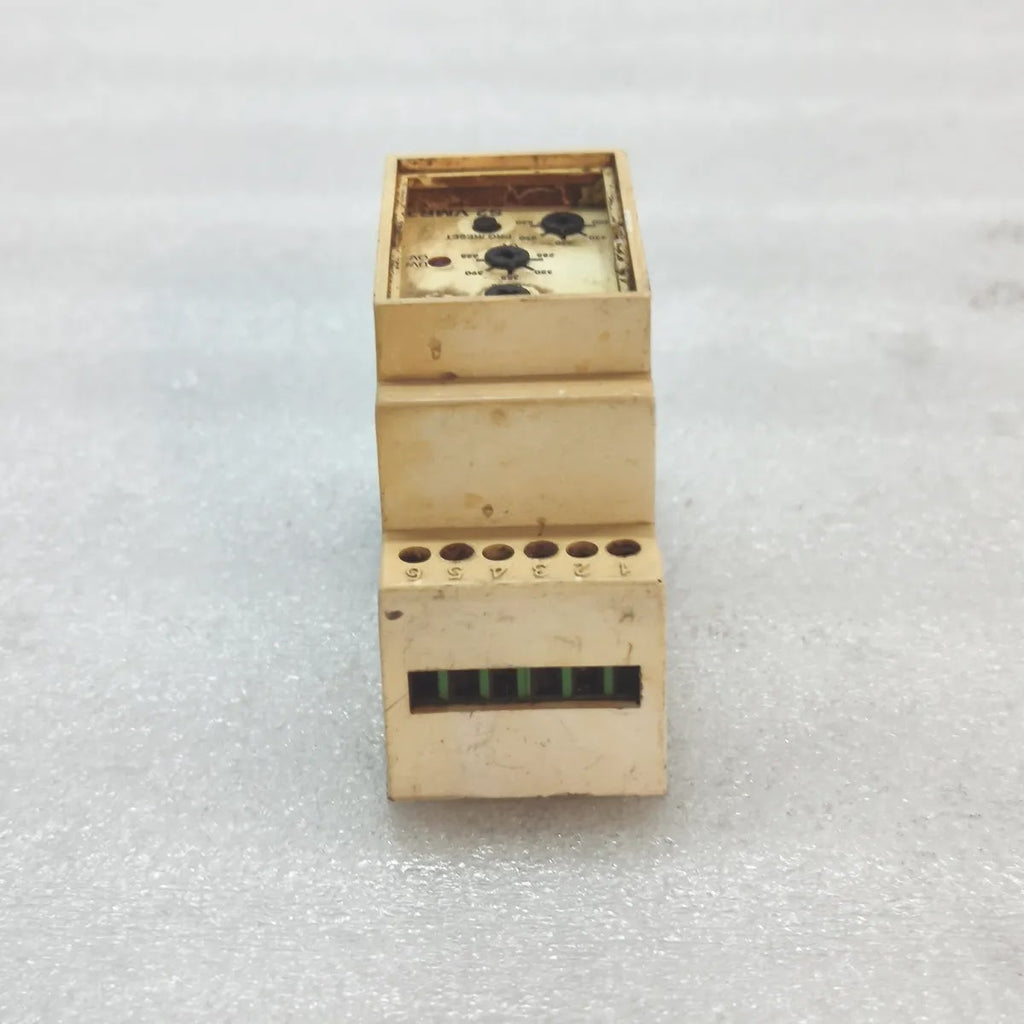

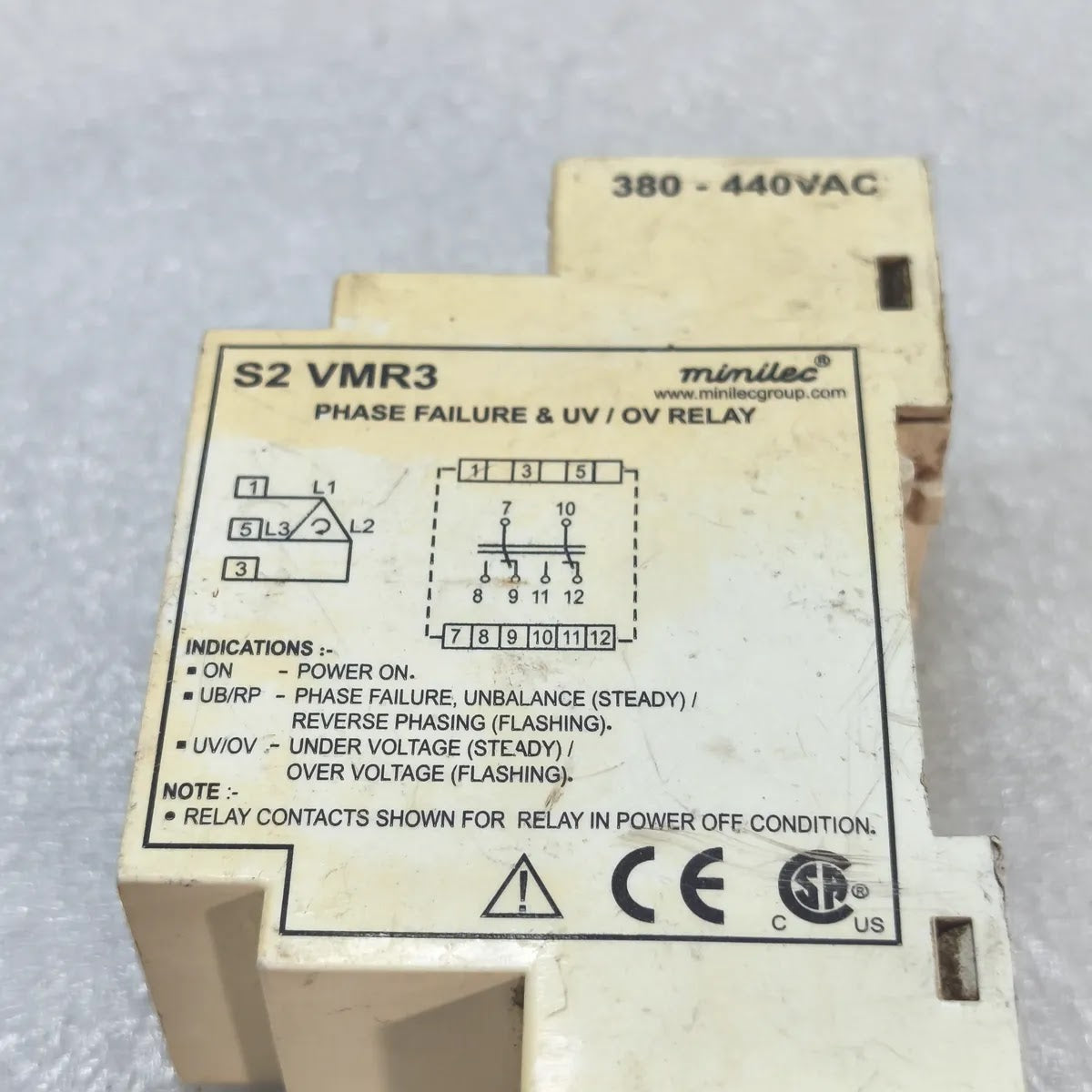

| Phases | 3 phase, L1 on terminal 1, L2 on terminal 3, L3 on terminal 5 |

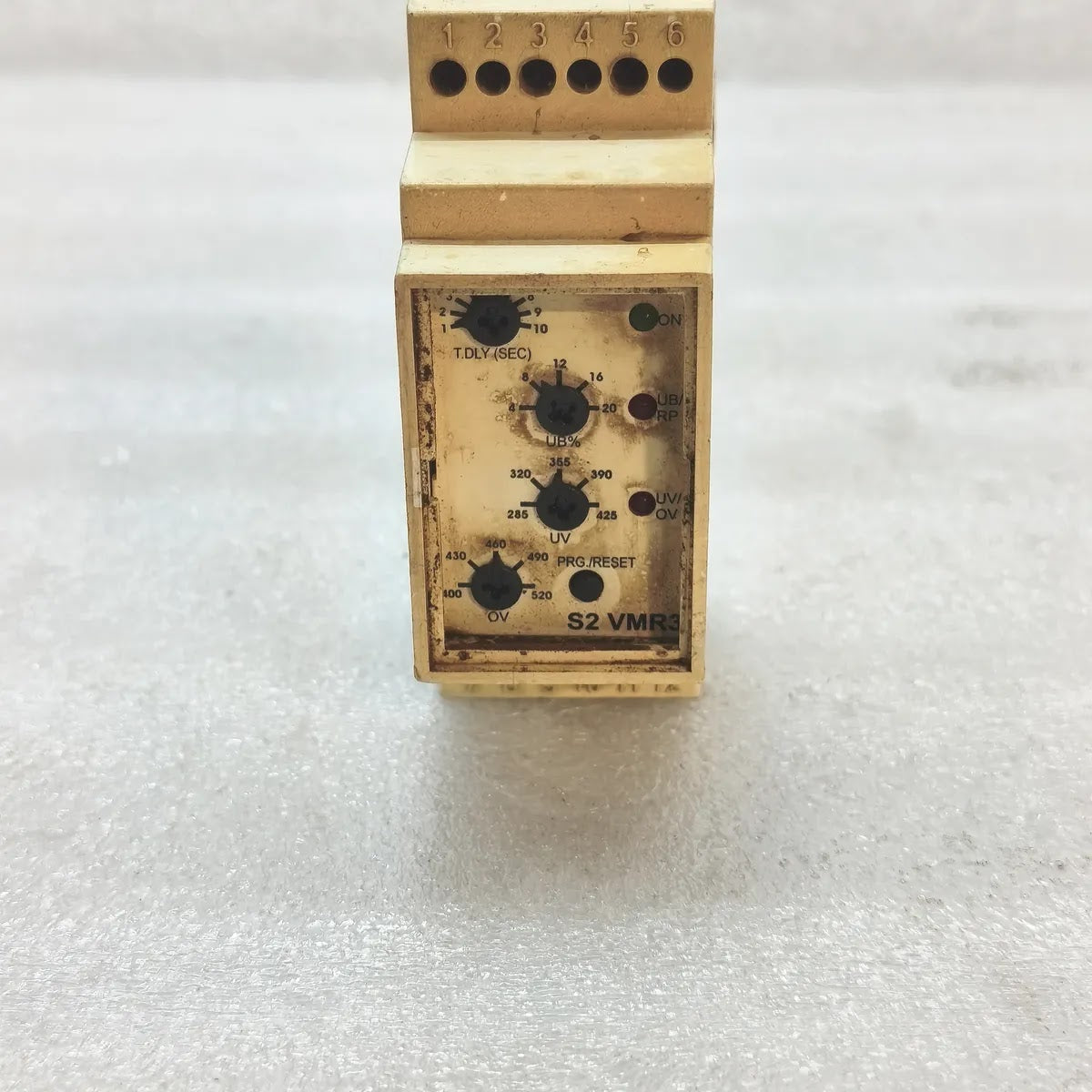

| Under Voltage Setting | 285 - 425V, scale marked 285 / 320 / 355 / 390 / 425 |
| Over Voltage Setting | 400 - 520V, scale marked 400 / 430 / 460 / 490 / 520 |
| Unbalance Setting | UB% 4 - 20%, scale marked 4 / 8 / 12 / 16 / 20 |
| Time Delay | T.DLY 1 - 10 seconds, scale marked 1 / 2 / 3 / 6 / 9 / 10 |

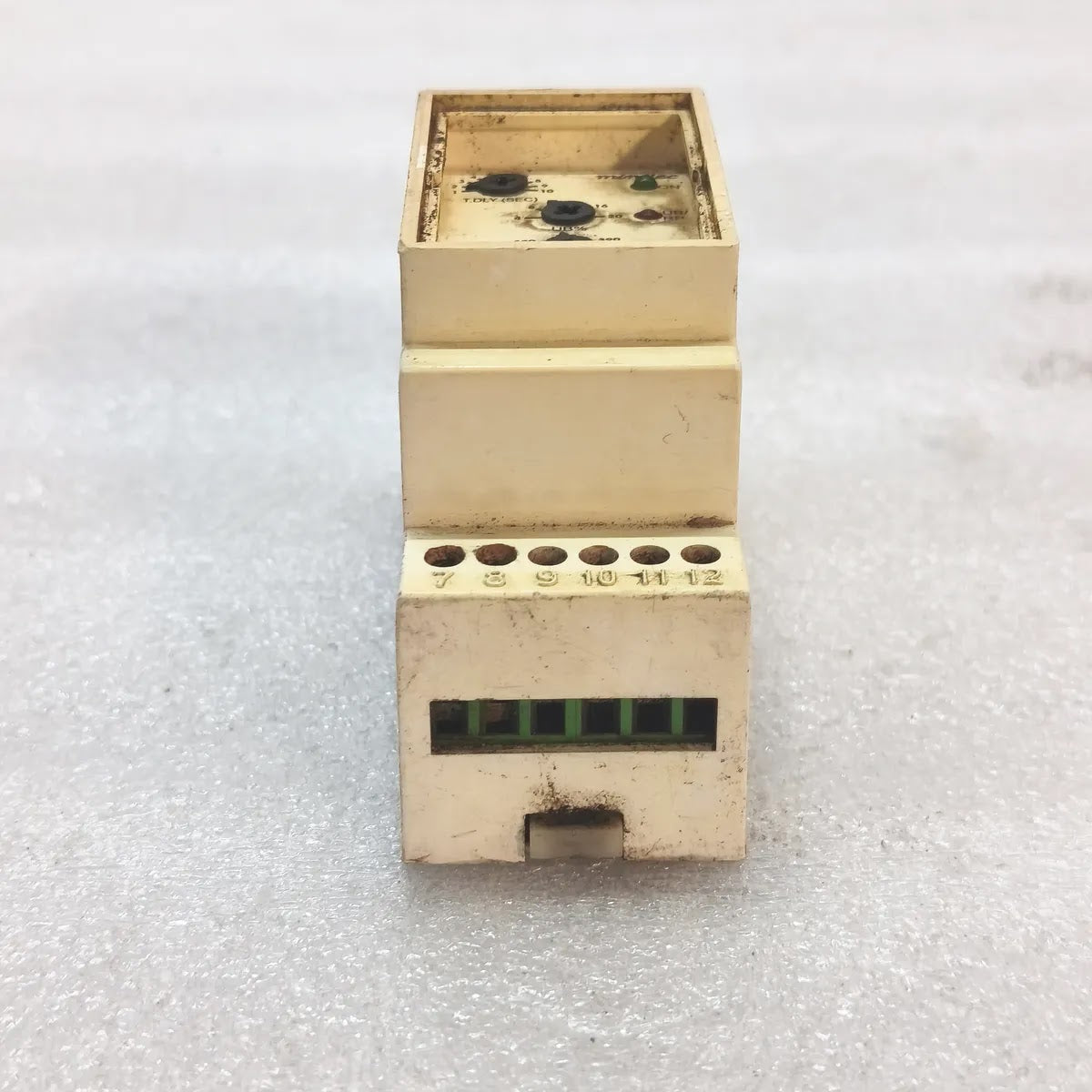

| Output Contacts | 2 CO, terminals 7-8-9 and 10-11-12 |
| Protection Functions | Phase failure, phase unbalance, reverse phasing, under voltage, over voltage |

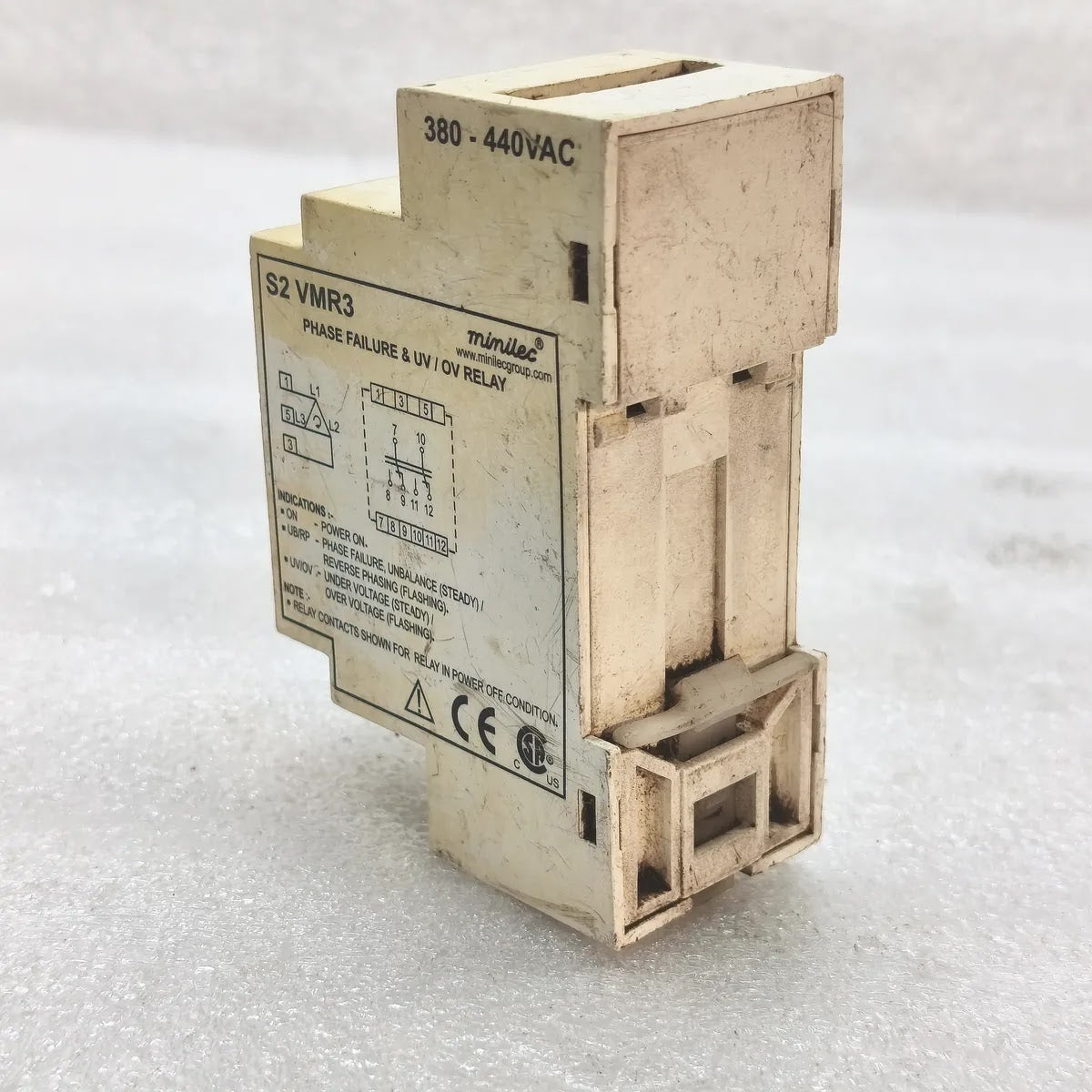

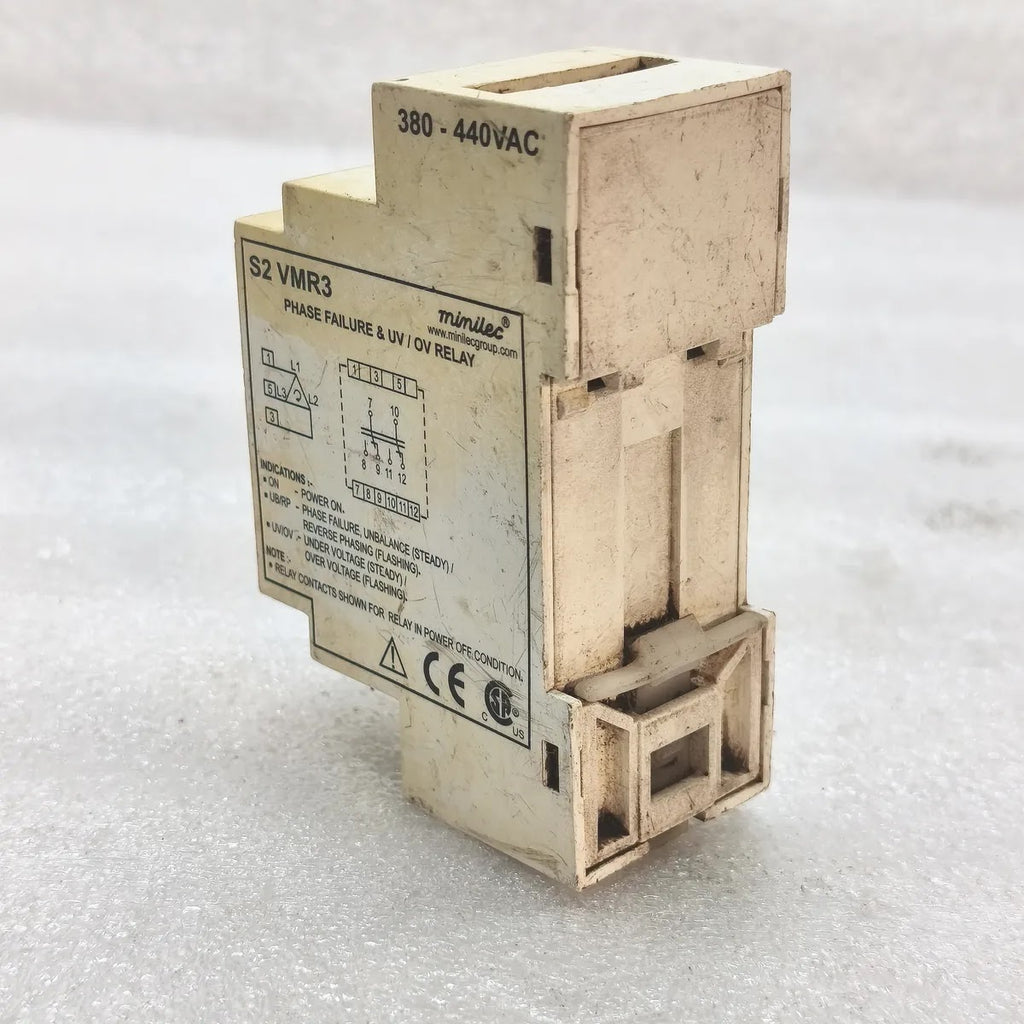

| Indication | ON - power on; UB/RP - phase failure and unbalance steady, reverse phasing flashing; UV/OV - under voltage steady, over voltage flashing |
| Design | Microcontroller based, SMD technology |
| Dimensions | 90 x 35 x 60 mm |
| Weight | Approx. 110 g |
| Approvals | CE, CSA C/US |
| Application | Three-phase supply monitoring and motor protection in industrial and marine switchboards |
| Condition | PRE-OWNED / SECOND HAND |

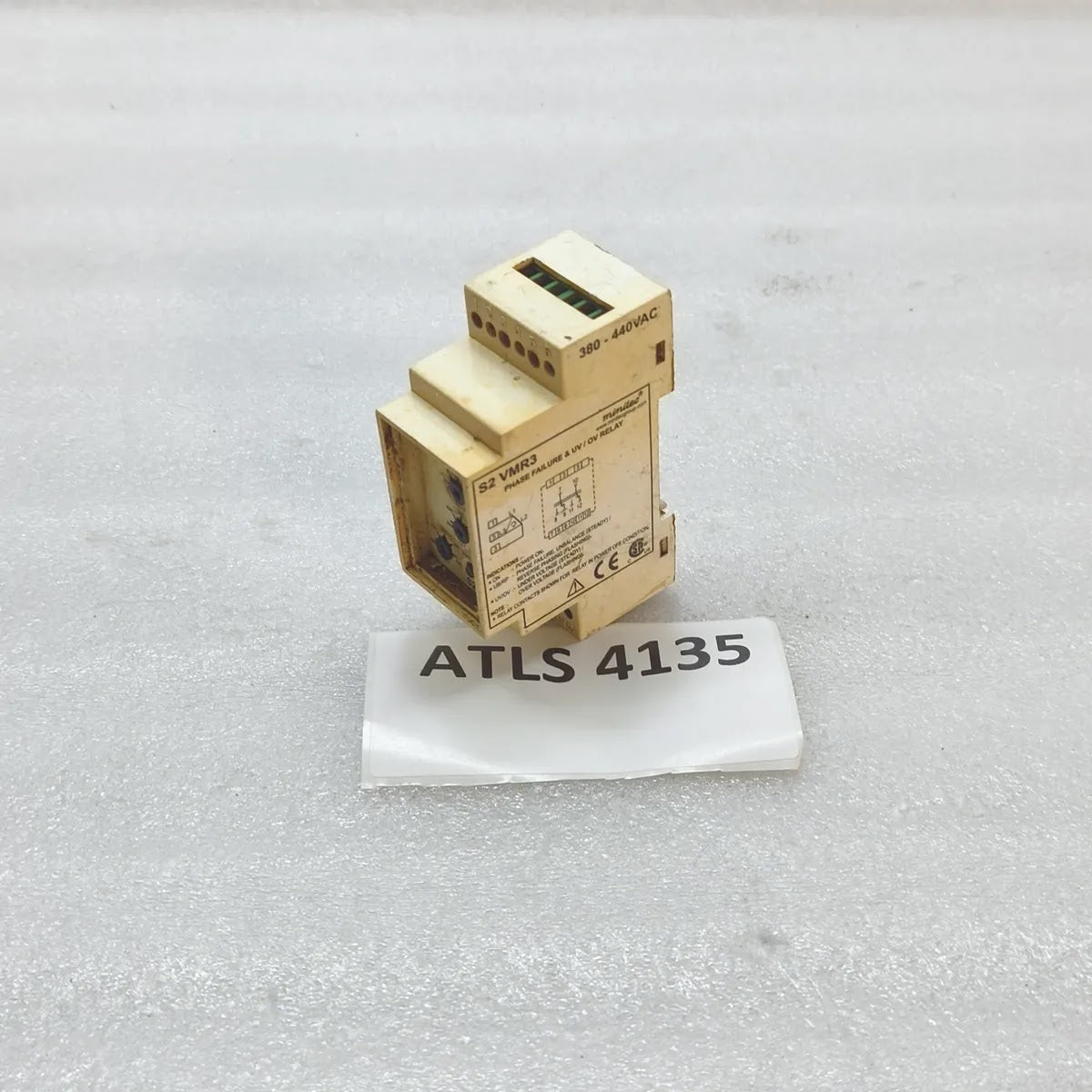

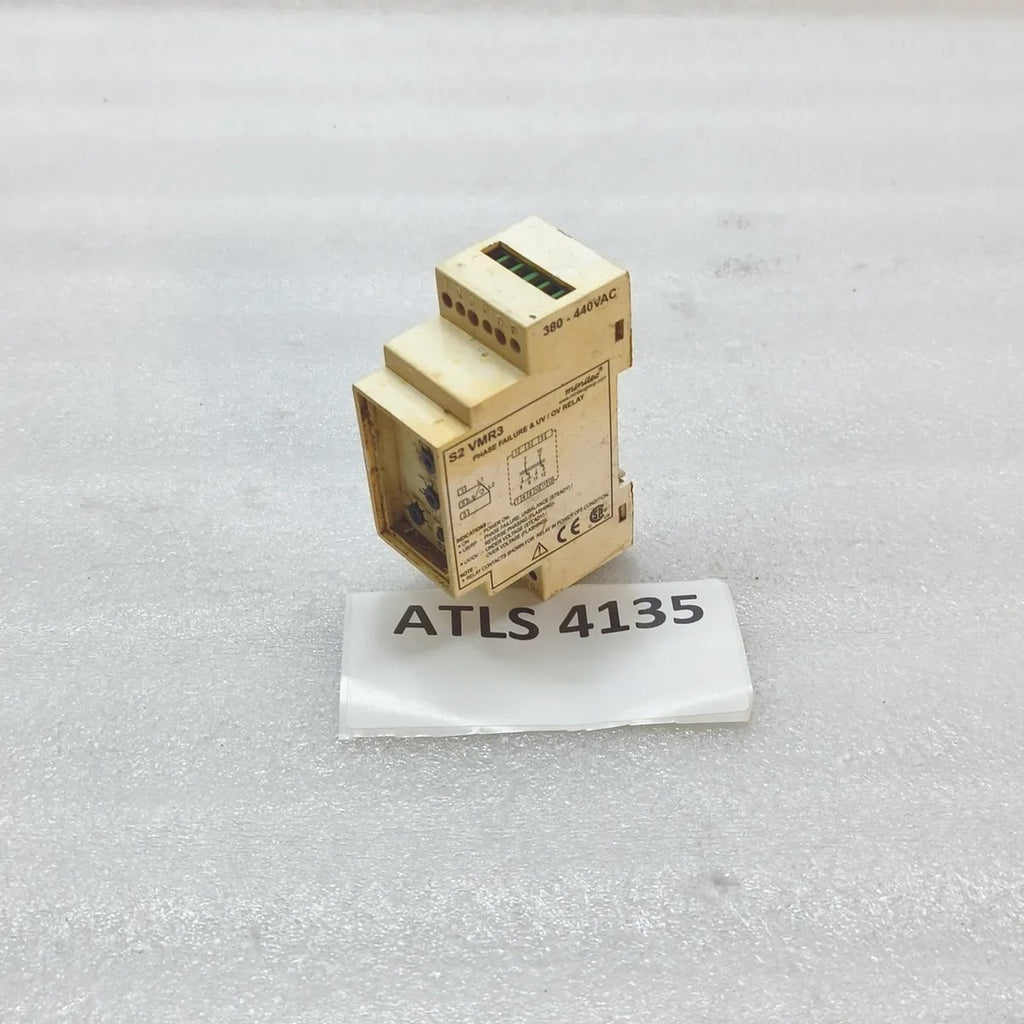

| REF | ATLS4135 |
