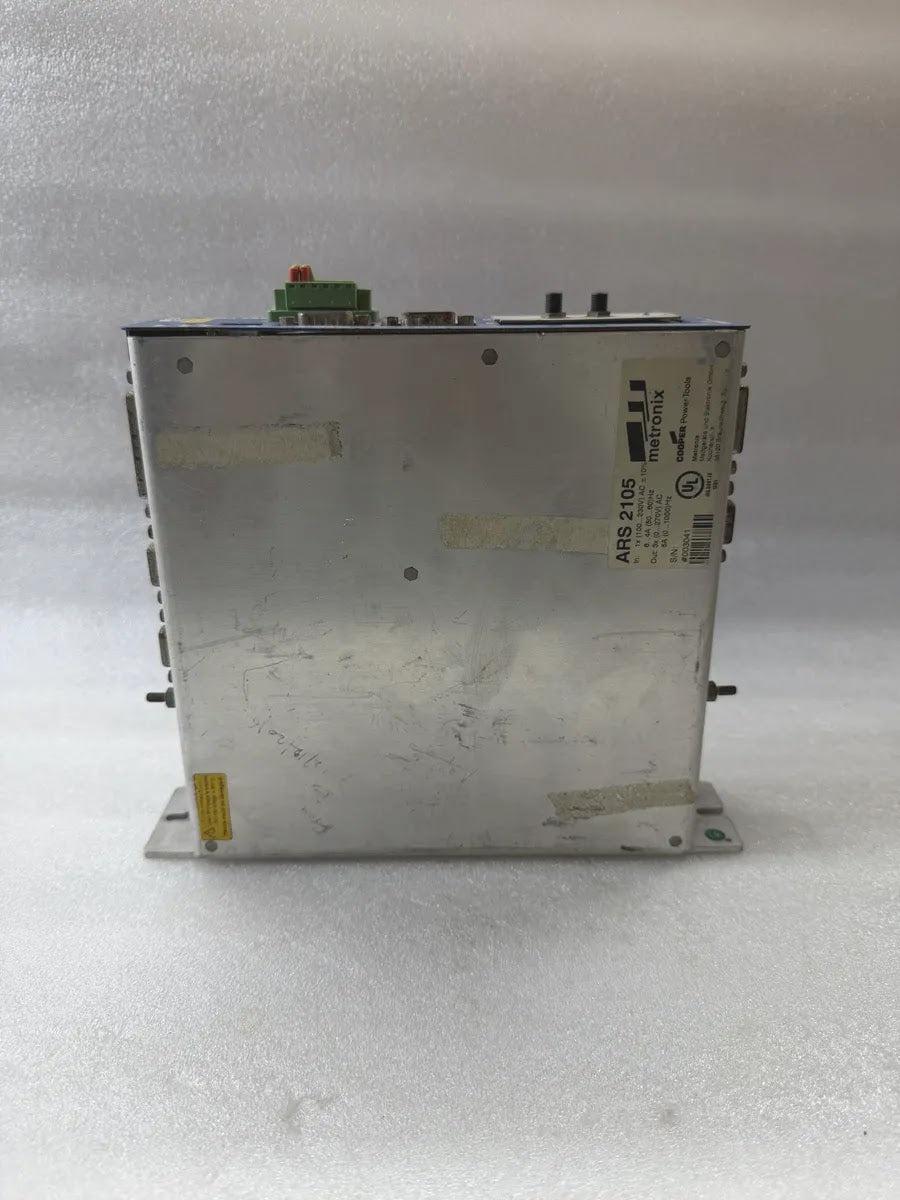

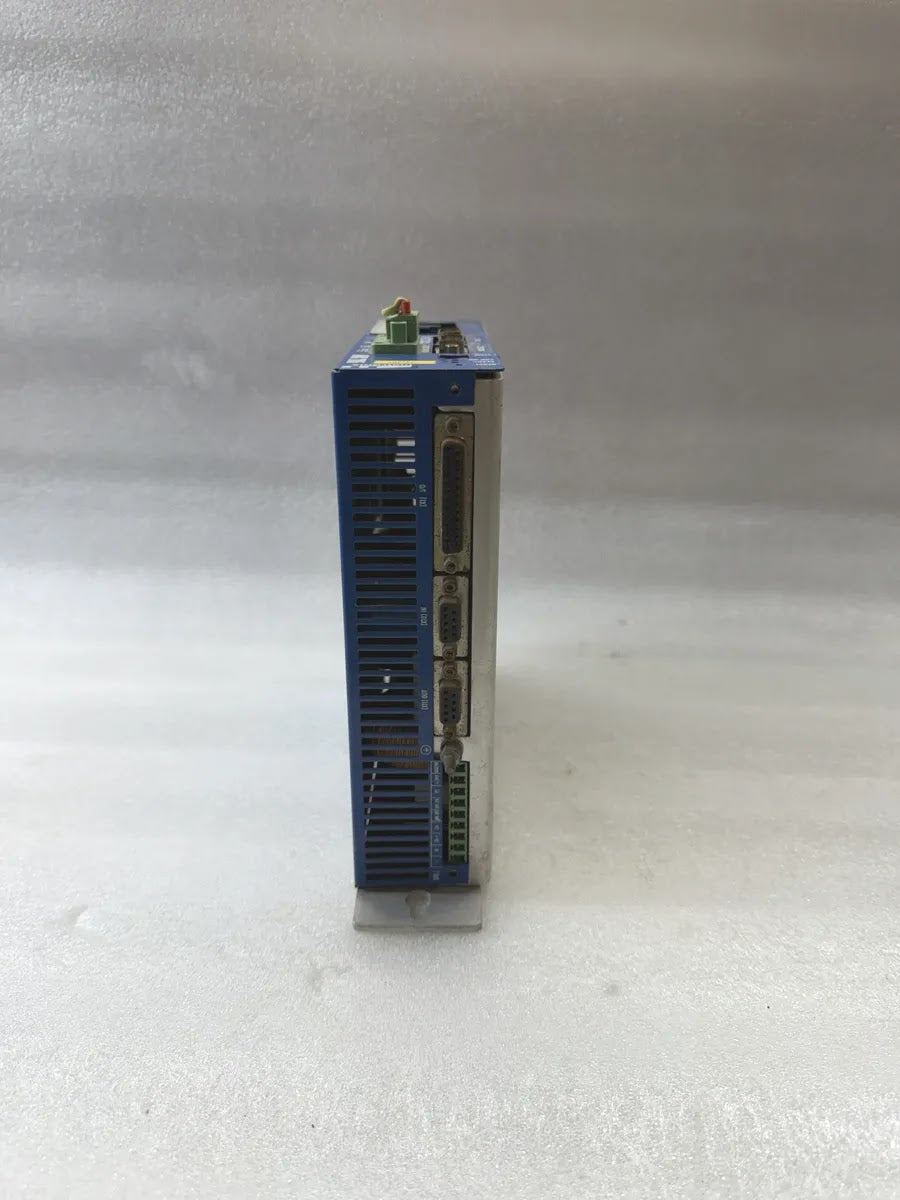

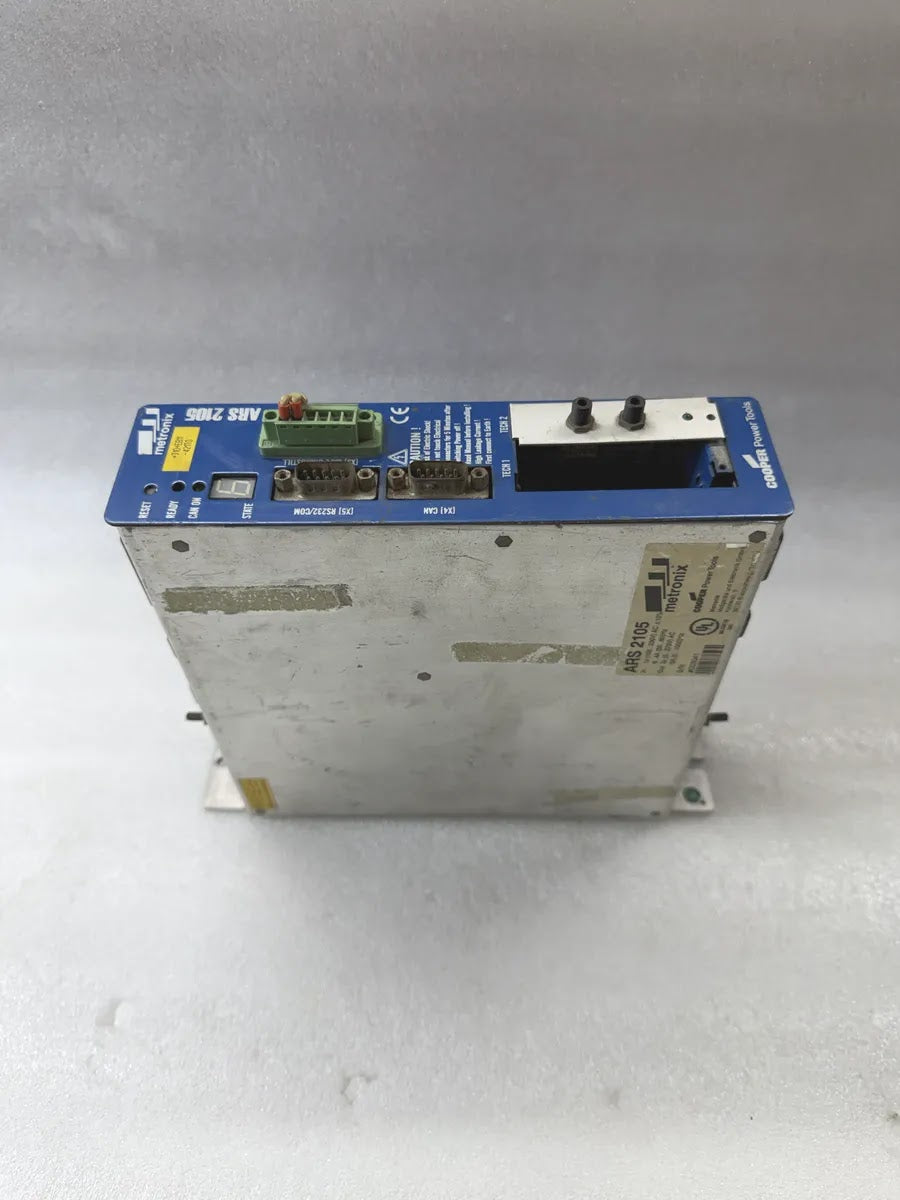

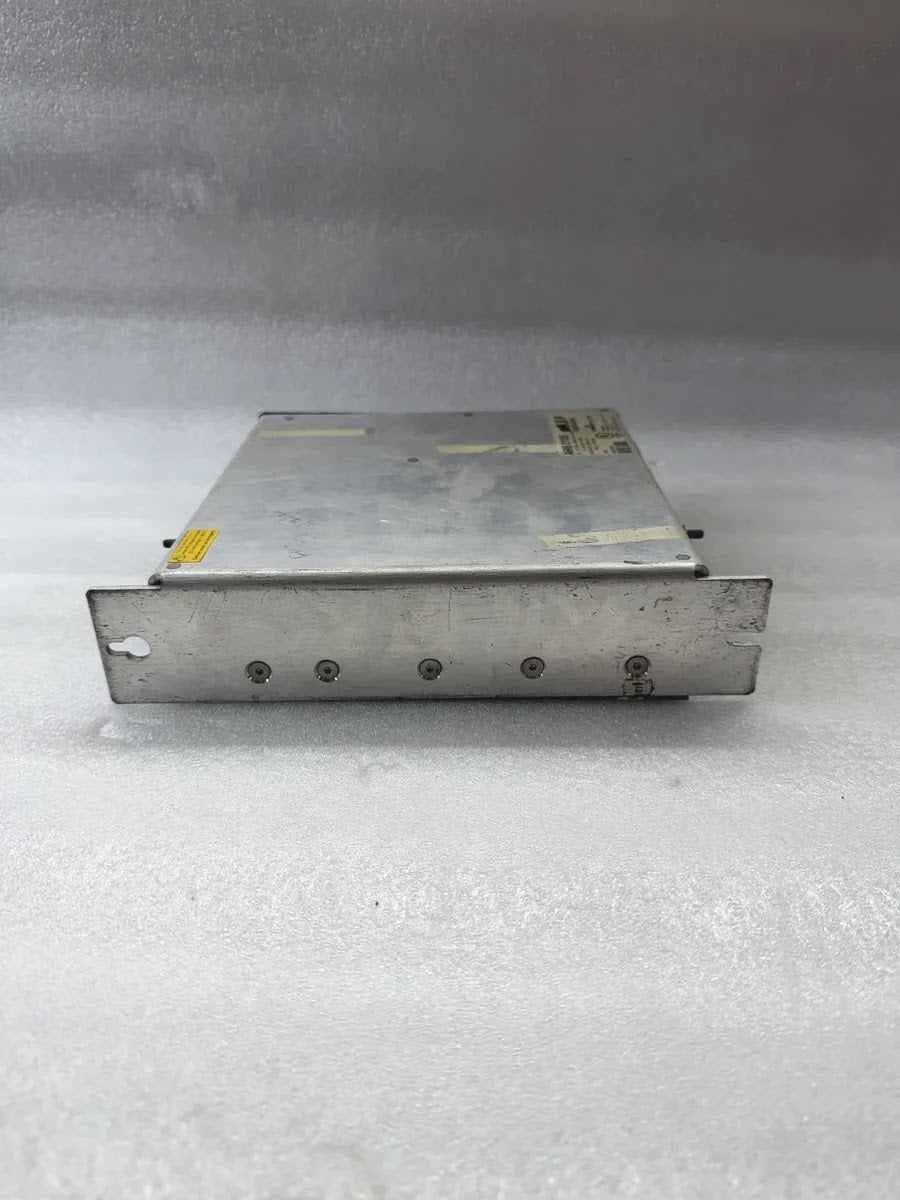

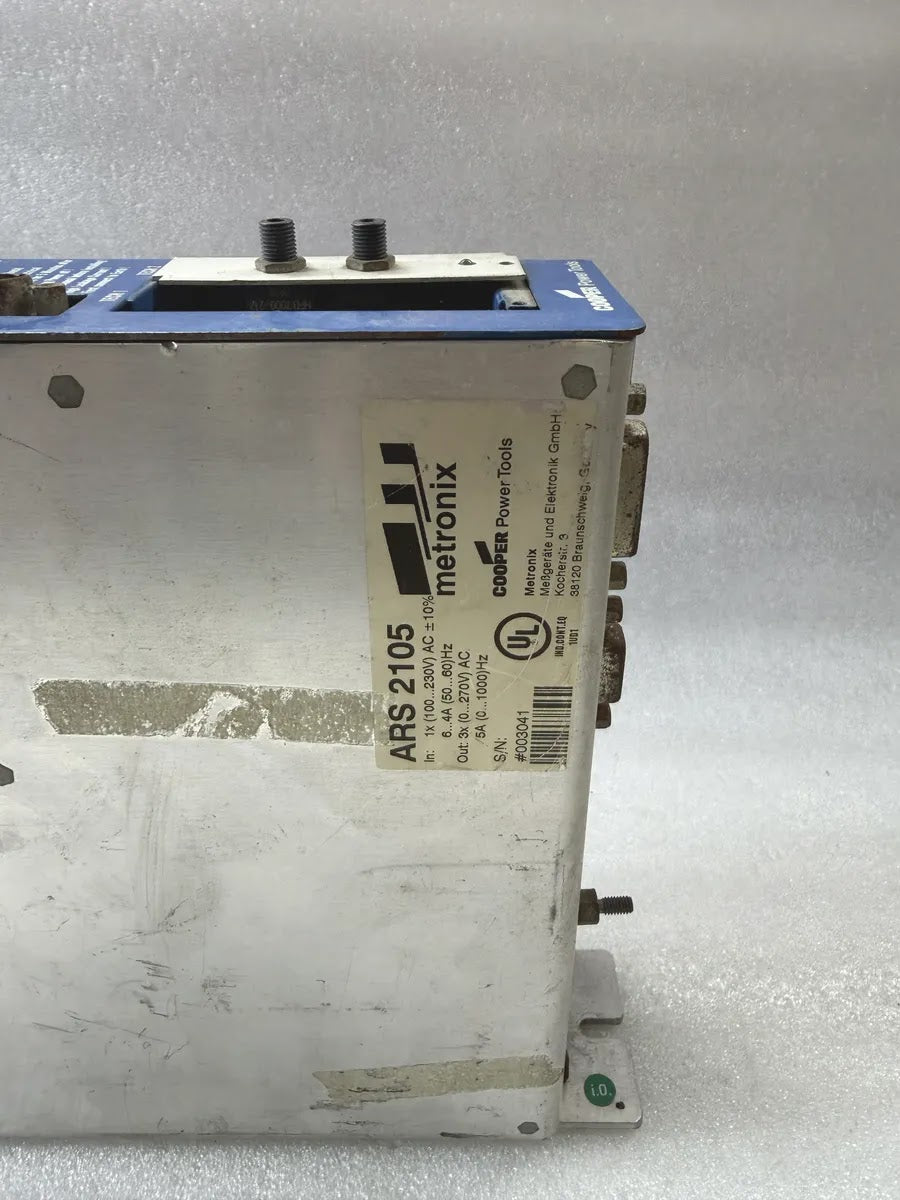

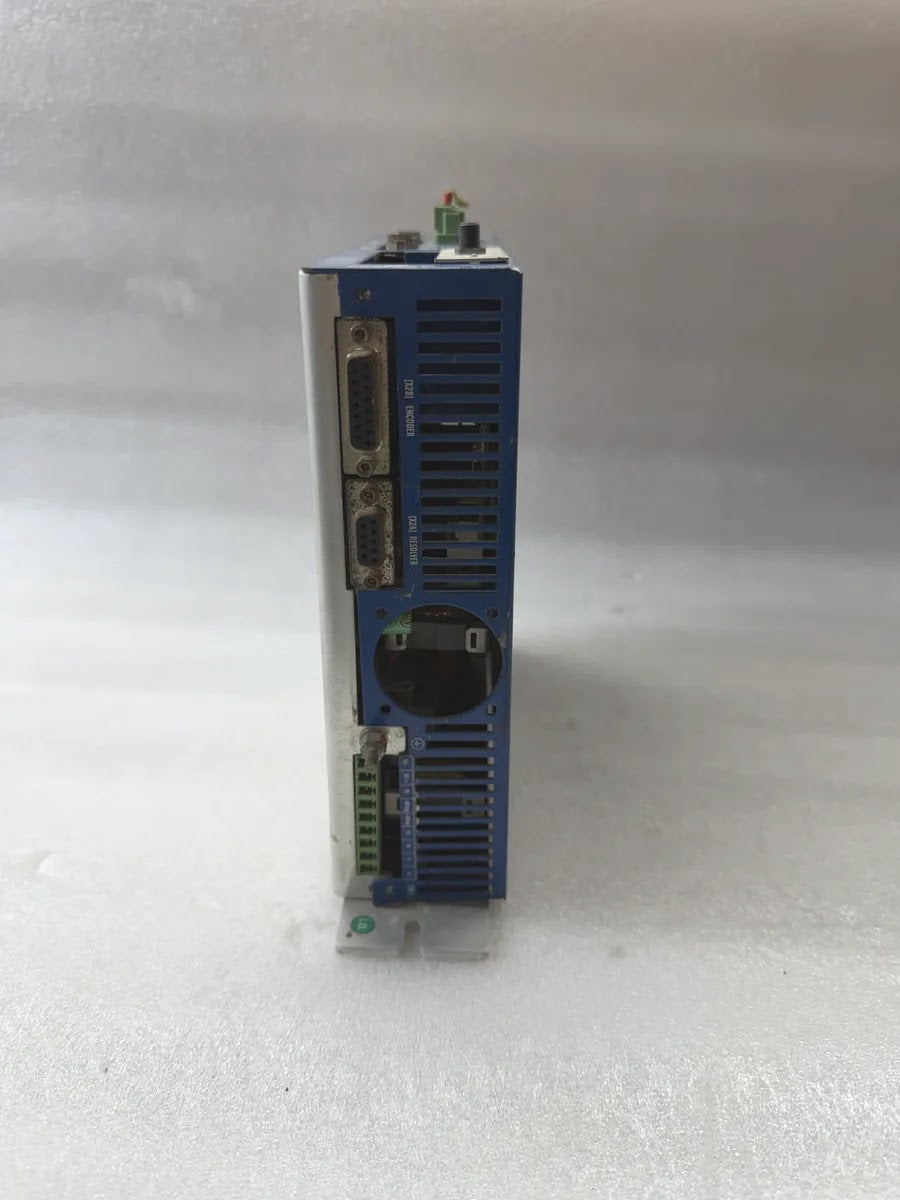

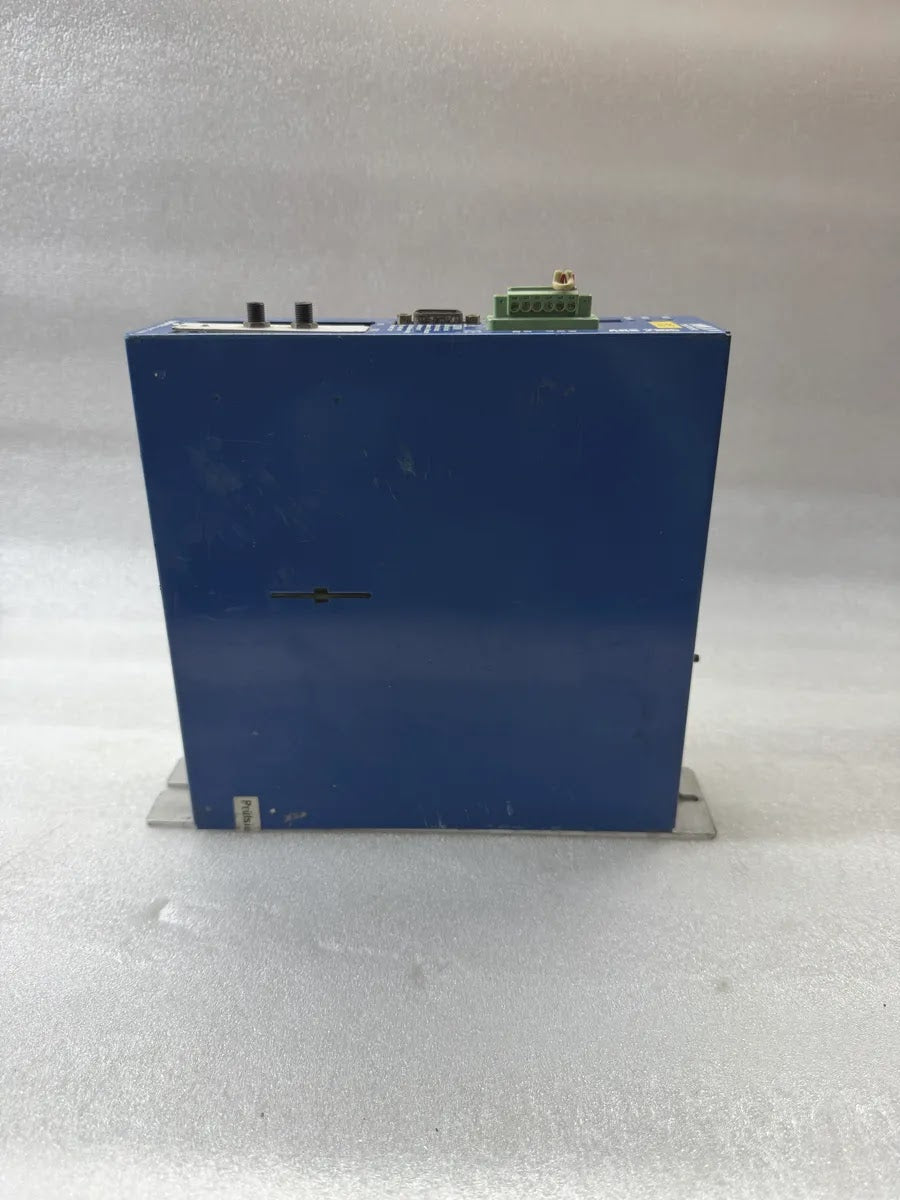

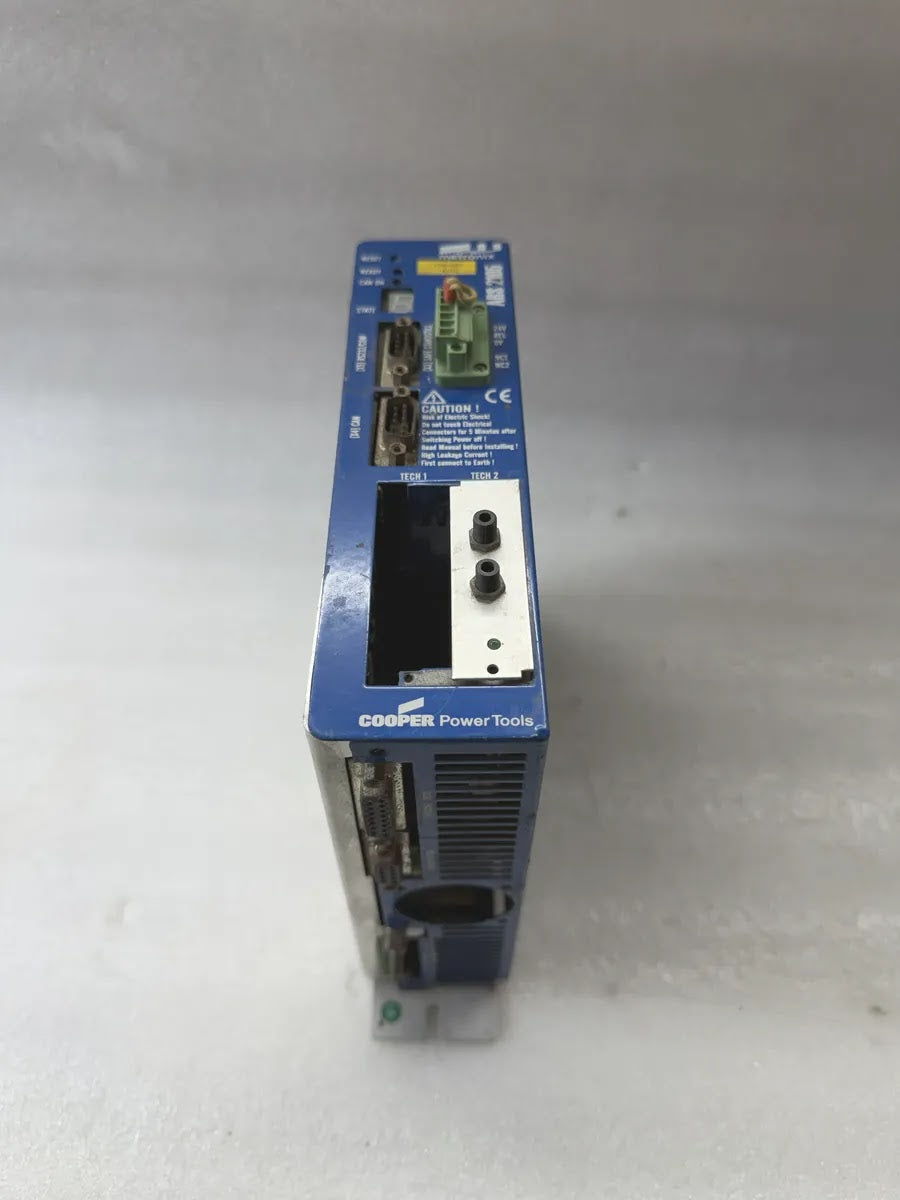

METRONIX ARS 2105 Servo Positioning Controller 100-230V 5A
$194.99
Skip to product information
METRONIX ARS 2105 Servo Positioning Controller 100-230V 5A
$194.99
METRONIX ARS 2105 Servo Positioning Controller 100-230V 5A
Specifications
| Brand | metronix |
| Model | ARS 2105 |
| Part Number | ARS 2105 |
| Type | Servo Positioning Controller |
| Series | ARS 2000 |
| Oem Brand | Cooper Power Tools |
| Supply Voltage | 1x (100...230V) AC ±10% |
| Input Current | 6...4A |
| Frequency | (50...60)Hz |
| Output Voltage | 3x (0...270V) AC |
| Output Current | 5A |
| Output Frequency | (0...1000)Hz |
| Peak Output Current | 10 Aeff for up to 5 s |
| Rated Power | 1.0 kW at 230V AC, 2.0 kW peak for up to 5 s |
| Control Voltage | 24V DC ±20% (0.65 A) |
| Interfaces | CAN/CANopen and RS232 as standard |
| Motor Feedback | Resolver and incremental encoder |
| Inputs And Outputs | 10 x digital in (24V, isolated), 3 x analogue in (±10V), 4 x digital out (24V, isolated), 2 x analogue out (±10V) |
| Technology Module | HFD7000-212 [?] fitted in the TECH 2 slot |
| Dimensions | 54 x 225 x 200 mm |
| Approvals | CE, UL listed IND.CONT.EQ 10D1 |
| Country Of Origin | Germany (Metronix Meßgeräte und Elektronik GmbH, Kocherstr. 3, 38120 Braunschweig) |
| Condition | PRE-OWNED / SECOND HAND |

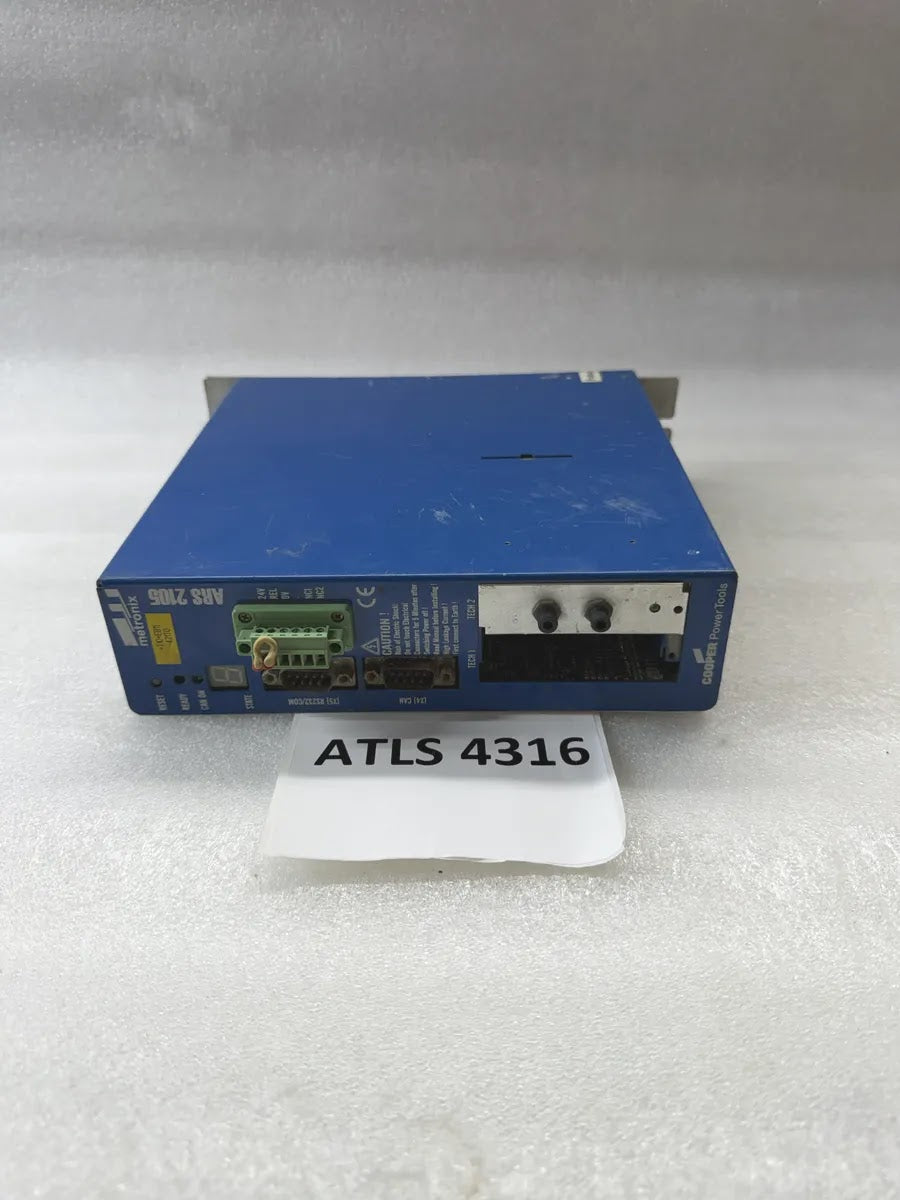

| REF | ATLS4316 |
