MEGACON KSP34 Phase Monitoring Voltmeter 0-600V 380-440V
$149.99
Skip to product information
MEGACON KSP34 Phase Monitoring Voltmeter 0-600V 380-440V
$149.99
MEGACON KSP34 Phase Monitoring Voltmeter 0-600V 380-440V
Specifications

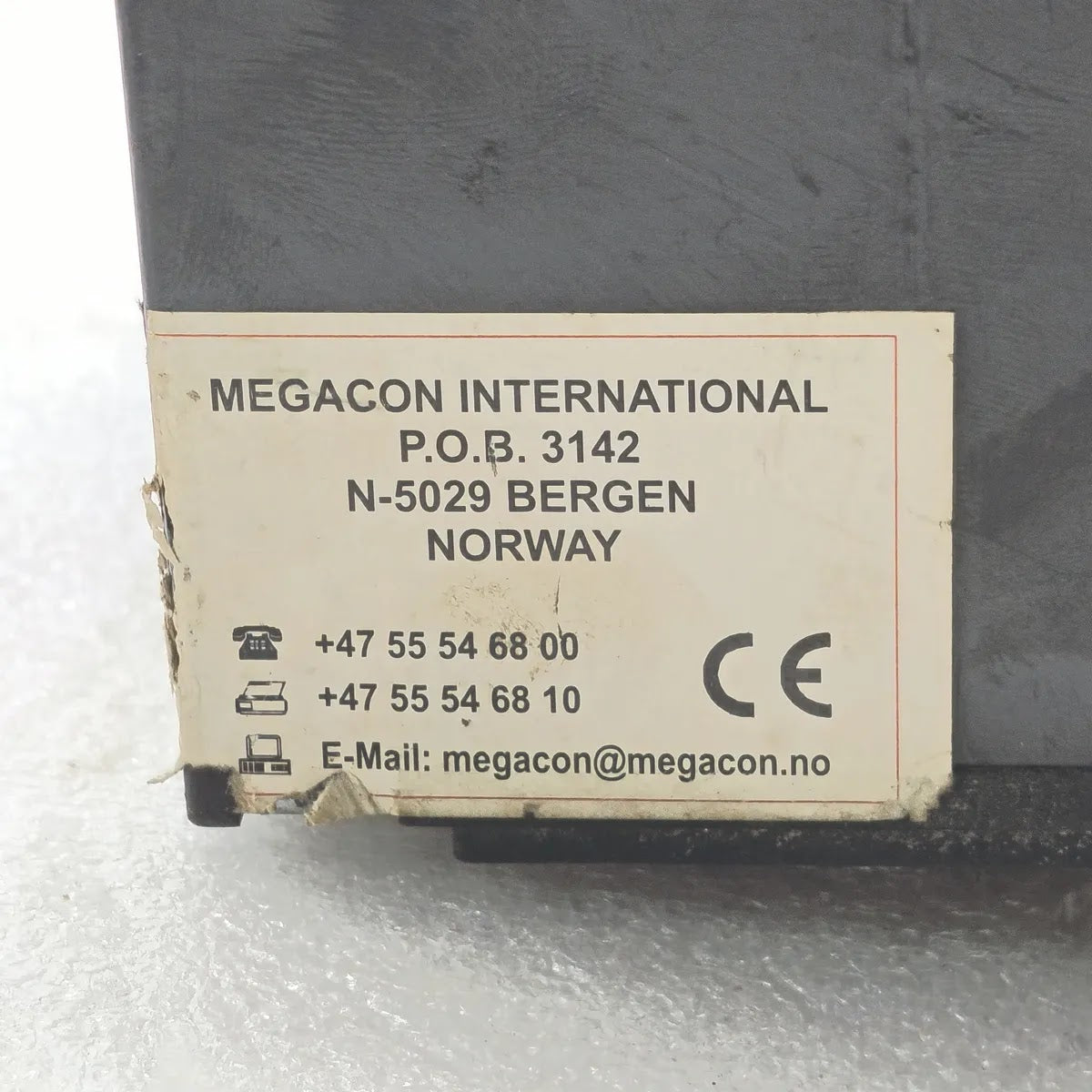

| Brand | Megacon (Megacon International, Bergen) |
| Model | KSP34 |

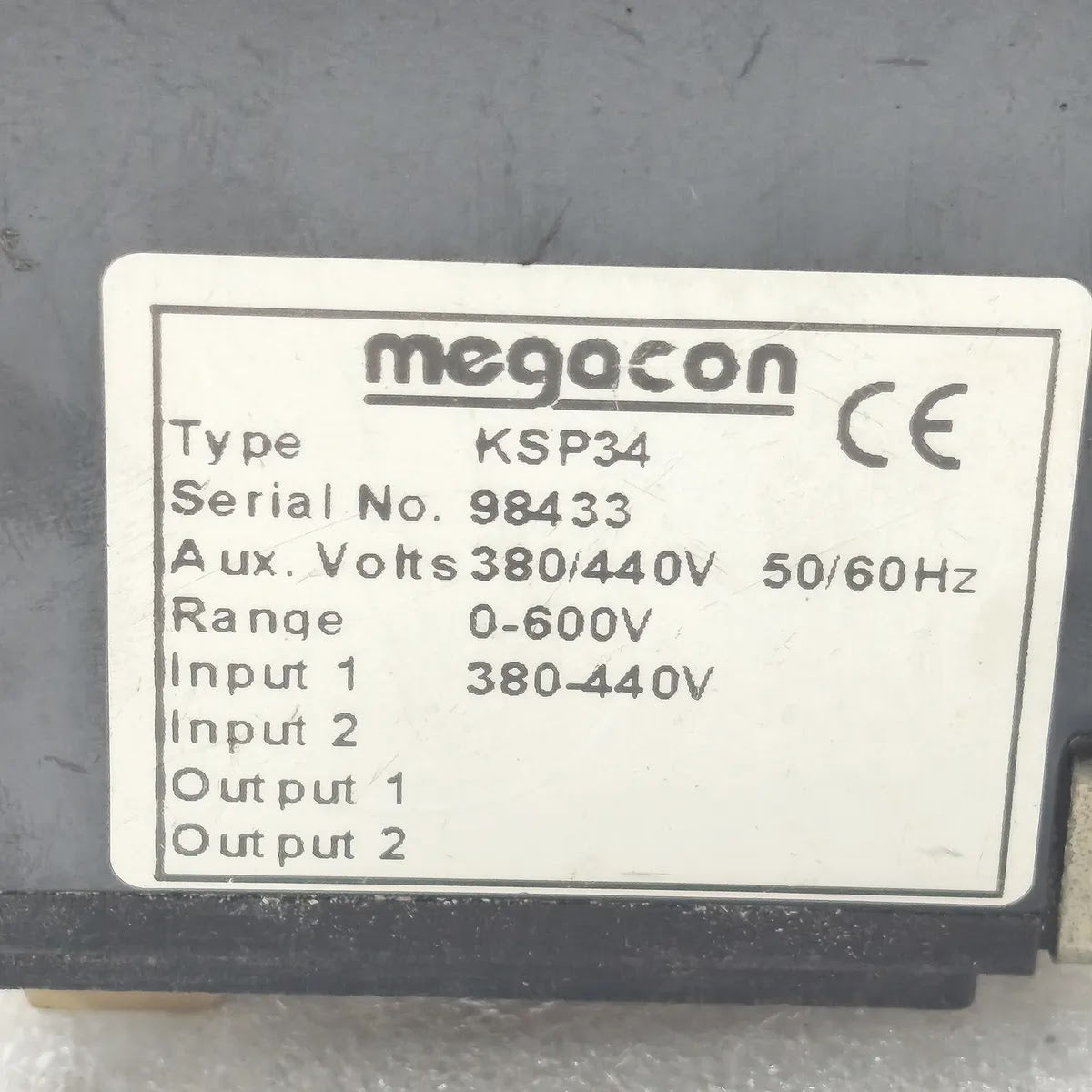

| Part Number | KSP34 (marked "Type KSP34" on the rating label) |
| Type | Phase Monitoring Voltmeter with phase sequence and phase failure trip relay |
| Series | KSP34x phase monitoring guard series |
| Measuring Element | Moving iron |
| Auxiliary Supply Voltage | 380/440V |
| Frequency | 50/60Hz |
| Measuring Range | 0-600V |
| Input 1 | 380-440V |
| Input 2 | Not fitted (field blank on rating label) |
| Output 1 / Output 2 | Not fitted (fields blank on rating label) |

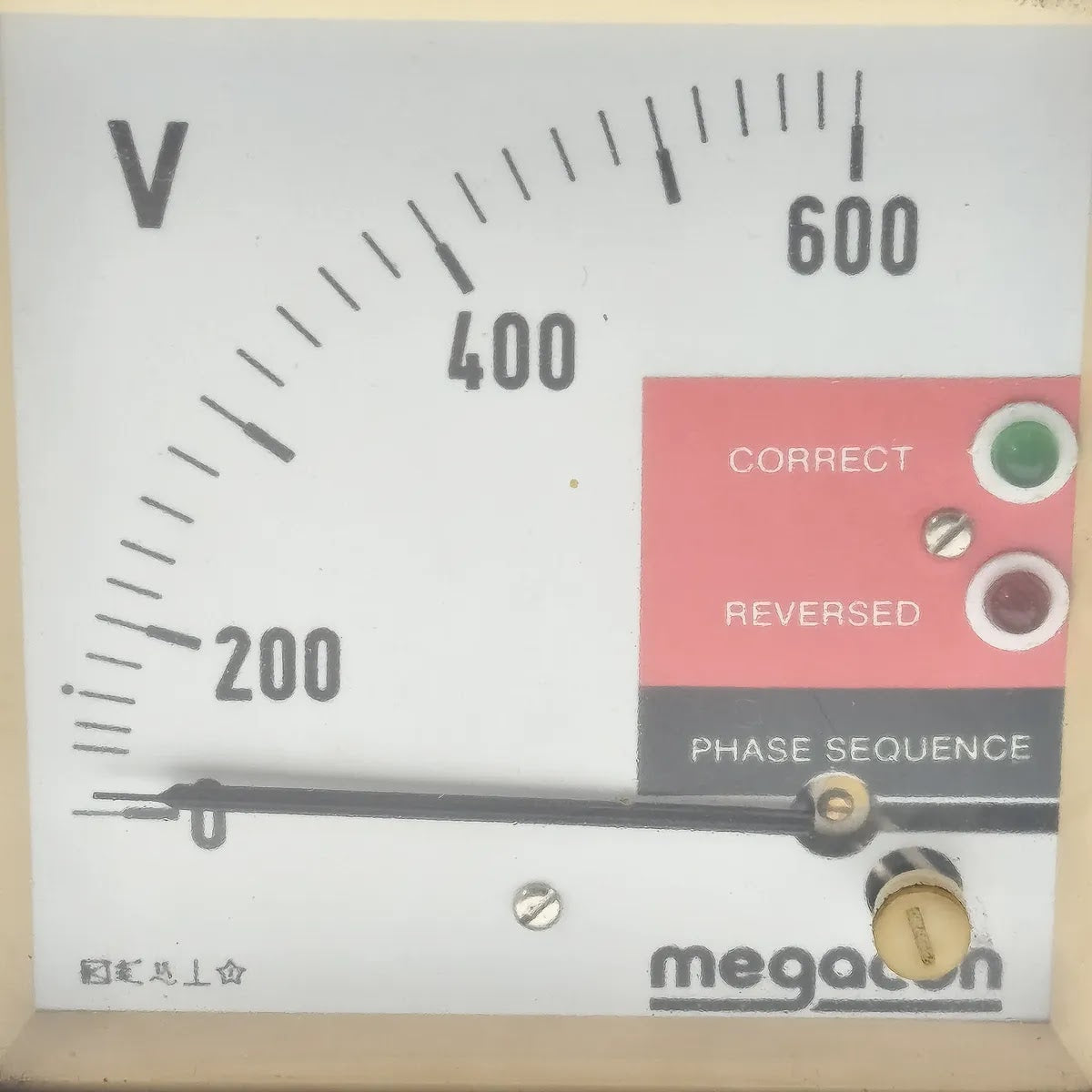

| Phase Sequence Indication | CORRECT / REVERSED |
| Output Relay | Phase sequence and phase failure trip relay, energised when supply is correct |
| Supply System | Three phase, R / S / T |
| Application | Three-phase supply monitoring against reversed rotation, phase loss and voltage imbalance; shore connection and mobile installations |
| Approvals | CE |
| Country Of Origin | Norway |
| Condition | PRE-OWNED / SECOND HAND |

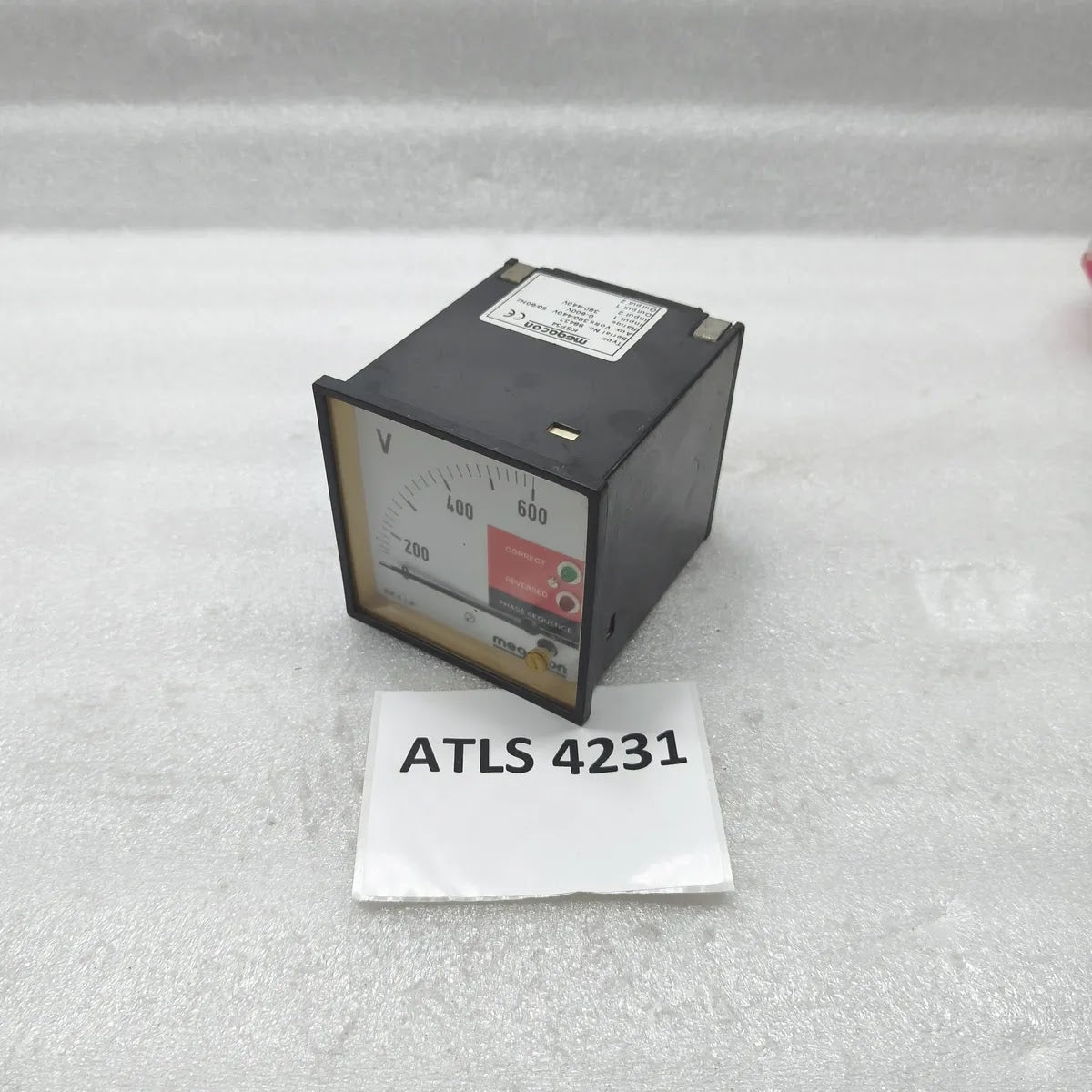

| REF | ATLS4231 |
