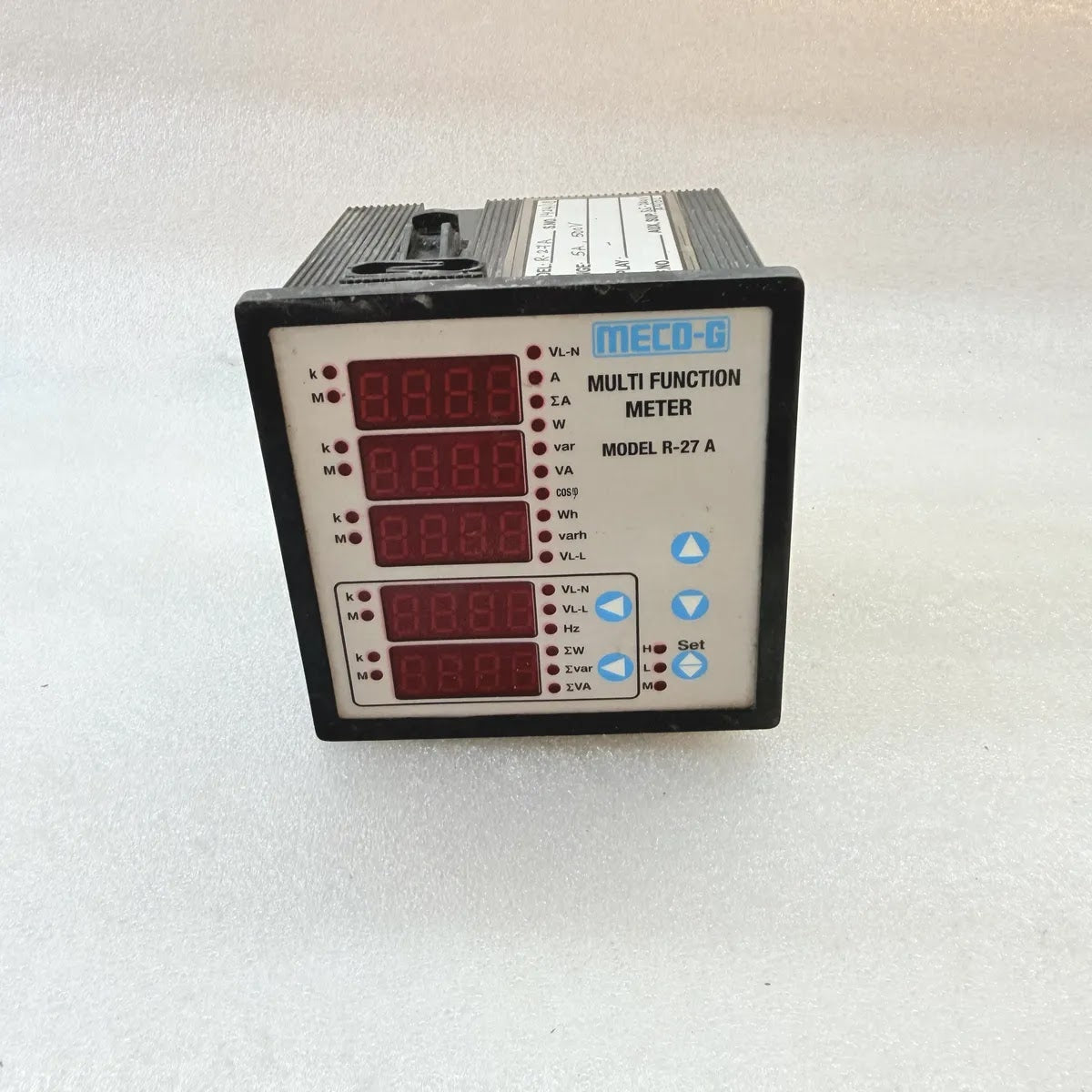

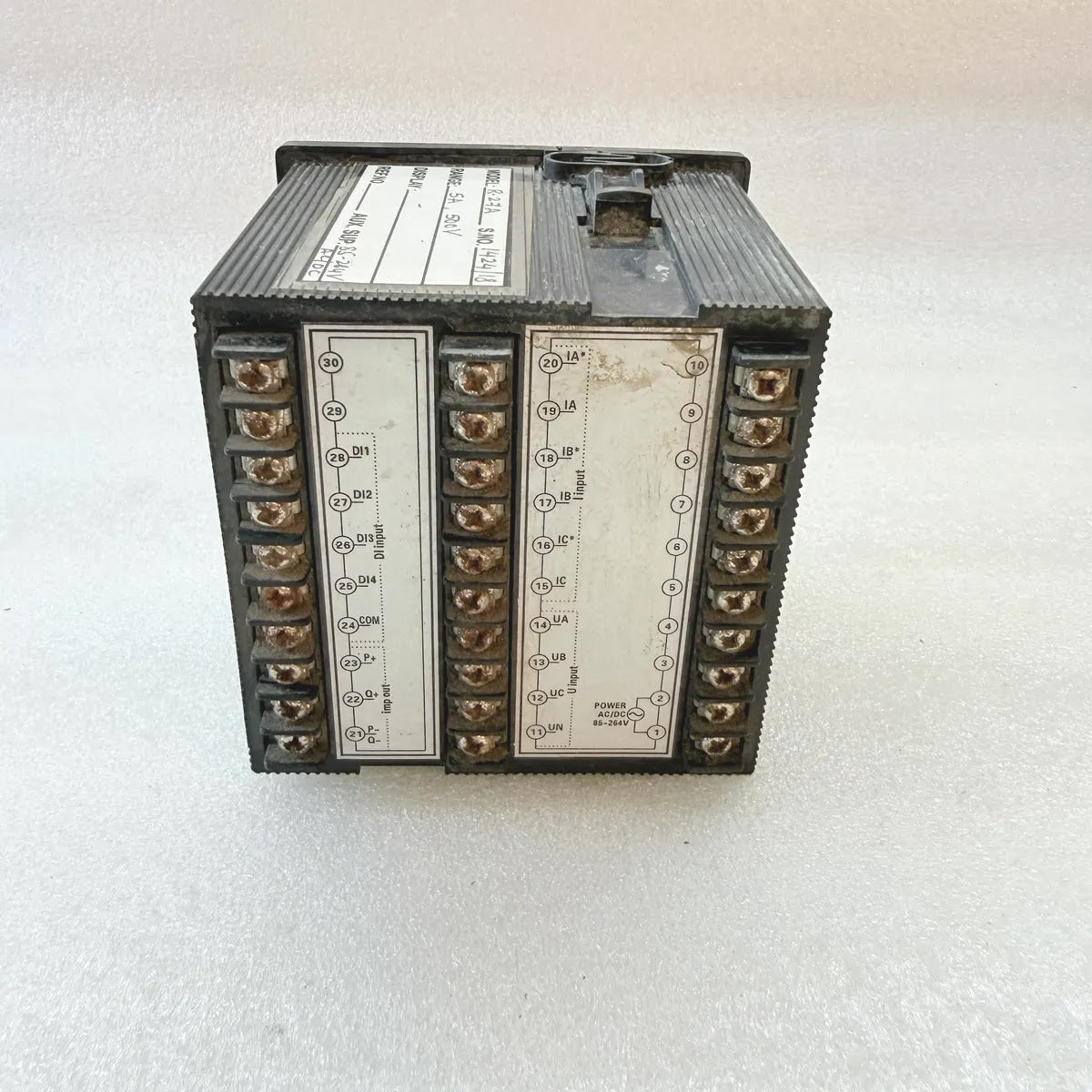

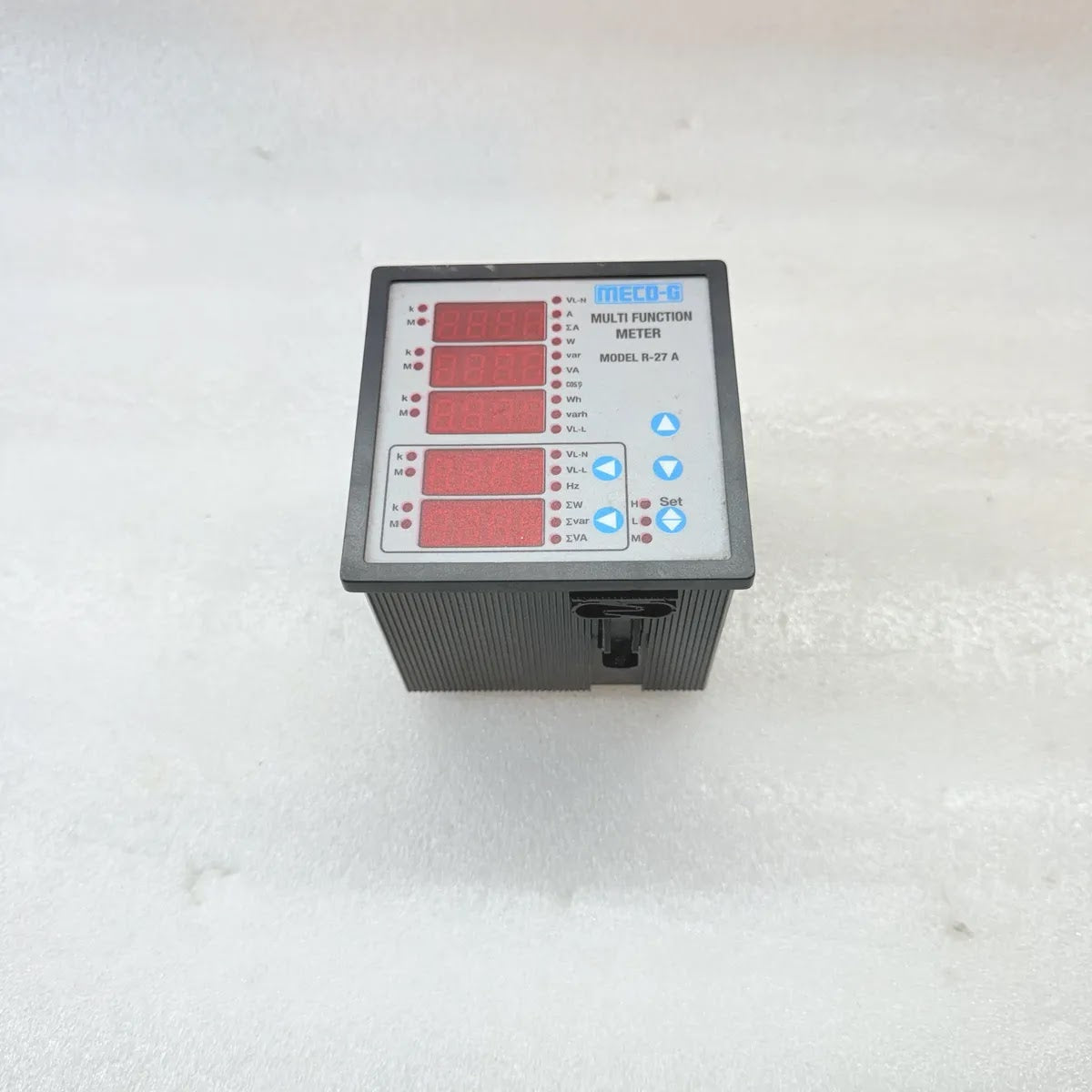

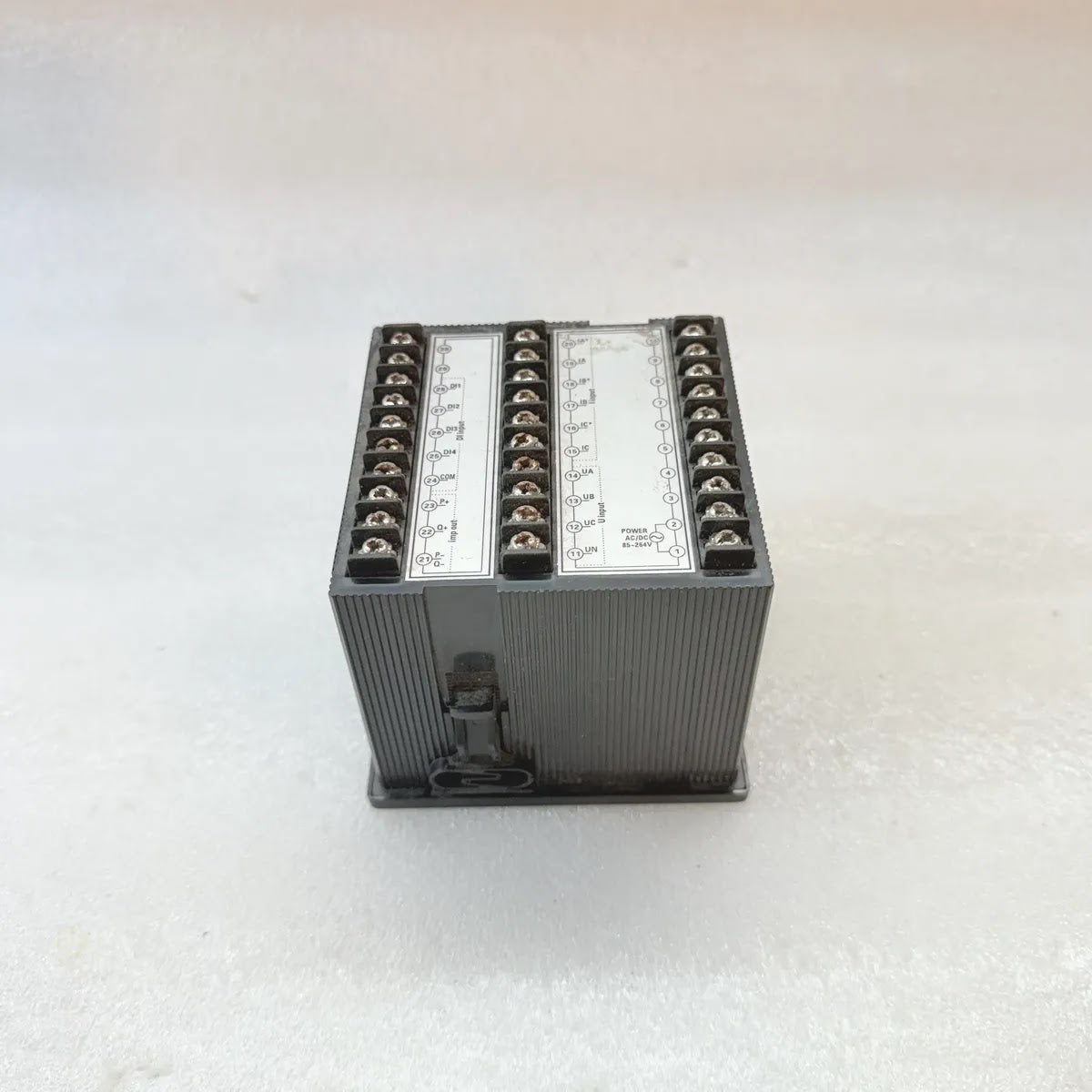

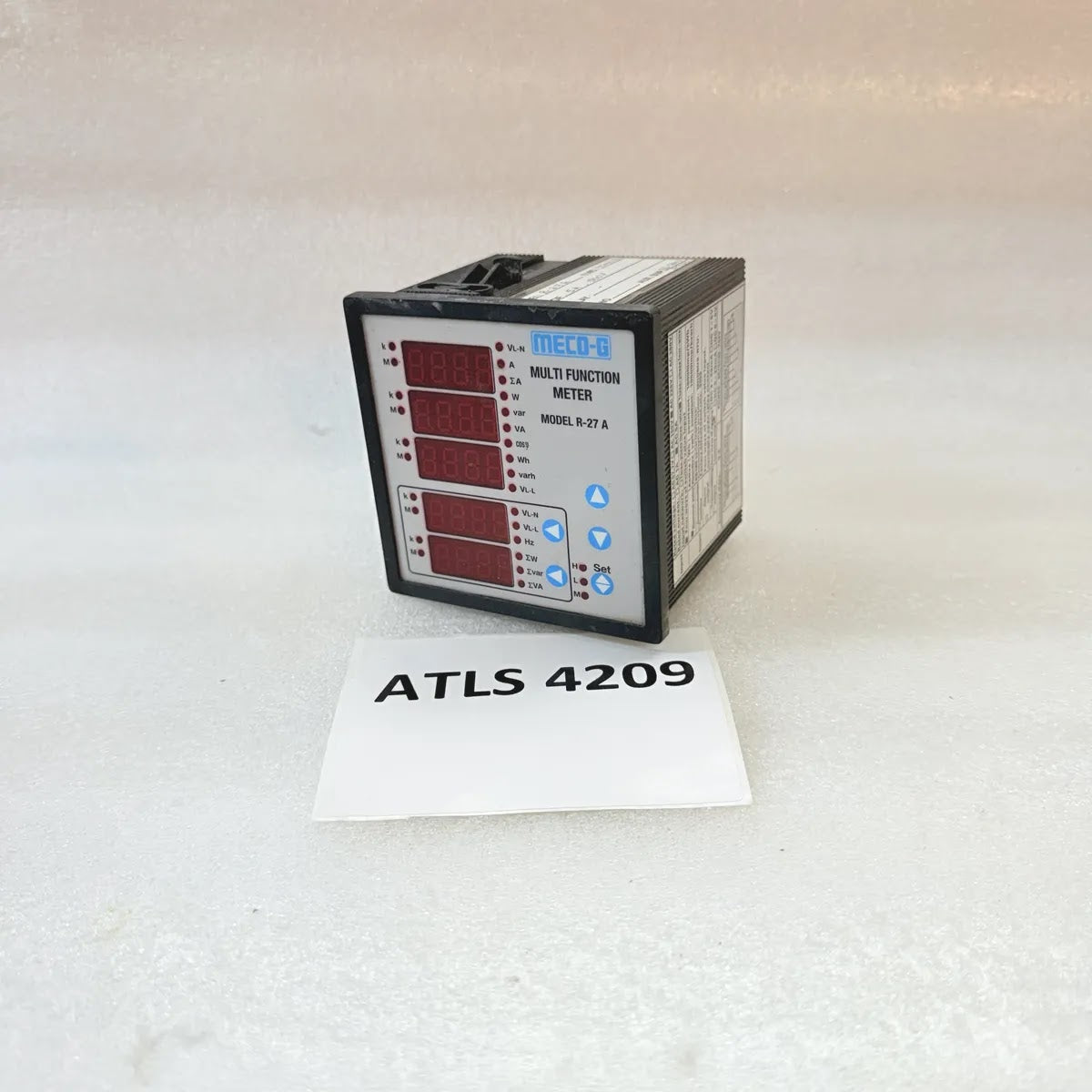

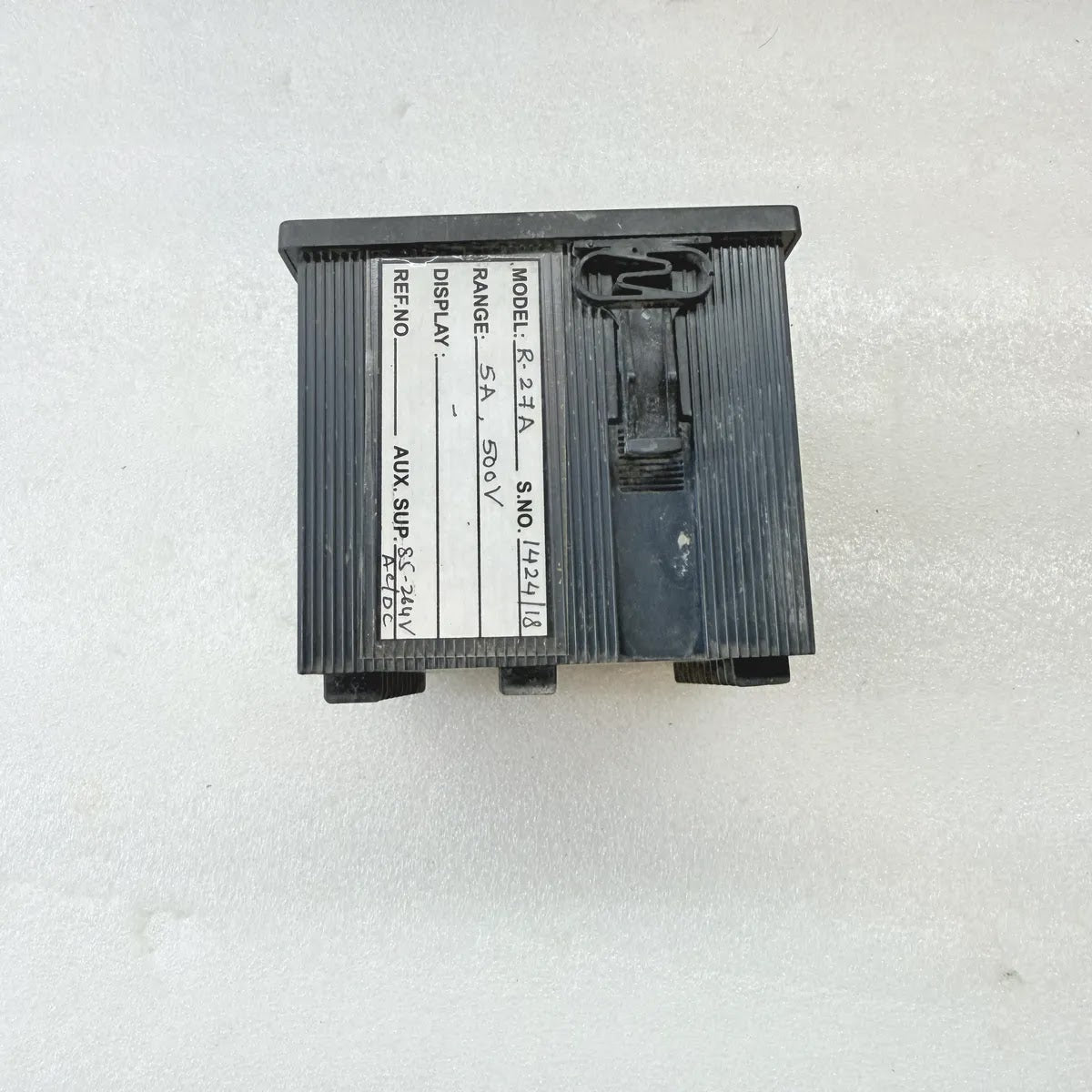

MECO-G R-27A Multi Function Meter 5A 500V
$99.99
Skip to product information
MECO-G R-27A Multi Function Meter 5A 500V
$99.99
MECO-G R-27A Multi Function Meter 5A 500V
Specifications
| Brand | MECO-G |
| Model | R-27 A |
| Type | Multi Function Meter |
| Series | R-27 |
| Current Range | 5A |
| Voltage Range | 500V |
| Auxiliary Supply | 85-264V AC/DC |
| System | 3-phase 3-wire / 3-phase 4-wire |
| Frequency | 50 Hz |
| Measured Parameters | VL-N, VL-L, A, total A, W, var, VA, cos phi, Wh, varh, Hz, total W, total var, total VA |
| Digital Inputs | 4 (DI1 to DI4 with common) |
| Pulse Outputs | 2, active and reactive energy impulse output |
| Application | Panel power and energy monitoring on three-phase distribution systems |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4209 |
