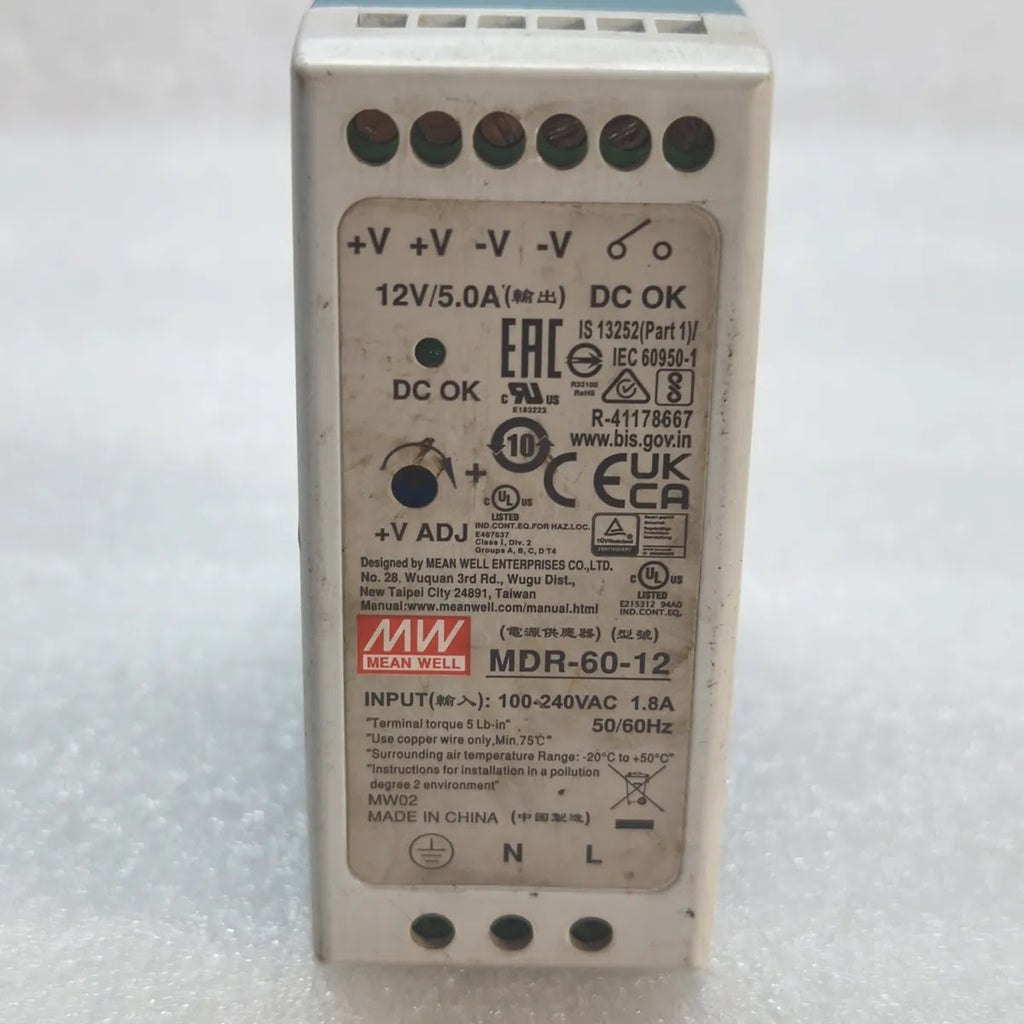

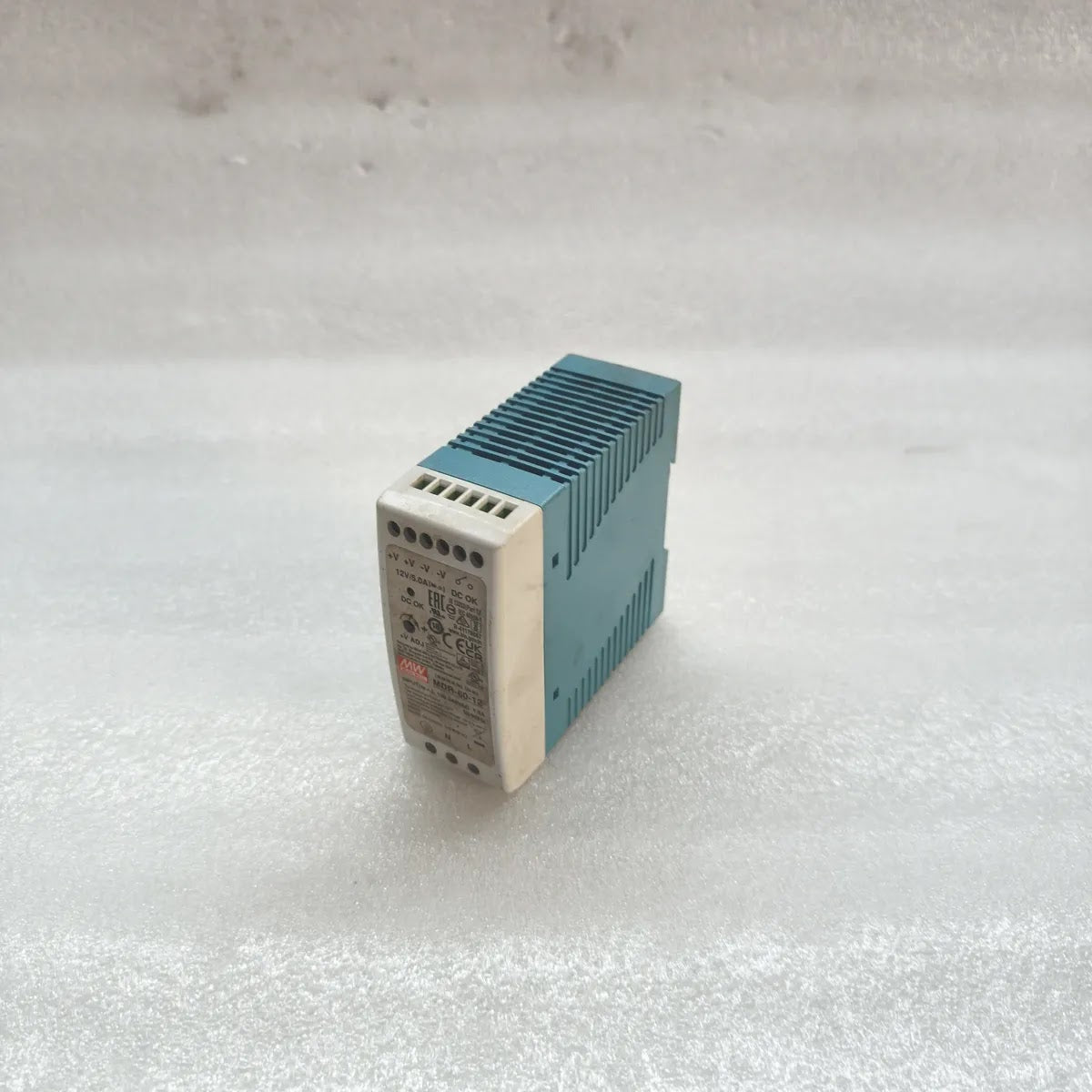

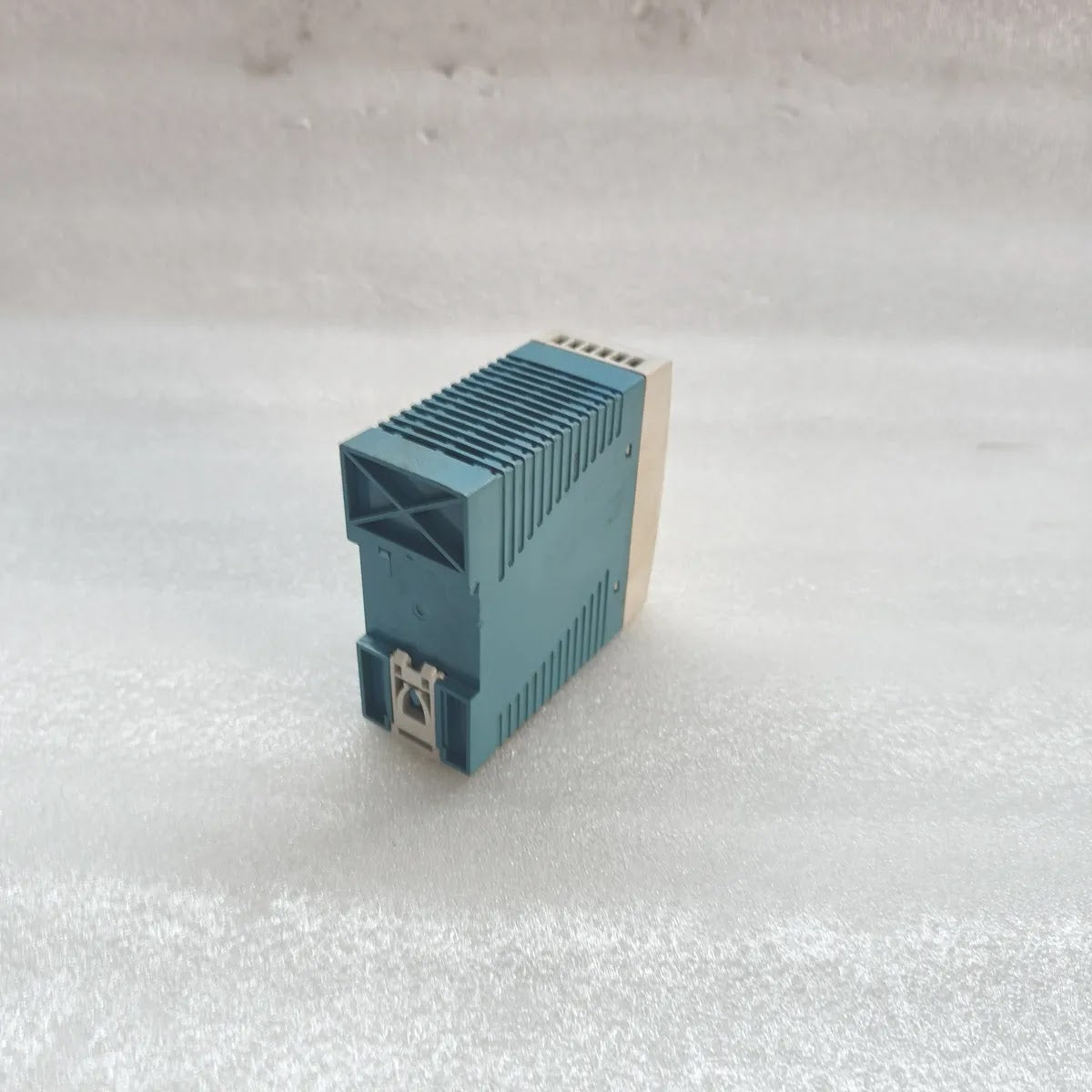

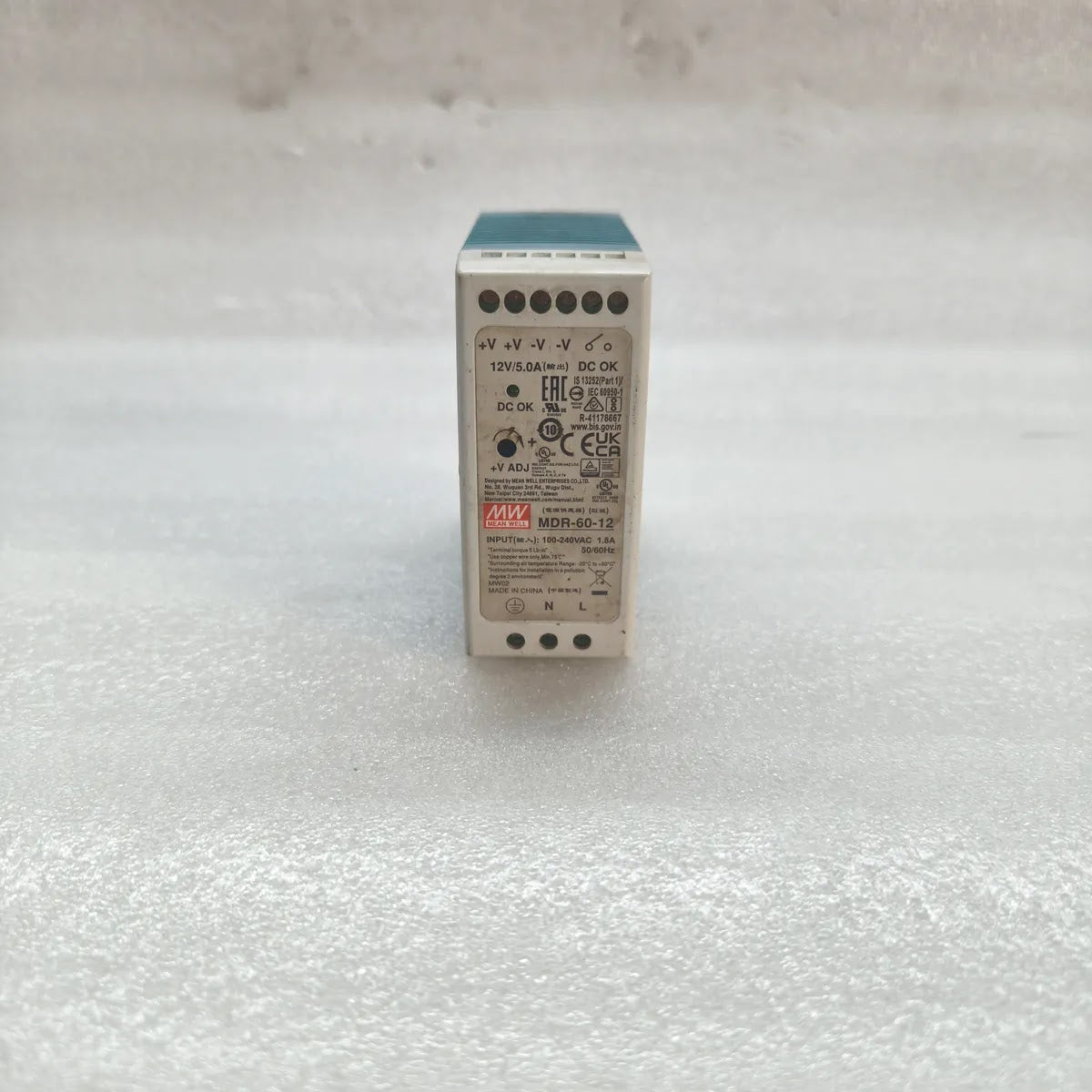

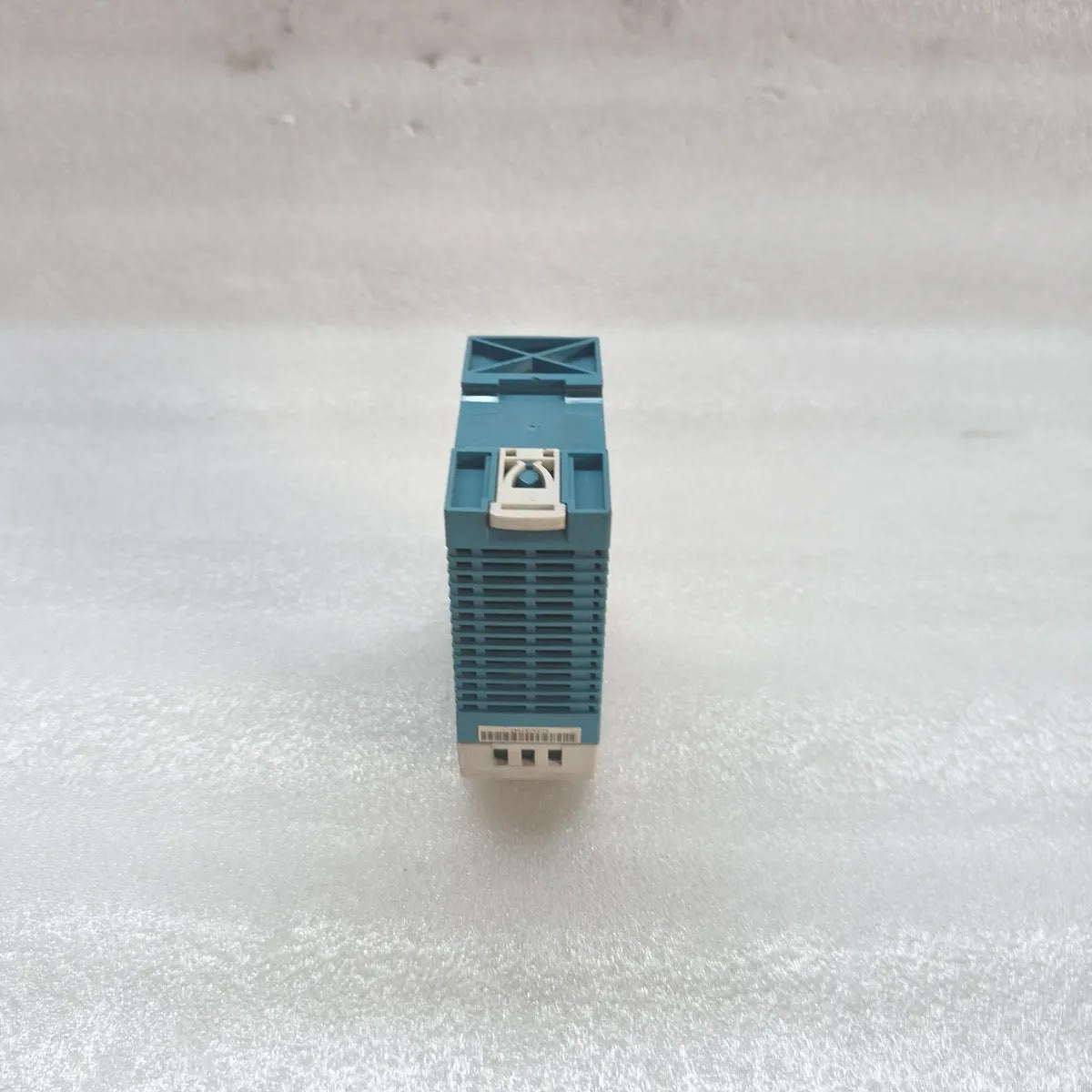

MEAN WELL MDR-60-12 DIN Rail Power Supply 12V 5A 60W FOR PARTS
$15.00
Skip to product information
MEAN WELL MDR-60-12 DIN Rail Power Supply 12V 5A 60W FOR PARTS
$15.00
MEAN WELL MDR-60-12 DIN Rail Power Supply 12V 5A 60W FOR PARTS
Specifications
| Brand | MEAN WELL |
| Model | MDR-60-12 |
| Part Number | MDR-60-12 |
| Type | DIN Rail Switching Power Supply (AC-DC) |
| Series | MDR-60 |
| Output Voltage | 12V DC |
| Output Current | 5.0A |
| Output Power | 60W |
| Output Voltage Adjustment | 12-15V, trimmer adjustable |
| Ripple And Noise | 120mV peak-to-peak maximum |
| Voltage Tolerance | +/-1.0% |
| Supply Voltage | 100-240VAC |
| Input Voltage Range | 85-264VAC / 120-370VDC |
| Input Current | 1.8A |
| Frequency | 50/60Hz (47-63Hz) |
| Efficiency | Approx. 86% |
| No Load Power Consumption | Less than 0.75W |
| Status Signal | DC OK signal contact, with DC OK status indicator |
| Protection | Short circuit, overload and over voltage protection |
| Cooling | Free air convection |
| Surrounding Air Temperature | 20 degrees C to +50 degrees C |
| Pollution Degree | 2 |
| Hazardous Location Rating | Class I, Div. 2, Groups A, B, C, D T4 |
| Dimensions | 40 x 100 x 90 mm (W x D x H) |
| Standard | IS 13252(Part 1) / IEC 60950-1 |
| Manufacturer | Designed by MEAN WELL ENTERPRISES CO., LTD., No. 28, Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, Taiwan |
| Country Of Origin | Made in China |
| Condition | FOR PARTS - NOT WORKING |

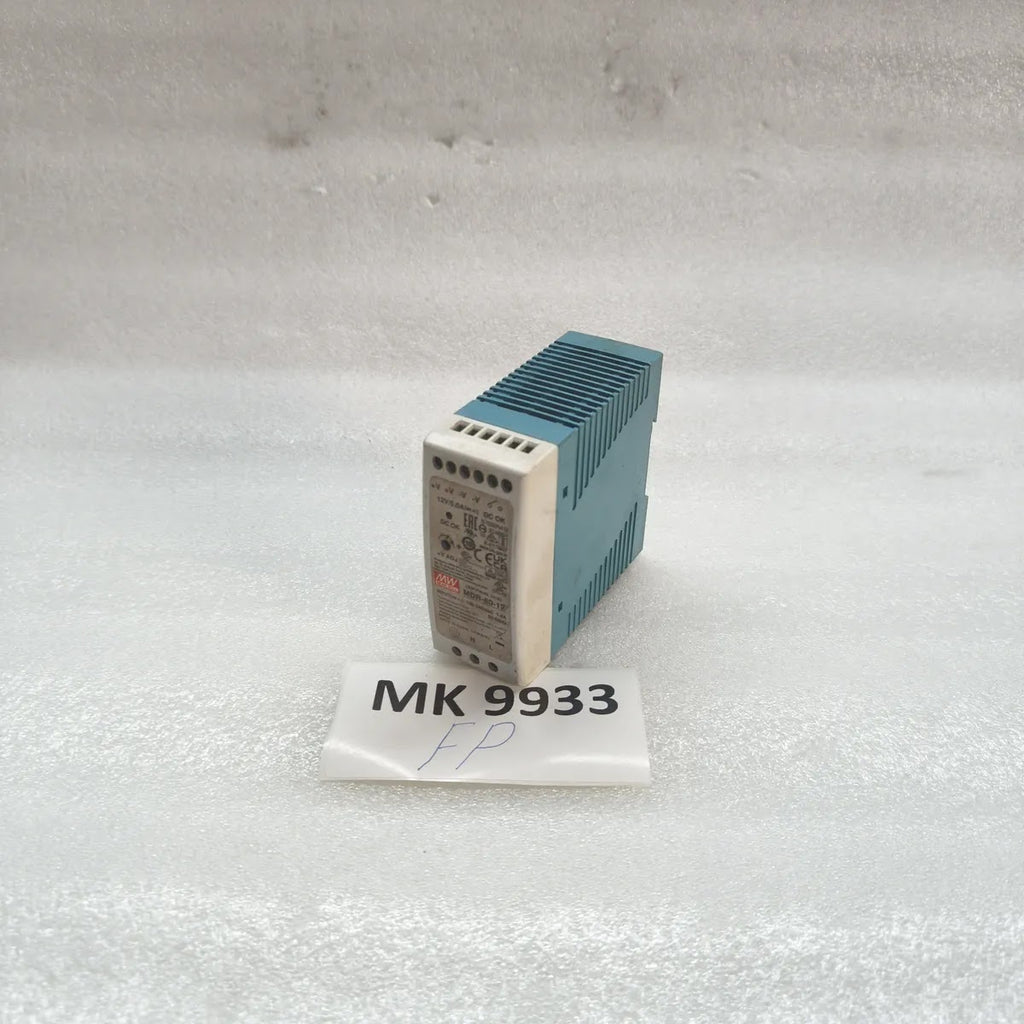

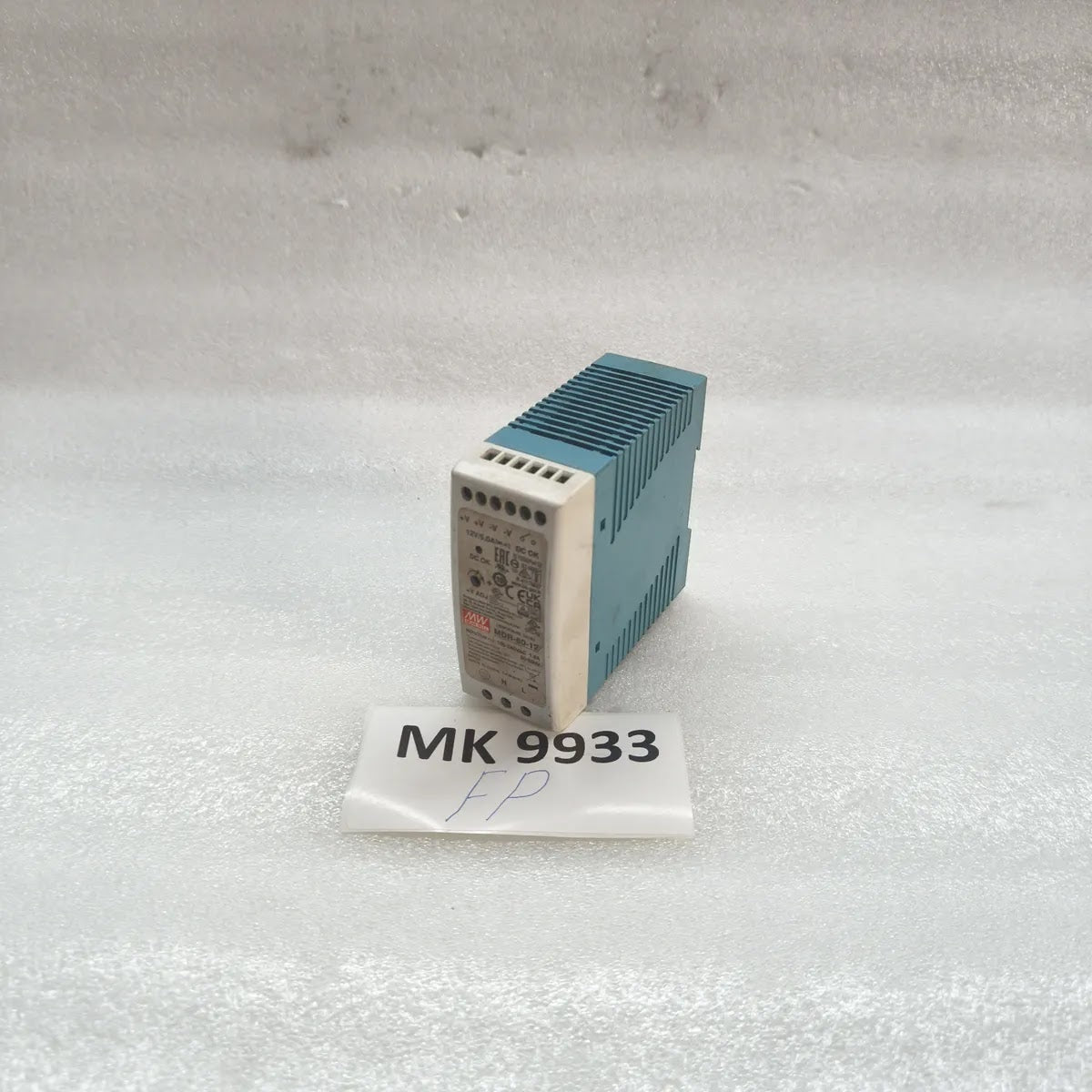

| REF | MK9933 |
| Category | Other Automation Equipment |
