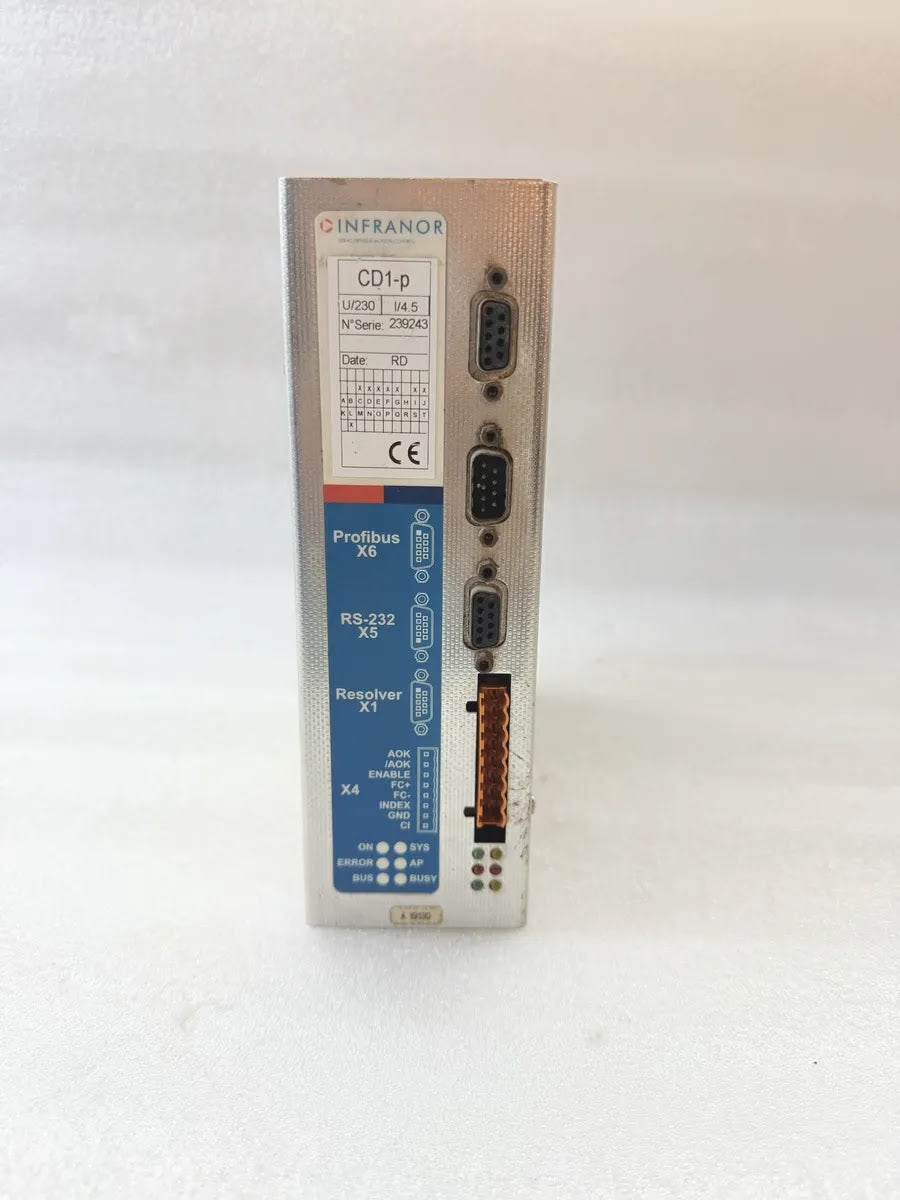

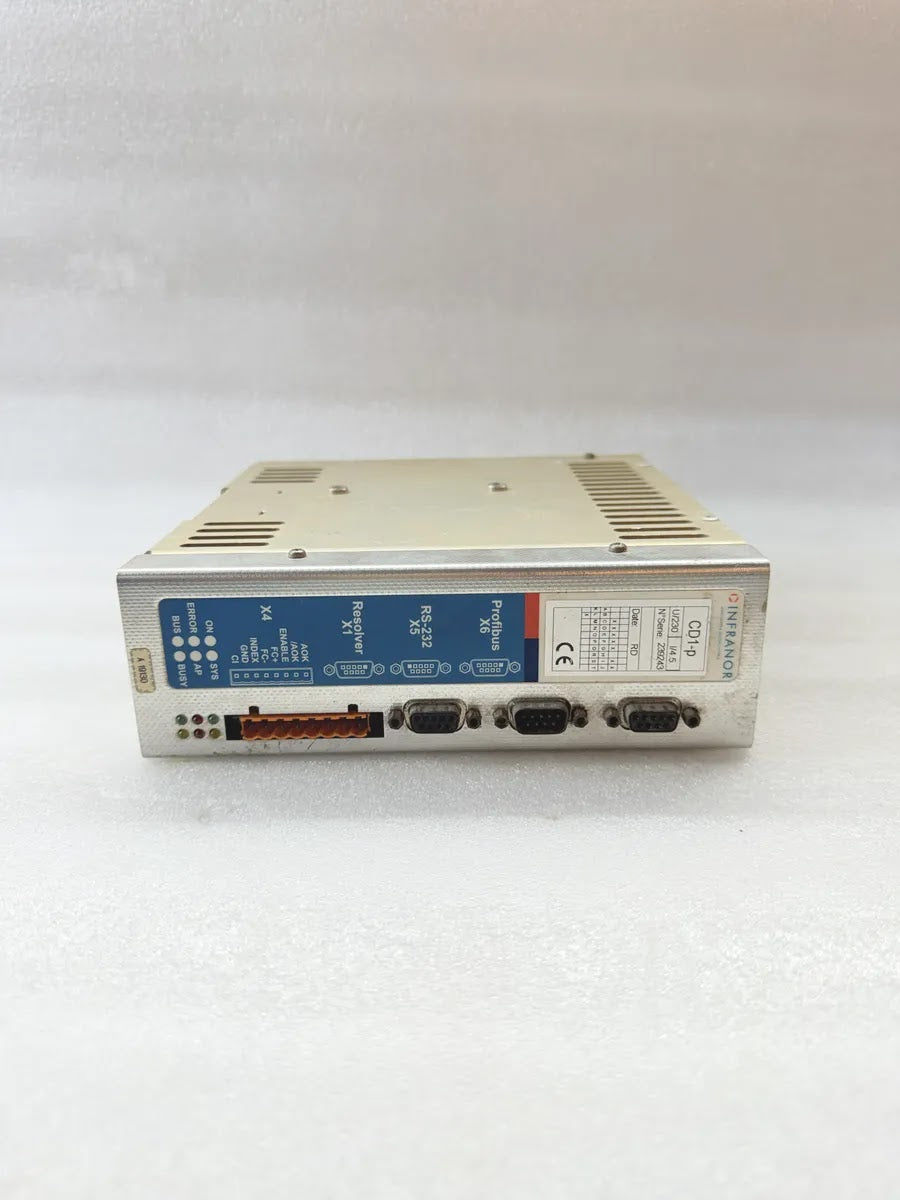

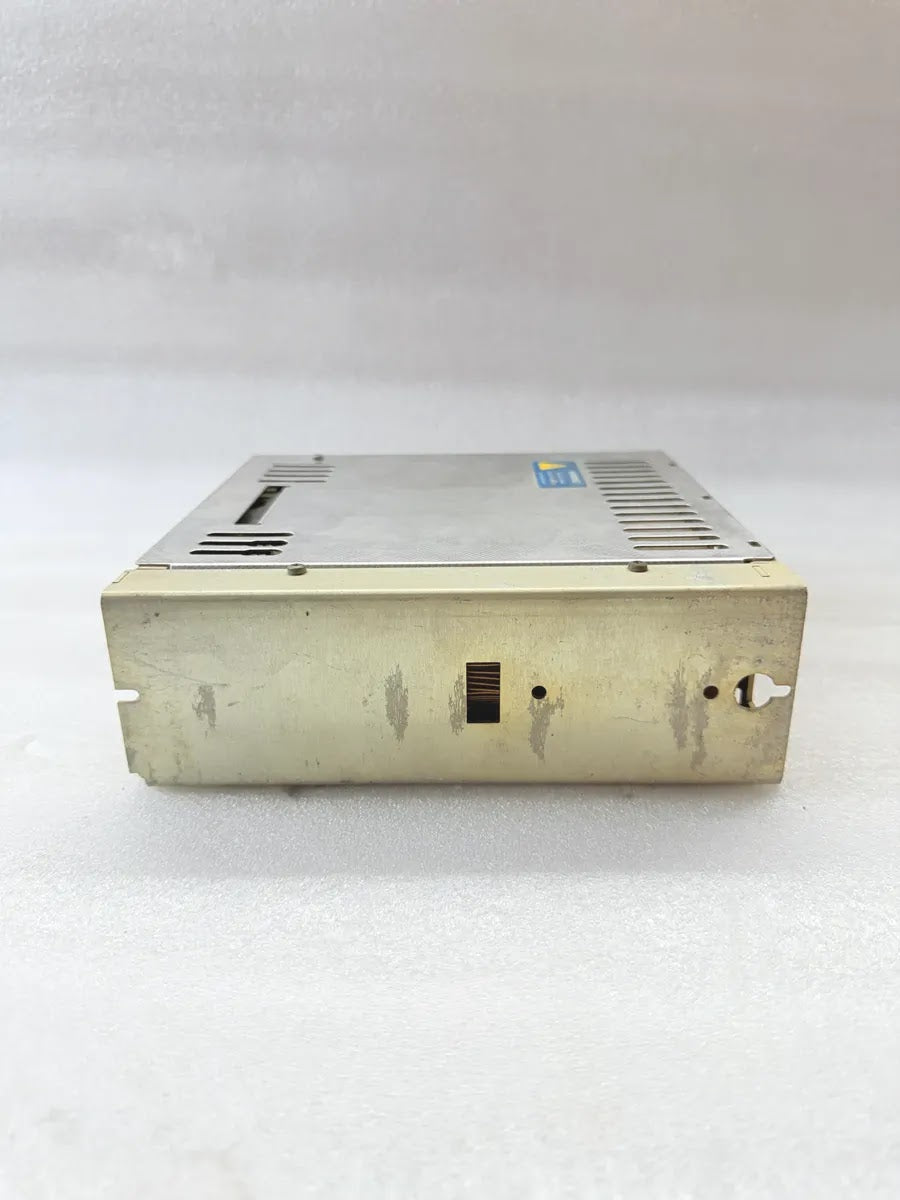

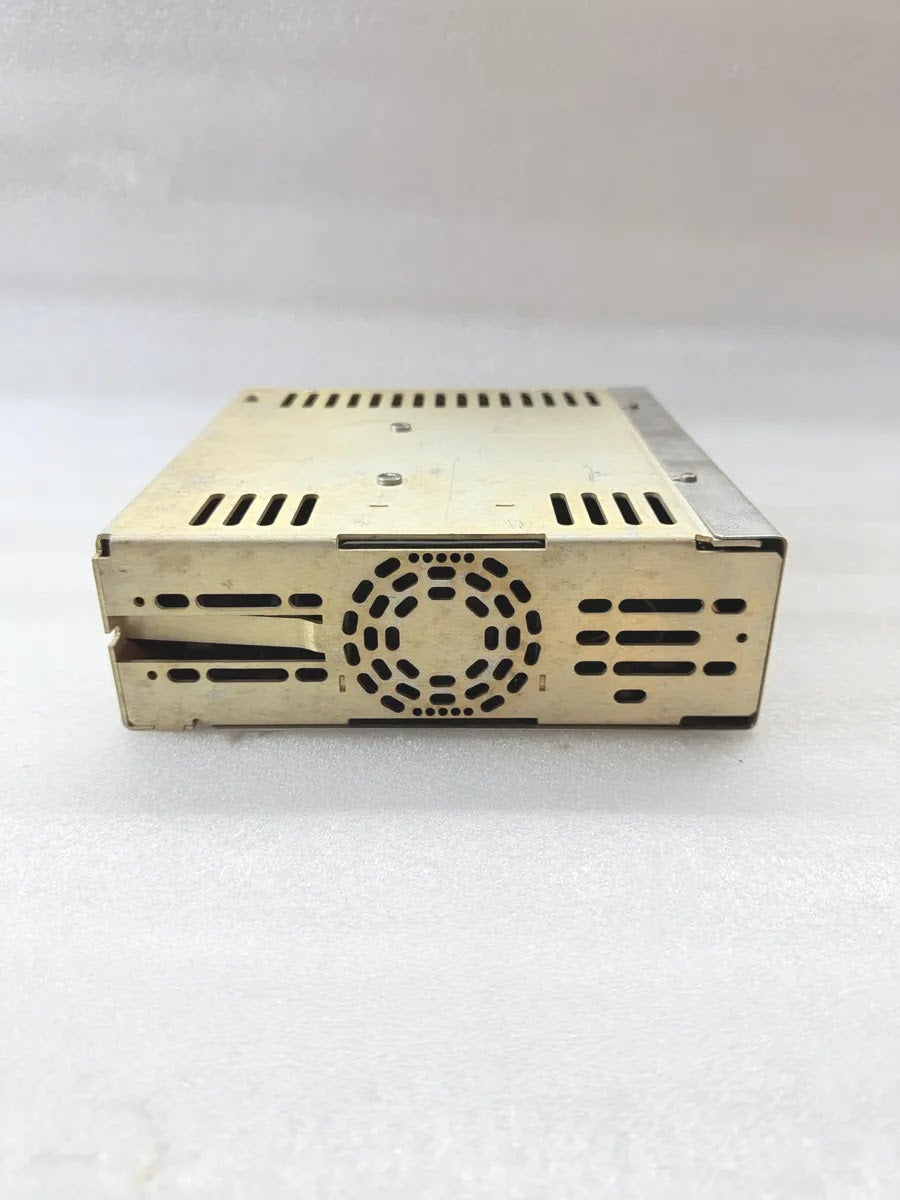

INFRANOR CD1-p Profibus Servo Drive 230V 4.5A
$199.99
Skip to product information
INFRANOR CD1-p Profibus Servo Drive 230V 4.5A
$199.99
INFRANOR CD1-p Profibus Servo Drive 230V 4.5A
Specifications
| Brand | INFRANOR |
| Model | CD1-p |
| Type | Digital servo drive with Profibus positioner |
| Series | CD1 |

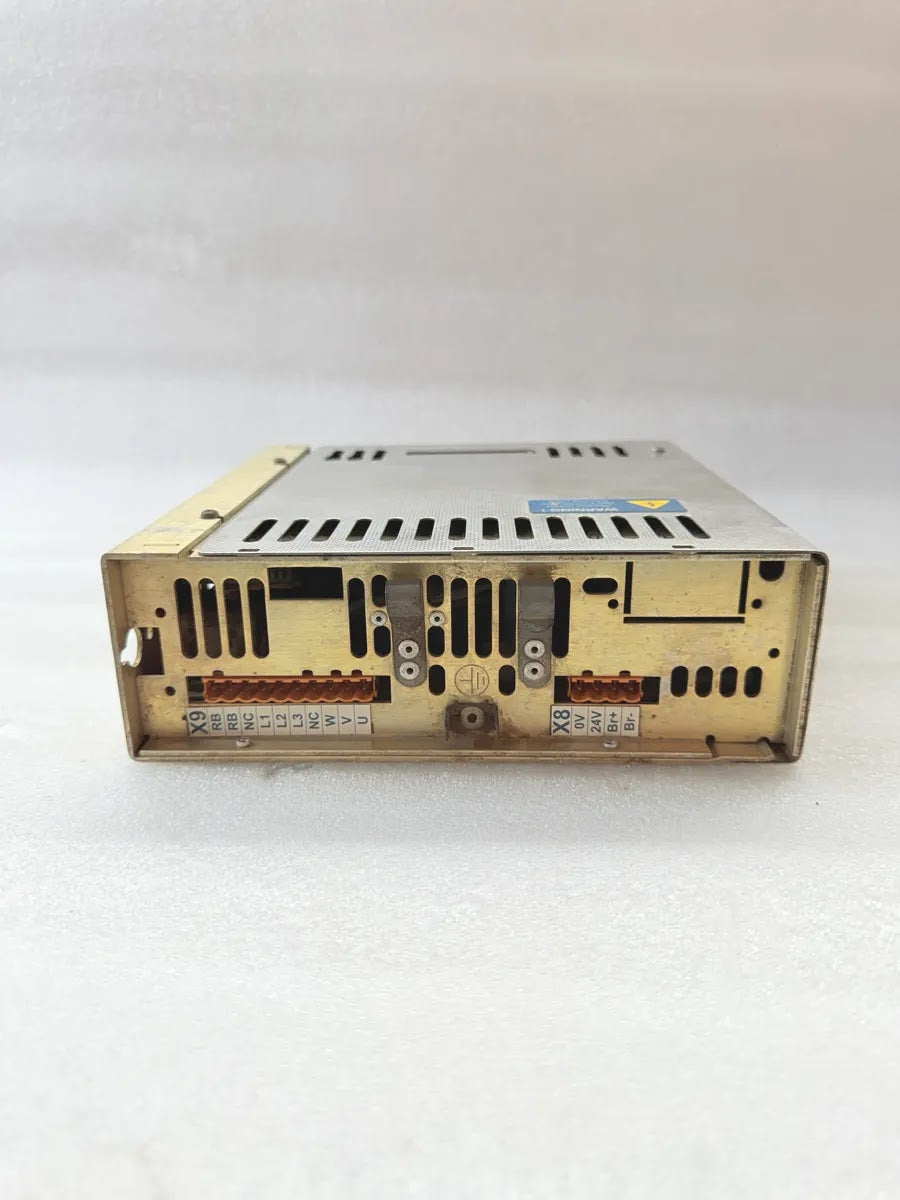

| Supply Voltage | U/230 - 230 V AC mains (L1, L2, L3 at X9) |
| Output Current | I/4.5 - 4.5 A |
| Motor Output | Three-phase U, V, W at X9 |
| Auxiliary Supply | 24 V DC / 0 V at X8 |
| Motor Brake Output | Br+ / Br- at X8 |
| Braking Resistor | RB / RB at X9 |
| Feedback | Resolver input X1 |
| Communication | Profibus X6 and RS-232 X5 |
| Control Signals | X4: AOK, /AOK, ENABLE, FC+, FC-, INDEX, GND, CI |
| Diagnostics | Status indication ON, SYS, ERROR, AP, BUS, BUSY |
| Safety | Residual voltage warning label on the cover - wait before removing the cover after switching power off |
| Approvals | CE |
| Condition | PRE-OWNED / SECOND HAND |

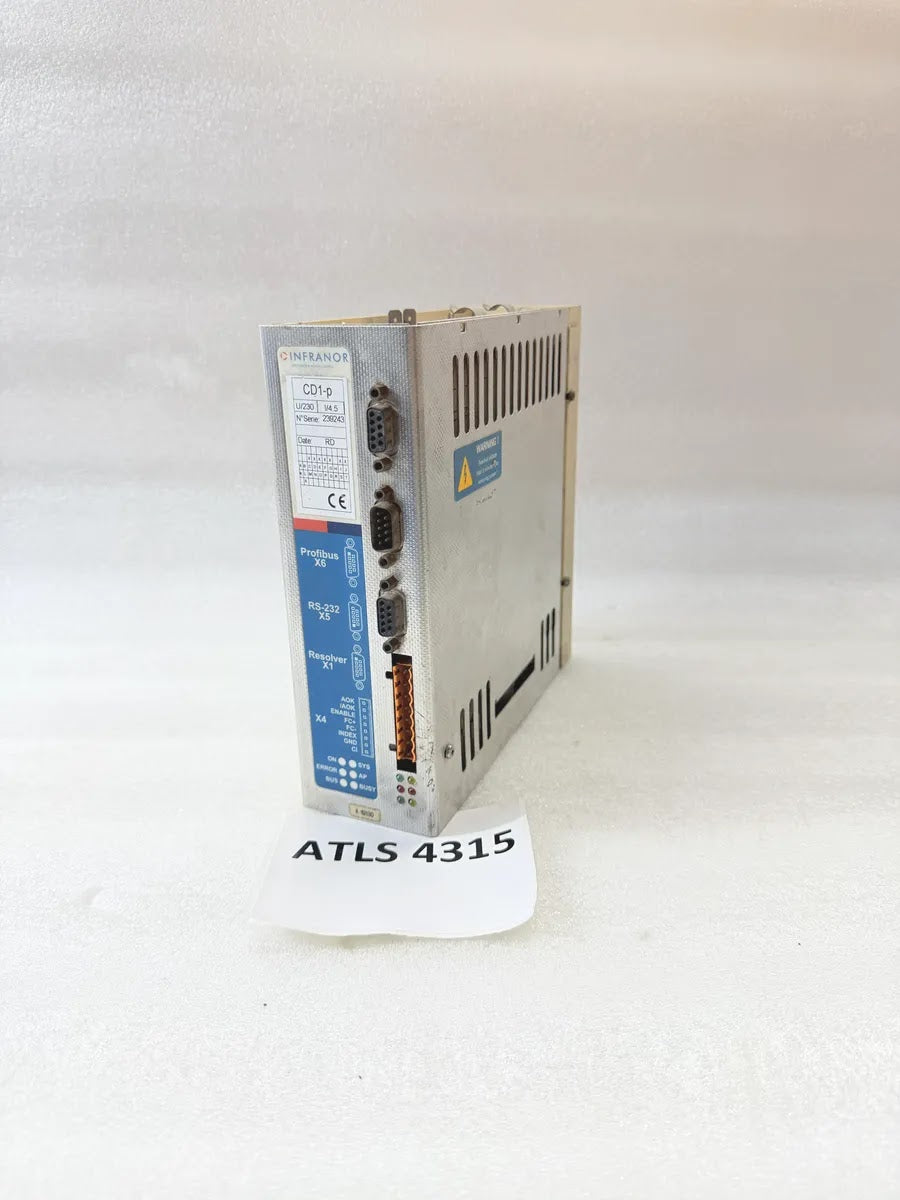

| REF | ATLS4315 |
