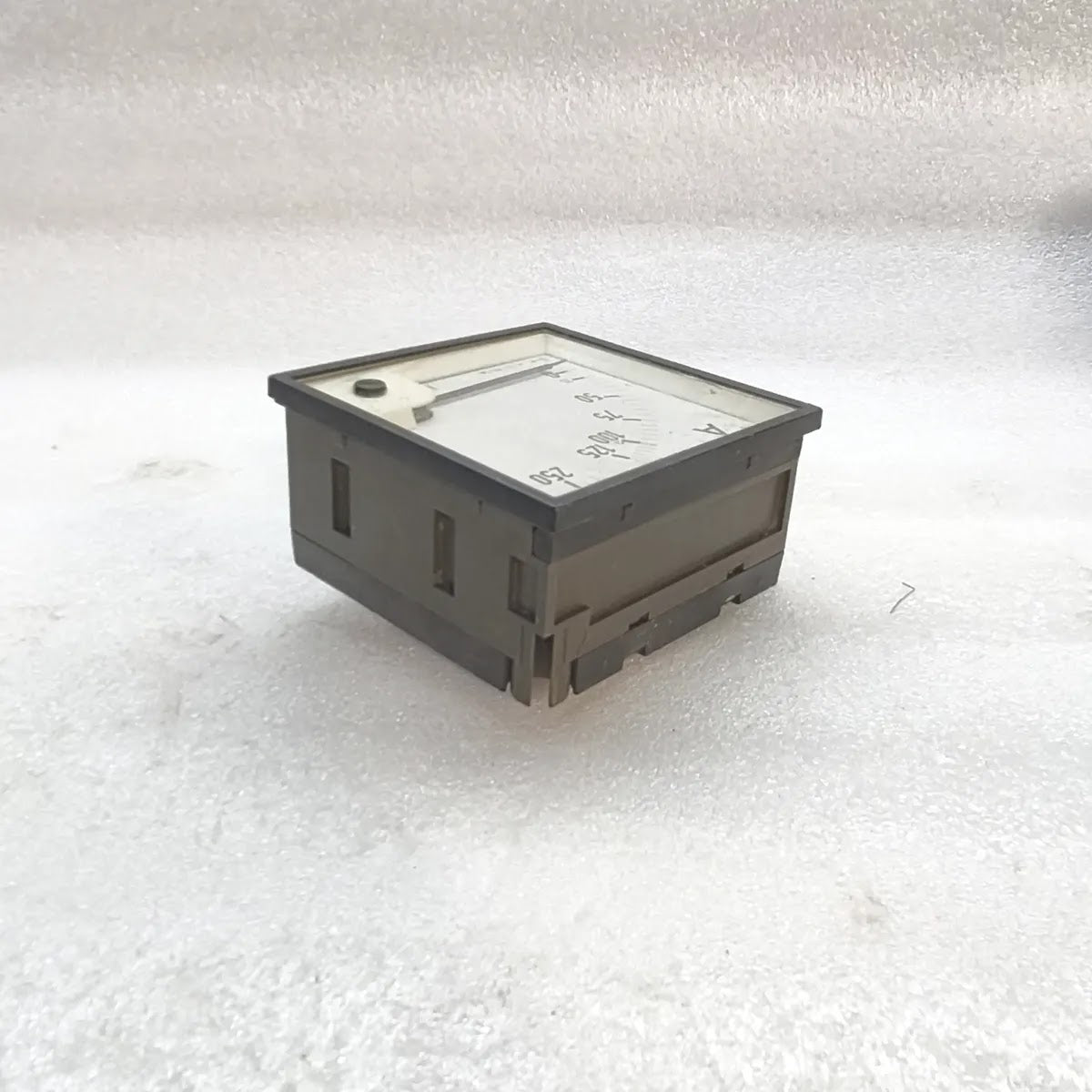

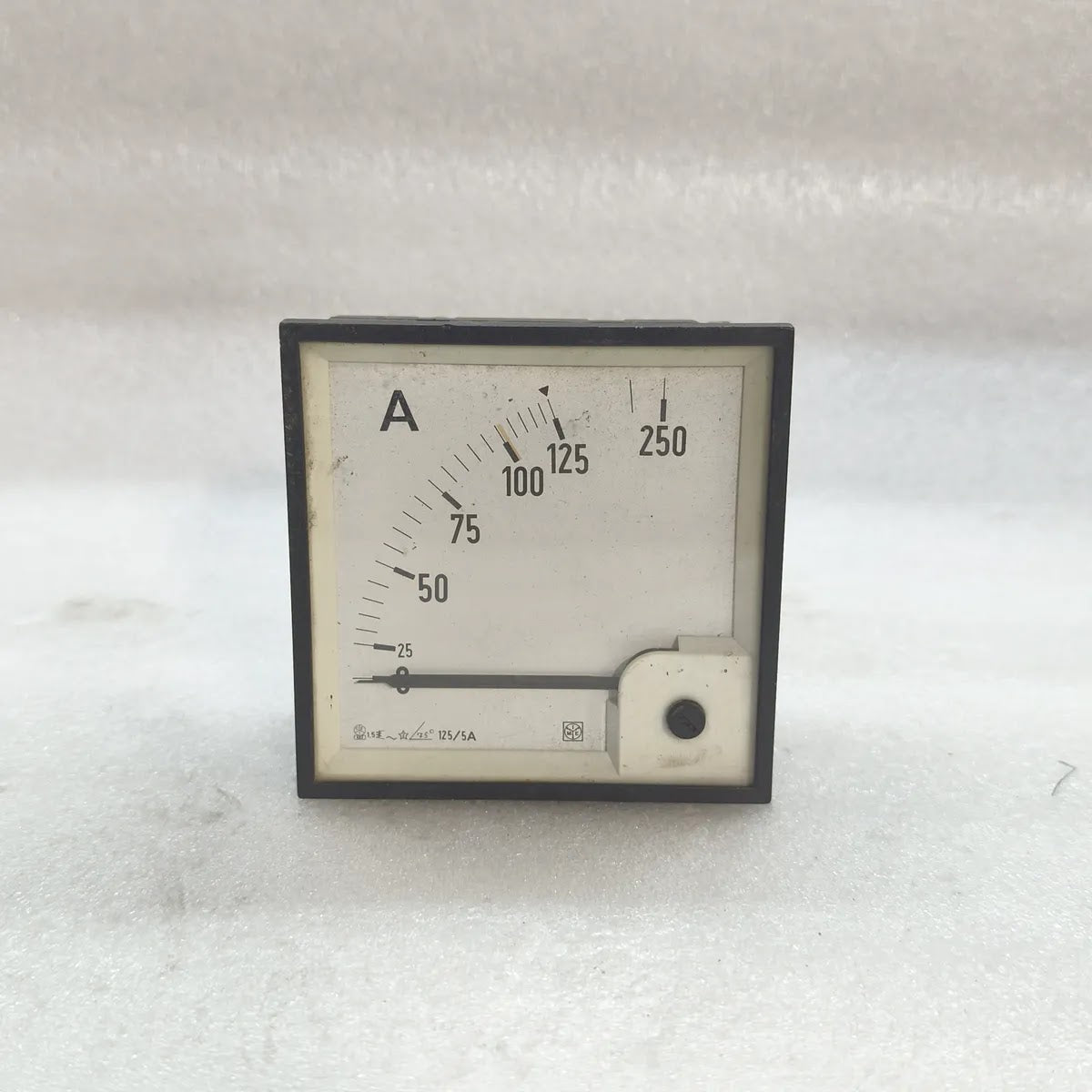

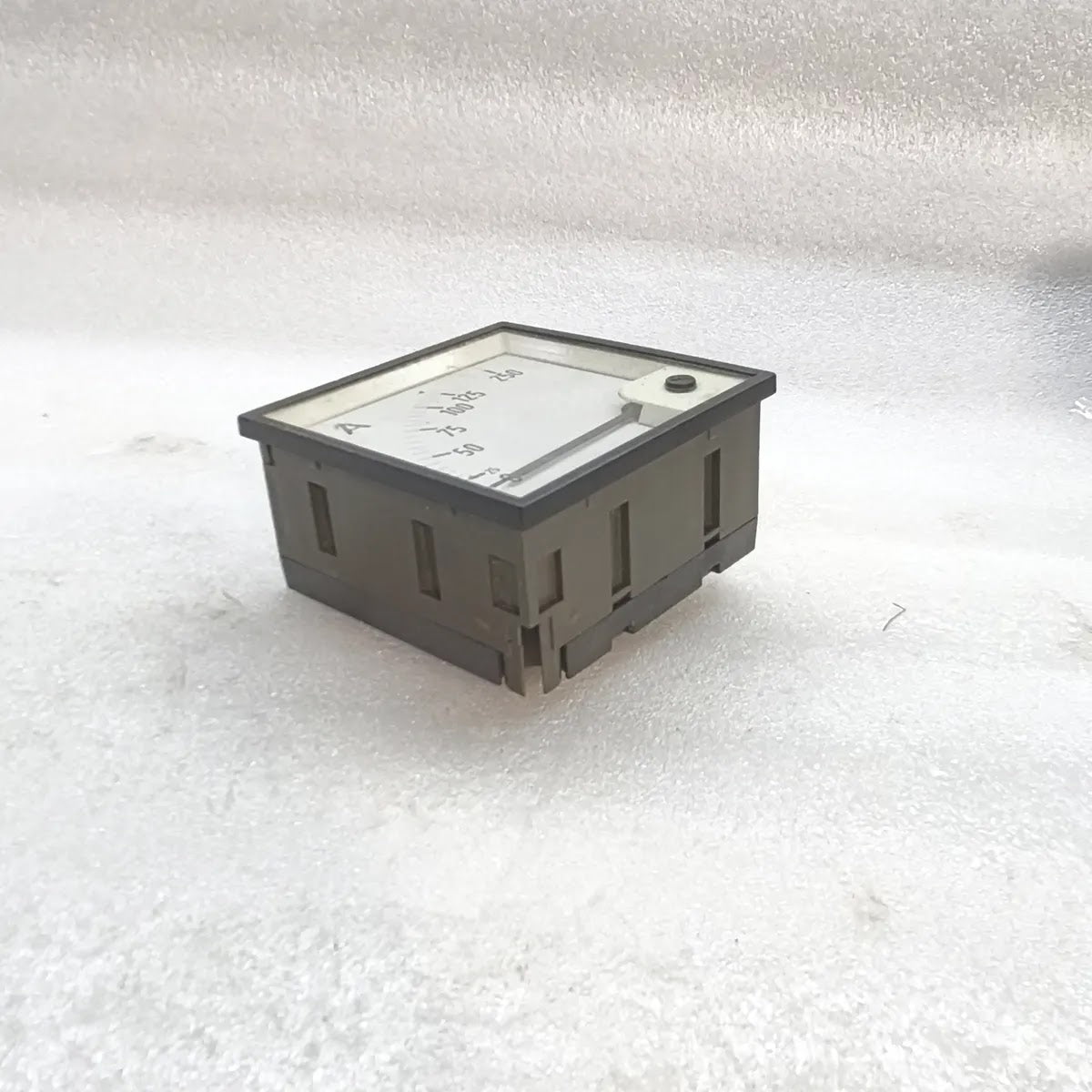

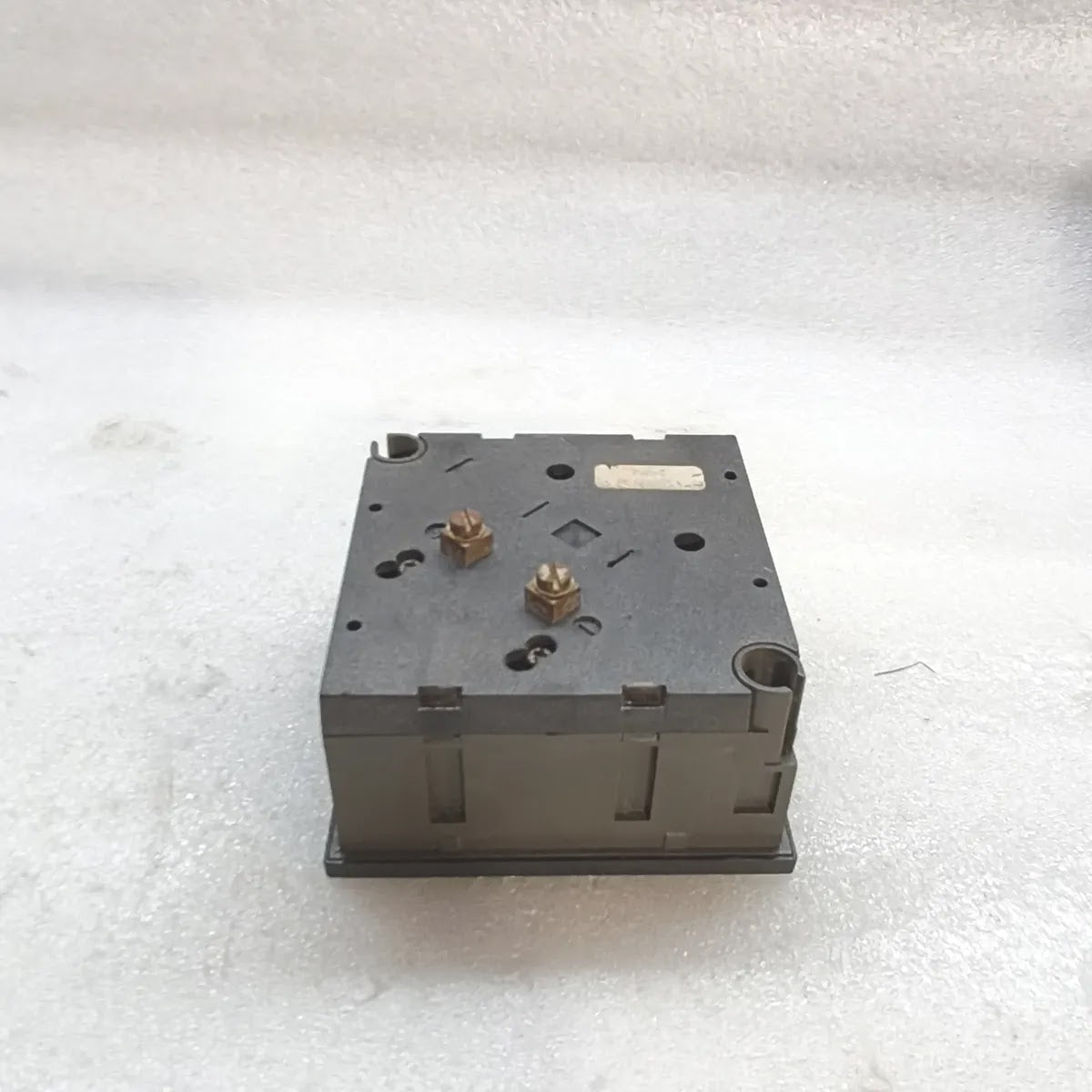

IME Moving Iron Panel Ammeter 0-125/250A 125/5A CT
$99.99
Skip to product information
IME Moving Iron Panel Ammeter 0-125/250A 125/5A CT
$99.99
IME Moving Iron Panel Ammeter 0-125/250A 125/5A CT
Specifications
| Brand | IME |
| Type | Analogue AC panel ammeter, moving iron |
| Series | RQ square flush-mounting 90-degree scale AC ammeter range |

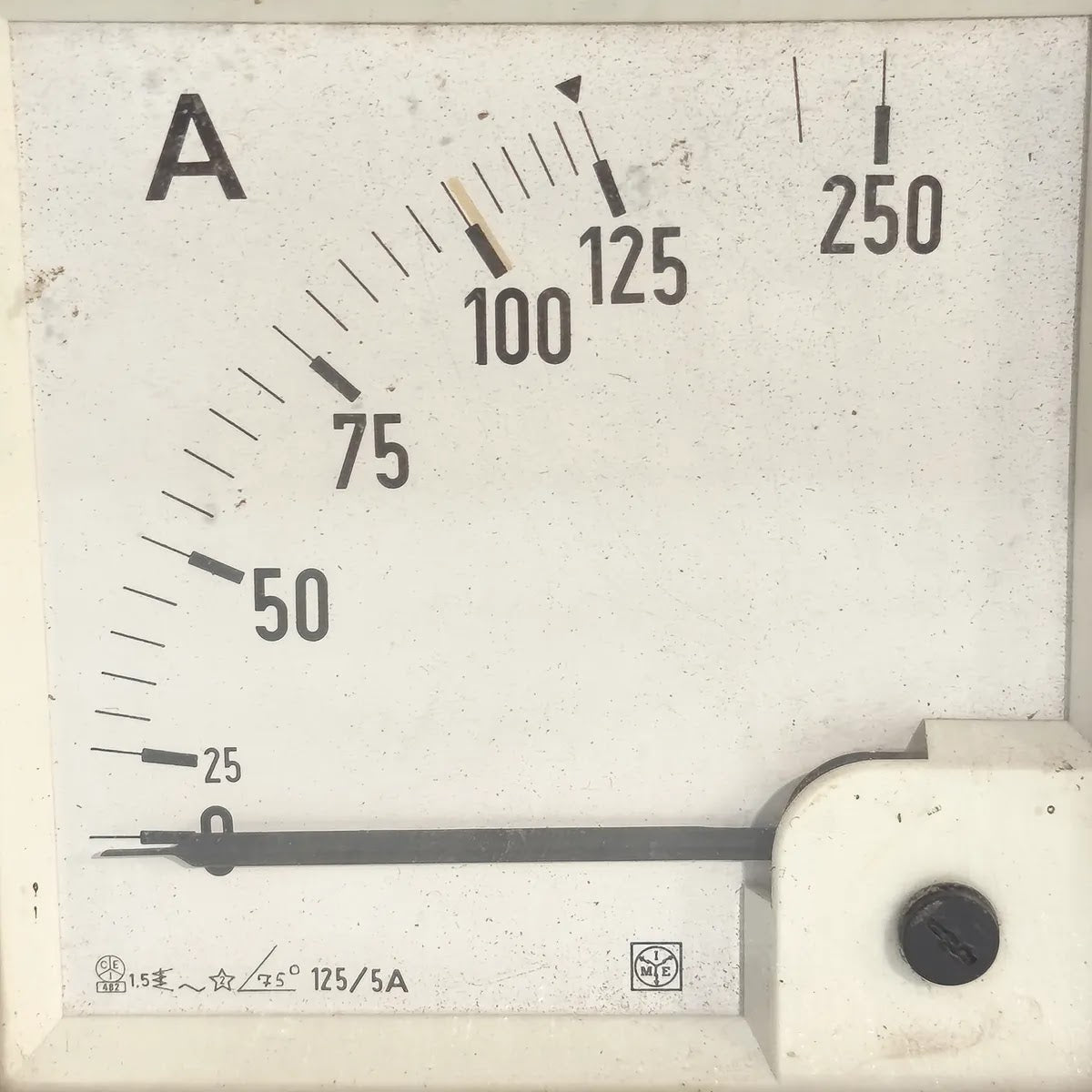

| Measuring Range | 0-125 A with 250 A overscale mark |
| Current Transformer Ratio | 125/5A |
| Input Current | 5 A from external current transformer |
| Current Type | AC |
| Accuracy Class | 1.5 |
| Scale Length | 90 degrees |
| Position Of Use | Inclined 75 degrees |
| Degree Of Protection | IP52 front panel, IP20 enclosure, IP00 terminals |
| Standard | CEI 482 |
| Condition | PRE-OWNED / SECOND HAND |

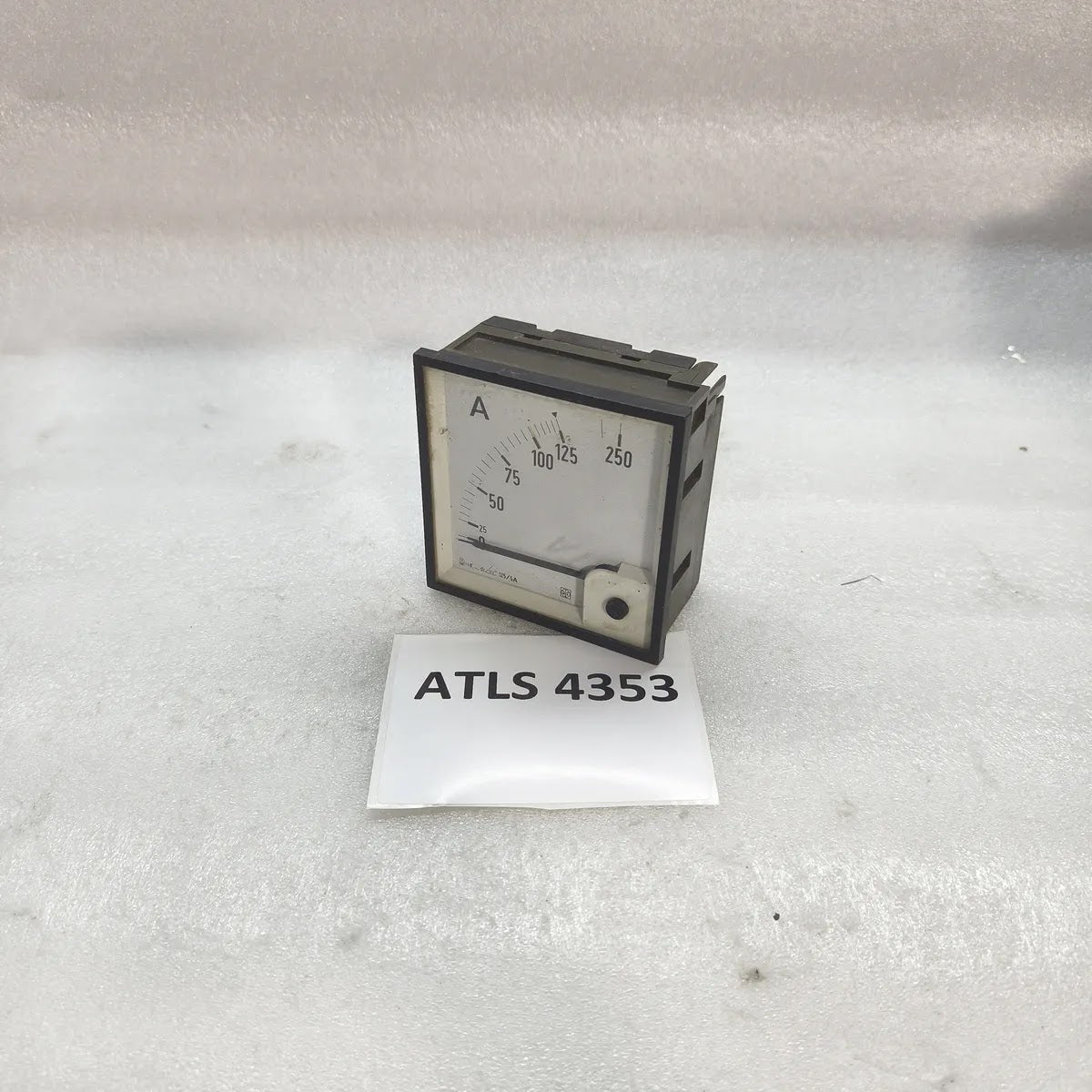

| REF | ATLS4353 |
