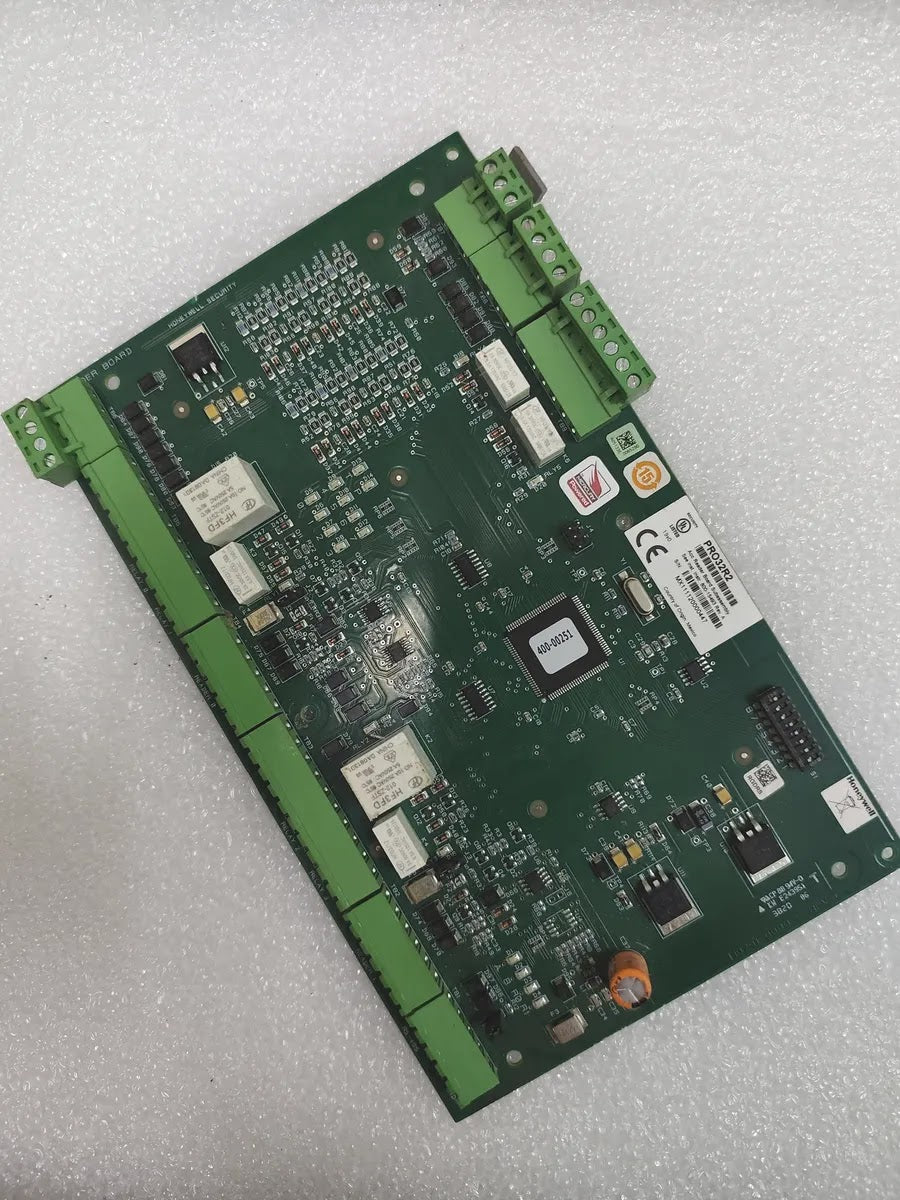

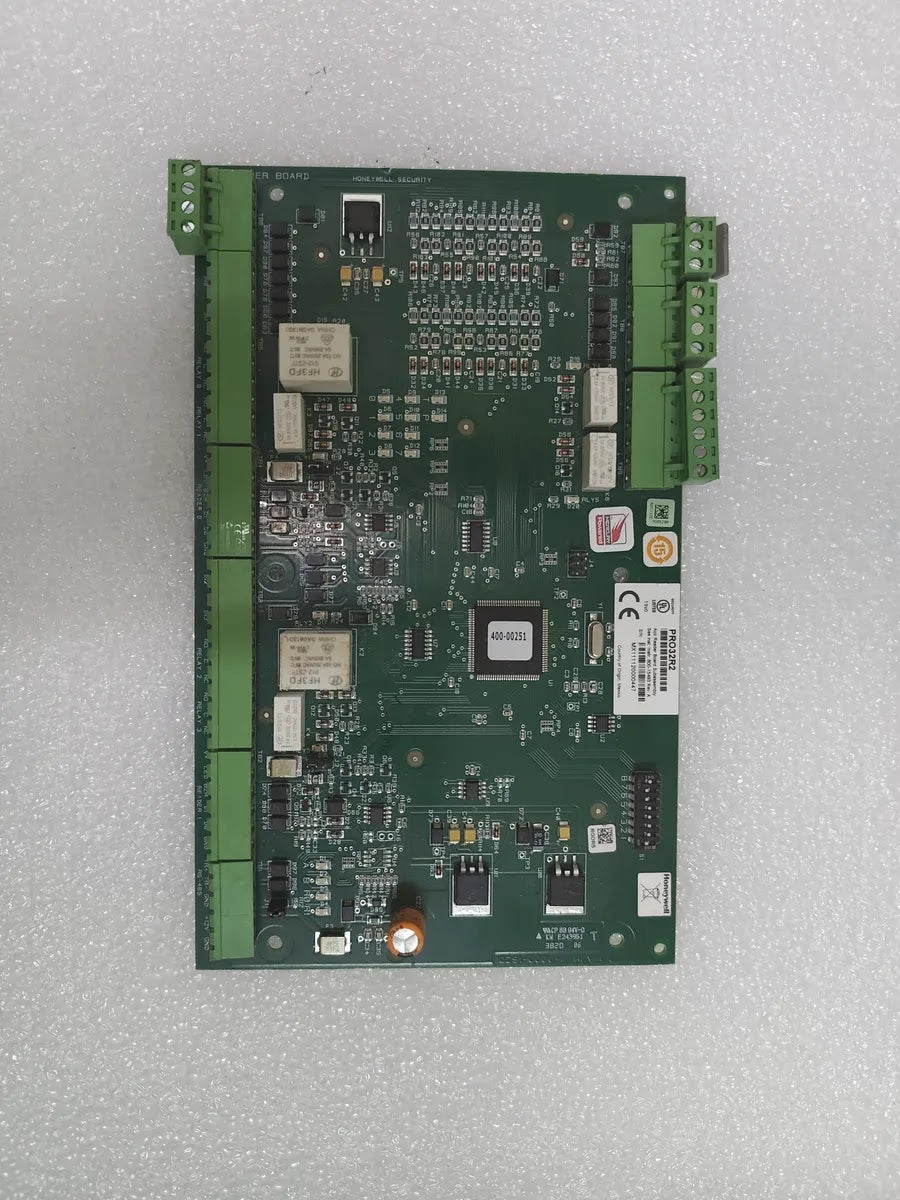

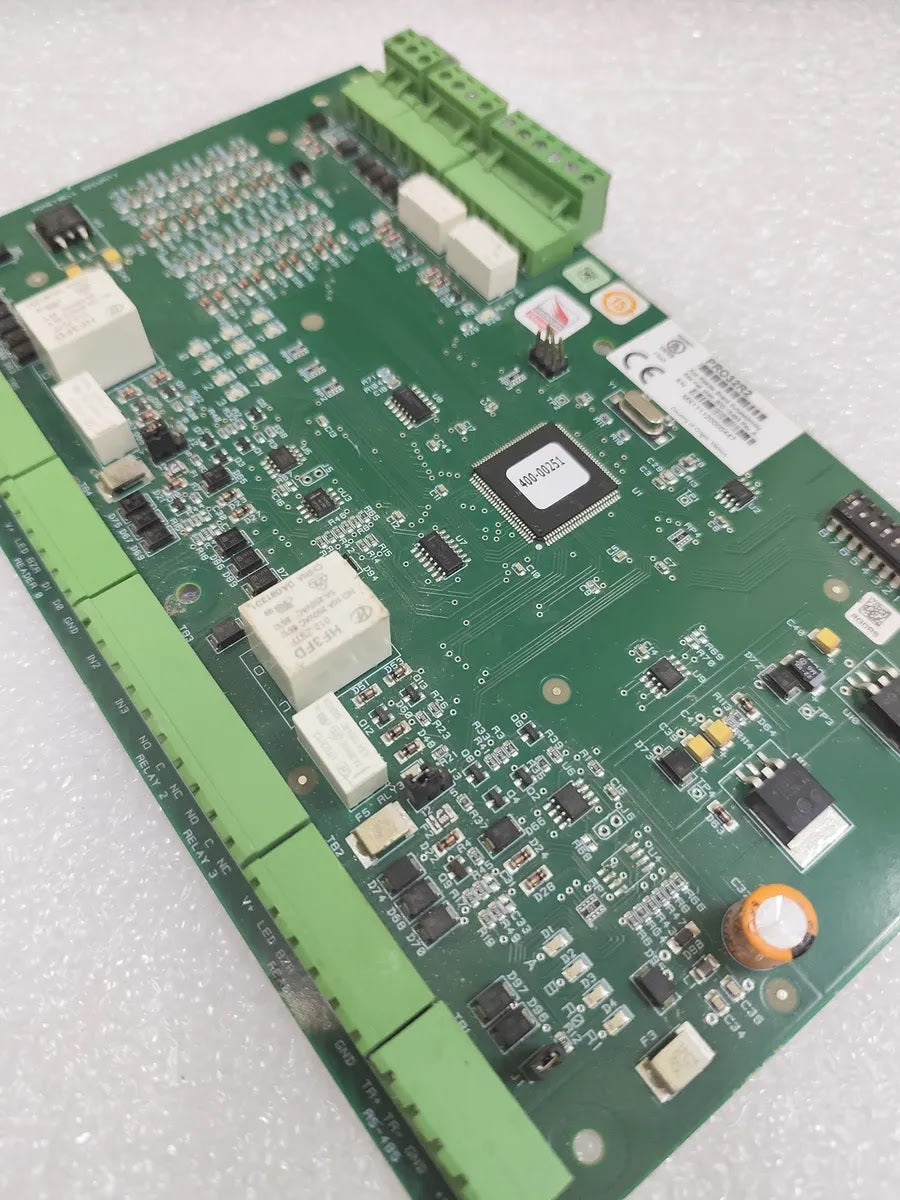

HONEYWELL PRO32R2 Dual Reader Access Control Board 12VDC
$110.00
Skip to product information
HONEYWELL PRO32R2 Dual Reader Access Control Board 12VDC
$110.00
Specifications
| BRAND | Honeywell Security |
| MODEL | PRO32R2 |
| PART NUMBER | PRO32R2 |

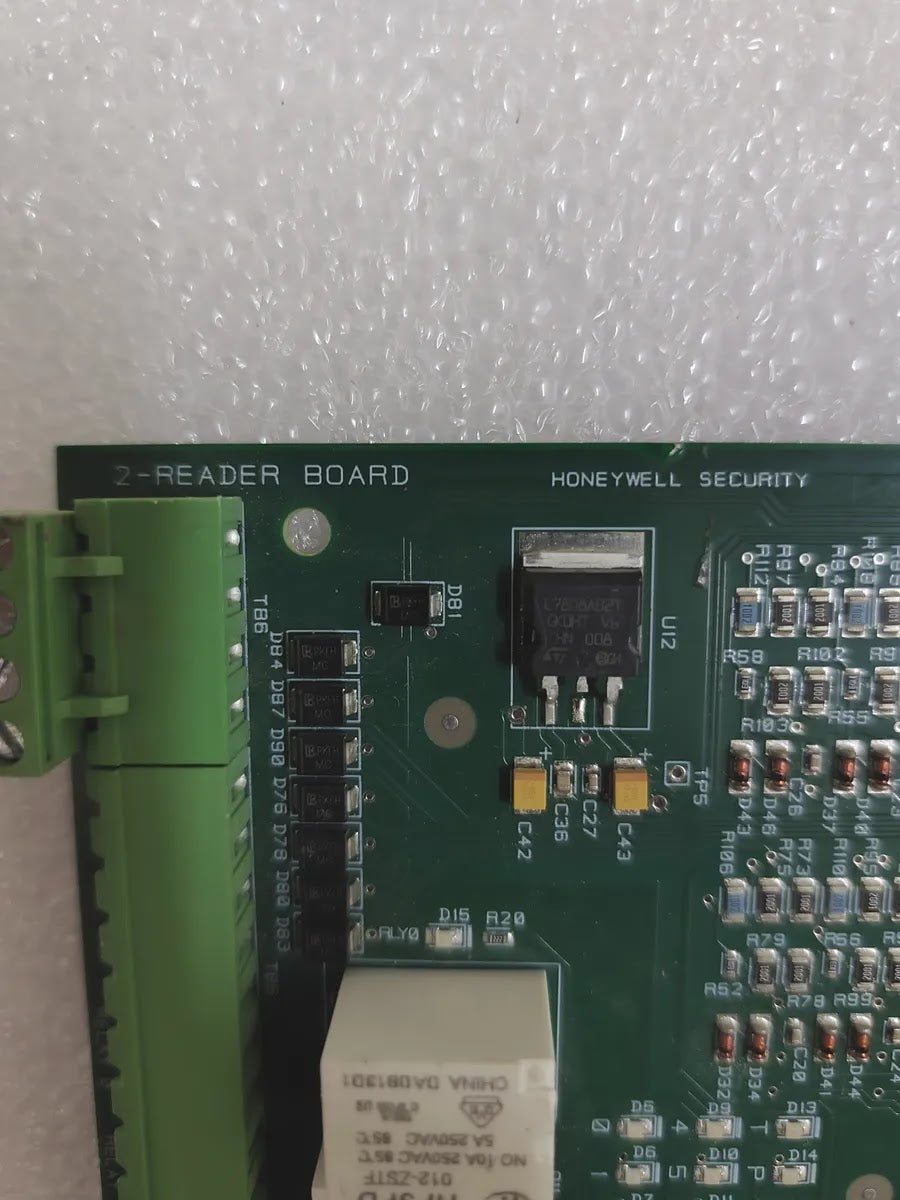

| TYPE | Acc Reader Board Subassembly — 2-Reader Board (dual reader access control module) |
| SERIES | PRO3200 Professional Series |
| APPLICATION | Provides I/O support for two card access readers (two doors); interfaces with the PRO32IC intelligent control module |
| SUPPLY VOLTAGE | 12 V DC |
| CURRENT CONSUMPTION | 50 mA |
| READER PORTS | 2 (Reader 0 and Reader 1, smart card / keypad readers) |
| INPUTS | 8 |
| RELAY OUTPUTS | 6 |

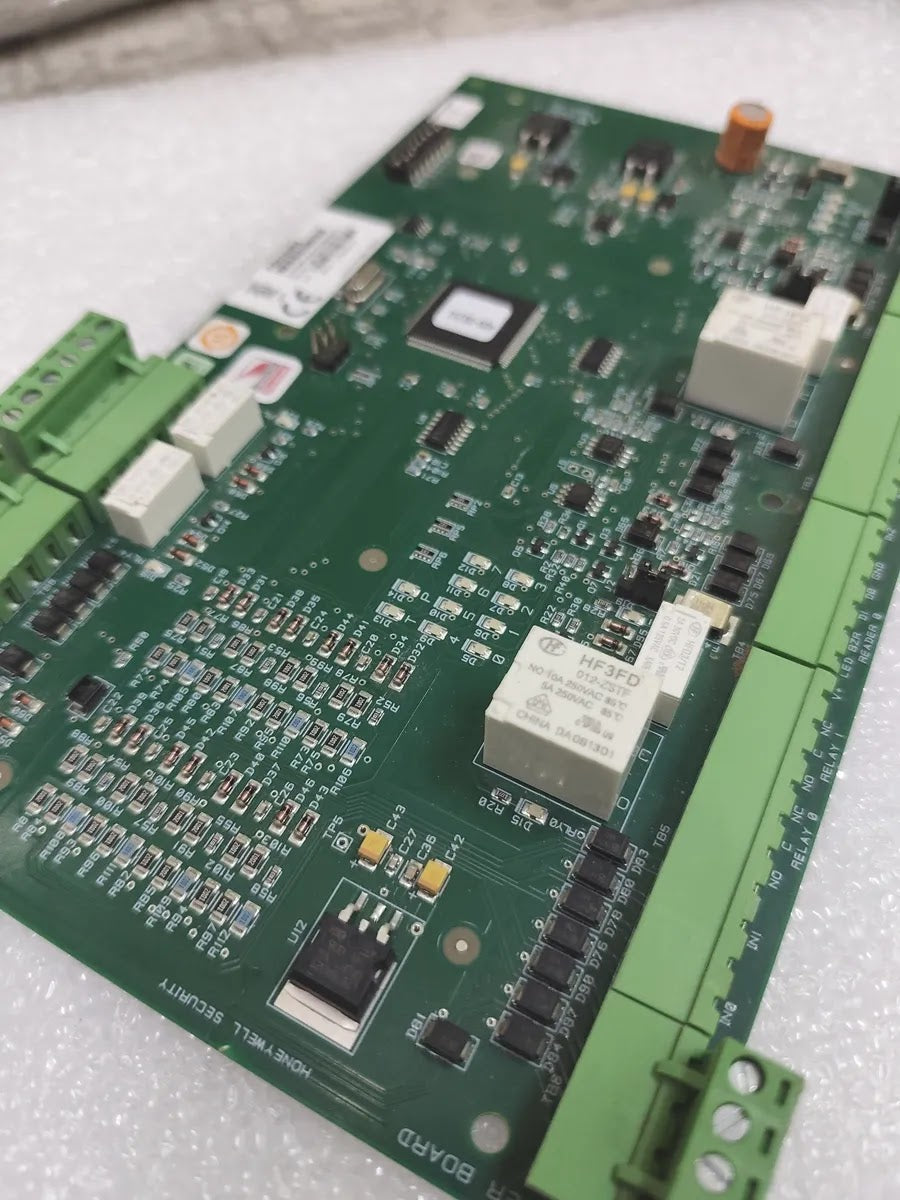

| CONTACT RATING | NO 10A 250VAC 85℃ / 5A 250VAC 85℃ (HF3FD 012-ZSTF power relays); 0.5A 12VDC, 2A 30VDC (HFD3/12 signal relays) |
| COMMUNICATION | RS-485 (TR+ / TR) to the intelligent control module |

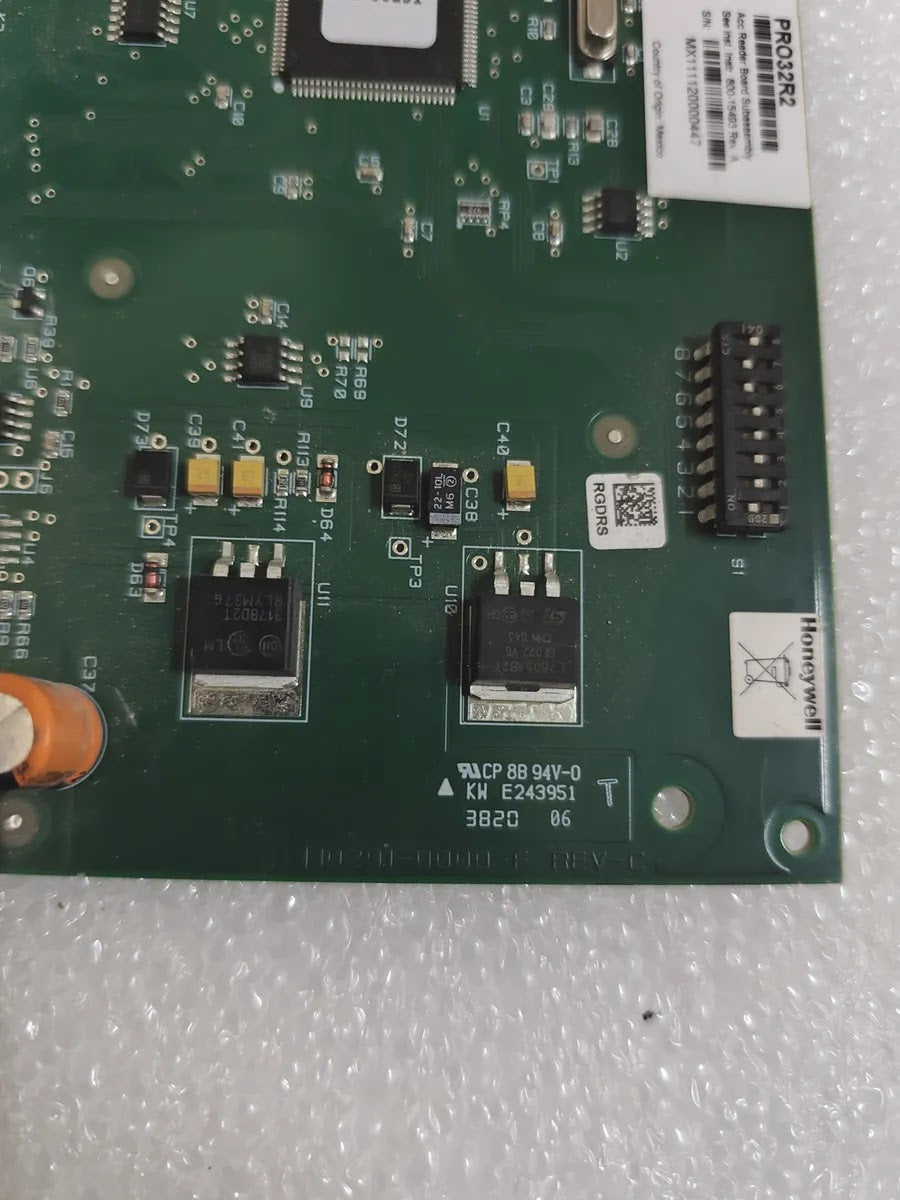

| POWER REGULATION | Onboard linear regulators L7805AB2T (5 V), L7808AB2T (8 V) and LM317 adjustable |
| OFFLINE MODE | Configurable per reader: facility code access, locked (no access) or unlocked (full access) |
| INSTALLATION INSTRUCTION | 800-15493 Rev. A |
| REVISION | 10291-0000-F REV-C |

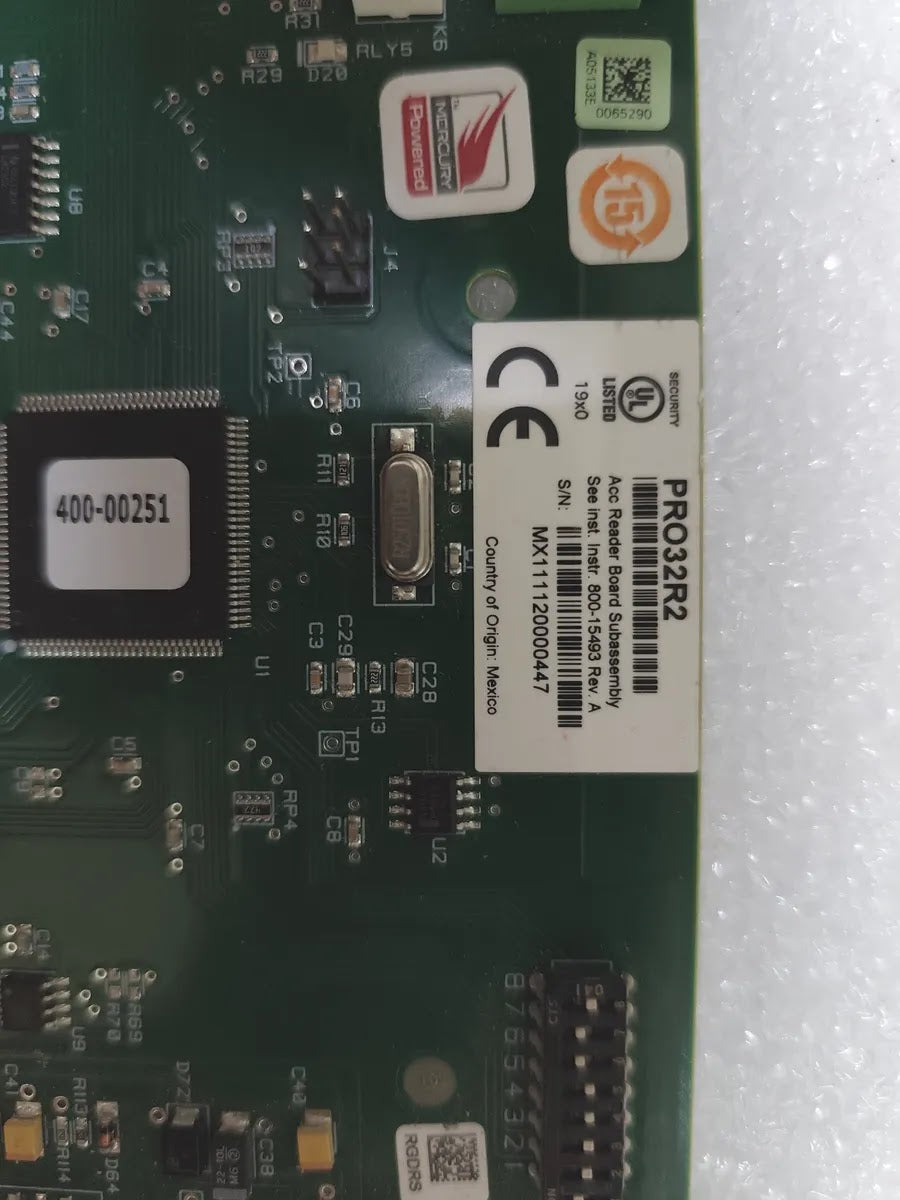

| FIRMWARE CODE | 400-00251 |
| DIMENSIONS | 229 x 140 x 25 mm (9.0 x 5.5 x 0.9 in) |
| OPERATING TEMPERATURE | 0 to 49 °C (32 to 120 °F) |
| OPERATING HUMIDITY | 0 to 85 % |
| STANDARD / APPROVALS | UL Listed (Security) 19x0, CE, RoHS; PCB flammability CP 8B 94V-0, UL file KW E243951; Mercury Powered |
| COUNTRY OF ORIGIN | Mexico |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD023 |
