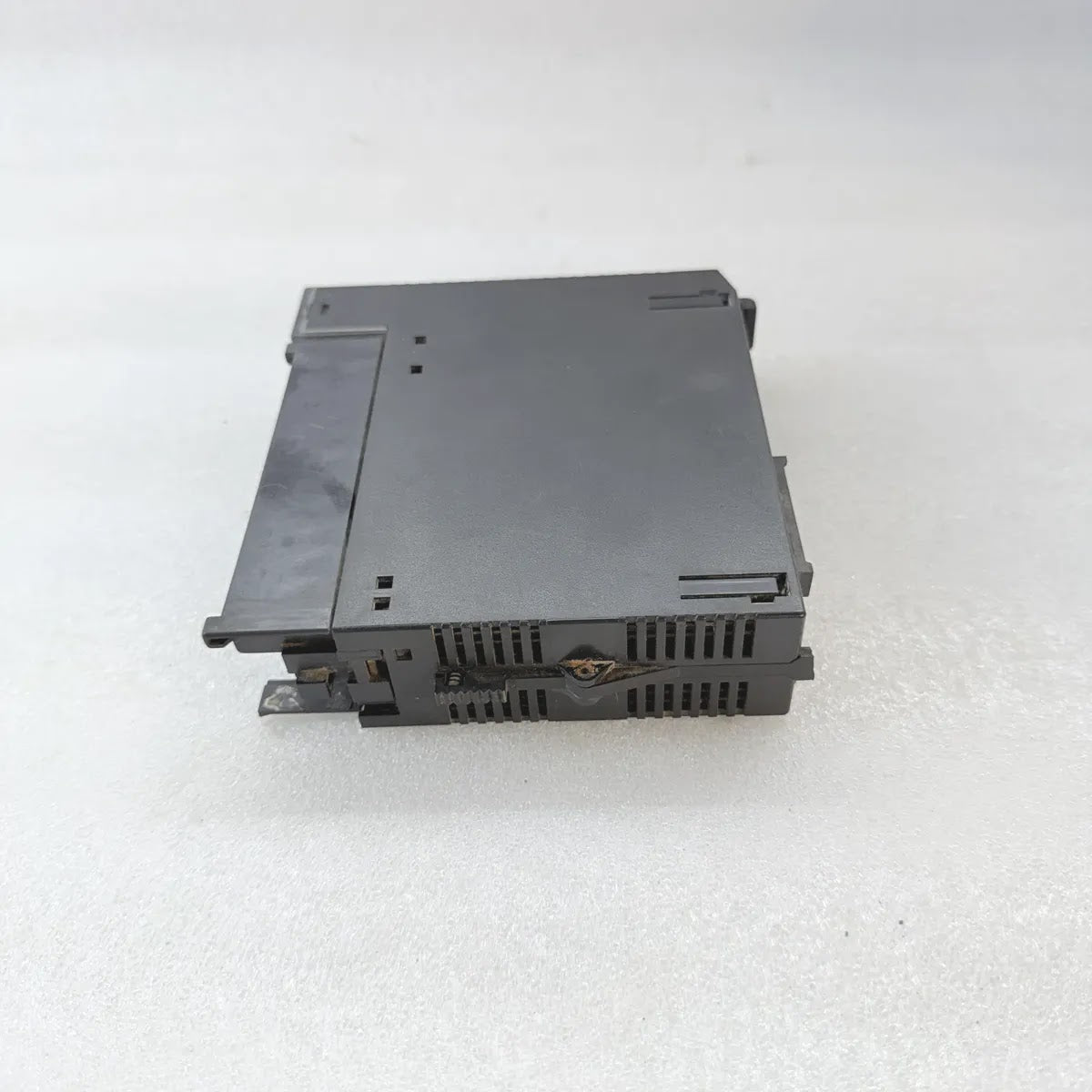

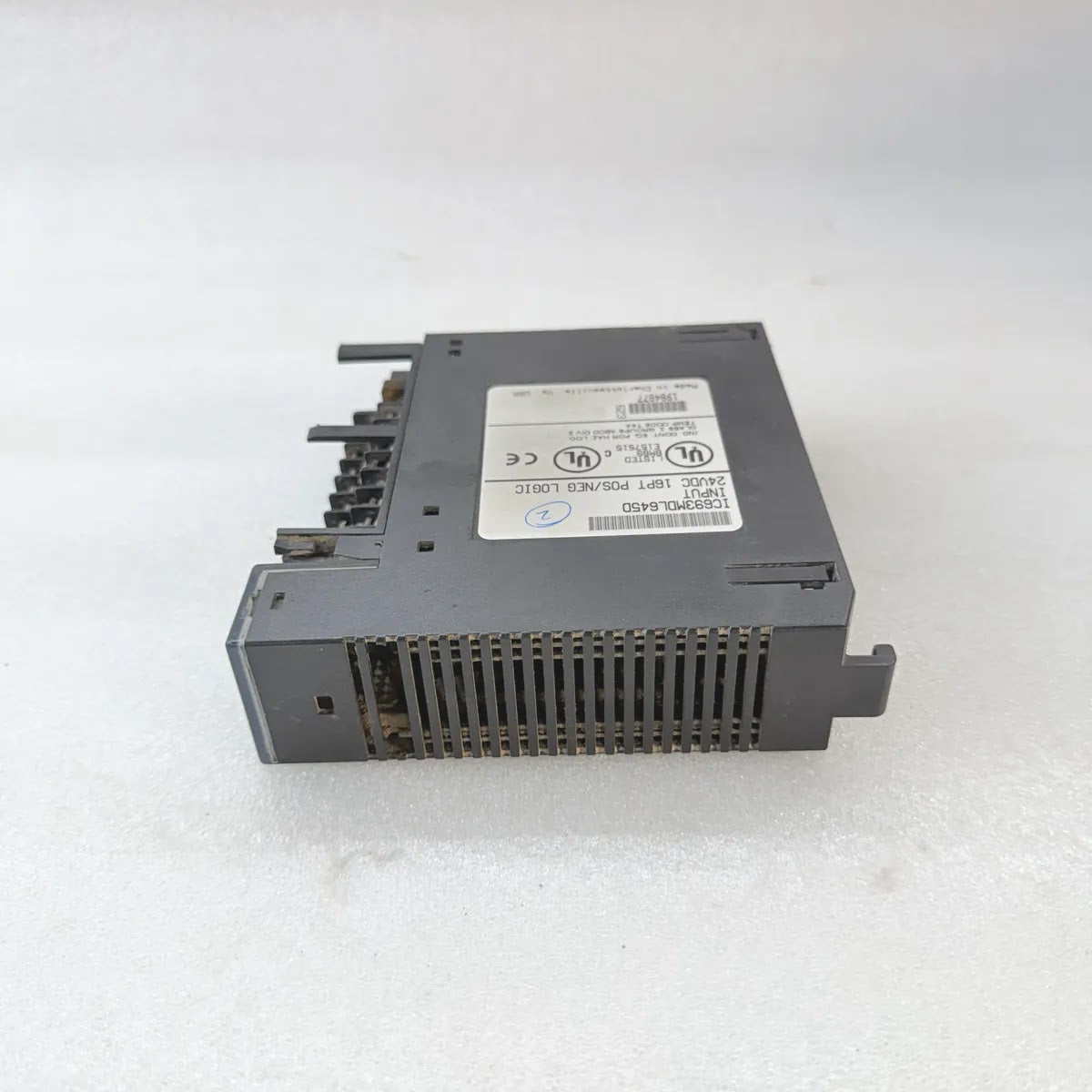

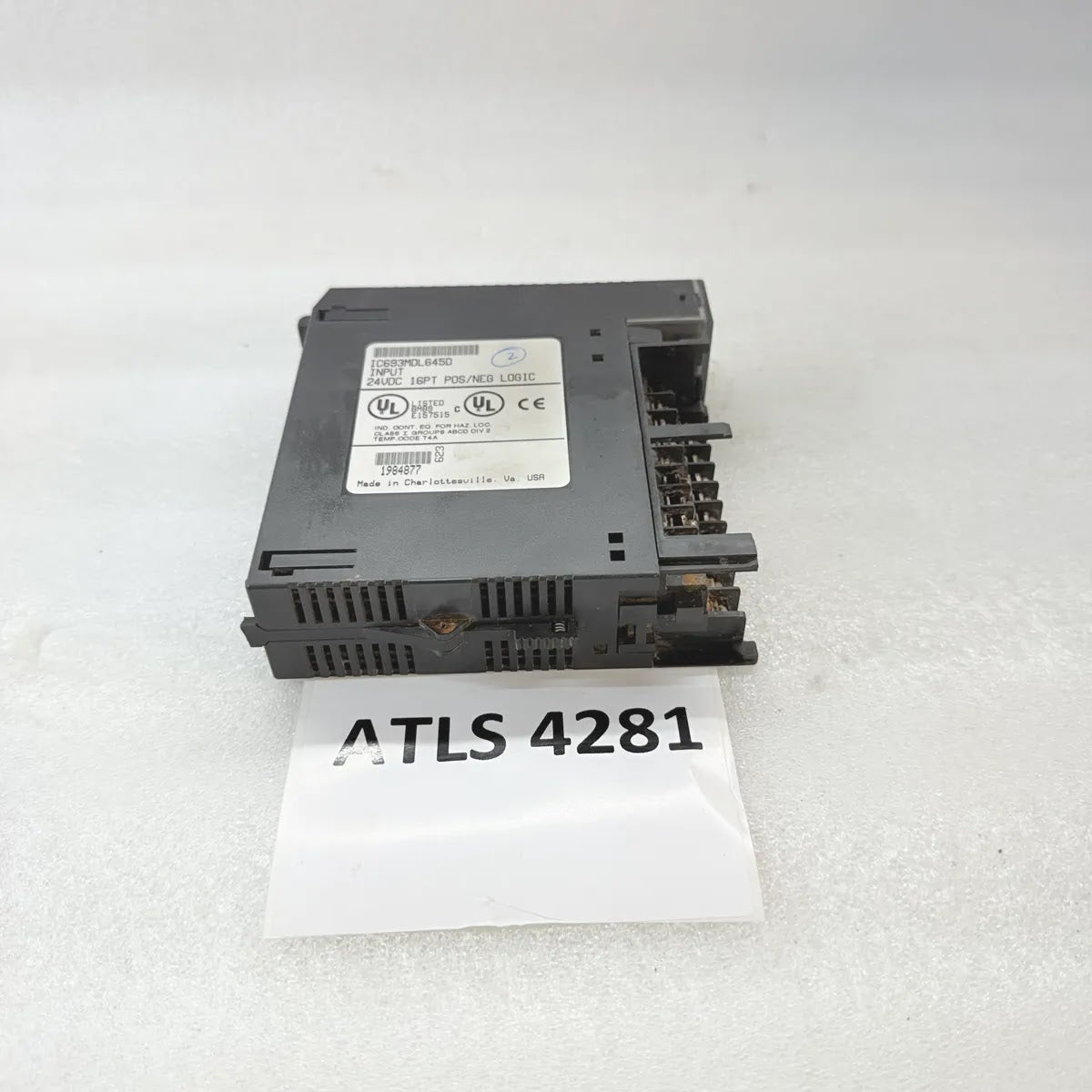

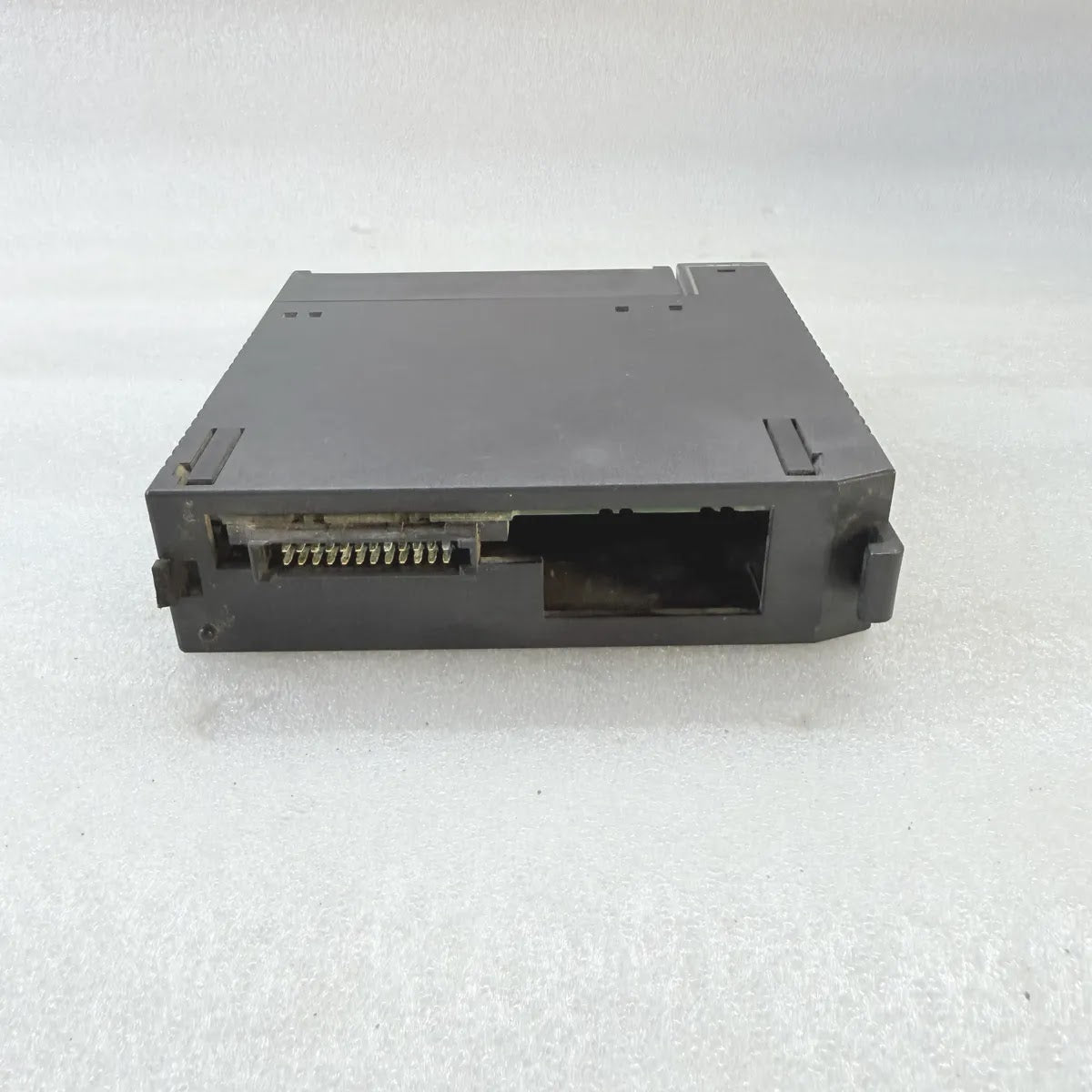

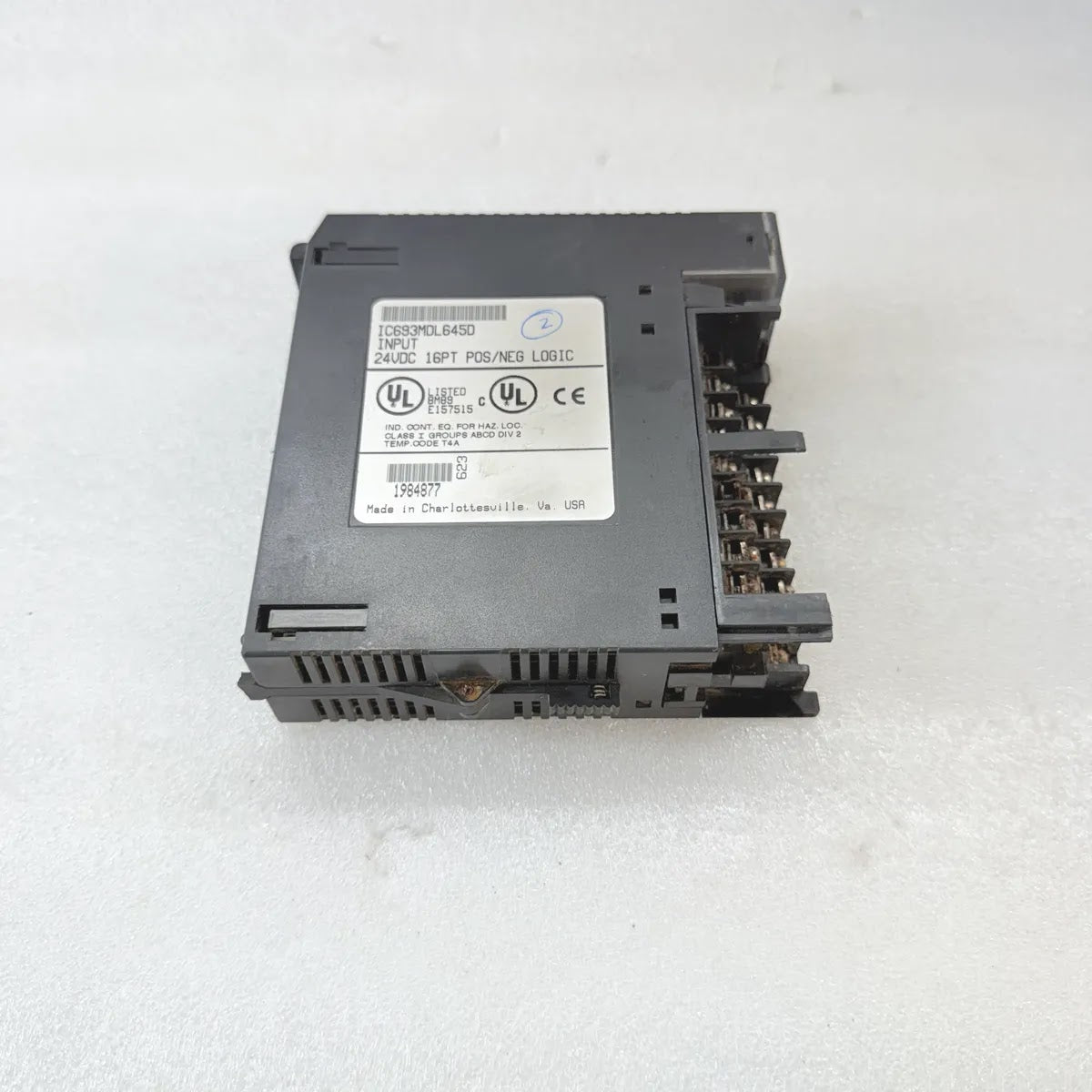

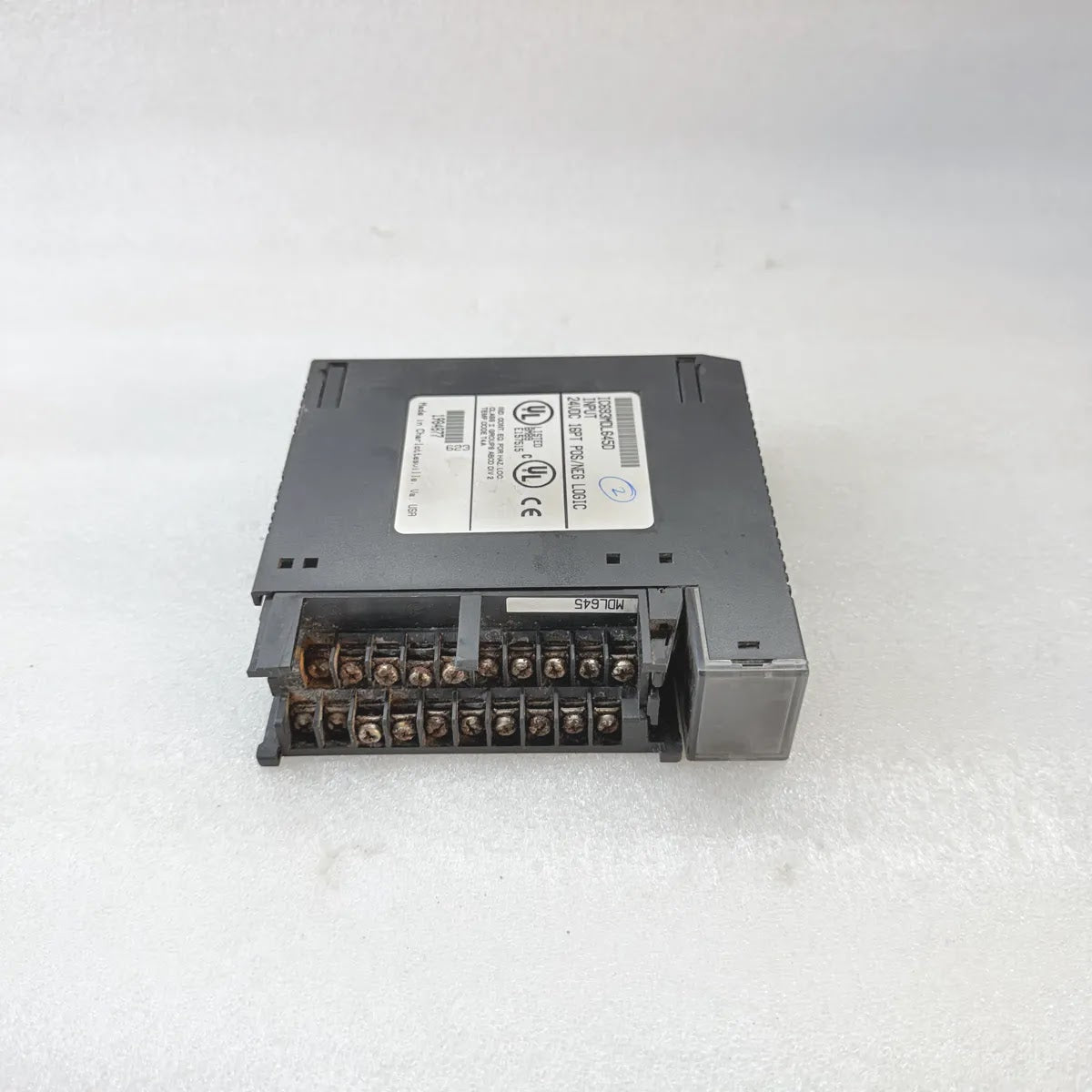

GE FANUC IC693MDL645D Series 90-30 PLC Input Module 24VDC 16-Point
Specifications
| Brand | GE Fanuc |
| Part Number | IC693MDL645D |
| Type | Discrete input module, 24VDC 16PT POS/NEG LOGIC |
| Series | Series 90-30 PLC |
| Input Points | 16 |
| Rated Input Voltage | 24VDC |
| Input Voltage Range | 0 to +30VDC |
| Input Current | 7 mA typical at rated voltage |
| On-State Voltage | 11.5 to 30VDC |
| Off-State Voltage | 0 to 5VDC |
| On-State Current | 3.2 mA minimum |
| Off-State Current | 1.1 mA maximum |
| Logic | Positive / negative logic, single input group with one common |
| Response Time | 7 ms typical on and off |
| Isolation | 1500 V field side to logic side |
| Backplane Current | 80 mA at 5V, 125 mA at isolated 24V |
| Application | Interfaces pushbuttons, limit switches, proximity switches and auxiliary contacts to a Series 90-30 PLC baseplate |
| Hazardous Location Rating | Industrial control equipment for hazardous locations, Class I Groups ABCD Div 2, Temp Code T4A |
| Approvals | UL Listed 8M89 E157515, cUL, CE |
| Country Of Origin | Made in Charlottesville, Va. USA |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4281 |
