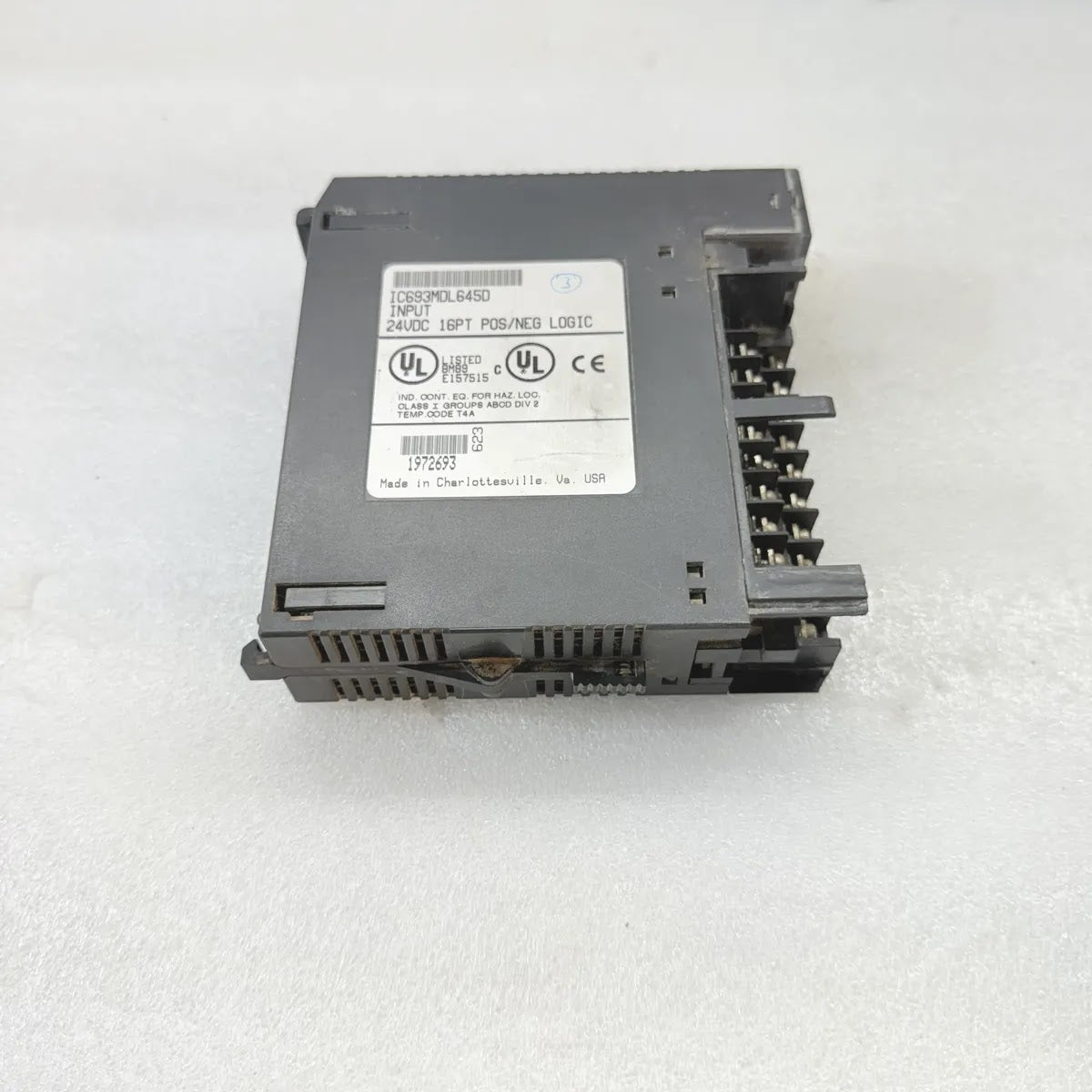

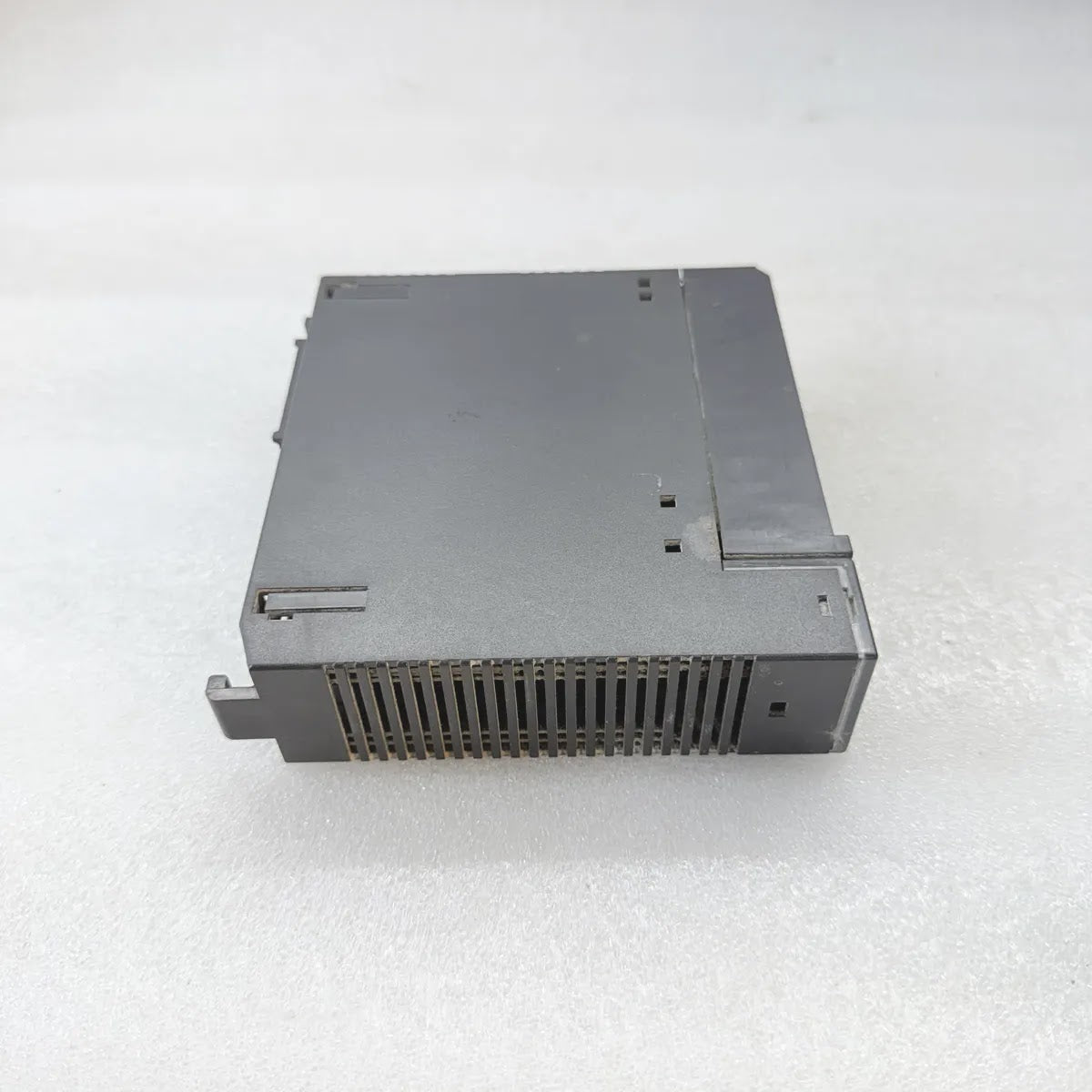

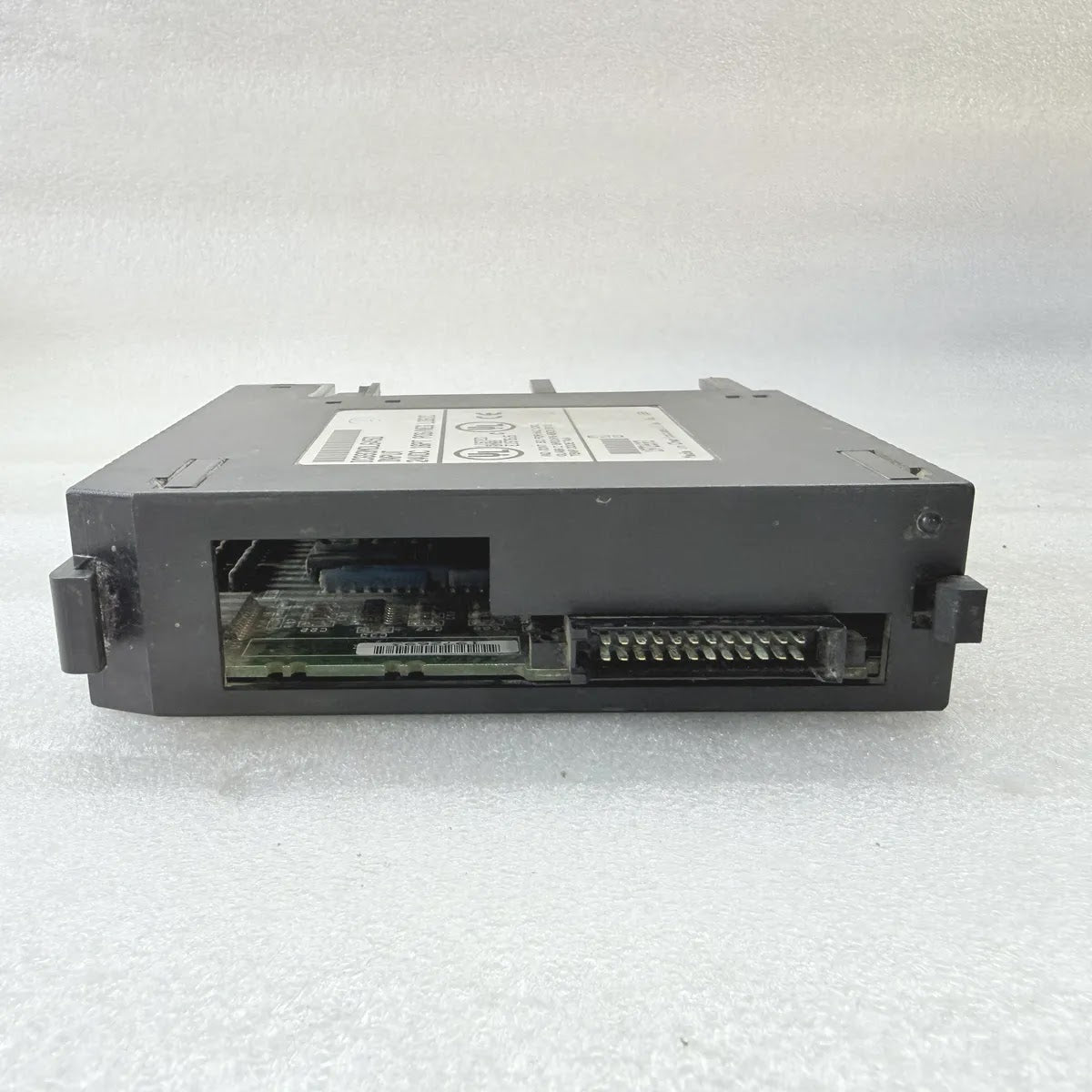

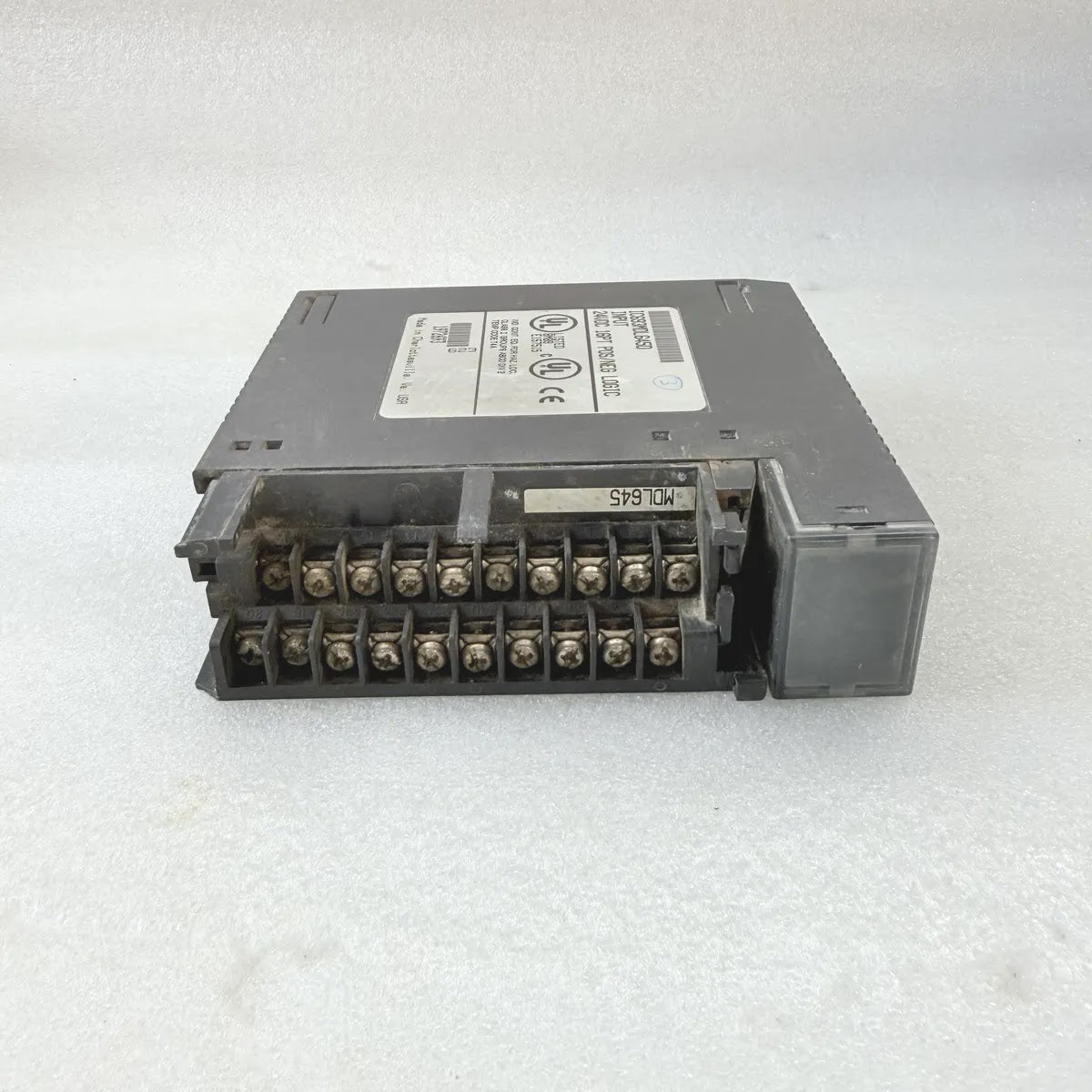

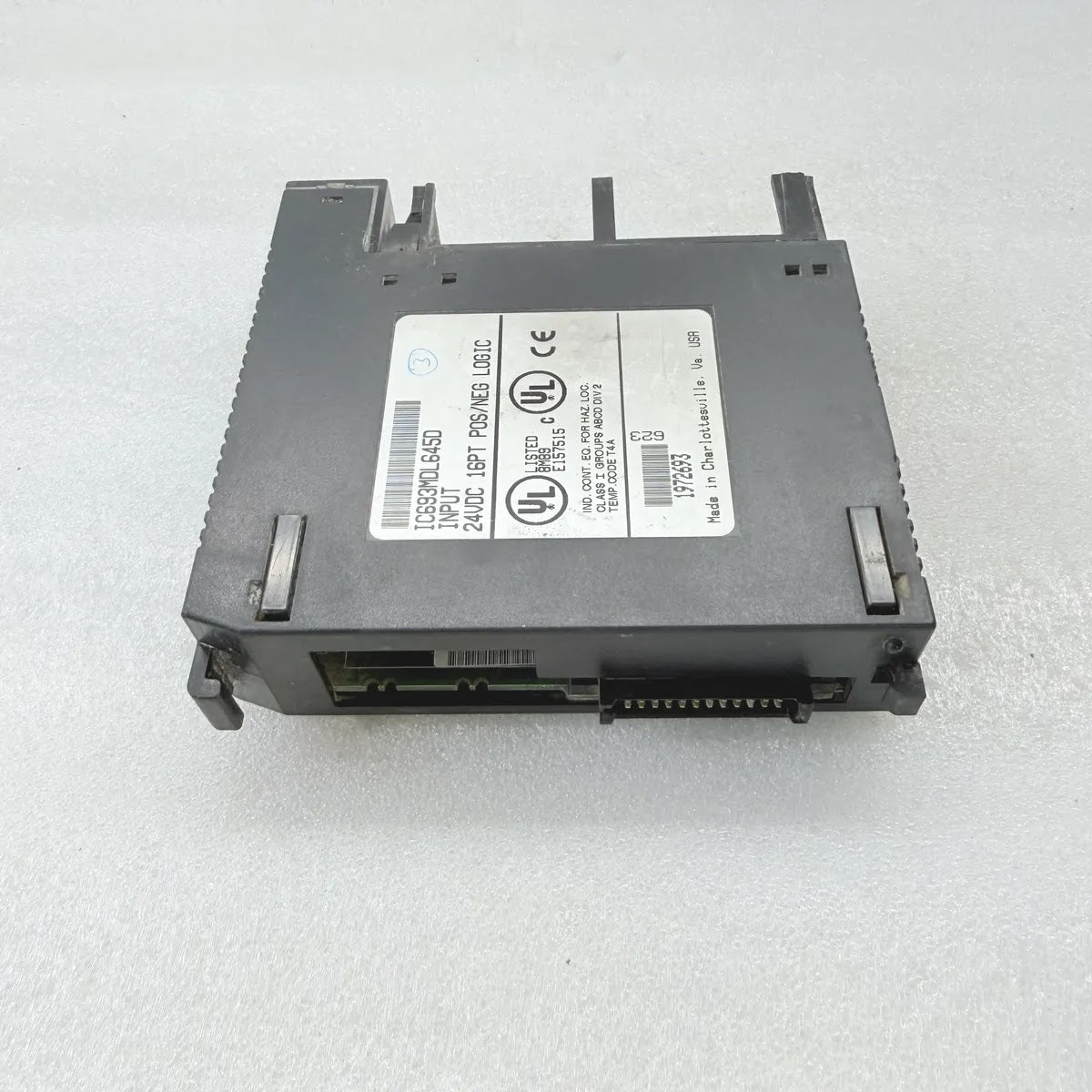

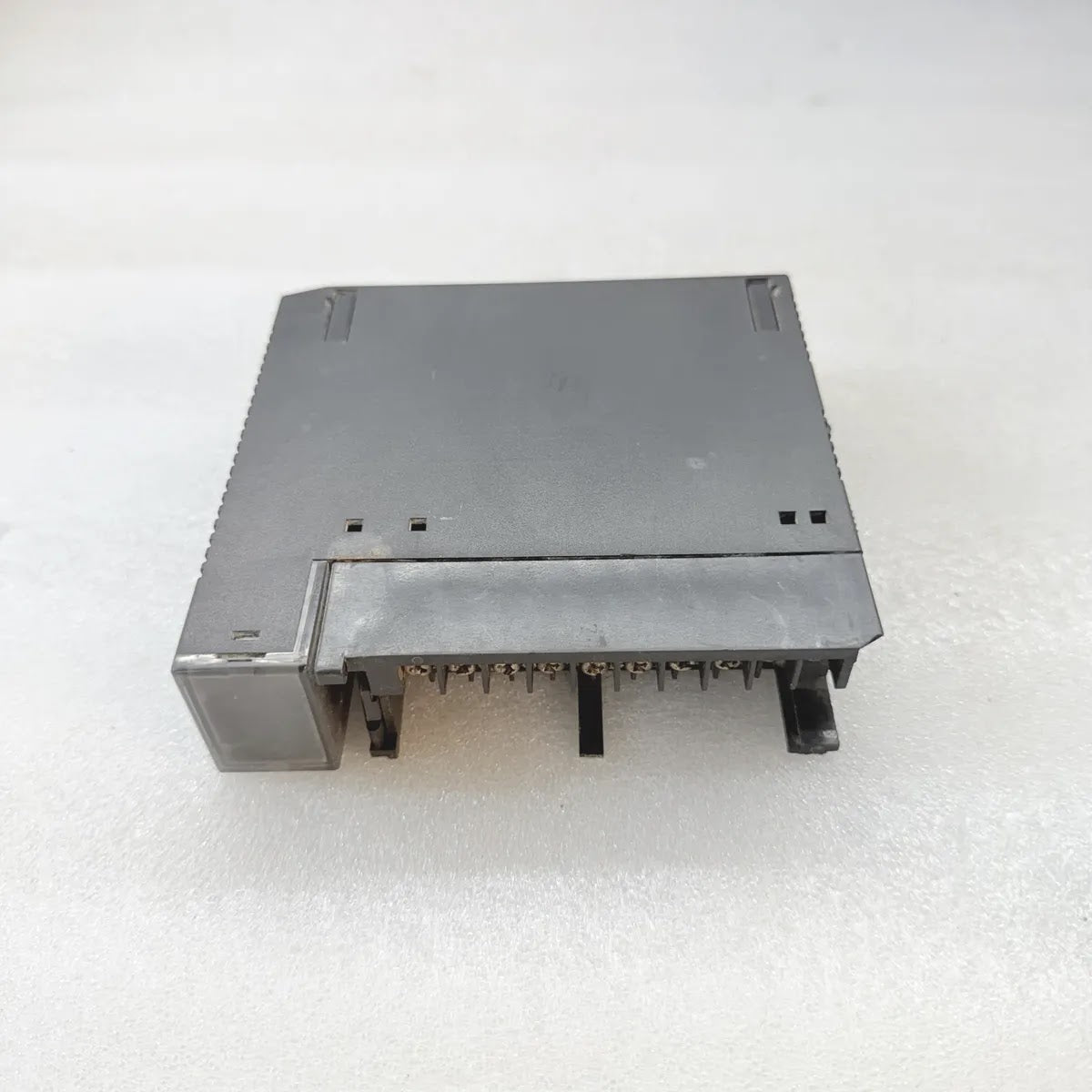

GE FANUC IC693MDL645D Discrete Input Module 24VDC 16-Point
$60.00
GE FANUC IC693MDL645D Discrete Input Module 24VDC 16-Point
Specifications
| Brand | GE Fanuc |
| Model | MDL645 |
| Part Number | IC693MDL645D |
| Type | Discrete input module, positive/negative logic |
| Series | Series 90-30 |
| Input Voltage | 24VDC |
| Input Points | 16PT (16 points in one group with a single common) |
| Input Voltage Range | 0 to +30 VDC |
| On-State Voltage | 11.5 to 30 VDC |
| Off-State Voltage | 0 to +5 VDC |
| Input Current | 7 mA typical at rated voltage |
| On-State Current | 3.2 mA minimum |
| Off-State Current | 1.1 mA maximum |
| Response Time | 7 ms on / 7 ms off |
| Isolation | 1500 V between field side and logic side |
| Power Consumption | 80 mA at 5V (all inputs on); 125 mA at 24V |
| Application | Pushbuttons, limit switches, proximity switches and similar input devices |
| Hazardous Location Rating | Industrial control equipment for hazardous locations, Class I Groups ABCD Div 2, Temp. Code T4A |
| Approvals | UL Listed 8M89 E157515, cUL, CE |
| Country Of Origin | Made in Charlottesville, Va. USA |
| Condition | PRE-OWNED / SECOND HAND |

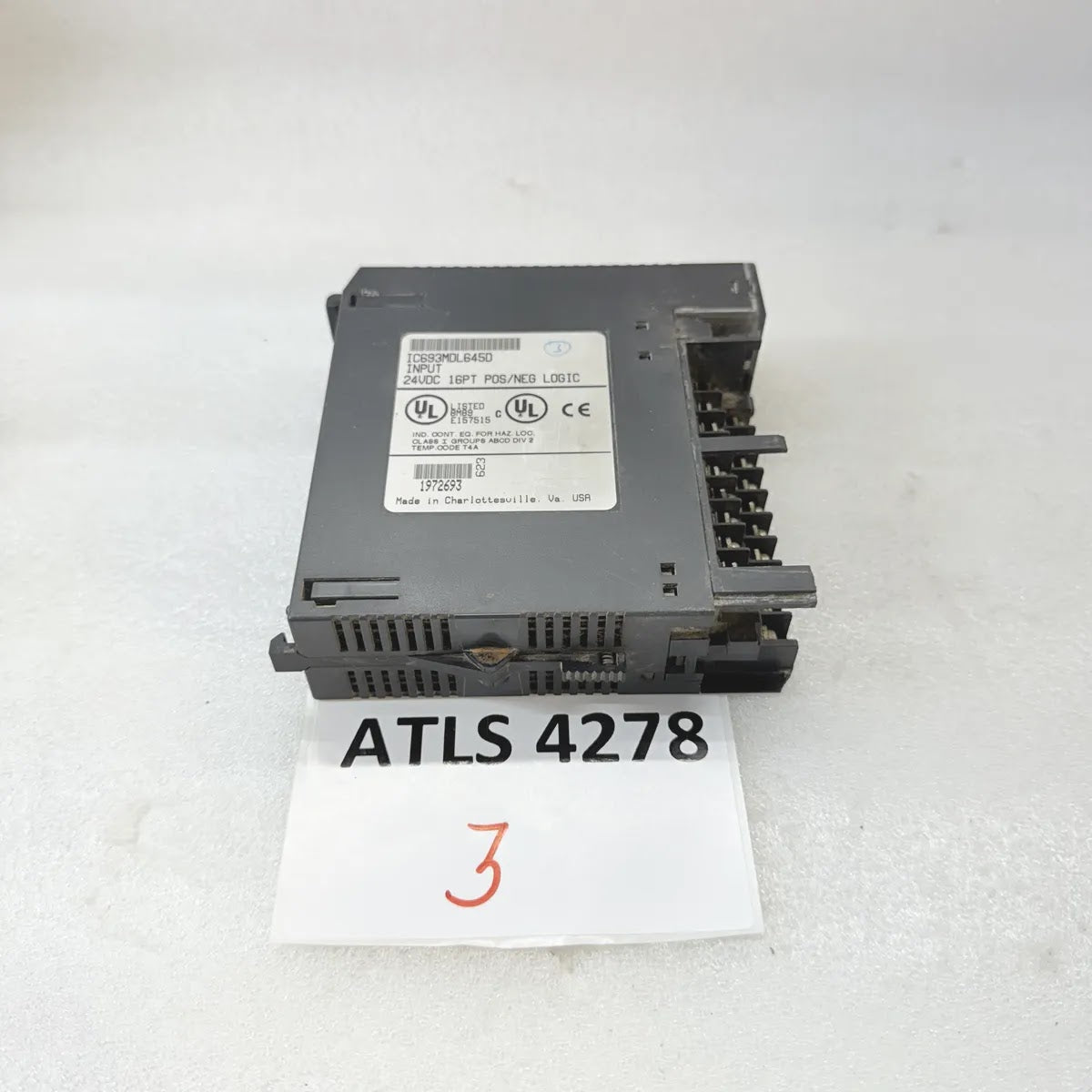

| REF | ATLS4278 |
