GE FANUC IC693CPU331Y Series 90-30 PLC CPU Module 16K
$208.98
Skip to product information
GE FANUC IC693CPU331Y Series 90-30 PLC CPU Module 16K
$208.98
GE FANUC IC693CPU331Y Series 90-30 PLC CPU Module 16K
Specifications
| Brand | GE Fanuc |
| Part Number | IC693CPU331Y |
| Type | CPU MODULE |
| Series | Series 90-30 PLC |
| Processor | 80188, 10 MHz |
| User Memory | 16K bytes (RAM, optional EEPROM / EPROM) |
| Discrete I/O | 512 inputs / 512 outputs |
| Analog I/O | 128 input words / 64 output words |
| Scan Rate | 0.4 ms per 1K of Boolean logic, typical |
| Supply Voltage | +5 V DC from the baseplate backplane |
| Current Consumption | 350 mA |
| Communication Protocol | SNP / SNP-X slave, one serial channel |
| Slot Requirement | Single slot |
| System Capacity | Up to 5 baseplates (1 CPU baseplate plus 4 expansion / remote) |
| Operating Temperature | 0 to 60 degC (32 to 140 degF) |

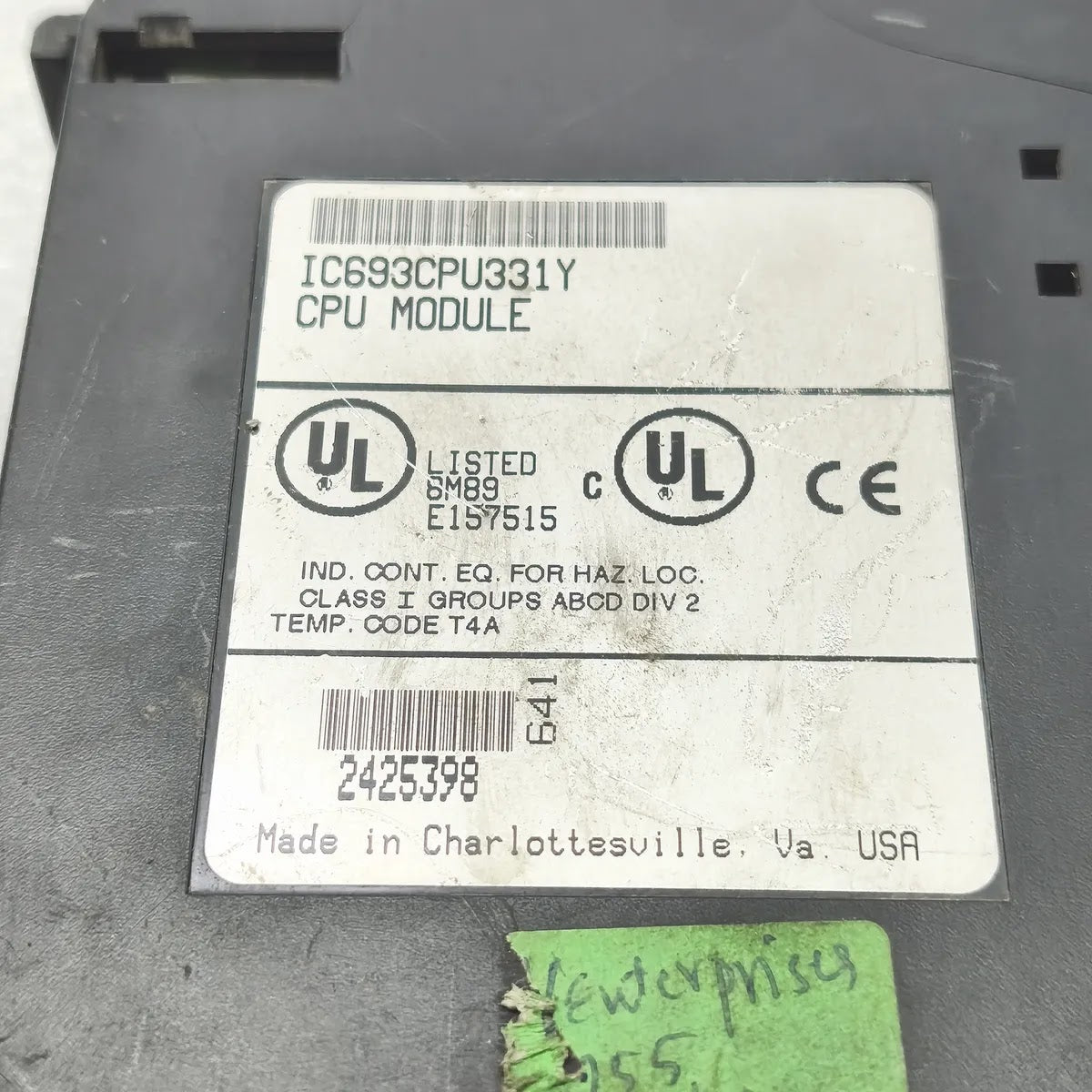

| Hazardous Location Rating | IND. CONT. EQ. FOR HAZ. LOC. CLASS I GROUPS ABCD DIV 2, TEMP. CODE T4A |
| Approvals | UL LISTED 8M89 E157515, cUL, CE |
| Country Of Origin | Made in Charlottesville, Va. USA |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4162 |
